ABS disable mod for 05+ Tacomas w/o VSC & locking diff write up *pics*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rodstone, Feb 26, 2010.

  1. Mar 11, 2012 at 9:02 PM
    #121
    BRYLONATOR

    BRYLONATOR Building 06 Suburban K2500 with LBZ D-max and ZF6!

    Joined:
    Mar 9, 2011
    Member:
    #52680
    Messages:
    1,309
    Gender:
    Male
    Denver, Colorado
    Vehicle:
    Chillin in a 120!
    There is a separate thread for that. Searching for it would be quickest way to find it. I am on my phone and don't have the patience to do it for you and post the link at the moment!

  2. Mar 11, 2012 at 9:18 PM
    #122
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,272
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    FlyinFuzzy likes this.
  3. Mar 13, 2012 at 3:54 PM
    #123
    fritzthecat

    fritzthecat Well-Known Member

    Joined:
    Jun 10, 2008
    Member:
    #7217
    Messages:
    175
    Gender:
    Male
    Virginia Beach
    Vehicle:
    07 PreRunner Auto AccCab Indigo
    Update.
    No joy on just installing a switch on the LG green wire at pin 4 of IB1.
    No ABS light. 12.5vdc on the wire side and 10.6vdc on the plug side of the green wire.

    Back to the drawing board. Wonder if ABS works with the Parking Brake on?

    07 Prerunner, no locker, no VSC, mech Limited Slip.

    Fritz

  4. Mar 20, 2012 at 6:32 PM
    #124
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    I tried it today as well, I hadn't seen your update. And same here, no ABS light came on when I disconnected the green wire from pin 4. I didn't try grounding the ECU side of the open circuit, did you? It might take opening the circuit from the Ig1 fuse, and grounding it? I'll keep you posted if i have success. I also did not try driving the truck with it disconnected, but I doubt that would be a factor.

  5. Mar 21, 2012 at 3:27 PM
    #125
    tacomafide

    tacomafide Cheese it in there!

    Joined:
    Mar 6, 2012
    Member:
    #74350
    Messages:
    179
    Gender:
    Male
    First Name:
    Sean
    Alberta
    Vehicle:
    '10 DCLB TRD Sport+Leather Pkg.
    de-badged, de-stickered, no jewlery, level kit (removed after second front dif), tint, skid plate (now dented), front tow hook off of Land Cruzer, reciever d hook (cleavis), yellow wire mod, abs kill sw. mod, window visors, stubby antena, anytime reverse lights mod, anytime reverse camera mod, blizzacks on stealies, bed lights mod, weathertec mats allround,
    Do not ground the light green wire. You will blow a fuse and achieve nothing. The grounding was for people with lockers and a resistor had to be installed to prevent blown fuse. This is all in this thread. It started as a thread to disable abs for trucks with lockers and has morphed into a thread for trucks without lockers. I suggest reading the whole thing. I followed instructions for no locker truck and it worked fine. The pics are also very helpfull.

  6. Mar 21, 2012 at 5:47 PM
    #126
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod

    OK, update here with success! I once again removed pin 4 from the IB1 connector, and same as yesterday, no noticable effect. The green wire I removed had ignition power just as the diagram showed it should. The mating pin in connector IA4 had 10.5V with the key on, but when I grounded this pin, it turned the ABS light on, and it also went out when I opened the ground connection. So, if you connected the IA4 side to the center terminal of a SPDT two position switch, the top to the green wire from IB1, and the bottom to ground, it would complete the job.

    I understand not to ground the green wire, as it will ground out the Ig1 fused circuit, and blow the fuse. I did read the whole thread, this one that started as a thread for trucks without lockers. I also read the diagrams posted. I understand rodstone's method, and while it works, I don't like the fact that you have to cycle the key to reset the ABS.

    I will take pics and document my method, and will add it here once I've completed it and confirmed all is well.

  7. Mar 21, 2012 at 8:02 PM
    #127
    BRYLONATOR

    BRYLONATOR Building 06 Suburban K2500 with LBZ D-max and ZF6!

    Joined:
    Mar 9, 2011
    Member:
    #52680
    Messages:
    1,309
    Gender:
    Male
    Denver, Colorado
    Vehicle:
    Chillin in a 120!
    You sir very well might be my hero!! I will need you to pm me your address so that I can send you a christmas card this year!

  8. Mar 21, 2012 at 9:20 PM
    #128
    tacomafide

    tacomafide Cheese it in there!

    Joined:
    Mar 6, 2012
    Member:
    #74350
    Messages:
    179
    Gender:
    Male
    First Name:
    Sean
    Alberta
    Vehicle:
    '10 DCLB TRD Sport+Leather Pkg.
    de-badged, de-stickered, no jewlery, level kit (removed after second front dif), tint, skid plate (now dented), front tow hook off of Land Cruzer, reciever d hook (cleavis), yellow wire mod, abs kill sw. mod, window visors, stubby antena, anytime reverse lights mod, anytime reverse camera mod, blizzacks on stealies, bed lights mod, weathertec mats allround,
    That's cool if it works for you, just seems overly complicated. I just followed instructions in post that started with "booyaah," or something. Cut light green wire, one side to spst switch, out of switch back to light green wire. Simple. 20 min. On the fly ability to switch abs on or off.

  9. Mar 22, 2012 at 7:40 PM
    #129
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    I tried simply opening the circuit, which on my '06 did not have any noticable effect, same as what Fritzthecat experienced. There must be differences between the older ABS ECU's and the newer ones if it worked for you and others. So, since the way you did it didn't work for me, I can't agree that my discovery is overly complicated. Its simply what the switch does in the factory locker trucks.:cool:

  10. Mar 27, 2012 at 7:27 PM
    #130
    tacomafide

    tacomafide Cheese it in there!

    Joined:
    Mar 6, 2012
    Member:
    #74350
    Messages:
    179
    Gender:
    Male
    First Name:
    Sean
    Alberta
    Vehicle:
    '10 DCLB TRD Sport+Leather Pkg.
    de-badged, de-stickered, no jewlery, level kit (removed after second front dif), tint, skid plate (now dented), front tow hook off of Land Cruzer, reciever d hook (cleavis), yellow wire mod, abs kill sw. mod, window visors, stubby antena, anytime reverse lights mod, anytime reverse camera mod, blizzacks on stealies, bed lights mod, weathertec mats allround,
    This mod kills my Yellow wire mod.
    I want both:mad:

  11. Mar 27, 2012 at 7:36 PM
    #131
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,006
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    Yes. Yes it does.

  12. Apr 14, 2012 at 12:58 PM
    #132
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I want to confirm this works 100% ground the pin behind the green wire. Im gonna do some more digging and see if i can come up with something better.

  13. Apr 14, 2012 at 7:28 PM
    #133
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Cool, post your results if you don't mind. The way I posted above worked great for me in the driveway with a jumper wire, but that's the extent of my testing so far, but I'm confident it will work from looking at the diagram.

    I haven't had the time to continue on mine, been busy with other projects and life. I've got a switch now, just need to find the time, not that it will take long to wire it up. I'm wanting to hit the wreckers and get a pair of connector bodies so I can connect it without cutting and remove it without a trace later if I ever want to.

  14. Apr 15, 2012 at 6:01 PM
    #134
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Well looks like my endeavors are frivolous.. I was trying to find a way to use the factory harness for the diff lock switch in the dash to disable the ABS, No dice.

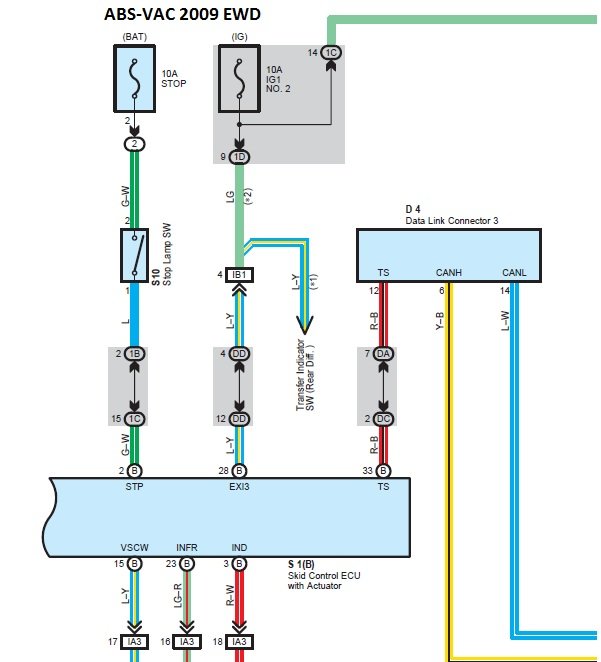

    This Diff Lock switch in the dash ONLY send +12v to the ABS ECU which then tells the Diff to lock.
    The Diff Lock Indicator switch sends the Ground signal to the L-Y wire on the back of IB1 (Our Green wire)

    Although I did trace our Green wire up to the fuse panel behind the pull out cubby to the left of the steering wheel. This may be a better location to cut the Green wire to add the switch.

  15. Apr 15, 2012 at 6:20 PM
    #135
    tacomafide

    tacomafide Cheese it in there!

    Joined:
    Mar 6, 2012
    Member:
    #74350
    Messages:
    179
    Gender:
    Male
    First Name:
    Sean
    Alberta
    Vehicle:
    '10 DCLB TRD Sport+Leather Pkg.
    de-badged, de-stickered, no jewlery, level kit (removed after second front dif), tint, skid plate (now dented), front tow hook off of Land Cruzer, reciever d hook (cleavis), yellow wire mod, abs kill sw. mod, window visors, stubby antena, anytime reverse lights mod, anytime reverse camera mod, blizzacks on stealies, bed lights mod, weathertec mats allround,
    Nice work tracing the wire out. That is def easier. In your ewd's do you have pg's 40-60 ?

  16. Apr 15, 2012 at 6:53 PM
    #136
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yes, it's labeled: E.W.D. 2006::2006 Tacoma: Electrical Wiring Routing
    ".../Complete manual/data/ileaf/06toyewd/06toypdf/ewd/2006/tacoma/g/em01d0up.pdf"

  17. May 2, 2012 at 7:53 AM
    #137
    Country101

    Country101 Well-Known Member

    Joined:
    Apr 7, 2012
    Member:
    #76429
    Messages:
    443
    Gender:
    Male
    NW Arkansas
    Vehicle:
    08 tacoma access cab V6 4x4 manual
    dirty truck mod, custom trailer scratch on tailgate, husky floorliners, OME Lift
    ok, I have read this several times and keep getting confused on what the proper way to do this is and if there is another way for me to do it so the abs light doesnt come on. Somebody please enlighten this moron.

    I have an 08 v6 standard 4x4 with no frills. The only switch I have on the dash is the slutch start cancel, so I assume I have no other traction controls. So, does this sound like the best thing for me to do is put a switch on the blue wire from the original post or is there something that would work better or just not leave the stinking light on?

  18. May 2, 2012 at 8:05 AM
    #138
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    You are in the correct thread from the sounds of it, no locker, no VSC, no atrac.

    It will always come on. The trick is does it go out, "on the fly" by flipping the switch, or by turning the key off and back on.
    Use landphils method a few posts back if you want the "on the fly" method.

  19. May 2, 2012 at 8:44 AM
    #139
    Country101

    Country101 Well-Known Member

    Joined:
    Apr 7, 2012
    Member:
    #76429
    Messages:
    443
    Gender:
    Male
    NW Arkansas
    Vehicle:
    08 tacoma access cab V6 4x4 manual
    dirty truck mod, custom trailer scratch on tailgate, husky floorliners, OME Lift
    Thanks Sandman, I'll check out landphils posts again. I wish there was a way to keep it off, cause I will leave it that way most, if not all the time.

  20. Jul 2, 2012 at 12:28 PM
    #140
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    OK, so now that I've had time to complete this mod on my 2006 tacoma, and test its function, the time for a DIY has come. Please note that these instructions are for tacomas without VSC or rear diff lock. It should work for 4x4s, prerunners, and I think even 5 lugs. This mod is intended to improve braking OFF road, may compromise steering control, and is NOT for on-road use. Do this mod at your own risk, if you don't like it, then it's not for you. Don't bother trying to debate or argue with me about the intended function of this mod, you will get nowhere. If you have a better way of acheiving it, feel free to out-do me. Thanks to all those that helped me figure this out, and even gave me the idea for original method.

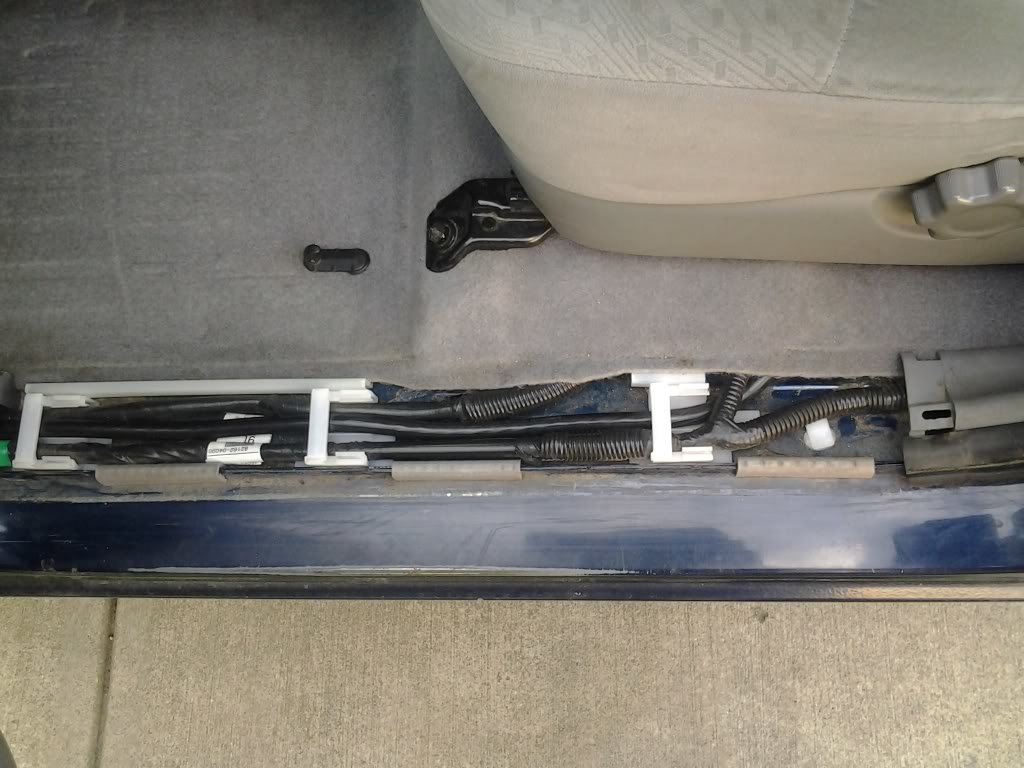

    First, remove the driver's door sill trim by pulling gently upward, it is held down with plastic clips.

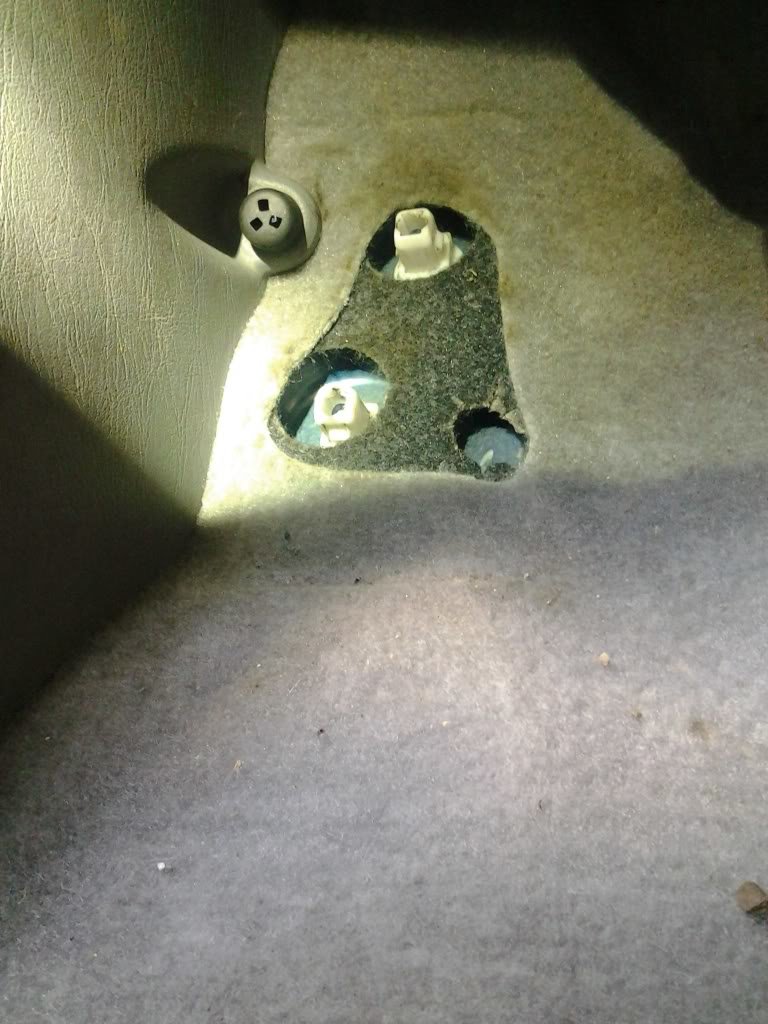

    Next, remove the foot rest by pulling, again, held on with plastic clips. Behind that is a plastic thumb nut that holds the left kick panel in place.
    Remove the thumb nut, then remove the left kick panel by pulling toward the rear if the truck. There are two clips near the door that hold quite well.

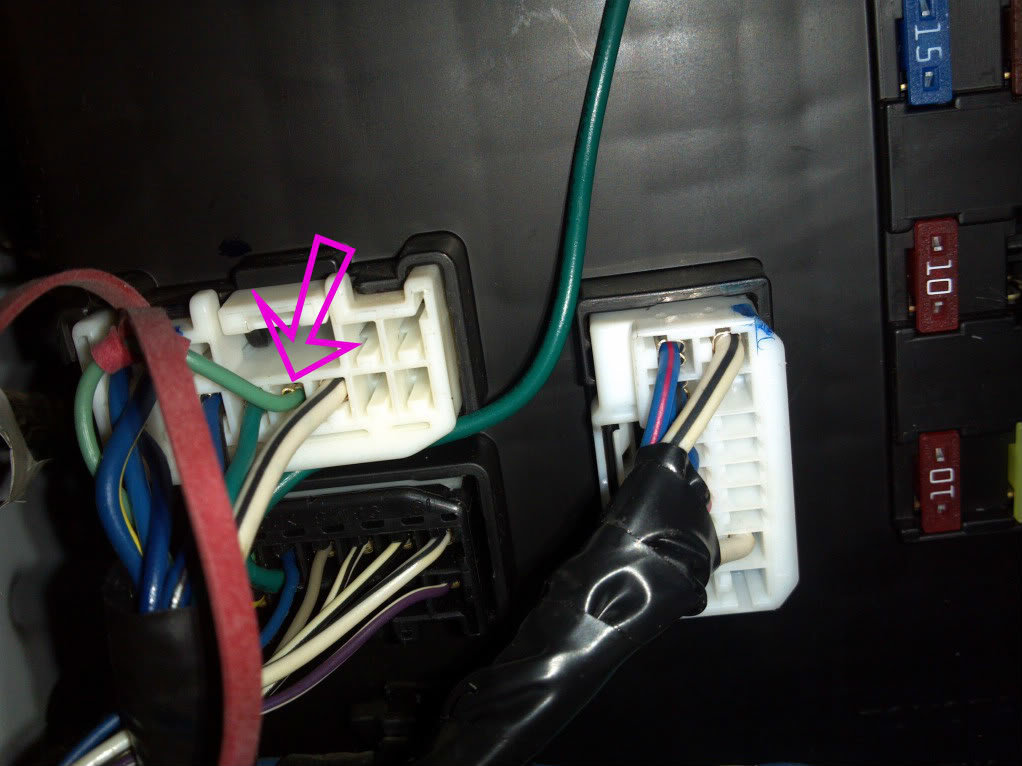

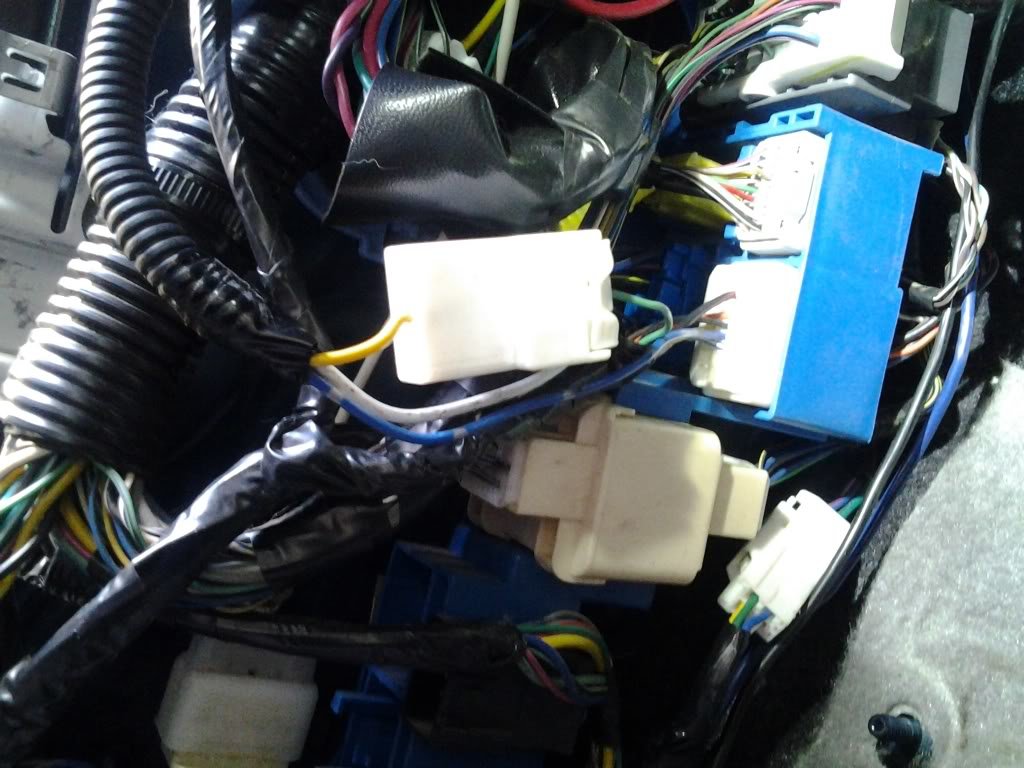

    Locate connector IB1, pin 4 as pointed to in the photo. This should be a light green wire on any tacos without locker. It is the blue wire in my photo, pointed to by the pen

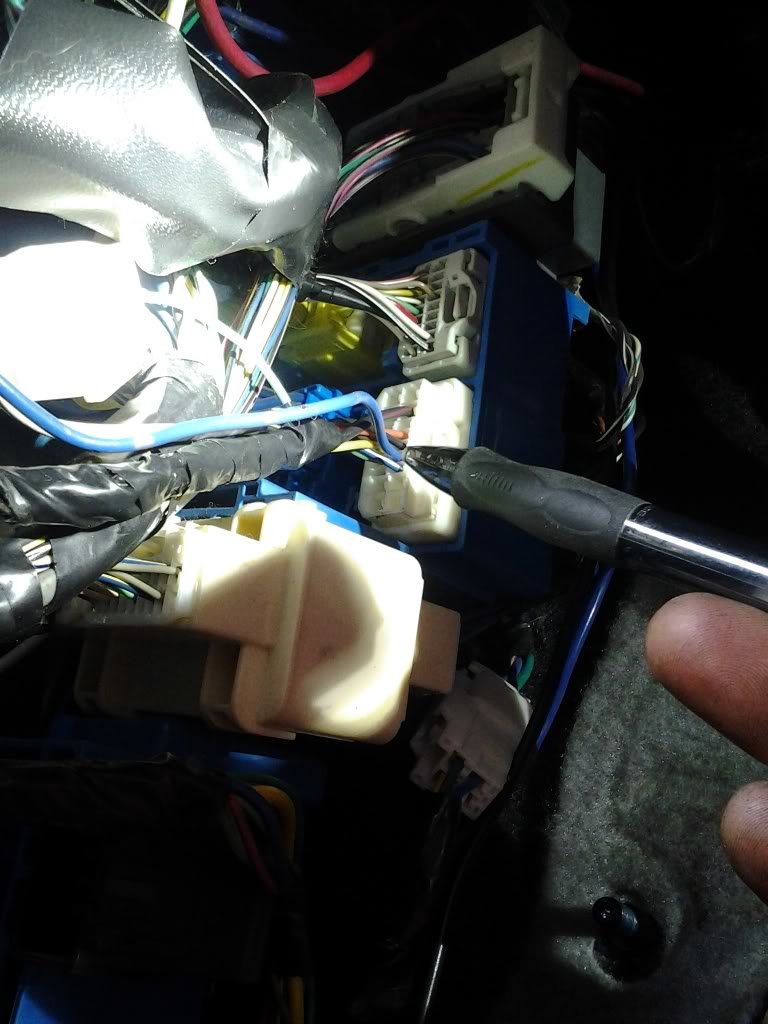

    I did this mod without cutting the wire, I simply removed the green wire and pin from IB1 connector, and put it into one side of a pair of toyota connector bodies I got from the wrecking yard (shown in the center of the photo below), and matched it to my yellow wire in the mating connector. Then, I put my blue wire and appropriate pin into pin 4 of IB1 connector where the light green wire was. You can get the same result by cutting the light green wire a couple inches back from IB1, and splicing the loose end to the yellow wire, and the blue wire to the connector end.

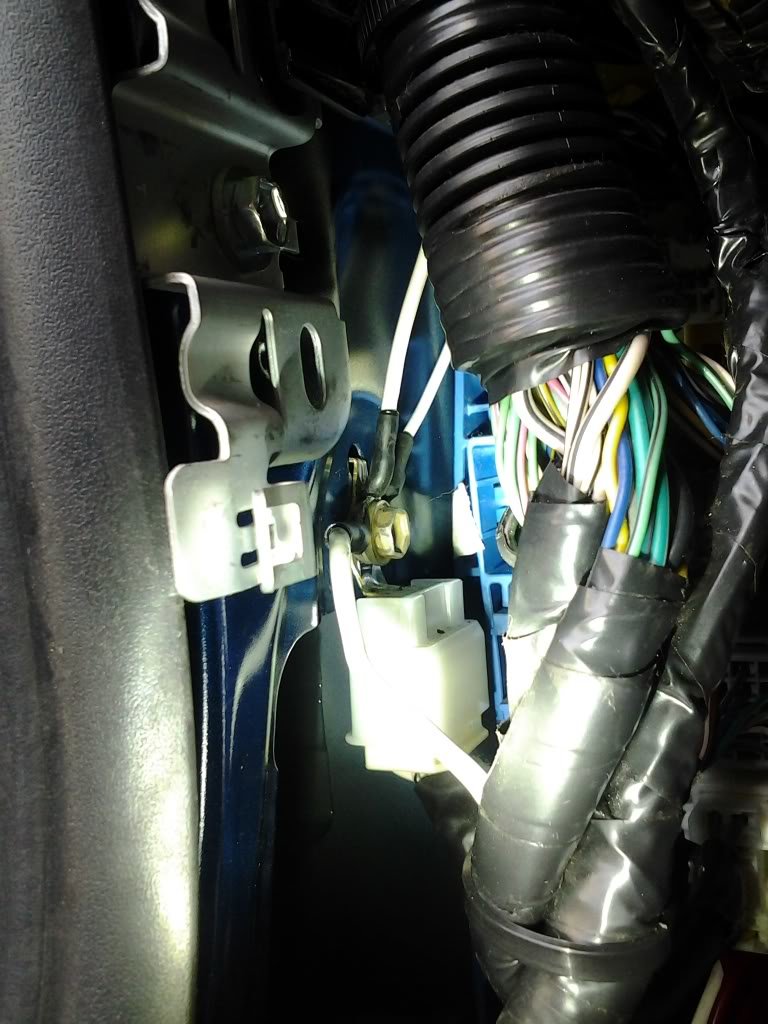

    Now, connect a wire to the ground bolt just behind/below IB1. White in my case. Don't worry about the other two ground wires shown in the pic, not related.

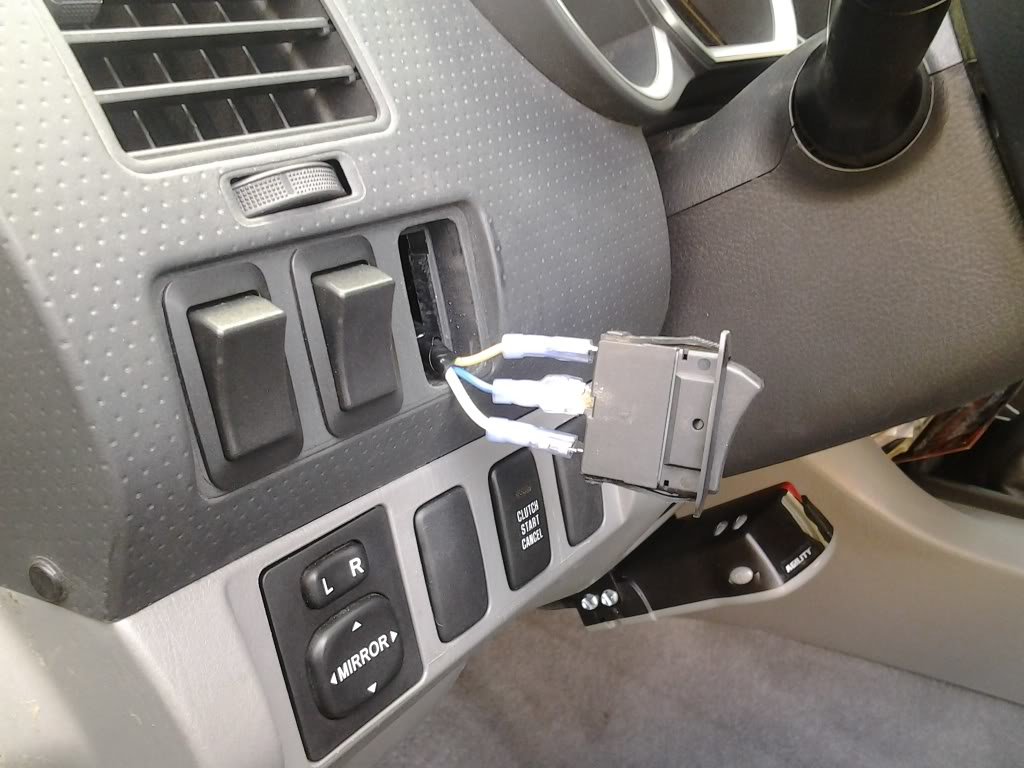

    Run all three wires to a location of your choice for a SPDT on-on switch of your choice. I installed some Cherry KG series switches for extras, had to trim the top and bottom of the switch bezels a bit, as well as widening the opening the same as to fit Carling switches. Cherry P/N KGC2BNB1BBB is what I used for this mod. Connect the blue wire to the center terminal of your SPDT on- on switch, yellow to the top terminal, and the white ground wire to the bottom. Like this:
    Pressing the top of the rocker switch will disable the ABS, turn on the ABS light in the dash, and also illuminate the diff lock indicator, even though the truck wasn't built with one. You can re-enable the ABS on the fly, and both lights will go out, no need to cycle the key. Re-assemble the trim panels, and test it out.
