ABS Kill Switch mod for 05+ Offroad EASY WAY! (PICS)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Aug 7, 2011.

  1. Mar 23, 2017 at 7:55 AM
    #501
    TacoSupremeo

    TacoSupremeo Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207427
    Messages:
    274
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2005 Tacoma Double Cab 4x4

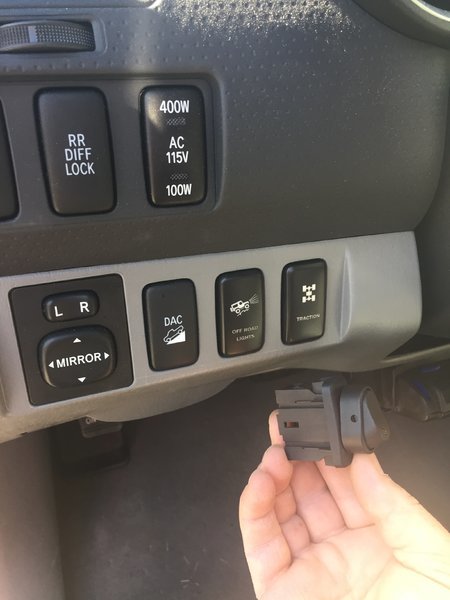

    Got mine re-done today with the switches I linked. Look factory, I like it a lot better than the junk thing I first used.

    Crom [OP] and TXpro4X4 like this.
  2. Mar 23, 2017 at 8:21 AM
    #502
    Doughnut Spaghetti

    Doughnut Spaghetti Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211939
    Messages:
    2,978
    Gender:
    Male
    First Name:
    Kristofer
    Lansing, Michigan
    Vehicle:
    2009 Tacoma SR5
    I'd like to do this mod on my SR5. Especially after I install some stainless lines and better rotors and pads.

    Crom [OP] and TXpro4X4 like this.
  3. May 19, 2017 at 2:03 PM
    #503
    kain102708

    kain102708 Well-Known Member

    Joined:
    Aug 20, 2014
    Member:
    #136585
    Messages:
    64
    Gender:
    Male
    First Name:
    Stan
    Denver
    Vehicle:
    08 DBCB TRD Off Road
    rear locker anytime mod, lifted
    sub'd

    TXpro4X4 likes this.
  4. May 22, 2017 at 10:17 PM
    #504
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    26,523
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
    Naw just do it now

  5. May 22, 2017 at 10:17 PM
    #505
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    26,523
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
    Subed....do it!

  6. May 22, 2017 at 10:17 PM
    #506
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    26,523
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
    :wave:
    Looked good.
    I hides mine from litter fingers and the wife!
    :devil:

  7. May 23, 2017 at 4:45 AM
    #507
    Doughnut Spaghetti

    Doughnut Spaghetti Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211939
    Messages:
    2,978
    Gender:
    Male
    First Name:
    Kristofer
    Lansing, Michigan
    Vehicle:
    2009 Tacoma SR5
    But I just got the truck back together haha!

    TXpro4X4 likes this.
  8. May 23, 2017 at 5:49 AM
    #508
    kain102708

    kain102708 Well-Known Member

    Joined:
    Aug 20, 2014
    Member:
    #136585
    Messages:
    64
    Gender:
    Male
    First Name:
    Stan
    Denver
    Vehicle:
    08 DBCB TRD Off Road
    rear locker anytime mod, lifted
    I will get around to this one day. I have some maintenance coming up on the truck and may decide to do it then...

    TXpro4X4 likes this.
  9. May 23, 2017 at 9:52 AM
    #509
    ydnapluk

    ydnapluk Member

    Joined:
    Apr 3, 2017
    Member:
    #215216
    Messages:
    12
    Gender:
    Male
    Hey Guys - Not to go too far off-topic, but I can't find a way to make the VSC-OFF switch (button) "sticky" across re-starts. I know the mod in this thread will disable VSC as well as ABS - but for daily street use, I simply want to engage the stock VSC-OFF system (VSC-OFF + Auto LSD Indicators on dash) - without having to press the button every time I get into the truck (2015 TRD/OR).

    My initial thought was to identify the switched (+) lead on the back of the VSC-OFF button and simply supply a non-switched source to it, thinking that this would allow the switch to 'remember' the selected position between restarts. This definitely didn't work and produced some strange behavior including blown fuses under 30 AMP when the button was depressed. When I supplied power through a 30 AMP fused supply, the fuse held, but the engine expressed a load and VSC-OFF was *not* engaged when the button was depressed.

    Defaulting back to stock, everything seems to be back to normal, but I'm no closer to figuring this out.

    Anyways, after searching every which to Sunday - this thread comes up more than anything else, so I thought I'd reach out to all of the big brains here :)

    Any ideas would be appreciated - I think I'l l also pull a complete wiring diagram for the VSC-OFF from techinfo.toyota.com - unless someone has it handy.

  10. May 24, 2017 at 9:12 PM
    #510
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    26,523
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
    Is there a link for these switches?
    Like the options they have? looking for some new ones

  11. May 25, 2017 at 6:41 AM
    #511
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,634
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Crom [OP] and TXpro4X4 like this.
  12. May 25, 2017 at 6:42 AM
    #512
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,634
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    The Yellow Wire Mod may be what you want.

  13. May 25, 2017 at 6:51 AM
    #513
    TacoSupremeo

    TacoSupremeo Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207427
    Messages:
    274
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2005 Tacoma Double Cab 4x4
  14. May 25, 2017 at 8:10 AM
    #514
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    26,523
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
  15. Aug 27, 2017 at 7:52 PM
    #515
    88Taco

    88Taco Well-Known Member

    Joined:
    May 17, 2017
    Member:
    #219261
    Messages:
    168
    Gender:
    Male
    Michigan
    Vehicle:
    Black 08 DCSB TRD Off-road.
    Rear diff breather mod. Block heater

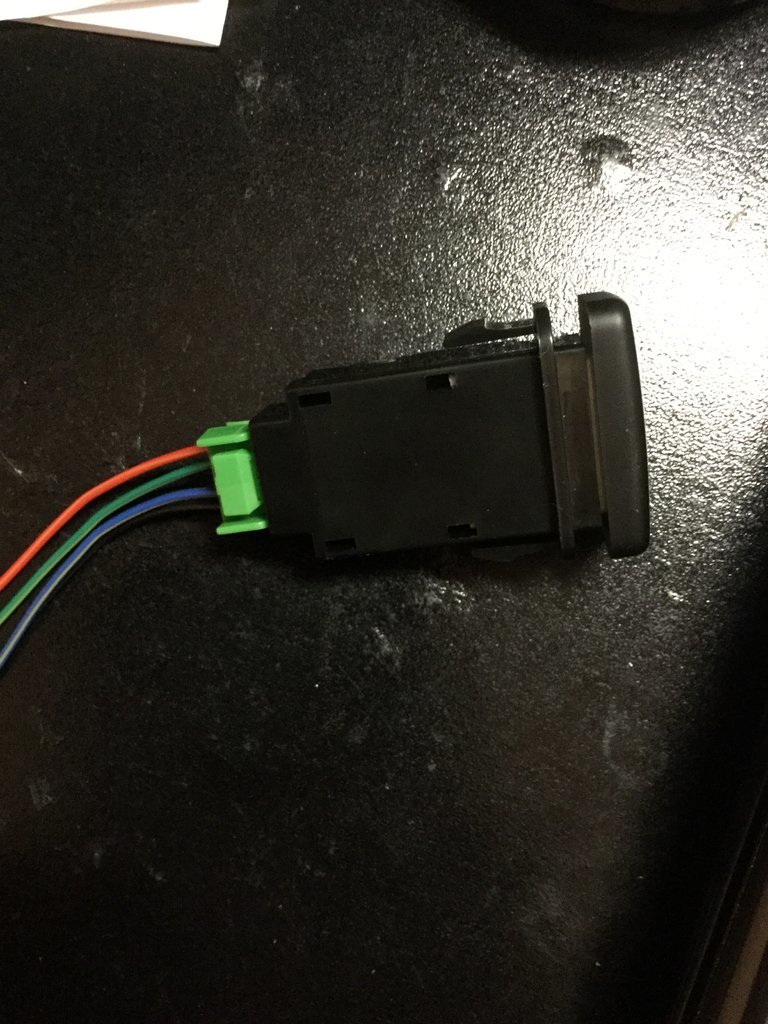

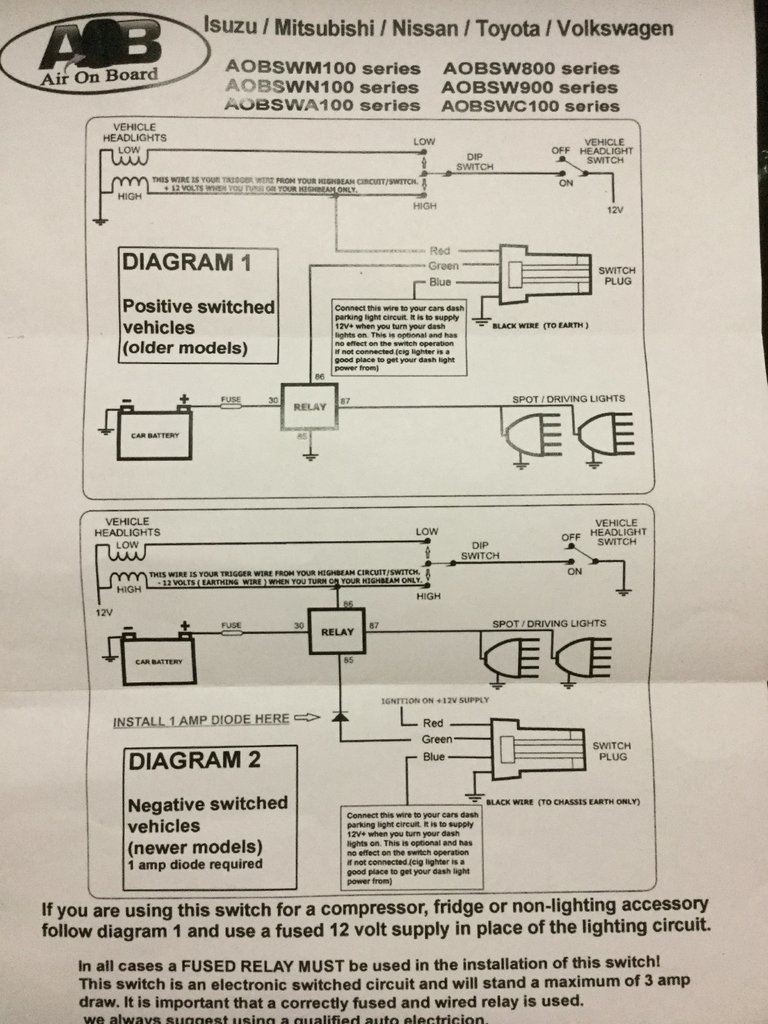

    Ok guys I need a little help. Did this mod with a cheap radio shack spst switch and it worked beautifully. Now I'm trying to upgrade to a more oem switch from air on board. I know exactly nothing about wiring. I've spent the last couple of days trying to learn. So here's what I'm thinking please help me out if I'm wrong. The goal is to have the switch light up and dim when my dash lights do. So.
    1: I'm not pushing a large amount of current so a relay is likely unnecessary.
    2: red wire to positive side of the switch mod.
    3: green wire to the ground side of the switch mod.
    4: splice the blue wire into a wire that lights up one of my oem switches
    5: black wire grounded wherever is handy.
    Sorry for the long post. Thanks in advance for the help. :) IMG_0061.jpgIMG_0063.jpg


  16. Oct 28, 2017 at 12:46 PM
    #516
    11TRDTX

    11TRDTX Don't California my Tennessee

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,728
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches

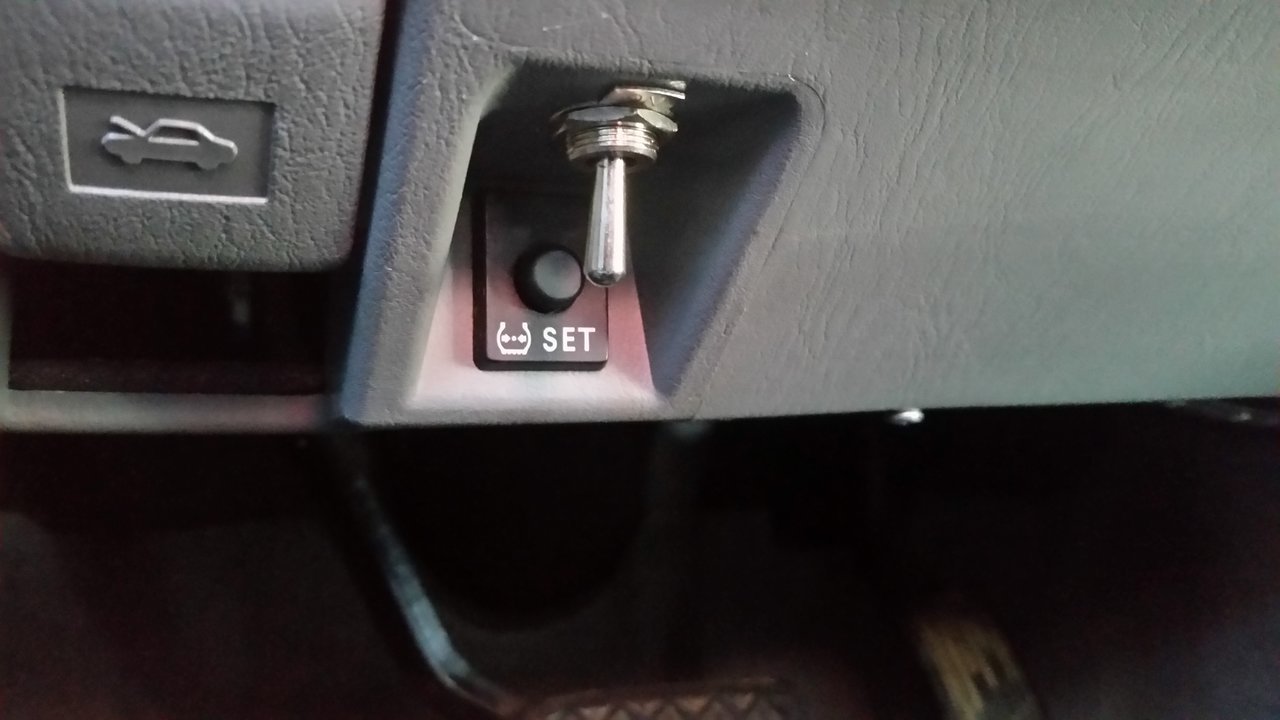

    Finally did this mod after 8 months of saying that I'm going to do it :rolleyes:

    Thanks again @Crom


  17. Oct 28, 2017 at 1:32 PM
    #517
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Welcome! Looks good!

    TXpro4X4 and 11TRDTX like this.
  18. Oct 28, 2017 at 3:52 PM
    #518
    drop4205

    drop4205 Well-Known Member

    Joined:
    Jul 9, 2014
    Member:
    #133612
    Messages:
    132
    Gender:
    Male
    Windham, Maine
    Vehicle:
    14 TX Baja
    Pioneer 8201 nex Id cxs 6.5 component front Id cs 6.5 rear Jl audio hd 600/4 Jl audio 10” micro sub+ Ram mat Tinted windows Debaged Plasti dip front emble
    This work on 2014 trd? If so can you flip switch on and off as you drive or do you need to be stopped for this?

    TXpro4X4 likes this.
  19. Oct 29, 2017 at 2:43 PM
    #519
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    26,523
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
    Yes.
    And no don't need to stop

    DrFunker likes this.
  20. Jan 4, 2018 at 8:08 AM
    #520
    HB Taco

    HB Taco Well-Known Member

    Joined:
    Apr 10, 2011
    Member:
    #54683
    Messages:
    987
    Gender:
    Male
    First Name:
    Curt
    Huntington Beach, CA
    Vehicle:
    11 DC TRD OR 4x4 Pyrite Mica
    I think I'll go with this. Thanks TXpro and once again Nick!

    TXpro4X4 likes this.
