ABS Kill Switch mod for 05+ Offroad EASY WAY! (PICS)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Aug 7, 2011.

  1. Aug 7, 2011 at 11:53 PM
    #1
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    This mod only works on 2005+ trucks with the off-road package.

    For Non-Off-Road truck models click here NOW.

    We should not have to do this. Toyota should have given us an ABS kill switch from the factory just like they gave us a VSC off switch. :rant:

    You are responsible for whatever you do to your truck. This thread is for academic purposes only.

    This mod was long overdue for me as I like to offroad and ABS is a royal pain when I need to stop on loose surfaces like sand and gravel. :mudding:

    I read up on how to do this mod and I figured there had to be an easier way and there was.

    How does it work? The mod works by tricking the 4WD ECU into thinking that the rear diff is locked when in fact it is not. The 4WD ECU sends this information to the Skid Control ECU (VSC Computer) which controls the brakes. Therefore it is the VSC Computer which turns off the VSC / and ABS system. You can't forget to turn it off because while the switch is active the VSC Off, ABS, and Locker lamp lights are lit on the dash. It's a very elegant mod.

    Here are the basic steps:

    1. Open driver's side door and remove lower kick panel and foot rest.
    2. Find modular plug IB1 and disconnect. Unravel electrical tape.
    3. Tap the 4th wire which should be Blue with Yellow Tracer. We're tapping into the wire not cutting it. DO NOT CUT IT. Okay?
    4. Find Chassis ground point and install a ground wire there.
    5. Connect Chassis Ground wire to switch.
    6. Connect the other side of switch to T-tap
    7. Test!
    SUPPLIES
    [​IMG]

    [​IMG]

    [​IMG]

    GROUND WIRE MADE WITH CONNECTOR

    [​IMG]
    BUILT SWITCH WITH CONNECTORS
    [​IMG]

    ORIENTATE YOURSELF
    [​IMG]
    REMOVE DRIVER SIDE LOWER KICK PANEL AND LOCATE MODULAR PLUG IB1
    [​IMG]
    DISCONNECT MODULAR PLUG IB1
    [​IMG]
    TAP WIRE #4 BLUE / YELLOW TRACER
    [​IMG]
    FIND THE GROUND POINT
    [​IMG]
    INSTALL YOUR GROUND WIRE THERE
    [​IMG]
    COMPLETED SWITCH HARNESS WITH GROUND WIRE. TESTED AND VALIDATED WITH MULTIMETER.

    [​IMG]
    ABS KILL SWITCH INSTALLED AND WORKING!!!
    [​IMG]

    You can't forget it's on because there are at least two lit lights on the dash, and three if your truck is equipped with VSC.

    [​IMG]

    I did some tests and it works perfectly. When the kill switch is active and I mash the brakes hard, the wheels lock up and the truck digs in and stops very quickly. I'm very happy with this mod.

    [​IMG]

    What happens if...

    In May 2015, I found an answer to a question that was asked years ago in this thread.

    What happens if the ABS kill switch is active and you attempt to engage the locker?


    The answerer is nothing really.

    The 4WD ECU still activates an internal relay, but the diff will not mechanically engage. It does not hurt the truck.

    If the vehicle operator wants to engage the diff lock, they must disable the ABS kill switch, then use the factory locker switch.

    Oh and if anybody wants to debate the merits of the ABS system, that's fine! Please just do it in another thread; don't trash mine to prove a point.

    Last edited: Aug 28, 2015
    Biscuits, scottalot, Camel51 and 8 others like this.
  2. Aug 7, 2011 at 11:57 PM
    #2
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,692
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Great write-up Crom , I wish this worked for the Sports , I hate the ABS in the snow

    scottalot and Medina33 like this.
  3. Aug 8, 2011 at 12:01 AM
    #3
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Thanks OZ-T. :) Yoytoda (Roland) has suggested interrupting one of the wheel speed sensors with a switch. The driver side front wheel would be the closest to the dash/cab. This method would work on all trucks. I almost went that route, but I really wanted something immediately available under the dash to work with.

    EDIT: Here is a guy who achieved an ABS kill switch who was not an Off-Road truck. There may be a cleaner way of doing it in the cab, just need to study some diagrams. Caribe Makaira would be a big help if had the time.

  4. Aug 8, 2011 at 12:04 AM
    #4
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,567
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    Excuse my ignorance, but why won't this work with the TRD Sport?

    edit: NM, no locker duh

  5. Aug 8, 2011 at 12:07 AM
    #5
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    You're welcome. As far as I know, I'm the first to show that the wire lives under the dash. No need to splice in at the Skid control ECU and double back through the firewall and into the cab.

    In a nutshell, the hardware is different between the Sport and Off-Road models.

  6. Aug 8, 2011 at 8:39 AM
    #6
    horwitzs

    horwitzs Well-Known Member

    Joined:
    May 23, 2011
    Member:
    #57097
    Messages:
    680
    Gender:
    Male
    First Name:
    Seth
    Dayton, WA
    Vehicle:
    TX Pro
    Supercharger, OME lift w/ LR UCAs, running boards, toolbox, extinguisher mount, skidplate, N-Fab light bar, 40" R.I. LED bar, WO seat covers, TRD intake, Weathertech mats and visors, stubby antenna, hood struts, LED interior lighting, Hella Supertones, and other stuff I'm forgetting.
    When disabled, does an ABS indicator light up on the dash so you don't forget it is turned off?

  7. Aug 9, 2011 at 8:56 AM
    #7
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions

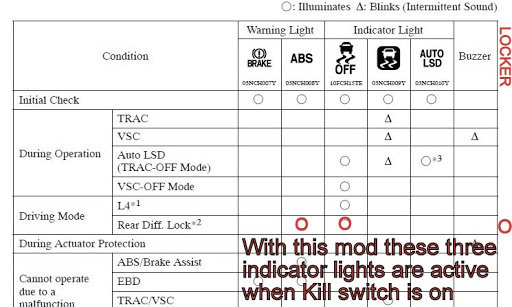

    Yes. You can't forget it's on because there are at least two lit lights on the dash, and three if your truck is equipped with VSC.

    NOTE: VSC became standard in all trucks starting in 2009.

    See diagram below.

    [​IMG]

  8. Aug 9, 2011 at 8:58 AM
    #8
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    I did some tests and it works perfectly. When the kill switch is active and I mash the brakes hard, the wheels lock up and the truck digs in and stops very quickly. I'm very happy with this mod.

    [​IMG]

  9. Sep 25, 2011 at 3:40 PM
    #9
    Black3144

    Black3144 Well-Known Member

    Joined:
    Jul 6, 2011
    Member:
    #59438
    Messages:
    61
    Gender:
    Male
    Bellevue, NE
    Vehicle:
    '07 TRD Off Road
    Just got done doing this mod and it works awesome, thanks OP.

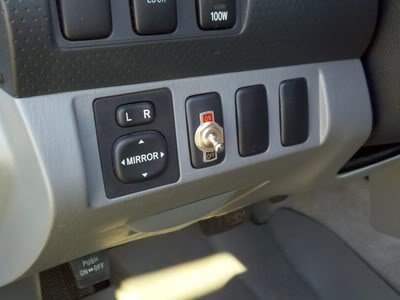

    Here's where I mounted the switch.

    [​IMG]

    The switch is off center so it would fit, just took my dremel and cut out all the plastic crap behind the blank cover, but leaving the outer pieces so it would still lock into the panel.

  10. Sep 25, 2011 at 3:43 PM
    #10
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Looks badass! :thumbsup: Glad you found it useful. :)

  11. Sep 25, 2011 at 3:49 PM
    #11
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,692
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    What about us '09 + Sport guys ? :(

  12. Sep 25, 2011 at 4:09 PM
    #12
    Black3144

    Black3144 Well-Known Member

    Joined:
    Jul 6, 2011
    Member:
    #59438
    Messages:
    61
    Gender:
    Male
    Bellevue, NE
    Vehicle:
    '07 TRD Off Road
    Should have bought a Off Road addition.

  13. Sep 25, 2011 at 4:38 PM
    #13
    BMiller421

    BMiller421 FMLYHM

    Joined:
    Aug 17, 2010
    Member:
    #41838
    Messages:
    908
    Gender:
    Male
    First Name:
    Brandon
    Bakersfield, CA
    Vehicle:
    05 Pre-runner
    LT, Kings, Fabricated Trucks Worldwide For The Win, K&N and Doug Thorley LT Headers
    Great mod..i love learning little tricks like this..

    OP..great work!!

  14. Sep 27, 2011 at 7:11 PM
    #14
    fatty ac1d

    fatty ac1d Well-Known Member

    Joined:
    Nov 3, 2009
    Member:
    #25387
    Messages:
    213
    Gender:
    Male
    First Name:
    Ryan
    Liberal, Kansas
    Vehicle:
    15 MGM DCSB SR5
    I did this mod over the weekend...

    Wow! What a difference it makes in sand and dirt! I tested it out on a dirt road and almost got whiplash from it stopping so quick. I'll have to take pictures next time.

    Can't wait to see how it does in snow and ice.

    Thanks Crom!

  15. Sep 27, 2011 at 7:26 PM
    #15
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,100
    Gender:
    Male
    First Name:
    Chris
    Menifee, Ca
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    Does this work on Prerunners with LSD?

  16. Sep 27, 2011 at 7:55 PM
    #16
    Crom

    Crom [OP] Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,360
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    I'll try to come up with something--I do have some ideas. :pccoffee:

    :cheers:

    You're very welcome. Have fun with it. :burnrubber:

    If your truck has a rear locking differential it will work. To be clear you must have the Off Road model. You can usually tell if you have the off-road model if you have this sticker on the truck pictured below.

    [​IMG]

  17. Sep 27, 2011 at 9:45 PM
    #17
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,100
    Gender:
    Male
    First Name:
    Chris
    Menifee, Ca
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    Thats just it. I dont have an Off Road package but I have the LSD that kicks in randomly... So I was hoping this might apply... Guess I will have to wait till i get home in a few months and look at the wires.

  18. Sep 28, 2011 at 9:48 AM
    #18
    cookee62

    cookee62 Well-Known Member

    Joined:
    Apr 11, 2011
    Member:
    #54723
    Messages:
    146
    Gender:
    Male
    Lake Mary, FL
    Vehicle:
    06 DBL Cab
    URD SS, URD Y-Pipe, DTLT Headers, 3" URD Cat Back, Fox 2.5 CO, TC UCA, Fox Rear Resi, SS brake Lines, All pro 1.5" leafs, Halo Projector Headlights, WE Bead-lock Rims, 33 BFG AT, No Sway Bar
    So will this work if you got a 05+ TRD off Road but with a manual tranny?

  19. Sep 28, 2011 at 10:08 AM
    #19
    Maticuno

    Maticuno Resident Pine Swine

    Joined:
    May 26, 2011
    Member:
    #57287
    Messages:
    2,903
    Gender:
    Male
    California High Deserts
    Vehicle:
    08 DCLB Sport
    Pioneer AVIC-D3, SWI-PS, Sirius Satellite Radio, 2X In-Cab 110V Outlets, Constant Fog Light Mod, Inverter Always 400W Mod, Anti-Pack-Rat-In-Intake Mod, Eibachs on 5100's, 2" Toytec AAL, B.A.M.F Rear Diff Skid, 265/70R17 Goodyear Wrangler Authority tires
    Yes. The transmission type isn't involved in any part of this mod.

  20. Sep 28, 2011 at 1:36 PM
    #20
    Blue07Taco

    Blue07Taco Well-Known Member

    Joined:
    Jul 30, 2009
    Member:
    #20388
    Messages:
    63
    Gender:
    Male
    First Name:
    Nick
    Iowa
    Vehicle:
    Its blue
    TRD intake/ exhaust
    How will this mod affect the abs system if your locker mod already disables ABS?
