ABS Kill Switch mod for 05+ Offroad EASY WAY! (PICS)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Aug 7, 2011.

  1. Dec 13, 2011 at 4:45 PM
    #41
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,140
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    There is one

    http://www.tacomaworld.com/forum/technical-chat/180861-abs-kill-switch-non-locker-vsc-trucks-lets-discuss-feasibility.html#post3820978

  2. Dec 13, 2011 at 6:06 PM
    #42
    BRYLONATOR

    BRYLONATOR Building 06 Suburban K2500 with LBZ D-max and ZF6!

    Joined:
    Mar 9, 2011
    Member:
    #52680
    Messages:
    1,309
    Gender:
    Male
    Denver, Colorado
    Vehicle:
    Chillin in a 120!
    Thank you sir.....does the link look ok to you? I will try and see.

  3. Jan 14, 2012 at 3:56 PM
    #43
    boomer6

    boomer6 Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55337
    Messages:
    508
    Gender:
    Male
    First Name:
    John
    TN
    Vehicle:
    Tacoma TRD Offroad
    disabled DRLs disabled seat belt chime disabled the key in the ignition with door open buzzer Installed Illuminated 4wd switch circuit board Marker lights Flashing with turn signals Toggle switch ABS Disable Fog Lights on AnyTime Mod Changed to Yellow bulbs in the Fog Lights Converted interior lights to leds Installed oem roof rack Installed Firestone Ride Rite Air Bags and Daystar Cradles for the air bags Added oil catch can Relentless Tailgate Protector installed
    Just finished doing the ABS Kill Switch Mod on my 2011 Tacoma offroad.Havent driven it yet to test. When flipping switch I get three lights on the instrument panel.Tomorrow I will give it the stress test.

  4. Jan 15, 2012 at 8:29 AM
    #44
    boomer6

    boomer6 Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55337
    Messages:
    508
    Gender:
    Male
    First Name:
    John
    TN
    Vehicle:
    Tacoma TRD Offroad
    disabled DRLs disabled seat belt chime disabled the key in the ignition with door open buzzer Installed Illuminated 4wd switch circuit board Marker lights Flashing with turn signals Toggle switch ABS Disable Fog Lights on AnyTime Mod Changed to Yellow bulbs in the Fog Lights Converted interior lights to leds Installed oem roof rack Installed Firestone Ride Rite Air Bags and Daystar Cradles for the air bags Added oil catch can Relentless Tailgate Protector installed
    Took it out for a test run today, With ABS turned off . :) :) As Crom said it works GREAT!!You can lock them up if you want to,unlike when ABS is on.Stops alot quicker.Cant wait to get some snow .THANKS CROM!!!!!!!!!!!!!!!!!! :):):)

    TRDOFFROAD14 likes this.
  5. Jan 20, 2012 at 1:49 PM
    #45
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Boomer, Glad you enjoy the mod. :thumbsup: I absolutely love mine while off-roading. :)

  6. Feb 7, 2012 at 10:28 PM
    #46
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    someone do this to a 12 and tell me what wire it is! ours are different :-/

  7. Feb 11, 2012 at 10:34 AM
    #47
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    bump

  8. Feb 25, 2012 at 1:33 AM
    #48
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,480
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  9. Feb 27, 2012 at 11:10 AM
    #49
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Okay, The method in the OP should work for all locker trucks, prerunner included. What I believe happens with the diff lock switch is closed (ground signal provided), simulatniously the Skid Control ECU is notified and the 4WD ECU if present. There is a wiring junction point where the signal is split off I believe. In short it will work for Prerunners too.

  10. Feb 29, 2012 at 10:50 AM
    #50
    freeskier989

    freeskier989 Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73864
    Messages:
    134
    Gender:
    Male
    First Name:
    Mark
    Newport Beach, CA
    Vehicle:
    2012 Access Cab Off Road 4x4 V6
    ABS Switch Icon Stage 3
    Bump for the 2012 crew - would love to know how to do this on ours as well.

  11. Feb 29, 2012 at 10:56 AM
    #51
    ruggedT

    ruggedT The Sticker Guy

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    3,177
    Gender:
    Male
    First Name:
    Stan
    Midlothian, Va
    Vehicle:
    2016 Ford F250
    Diesel on 35's
    Same way I did mine years ago. Cept I used the blue/yellow under the hood and fed in 12v instead of grounding

  12. Feb 29, 2012 at 12:48 PM
    #52
    8BoltRacing

    8BoltRacing Custom Fabrication and Performance

    Joined:
    Dec 10, 2011
    Member:
    #68525
    Messages:
    350
    Gender:
    Male
    First Name:
    Jared
    Greensburg PA
    Vehicle:
    The Angry Warthog
    DO 3 hoop, Wheelers HD Leaf Set w/ES poly bushings, OME 884X Coils, 5100's, Selfmade Satoshi, Single beam headlights, Fogs anytime, high beams with low beams mod, ABS kill switch, AMSOIL fluids in everything, K&N Intake, TB Spacer, FAL Electric Fan and TRD Rad Cap, DT Long Tubes, URD Y-pipe w/xtra O2 bungs and 3" v-band , Custom 3-inch Exhaust w/v-band and 3030XL Aero turbine muffler and Aero 3040 tip, URD Fuel Pump Upgrade, B&M Short Shifter, EBC Dimpled and Slotted Rotors with EBC Yellowstuff pads, Pulseplugs, HIDs: Fogs 3000k, Highs 4300k, Lows 8000k, URD Throwout Bearing Repair kit, Fidanza Aluminium Flywheel+Competition Clutch Stage 4

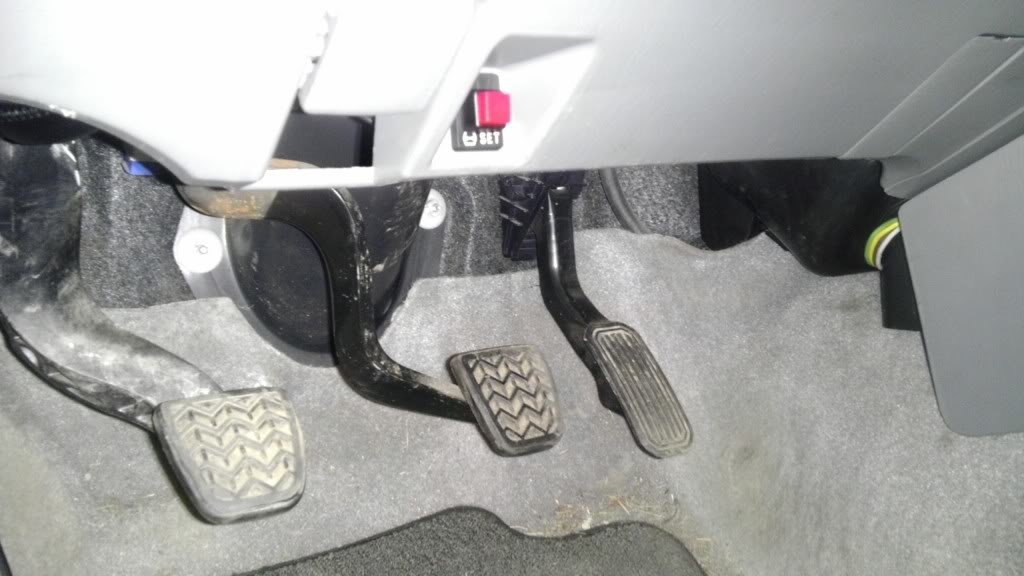

    I did a no splice variation of this method and used a push button type. Since I do not use the TPMS system this is how I installed the switch:

  13. Feb 29, 2012 at 12:58 PM
    #53
    8BoltRacing

    8BoltRacing Custom Fabrication and Performance

    Joined:
    Dec 10, 2011
    Member:
    #68525
    Messages:
    350
    Gender:
    Male
    First Name:
    Jared
    Greensburg PA
    Vehicle:
    The Angry Warthog
    DO 3 hoop, Wheelers HD Leaf Set w/ES poly bushings, OME 884X Coils, 5100's, Selfmade Satoshi, Single beam headlights, Fogs anytime, high beams with low beams mod, ABS kill switch, AMSOIL fluids in everything, K&N Intake, TB Spacer, FAL Electric Fan and TRD Rad Cap, DT Long Tubes, URD Y-pipe w/xtra O2 bungs and 3" v-band , Custom 3-inch Exhaust w/v-band and 3030XL Aero turbine muffler and Aero 3040 tip, URD Fuel Pump Upgrade, B&M Short Shifter, EBC Dimpled and Slotted Rotors with EBC Yellowstuff pads, Pulseplugs, HIDs: Fogs 3000k, Highs 4300k, Lows 8000k, URD Throwout Bearing Repair kit, Fidanza Aluminium Flywheel+Competition Clutch Stage 4
    Hoping this question was directed at me.. no it is a push on/push off button

  14. Feb 29, 2012 at 1:29 PM
    #54
    ruggedT

    ruggedT The Sticker Guy

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    3,177
    Gender:
    Male
    First Name:
    Stan
    Midlothian, Va
    Vehicle:
    2016 Ford F250
    Diesel on 35's
    It dosnt re-engage with the OP's method??

  15. Feb 29, 2012 at 7:09 PM
    #55
    ruggedT

    ruggedT The Sticker Guy

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    3,177
    Gender:
    Male
    First Name:
    Stan
    Midlothian, Va
    Vehicle:
    2016 Ford F250
    Diesel on 35's
    Mine does with the truck running or not. Curious to know

  16. Feb 29, 2012 at 8:22 PM
    #56
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    6,069
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    Yup, you could set up a momentary switch. I grounded mine in 2005 and haven't looked back, abs sucks.

  17. Mar 8, 2012 at 11:57 AM
    #57
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,937
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Subd

    Going to most likely be doing this before my "No Pavement Run" coming up next weekend..

    Thanks for all the work put into this OP looks great and seems to work flawlessly!

    :cheers:

  18. Mar 8, 2012 at 11:59 AM
    #58
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,937
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    BTW nice pinstripen' job man! :D

  19. Mar 8, 2012 at 12:22 PM
    #59
    boomer6

    boomer6 Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55337
    Messages:
    508
    Gender:
    Male
    First Name:
    John
    TN
    Vehicle:
    Tacoma TRD Offroad
    disabled DRLs disabled seat belt chime disabled the key in the ignition with door open buzzer Installed Illuminated 4wd switch circuit board Marker lights Flashing with turn signals Toggle switch ABS Disable Fog Lights on AnyTime Mod Changed to Yellow bulbs in the Fog Lights Converted interior lights to leds Installed oem roof rack Installed Firestone Ride Rite Air Bags and Daystar Cradles for the air bags Added oil catch can Relentless Tailgate Protector installed
    Did my 2011 Off road and it turns off and back on with truck running. You dont need to cycle the ignition.

  20. Mar 8, 2012 at 8:43 PM
    #60
    jeremy_283

    jeremy_283 Super Member

    Joined:
    Dec 14, 2008
    Member:
    #11569
    Messages:
    1,432
    Vehicle:
    08 TRD Offroad Access Cab 4x4 Auto 4.0L
    Hella Rallye 4000 Cornering Lights PIAA 510 Fog Lights All Pro Front Bumper All Pro Rear Bumper All Pro Transfer Case Skid All Pro IFS Skid All Pro Rock Sliders All Pro High Clearance Hitch OME Dakar Leaf Springs OME Rear Shocks OME Front Shocks OME 885 Front Coils Wet Okole Seat Covers WeatherTech Floor Liners Sony Head Unit JL XD600/1 Amp 2 JL Audio 10” Subwoofers Custom Subwoofer Enclosure Kenwood Front Speakers Sony Rear Speakers Sound Deadening Mats LED Interior Lighting Pop N’ Lock Tailgate Lock Viper Alarm System Extra D-Rings In Truck Bed Maglite Seat Mount Disable Seatbelt Chime Rear Differential Breather Relocation Hi-Lift Bed Mount Flexible Front Mud Flaps 110v Inverter Always At 400w ABS Kill Switch Locking Center Console Removed Sway Bar
