ABS Kill Switch mod for 05+ Offroad EASY WAY! (PICS)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Aug 7, 2011.

  1. May 9, 2012 at 11:06 AM
    #81
    zk1629

    zk1629 New Member

    Joined:
    May 3, 2012
    Member:
    #78154
    Messages:
    2
    Gender:
    Male
    First Name:
    Zack
    Denver, CO
    Hey guys I'm new at this so forgive my ignorance but I had a question about doing this on an older model and couldn't find it anywhere!

    I have a 98 Tacoma V6 3.4L and I've been having some trouble with the ABS. I looked around an it seems that this system is really sensitive and I was looking for a way to disable it. I thought about pulling the fuse but then I got to thinking that I would more like a switch to be able to turn it on and off. I haven't been able to find anything though for the 1st gen, and I'm not so good with wiring diagrams to figure out which wire I would need to splice into. The only thing I found was on an 05 tacoma that says to splice into the blue wire w/ yellow line. I did find that but still don't want to splice into it and find it was the wrong one!

    Also my truck is a 4x4 with rear diff lock button (elocker I believe?)

    And also I'm new so if this is in the wrong place or you can point me in the right direction of where it should go or someone else who could help that would be great!

    I've included some pictures, as I'm a very visual person, of the wire I think it might be (it's inside the cab under the driver side dash). Also the ABS wiring diagram.



    Attached Files:

  2. May 16, 2012 at 11:39 AM
    #82
    2012

    2012 Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63654
    Messages:
    49
    Gender:
    Male
    First Name:
    Garrett
    Colorado
    Vehicle:
    2012 TRD off road
    can anyone tell me if this works on a 2012? and/or if they wiring colors are the same?

    ninja89 likes this.
  3. Jul 20, 2012 at 12:02 PM
    #83
    WailuaTaco808

    WailuaTaco808 A.L.O.H.A. Member

    Joined:
    Jul 18, 2012
    Member:
    #82916
    Messages:
    1,346
    Gender:
    Male
    First Name:
    Phil
    Hawaiian Islands
    Vehicle:
    2010 Tacoma TRD SPORT Kauai Built
    Oh boy...
    I need to get that mod. I know plenty guys here in the 808 state that would like to be able just sit and roast some tires. As well as kill sand and mud. This VSC is ruining it. I got a TRD Sport and wanna be able to turn that shit off already!

  4. Jul 21, 2012 at 12:26 PM
    #84
    freeskier989

    freeskier989 Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73864
    Messages:
    134
    Gender:
    Male
    First Name:
    Mark
    Newport Beach, CA
    Vehicle:
    2012 Access Cab Off Road 4x4 V6
    ABS Switch Icon Stage 3
    Still looking to see if anyone has figured out the wiring on a 2012 Tacoma.... BUMP!

  5. Sep 7, 2012 at 4:31 PM
    #85
    oldtommyboy

    oldtommyboy Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85084
    Messages:
    93
    Gender:
    Male
    First Name:
    tom
    pa.
    Vehicle:
    tacome tx pro
    Well can anyone confirm this works on a 2012 offroad,also can it be confirmed for the locker and abs mods?

  6. Sep 12, 2012 at 8:41 PM
    #86
    freeskier989

    freeskier989 Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73864
    Messages:
    134
    Gender:
    Male
    First Name:
    Mark
    Newport Beach, CA
    Vehicle:
    2012 Access Cab Off Road 4x4 V6
    ABS Switch Icon Stage 3
    Its gotta work for a 2012, however surprisingly enough no one here has seemed to do it. I think the wiring colors are different and unless you can read the schematics until someone figures it out we are SOL....

    Id really like to have this mod on my 2012 for the snow... :(

  7. Sep 12, 2012 at 10:06 PM
    #87
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Have you guys looked to see if the wire is the same color on the 2012? If you spend the $15.00 you can verify the wiring diagram yourself.

    http://techinfo.toyota.com

  8. Sep 13, 2012 at 6:34 AM
    #88
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    i did a few months ago, do we have hyd or vac booster? ive been wanting to do this mod for awhile, i think you helped me look into it on another thread but it just got put on the back burner


    Attached Files:

  9. Sep 13, 2012 at 11:22 AM
    #89
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Okay if the diagrams you provided are from a 2012 then the mod in the OP will work just fine for all 2012 trucks with a locker. I'm trusting your diagrams so let's be sure...

    Also, If your truck does not have a locker you can still disable ABS using a simple variation of this mod but you must follow Landphil's instructions in his post here.

    The presence of a hydraulic brake booster vs. vacuum booster do not bear on this mod. But to clarify, 4x4 trucks with locker are the only ones with the hydraulic boosters.

  10. Sep 13, 2012 at 3:53 PM
    #90
    oldtommyboy

    oldtommyboy Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85084
    Messages:
    93
    Gender:
    Male
    First Name:
    tom
    pa.
    Vehicle:
    tacome tx pro
    Ok,so if I do this mod then their is no need to do the locker anytime mod correct or would it be better to do that mod and use it to disable my abs?

  11. Sep 14, 2012 at 11:50 AM
    #91
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    these are for a 2012. i downloaded them from the toyota tech site a few months ago.

  12. Sep 14, 2012 at 2:31 PM
    #92
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Excellent! :thumbsup: I hope I answered your question.

    Apples and Oranges. The mod in this thread fools the computer into thinking the rear locker is engaged. The locker anytime mod allows 4x4 trucks to actually lock the rear diff even if your not in 4LO. Totally different mods.

    PErsing likes this.
  13. Sep 14, 2012 at 4:17 PM
    #93
    oldtommyboy

    oldtommyboy Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85084
    Messages:
    93
    Gender:
    Male
    First Name:
    tom
    pa.
    Vehicle:
    tacome tx pro
    Ok,thankyou sir

  14. Sep 15, 2012 at 3:57 PM
    #94
    freeskier989

    freeskier989 Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73864
    Messages:
    134
    Gender:
    Male
    First Name:
    Mark
    Newport Beach, CA
    Vehicle:
    2012 Access Cab Off Road 4x4 V6
    ABS Switch Icon Stage 3
    Please post back any 2012 owners who do this successfully! Will be great to get the absolute verification that this works fine for 2012.

  15. Sep 15, 2012 at 4:36 PM
    #95
    oldtommyboy

    oldtommyboy Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85084
    Messages:
    93
    Gender:
    Male
    First Name:
    tom
    pa.
    Vehicle:
    tacome tx pro
    I'll get her done but it might take a while,work,work,dealth,work.

  16. Sep 15, 2012 at 5:07 PM
    #96
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    well you're an ordi so you probably need about a thousand beers just to get the door open ;)

    I used to share my barracks room with an AO and that guy gave us AC's a run for our money haha

  17. Sep 16, 2012 at 6:02 AM
    #97
    oldtommyboy

    oldtommyboy Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85084
    Messages:
    93
    Gender:
    Male
    First Name:
    tom
    pa.
    Vehicle:
    tacome tx pro
    How did you know I built bombs-----ordi-ordinance---ao-aviation ordinance !!!

  18. Sep 16, 2012 at 1:58 PM
    #98
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    cause thats what your profile says lol hold your cursor over the navy emblem under your avatar

  19. Sep 16, 2012 at 2:49 PM
    #99
    aaronbuell

    aaronbuell Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67967
    Messages:
    304
    Gender:
    Male
    First Name:
    aaron
    windsor NY
    Vehicle:
    09 TRD/OR Access Cab V6 debadged
    Fog-light anytime mod, ,black grill,URD short throw,TRD decals removed ,debadged,black rear bumper, homemade tire carrier,TreadWright tires,Evo mod,removed rear headrests and seats,ABS kill switch mod,black center caps,Clarion CX501 head unit,Relentless hood brackets with floodlights.

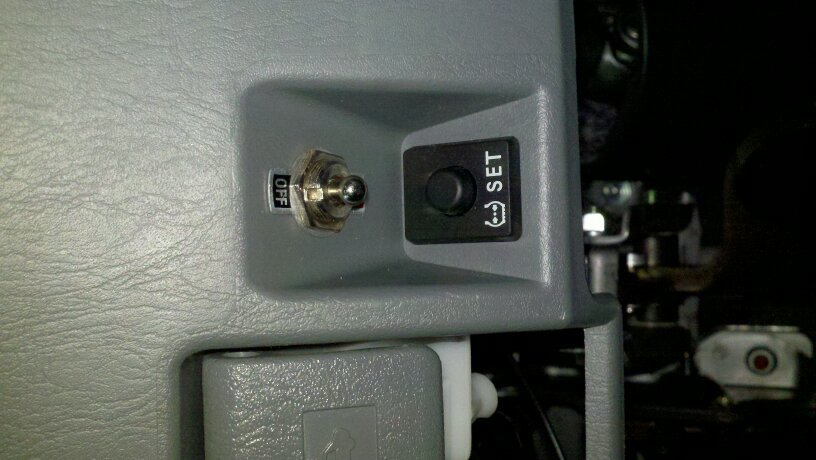

    Just did this mod on my 2009 O/R works great. I put my switch right above the tpms reset switch yza4esaq_ec5edde434f4cb349423676fd8a554196ac35358.jpg

  20. Sep 16, 2012 at 4:01 PM
    #100
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    ^ Looks great!
