Adding a capacitor to a fuse for initial loading?

Discussion in 'Off-Topic Discussion' started by soggyBottom, May 19, 2023.

  1. May 19, 2023 at 5:49 AM
    #1
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,572
    I have a device that "can" run on 12v. When I plug it in to my cigarette lighter it blows 15A fuses. The device works fine on a big 40v power supply.

    The device is rated for 500w output, but I'm only ever really using about 100watts. it's just the initial moment when it's plugged in that the current draw is too high.

    I've seen electronics use a ceramic capacitors across a fuse and I'm wondering if I could do something like that here. Any ideas on where to start? I have a lot of electrolytic and ceramic caps.

    Last edited: May 19, 2023
  2. May 19, 2023 at 6:04 AM
    #2
    3JOH22A

    3JOH22A Toyota Gigolo

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    10,149
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner
  3. May 19, 2023 at 6:12 AM
    #3
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,421
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    The point of fusing is to protect components of the system, ie the wiring, wire terminals, etc. If you are going to the length of modifying the factory system, Id just run a dedicated heavy gauge lead from the battery.

    Also I have the same question as above, what is this device? It operates at both 12v and 40v?

    Bivouac likes this.
  4. May 19, 2023 at 11:33 AM
    #4
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,572

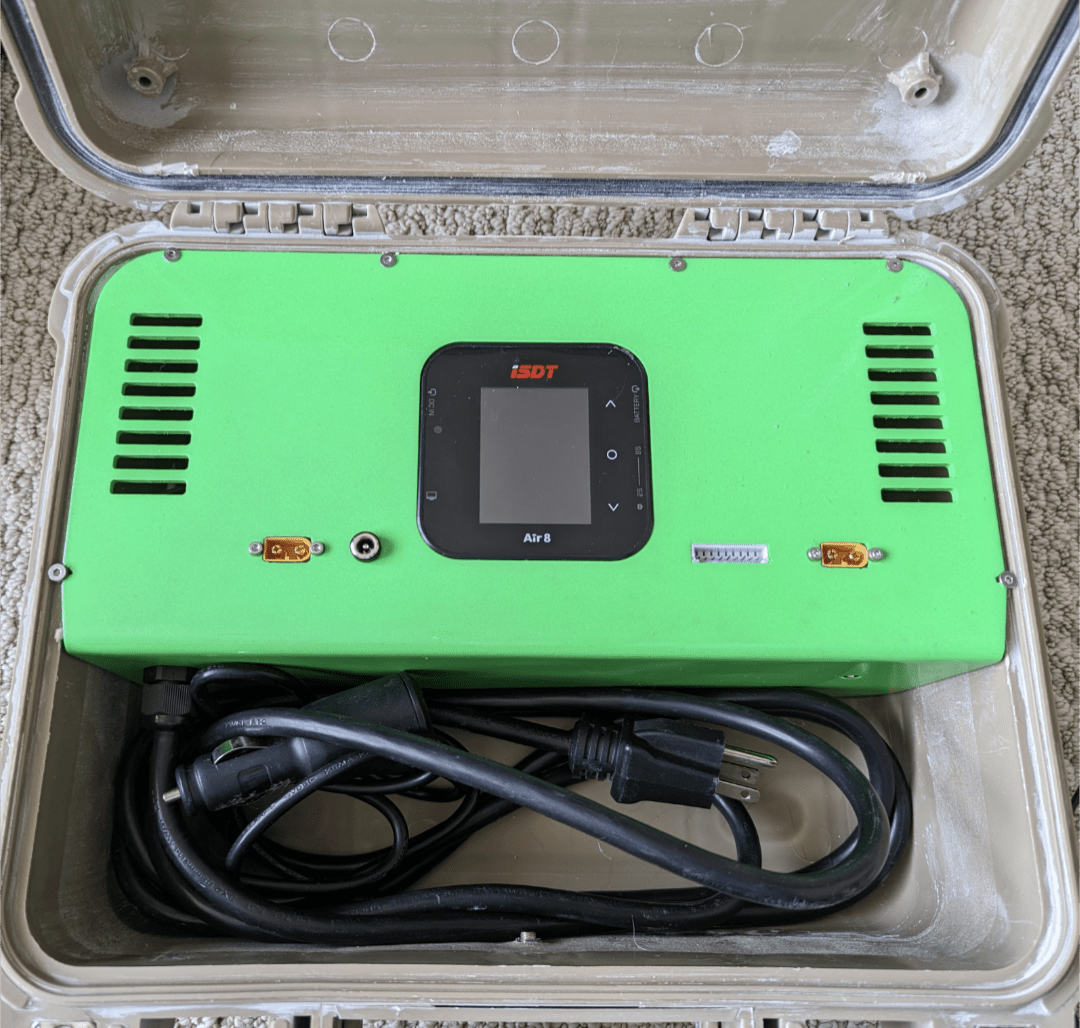

    This is it. It's actually a 500w LiPo charger. It has 2 inputs.

    1) 120vAC - 40vDC - charger

    2) DC input with barrel and xt60 in parallel


  5. May 19, 2023 at 11:36 AM
    #5
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,572
    I misspoke slightly. It accepts a DC input between 10v and 38v. I have my 40v DC power supply turned down to 38v.

  6. May 19, 2023 at 11:42 AM
    #6
    Gutentight

    Gutentight Well-Known Member

    Joined:
    Nov 8, 2020
    Member:
    #346218
    Messages:
    263
    Gender:
    Male
    IL
    Vehicle:
    2021 Cement Off-Road 4x4 DCSB 3.5L AT
    I’m not an EE. Now that’s out of the way..

    I would think the capacitor would go in series just after the fuse to reduce the initial current surge through the fuse. Also consider it will still be live for a while after pulling the fuse (or blowing a fuse) unless you add some high resistance jumper.

    edit: Actually even if only using 100W it is a decent amount for the cigarette lighter. As suggested earlier you’re probably better off running a connection to the battery. 12ga wire should be good for a 25amp fuse and maybe then you can skip the capacitor. That would still be undersized if you used the full device capacity.

    Last edited: May 19, 2023
  7. May 19, 2023 at 11:47 AM
    #7
    0xDEADBEEF

    0xDEADBEEF Trash Aficionado

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    18,738
    Vehicle:
    2000 reg cab 4x4 flatbed MT
    How big of a current spike are we talking here? Is it just charging up some big capacitors?

    A thermistor or resistor would be a better choice to limit the inrush current.

    Bivouac likes this.
  8. May 19, 2023 at 12:36 PM
    #8
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,473
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Run a new circuit from the battery for the load you have and be done.

    Do you plan to add a timer to allow the cap to charge first before your device is energized .

    Your just adding even more of a demand on your circuit .

    It is your project do what you think best.

    SR-71A likes this.
