Adding junction to Rheostat for additional switches illumination. 2nd Gen

Discussion in 'Lighting' started by caribe makaira, Nov 12, 2020.

  1. Nov 12, 2020 at 12:26 PM
    #1
    caribe makaira

    #1
    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,426
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

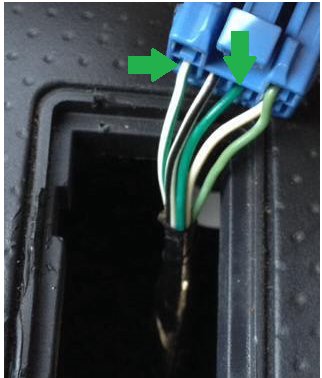

    Rheostat and ID wires for dash illumination (dimming)

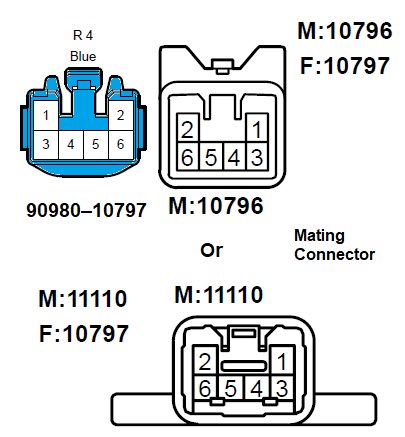

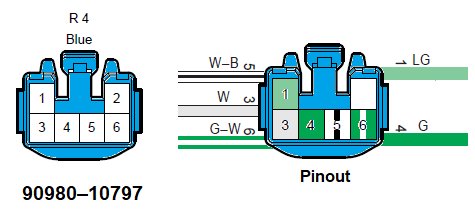

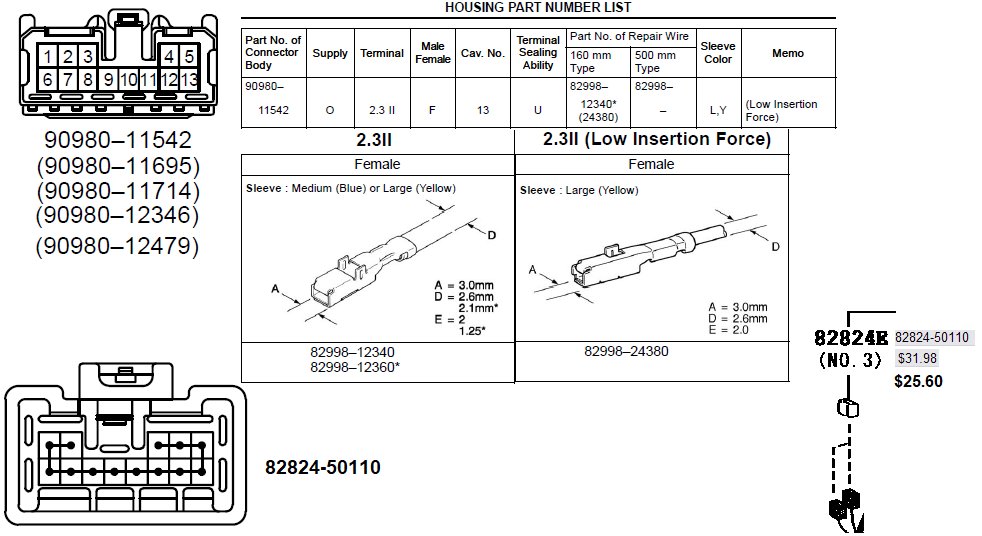

    Connectors that mate into the R4 (90980 - 10797)
    Connector & Junction Block to distribute the tapped circuit.
    Harness to be assembled

    The connectors and junction block are the same the vehicle has from factory.

    caribe makaira, Nov 12, 2020
    #1
    Tacospike likes this.
  2. Nov 12, 2020 at 5:43 PM
    #2
    caribe makaira

    #2
    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,426
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

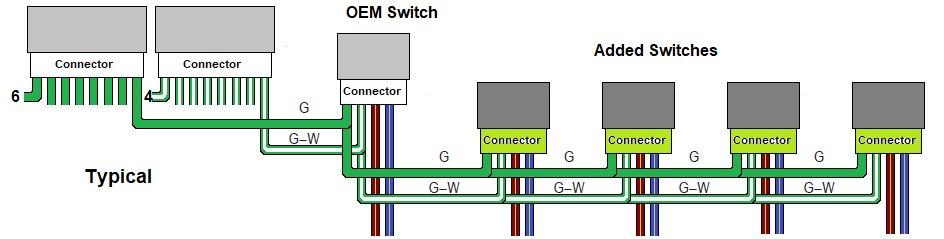

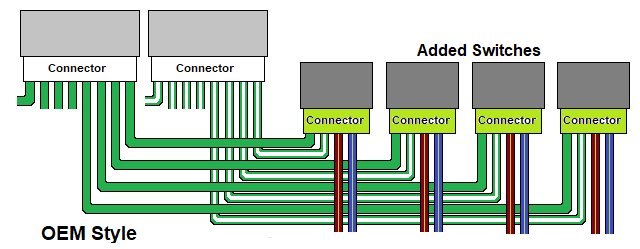

    caribe makaira, Nov 12, 2020
    #2
    outxider likes this.
  3. May 5, 2021 at 11:38 PM
    #3
    caribe makaira

    #3
    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,426
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

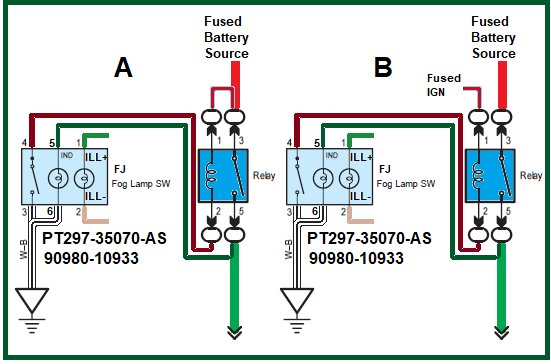

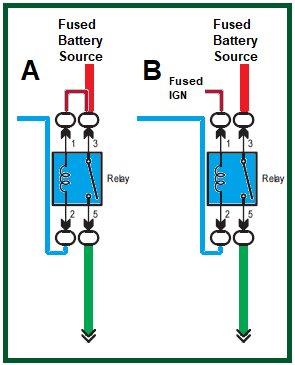

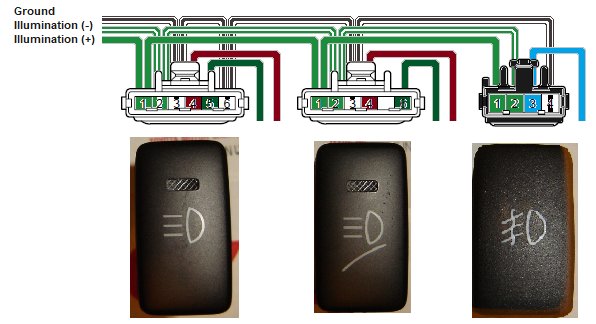

    Last edited: May 7, 2021
    caribe makaira, May 5, 2021
    #3
    Jlarios956 likes this.
  4. Feb 11, 2023 at 8:04 AM
    #4
    Jlarios956

    #4
    Jlarios956 Well-Known Member

    Joined:
    Sep 28, 2021
    Member:
    #378294
    Messages:
    60
    Gender:
    Male
    First Name:
    Josue
    Vehicle:
    2nd Gen PreRunner


    Very nice write up and detailed information man! Have you found a good location where to tap into these wires under/behind the dash?

    Jlarios956, Feb 11, 2023
    #4
  5. Feb 11, 2023 at 2:19 PM
    #5
    caribe makaira

    #5
    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,426
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    At the rheostat, like mentioned.

    caribe makaira, Feb 11, 2023
    #5
