Advice Needed - Seat warmer install/Add-a-fuse

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jrlockman, Sep 9, 2020.

  1. Sep 9, 2020 at 8:28 PM
    #1
    jrlockman

    jrlockman [OP] Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333956
    Messages:
    58
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2011 White Double Cab TRD Sport
    None yet
    It's getting cold here in Vail, CO and I am looking to get my 2011 DCSB ready for the winter. Just installed a remote start kit and now I would like to install a seat heater for the driver seat, I would like it to power on when I start the truck remotely. Found a good one on Amazon with good reviews and people have used it on Tacoma's, so it's on the way. I also have installed a Sound Ordinance amp/sub under driver seat so I have 8 gauge constant wire/ground under the seat if I need to use it, but I would prefer to use an ignition power source. I am pretty knowledgable with DC power and wiring, and I have researched this on these forums but can't seem to find a straight answer so looking to get a better answer here maybe... So here are my thoughts/questions:
    Thanks for any advice!



  2. Sep 10, 2020 at 5:17 AM
    #2
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    Use the add a fuse for the switch to turn on a relay. Run a separate fused feed from the battery to the relay terminals 30 or 87.
    As for having it come on in the morning with the remote start, just leave the seat heater turned on.

    The heaters I installed had fuses for the heat close to the relay. I moved them (2 seats) close to the battery and ran a #14 zip cord through the firewall. One run and I had a feed for each seat.
    This zip cord was originally designed for low voltage landscape lighting.

    I found it easiest to do the seat back by disassembling the seat having the base and the back separate. There are several hog rings that need to be removed and reinstalled. You will also need to remove a piece of the heater material to accommodate the tuck in the seat back and bottom. There are hog rings there as well that need to be cut out and reinstalled. I bought a hog rings plier and hog rings as a kit from tractor Supply.

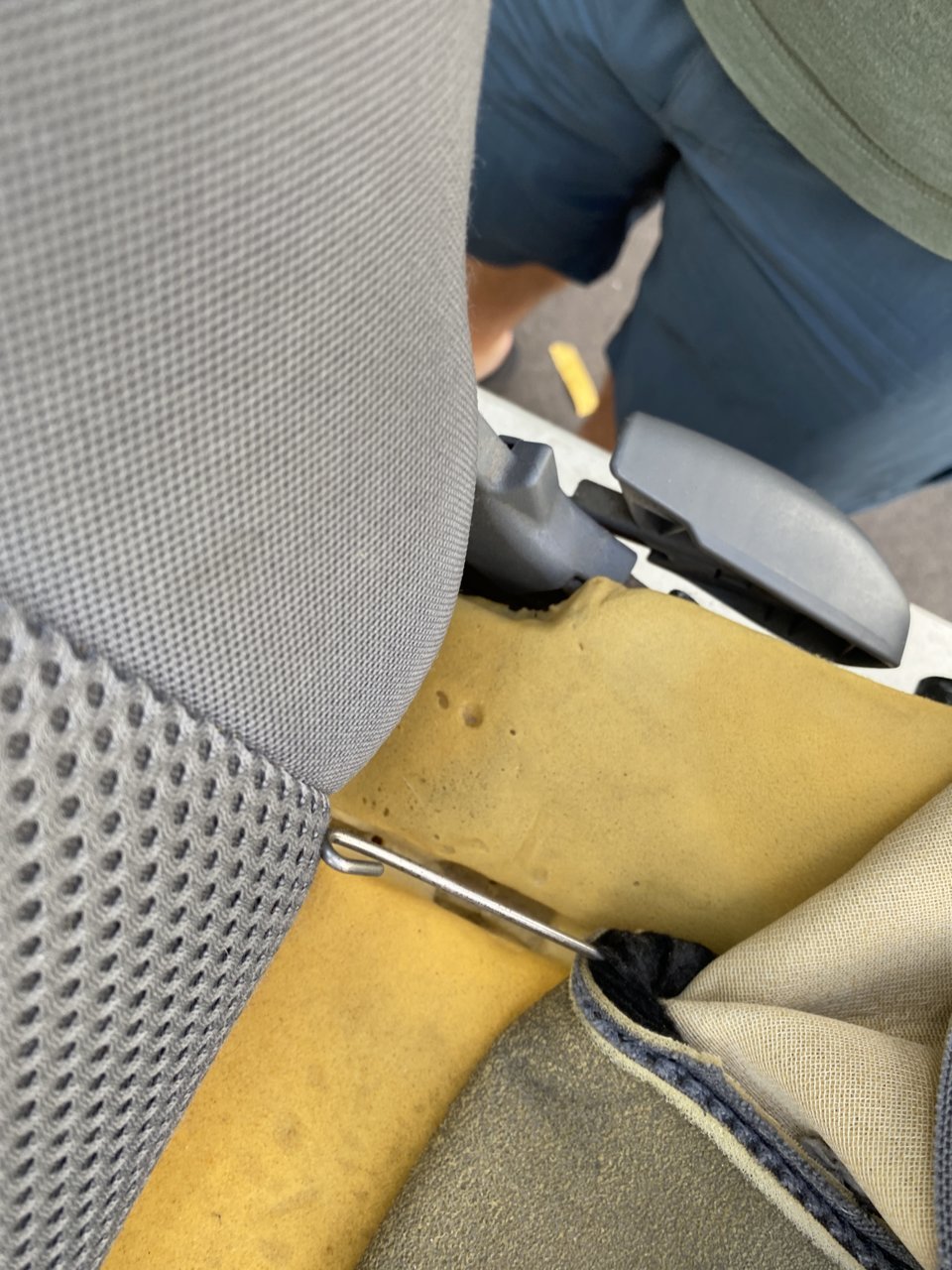

    Do not make the long cuts parallel with the sides feeding the heater element. Under the cut it in my pic is a steel wire that hog rings together with one in the seat cover..


    jrlockman [OP] likes this.
  3. Sep 10, 2020 at 7:41 AM
    #3
    jrlockman

    jrlockman [OP] Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333956
    Messages:
    58
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2011 White Double Cab TRD Sport
    None yet

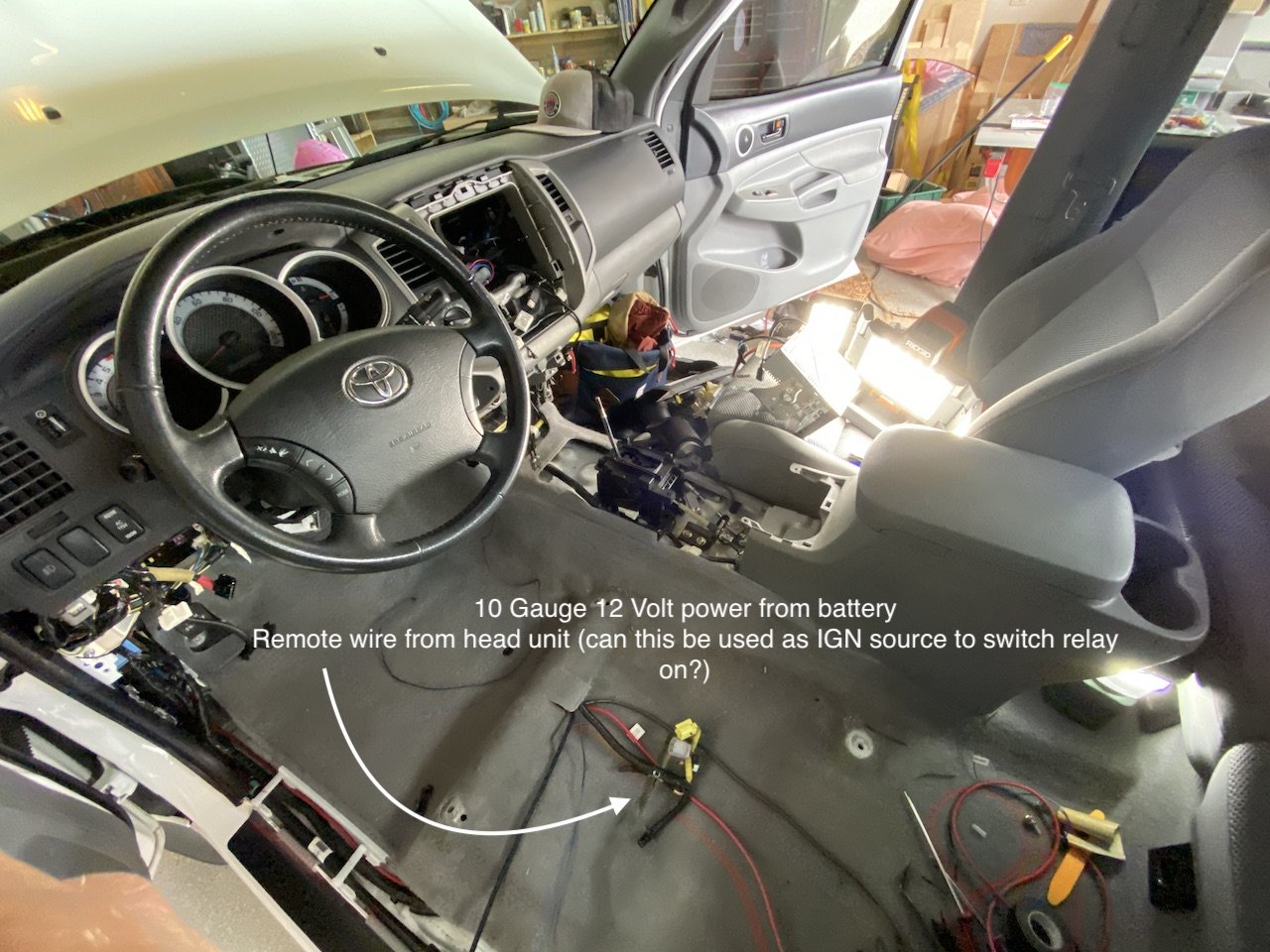

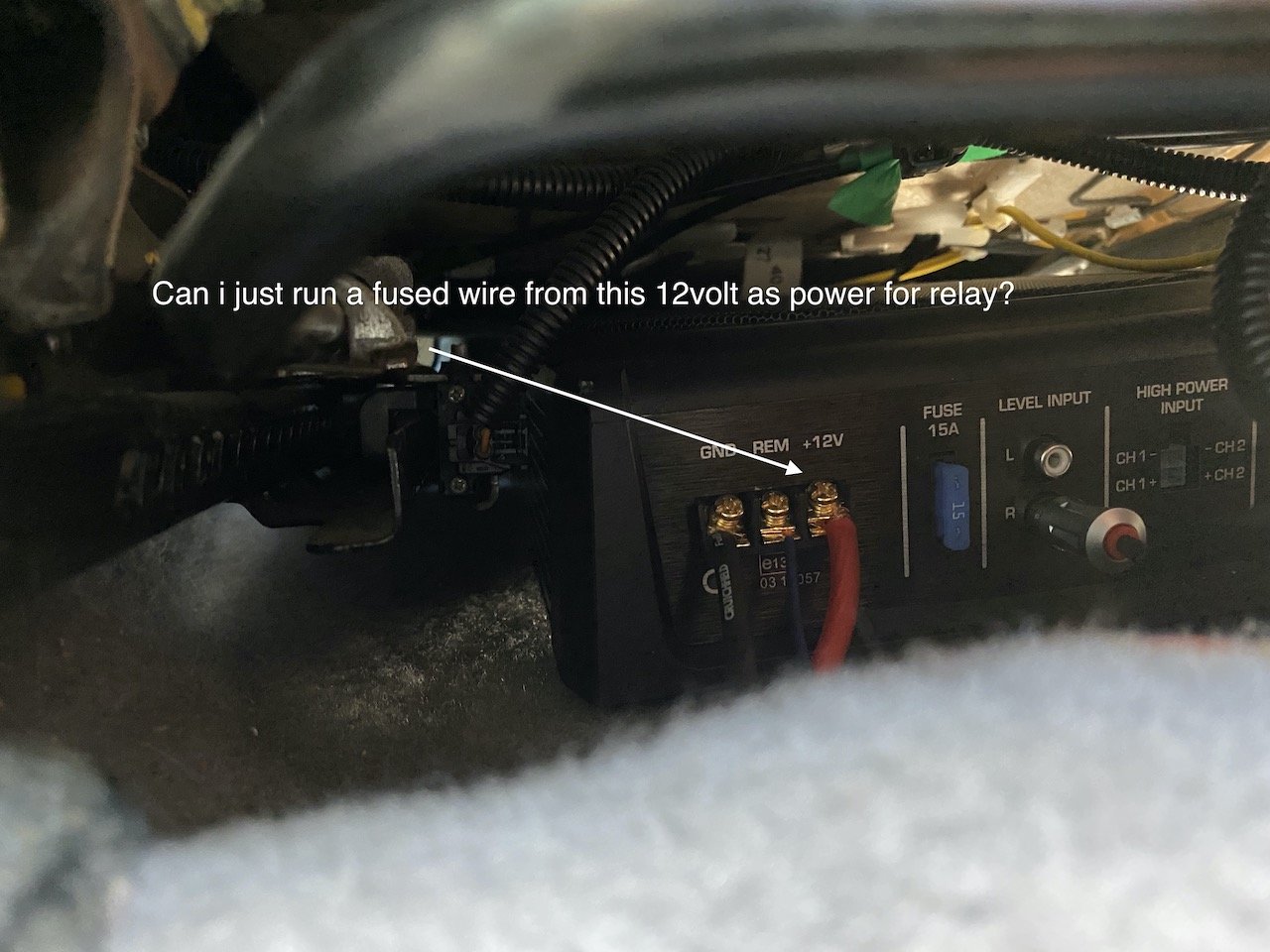

    Awesome thanks for the tips.. I'm not quite sure if I understand what you mean by where to cut, but it does look like you cut out that middle area so that the wire can go over it? Assuming the goal here is to not have the hot/seat heater component pressed down by the wire/hog ties? I was hoping to just pull back a little bit of it and tuck in the seat heater so that I don't have to remove the whole cover. And on the wiring part of it, I've got a bit of an interesting question... Yes you could run new add-a-fuse I suppose, but I already have a amp under the seat with high amp wire for constant 12V and ground, and a remote wire that comes from radio (which I assume could act as the IGN 12 volt)... Hypothetically couldn't I run a fused 14gauge wire from the hot 12Volt on the amp to the relay and run the remote wire from amp to relay and use the ground from amp to relay.. That way I'm getting all the power I need and using the remote wire as the IGN 12volt on. Just seems like it makes sense since its all right there under the seat already and would reduce wire lengths. Again the load is only 4amps, so doesn't seems like to would negatively effect the amp or its power needs... Photos below. I know it might not be the exact "right" way, but seems like it could work fine and be safe.



  4. Sep 10, 2020 at 8:15 AM
    #4
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    I know what you're saying in tapping off of the amp, but I wouldn't. Just one more place to look if something isn't working. The remote wire should be coming from the head unit to turn the amp on.

    Edit, I just looked at the heater kit. It's already cut out for the steel wires in the seat cushion and cover.

  5. Sep 10, 2020 at 8:22 AM
    #5
    Greenedmc

    Greenedmc Well-Known Member

    Joined:
    Nov 11, 2019
    Member:
    #310466
    Messages:
    544
    Gender:
    Male
    First Name:
    Daniel
    Elizabethton TN
    Vehicle:
    2014 Silver Tacoma Trd Off Road Access cab
    Wire it up as @Larzzzz said. That’s the way mine are hooked up and I have the same exact kit as you. If you use the remote wire on the amp your heated seats will only work with the radio on.

  6. Sep 10, 2020 at 2:21 PM
    #6
    DRP6833

    DRP6833 Well-Known Member

    Joined:
    Jan 21, 2014
    Member:
    #121137
    Messages:
    186
    Gender:
    Male
    First Name:
    Dave
    Frederick, CO
    Vehicle:
    2014 Tacoma I4 4WD
  7. Sep 10, 2020 at 3:11 PM
    #7
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,

    Not to mention the possibility of burning something up in the head unit running the relay of of it. Could be fine, I dunno.

    Do it twice. Do it nice. And. We never have time to do things right, but we always have the time to do it again. 2 things I tell my helpers are unacceptable...

    jrlockman [OP] likes this.
  8. Sep 11, 2020 at 12:40 PM
    #8
    jrlockman

    jrlockman [OP] Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333956
    Messages:
    58
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2011 White Double Cab TRD Sport
    None yet

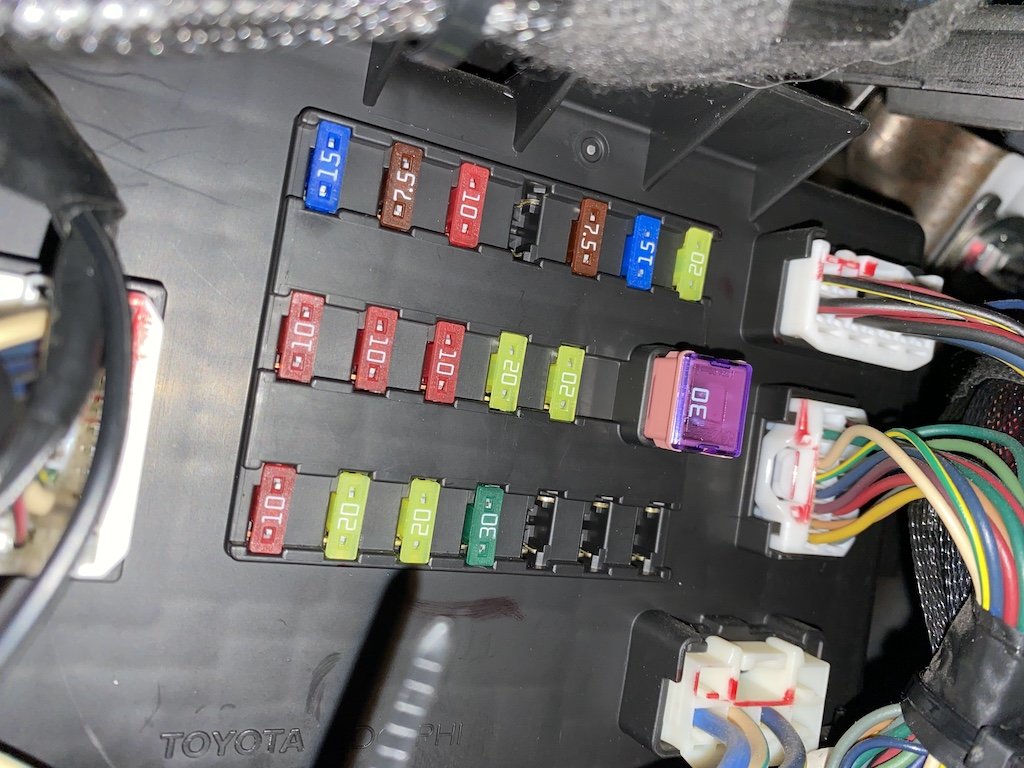

    Good tips from all... I think I'll "do it right and not twice" :) And run two seperate tap-a-fuse circuits for the seat heater and another one for the USB outlet... But still didn't get answer about which fuse is the best to tap... Hoping someone has some tips or experience about which fuses are the best to tap into?

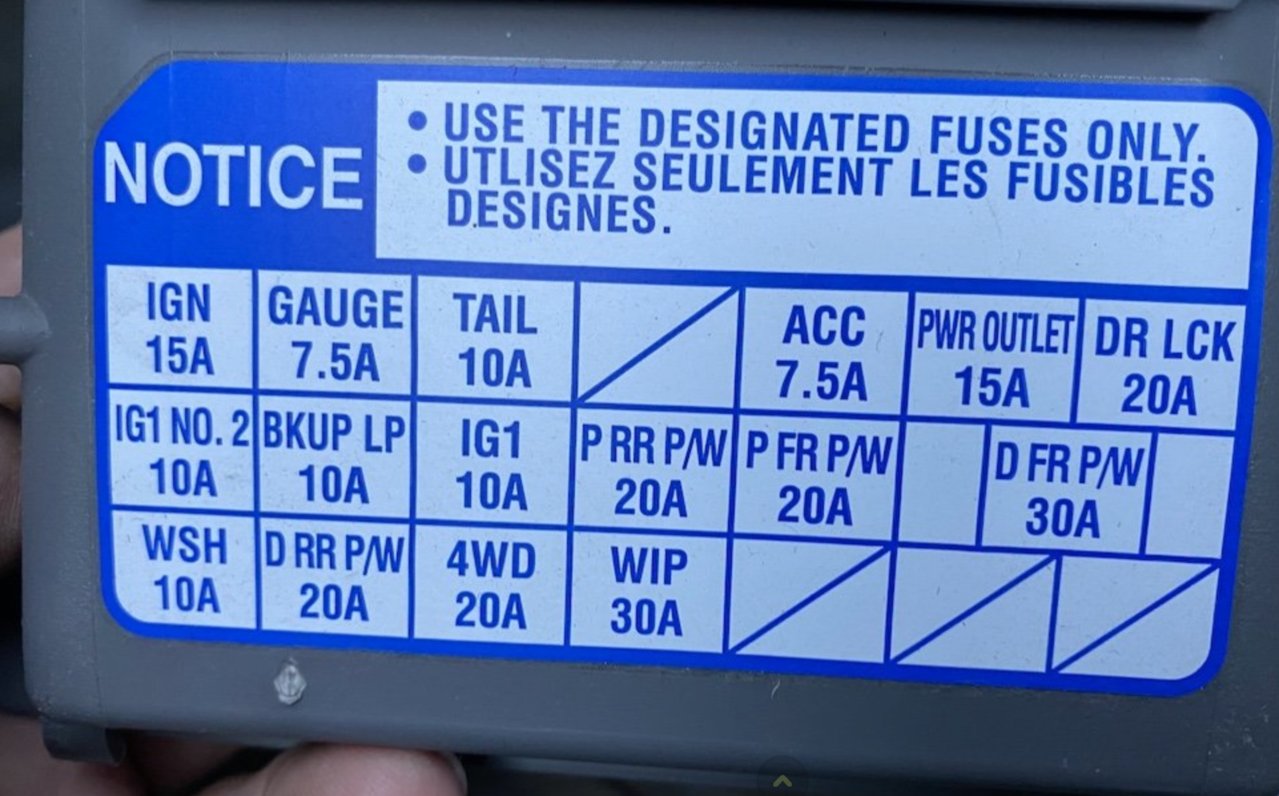

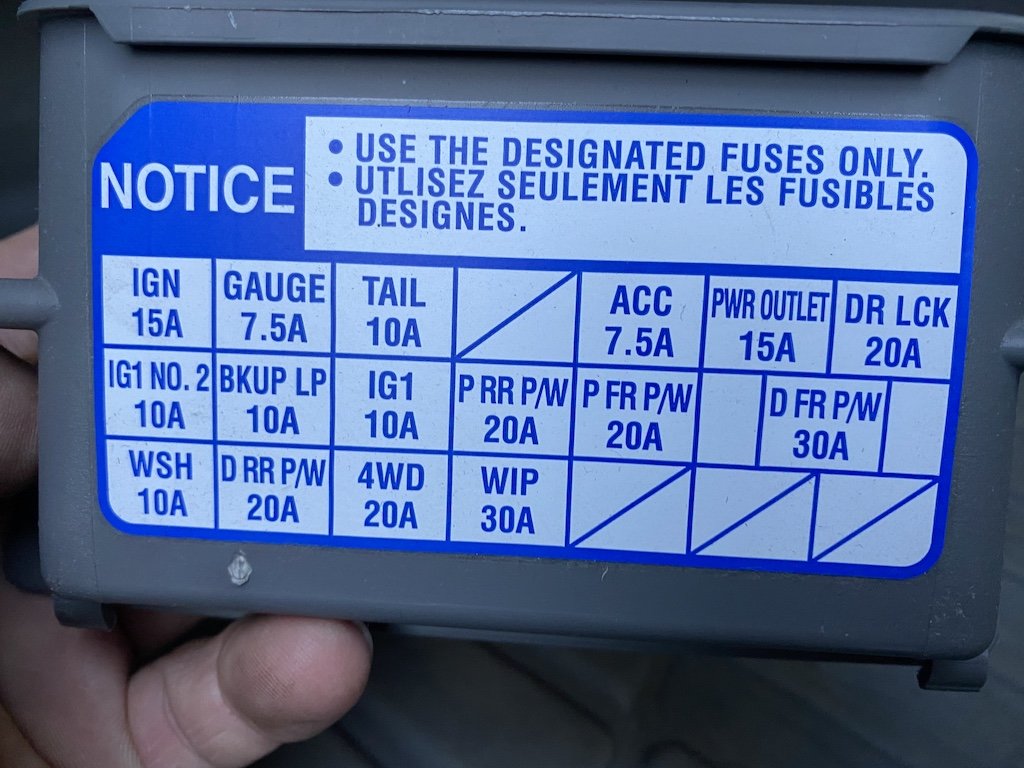

    Screen Shot 2020-09-11 at 10.27.11 AM.jpg Screen Shot 2020-09-11 at 10.27.15 AM.jpg

    Larzzzz likes this.
  9. Sep 11, 2020 at 6:12 PM
    #9
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    Tap the power outlet fuse. In my truck they shut off with the key.

    jrlockman [OP] likes this.
  10. Sep 11, 2020 at 6:15 PM
    #10
    jrlockman

    jrlockman [OP] Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333956
    Messages:
    58
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2011 White Double Cab TRD Sport
    None yet
    Yea that's what I was thinking. And what would be the second choice? I'm going to do one add-a-fuse for the seat heater and another for an additional USB plug.

  11. Sep 11, 2020 at 6:16 PM
    #11
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
  12. Sep 11, 2020 at 7:01 PM
    #12
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    The power outlet fuse is constant power. It feeds power to the contact on the ACC SKT relay.

  13. Sep 15, 2020 at 7:28 AM
    #13
    jrlockman

    jrlockman [OP] Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333956
    Messages:
    58
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2011 White Double Cab TRD Sport
    None yet

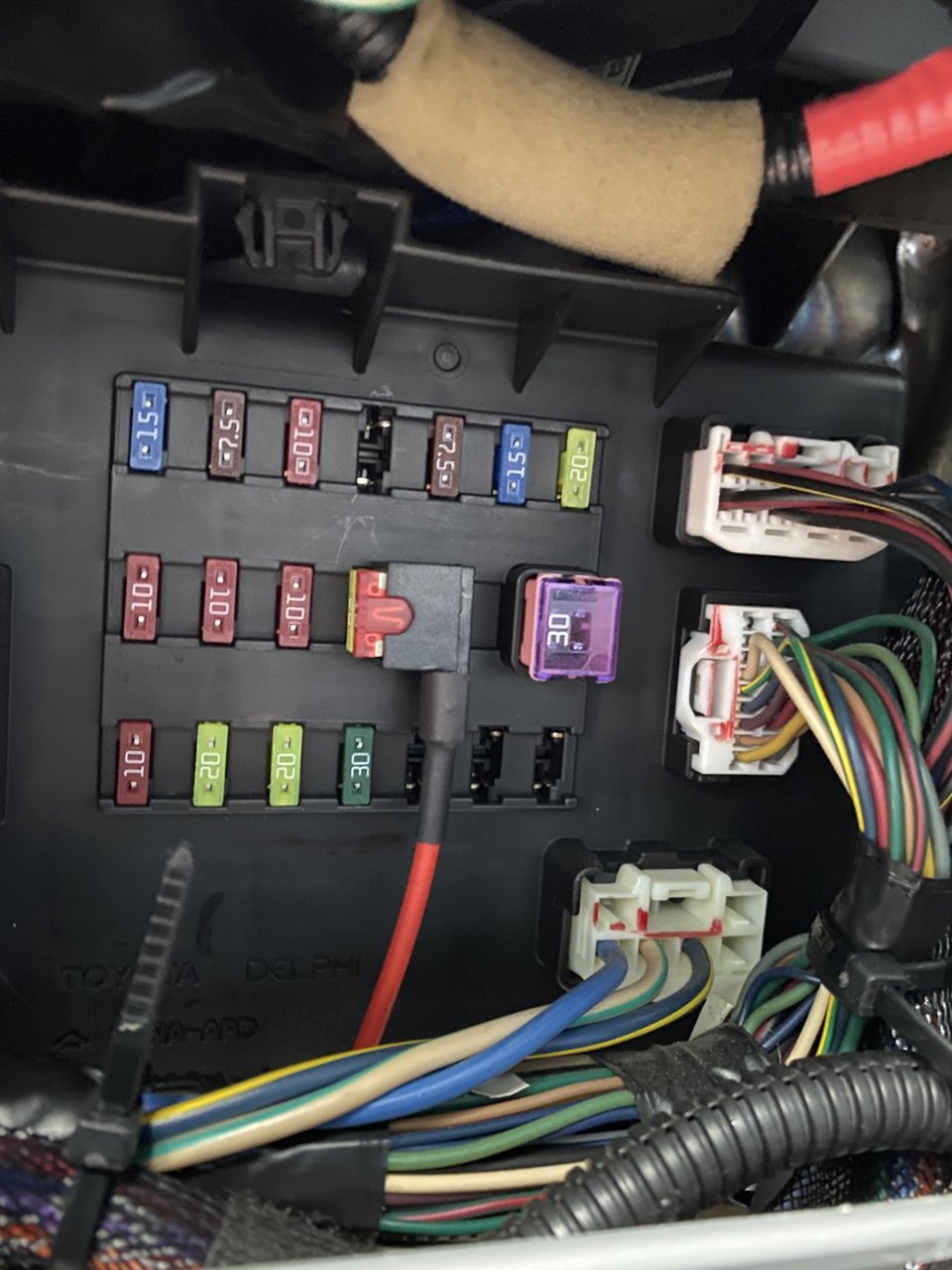

    Thanks for all your help. Install went well. The main thing I would say about doing this project with the seat heater install is to have an extra hand.. Pulling back the seat cover was pretty self explanatory, but when you start having to reach in with snips to cut the hog clips it does get a little complicated. You really need someone with you so that one person can push the cover down and the other person can push in with the hog clip pliers and reattach the clip... It takes a little muscle. But I did end up taping and adding a fuse on the rear power window circuit (20amp). Everything is working well. Installed the switch up by he center console. There is lots of room up there to stash the relay and wiring which is nice. Thanks again for the tips.

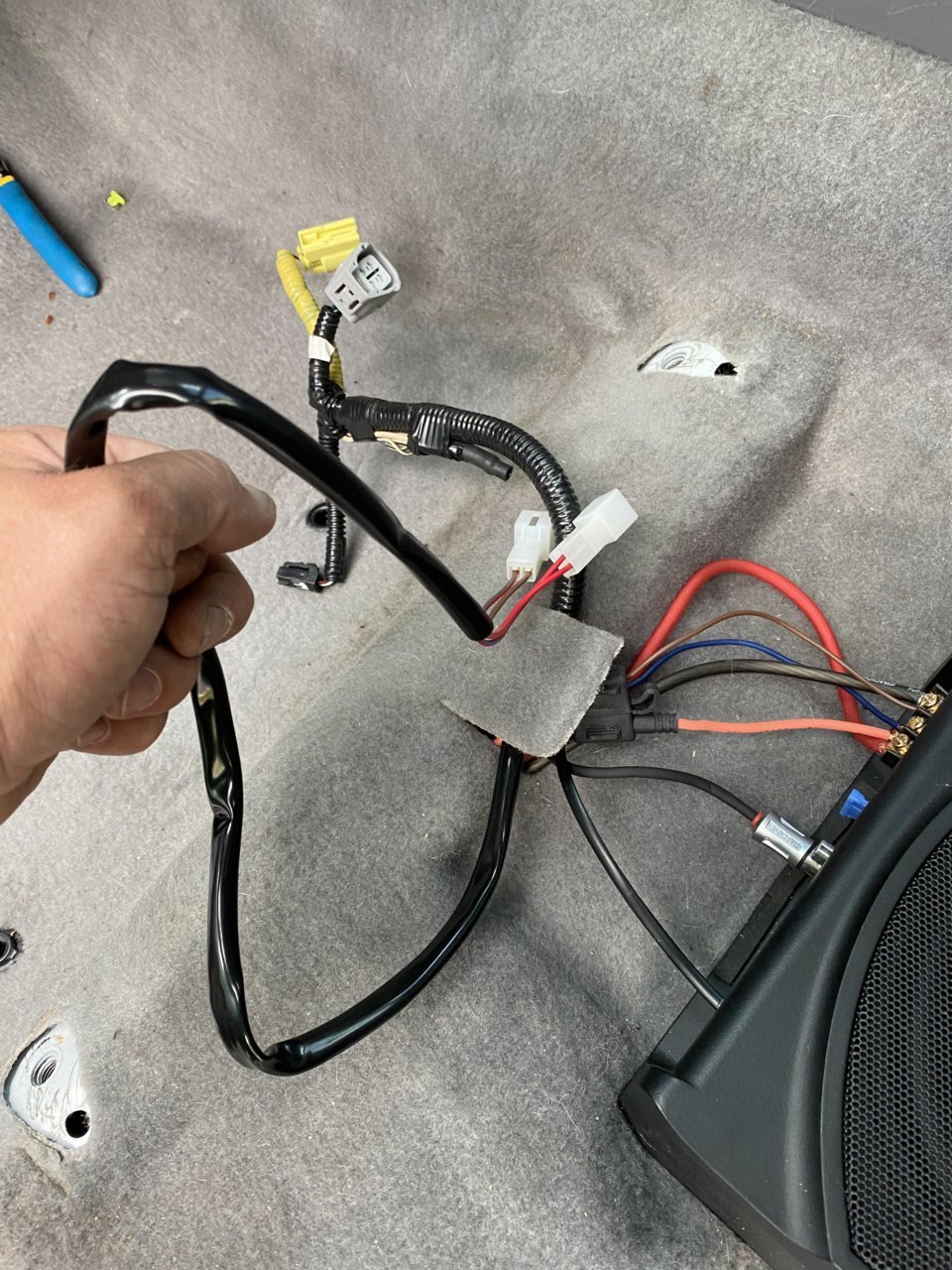

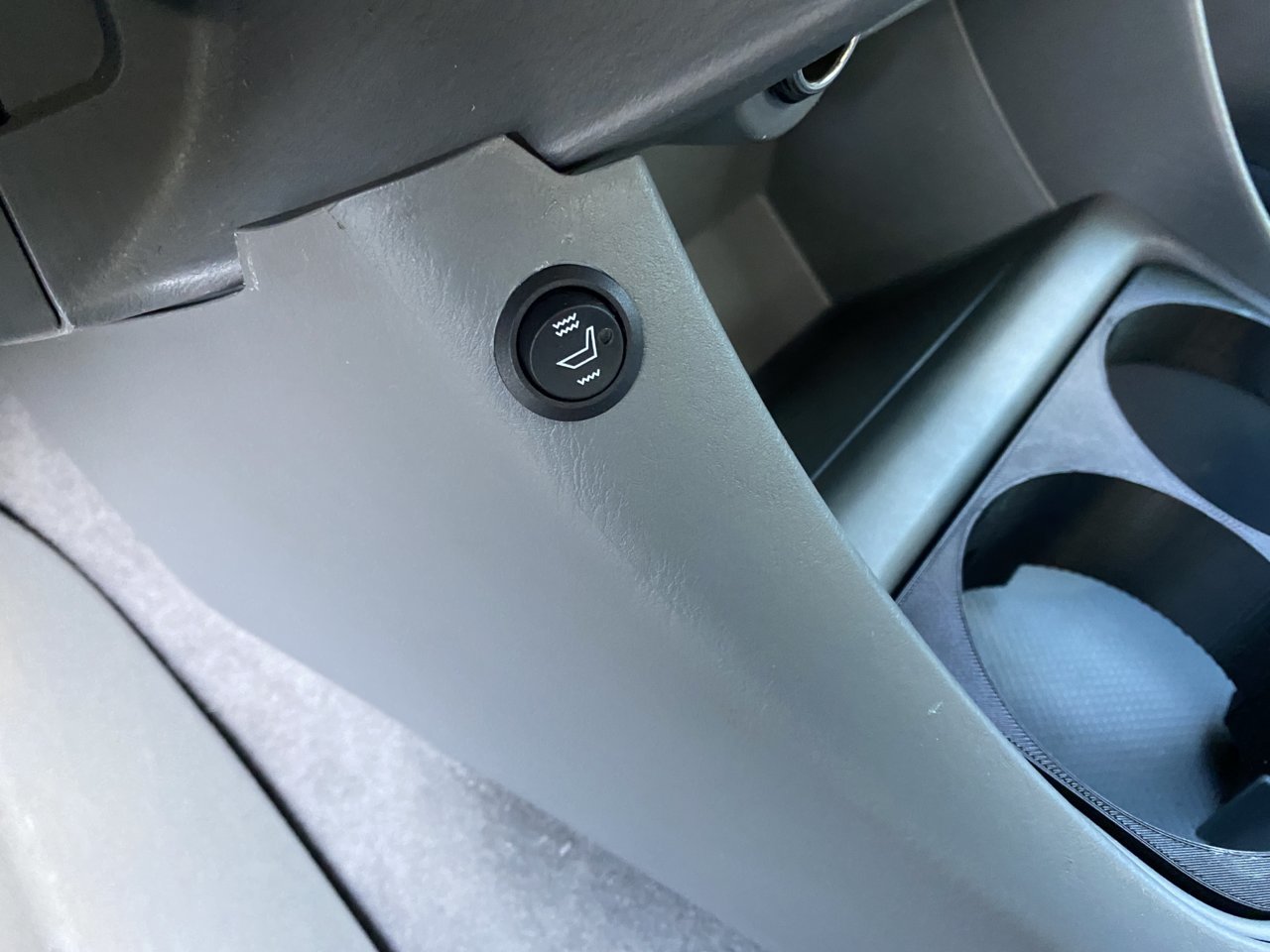

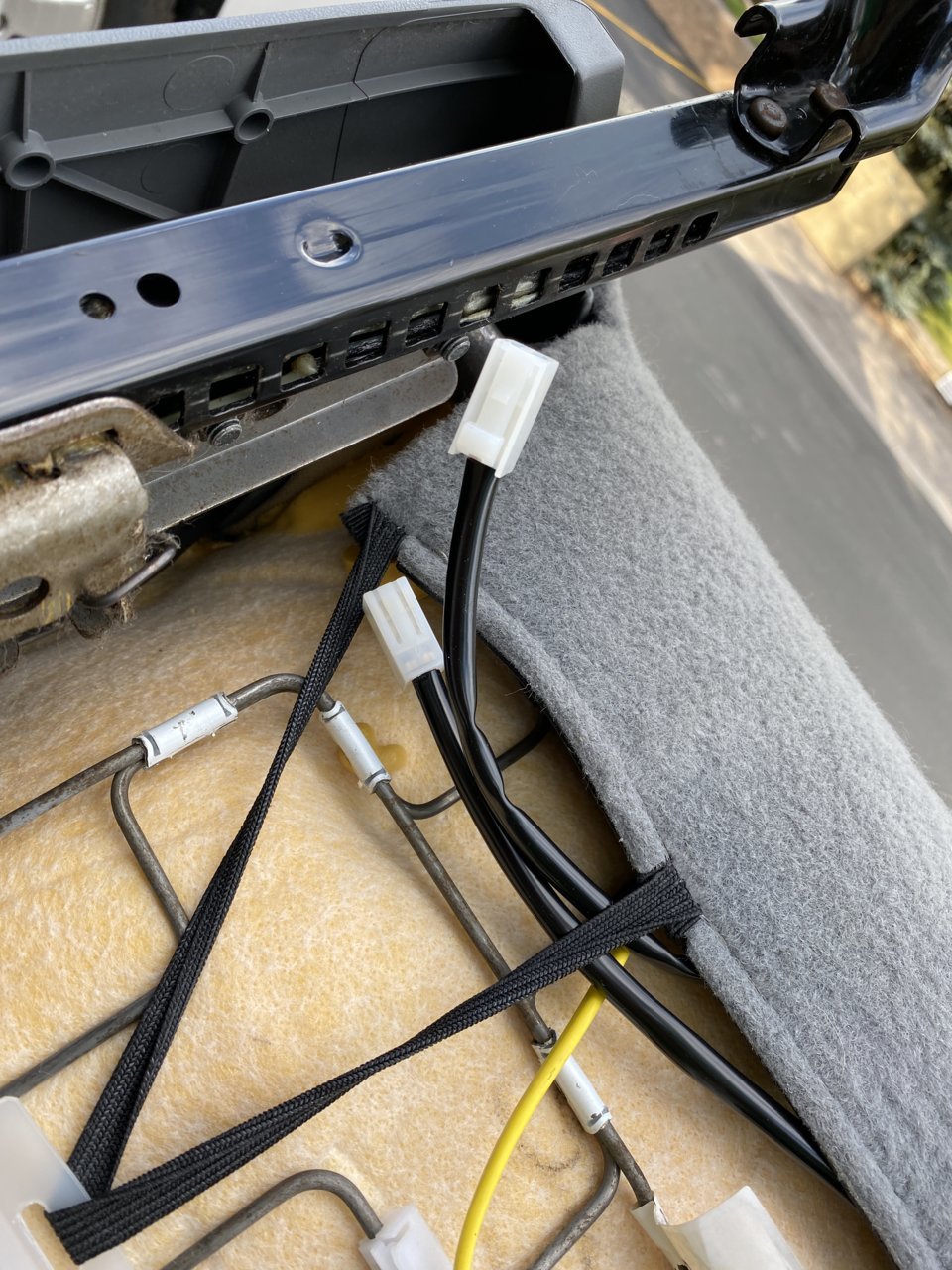

    IMG_0821.jpg IMG_0830.jpg IMG_0829.jpg
