Aftermarket Backup Camera Location + Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by belone12, Mar 31, 2014.

  1. Mar 31, 2014 at 4:53 PM
    #1
    belone12

    belone12 [OP] Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86222
    Messages:
    366
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    06 Tacoma Double Cab 6spd TRD OR
    Bilstein 5100s, AAL, heated leather seats, Thule Rack, tow package, anytime foglight, Fold-a-cover
    Hey Guys,
    Going to install my backup camera this weekend. (Not in the tailgate handle). Anyone have a reason why I shouldn't mount it where I mock taped it in the picture or have a suggestion for where? The tow hitch is somewhat limiting to mounting locations, so i was just going to thru-bolt it to the hard plastic so it is still near center.
    I am also going to silicone it and flat black it so it doesn't stand out as much.

    If you have a camera mounted on yours (not tailgate handle) feel free to post it here because I had a hard time finding any pics while searching.
    This is the camera..
    http://www.amazon.com/gp/product/B0...pf_rd_t=101&pf_rd_p=1688200382&pf_rd_i=507846

    Taco Camera.jpg

  2. Mar 31, 2014 at 4:54 PM
    #2
    belone12

    belone12 [OP] Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86222
    Messages:
    366
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    06 Tacoma Double Cab 6spd TRD OR
    Bilstein 5100s, AAL, heated leather seats, Thule Rack, tow package, anytime foglight, Fold-a-cover
    Reserved for install....

  3. Mar 31, 2014 at 6:50 PM
    #3
    welterbf123

    welterbf123 Well-Known Member

    Joined:
    Jan 9, 2014
    Member:
    #120272
    Messages:
    435
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2017 TRD Off Road
    12voltsolutions.com plug-n-play remote start system. OVTuned OEM Bed lights Underhood and footwell lights Garmin dash-cam Weathertech side vents, bug shield, mud flaps and floor mats Extang Encore tonnau cover OME BP51 Suspension Front & Back / Dakar Leaf Springs Light Racing UCA's XD Holeshot 17" x 9" Wheels Nitto Trail Grapplers 265/70/R17 TRD Pro Grille Raptor Lights iJDMToy 30" LED Hidden Bar Light Toyota Bed Step
    The only problem I see is that it's not very well protected. How about above the bumper step? At least it's a little better protected from the elements...

  4. Mar 31, 2014 at 7:27 PM
    #4
    belone12

    belone12 [OP] Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86222
    Messages:
    366
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    06 Tacoma Double Cab 6spd TRD OR
    Bilstein 5100s, AAL, heated leather seats, Thule Rack, tow package, anytime foglight, Fold-a-cover
    Thats a good idea. I wasn't sure if it was better off protected from above or below. It claims to be waterproof but i am still going to seal it up. I thought it might be more protected by the trailer hitch.

  5. Mar 31, 2014 at 7:51 PM
    #5
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    I used the 7 pin mounting bracket. It got mangled a while back so I tied it up under the bumper.

  6. Apr 1, 2014 at 5:04 AM
    #6
    SGTCap

    SGTCap Well-Known Member

    Joined:
    Oct 30, 2013
    Member:
    #115529
    Messages:
    3,823
    Gender:
    Male
    First Name:
    Cap
    Summerville, SC
    Vehicle:
    4x4 6-spd,
    37s, 4x4 6-spd, OME 886s, Allpro Expos, SOS sliders and front/rear bumpers,Rack,Skids, 4.56s, Lockers,Recon Winch, TJM RTT, Lots of tools, boxes and gear. Shaggy mutt behind the seat
    Everyone O know that wheels their truck even a tiny bit has mangled the 7 Pin bracket. That looks even less protected. I would drill a hole in the bumper itself.

  7. Apr 9, 2014 at 10:21 AM
    #7
    belone12

    belone12 [OP] Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86222
    Messages:
    366
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    06 Tacoma Double Cab 6spd TRD OR
    Bilstein 5100s, AAL, heated leather seats, Thule Rack, tow package, anytime foglight, Fold-a-cover
    For anyone interested, I thought it might help since I didn't have much of a reference.
    This is the camera I went with from Amazon - $26 & Waterproof http://www.amazon.com/gp/product/B005Q65JHM/ref=oh_details_o01_s00_i00?ie=UTF8&psc=1

    Hooking it up was relatively easy. I disconnected the battery, removed the HU, and plugged the video cabl in. Then ran it behind the drier side dash -> driverside kick panel, through the rubber grommet under the seat, down the frame to the camera. I tapped into the Power and Ground for the LED bed lights I installed a while back. That is all located behind the Driverside tail light.
    The reverse sensor wire was already connected b/c the PO had an AVIC Z1, so all I had to do was connect to the HU.

    I mounted the camera under the bumper just left of the trailer hitch to offer some protection ( I am not a wheeler). I also siliconed the camera despite it being waterproof.

    I connected the battery, re-installed the HU, and changed the Backup Camera setting to ground. The camera comes on when I shift into reverse or I can manually turn it on at any time (no bypass required, Pioneer HU).

    Overall I am happy with the results for about $30 and a couple of hours of Taco-Time.
    Hope this helps someone else looking for an affordable option. This worked for me, your needs/install may be different so use your judgement...

    01. Backup Camera.jpg
    02. Rear HU connect.jpg
    03. Mount Location.jpg
    04. Rear View.jpg
    05. Day View.jpg
    06. Night view.jpg

  8. Apr 9, 2014 at 10:28 AM
    #8
    Newlife

    Newlife Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,526
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    2020 t4r orp
    Bone f’n stock for now
    Sub'd to show mine

  9. Apr 9, 2014 at 10:31 AM
    #9
    Newlife

    Newlife Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,526
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    2020 t4r orp
    Bone f’n stock for now

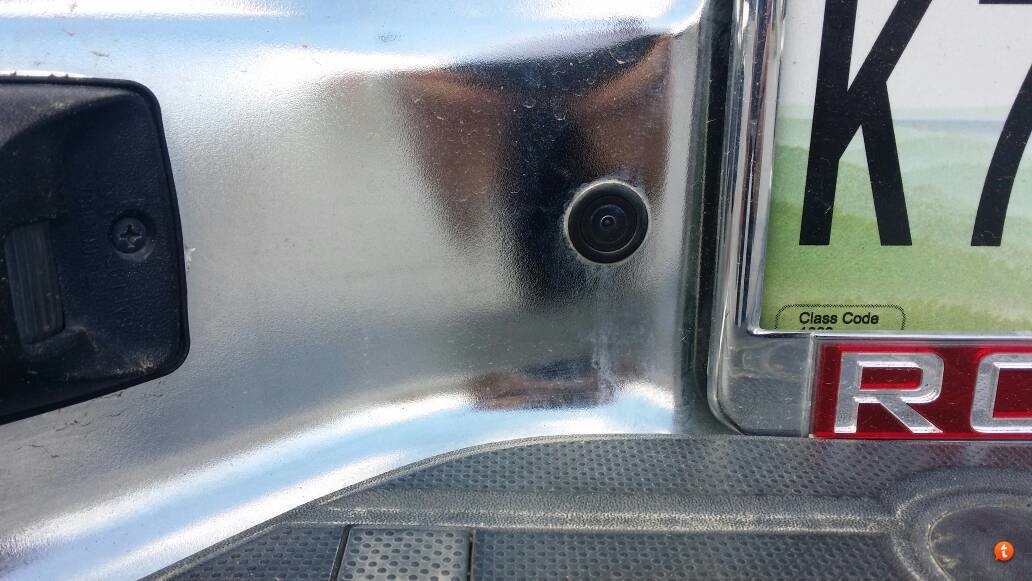

    Mounted into the rear bumper. where you put yours I was worried with hitting it backing up, or with trailer hooked to it. Plus less wires hanging down.

    MrPunktoyou likes this.
  10. Apr 9, 2014 at 12:38 PM
    #10
    belone12

    belone12 [OP] Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86222
    Messages:
    366
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    06 Tacoma Double Cab 6spd TRD OR
    Bilstein 5100s, AAL, heated leather seats, Thule Rack, tow package, anytime foglight, Fold-a-cover
    Thats nice flush mount. The design of the camera I used isn't the best for through fitting, but i may still try it if i can figure out a way to do it.
    I too am concerned about losing it, but i wrapped the wires around the hitch frame so nothing is dangling (except the camera of course)

  11. Apr 9, 2014 at 12:42 PM
    #11
    DRP6833

    DRP6833 Well-Known Member

    Joined:
    Jan 21, 2014
    Member:
    #121137
    Messages:
    184
    Gender:
    Male
    First Name:
    Dave
    Frederick, CO
    Vehicle:
    2014 Tacoma I4 4WD
    Newlife, I was thinking about a similar mounting. Does the bumper clip off any of the image on the sides?

  12. Apr 9, 2014 at 12:43 PM
    #12
    Newlife

    Newlife Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,526
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    2020 t4r orp
    Bone f’n stock for now
    Negative sir

  13. Apr 9, 2014 at 2:17 PM
    #13
    Suenter

    Suenter Member

    Joined:
    Oct 5, 2013
    Member:
    #113892
    Messages:
    18
    Gender:
    Male
    First Name:
    Steve
    Easton PA
    Vehicle:
    2013 Access Cab 4x4 SR5
    I have a 2013 SR5 with the camera in the mirror, which is great if your tailgate is up. However as a renovation contractor, I do backup with the tailgate down often.... so while replacing the head unit I installed the wiring for an additional backup camera on the bumper. I chose the licence plate unit sold on Amazon, nice and clear on the head unit.:)

  14. Apr 9, 2014 at 2:36 PM
    #14
    tacopromatt

    tacopromatt Matt's Pro Taco

    Joined:
    Dec 19, 2009
    Member:
    #27842
    Messages:
    977
    Gender:
    Male
    First Name:
    Matt
    Austin, TX
    Vehicle:
    2017 Cement Tacoma TRD Pro AT
  15. Oct 17, 2019 at 11:29 AM
    #15
    adadandhistruck

    adadandhistruck formerly "lashingbar"

    Joined:
    Sep 24, 2015
    Member:
    #165069
    Messages:
    2,111
    Gender:
    Male
    First Name:
    Mike
    Southern California
    Vehicle:
    2006 DCLB TRD SPORT, Prerunner
    OME 885/5100s, KO2s. Softopper
    some good ideas here. would love a few more for my 2006. anyone else?

    MrPunktoyou likes this.
