Aftermarket dash lights dim opposite of stock lights

Discussion in 'Technical Chat' started by garrettnb, Apr 26, 2013.

  1. Apr 26, 2013 at 1:07 PM
    #1
    garrettnb

    garrettnb [OP] Canadian Ambassador

    Joined:
    Dec 12, 2011
    Member:
    #68636
    Messages:
    109
    Gender:
    Male
    First Name:
    Garrett
    Vancouver
    Vehicle:
    00 TRD w/33s on a 4" lift
    So I just installed an ARB compressor under the hood and it all works fine. I couldn't find the dimming circuit for the dash lights to tie into for the switches LED though I finally realized I can tap directly into the rheostat. Did this and it works, but it dims inversely to the rest of the dash lights...

    I assume this is due to this circuit having the opposite polarity as expected. Is there something I can do here? I have basic wiring knowledge but can't even figure out what all the 5 pins are on the ARB switch.

    I have a 1st gen truck, but my friend with a second gen says he had a similar problem when installing lighted switches.

    Last edited: Apr 26, 2013
  2. Apr 26, 2013 at 3:09 PM
    #2
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    10,490
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    The 1st gen Tacoma, and I believe also the 2nd gen Tacoma all use ground control for the dimmer. This means that you should supply power to the bulb normally, and use the ground for the light to control the brightness of the bulb. Is that how you have it connected? I just recently installed an ARB locker system in a Tacoma, so I will do my best to help.

  3. Apr 26, 2013 at 7:10 PM
    #3
    garrettnb

    garrettnb [OP] Canadian Ambassador

    Joined:
    Dec 12, 2011
    Member:
    #68636
    Messages:
    109
    Gender:
    Male
    First Name:
    Garrett
    Vancouver
    Vehicle:
    00 TRD w/33s on a 4" lift
    Hokai, well I had it as the instructions said with the supplied lead attached to the dimming circuit. But I have since figured out which of the attached ground contacts on the switch is actually for the light. So I ran 12+ power to the one that was originally attached to the dimming circuit and then grounded it out on the dimming circuit. Baddabing! It all even works.

    Thanks!

  4. Apr 26, 2013 at 9:44 PM
    #4
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    10,490
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    No problem at all!

  5. Feb 4, 2017 at 10:56 AM
    #5
    crashnburn80

    crashnburn80 Well-Known Member

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    3,468
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!

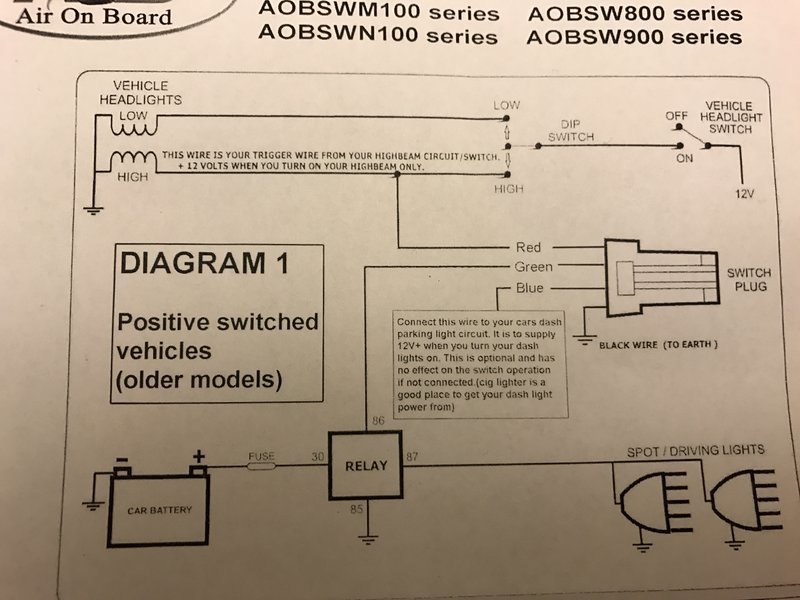

    Realize this is an old thread, but looking at doing this same thing with @JadedTaco on some Air On Board switches now and are having difficulty getting this working correctly. It is easy enough to get the switch to dim in the opposite direction. In the wire diagram below, how would this be connected to the dim circuit? Trying to tie the ground wire into to the dim circuit as was seemingly implied above results in the light not dimming.


    Montanaguy likes this.
  6. Feb 13, 2017 at 7:14 PM
    #6
    Montanaguy

    Montanaguy Member

    Joined:
    Apr 20, 2016
    Member:
    #184784
    Messages:
    6
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2013 dbl CB lb
    18x9 Fuel rims, All-Pro Pack Rack cut to 14". CVT Mt. Rainier RTT with 79" awning, Thule rack over cab. Rotopax gear. Bilstein 6112 coilovers/5100's and aal
    @crashnburn80... I am currently wiring my switch for my compressor and reading through threads as well. At this time I am wiring an ARB Dual compressor without lockers. So... I have yet to find a smoking gun on how and what to wire to as of right now.
