AGM BATTERY CHARGING - ALTERNATOR VOLTAGE BOOSTER

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 05Taco4x4, May 24, 2019.

  1. May 24, 2019 at 5:19 PM
    #1
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    4,377
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser

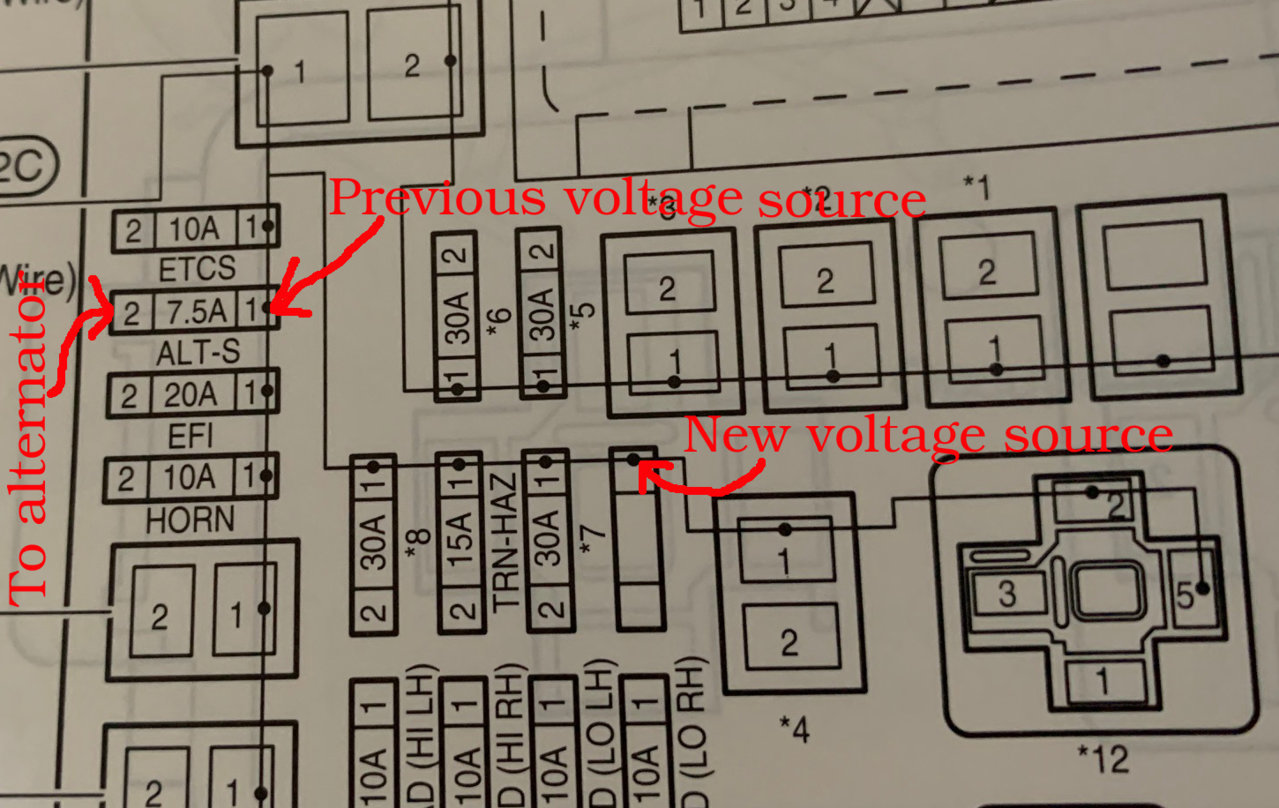

    A buddy gifted me an Optima Red Top after I boosted my engine. A few weeks later I came across a post by @hx989 in the nefarious "What Have You Done To Your 2nd Gen Tacoma Today?" thread, explaining how he added a diode to his Alt-S circuit to charge his AGM battery. o_O I wasn't aware my alternator wasn't sufficiently charging my battery, I certainly didn't know how adding a diode would make it do so, and what's a "Alt-S"? Apparently, AGM batteries require higher voltages than lead-acid batteries to charge and our alternators don't put out enough. Placing a diode in place of the Alt-S (alternator sensing) circuit fuse tricks the alternator into seeing less voltage than the battery actually has, raising the alternator voltage output.


    Littlefuse Mini Diode Fuse
    1 amp
    02400113P
    02400113XP
    1.5 amp
    02400120P

    Remove this bit of plastic
    Note:
    Replace with fuse while reprogramming ECU

    Last edited: Aug 16, 2019
  2. May 24, 2019 at 6:38 PM
    #2
    vwbuggsy

    vwbuggsy Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54641
    Messages:
    298
    Gender:
    Male
    Clinton, MD
    Vehicle:
    09 DC 4X4 LB Black Sand Pearl
    N-fab steps, Wet Okole Covers, line-x, tint, vent shades, budget stereo upgrades, weathertech floor liners
    I get the idea here. I have an agm battery and have never made this change. Normal charging voltage is ~13.5 volts I think, and battery resting is 12.5 ish. So does this cause a ~14.7 charging voltage, or allow the battery to charge to a resting charge of ~13.7... Or both? And what is the downside of not doing this because my agm seems to have been doing fine without it for a couple years now.

  3. May 24, 2019 at 7:00 PM
    #3
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,004
    Deep South
    Herculiner Hootus
  4. May 24, 2019 at 10:12 PM
    #4
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,391
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    My diode is about .5 to .7 volts higher than stock.

    That is why I stated a better way to install it in the system is to add it in series while leaving the stock fuse in place.
    You get the voltage drop and the protection that way.

  5. May 24, 2019 at 10:18 PM
    #5
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    8,962
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
  6. May 24, 2019 at 10:24 PM
    #6
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,391
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    crashnburn80 likes this.
  7. May 25, 2019 at 7:36 AM
    #7
    vwbuggsy

    vwbuggsy Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54641
    Messages:
    298
    Gender:
    Male
    Clinton, MD
    Vehicle:
    09 DC 4X4 LB Black Sand Pearl
    N-fab steps, Wet Okole Covers, line-x, tint, vent shades, budget stereo upgrades, weathertech floor liners
    crashnburn80 likes this.
  8. May 25, 2019 at 12:17 PM
    #8
    Jeffch

    Jeffch Well-Known Member

    Joined:
    Dec 23, 2011
    Member:
    #69251
    Messages:
    1,731
    Gender:
    Male
    First Name:
    Jeff
    Vermont
    Vehicle:
    08 Tacoma 4x base Blk Sand Pearl
  9. May 27, 2019 at 12:07 PM
    #9
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,666
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    I ran a 27F AGM in my '97 FZJ80 for over 4 years & never had an issue. Is this really necessary?

  10. May 27, 2019 at 6:36 PM
    #10
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,004
    Deep South
    Herculiner Hootus
    No, but it will extend the life of the battery and if you are using it for a setup where you need the capacity, it will never be fully charged even from the start.

    Redsyota likes this.
  11. May 27, 2019 at 6:51 PM
    #11
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,666
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    It ran my fridge 24/7 & started every time. Not once was it ever so dead it wouldn't start.

  12. May 27, 2019 at 7:02 PM
    #12
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,004
    Deep South
    Herculiner Hootus
    I never said it wouldn't, but you will never get the battery fully charged with the lower voltage meant for a standard flooded lead acid battery. I take my AGM batteries and put them on an AGM charger when the truck is in the garage to make sure they are topped off.

    06Tacooo, Norton and MolonLabeTaco like this.
  13. Jun 1, 2019 at 2:00 PM
    #13
    Labbi85

    Labbi85 Well-Known Member

    Joined:
    Feb 25, 2018
    Member:
    #245606
    Messages:
    90
    Gender:
    Male
    Did this mod today and it kinda works. Unfortunately the diode I ordered (02400113P) has voltage drop of about 0.58V (measured with a fluke multimeter) and this rises my voltage from 13.9V to around 14.5V. This is of course better then nothing but not quite at the 14.7V I was hoping for. Unfortunately I can't find any data sheet for these diodes which include a voltage diagram.

  14. Jun 5, 2019 at 1:49 AM
    #14
    xxmagpulxx

    xxmagpulxx Well-Known Member

    Joined:
    May 6, 2016
    Member:
    #186240
    Messages:
    791
    Gender:
    Male
    Reno, NV
    Vehicle:
    TRD Off-Road DCSB Blazing Blue
    So apparently the HKB Diode wont work in a 2016 or newer Tacoma because the 2016 or newer Tacoma doesn't have an ALT-S circuit. After waiting 3 plus weeks for the adjustable diode, ask me how I know.

    While we are on this subject, I have a brand new, never been used diode for sale. Since I couldn't use it, Ill sell it for what I paid for it, and you don't have to wait forever to get it from Australia. Its located in Nevada.

    Redsyota likes this.
  15. Jun 6, 2019 at 5:20 PM
    #15
    SamuelJ

    SamuelJ Darkhorse

    Joined:
    Sep 11, 2014
    Member:
    #138061
    Messages:
    176
    Gender:
    Male
    First Name:
    Samuel
    33.9269893 -118.0185768
    Vehicle:
    2012 DCLB 4x4 Trd Sport
    Shortened flowmaster exhaust with a turn down pipe, under cowl intake, throttle body spacer, train horn, underhood led lights, hood struts, dual 27f yellow tops. Led ditch lights, led front roof light bar, led fogs and headlights, behind grill mounted piaa dual color driving lights. Aux fuse and relay panel. Pro comp skid plate, bilstein 5100 leveling shocks on a 2in. lift, b110 rear 5100, ubolt flip kit with an add a leaf, front superbumps, light racing jounce rear bumpstops, sway bar relocation, brake line bracket extension, driveline carrier bearing drop, front diff drop, on board air compressor, 10 gal pump driven fresh water tank, cb radio, pioneer 4200 hu, infinity reference component front and component rear speakers powered by rockford fosgate 4 channel, kicker comp cvt102 10 pancake with a kicker 1600w class d amplifier. Big three upgrade, capacitor. Full cab sound deadening and thermal insulation. Led interior including added footwell, courtesy, cupholder, center console, and glovebox lighting, rock lights, bed lights, ring gear armor, under bed ammo can storage, pistol safe, body armor sliders, roof rack, hilift, 285/70 17 bfg km2 on american racing teflon atx, tailgate strut, and tailgate lock, retrofit projector headlights(home built), rgb halos inside turbine shrouds, black out surround, black chrome reflector and shroud, white halo outside shroud, white led drl, rgb behind grill on rf control. Mods followed from a TW thread: Anytime fogs Anytime rear view camera Anytime 400w inverter Alternating blinker/running lights 110v center console outlet ABS kill switch Engine kill switch (magnetic) 12volt bed socket Rear diff breather relocation Led bed lights Cargo net anchors Grid it center console top Grid it sun visor Locking center console Instrument cluster led swap Map lights on with dome Cigarette lighter add (shifter position) Dtrl kill switch Hilux lighted 4wd selector switch. Vios hvac knobs Hood scoop led bar
    I know Im late to chime in here but I bought the hbk one about a year ago too and it works like a champ. I have two yellow tops and no problems thus far. The hbk one doesn't ixnay the voltage protection either.

    6 gearT444E and TodayWasTHeDaY like this.
  16. Jun 7, 2019 at 12:31 AM
    #16
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    8,962
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    That has already been covered in depth here. Including many working on how to reprogram the ECU with TechStream or use a tune to recalibrate the ECU to modify 3rd gen voltage charging, since 3rd Gen voltage is ECU controlled and not alternator controlled like earlier gens that can then be modified with a diode.

  17. Jun 7, 2019 at 6:24 AM
    #17
    Jacked Burton

    Jacked Burton Well-Known Member

    Joined:
    Mar 6, 2018
    Member:
    #246517
    Messages:
    213
    Gender:
    Male
    Vehicle:
    2005 Access Cab SR5 V6 manual 4.30s Trutrac
  18. Jun 7, 2019 at 6:47 AM
    #18
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    4,729
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Typical voltage drop across a diode is .7 volts. I think before going to all the effort I would actually check the charge voltage, a drawn down AGM would like to see 14.6-14.8 dropping to 13.6-13.8 well with in the realm of a stock alternator.

  19. Jun 7, 2019 at 6:53 AM
    #19
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    5,213
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
  20. Jun 10, 2019 at 5:19 PM
    #20
    MacMedic

    MacMedic Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182193
    Messages:
    162
    Gender:
    Male
    Vehicle:
    2016 Black Tacoma TRD Sport


    I too have a brand new, never been used diode for sale. Since I couldn't use it, Ill sell it for what I paid for it, and you don't have to wait forever to get it from Australia. Its located in Connecticut.
