AGM BATTERY CHARGING - ALTERNATOR VOLTAGE BOOSTER

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 05Taco4x4, May 24, 2019.

  1. Nov 29, 2023 at 7:50 AM
    #261
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    Read all the notes about the 4F2Z-14A604-AA diode...

    What was the purpose of this diode for ford? Was it also designed to support late model ford owners that switched to an AGM battery.

    Couldn't find a single mention of failure of any kind for those that have used it (except for one mention of alternator whine)

  2. Nov 30, 2023 at 8:53 PM
    #262
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    I have ordered the GM diode. 12135037 only because the ford one is $60 on Amazon.ca and the GM one is $17
    All the ford dealers wanted $20 plus $25 for shipping (on something that weighs less than a loonie coin.

    If your in canada its https://www.amazon.ca/gp/product/B08WHLPQR3?ie=UTF8

    and if you want the littlefuse (same thing but 4 pack) its https://www.amazon.ca/Littelfuse-02...sprefix=littlefuse+diode,automotive,61&sr=1-2

    Bikinaz, Saskabush and 808BOGEYMAN like this.
  3. Nov 30, 2023 at 9:39 PM
    #263
    808BOGEYMAN

    808BOGEYMAN Member

    Joined:
    Feb 9, 2021
    Member:
    #355617
    Messages:
    14
    Gender:
    Male
    First Name:
    Dino
    Vehicle:
    98 4x4 limited xtra cab 3.4
    I added this GM diode to to my 1st gen 5vz almost 2 yrs now and happy with it. Pushing 14.5v now to keep it humming. Currently running Interstate 24f MTX and no issues to report.

  4. Dec 4, 2023 at 1:11 PM
    #264
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport

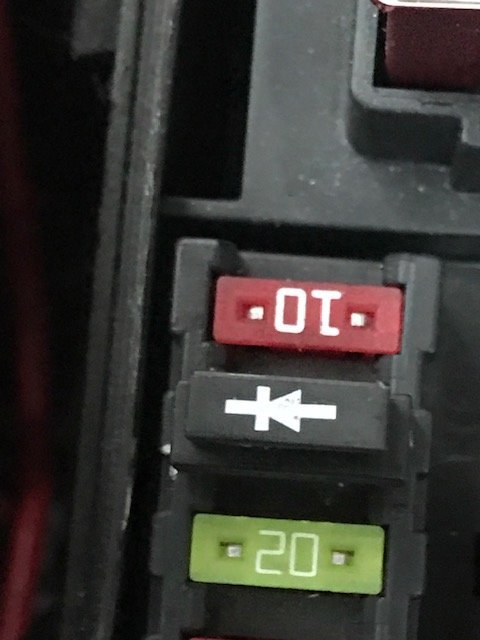

    Took longer to trim off the small bit of extra plastic. Installed and working now

    IMG_1994.jpg IMG_1993.jpg

    808BOGEYMAN likes this.
  5. Dec 4, 2023 at 1:45 PM
    #265
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    12,730
    SoCal- SGV
  6. Dec 4, 2023 at 1:47 PM
    #266
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    12,730
    SoCal- SGV

    Rob MacRuger and Airdog like this.
  7. Dec 4, 2023 at 8:09 PM
    #267
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    No such luck with prices like that in Toronto CDN :annoyed:

  8. Dec 4, 2023 at 8:59 PM
    #268
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,086
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...

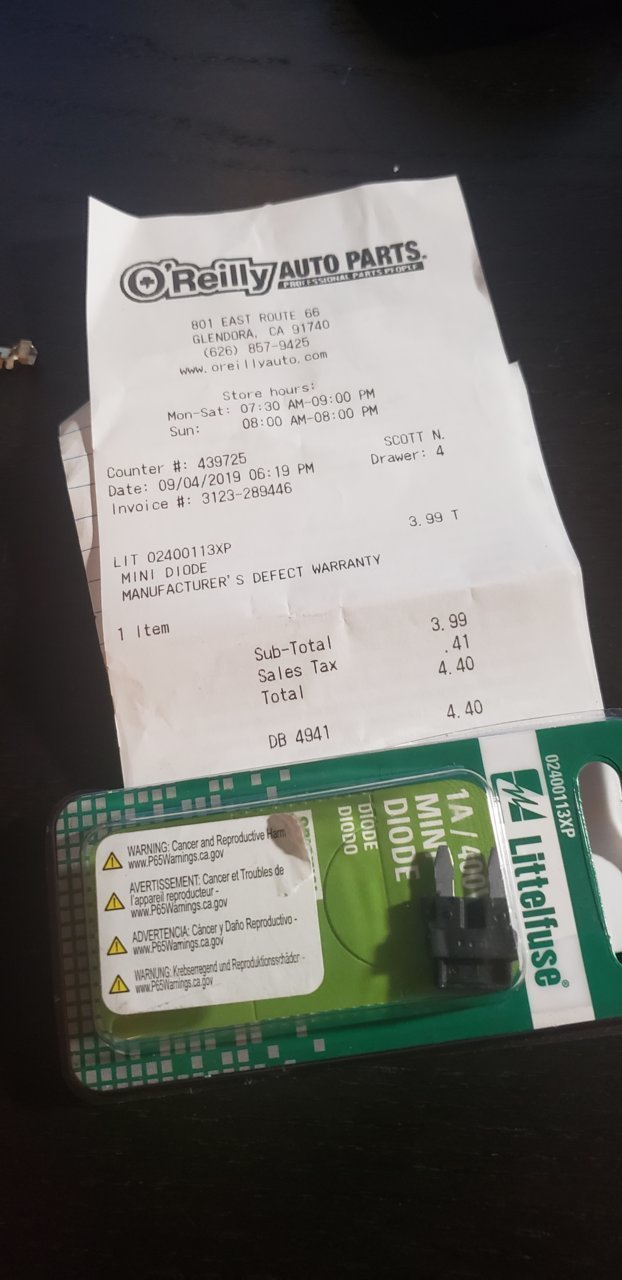

    Receipt is 4 years old.

  9. Dec 5, 2023 at 7:26 AM
    #269
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    12,730
    SoCal- SGV
    Same price as of Today for the exact same LittleFuse Part Number.. being its been Four years since I last purchased a Diode. I only chose Oreilys because the store is a few blocks away from me. I never bothered to check prices at the other Chain AutoParts Stores, wonder what they would be?
    https://www.oreillyauto.com/detail/...i-diode/lit0/02400113xp?q=Lilfuse+diode&pos=5

    The AC Delco/GM versions are just a few bucks more..as of Today
    https://www.oreillyauto.com/detail/...sor-diode/acd0/12135037?q=Lilfuse+diode&pos=0

    https://www.oreillyauto.com/detail/...al-diode/acd0/88987713?q=Lilfuse+diode&pos=14

    bagleboy[QUOTED] likes this.
  10. Dec 5, 2023 at 8:44 AM
    #270
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport

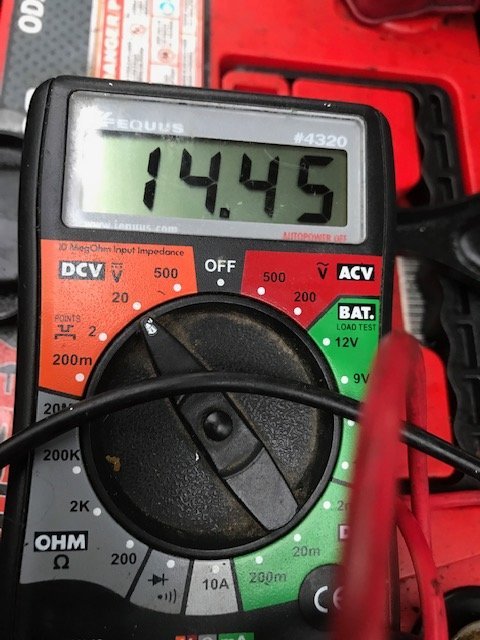

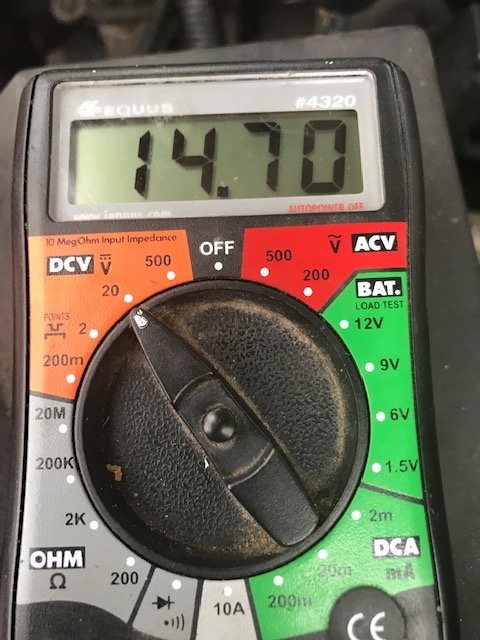

    14.45V looked a little low but battery was still warm after a drive. tested again this moning when everything was cold (2C) and it was right on. Started dropping slowly and was down to 14.65 in about a minute

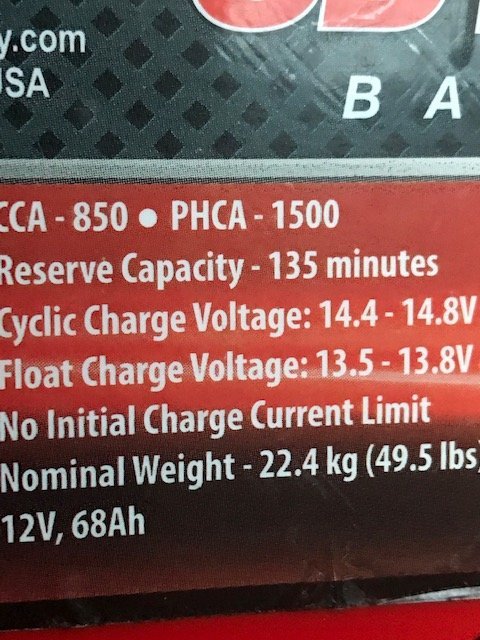

    And i never actually looked at it before but its right on the battery as someone mentioned it being on their AGM battery as well


    Last edited: Dec 5, 2023
  11. Dec 7, 2023 at 6:32 AM
    #271
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    See if this is correct.

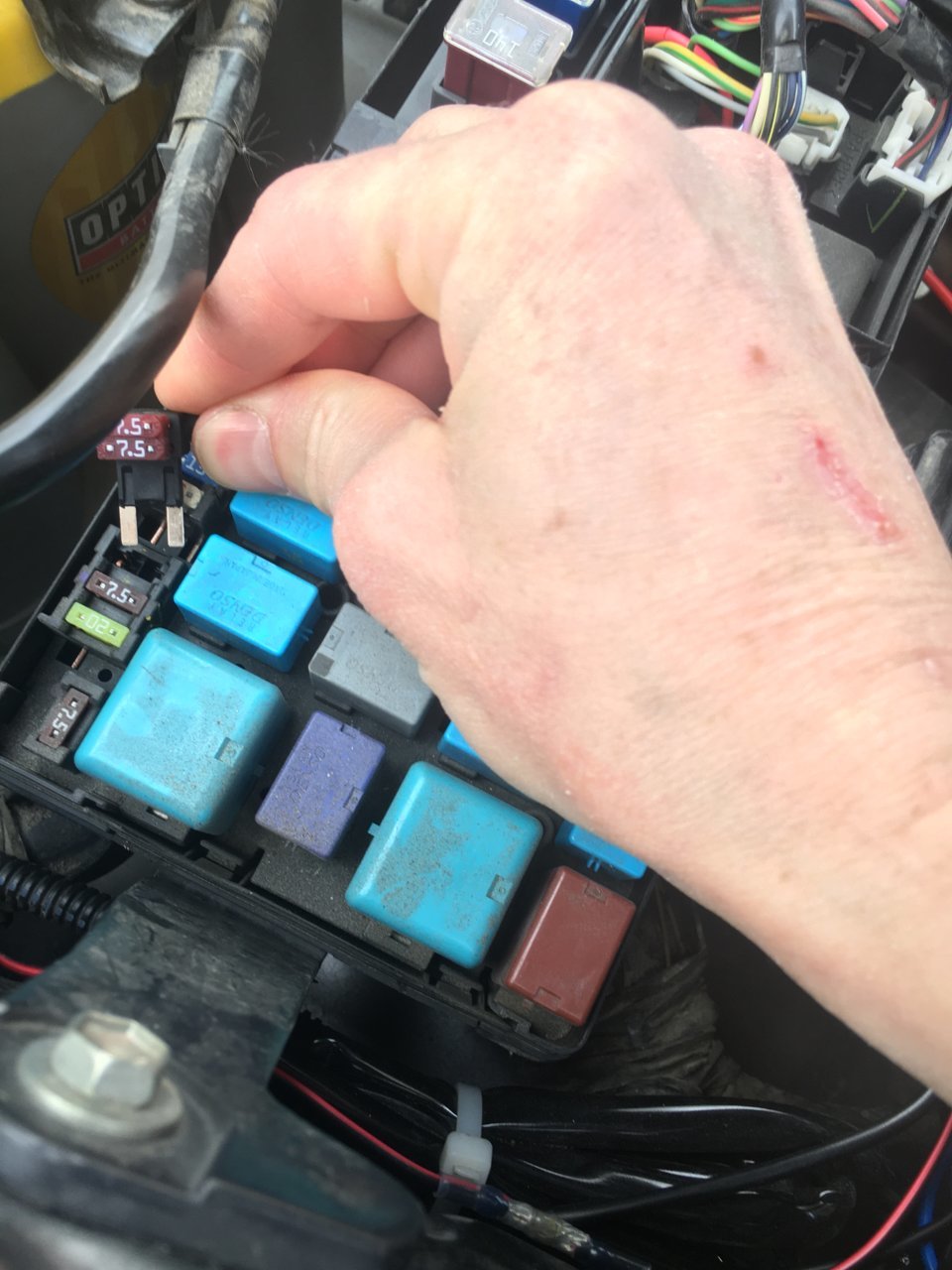

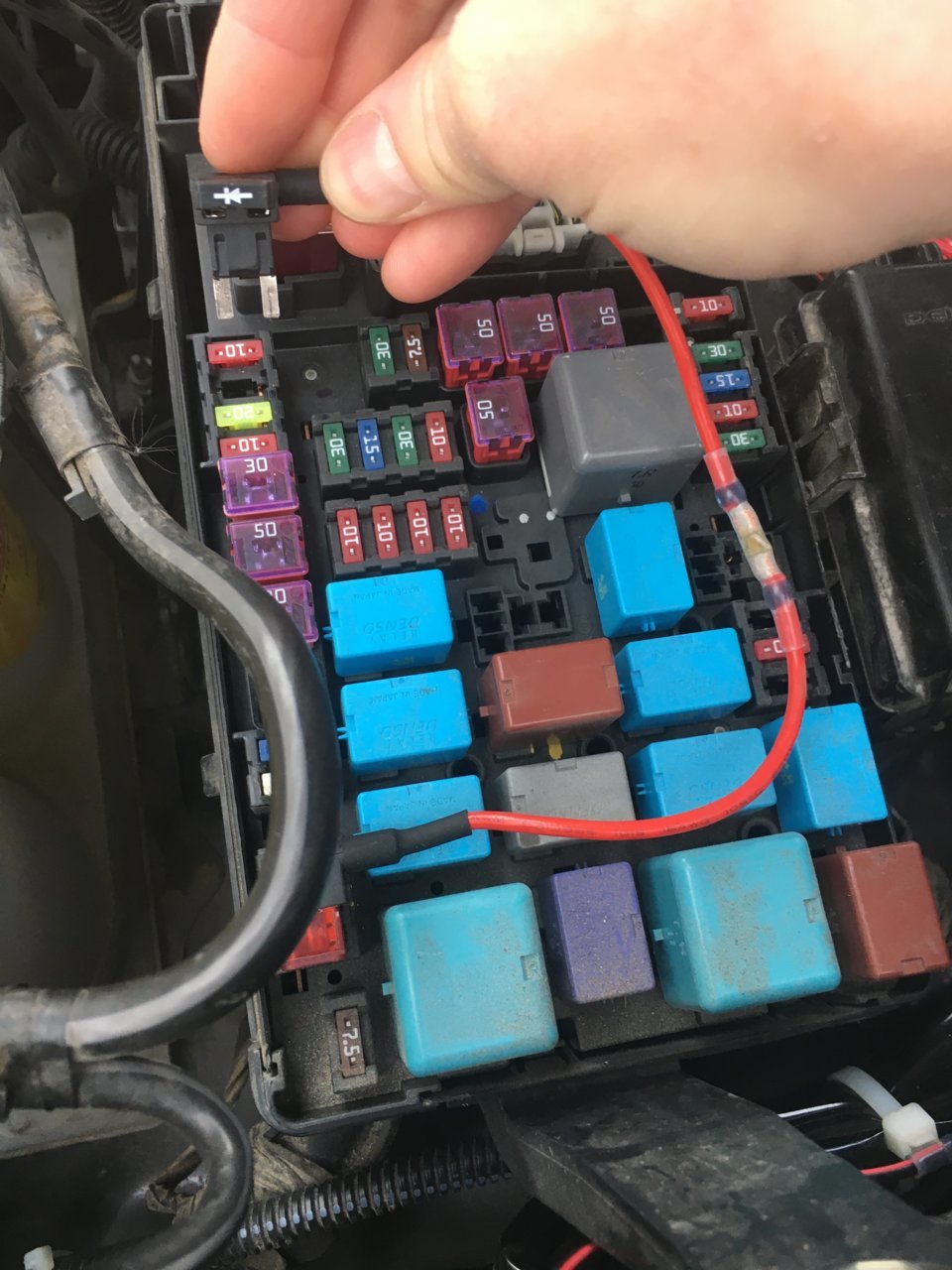

    You are adding the fuse tap in the alt-s slot and the diode is in the top slot of the fuse tap (red line) This is so that its going to connect the #2 on the Alt-s slot to the blue wire (so that it can get its power source from the other fuse tap in an unused slot)

    On the other fuse tap you connecting the tap so that the top slot (red line) is connecting to a #1 in that unused fuse slot (power/source). You are then placing the 7.5 amp fuse in the top slot again so this uses the (red line) connection to provide power to the other fuse slot holding the diaode.

    Why do you have 7.5 amp fuses in both slots of the fuse tap in the unused location? Dont you only need one? Is that because in your case you didnt have an unused slot and are re-using an active slot and it originally had a 7.5 in it already?

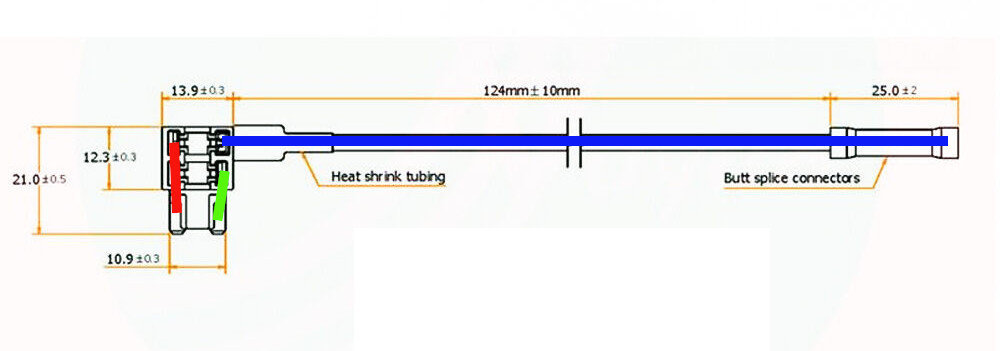

    And my reference to the red line was from the very helpful drawing that was posted

    fuse tap.jpg

    Last edited: Dec 7, 2023
  12. Dec 16, 2023 at 6:41 AM
    #272
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
  13. Dec 17, 2023 at 12:11 PM
    #273
    Bikinaz

    Bikinaz It wasn't me!

    Joined:
    Oct 13, 2018
    Member:
    #269257
    Messages:
    1,429
    Gender:
    Male
    First Name:
    Hey You!
    Phoenix, AZ
    Vehicle:
    2014 Regular Cab 4x4 5MT
    Pelfreybuilt Skids. ModCo wheels. Sliders. Cruise Control. Intermittent Wipers. Fog Lights.
    I tried 3 different diodes for around $120 total, and then installed a NOCO charger/tender a few months ago cause none of those worked.

    I saw this at $8 American and said why not give it one more try? Glad I did because this gives me .4 more volts, so I'll still plug in, just not as often. GREAT info here.

  14. Dec 17, 2023 at 2:37 PM
    #274
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,726
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    What are you running that needs an AGM battery? I'm in Maine, read cold, I plow snow with my Tacoma (read plow motor pretty much like a starter motor) below zero is normal My lead battery is at least 9 years old and going strong just asking.

    TireFire likes this.
  15. Dec 17, 2023 at 3:30 PM
    #275
    thegrandpoohbah

    thegrandpoohbah Well-Known Member

    Joined:
    Jan 3, 2010
    Member:
    #28718
    Messages:
    289
    Gender:
    Male
    Terrace, BC, Canada
    Vehicle:
    2013 4x4 Double Cab V6 TRD Sport
  16. Dec 17, 2023 at 4:17 PM
    #276
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,726
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Can any one explain just what a diode does?

  17. Dec 17, 2023 at 6:29 PM
    #277
    Bikinaz

    Bikinaz It wasn't me!

    Joined:
    Oct 13, 2018
    Member:
    #269257
    Messages:
    1,429
    Gender:
    Male
    First Name:
    Hey You!
    Phoenix, AZ
    Vehicle:
    2014 Regular Cab 4x4 5MT
    Pelfreybuilt Skids. ModCo wheels. Sliders. Cruise Control. Intermittent Wipers. Fog Lights.
    I've found in Arizona that lead acid can't handle the heat plus they have a tendency to burp battery acid on my inner fender. As for use, it provides enough power when I camp to charge everything I need.

    Aworkinprogress and swegin like this.
  18. Dec 17, 2023 at 6:53 PM
    #278
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,086
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    A diode is a one-way device that also happens to drop about .6v. The computer measures the voltage after the diode as that much lower than desired and adjusts alternator output to compensate.

    Ridgewalker1 and TireFire like this.
  19. Dec 31, 2023 at 1:08 PM
    #279
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    After driving for a while the ultraguage settles into to show an ECM voltage of 14.30 volts. Is that about right?

  20. Jan 15, 2024 at 6:29 AM
    #280
    Revelations

    Revelations Well-Known Member

    Joined:
    Apr 17, 2014
    Member:
    #127895
    Messages:
    1,099
    Gender:
    Male
    Vehicle:
    2014 MGM DCSB
    Is there any reason to remove that bit if plastic from the diode?
