On mine what I see is two blink speeds. When I first click the button I will see a rapid blink until the locker engages. Then it starts blinking slowly. Its weird. It blinks about 99% of the time when it's engaged, once in a while I'll see it solid tho.

The slow blink behavior started when I regeared. So its been working this way for about 4 years. I'm just grateful it still engages.



I think I have that 4wd ecu deal. its been in the wrecked truck. Hopefully its not damaged from the rain/snow...Are you a j shift tcase? Idk if that matters

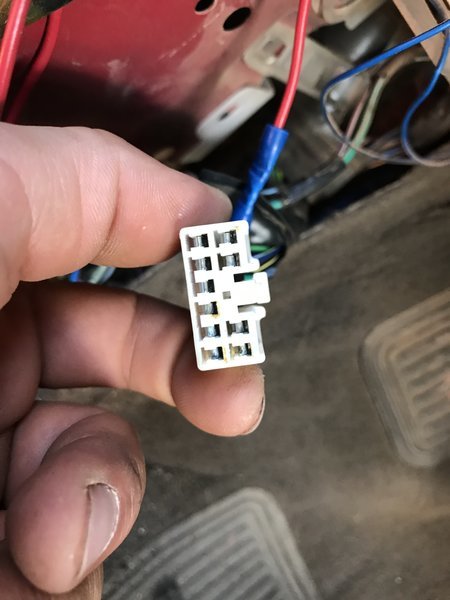

I'm no electrician but we did also try putting power to pins 2 & 3, nothing then reversed the leads and still nothing. The brushes and commutator didn't have any burns and looked clean so I didn't think the motor was bad. But thought it would have turned when putting power to it.



J shift - no push button. Are you going to the meetup tomorrow?



I was not planning on going, but am only 15 minutes north of Toytec if you wanted to stop by before or after to test out the black box if your numbers match what I posted.

Call or text 303-900-8306.



Unfortunately no. I'm in the middle of my shock relocation and frame plates...I was gonna try and make it but its not gonna happen lol



Electronics don't like getting wet

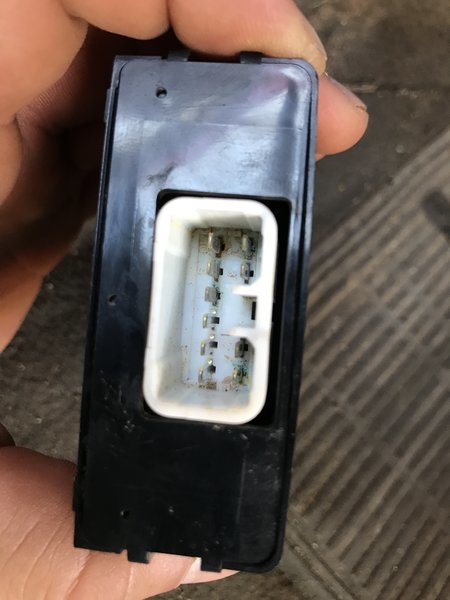

New comp didn't do anything
As @Reh5108 stated before, doesn't seem to be getting power to the rear. Suggestions?



Electrical diagnosis, I can't really offer any more then that. Start tracing (electrically) the wiring until you find the missing circuit that is causing issues.



Pretty much. Get a volt meter out and start testing



Maybe it is the motor actuator not working.



Here's the diagram I was going off of. Adding direct power to 2 and 3 should turn the motor right?

Edit: first time trying to use Flickr for photos heres the link

https://www.flickr.com/gp/107514292@N04/m27w36



Use the BBcode when you share a photo from Flickr



Bbcode?

Where can I find that?



In between the "edit photo" and "download photo" buttons, is the "share photo" button. Click on that and you'll have 4 option on sharing photos. Share, Embed, Email and BBcode. BBcode will have the photo in the format to post the photo correctly, as well as it'll credit the person who took the photo.

Edit:



Also make sure to set the size the photo so it doesn't try to take up the entirety of the screen.



Thanks! Is this an option via the app? Probably why I'm not seeing it



As far as I know, no. You'll have to use [IMG ] url to image [/IMG ]

Just remove the spaces in the brackets and you'll be golden



I'll have to hop on a computer tonight not sure why my usual way of doing it isn't working. Maybe I'm using too much if my media space on here to send it through the TW live way.



Check and see if this will help, uses a heater relay to test.
http://www.markofshame.com/fsm/03_Tacoma/Repair_Manual/03tacoma/sa/dlsy/insp.pdf
