All Pro - Fox, remote resi's (rear shocks) do they really fit out trucks?

Discussion in 'Suspension' started by DrRabbitFurHead, Apr 14, 2010.

  1. Apr 14, 2010 at 4:00 AM
    #1
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    I just finished installing the All Pro remote resi's last night with several difficulties. After finally getting things figured out (instructions would have been nice) I snapped some pics to show that the remote reservoir lines actually end up interfering with the shock tower mount. I had to rotate the remote resi out toward the tire by quite a bit just to get the shock installed and am considering cutting away a section of the shock tower mount so that I can rotate the reservoir further away from my tire. I'm running a 17X9" tire with a 4.5" BS and have "maybe" an inch of clearance between the resi and the tire.

    With the reservoir mounted as FOX has them designed, the 90 degree tube bends interfere with the shock tower mount as seen below. This is concerning because there is NOTHING in the FOX design that keeps the shock from rotating and hitting the tire. I'm thinking about drilling 2 small holes in the back of the shock tower (or frame area) and using a zip tie and running it between the 2 holes and around the fittings between the shock and the reservoir.

    Waddayathink?

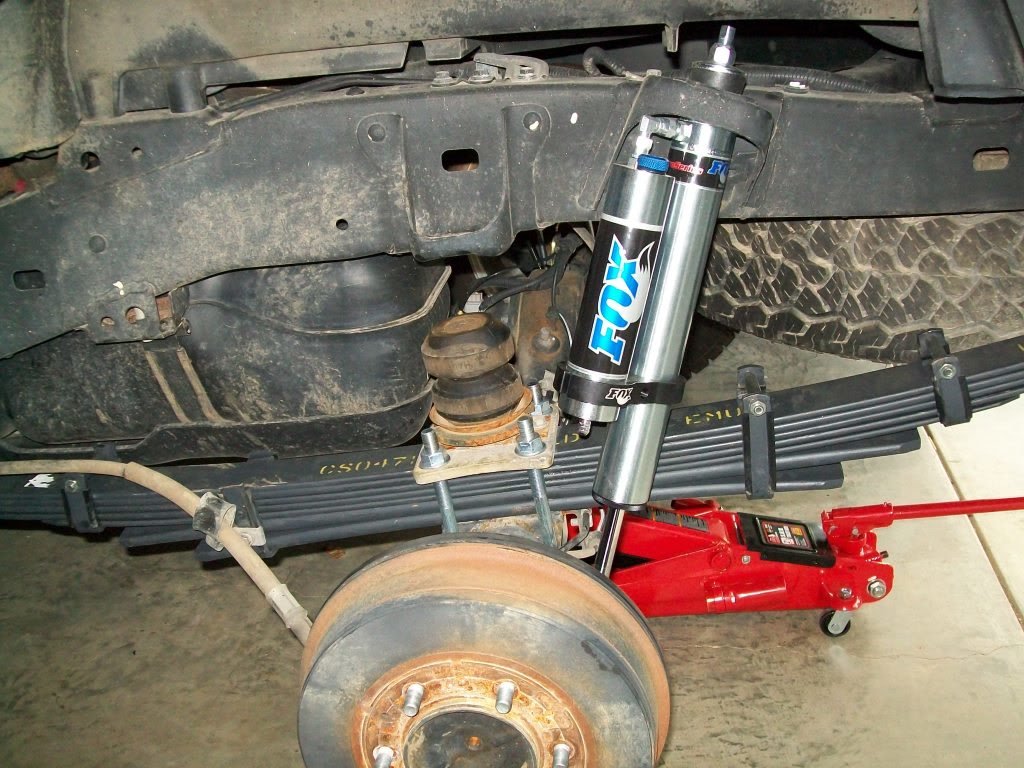

    From the side, jacked up:
    [​IMG]

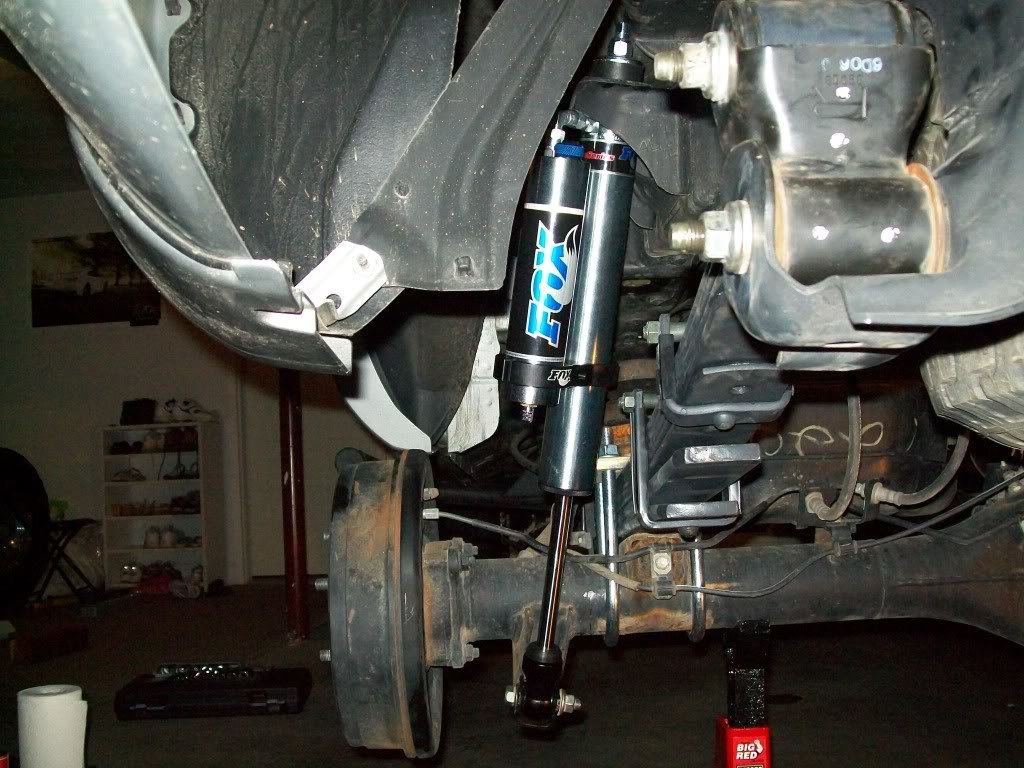

    Closer view from the side, still jacked up:
    [​IMG]

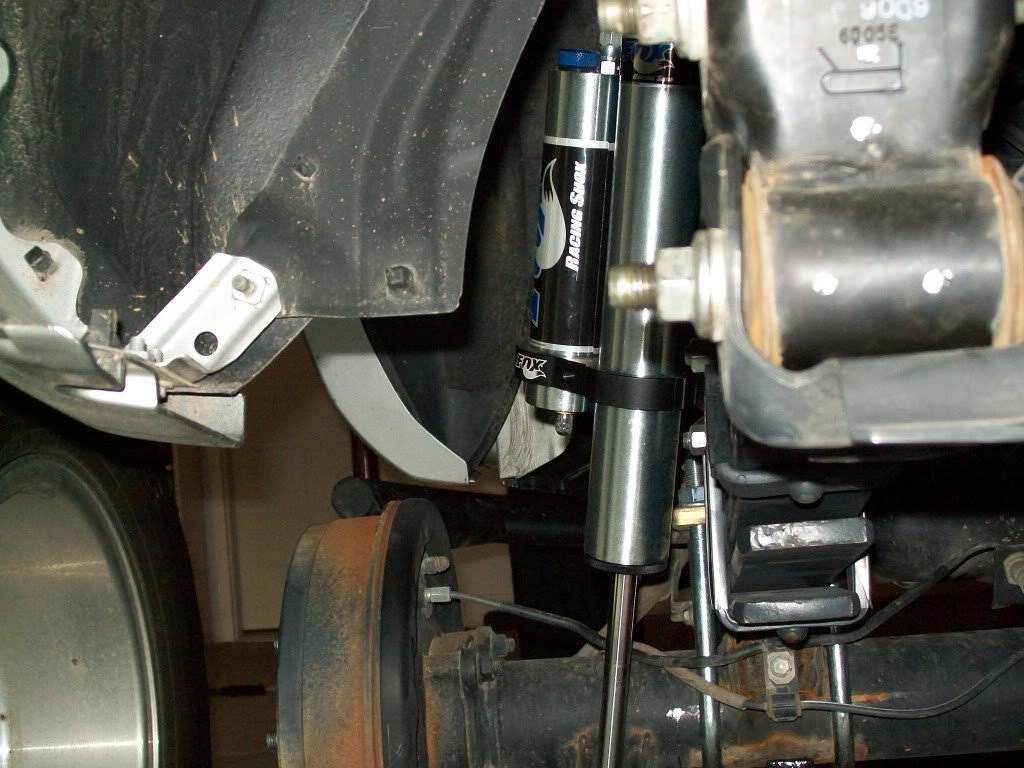

    From behind the vehicle, jacked up:
    [​IMG]

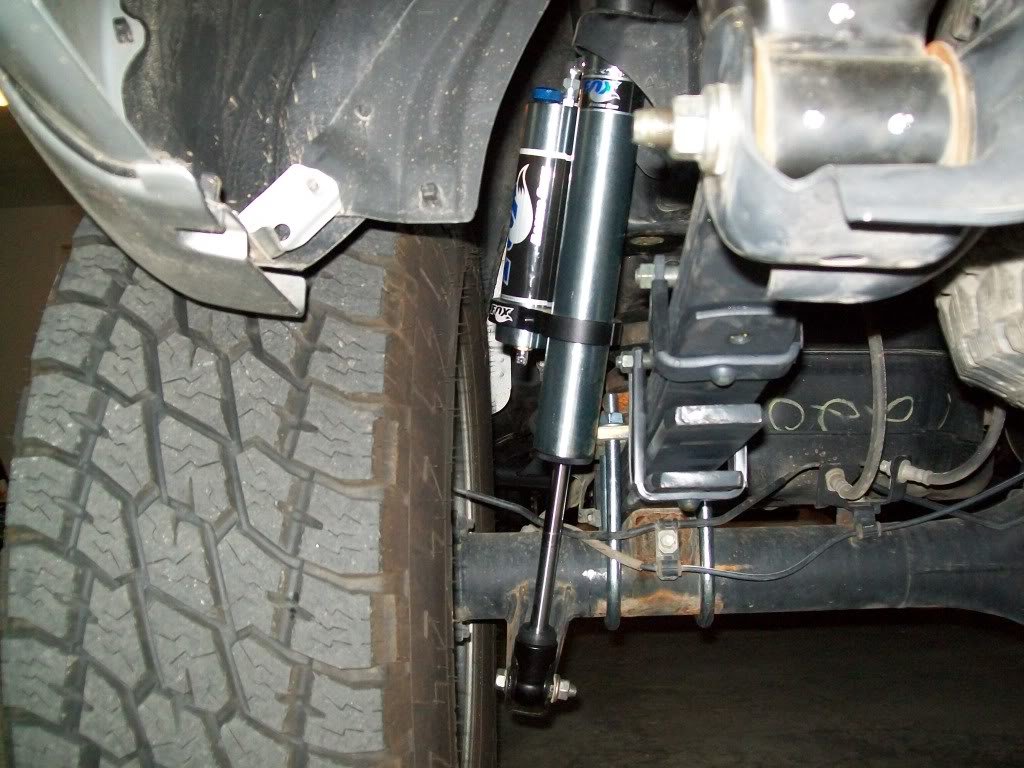

    Closer view from behind the vehicle, still jacked up:
    [​IMG]

    I'll snap a few more pics later showing the proximity to the tire. It was late last night and I had a hard time getting the right camera angle with the tire on the vehicle.

    So, is this shock REALLY designed for our trucks? I'd love for All Pro to chime in as I was told Sarah is running this on her set up.

  2. Apr 14, 2010 at 4:49 AM
    #2
    1TUFFTRD

    1TUFFTRD WTF

    Joined:
    Feb 4, 2010
    Member:
    #30721
    Messages:
    2,165
    Gender:
    Male
    out and about building powerlines
    Vehicle:
    06 AC with a skewp
    06 With a Skewp.
    wow... either something is wrong or thats a shitty design!

  3. Apr 14, 2010 at 4:52 AM
    #3
    Toyota Truck

    Toyota Truck Well-Known Member

    Joined:
    Nov 21, 2008
    Member:
    #10925
    Messages:
    1,958
    Gender:
    Male
    First Name:
    JT
    Texas
    Vehicle:
    2008 Prerunnner
    Magnaflow Muffler-TSB springs-Nuvi 265wt-aFe pro dry s filter-Husky Liners-Blue dome light-extra d-rings-OME 90000 sport struts-885 coils-N182 shocks-TSB AAL-LR UCAs-procomp black alloy rims- nitto terra grapplers-20% tint
  4. Apr 14, 2010 at 7:37 AM
    #4
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,825
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
  5. Apr 14, 2010 at 7:45 AM
    #5
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    13,034
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Subscribed.

  6. Apr 14, 2010 at 10:51 AM
    #6
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    I mounted the shock with a conical washer, a bushing, the shock tower mount, another bushing and the last conical washer, topped off with the Nylok nut. Something doesn't seem right. Sure hope All Pro will chime in...

  7. Apr 14, 2010 at 11:30 AM
    #7
    allpro

    allpro Well-Known Member Vendor

    Joined:
    Oct 17, 2008
    Member:
    #10025
    Messages:
    1,200
    Gender:
    Male
    Montana
    Vehicle:
    All Kinds Of Toyotas!!!
    Attached are some pics of how they are installed on my '08. The driver's side shock is rotated so that the reservoir is forward, and the passenger's side is rotated so that the reservoir is back. The allows for at least 1/4" of clearance between the fittings and the upper frame bracket.

    Do you have the bushings above and below the upper mount? Also, once properly tightened down, the shocks haven't moved or rotated from how they were originally installed.


  8. Apr 14, 2010 at 12:45 PM
    #8
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    The bushings are one above and one below the upper frame bracket. The shocks are easy to move when they are not under load from the vehicle (i.e. jack stands under the frame and axel hanging loose). When there is a load, they are more difficult to rotate (if not impossible to rotate but I didn't really try too hard), but if wheeling and the wheel is hanging in air, suspension is flexing, etc... I'd be afraid that they could rotate.

    At least the way you have yours rotated, if the wheels turn CCW, they'd hit the reservoir and push them back out of the way... I do have worse clearance on the drivers side...

    I'm seriously considering taking a saw to the support and widdling a little bit of it away. Just enough to provide a little more clearance.

    Sarah, have your shocks rotated at all? How many miles have you put on them?

  9. Apr 14, 2010 at 2:01 PM
    #9
    allpro

    allpro Well-Known Member Vendor

    Joined:
    Oct 17, 2008
    Member:
    #10025
    Messages:
    1,200
    Gender:
    Male
    Montana
    Vehicle:
    All Kinds Of Toyotas!!!
    They haven't rotated at all and I have about 25k miles on them and a lot of off-road trips where the tires were in the air! There arent' any marks on the upper mounts that would indicated any contact. Also, the tires shouldn't hit the reservoirs no matter which way they are mounted and my wheels have a 3.75" backspacing for reference.

  10. Apr 14, 2010 at 2:17 PM
    #10
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,112
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    you could notch a small spot out on the shock mount to get them angled the way you want.

  11. Apr 14, 2010 at 2:43 PM
    #11
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    That's EXACTLY what I plan to do. I'll flip my drivers side toward the front "just incase" it gets rotated, the tire won't rip it off. I'll trim off a minimal amount of steel and the shock should rotate quite a bit further away from the tire. The structural aspect of this mount won't be affected much at all. I think the trick will be to have a large radius in the corner of my trim job so that I don't create a stress riser or a sharp point where a stress fracture could start.

    It appears that just one small hole through the side of the shock tower mount and I'd be able to run a black zip tie around the reservoir hardware to make 100% sure it will never come in contact w/ the tire.

    I just thought that for ~$600 I wouldn't have to mess with this type of stuff.

    More pics to come after I get some time this weekend to work on the truck some more. Wish me luck!

  12. Apr 14, 2010 at 3:13 PM
    #12
    allpro

    allpro Well-Known Member Vendor

    Joined:
    Oct 17, 2008
    Member:
    #10025
    Messages:
    1,200
    Gender:
    Male
    Montana
    Vehicle:
    All Kinds Of Toyotas!!!
    You really shouldn't have to modify anything. We've sold hundreds of these shocks and haven't had any issues with them whatsoever. I've never heard of the tire making contact, or of them rotating, or of the mounts needing to be clearanced. If you have a problem with them after you install them like mine, then let me know.

    This is our exclusive shock with Fox. The one that they make for the Tacomas has the reservoir on the bottom, which we think puts it in harms way. We are out of stock right now, but once we get more in we'll double check them to make sure something hasn't changed from the ones that are on my truck.

  13. Apr 14, 2010 at 5:09 PM
    #13
    1TUFFTRD

    1TUFFTRD WTF

    Joined:
    Feb 4, 2010
    Member:
    #30721
    Messages:
    2,165
    Gender:
    Male
    out and about building powerlines
    Vehicle:
    06 AC with a skewp
    06 With a Skewp.
    im deff not getting these shocks:confused:

  14. Apr 14, 2010 at 5:24 PM
    #14
    jacob_wood

    jacob_wood Screw your MPG's

    Joined:
    Jun 8, 2009
    Member:
    #18191
    Messages:
    3,816
    Gender:
    Male
    First Name:
    Jacob
    Campbell, CA (Nor-Cal)
    Vehicle:
    4Runner
    BHLM, SAW coilovers, Overland Warehouse springs and rear shocks, and Demello front bumper.
  15. Apr 14, 2010 at 6:14 PM
    #15
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    allpro">
    I'd appreciate you checking the new shocks when they come in to see if anything has changed. My resi's are really close to the wheel but I'm running a 17"x9" wheel that is wider than your 16"x8" (this puts my tire 0.5" closer to the resi) plus my 4.5 inch backspacing allows the wheel to come another 0.75" closer to the shock than your 3.75" BS. That is a total of 1.25" closer my tire gets to the resi than your set up, (plus I've got the drivers side oriented closest to the rear bumper so I'm a tad closer there as well) so you may be able to appreciate how close I'm getting to the tire with the resi bracket.

    May I also suggest a simple illustration go out with these shocks that shows the conical washer and bushing stack along with the orientation stating "drivers side forward, passengers side toward the bed"... or something like that.

    I also have a couple of questions:
    1. What's the difference between the 1 thru 8 settings? Mine came on #1 and that's what I'm running around town.
    2. If I'm hauling 1500 lbs. plus, what setting should I aim for?
    3. What about when I go off road? That type of info would be really useful!

    Finally, I'll do exactly as you suggested and snap some photos of the drivers side shock turned forward before I do any trimming and post the photos later this weekend. I still think I'll have to end up trimming a little (this won't be the first time a grinder has touched my truck) with my more aggressive BS and the wider rim.

    Thanks for the help and taking the time to come on the forums to answer my questions.

  16. Apr 15, 2010 at 6:50 AM
    #16
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,112
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    Ive never had the 1-8 "technically" explained but the 1 will be the softest setting where 8 will be the most stiff. I have fox coilovers and I have them set at 4

    switch it to 8 and drive around and see if you can tell a difference

  17. Apr 15, 2010 at 11:31 AM
    #17
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    13,034
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    I can tell a difference in the front coilovers. Street I usually have it at 2. Offroading at like 6. Althought I don't think 8 setting are necessary. 5 tops. But hey I'm not complaining. Are the rear shocks noticeable like the fronts?

  18. Apr 15, 2010 at 6:08 PM
    #18
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    I haven't played around with the rear 8 setting as of yet, still trying to get the kinks worked out.

    Today I lifted the front end ~3/8 of an inch which is about as high as I'm going to go. I also took Sarah's advice and rotated the drivers shock forward and snapped some pics.

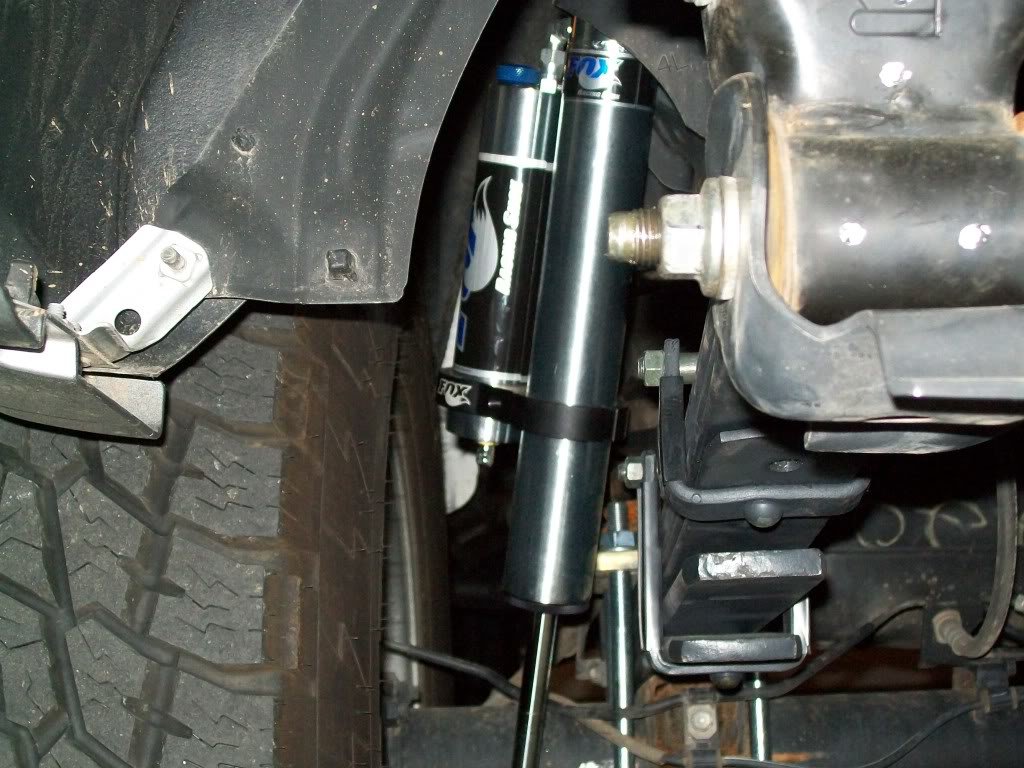

    Side view of the drivers side rotated forward. This did buy me a little room.
    [​IMG]

    View from the back (no tire/jacked up)
    [​IMG]

    View from the back (tire mounted) and truck sitting on the garage floor
    [​IMG]

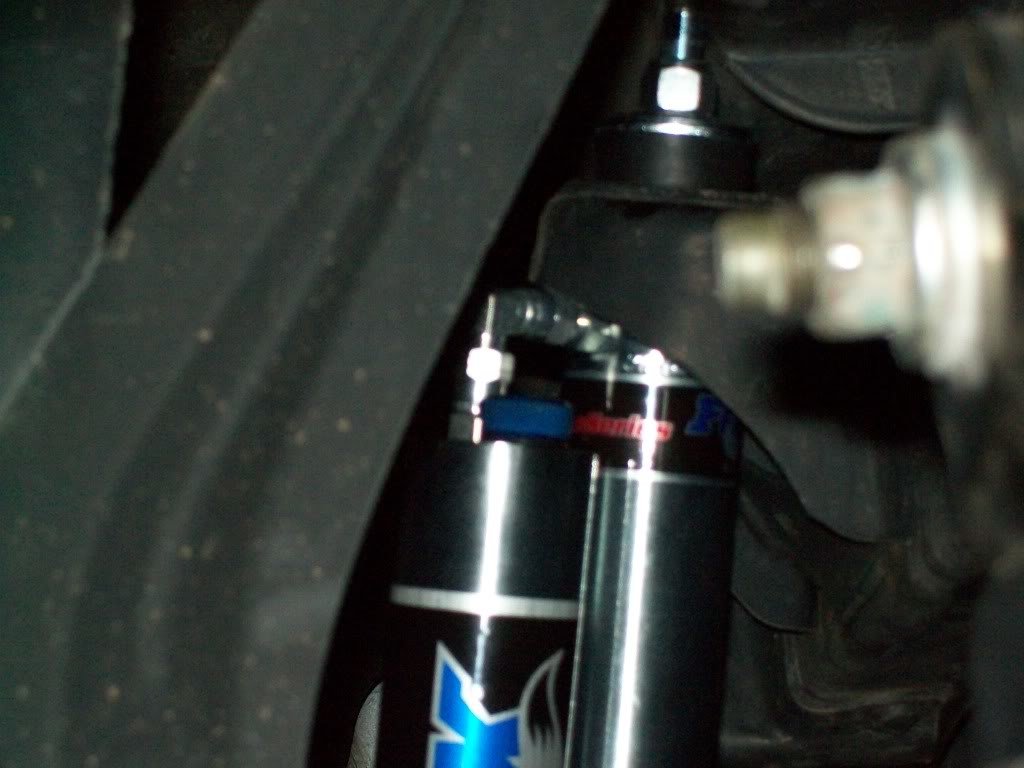

    View from the back (tire mounted) and truck sitting on the garage floor, zoomed in.
    [​IMG]

    For comparison, heres one of the old shots with the rear shock rotated toward the back of the truck on the drivers side.
    [​IMG]

    And for grins, here's the same old shot with the rear shock rotated toward the back of the truck on the drivers side, zoomed in.
    [​IMG]

    It did buy me a little room, but not much. I still have a slight shutter upon take off (maybe from 0-10 mph) and need to install my carrier bearing drop bracket to see if that helps. If I'm lucky maybe tomorrow after work I can squeeze it in.

    Also, still hoping someone from All Pro will chime in and answer my questions above.

  19. Apr 16, 2010 at 12:11 PM
    #19
    09blacktaco

    09blacktaco Well-Known Member

    Joined:
    Jun 16, 2009
    Member:
    #18515
    Messages:
    435
    Gender:
    Male
    First Name:
    Matt
    The Rockies
    Vehicle:
    09 DC 4x4 TRD OR
    Mines close to, but not that close. Wonder if you have the right upper shock bushings....

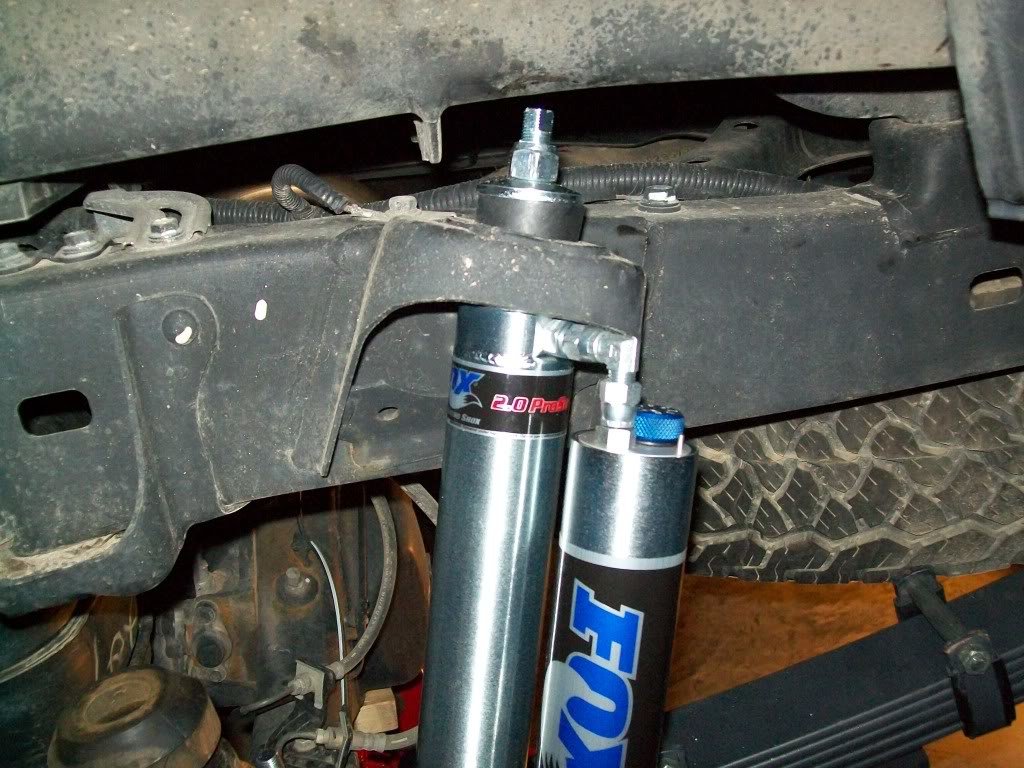

    [​IMG]

  20. Apr 16, 2010 at 4:47 PM
    #20
    DrRabbitFurHead

    DrRabbitFurHead [OP] Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,057
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    One thing you did differently that I didn't do is with the cone spacer next to the shock. In my opinion you installed it "upside down". I thought that having the smaller diameter seat against the radius of the shock would cause stress issues and be bad for the shock. If I flipped my washer 180 degrees like yours, it would drop the shock down a bit and buy me more clearance, but without All Pro or FOX providing any FREAKIN' INSTRUCTIONS, who knows which way is correct... I'd be interested to see what others are doing... I thought it would be best to have the larger diameter seat against the top of the shock. This would lower my shock by ~.25" giving me a little more room to rotate it further away...

    Also, you have fewer threads showing on top of your shock than I do. This also makes your shock lower giving you more clearance. I wish I knew how much to tighten the nut.

    This is the way mine are installed:

    nylok nut
    / \ orientation of the top cone washer
    [ ] bushing
    --- truck shock mount
    [ ] bushing
    / \ orientation of the bottom cone washer (same as the top)
    --- top of the shock


    Yours appear to be installed:

    nylok nut
    / \ orientation of the top cone washer
    [ ] bushing
    --- truck shock mount
    [ ] bushing
    \ / orientation of the bottom cone washer (same as the top)
    --- top of the shock

    Does that make sense?
