Always Pressurized Waterport

Discussion in 'Other Builds' started by 2ayne, Jan 30, 2020.

  1. Jan 30, 2020 at 3:10 PM
    #1
    2ayne

    2ayne [OP] Well-Known Member

    Joined:
    Oct 1, 2015
    Member:
    #165609
    Messages:
    710
    Gender:
    Male
    First Name:
    Zayne
    Ohio
    Vehicle:
    2017 Cement Bro
    2017 TOYOTA TACOMA TRD PRO ELECTRICAL & WIRING: * Pelfrybilt Battery Cage * X2 Power Group 31 Battery * Switch-Pros SP9100 * SDHQ Interior Cubby Switch Face Plate * Power Trays w/blue sea 8 fuse block, ground busbar, 8 terminal strip and 120A breaker. * ARB Single Air Compressor w/custom made passenger side mount. * Blue Sea 4356 12v socket, voltmeter, usb plug in bed w/ sea dog waterproof switch. * Hypertech Speedo Calibrator (Not Installed) LIGHTING: * Cougar LED H9 and H11 (High/Low Beams) * Super Bright LEDs Interior Bulbs & License Plate. * OZ-USA 40” Single Row Light Bar w/Halos * Baja Designs Amber Squadron-R Sport Ditch Lights. * Baja Designs Amber Squadron Sport Fog Lights. * Baja Designs Dome Light w/switch in bed. * Caliraised LED ditch light and Prinsu light brackets. OTHER: * 265/75R16 Falken Wildpeak AT3/W * OEM 2nd Gen Front Bed Rail * OEM Tacoma Bed Mat * OEM TRD Round Fog Light Bezels * Waterport Pressurized Water System * Taco Garage Dash Mount * Ram Mounts for IPhone and IPad * Center Console Organizer * Front Window Tint * Matte Black Tailgate Stickers * Husky Floor Mats (front) * Custom Gun Mount * Plano Roof Cases * Off Brand Recovery Boards * Prinsu Design Studio Cabrac * RCI Offroad Bed Rack * Tepui Kukenam Sky 3 Haze Grey Roof Top Tent. * Tepui Haze Grey 6’ Awning
    Something I built a while back that several people always ask about.
    I figured TW was the best place to do a write up so here it goes:

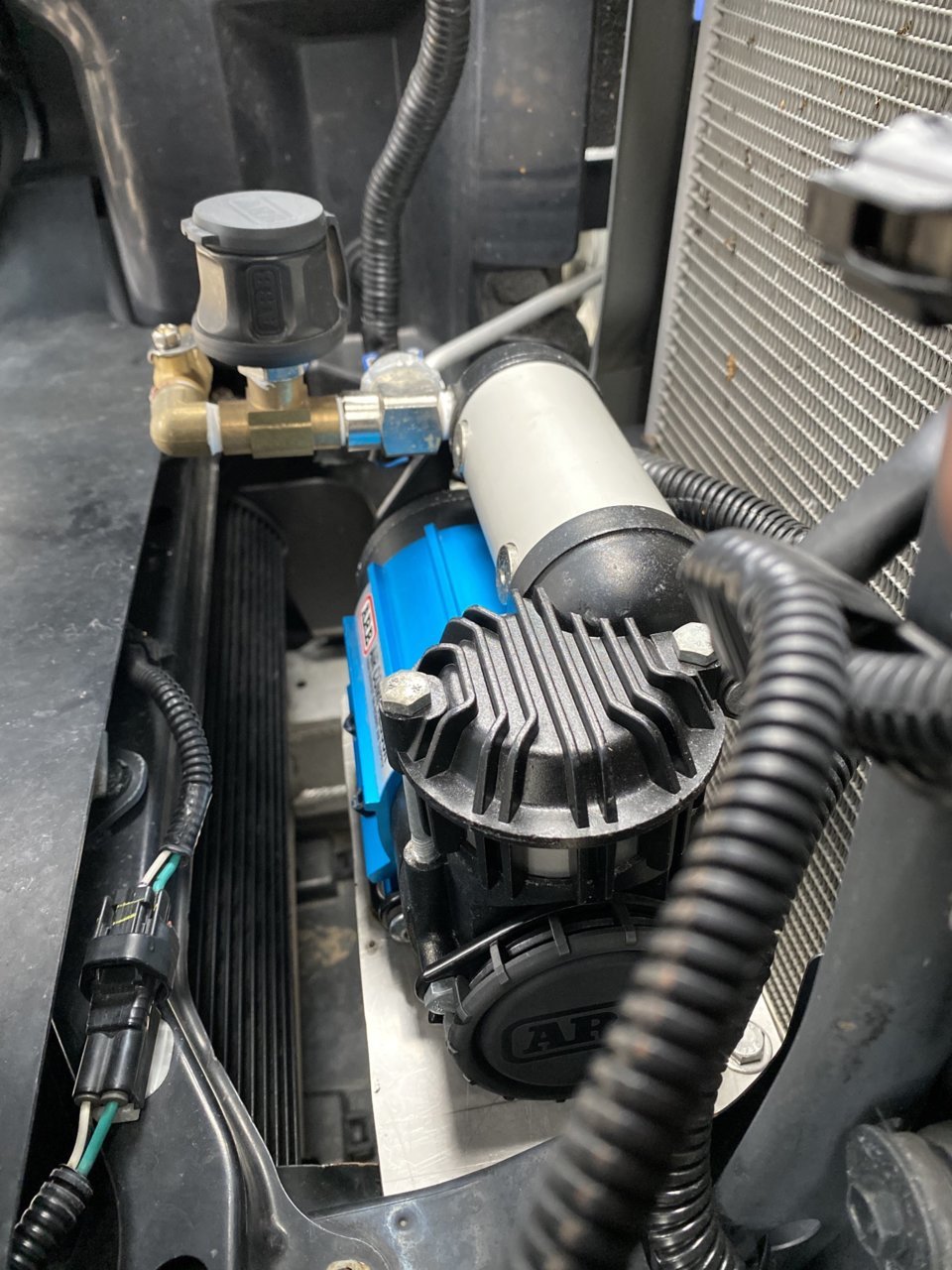

    I have a ARB Single Air Compressor mounted under the hood of my 2017 Tacoma.
    The ARB compressor is wired through a Switch-Pros SP-9100 to be used as it’s on/off switch.


    All ARB compressors to my knowledge come with a inline pressure switch mounted to the discharge of the compressor that shuts it off automatically when the pressure reaches approx. 100psi.

    When the pressure falls in the discharge line the compressor will turn back on until the pressure switch is made again. This pressure switch always needs installed in a Tee fitting before anything else in the compressor discharge line to insure no over-pressurization occurs and damages your compressor.

    YOUR FITTING CONFIGURATIONS WILL PROBABLY DIFFER BASED ON HOW AND WHERE YOUR AIR COMPRESSOR/WATERPORT IS INSTALLED! THIS IS MY WAY!

    PARTS:

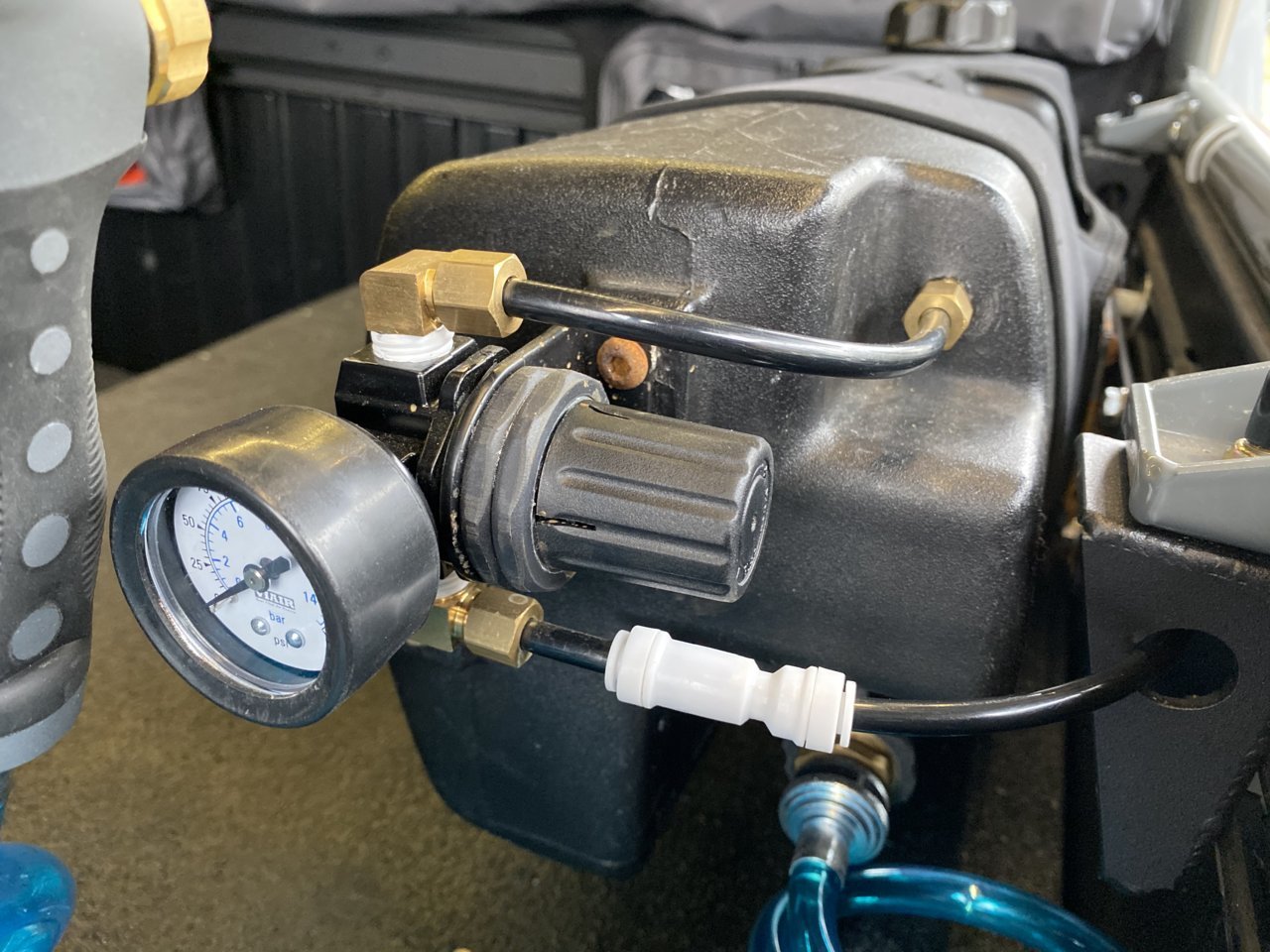

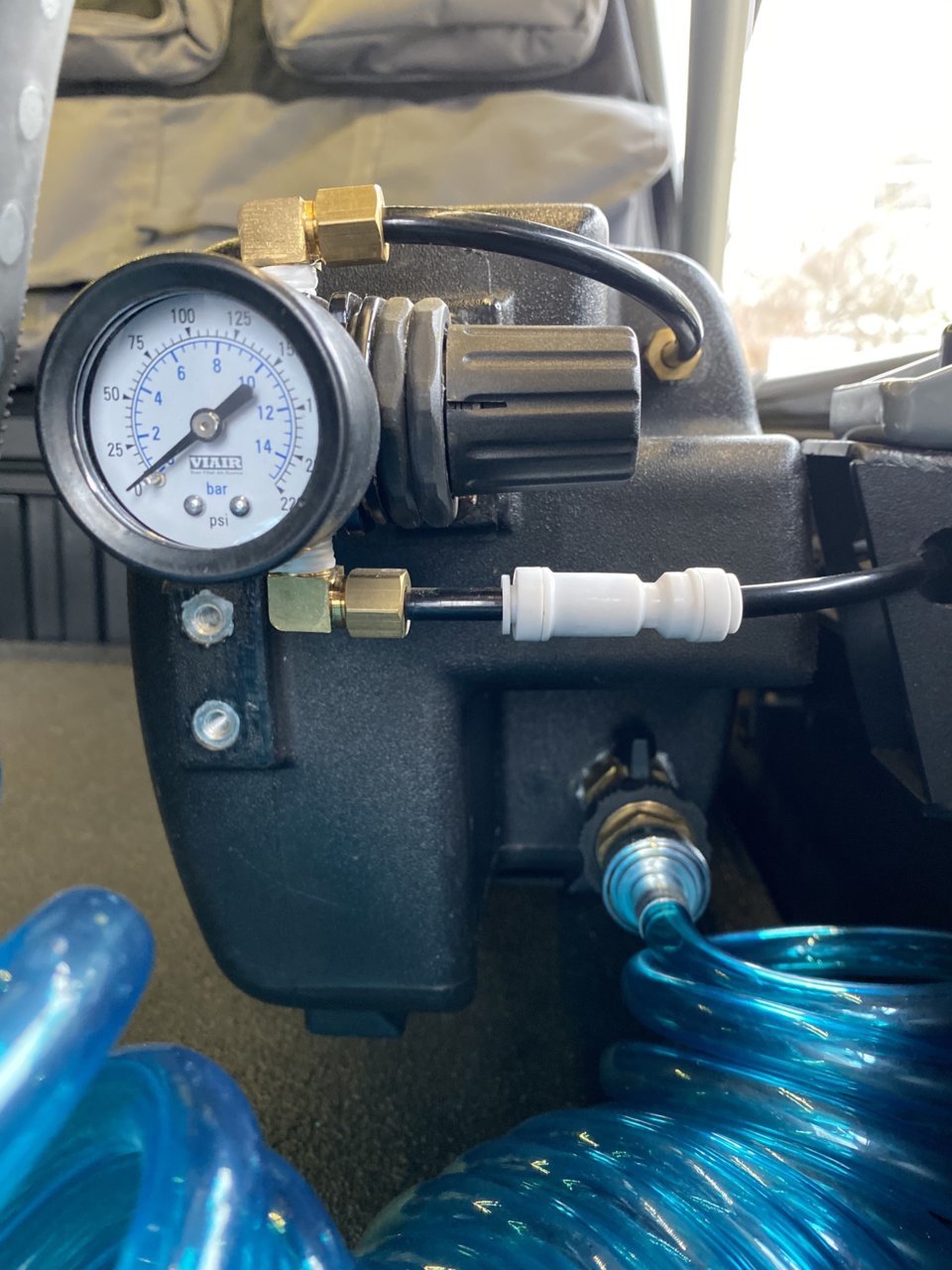

    I used a Viair Pressure Regulator I had laying around but there are many more cheaper options available online for this and at most big box hardware stores.

    Below is a link to a cheaper option but is relatively the same regulator I used.

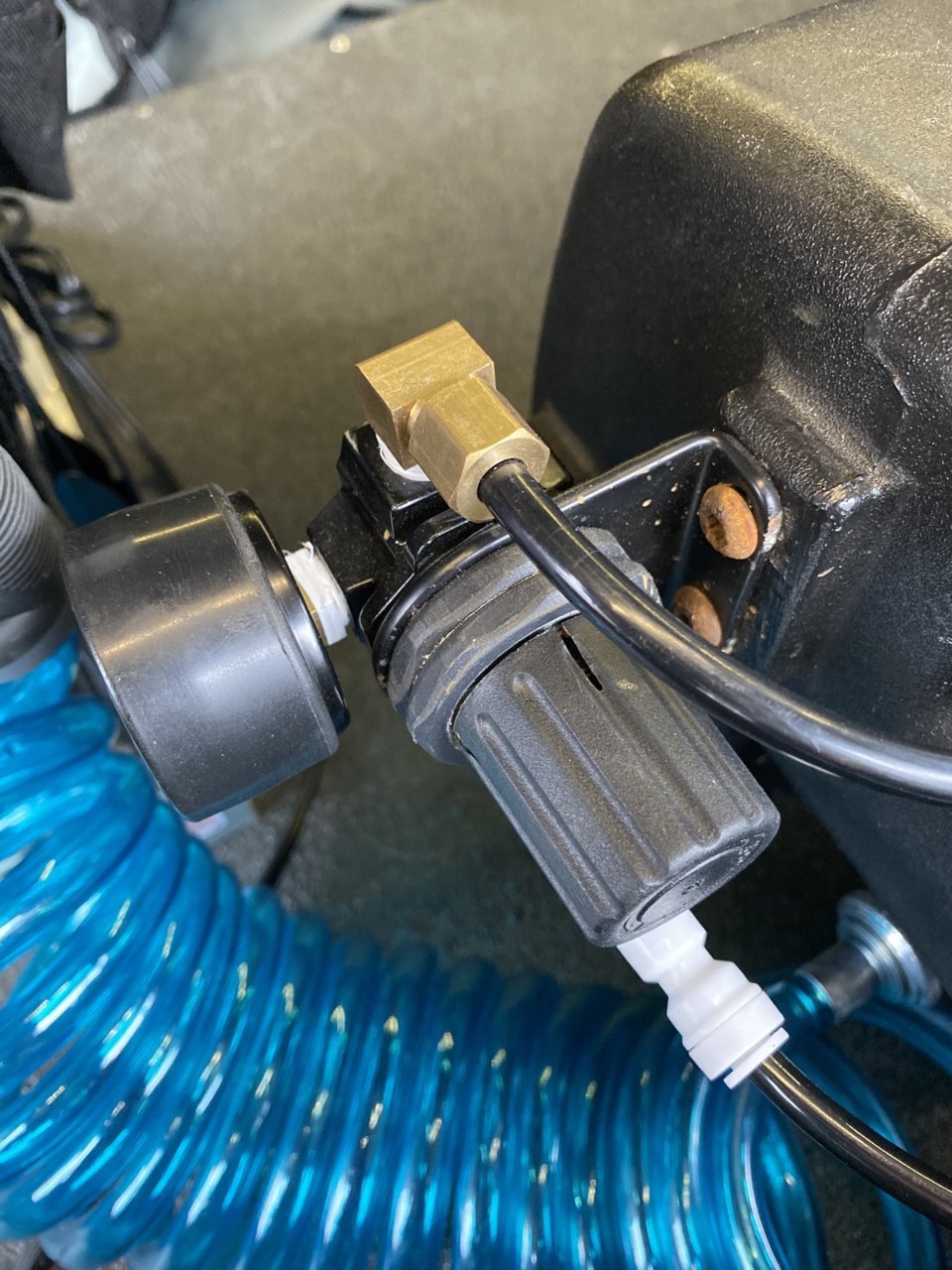

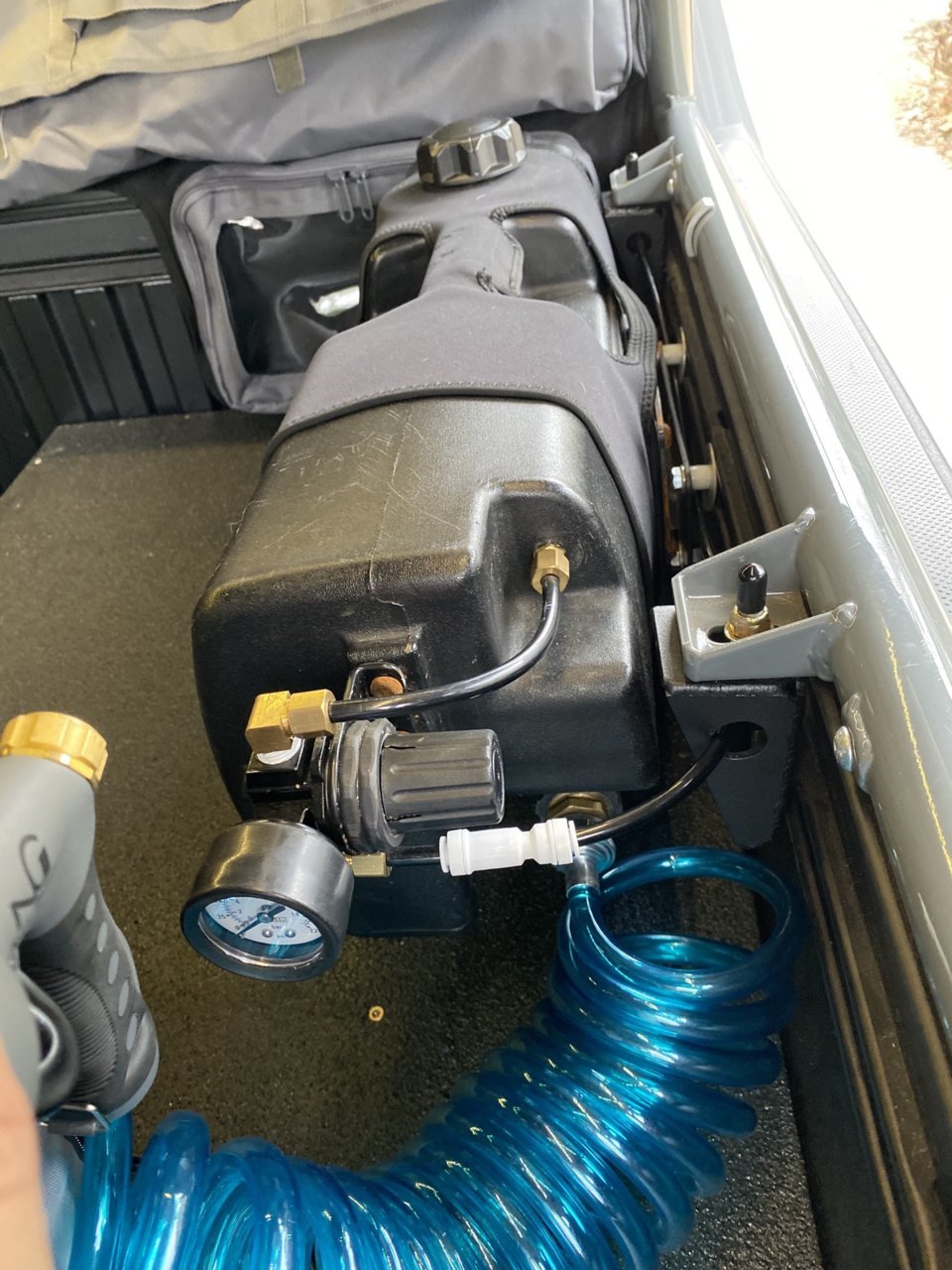

    I removed the waterport water nozzle holder they provide and drilled out the mounting screw holes on the bracket for the Viair Regulator and re-installed it with the provided rusty waterport screws for the nozzle/gun holder/holster?

    https://www.amazon.com/dp/B00IDCYKEY/ref=cm_sw_r_cp_api_i_wFWmEbE438M35

    -Thread Tape

    -1/4” Air Line (However long you need to get from your on board air compressor on your vehicle to your waterport)

    -(2) 90°, 1/4” MPT X 1/4” Tubing Compression Fittings (For Regulator)

    -(1) Straight 1/8” MPT X 1/4” Tubing Compression Fitting (For Waterport) Removed the shrader valve that comes in the waterport!

    -(1) 1/4” X 1/4” 90° Street Elbow (On Air Compressor. Yours may differ)

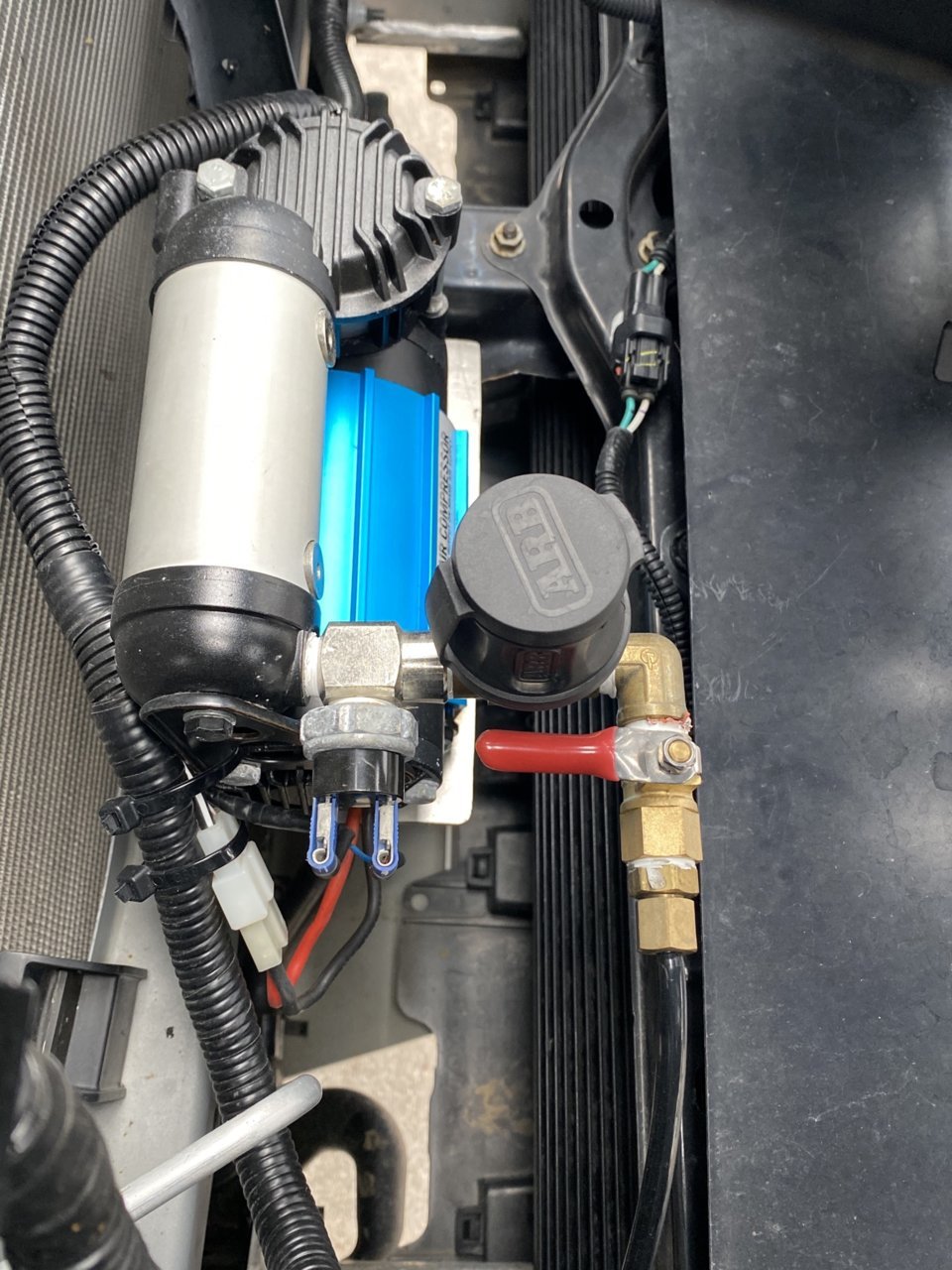

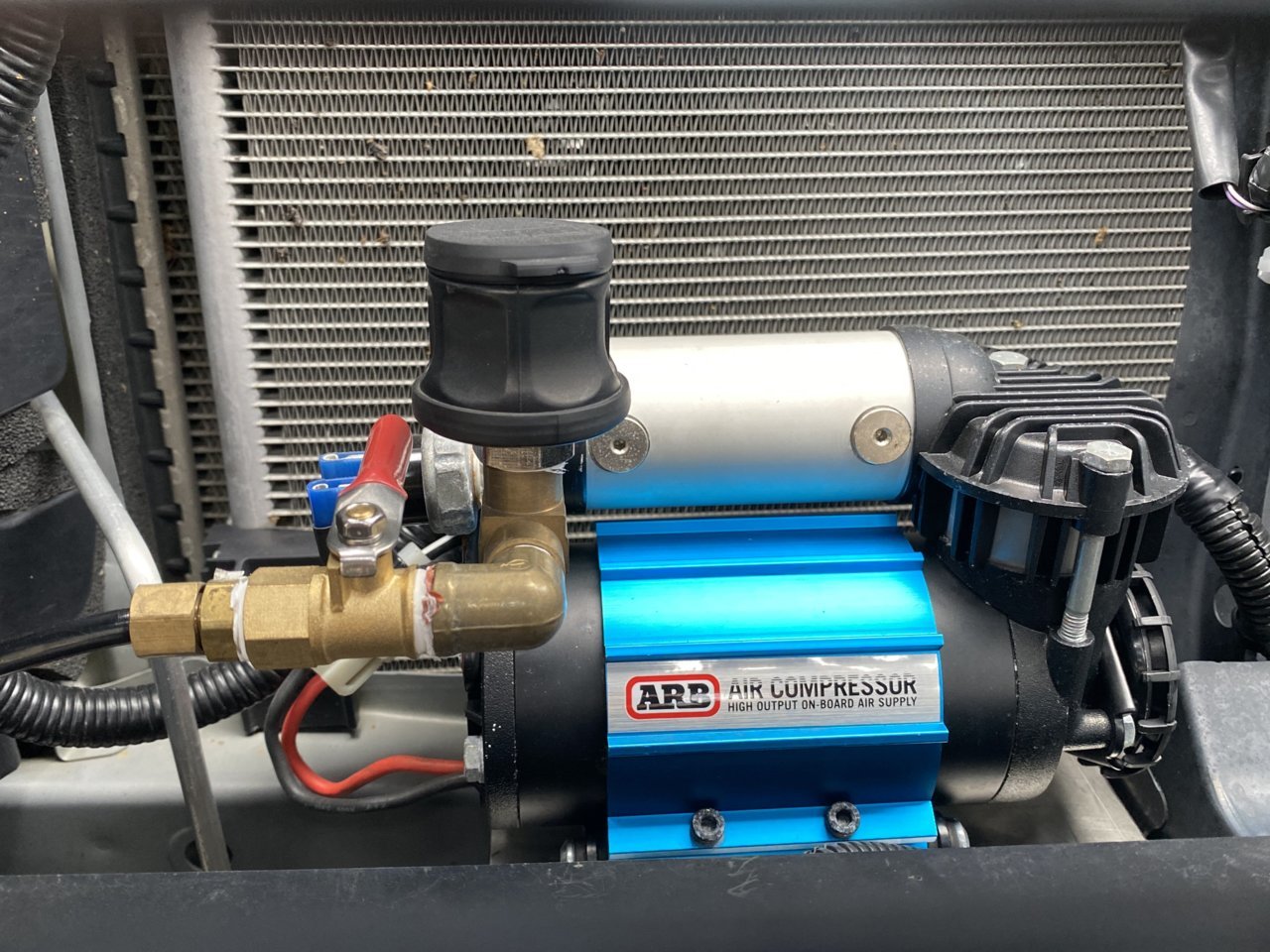

    -(1) 1/4” X 1/4” Tee (For Hose Chuck On Air Comp.)

    -(1) Straight 1/4” MPT X 1/4” Tubing Compression Fitting (For Air Compressor Side)

    -(1) 1/4” Ballvalve

    (On Air Compressor to valve off air to waterport if needed.)

    -(1) 1/4” Incline Check Valve
    (To Stop Water From Back Filling The Air Compressor) Similar to the one in this eBay link:
    https://www.ebay.com/ulk/itm/271855082480

    I set my regulator around 20psi. That seems to be the sweet spot with mine.

    Turn your air compressor power switch to “ON” and start spraying water. Your Air Compressor should now kick on and off as needed to keep your Waterport maintained at the desired pressure.

    Hope this helps!
