Ambient Temperature Gauge and Sensor Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by BeefTaco, May 30, 2009.

  1. May 30, 2009 at 8:20 PM
    #1
    BeefTaco

    BeefTaco [OP] WESTern Alliance: NORCAL COAST

    Joined:
    May 8, 2008
    Member:
    #6481
    Messages:
    623
    Gender:
    Male
    Santa Cruz County Ca.
    Ambient Temperature Gauge and Sensor Install

    For the Guys and Gals that don’t have an outside temperature gauge here is my install. After looking at the EWD for my truck a 2008 SR5 4X4.
    I found all the wire’s to the Overhead Accessory Meter were there. The two wires from the Thermistor Assembly to connector 1C in Driver side Junction Block (lower finish panel) were not there so I added the two wires to the connector 1C and ran them to the outside thermistor assembly and your in business any questions pm me.

    Parts Needed

    1. Thermistor assembly
    Part # 88790-22131

    2. Terminal Repair Wire
    Part # 82998-12440 (2 NEEDED)

    3. Connector Housing
    Part # 90980-11070

    4. Terminal Repair Wire
    Part # ? ? ? ? ? (2 NEEDED) (I am working on getting the part
    number for this)

    5. Overhead Accessory Meter


    Things needed to do this job:

    Tools
    Shrink tubing
    Solder
    Solder Gun
    Heat Gun
    Wire (2 Colors) 14 ga.
    Black Tape
    Flex Tubing
    Zip Ties
    Beer


    ACCESSORY METER WIRING DIAGHRAM
    http://www.scribd.com/doc/15959179/234237-Accessory-Meter

    Picture Link
    http://s149.photobucket.com/albums/...emperature gauge install/?albumview=slideshow

    DistortedAxis likes this.
  2. Aug 13, 2009 at 11:03 PM
    #2
    danbrabete

    danbrabete New Member

    Joined:
    Mar 15, 2009
    Member:
    #14773
    Messages:
    3
    Gender:
    Male
    Vehicle:
    08 tacoma
    Hi, I have a 08 Tacoma double cab long bed sr5 and I want to install an overhead console. I looked for the sensor behind the horns and I don't have it. And in console I have 8 wires in the connector housing. My car came with a connector housing with 6 wires only. I’m thinking I’m missing the 2 wire for the temp sensor. All the overhead console wires are black. the wires I have up there are: yellow,green,purple white, white purple, light green and just one underneath one green one. I check under the power steering wheel an in the fuse box I have the connector with :green red, green, orange, light green, blue, red, blue yellow and green white, green, blue purple orange, blue black. It’s normal to have just 6 wires in the housing behind the overhead console and 8 in the overhead console housing? If I need to run 2 wires from the sensor can I run this straight to the overhead console or I have to go in the fuse box. Thanks

    mahaloTaco likes this.
  3. Sep 3, 2009 at 9:44 AM
    #3
    Tex-Tac

    Tex-Tac Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16844
    Messages:
    762
    Gender:
    Male
    TEXAS
    Vehicle:
    2008 Tacoma V6 PreRunner SR5 Extended Double Cab Desert Sand Mica
    Installed Overhead Compass and Temperature Display along with outside temperature sensor and wiring; LED lights reverse backup; LED license plate lights; Added GTA Bluetooth Audio kit to stock radio for iphone audio; Spare tire steel braided air hose extension connection to rear bumper; Installed new headlights along with new bulbs PIAA H4 XTreme and for fog lights PIAA H10 XTreme bulbs. Installed new hood with "hood-scoop". Installed Predator Side Steps. Replaced front chrome grill with customized color matched (Desert Sand Mica) grill with added TOYOTA lettering (also in matched color), installed and secured tailgate anti-theft devices.
    Item number 4.) (reference above in BEEFTACOS POST) Terminal Repair Wire Part ????? the part number is probably going to be Terminal Repair Wire 82998-12690 (Female connector) or 82998-12700* the astrik indicates that it is gold tinned thats why its a different part number. The connector housing in which it is going to be inserted into is the 1C Connector (part# 90980-11913) which is a Female connector which is located in the Junction/Fuse box in the cabin under the dash (remove the small pull out panel to access fuses) between the 1A & 1B connectors, right above/next to the large redish/pinkish square 30 Amp fuse.
    To insert:
    1.) remove 1C Connector.
    2.) gentlly disengage the small locking part on top of the 1C connector with a small jewelers screw driver by prying it up.
    3.) insert Wire Repair Terminal into the 1C connector slots pin#1 and pin#3, respectively.
    4.) engage small locking part by gently pushing/snapping it down, back into place.
    5.) reinsert 1C connector into the Junction/Fuse box.
    6.) make sure all connections are secure and in place, turn iginition switch to ON and compass/temperature display should indicate temp.
    7.) Beer Time!

    mahaloTaco likes this.
  4. Aug 11, 2010 at 3:31 AM
    #4
    malteseowner

    malteseowner Member

    Joined:
    Oct 9, 2009
    Member:
    #24018
    Messages:
    11
    Gender:
    Female
    First Name:
    lisa
    ms.
    Vehicle:
    05 Tacoma
    flowmasters, dual exhaust
    hi guy's, i have a 05 tacoma and my accessory meter stopped working, i have read several post where people said that this was a common problem and they removed the part and there were 2 flad resisters that are black/grey that seemed to come un-soldered. well....i took mine apart and first of all, i see no flat resisters and what is there looks to be ok, any other sugesstions? :confused: :confused:
    thanks

  5. Feb 17, 2012 at 7:17 PM
    #5
    CARPRO

    CARPRO Member

    Joined:
    Feb 17, 2012
    Member:
    #73026
    Messages:
    16
    Gender:
    Male
    LAS VEGAS
    Vehicle:
    08 PRERUNNER DOUBLE CAB
    RIMS. SNUG TOP
    Hi I have 2008 Tacoma double cab bought the overhead console and thermistor assemble and wires but when i look at connector 1C all my wire are different colors then photo posted and wire all ready in pins #1 and #3
    any help would be appreciated

    Thanks


  6. Feb 17, 2012 at 10:04 PM
    #6
    badger

    badger Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    1,077
    Gender:
    Male
    Vehicle:
    07 SR5
    This doesn't answer your question, sorry. It's just an alternative. I bought a cyberdyne ambient air gauge for my truck. Easy to install and you can put the probe anywhere you want.

  7. Oct 11, 2012 at 7:43 PM
    #7
    xsptaco07

    xsptaco07 Well-Known Member

    Joined:
    Oct 17, 2011
    Member:
    #65349
    Messages:
    180
    Gender:
    Male
    First Name:
    Jordan
    Atlanta
    Vehicle:
    2007 Tacoma Xsp
    xsp package, 20" enkei deep six wheels,33" cooper zeon ltz, borla exhaust, borla intake, carbon fiber trim, weathertech mats, Halo HID lights, black grille surround with mesh, smoked 3rd break and tails, 3" toytec coilovers with bilstein strut, AAL and bilstein 5160 in the rear, led tag lights, led interior lights, NTW plated bumper, anytime fog mod, blue and white cluster swap, UWS toolbox,
    Today I took the over head temp out of my friends 06 trd. I have an 07 sr5. Everything switched over fine except the outside sensor. I do not have a plug for it. I went ahead and cut his out( and about a ft of wire, hope I didn't mess up his truck) where exactly do I splice it into? I can't seem to find the answer.

    mahaloTaco likes this.
  8. Mar 13, 2013 at 2:54 PM
    #8
    drewskie

    drewskie Well-Known Member

    Joined:
    May 30, 2010
    Member:
    #38088
    Messages:
    1,200
    Gender:
    Male
    First Name:
    Drew
    Burbank, CA.
    Vehicle:
    08 Prerunner 4 banger
    Ok gents, I am really confused here. I have an 08 4 cyl. and I am desperately trying to get my temperature sensor to work. I have the sensor I got from a member, but none of the necessary wiring on the truck.

    Can anyone explain the wiring diagram to me? If I get the plug connector, and run wires, where do i plug them into? My fuse box is different from the v6 one.

  9. Mar 1, 2014 at 8:19 AM
    #9
    gold68ht

    gold68ht Active Member

    Joined:
    Sep 23, 2012
    Member:
    #87568
    Messages:
    38
    Gender:
    Male
    Vehicle:
    '07 PreRunner SR5
    subscribed. Thumbs up.

  10. Sep 17, 2014 at 2:48 PM
    #10
    Tex-Tac

    Tex-Tac Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16844
    Messages:
    762
    Gender:
    Male
    TEXAS
    Vehicle:
    2008 Tacoma V6 PreRunner SR5 Extended Double Cab Desert Sand Mica
    Installed Overhead Compass and Temperature Display along with outside temperature sensor and wiring; LED lights reverse backup; LED license plate lights; Added GTA Bluetooth Audio kit to stock radio for iphone audio; Spare tire steel braided air hose extension connection to rear bumper; Installed new headlights along with new bulbs PIAA H4 XTreme and for fog lights PIAA H10 XTreme bulbs. Installed new hood with "hood-scoop". Installed Predator Side Steps. Replaced front chrome grill with customized color matched (Desert Sand Mica) grill with added TOYOTA lettering (also in matched color), installed and secured tailgate anti-theft devices.

    I know that this particular post is a couple of years old along with a few years old thread...but you just never know right? Also this is for those individuals that are at least seeking answers?

    So with that said....are you sure that you were looking at the right connector?

    Are those wires that are already in pins #3 & #1, colors yellow and gray respectively?

    If so then you already have the temperature sensor connected out front behind your grill or at least the connector part?

    If not then you are somehow going to have to find another wiring diagram for your particular model 2008?

  11. Feb 6, 2015 at 5:05 AM
    #11
    flatfour

    flatfour New Member

    Joined:
    Dec 4, 2013
    Member:
    #117891
    Messages:
    3
    Gender:
    Male
    Vehicle:
    07 SR5
    I just did this on my 2007 SR5 Tacoma. I had the wiring to the console, but didn't have the temp probe or the wiring from 1C connector to the front. These parts are what I ordered and it worked great. I got the temperature console itself from ebay. The parts list above is correct. Here is what I ordered from Toyota dealer. It was about $70 with shipping from https://parts.olathetoyota.com/

    1. Thermistor assembly
    Part # 88790-22131

    2. Terminal Repair Wire
    Part # 82998-12440 (2 NEEDED)

    3. Connector Housing
    Part # 90980-11070

    4. Terminal Repair Wire
    Part # 82998-12690 (2 NEEDED)

  12. Aug 5, 2015 at 3:25 PM
    #12
    DCLBFTW

    DCLBFTW Well-Known Member

    Joined:
    Apr 12, 2014
    Member:
    #127552
    Messages:
    498
    Gender:
    Male
    First Name:
    Chris
    Minnesota
    Vehicle:
    06 dclb
    OME 887's, Bilsten 5100 up front at 0, dakers and nitro-charges in the back, 9500lb winch, 42" led light bar on an oem rack,ridgid d2's up front and 4 duallys cut in the bumper, Back rack with highlift mounted and a uws tool box 2500 watt power inverter, Body Armor4x4 front and back bumper, leer 100xq cap, all pro skids and sliders
    Subed

  13. Nov 11, 2017 at 4:50 PM
    #13
    Oldie2007

    Oldie2007 Member

    Joined:
    Oct 26, 2017
    Member:
    #234220
    Messages:
    21
    Gender:
    Male
    Vehicle:
    2007 Bought Used Sunburst Red 4Dr SR5 PreRunner
    Bringing it back to life. Well used and maintained, but neglected as for cosmetic. Truxedo cover, replaced front mud flaps, other minor. Have some clearcoat to fix next. Was Impulse Red, but the sun.... Looks nice tho. Trying to make if very wife friendly with options inside. Clean, clean, 3 rd clean coming soon Truxedo installed. Clear Coat rash fixed Gentek Autodimming/Temp/Compass mirror coming
    I'm doing a version of this mod, and writing it up. Will give credit due to a couple of threads. The hardest part is what you have vs. what you want (and therefore need to buy). Inspect everything, read everything. First, up in the console, the FORWARD plug would be used for an overhead display OR a display mirror connection.

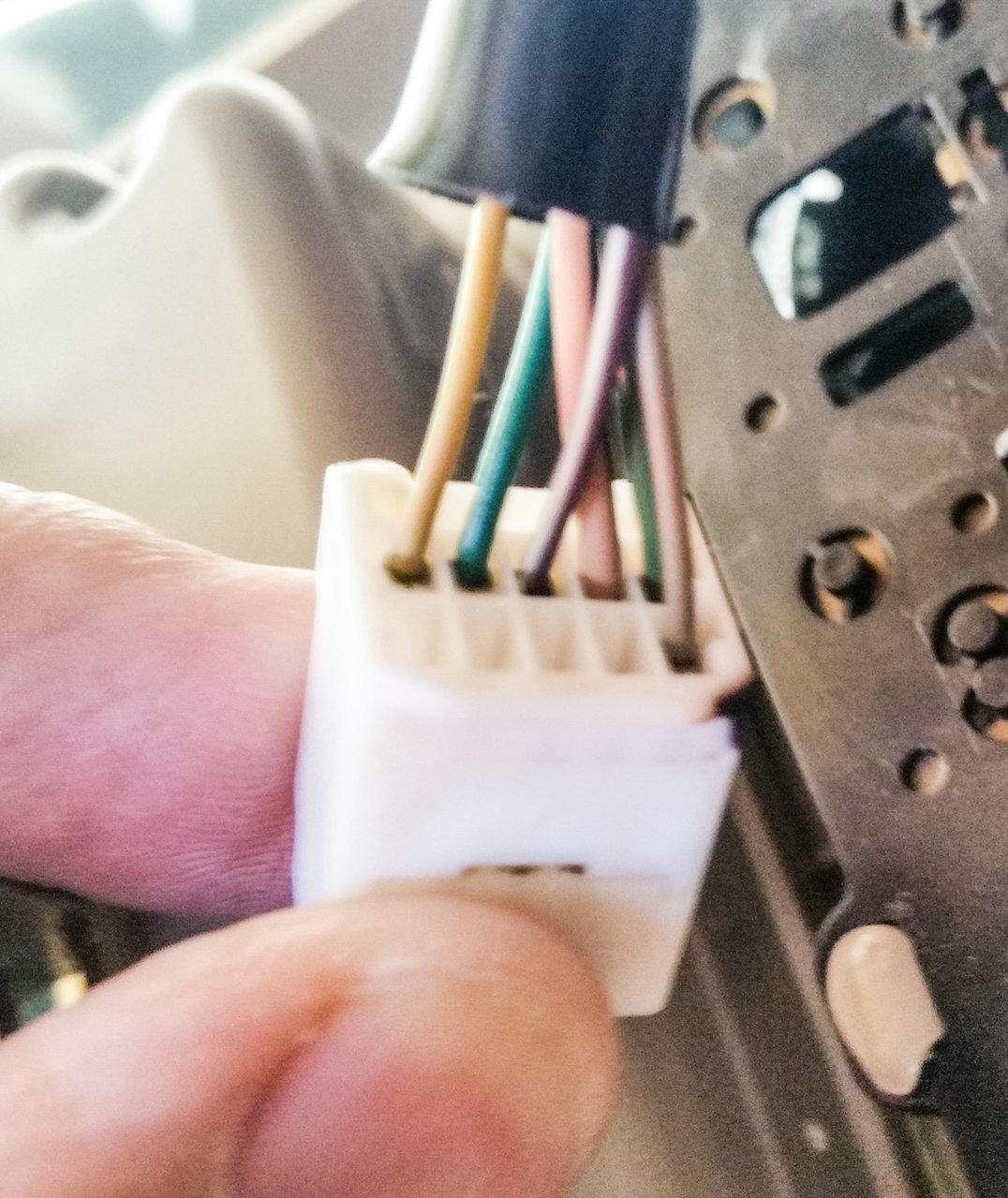

    20171029_141845_2.jpg If you have a YELLOW at the top left, and a GREY at the bottom right, you DO have a connection down to the fuse panel for temperature sensor.

    Then, before you tear up your arm digging down inside the grille, remove the little panel that covers the fuse box, and look at the middle connector next to the square, red fuse. On the right side of the panel, it will be the middle connector.

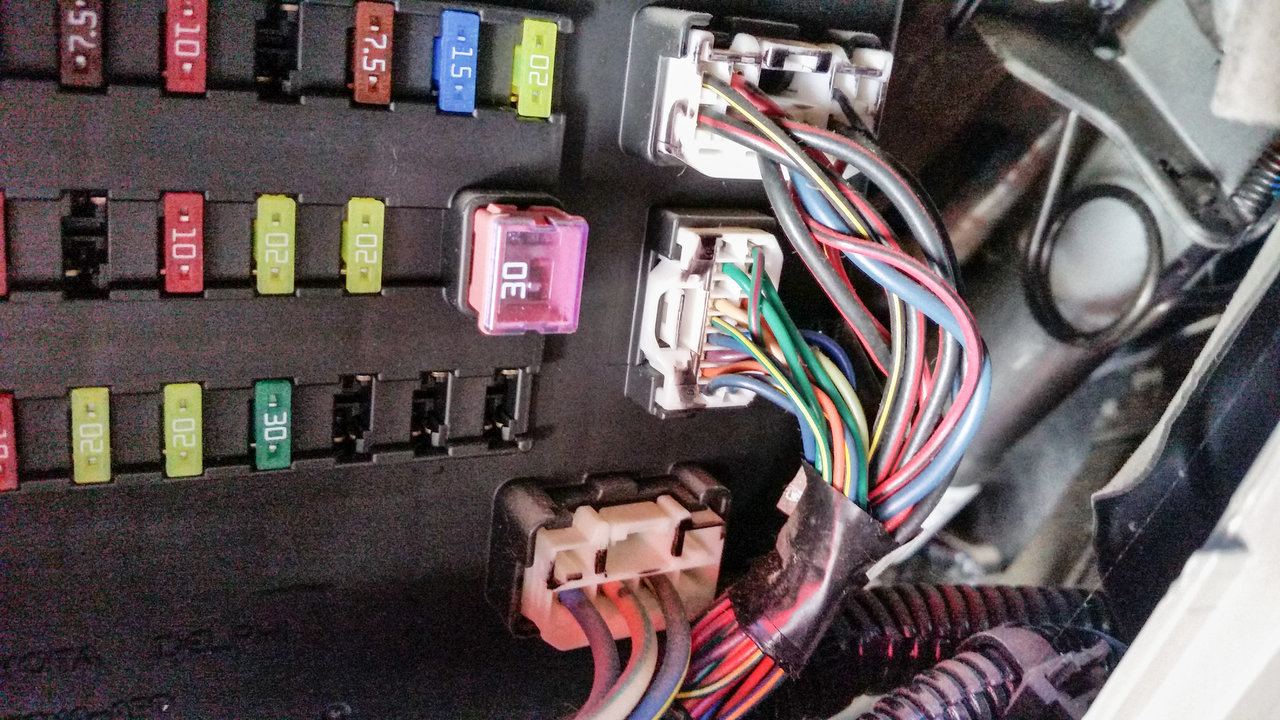

    20171029_141756.jpg Mine has black marking pen on the left side. If pins 1 (top left) and 3 (3rd down left) are EMPTY, you do NOT have wiring to a thermistor out front. You will need to make a harness, and buy the Thermistor, Connector, and Connector pins. Plus the harness stuff. If you DO have wires in those pins, congratulations, you HAVE a factory harness. and now you want to check behind the grille, on the harness going to the horns.

    20171111_145205.jpg Here are my new connector body (white) and thermistor (black, with white mount). If you had wiring to the front, you probably have the connector, and only need the thermistor. It mounts on the front middle radiator support bracket, you will find two holes halfway down. Thermistor down, the connectors are "sealed".

    Looking to complete my install and documents tomorrow. Hope this helps someone out. Apparently what you find in any give cab is always a mystery! This is what I found in my SR5 PreRunner Double cab.

  14. Dec 1, 2017 at 10:08 PM
    #14
    Oldie2007

    Oldie2007 Member

    Joined:
    Oct 26, 2017
    Member:
    #234220
    Messages:
    21
    Gender:
    Male
    Vehicle:
    2007 Bought Used Sunburst Red 4Dr SR5 PreRunner
    Bringing it back to life. Well used and maintained, but neglected as for cosmetic. Truxedo cover, replaced front mud flaps, other minor. Have some clearcoat to fix next. Was Impulse Red, but the sun.... Looks nice tho. Trying to make if very wife friendly with options inside. Clean, clean, 3 rd clean coming soon Truxedo installed. Clear Coat rash fixed Gentek Autodimming/Temp/Compass mirror coming
    Guess what? If you install a GENTEK mirror, which is the OEM version for any mirror with auto dim, temp, or compass, AND you want to use MIRROR TEMP, you need to use the sensor that comes with the MIRROR! NOT, the Toyota Sensor that goes with the OVERHEAD COMPASS & TEMP DISPLAY. So, if you want a virtually new Toyo Sensor and mount, message me. Like $15 for both, and I will do cheap postal.

  15. Dec 1, 2017 at 10:10 PM
    #15
    Oldie2007

    Oldie2007 Member

    Joined:
    Oct 26, 2017
    Member:
    #234220
    Messages:
    21
    Gender:
    Male
    Vehicle:
    2007 Bought Used Sunburst Red 4Dr SR5 PreRunner
    Bringing it back to life. Well used and maintained, but neglected as for cosmetic. Truxedo cover, replaced front mud flaps, other minor. Have some clearcoat to fix next. Was Impulse Red, but the sun.... Looks nice tho. Trying to make if very wife friendly with options inside. Clean, clean, 3 rd clean coming soon Truxedo installed. Clear Coat rash fixed Gentek Autodimming/Temp/Compass mirror coming

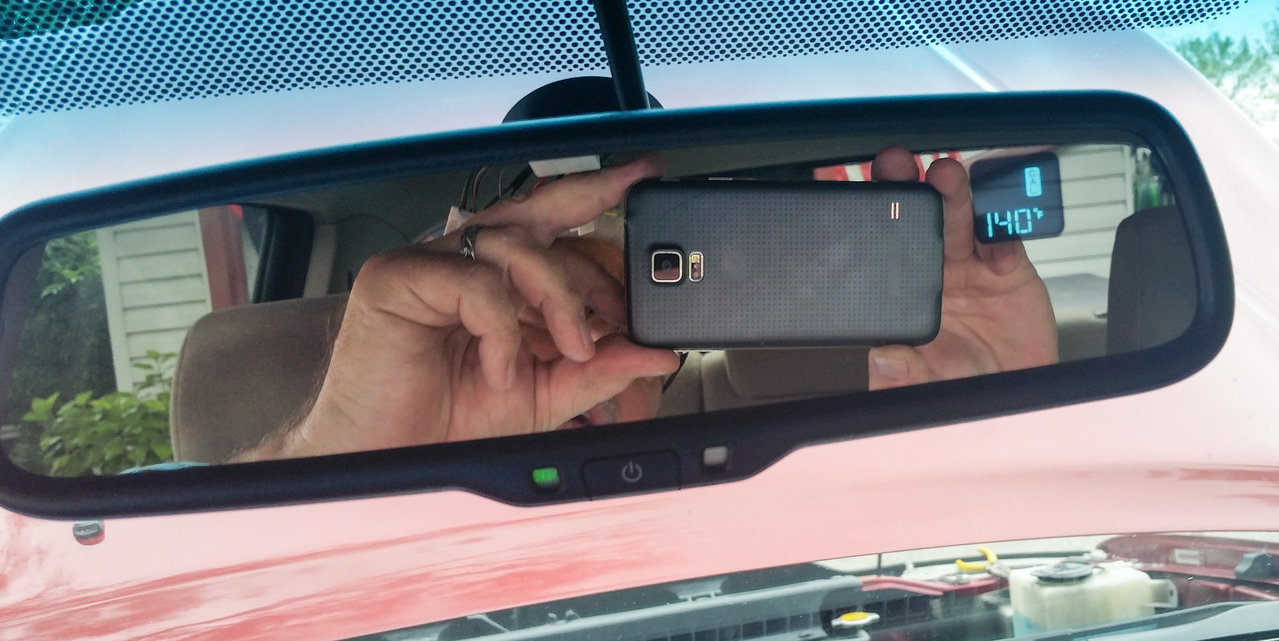

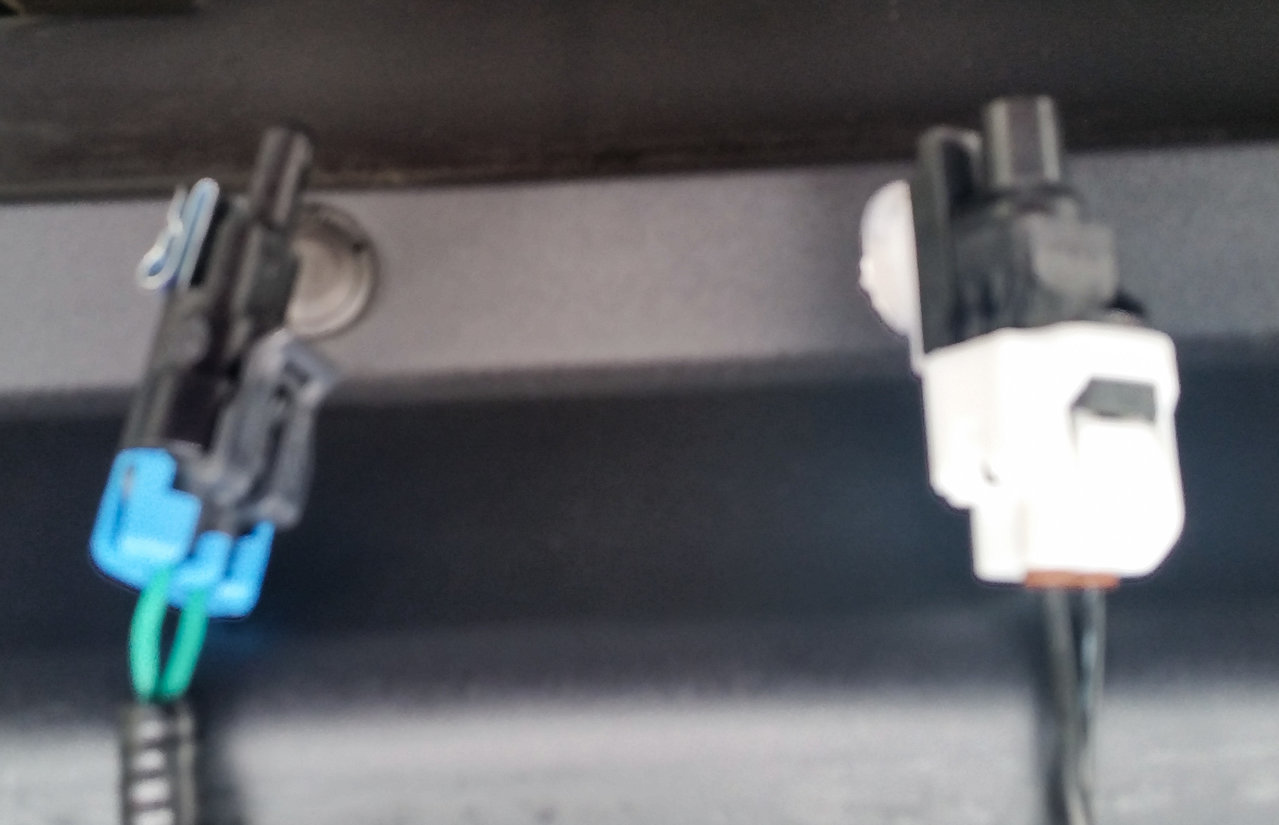

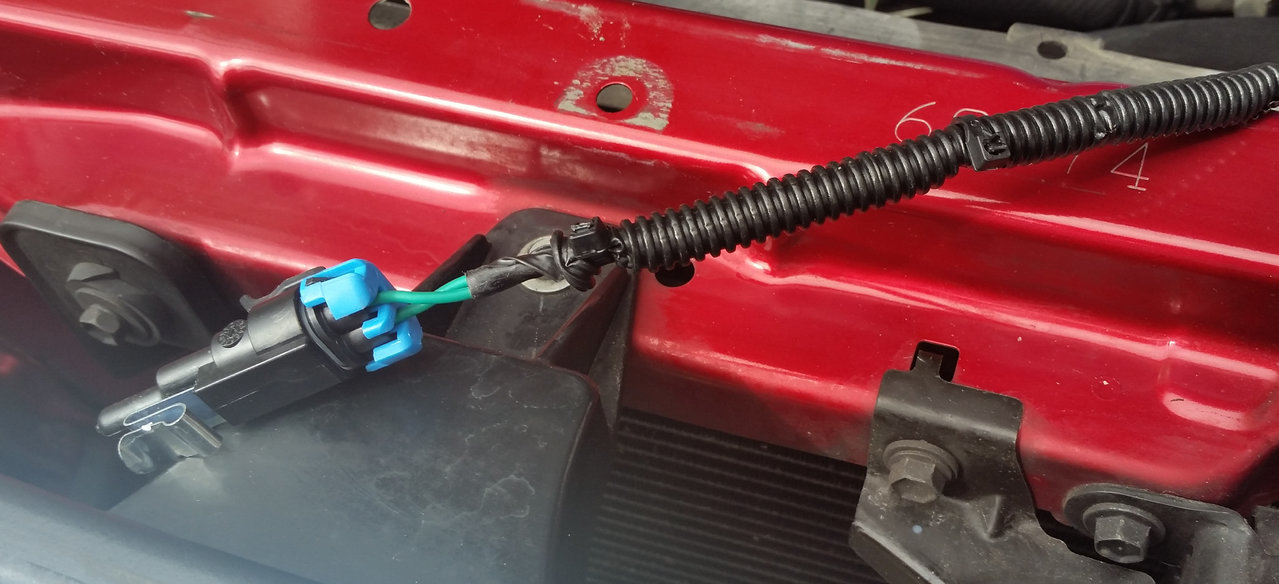

    Sorry, the side by side is fuzzy. Toyo on the right. 140F is what happens when you feed the mirror the Toyo sensor. (Sigh.... it was going so well). But, I got it.
