Amp power problem

Discussion in 'Audio & Video' started by LonghornTaco, Dec 31, 2008.

  1. Dec 31, 2008 at 2:29 PM
    #1
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids

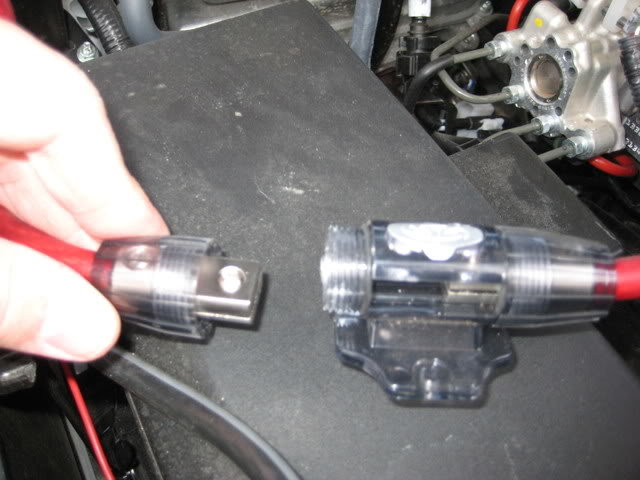

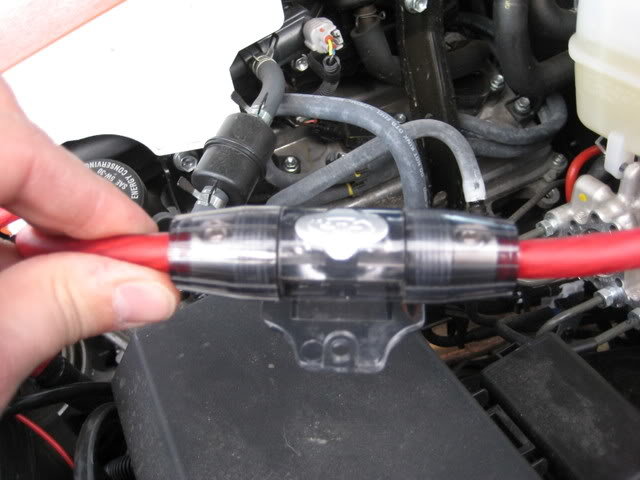

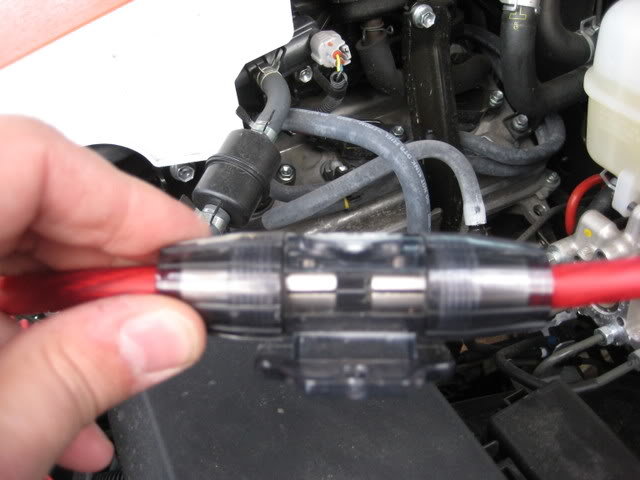

    I'm wiring up my amps and I'm using a dual amp wiring kit from Rockford Fosgate. It's got a 4G power wire coming from the battery splitting to two 8G power wires to the amps. Everything's wired up, but they aren't getting power. I've checked the ground and I believe it's good. However, the fuse holder doesn't look like it has a fuse - or even a place for any kind of fuse I've seen...

    Help?

    [​IMG]

    [​IMG]

    [​IMG]

  2. Dec 31, 2008 at 3:27 PM
    #2
    atsaubrey

    atsaubrey Dealer/Sales Rep for Sundown Audio.

    Joined:
    Apr 20, 2008
    Member:
    #6087
    Messages:
    416
    california
    Vehicle:
    blue 2007 double cab
    Sundown Audio 100.4 and 1500D, Pioneer 880PRS, Zapco Refernece 6.5" comps, 2 10" Image Dynamics IDQ, 200ft of Second Skin deadener, Kicker wire
    That fuse holder is for mini anl fuses.

  3. Dec 31, 2008 at 3:32 PM
    #3
    Delmarva

    Delmarva Mayor of TW

    Joined:
    Oct 22, 2008
    Member:
    #10148
    Messages:
    35,607
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    09 TRD OR S/C 4x4
    TRD S/C, Full OME Suspension, LR UCAs, Relentless Front Bumper, Derpwerx Fab HC Rear Bumper, 285/75/16 Revos, XD Hoss Wheels, Safari Snorkel, Infiniti FX-R HID Retrofit, Airbags in rear, Optima Yellow top, Besttop, All-Pro Skid, All-Pro HD Sliders
    x2... an audio shop should have them if yours is missing -- seems like that's something that should have been included... hmm....

  4. Dec 31, 2008 at 4:06 PM
    #4
    808trdsport

    808trdsport Well-Known Member

    Joined:
    Apr 10, 2008
    Member:
    #5882
    Messages:
    242
    Gender:
    Male
    Honolulu
    Vehicle:
    08 Tacoma TRD Sport Prerunner
    6000k HIDS, double tint in the back and tint front side windows, CGS cat back exhaust, AFE Pro Dry filter
    [​IMG]

  5. Dec 31, 2008 at 4:10 PM
    #5
    CK91

    CK91 Member

    Joined:
    Sep 20, 2008
    Member:
    #9363
    Messages:
    14
    have you run a remote turn on wire? It should be a small blue wire running from harness that connects to your head unit. Just a random guess. I have that same amp kit and i did not have to do anything to fuse

  6. Dec 31, 2008 at 7:13 PM
    #6
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Found out that it's a MAXI fuse. The kit is supposed to come with a 100A fuse, but that wasn't the only thing it was missing. That's the LAST time I order anything from HookedOnTronics.com!

    Anyway, found a audio shop that told me that it was a MAXI fuse (they didn't sell them) but Pep Boys did. However, they only had a 60A. I got a few of those for now (until I can get a 100A). So, I have power, but my subs are coming on. Gonna do more troubleshooting tomorrow.

    Thanks for the input though!

  7. Dec 31, 2008 at 8:23 PM
    #7
    atsaubrey

    atsaubrey Dealer/Sales Rep for Sundown Audio.

    Joined:
    Apr 20, 2008
    Member:
    #6087
    Messages:
    416
    california
    Vehicle:
    blue 2007 double cab
    Sundown Audio 100.4 and 1500D, Pioneer 880PRS, Zapco Refernece 6.5" comps, 2 10" Image Dynamics IDQ, 200ft of Second Skin deadener, Kicker wire
    I am still having trouble figuring our how that is for a MAXI fuse from the pic. Is the MAXI fuse working? Then again thinking about it I am not sure how you'd even get a Mini ANL fuse to work. Pull the other end so I can see both ends.....this is now bugging me....lot easy to see in person. Seeing in person would tak me 5 seconds to tell you :frusty:

  8. Jan 1, 2009 at 6:53 AM
    #8
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,393
    Gender:
    Male
    First Name:
    A A Ron
    Killeen, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    I don't see how it can be a maxi fuse holder either. Despite it not looking like a maxi fuse would fit, I don't know anyone that uses them for power distrobution. Main power is typically fused with ANL or mini ANL now and older systems and distro blocks typically use AGU fuses.

  9. Jan 1, 2009 at 7:29 AM
    #9
    atsaubrey

    atsaubrey Dealer/Sales Rep for Sundown Audio.

    Joined:
    Apr 20, 2008
    Member:
    #6087
    Messages:
    416
    california
    Vehicle:
    blue 2007 double cab
    Sundown Audio 100.4 and 1500D, Pioneer 880PRS, Zapco Refernece 6.5" comps, 2 10" Image Dynamics IDQ, 200ft of Second Skin deadener, Kicker wire
    agreed. Lets wait for the OP to explain some more and hopefully more pics.

  10. Jan 1, 2009 at 7:57 AM
    #10
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    It is a maxi fuse holder and is working with a 60a fuse. I'll take a pic when I get back to my truck.

  11. Jan 1, 2009 at 1:29 PM
    #11
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Here's a picture of the fuse holder with the maxi fuse in it. Looks ghetto to me, but that's apparently what I've got! :)

    Thanks for the help guys!


  12. Jan 2, 2009 at 9:02 AM
    #12
    it's in coma

    it's in coma Well-Known Member

    Joined:
    Apr 18, 2008
    Member:
    #6047
    Messages:
    621
    in the desert
    Vehicle:
    06 trd off road
    intake and exhaust
    where did you run the wire thru the firewall? how did you do it?

  13. Jan 2, 2009 at 9:20 AM
    #13
    betz.steven

    betz.steven Well-Known Member

    Joined:
    Nov 7, 2008
    Member:
    #10552
    Messages:
    365
    Gender:
    Male
    First Name:
    Steve
    Southern NJ
    Vehicle:
    2011 TE 4Runner
    i ran 4 gauge for my amps as well, i ran it through the rubber boot that is used for the factory wiring. i cut a small slit on one side and with a little elbow grease was able to push it through. ill take a pic in a few

  14. Jan 2, 2009 at 1:50 PM
    #14
    81shark

    81shark Well-Known Member

    Joined:
    Nov 7, 2008
    Member:
    #10567
    Messages:
    1,467
    Gender:
    Male
    there is also a plug behind the brake booster that you can remove and use.
