Angled winch connector

Discussion in '1st Gen. Tacomas (1995-2004)' started by AKsavanaman, Dec 8, 2017.

  1. Dec 8, 2017 at 11:41 AM
    #1
    AKsavanaman

    AKsavanaman [OP] Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148232
    Messages:
    441
    Gender:
    Male
    Lower 48 :( U.P MI
    Vehicle:
    01' Xtra Cab TRD, Kings, JBAs, Dakars and 295's on F5
    Kings, JBA's, Dakars, Prinsu Rack, ARB, Trail gear sliders... and rust
    I've exhausted my vocabulary and searched to no avail...

    I'm looking for a 90° angled winch controller/connector, space is tight up between my lights and control box and I can't connect my standard controller. I've got a hard wired switch in the cab, but for some tasks... Like respooling the winch myself... I want to be able to connect my standard one. Any products out there I'm too dumb to search for? It's a 5 pin btw

  2. Dec 8, 2017 at 11:56 AM
    #2
    Finch1018

    Finch1018 Well-Known Member

    Joined:
    Jan 21, 2017
    Member:
    #208238
    Messages:
    181
    Gender:
    Male
    First Name:
    Matt
    Hampton Roads VA
    Vehicle:
    2015 DCSB TRDOR
    Build Thread: https://www.tacomaworld.com/threads/finch1018s-15-dcsb-build-thread.489528/
  3. Dec 8, 2017 at 11:59 AM
    #3
    jbrandt

    jbrandt ......LOADING

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    15,565
    Gender:
    Male
    First Name:
    Justin
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
  4. Dec 8, 2017 at 12:01 PM
    #4
    AKsavanaman

    AKsavanaman [OP] Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148232
    Messages:
    441
    Gender:
    Male
    Lower 48 :( U.P MI
    Vehicle:
    01' Xtra Cab TRD, Kings, JBAs, Dakars and 295's on F5
    Kings, JBA's, Dakars, Prinsu Rack, ARB, Trail gear sliders... and rust
    Didn't think about wireless, def an option... I bought a similar angled adapter for my cb coax cable I figured something existed for winch controllers

  5. Dec 8, 2017 at 12:04 PM
    #5
    AKsavanaman

    AKsavanaman [OP] Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148232
    Messages:
    441
    Gender:
    Male
    Lower 48 :( U.P MI
    Vehicle:
    01' Xtra Cab TRD, Kings, JBAs, Dakars and 295's on F5
    Kings, JBA's, Dakars, Prinsu Rack, ARB, Trail gear sliders... and rust
    When I took my solenoid box apart to wire my cab switch, I only had three wires going to the connection point, figured they just use a 5 pin as a standard connection

  6. Dec 8, 2017 at 12:10 PM
    #6
    Finch1018

    Finch1018 Well-Known Member

    Joined:
    Jan 21, 2017
    Member:
    #208238
    Messages:
    181
    Gender:
    Male
    First Name:
    Matt
    Hampton Roads VA
    Vehicle:
    2015 DCSB TRDOR
    Build Thread: https://www.tacomaworld.com/threads/finch1018s-15-dcsb-build-thread.489528/
    Agreed, I have a 5 pin as well, haven’t looked in the solenoid box yet. Now I’m considering this...$$:facepalm:

  7. Dec 8, 2017 at 12:24 PM
    #7
    Dirty Pool

    Dirty Pool I WAS DRIVING THAT MODEL A

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,092
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    I have a wireless fob and the cable pendant as a back up. Space was a little tight with the under hood mounted control box.
    A razor knife, some self vulcanizing tape and a zip tie did the trick. Careful with the razor, a heat gun might have also done the trick.
    [​IMG]

    AKsavanaman [OP] likes this.
  8. Dec 8, 2017 at 9:28 PM
    #8
    AKsavanaman

    AKsavanaman [OP] Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148232
    Messages:
    441
    Gender:
    Male
    Lower 48 :( U.P MI
    Vehicle:
    01' Xtra Cab TRD, Kings, JBAs, Dakars and 295's on F5
    Kings, JBA's, Dakars, Prinsu Rack, ARB, Trail gear sliders... and rust
    Well thanks @Dirty Pool for giving me the idea, and the mod cost me 0$!!!!

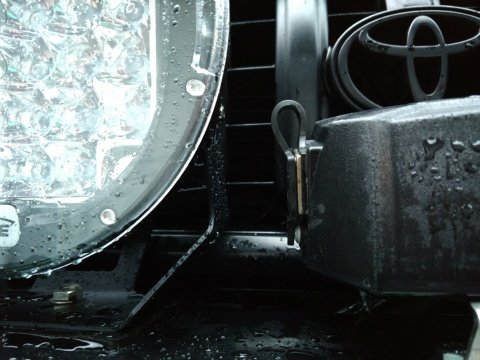

    You can see there ain't much room!

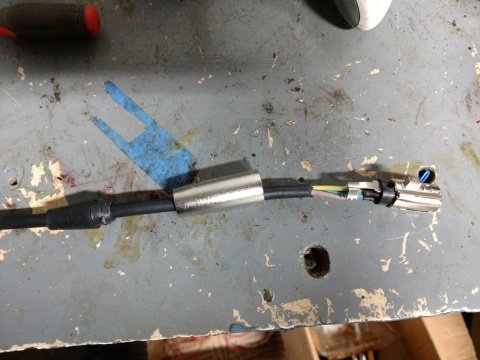

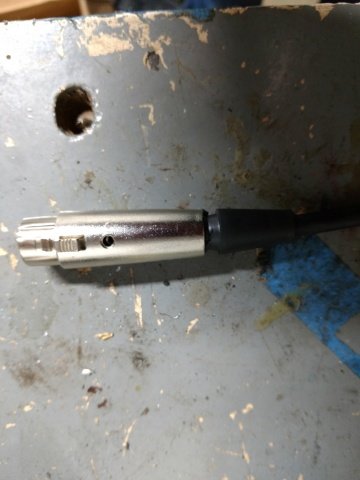

    The original connector

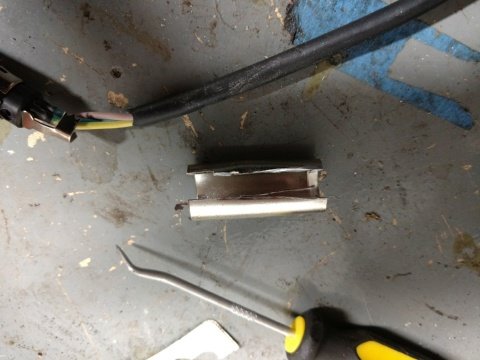

    I cut the metal sleeve with a dremel and kept the rubber grommet.

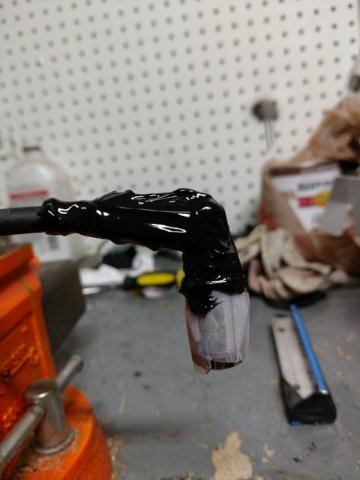

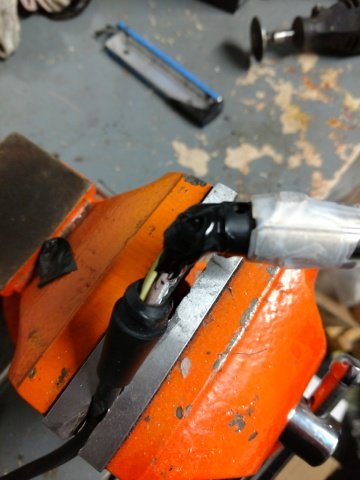

    Now I bent the wires, pulled the grommet up and started globbing liquid tape over it...

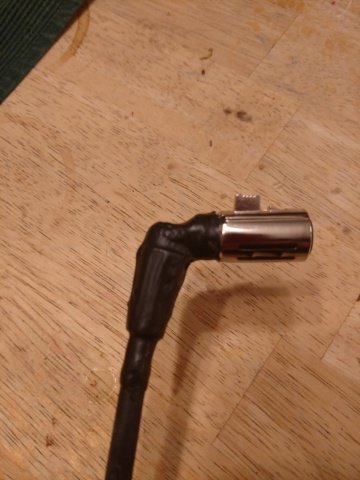

    And here she is all dry, I'll prob add some electrical tape to reinforce, but I'll only be using this every once in while, I think she'll suit my needs perfectly!
