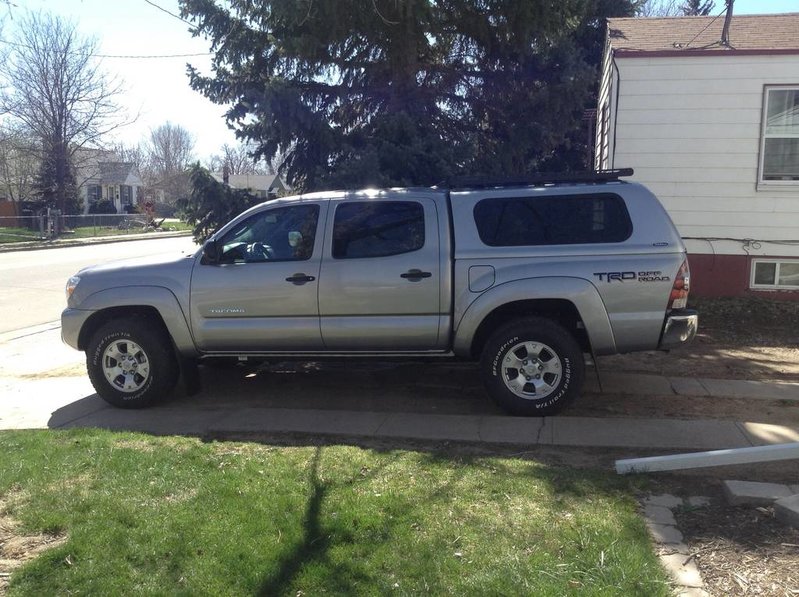

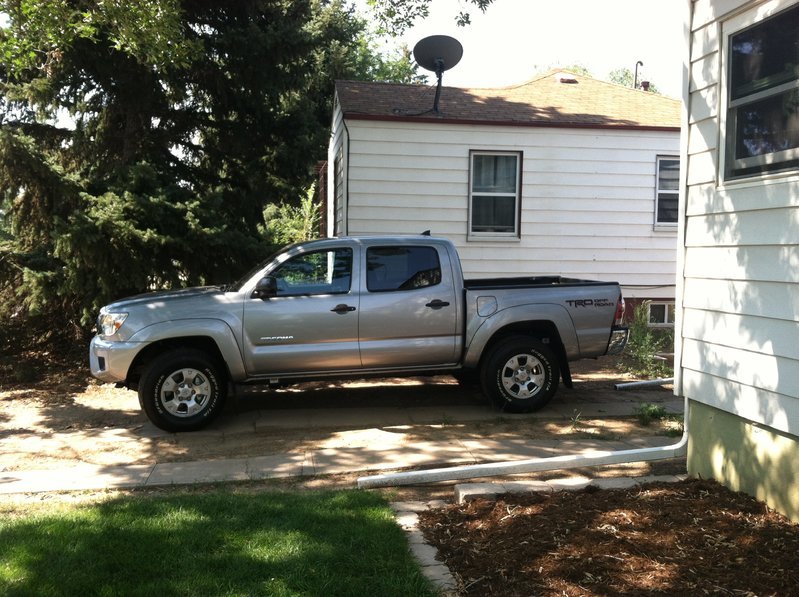

In an effort to keep me organized I decided to start a build thread. I picked up 2014 Doublecab Trd offroad on 7/17/14. It had 13 miles on the odo.
Thanks to all for the information, knowledge and inspiration that makes this forum great.



Obligatory flex shot

stuffed

a few trip pics

Interior:
Weathertec floor liner
Wet Okoles seat covers
ImMrYo relocate bracket
OEM bed mat

Exterior:
Snugtop Rebel with fold down front slider, side sliders, carpet head liner and yakima tracks.
Prinsu Toprac with the HD bars, pelican 1700 case
HomerTaco custom grill
Rokblokz standard short mud flaps
Fj Trail Team wheels
265/75/16 Duratracs e rated

Suspension:
OME 90000 with 885's
Dakars with rear nitrochargers
Light racing UCA's

Armor:
Pelfrebilt bolt-on sliders with kick-out and fill plates

Misc Mods:
Trailer wire relocated bracket (thanks @bullaculla)
Highlift mount (thanks @Benson X )
Diff breather mod
Midland handheld with 4' firestick and BAMF tailgate mount
Ecgs bushing
Total Chaos Bed Stiffeners

Future wants:
stainless steel extended brake lines
Skids (tbd)
Rear Swingout (tbd)
285/75/16 or 255/85/16, not sure yet
SCS F5 in gunmetal
exhaust reroute



Good looking truck op!



Thanks, it's definitely a work in progress



They always are! Lol

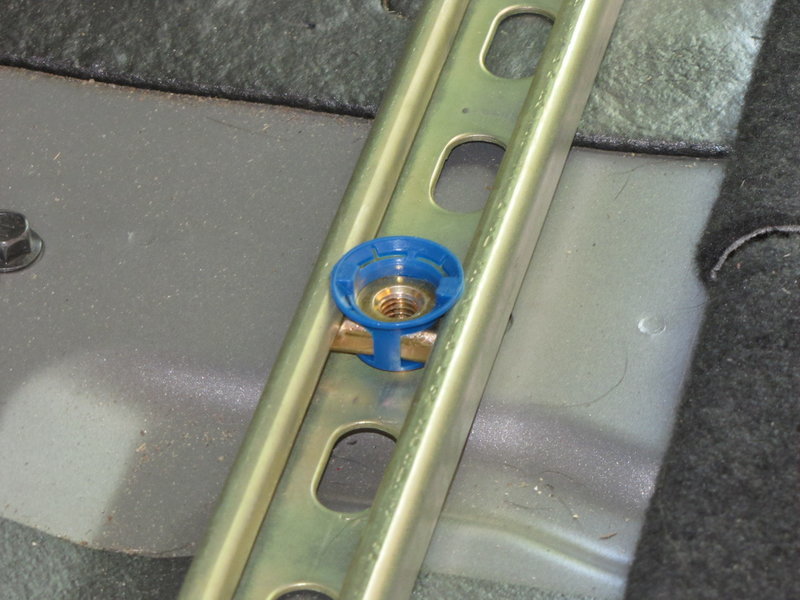

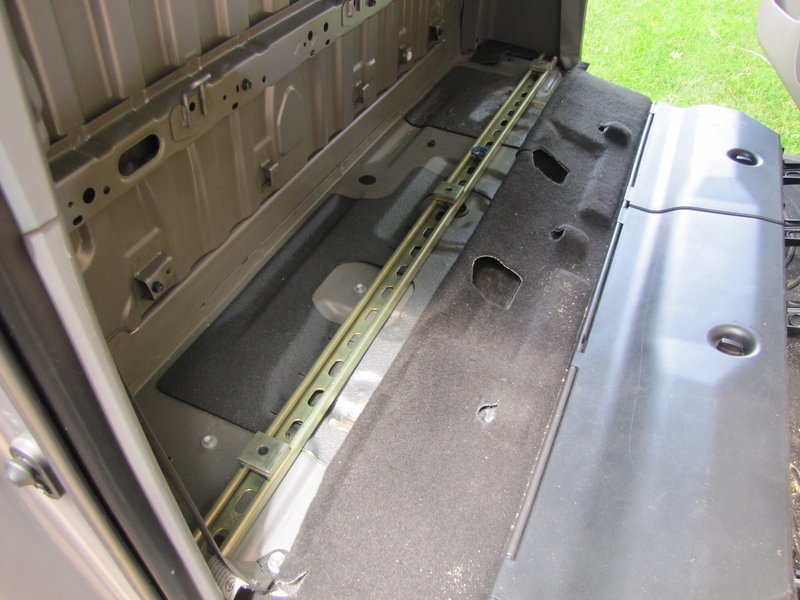

I can count on one hand the number of times I've had a person in the back seat, usually just my dog, so, I went ahead and removed the backseat and storage cubbies behind it. There is nothing really new or innovative here, I've just used ideas I've seen others use and applied them to my situation. I picked up a piece of unistrut and some slide nuts and attached to the existing holes for the seats with the original seat hardware.

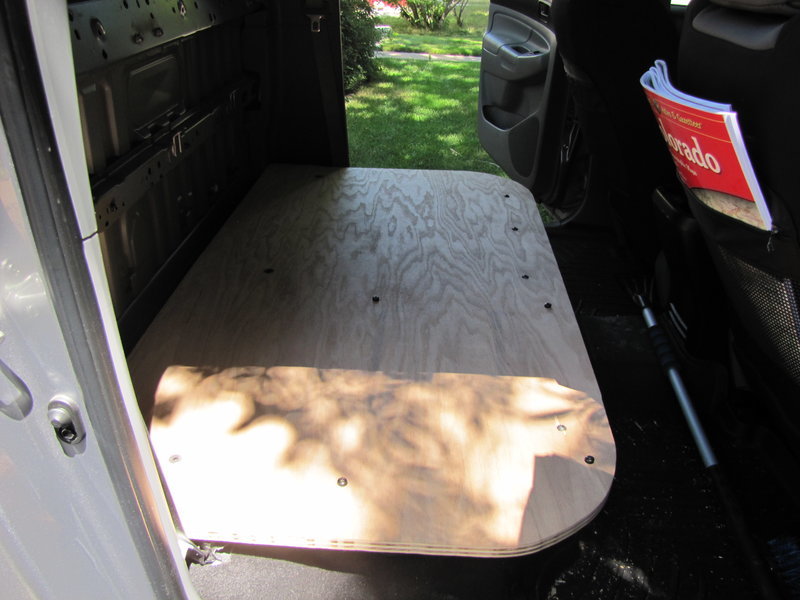

I took a piece of 3/4" ply and cut to the shape I wanted.

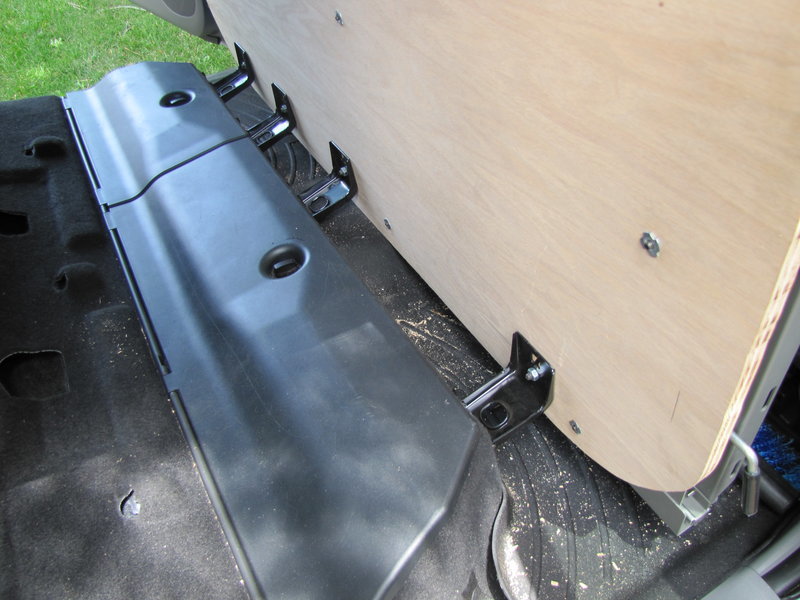

I attached the ply in the front to the existing seat bottom brackets and used 3 sliding nuts in the unistrut to attach it towards the back of the cab.

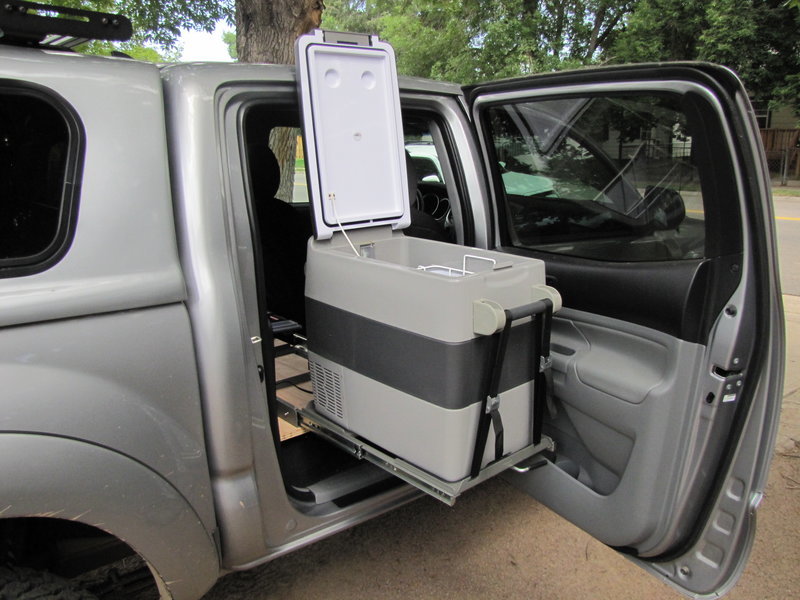

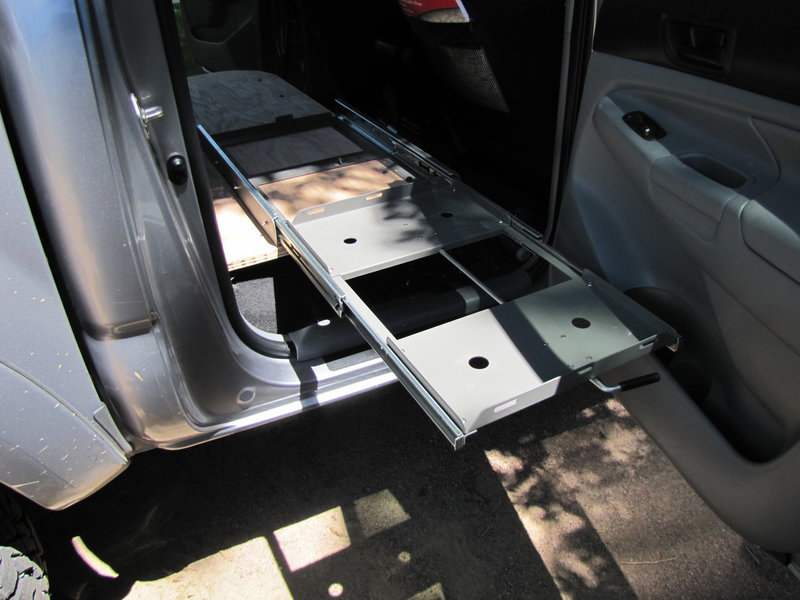

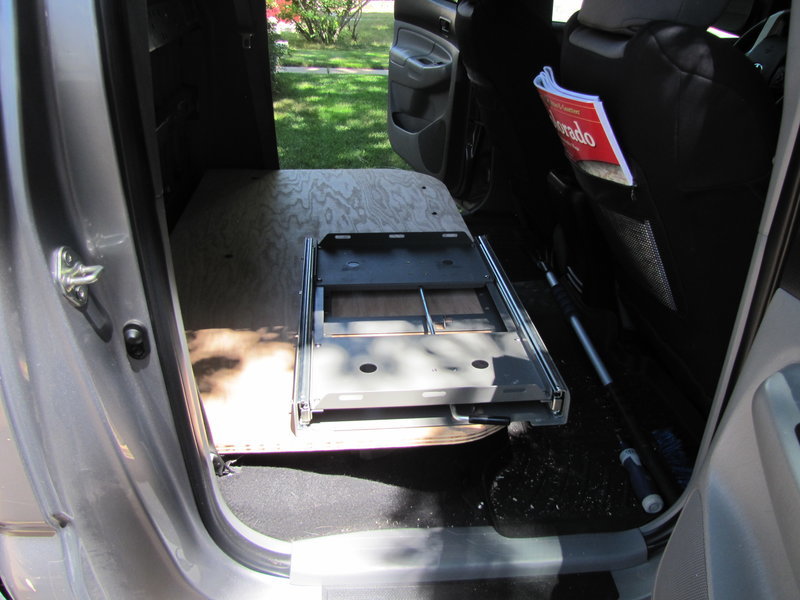

Once I had a nice secure platform I attached my indel B slide so it would extend out the passenger rear door.

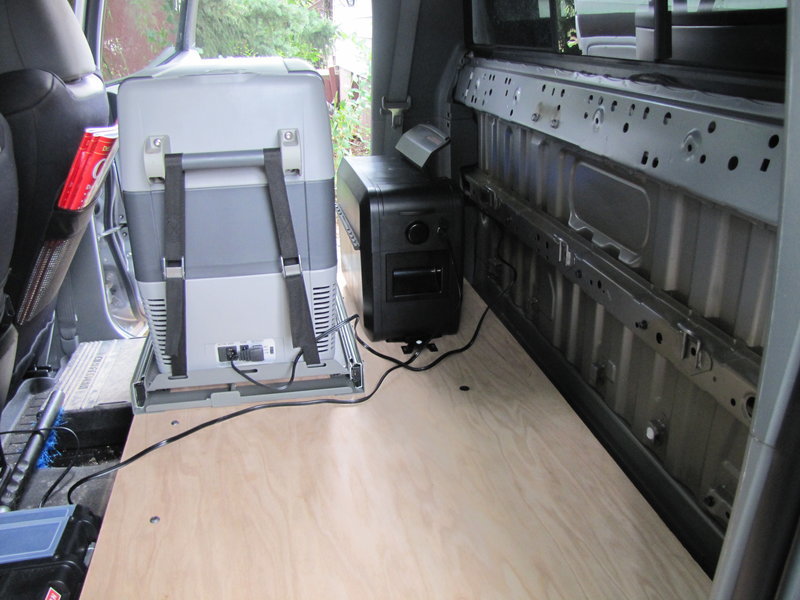

I put the Arkpak 730 with a X2 agm 27f battery next to it.

Now all I need is some cable management and to carpet it and it should be good to go.



subd. love this look!



Nice work. Looking good. I'm a fan of the 255's, I have a set of 255/80/17 St maxx waiting to be installed soon.



Thanks!

Thanks! I'm still up in the air on which size to go with, I love the look of the 255 but just wish there was more of a selection. New tires aren't gonna be in the budget for awhile so I have some time to decide!



Got the Pelfreybilt sliders installed a couple weeks ago!

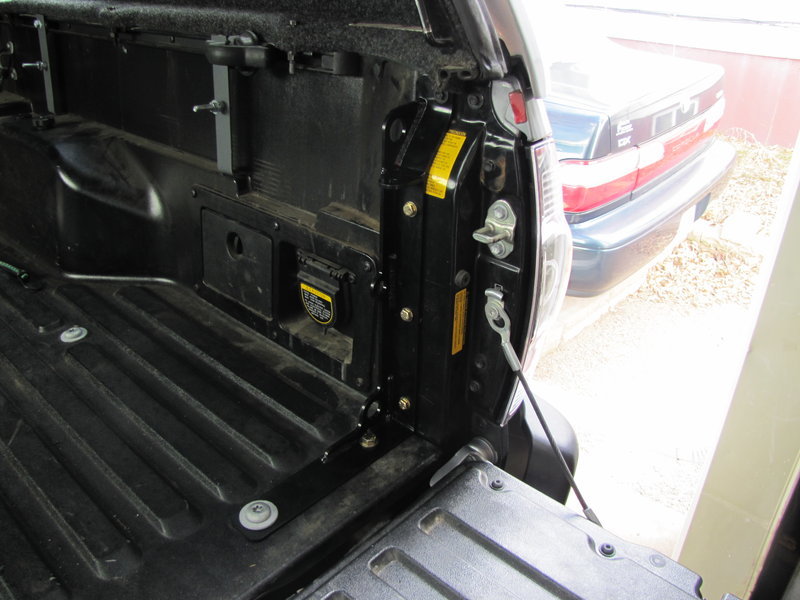

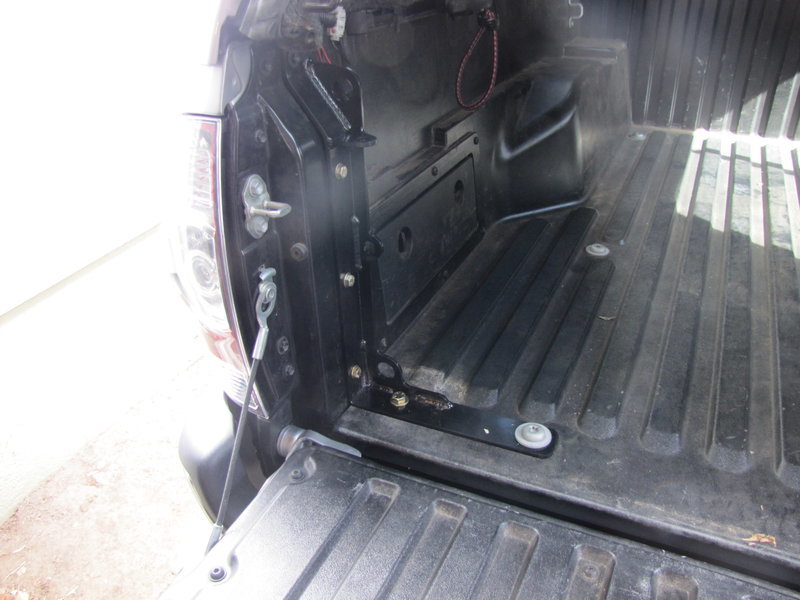

added Total Chaos Bed Stiffeners yesterday. The bed sides weren't a problem yet so hopefully this will be a preventive measure.
