Another Mini D2S Retrofit from TRS

Discussion in 'Lighting' started by Dr. Sleep, Jan 14, 2012.

  1. Feb 1, 2012 at 4:55 AM
    #21
    REDTRD

    REDTRD Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,252
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    Nice! Not to bad. + rep thanks.

  2. Feb 1, 2012 at 10:38 AM
    #22
    07tacos

    07tacos Well-Known Member

    Joined:
    May 21, 2011
    Member:
    #56995
    Messages:
    124
    Gender:
    Male
    First Name:
    Raul
    Sacramento
    Vehicle:
    07 4x4 Debadged
    Bilstein with 2" spacers, Bull bar, Black valence, Mini H1 Retro 6000k, Chevy 2500 leaf packs


    VERY NICE!!!

    I have a question how did you install the projector and shroud? Screwed in glued in?

  3. Feb 1, 2012 at 11:57 AM
    #23
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    ^^ Thanks man. I'll get some daytime pics on here soon

  4. Feb 1, 2012 at 12:03 PM
    #24
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    The angel eyes are "glued" into back of the shroud. I used JB weld, b/c I knew it would hold up to the heat when I re-baked the headlight housing. some have used silicone "glue"/sealant. However, when you re-bake alot of water can evaporate out of silicone and create problems.

    The shroud is held to the projector housing with a "centric" ring -- basically a friction connection. They supply the ring, which snaps on to the back of the shroud -- then the projector fits snugly through the ring.

    The whole projector housing is held to the headlight housing via alignment spacers and special nuts . . . it will all make sense when you see all the parts and start the project -- it's like oh , I see how this is all held together.

    Only complaint/issue is that the nut is hard to screw tightly to the back of the projector, b/c of clearance issues and the fact that it is not any standard hex nut .. weird special shape . . .no wrench or socket fits it. you can either hand tighten it or use an adjustable wrench . . but to get a good grip you need to remove the reflector bowl from the rest of the housing, which some do anyway.

  5. Feb 1, 2012 at 3:11 PM
    #25
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

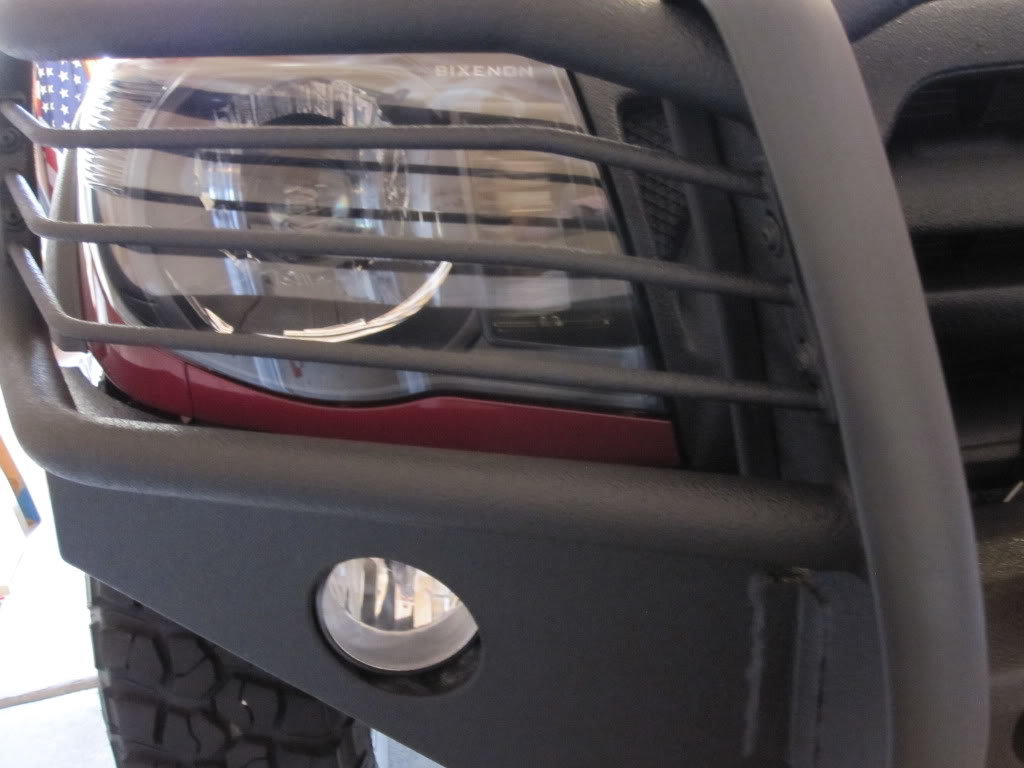

    [​IMG]

  6. Feb 6, 2012 at 9:39 PM
    #26
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    828
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    Cool man thanks! It looks great. I wish I had $$$ for that!

  7. Feb 9, 2012 at 8:05 PM
    #27
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    since you are posting this to help others, hope you dont mind if i chime in...

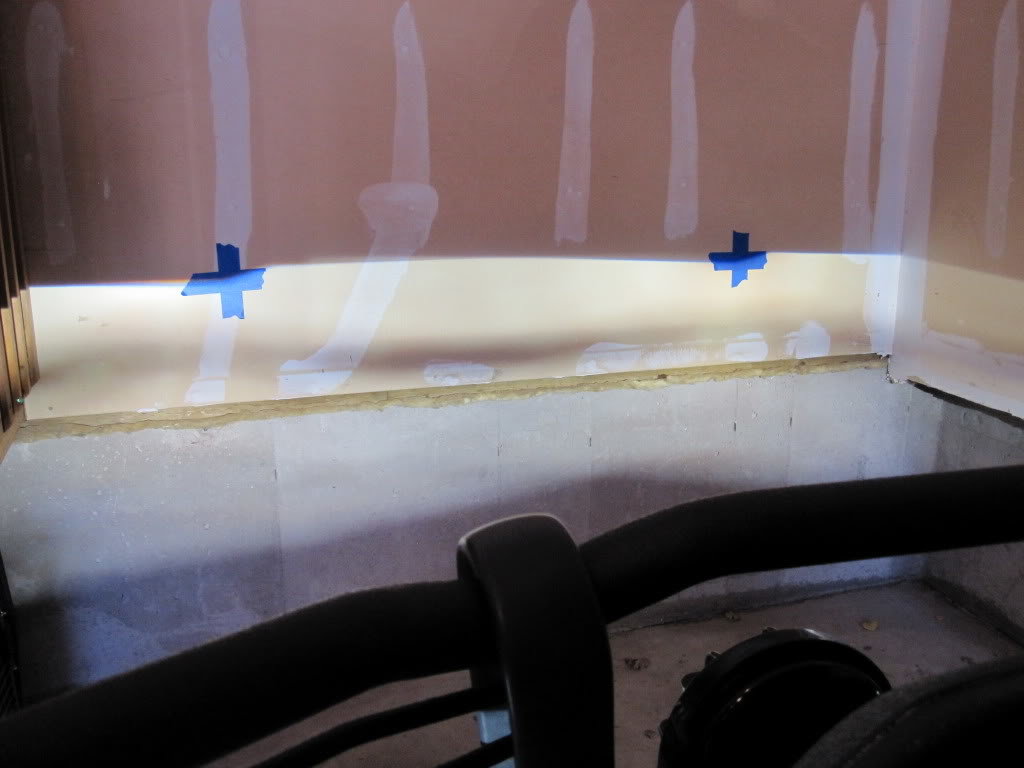

    for those referencing this, ALWAYS align the projectors before you seal up the headlights!! the passenger projector in this pic is slightly off, rotated too much in the CW direction. although this kit claims to be PNP, you should always check the rotation before sealing them back up.

    also, that 4th bolt plays an important part in headlights, IMHO. its really not that bad (i would always screw this in when testing headlights i modded w/ FX-R projectors, because it does change the output.), done it MANY times!

  8. Feb 21, 2012 at 12:55 PM
    #28
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Just an update. . . . . this retrofit has been anything but trouble free.

    1st, the passenger side angel eyes ccfl went out . . . I thought it was just an inverter -- easy plug and play swap out . . .NOPE. AFter TRS sent a replacement inverter, that didn't solve the problem. I applied 12V dc directly to the new inverter +/- input and nothing. . . problem is downstream of the inverter . . . the ring itself or the connections to the ring itself. NO WAY i'm replacing that . . . I'd have to pull everything apart and rebake, etc. PITA!!! Angel eyes unplugged and were IMO a waste of time and money.

    2nd problem -- HID itself is out on the passenger side . . . . checked all fuses and connections . . .not the problem. So, either the Phillips bulb is bad, or perhaps the ballast is bad. Either way . . . these are parts that should be engineered to last LONGER than 2 months i've had the kit! Holy shit . . . it this is a sign of maintenance to come, I'm definitely going back to hallogen!!!

  9. Feb 21, 2012 at 1:31 PM
    #29
    Muy Grande

    Muy Grande Well-Known Member

    Joined:
    Feb 26, 2009
    Member:
    #14111
    Messages:
    1,351
    Gender:
    Male
    First Name:
    John
    Dallas, TX; RGV, TX
    Vehicle:
    06 DC TRD
    Suspension: DHoes up front, Dakar and OME out back. Audio: Alpine w205 w/ pair of Alpine Amps, Image Dynamic 6.5 Component Speakers up front and Image Dynamic Subs in the Back. Armor: ARB Bull Bar, Rocktek rear bumper and custom rock sliders. Other: Rigid Industries LED Light Bar, Platinum DieHard Battery, BlueSea Fuse Block, rear lights, bed lights, leds inside.
    Nice work. How is your seal holding up? In the past I've had issues. I think I now have found the right way to seal them up. And yeah sometimes these things just don't come out right.

  10. Feb 21, 2012 at 1:33 PM
    #30
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    yep, angel eyes crap out all the time. may work for some for a long time, but im always hearing of them crapping out sooner or later.

    concerning the HID problem itself...i have rarely seen problems w/ OEM stuff. a denso or matsushita ballast, along w/ OEM phillips D2S bulbs is the way to go! it is very easy to test for what part is the problem

    swap bulbs/ballasts til you find which part is giving you the problem.

    if bulbs...i am assuming you are using the TRS bulbs? do yourself a favor and pick up some OEM bulbs from either TRS or hidbulbzrus on egay, they are legit (look them up on HIDplanet.com if you have any doubts).

    if ballasts...get a warranty replacement. better yet, pick up a set of the OEM matsushita or denso ballasts from TRS, HIDPlanet.com or egay.

    using OEM bulbs/ballasts, you should not have any problems. if you do, its the wire harness!!

    hope that helps man. people need to realize that OEM costs more for a reason..you cant just plug in a $40 kit and expect it to perform flawlessly for a long while!

  11. Feb 21, 2012 at 2:02 PM
    #31
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Seals are fine! No moisture whatsoever, even after many direct car wash sprays. I used the black sticky stuff they send with the TRS kit if you order from them (I think it's an option). Worked great!

    I wish I could say the same for the rest of the stuff -- angel eye OUT -- not inverter. HID OUT -- Matt @ TRS is sending out a new ballast -- we'll see if that's the problem. Even if it is -- damn -- only 2 months on a ballast that should last many years. :(

  12. Feb 21, 2012 at 2:05 PM
    #32
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Bulbs are the Philips 85122+ D2S bulbs . . . OEM and high quality.

    Ballasts are the 35W Morimoto ballasts from TRS. Kit was WAY over $40. More like $340.

  13. Feb 21, 2012 at 5:22 PM
    #33
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    did you test the ballast that is not working on the other side or on a 12volt source to narrow it down? may be wiring and not the ballast. sometimes things just fail, and unfortunately you were the lucky one this time!

    that was not aimed at you, but a general statement concerning HID kits (the PNP kind w/ my projectors)...

  14. Feb 22, 2012 at 6:49 AM
    #34
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    ^^ No worries . . . If I had it to do over again, I probably would do a custom HID retrofit, where I can pick any projector I want with whatever bulb and ballast combo I want, etc. I saw your work . . . very nice!

  15. Feb 25, 2012 at 9:55 PM
    #35
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Update...the replacement ballast solved the problem with the passenger side hid. Good news is trs warranty and service are excellent. Bad news is a brand new ballast only lasted 2 months.

    Also the over-rotated passenger projector was easily fixed by turning the projector assembly slightly counterclockwise. There is a little play in alignment ring.

  16. Jun 30, 2013 at 12:59 AM
    #36
    kh7nm

    kh7nm Stay Boosted

    Joined:
    Nov 1, 2011
    Member:
    #66227
    Messages:
    3,167
    Gender:
    Male
    First Name:
    Miles
    Ewa Beach, Hawaii
    Vehicle:
    2011 MGM DC 4x4 TX PRO Off Road
    What have you done to your truck lately
    What brand paint is that and where did you pick it up from? Nice lights.

  17. Jun 30, 2013 at 2:08 PM
    #37
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Rustoleum brand . . . Home Depot

  18. Aug 21, 2013 at 1:45 AM
    #38
    Ahshiet

    Ahshiet Well-Known Member

    Joined:
    Sep 5, 2009
    Member:
    #22303
    Messages:
    5,678
    Gender:
    Male
    Maui,Hawaii
    Vehicle:
    09 MG Sport DC 4x4
    Set #1 16x10 ion alloy wheel 31x12.5 super swampers Set#2 17x9 KMC Diesel black 305/65/17 M/T ATZ baja Set#3 TRD offroad wheels painted wrinkle black with H/T tire 275/70/16 Set#4 Weld racing 16x12 Typhoon with 305/70/16 BF KO tires Set#5 Weld racing 16.5x12 36x16 fun country Set#6 TRD rugged edition wheels 305/75/16 baja claws Set#7 16x10 procomp steel "beadlooks" 33x12.50 TSL Boggers Spider track spacers in front Wet Okole black seat covers fronts with pockets,back and armrest HIDs high Lexus projector fogs h11 hid 3500k Toyota bed mat black trd exhaust Fujita intake black Xrunner badges carbon fiber door sills Alpine double din 2 8" bazookas (modded) 2 Alpine type-r 8's in tubes Rockford fosgate 1500w silverstar blinker bulbs front and back Led lic plate bulbs Led dome light Led map lights Black eBay headlights VHT night shade tails and 3rd brake light Custom made rear fog lights(next to 3rd brake light) Sticker bombed bed walls and pass. A-pill
    Any pics of how the angel eyes are mounted?

  19. Aug 24, 2013 at 7:06 AM
    #39
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Actually I'm replacing the original angel eyes with TRS's new LED angel eyes this month. The other one's (fluorescent) don't last. One of mine only lasted a couple of months, but the other side is still working. Problem is . . . to fix/replace any angel eye install after it goes bad means removing the headlights, re-baking them to separated the halves, then actually replacing the wiring/angel eyes themselves . . . HUGE PITA. So, if you're going to use angel eyes, get the highest quality LED version you can find . . . not worth it to save a little $$ only to have them fail in a couple of months.

    Also, I'll post some pics when I do.

  20. Sep 15, 2013 at 9:43 PM
    #40
    fenderpicks

    fenderpicks Well-Known Member

    Joined:
    Jul 10, 2013
    Member:
    #108031
    Messages:
    774
    Gender:
    Male
    Hey man, i have a question with the paint u used.
    Does the paint hold up to the heat coming from the bulbs?
    I read the back of the can saying not to spray it on something that can exceed 200 degrees.
