Anthony's 2010 banworthy access cab mostly BS not much of a build thread

Discussion in '2nd Gen. Builds (2005-2015)' started by 6 gearT444E, Jul 20, 2014.

  1. Jul 20, 2014 at 6:36 PM
    #1
    6 gearT444E

    6 gearT444E [OP] CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    4,056
    Deep South
    Herculiner Hootus

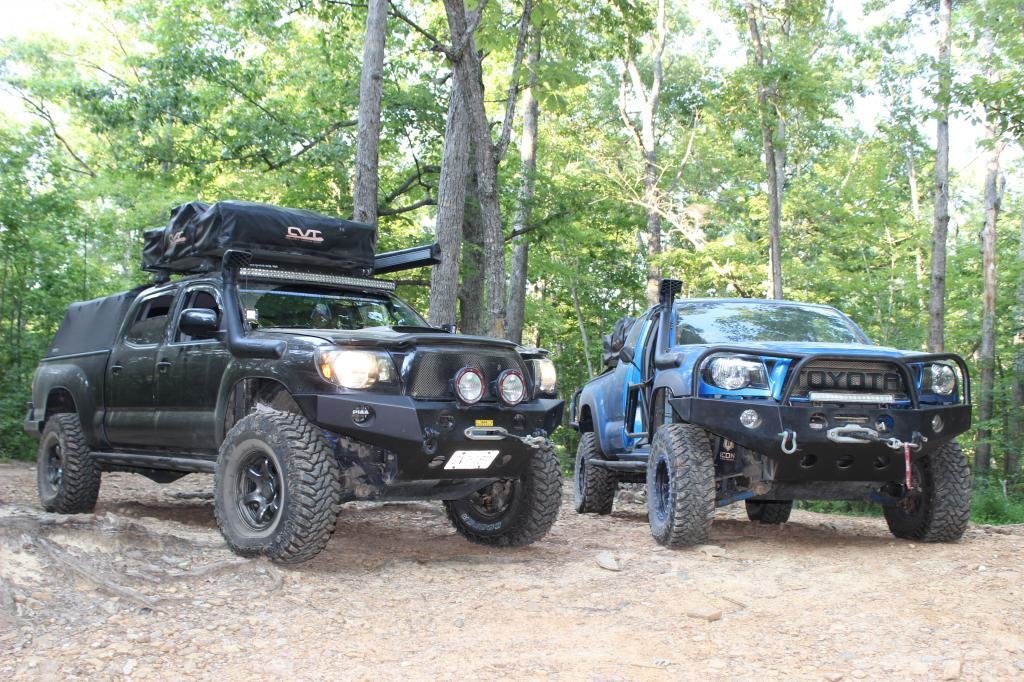

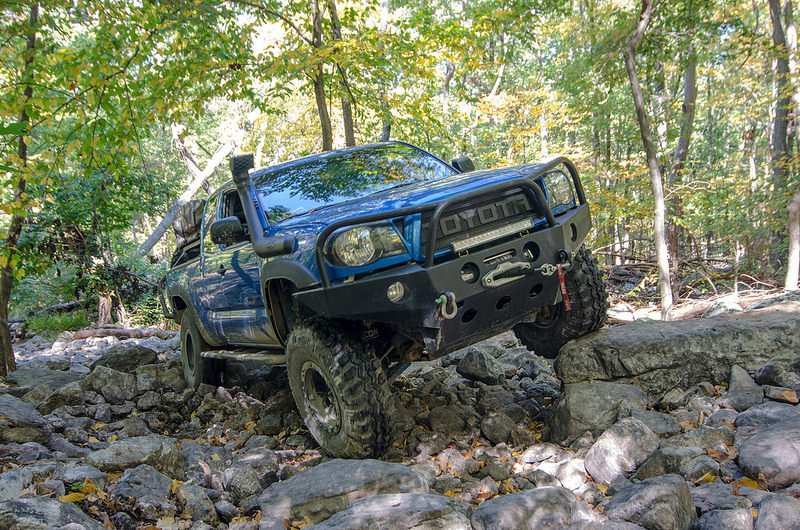

    Couple of pics of about current state




    4B5AB62A-667E-4F69-AFA2-31D70E0B926C_zps_31345a2e5deb5b0be5508b6a734c9dcfb546c43e.jpg





    0C520F46-96E8-4660-8D82-CC82A7DE3CF2_zps_d17c1a1ec4093b33b547a8e8e8d1a829f3746dc1.jpg




    Truck Specs
    2010 Speedway Blue
    Access Cab, TRD Offroad, 4x4
    6 Speed Manual 4.0L V6

    Drivetrain
    4.56 Nitro gears w/ARB RD121
    4.56 Nitro gears 29 spline pinion e-locker
    Marlin Crawler Tacobox w/4.7 gears
    FJ Cruiser twin stick t-case clocked at 15*

    Front Suspension
    Icon 2.5" Extended Travel CO ICON-5-8735 w/ 14" 700# springs ICON 158508
    Total Chaos UCAs TC-96504
    Total Chaos LCA cam tab gussets - TC-59860
    Wheelers Superbump bumpstops
    Custom Cab Mount Chop
    Total Chaos Spindle gussets - 59698-SB
    Total Chaos Coil bucket gussets - 59653


    Rear Suspension
    King 2.0 RR Smooth body shocks mounted inboard / \ - PR2012-SS
    OME Dakar CS047 rear leafs
    OME AAL D29XL
    Allpro Ubolt flip
    Wheelers Superbump bumpstops
    Toytec 3* Axle shims TT-RS-846
    OME Carrier Bearing Drop FK29
    Custom TOR shackle flip


    Misc stuff
    Weathertech digi fits
    Locker Anytime Mod
    Inverter 400W Anytime Mod
    Rear diff Breather Relocate
    T-case Breather Relocate
    URD Short Shifter
    Seat belt chime disabled
    Blacked out badges
    Allpro Front/Rear SS Extended brake lines
    HomerTaco Raptoroshi grill
    Wet Okole Seat Covers
    Maglite mounted in the cab
    Redline Hood Struts
    1" 4crawler body lift
    ARB 47L Fridge/Freezer
    Homebrew bedrack
    Cascadia Vehicle Tents Mt. Bachelor RTT


    Electrical
    Fog Light Anytime Mod
    BHLM
    LED interior lights and License plate lights.
    Blue Seas 120A breaker
    Blue Seas 12 circuit fuse block
    OTRATTW 6 switch bank
    In cab winch control
    Aux reverse lights
    Aux rear turn signals
    Blitzpro Hawk 21S LED bar
    ATO Dual Battery Setup w/ Optima D34s
    Blue Sea 7622 Battery Isolator
    Flyzeye Interior LED
    BeeRad Hood lighting kit

    Kicks
    16x8 Mickey Thompson Classic Locks Black
    36x12.5 Super Swamper TSL
    Full size spare
    Gorilla E/T lugnuts - 68138L
    Gorilla E/T wheel locks - 68631N

    Exhaust/Intake
    Doug Thorley Long Tube Headers w/ O2 sims - THY-515-LS-C
    Custom Y pipe routing w/ flowmaster 40 dumped behind the axle
    ARB Safari Snorkel - SS135MOD, plumbed to stock intake

    Recovery Gear
    Warn 9.5 xp-s with Spydura synthetic rope
    ARB Snatch Strap ARB705US
    ARB Tree Trunk protector ARB730
    ARB Winch Extension Strap ARB725
    60" Hi-lift
    Hi-lift ORB
    Hi-lift Fix-it-kit
    Hi-lift off-road kit
    ATO Hi-lift bed mounts
    Shovel mounted via quickfist in the bed
    ARB CKMTA12 twin air compressor
    ARB Tire Inflation kit
    Masterpull SBO30000 Snatch Block
    Van Beest 3/4" shackles

    Armor
    ATO IFS, Tranny, T-case (custom extended), gas tank skids -
    Tranny and t-case skids custom reinforced with 3/16" angle iron
    CBI bolt on D.O.M. sliders w/ kickout
    Total Chaos LCA Skidplates TC-86006
    Boztec rear differential skidplate w/E-locker protection
    Relentless front & rear bumper
    4x Innovations tube doors


    Comms
    Cobra 25 WX NW ST
    Co-phased 4' Firestik FS
    Para Dynamics PDC1 SWR/RF Meter
    PA radio

    Spare parts:

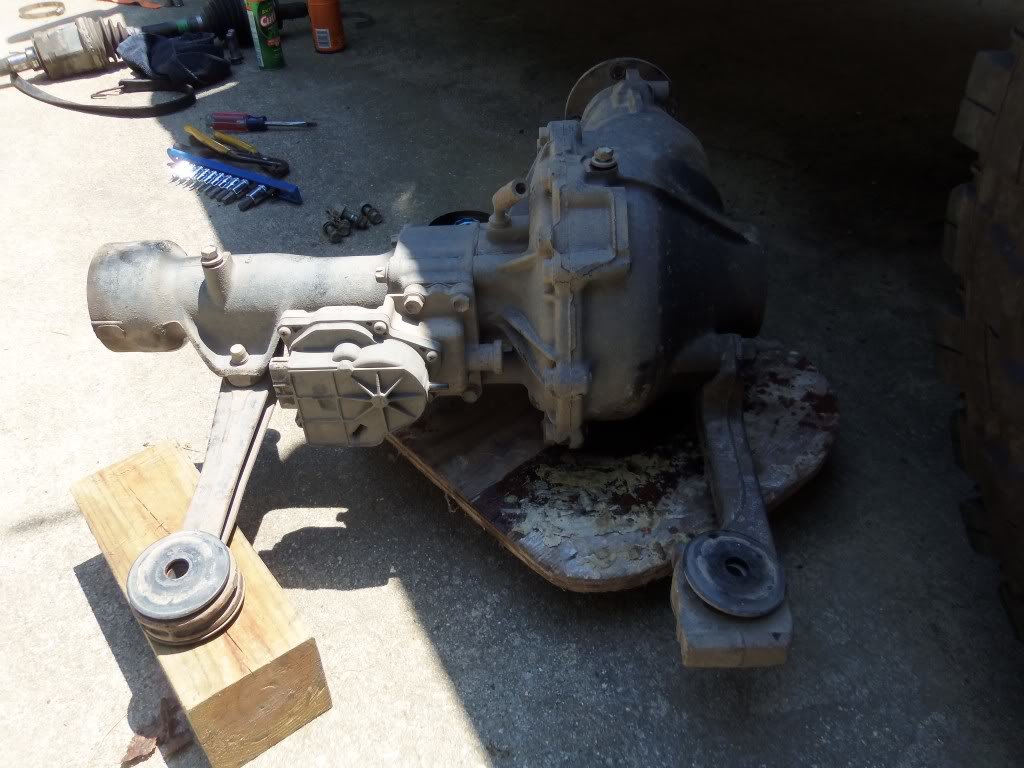

    3rd member and E-locker actuator
    rear driveshaft
    front driveshaft
    5 OEM CVs
    Inner and outer TREs
    Shifter
    gusseted spindles
    OEM LCAs

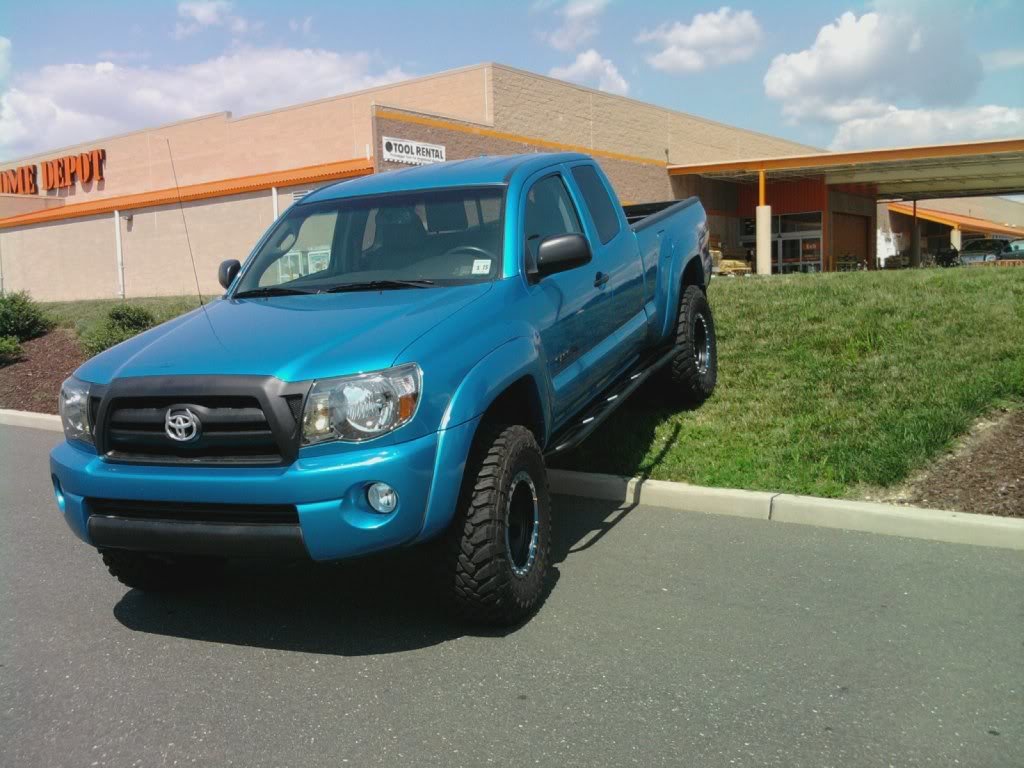

    Bought my truck back in 2010 and here is one of the only shots I have of it stock, doing some work early on in life.

    My first TW meet. From left to right (John - StandingCow, Colin - Motoxerc0, Craig - HomerTaco, Me, Boyd aka DYOB aka sKip - XXXX)

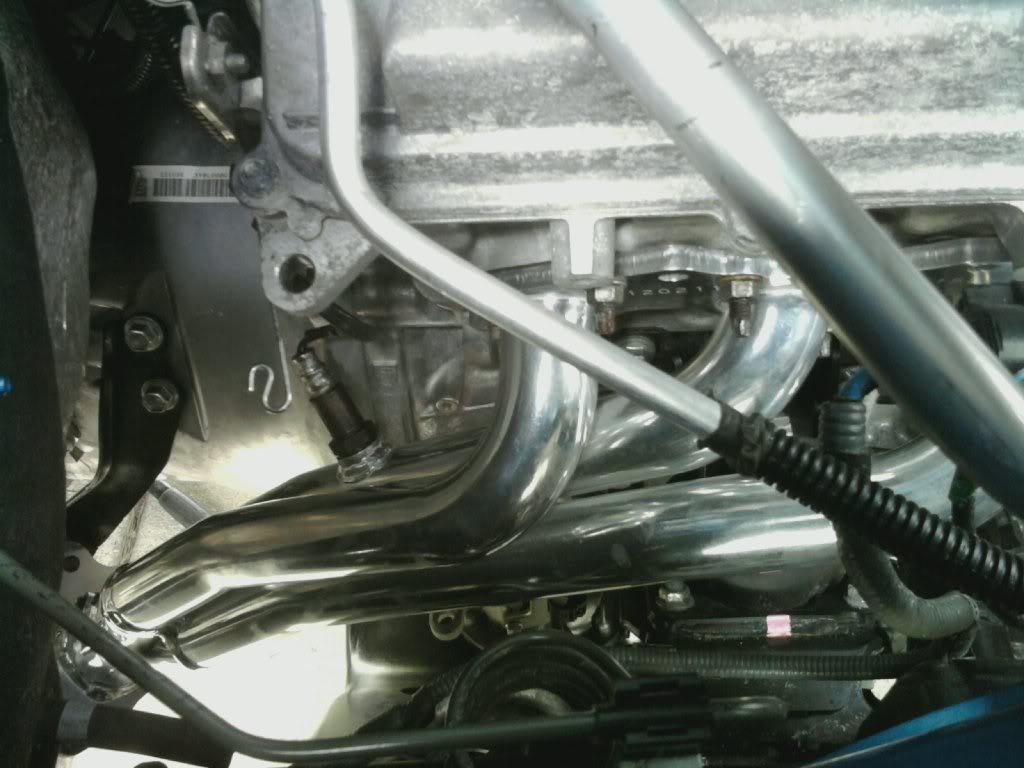

    My first mod was DT long tube headers

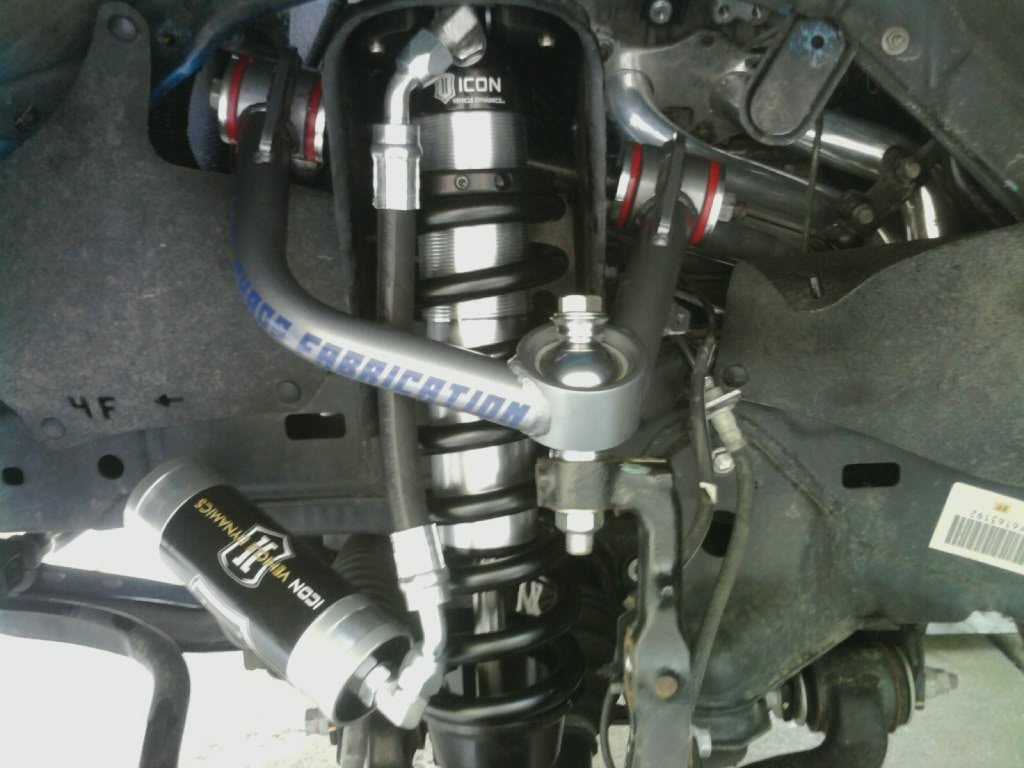

    Then came the front suspension

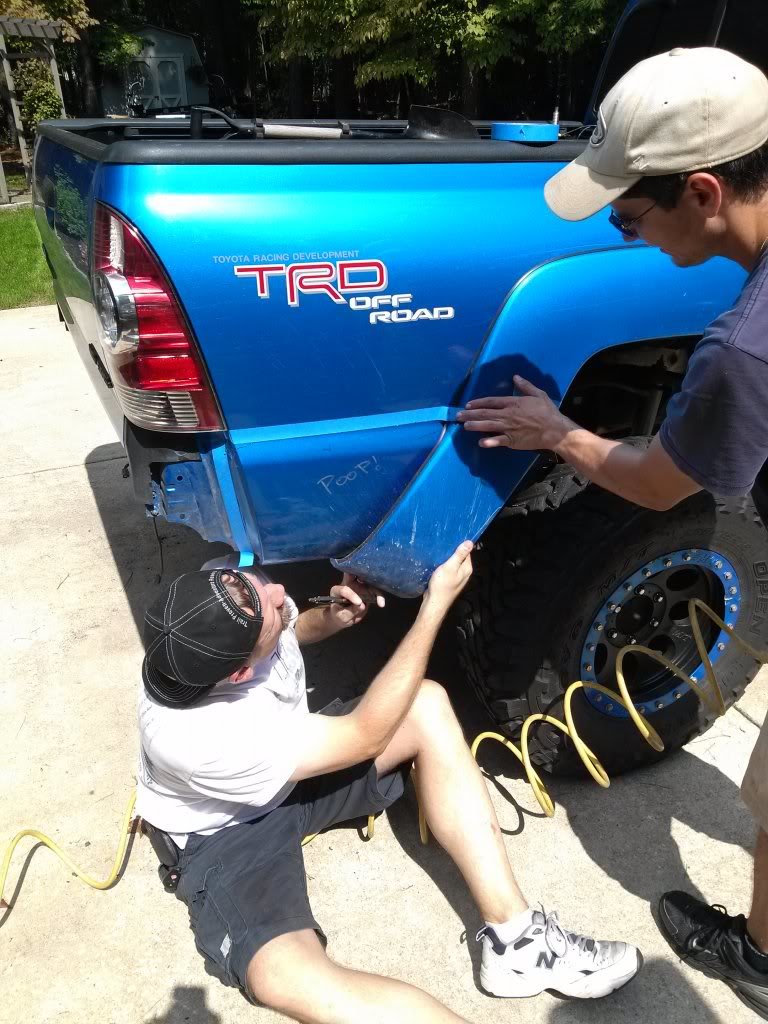

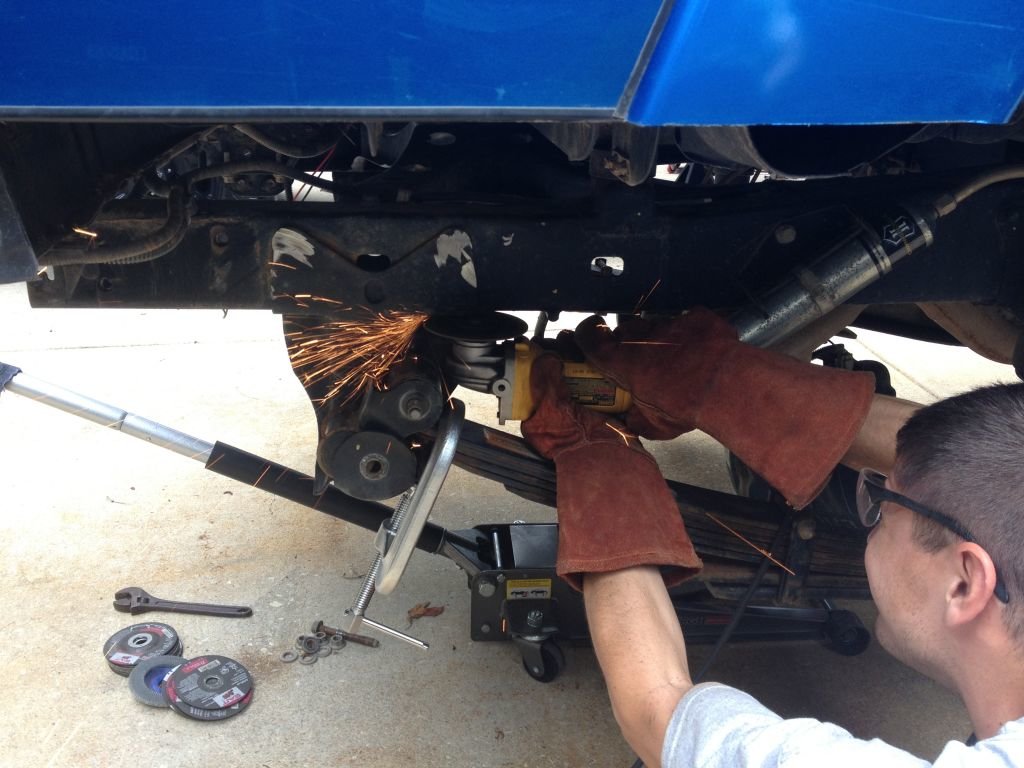

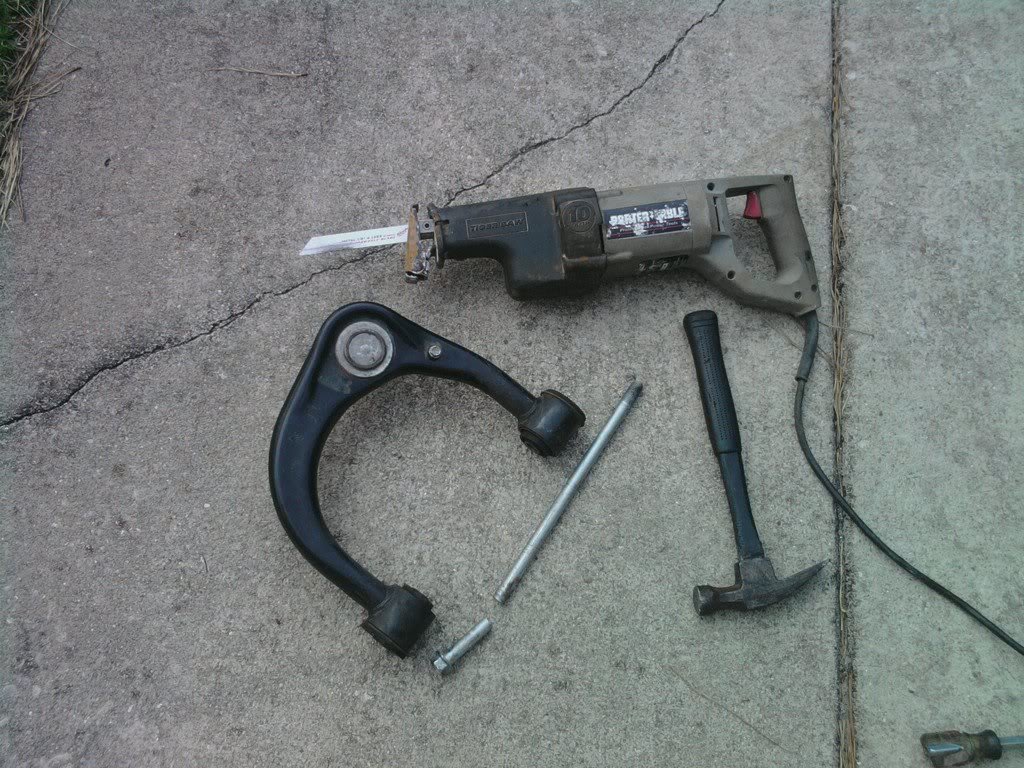

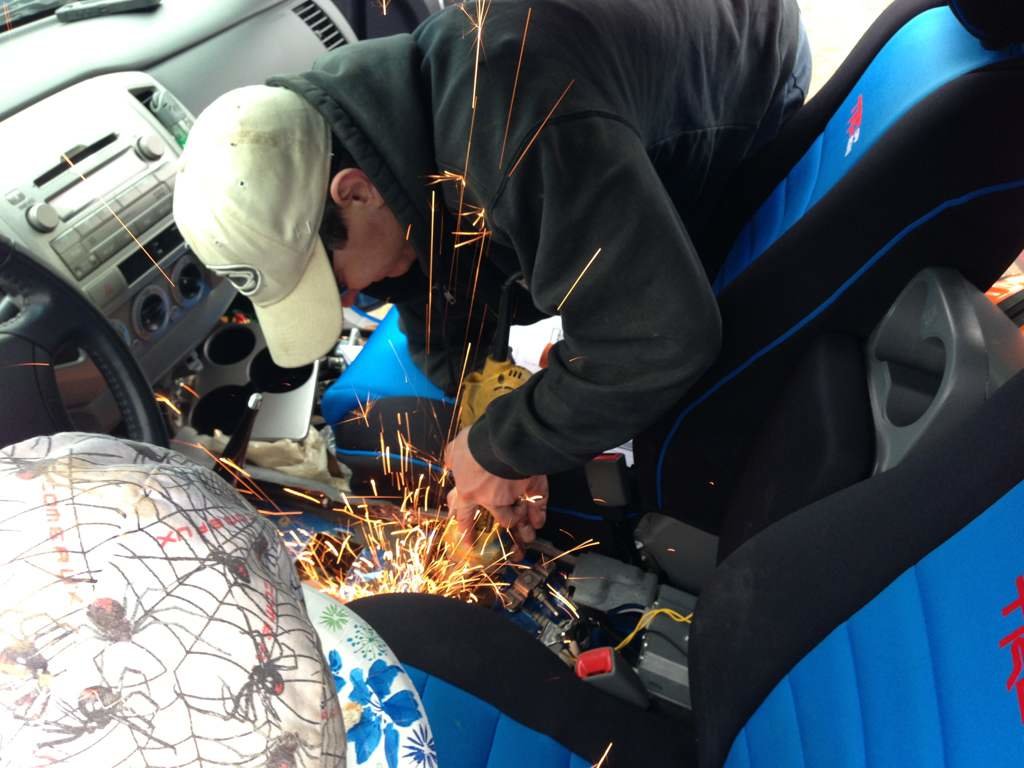

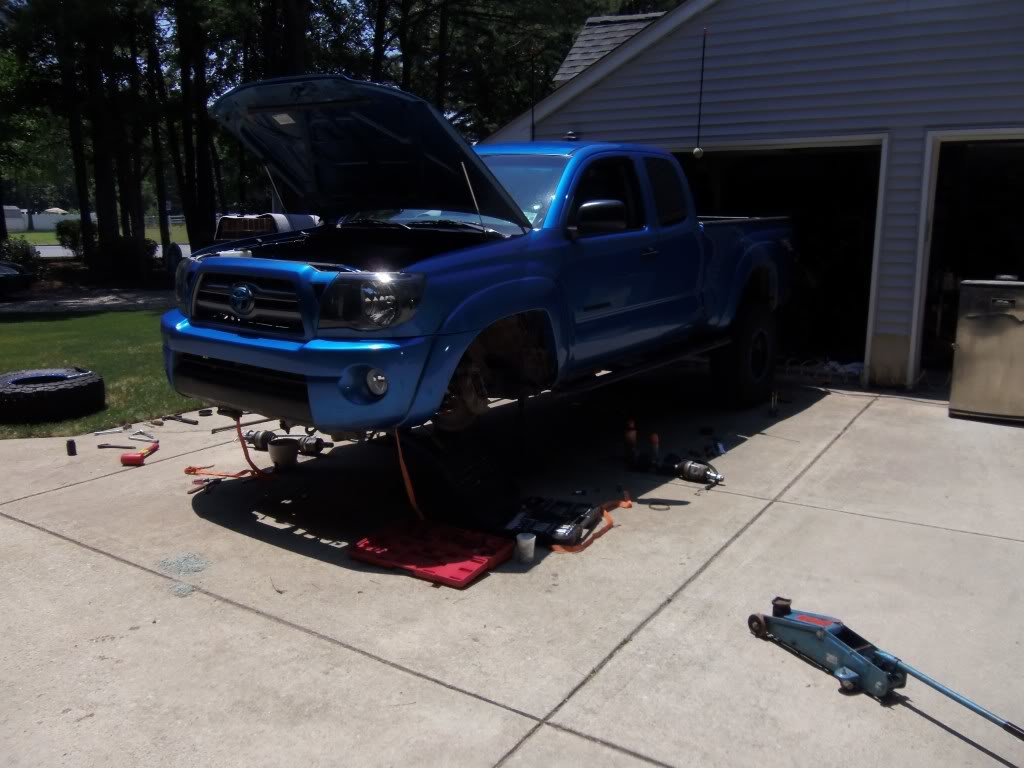

    Sawzall taken to the truck for the first but certainly not last time

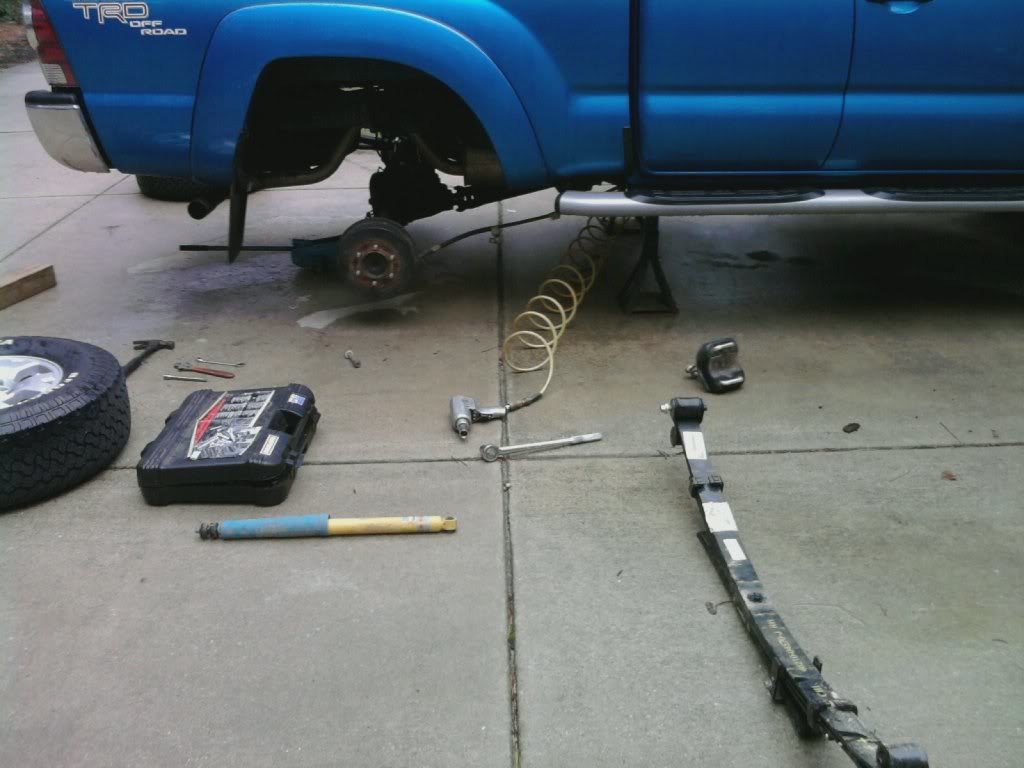

    along with Dakars for the rear

    Here she is lifted at 3"

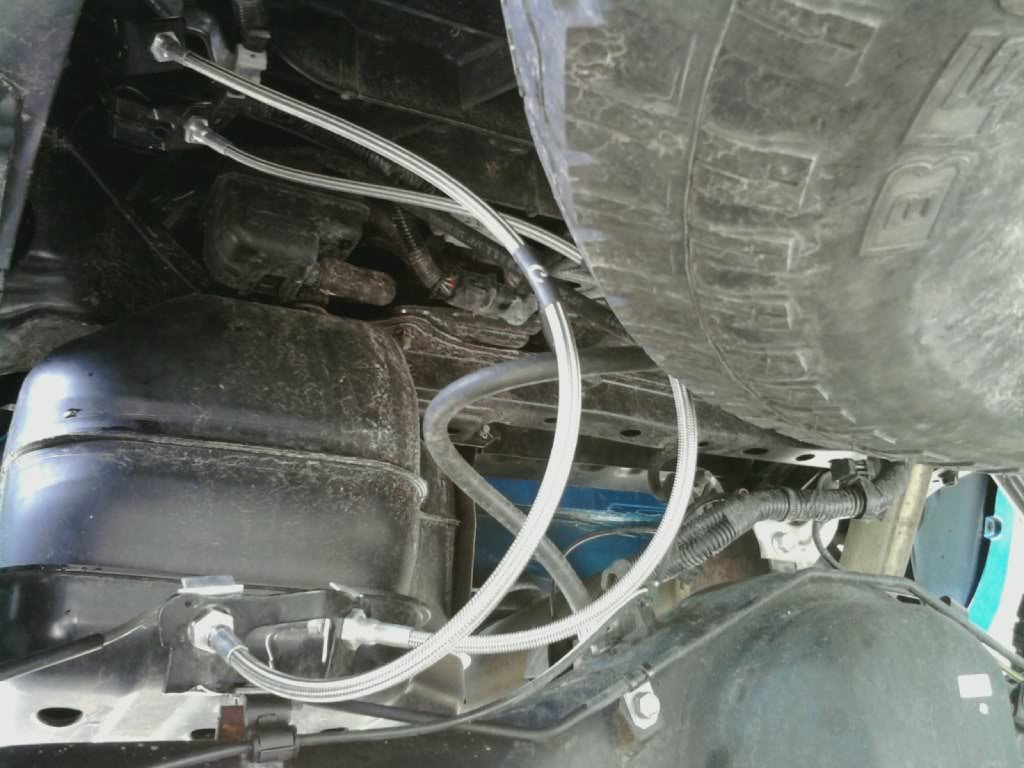

    Added SS brake lines

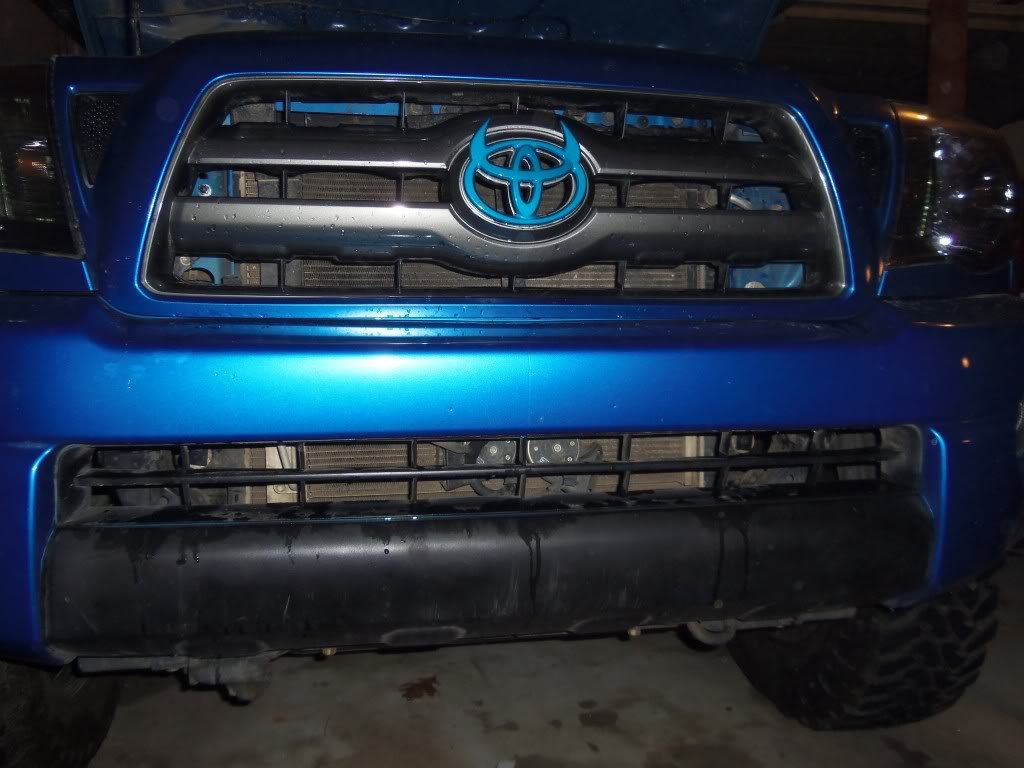

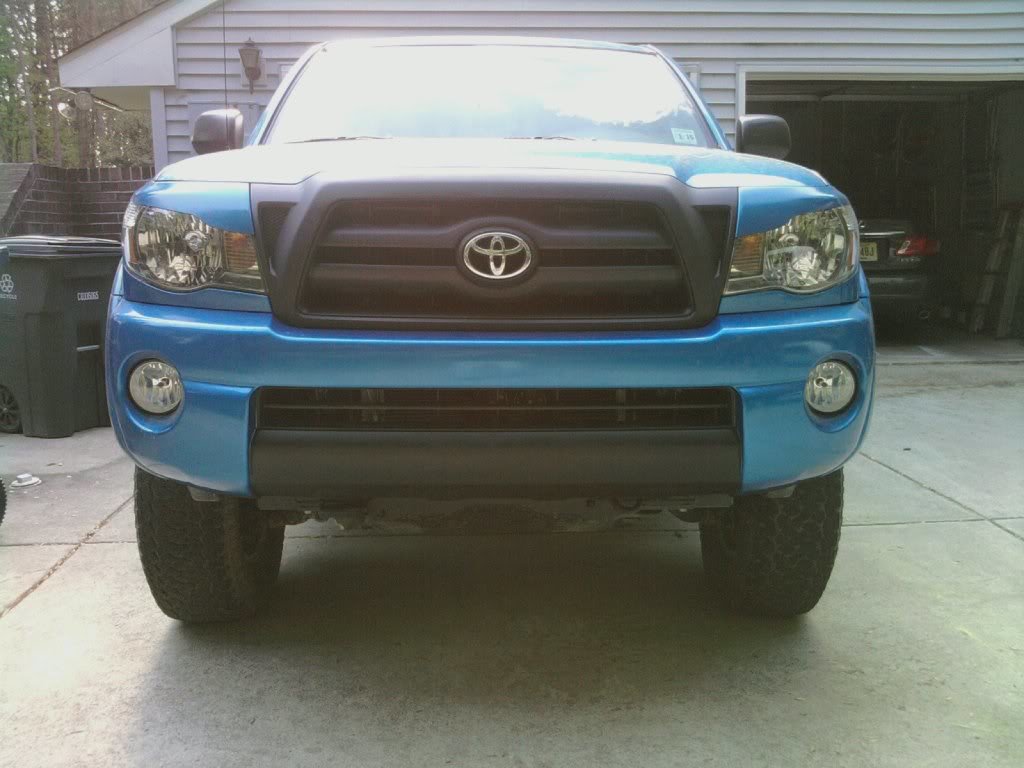

    Plasti dip the chrome front grille along with some SWB angry eyes, front end v1

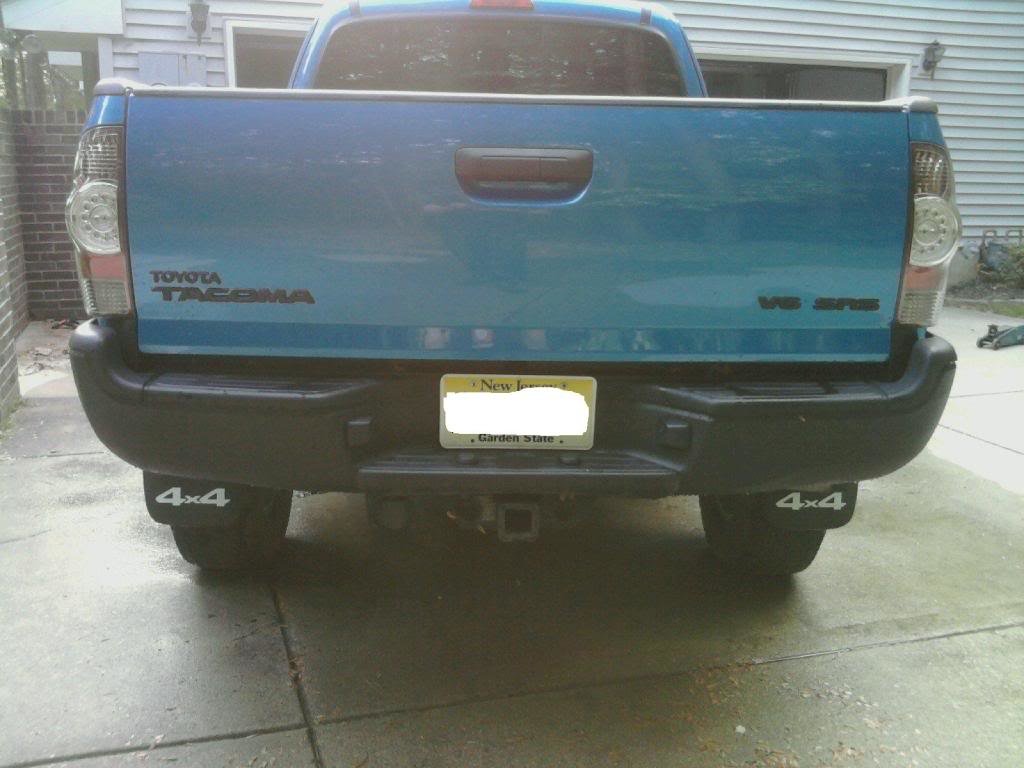

    Also plasti dipped the rear bumper and all the badges

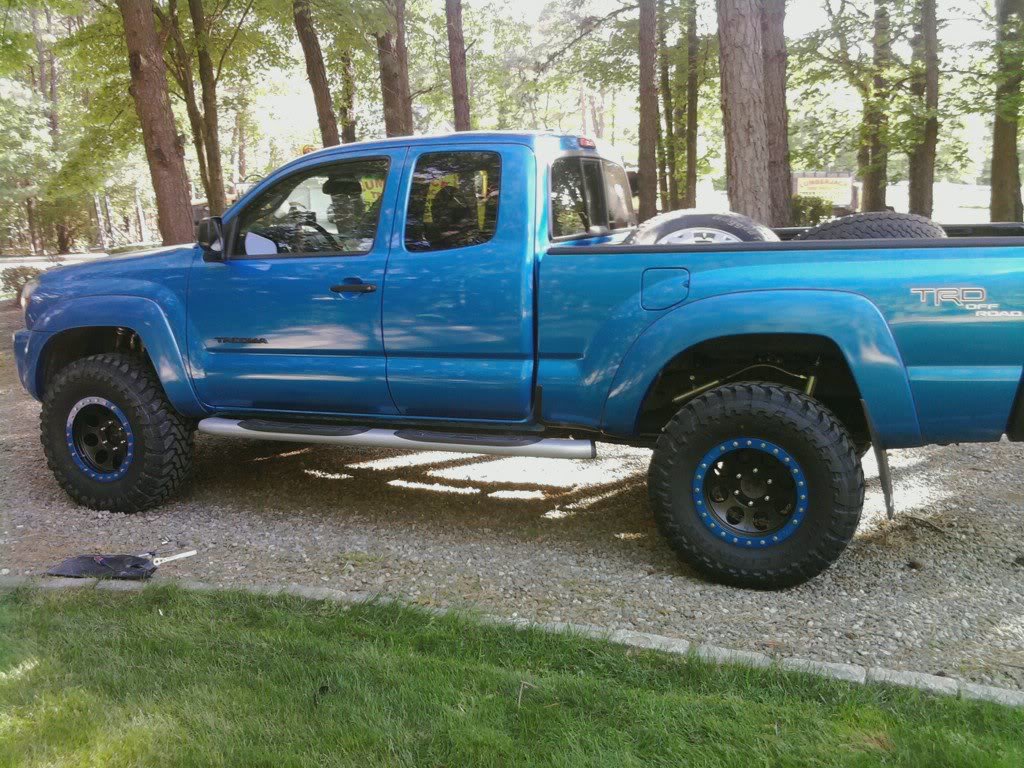

    Then I got some new wheels and tires

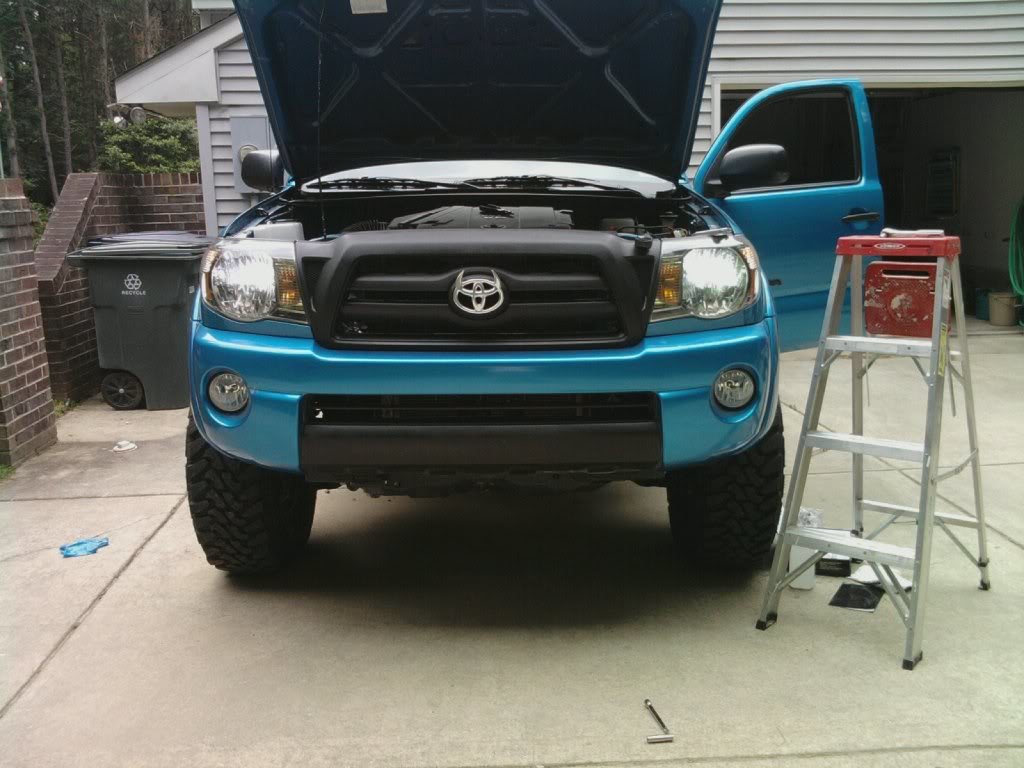

    I installed some 6k HID cheapos and removed them after realizing they blind the hell out of people, also installed some andres devil horns, front end v2

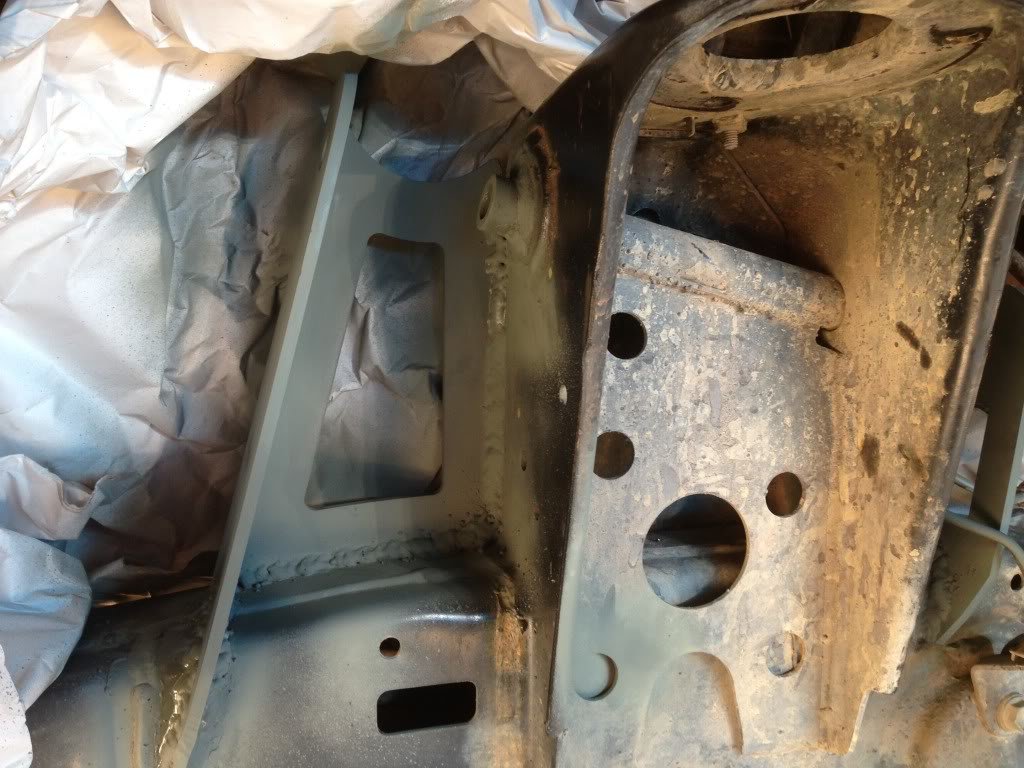

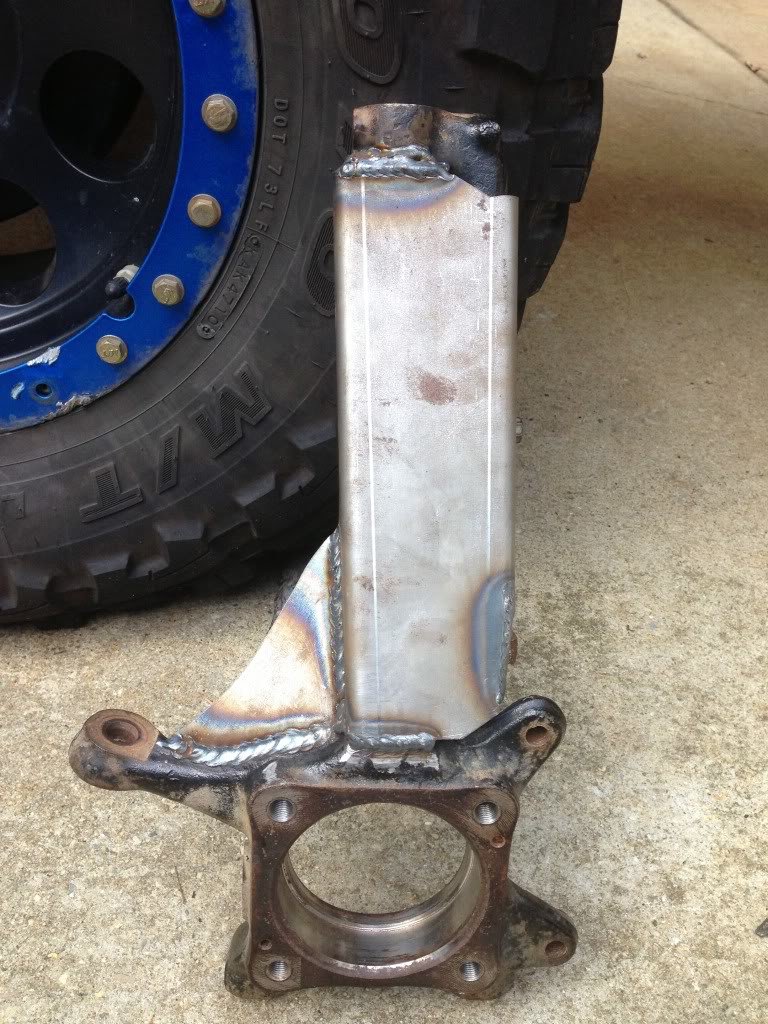

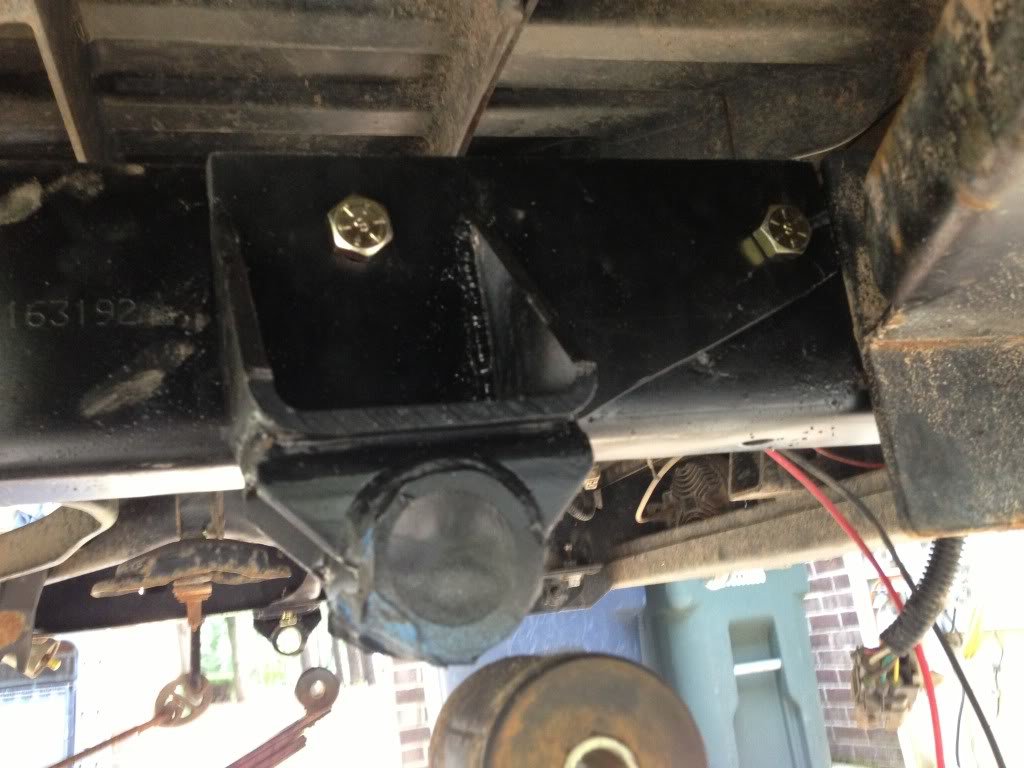

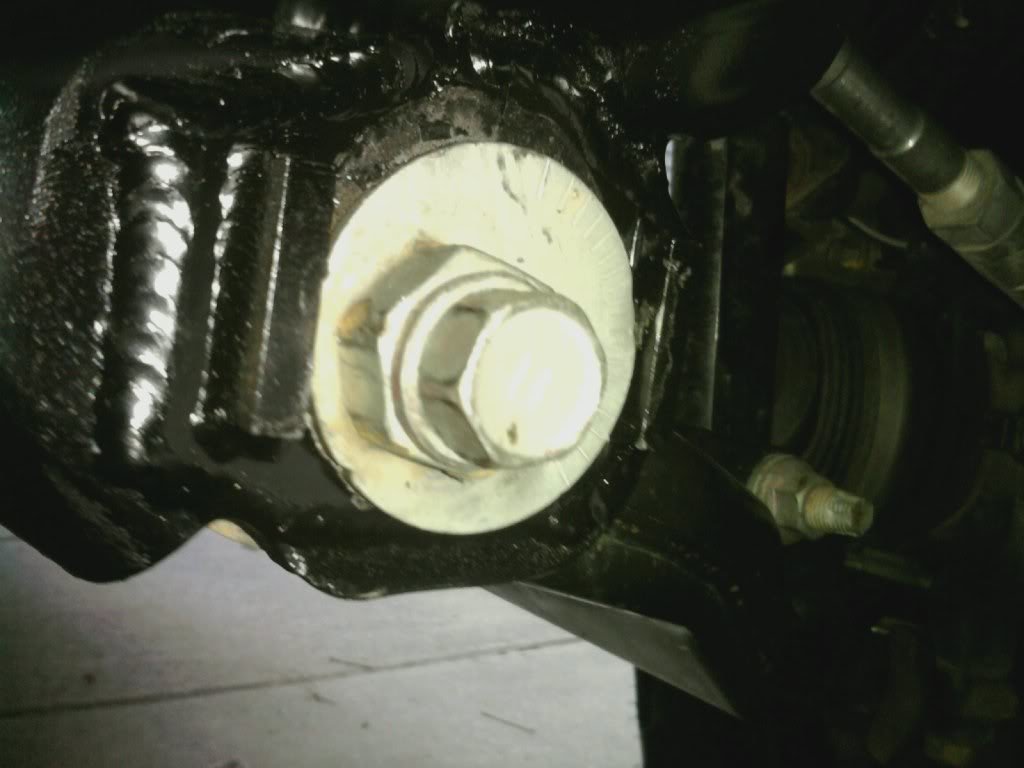

    The firestone DBs bent my alignment tabs so I got the TC gussets put on to fix that up

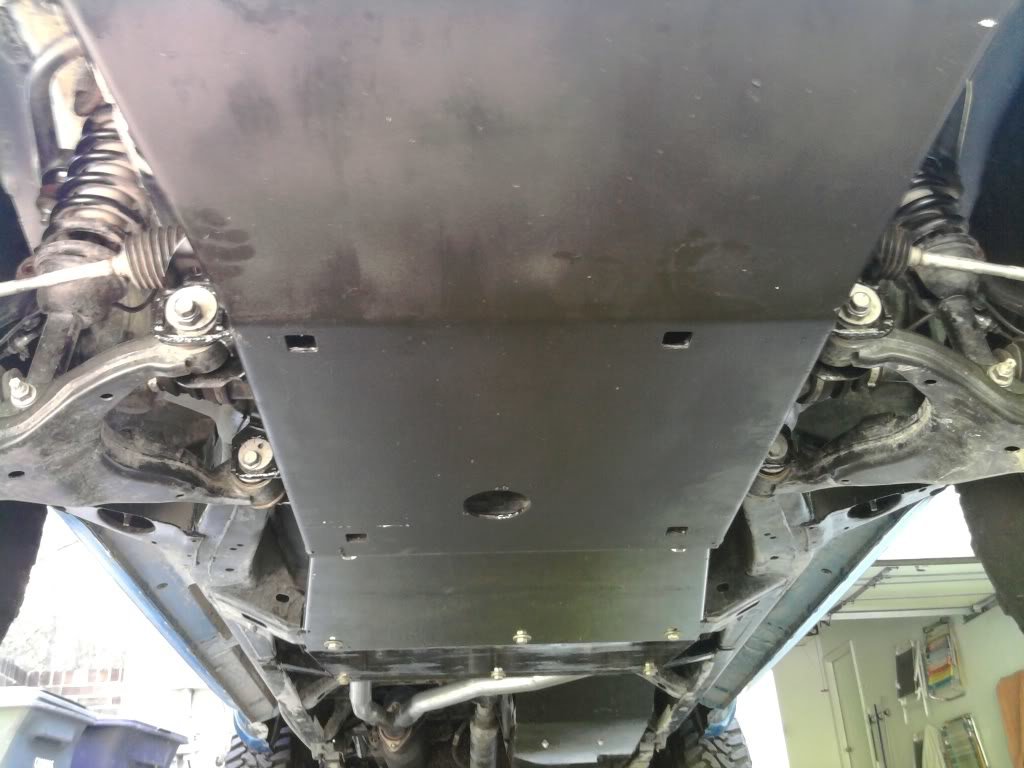

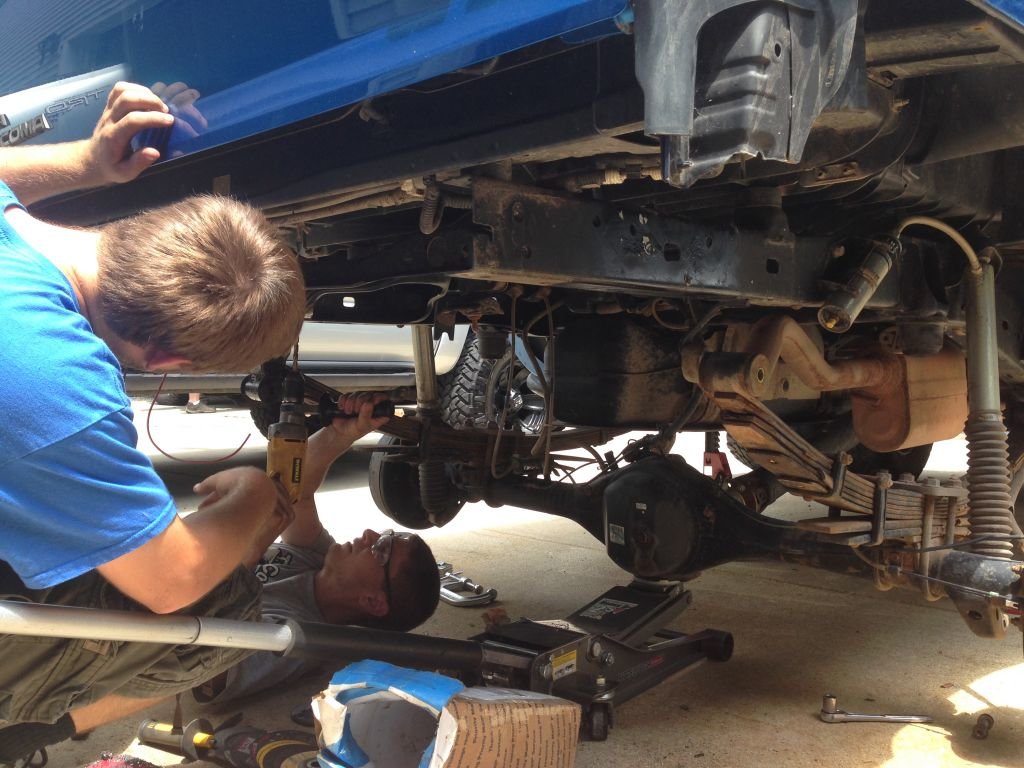

    Around that time I got the ATO full set of skids installed (thanks to JLink bringing them up from VA for me!)

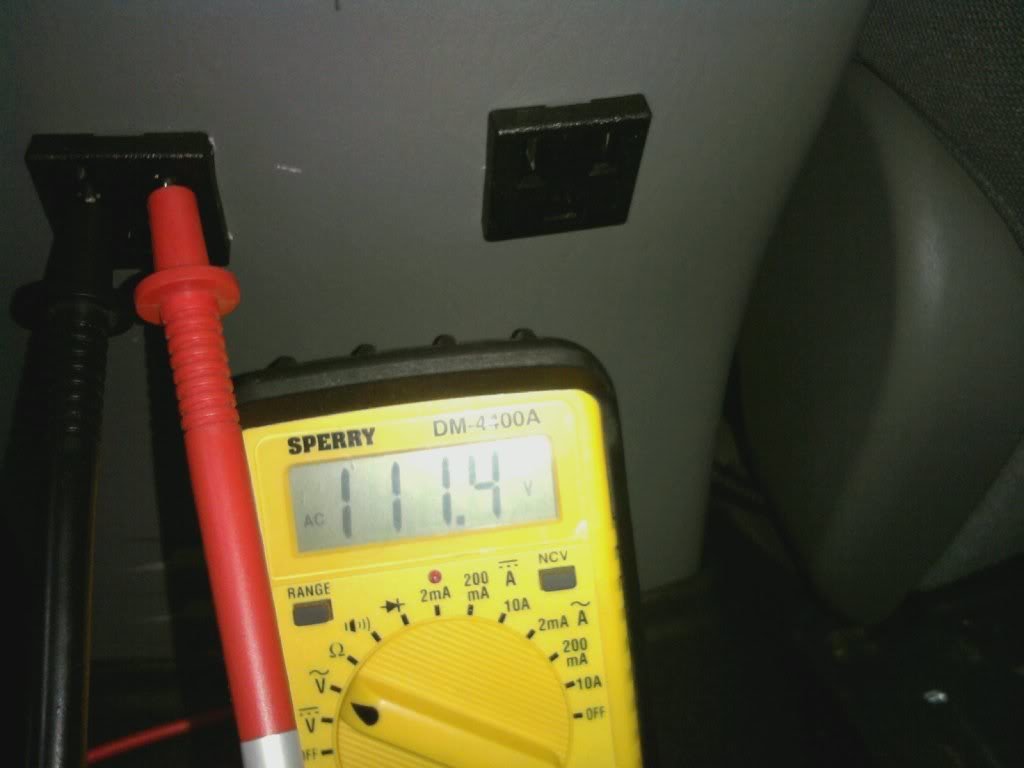

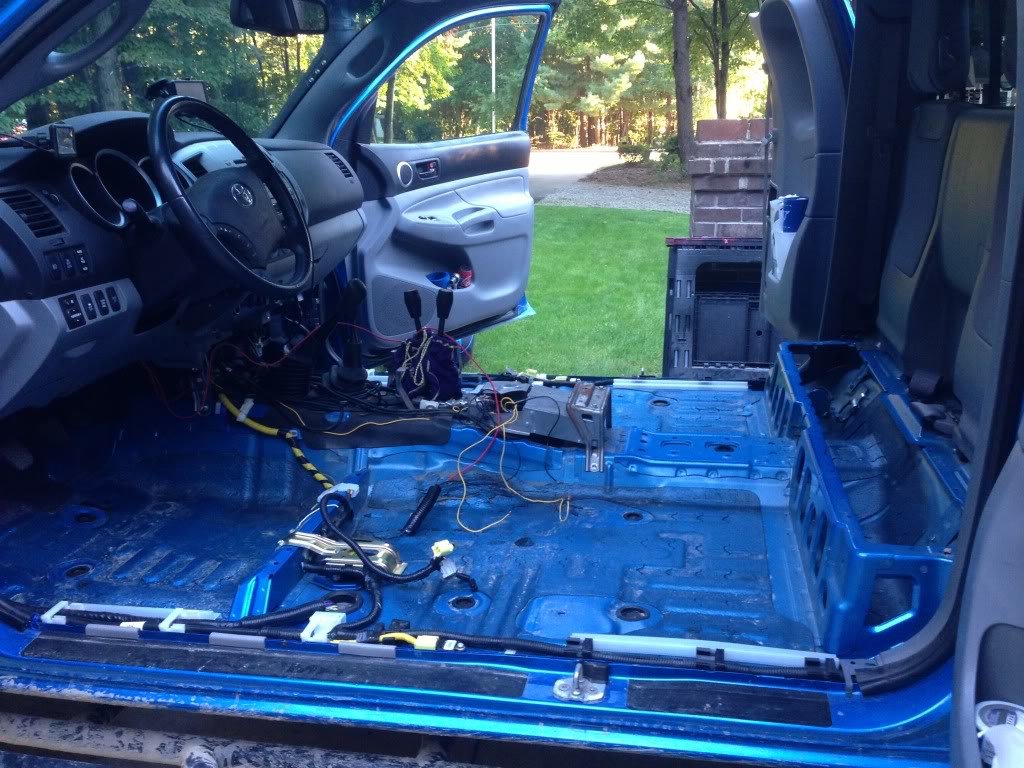

    Added some inverter outlets to the back of the center console
    219162_10101087283936164_9311444_8160262_1c4357b1f6658dd8485b2dd2605b7ecd8c2a0997.jpg

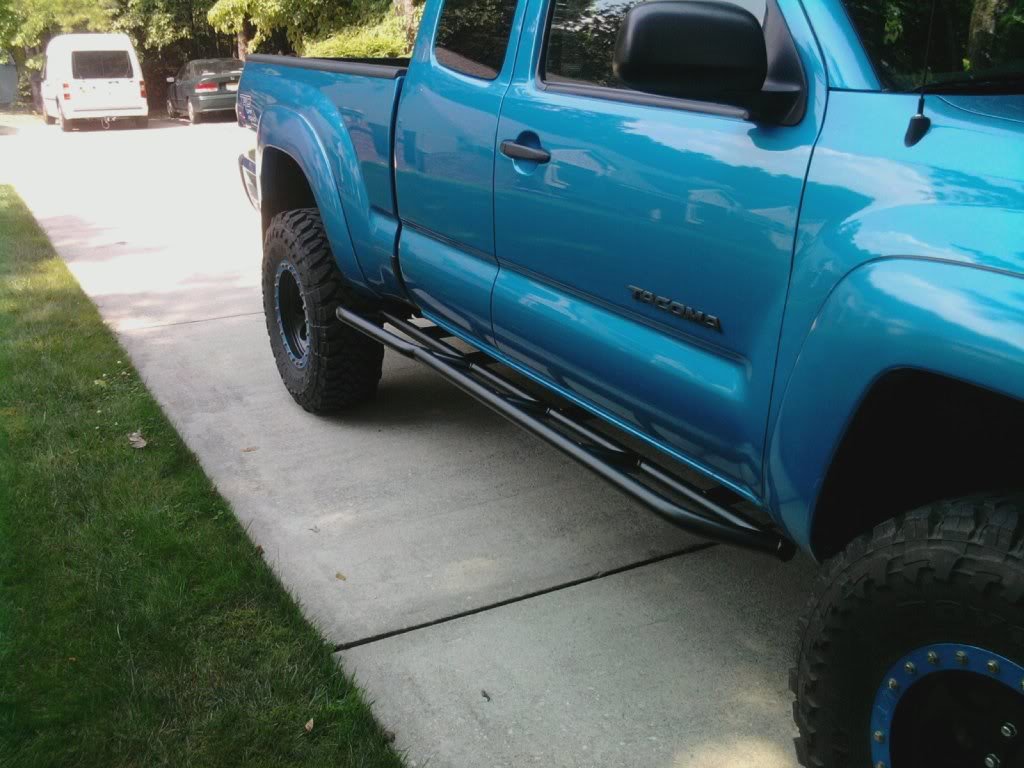

    Installed some CBI bolt on sliders as well, these things are great can't speak enough of the work those guys do!

    Mawl Crawling on HomerTaco's turf :laugh:

    Front end v3, some SWB devil horns and a color matched grill along with the BHLM

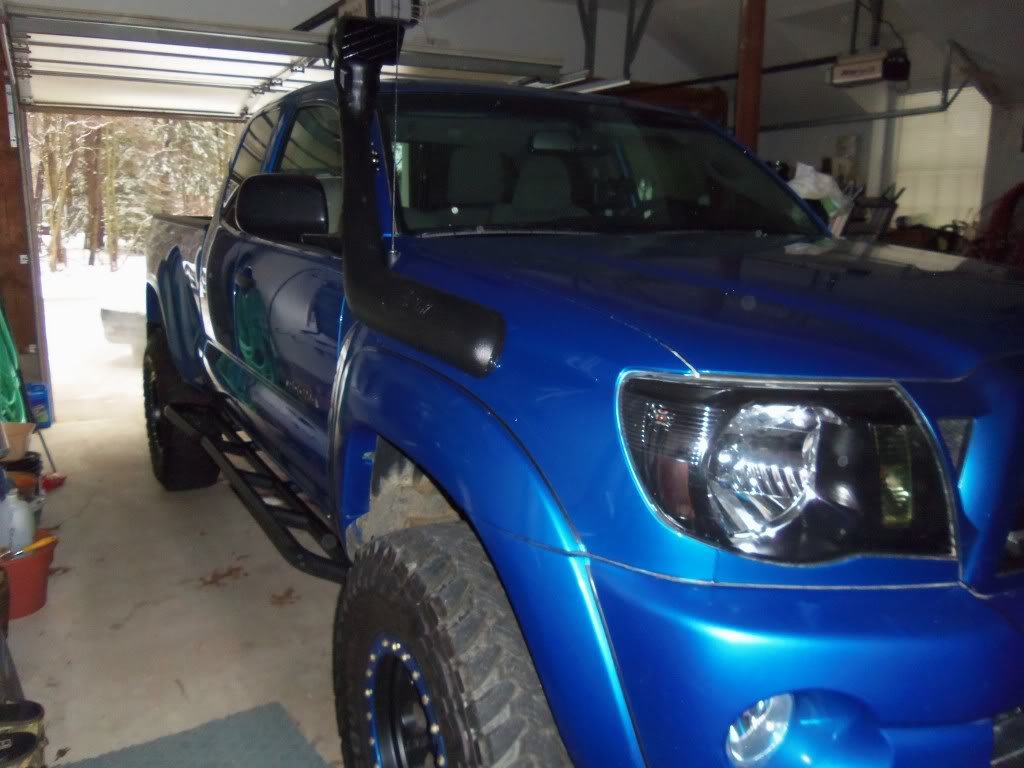

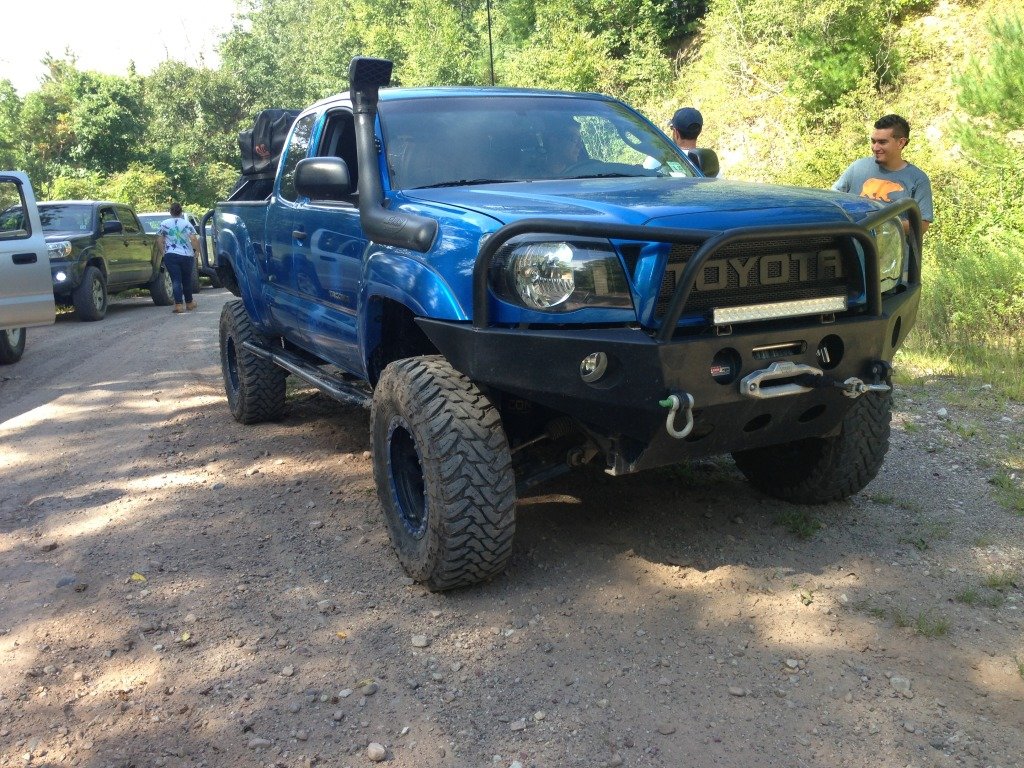

    Safari snorkel also added

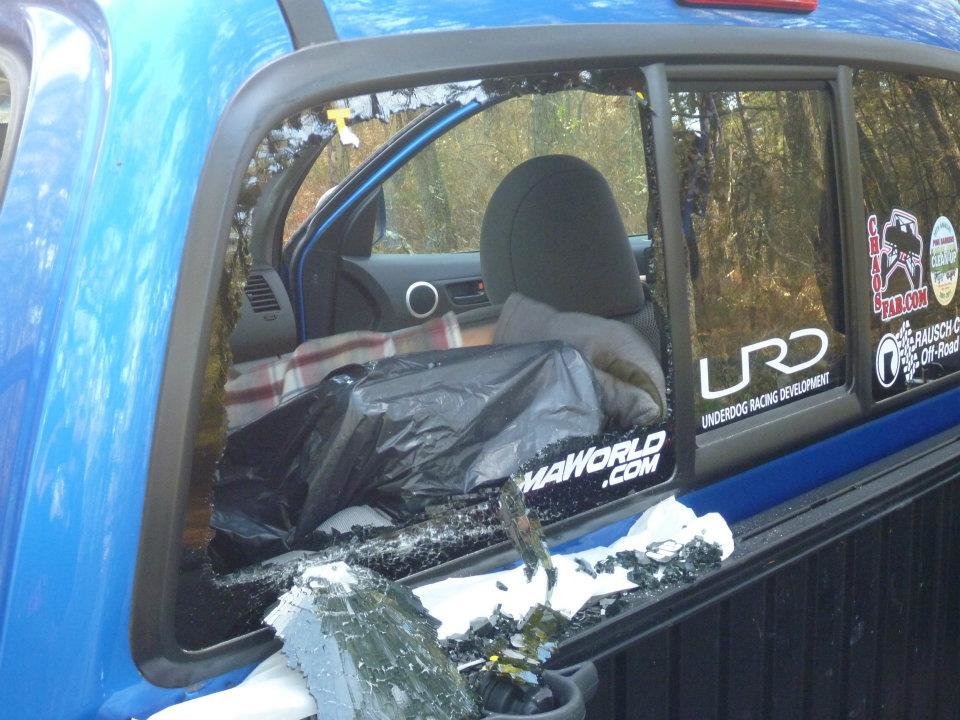

    Busted out my rear window wheeling with sKip one weekend :(

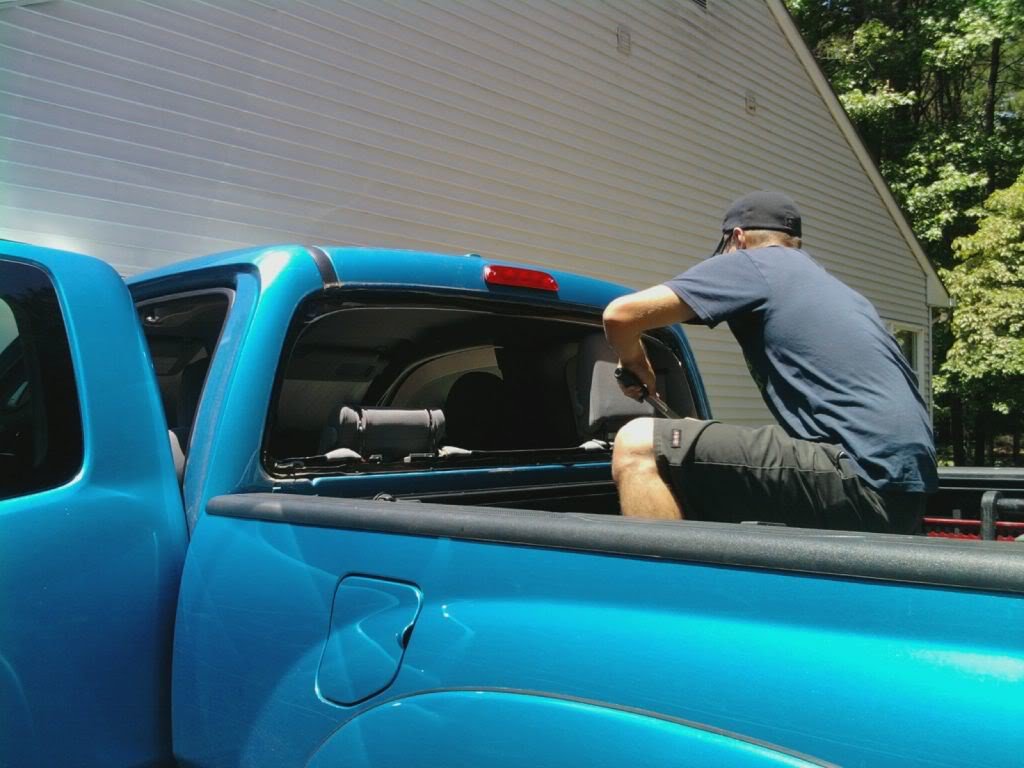

    Those new windows are expensive and not too fun to install

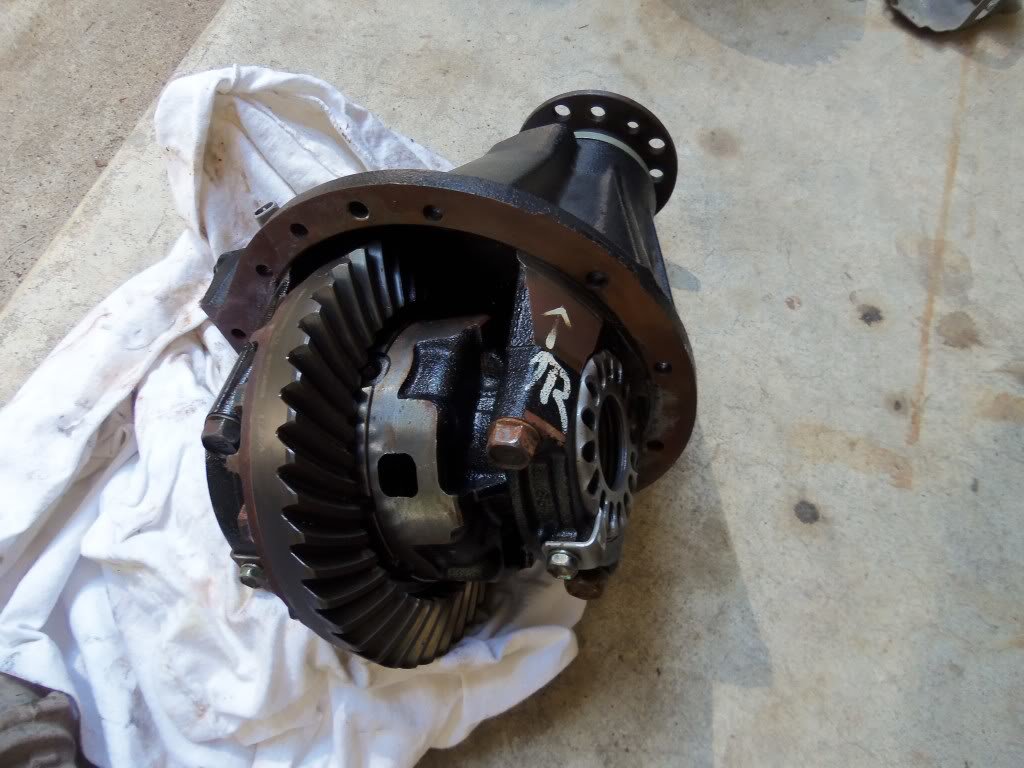

    Then it was time for a regear, 4.56s F/R from ECGS

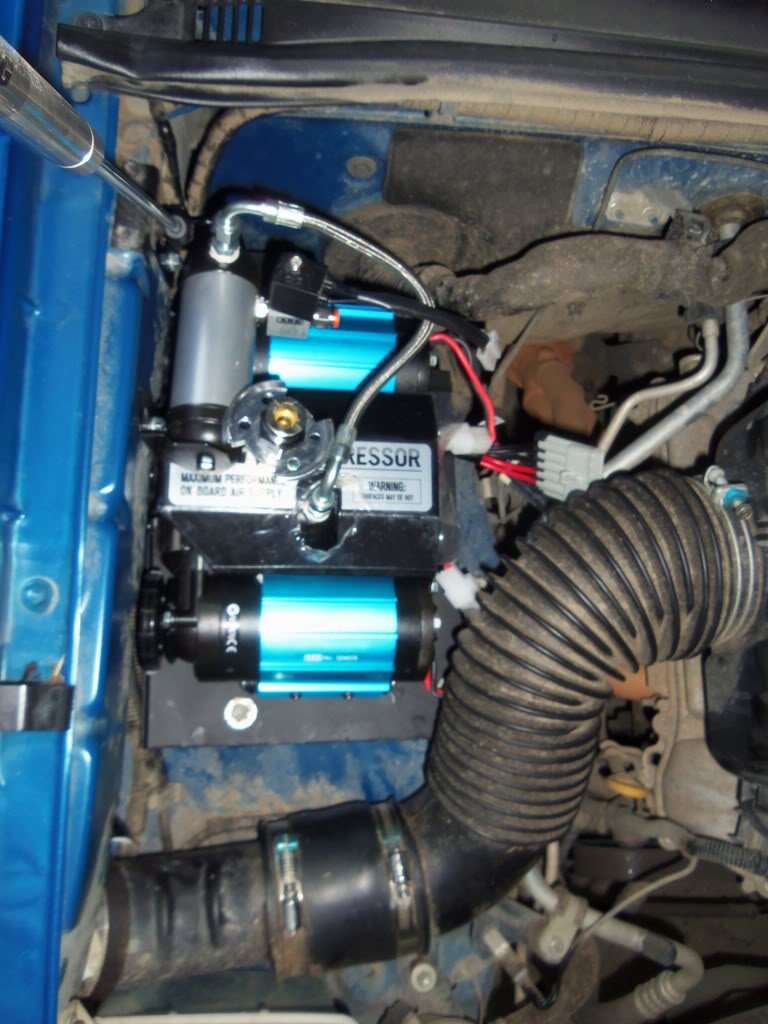

    Added an ARB dual compresssor in the engine bay

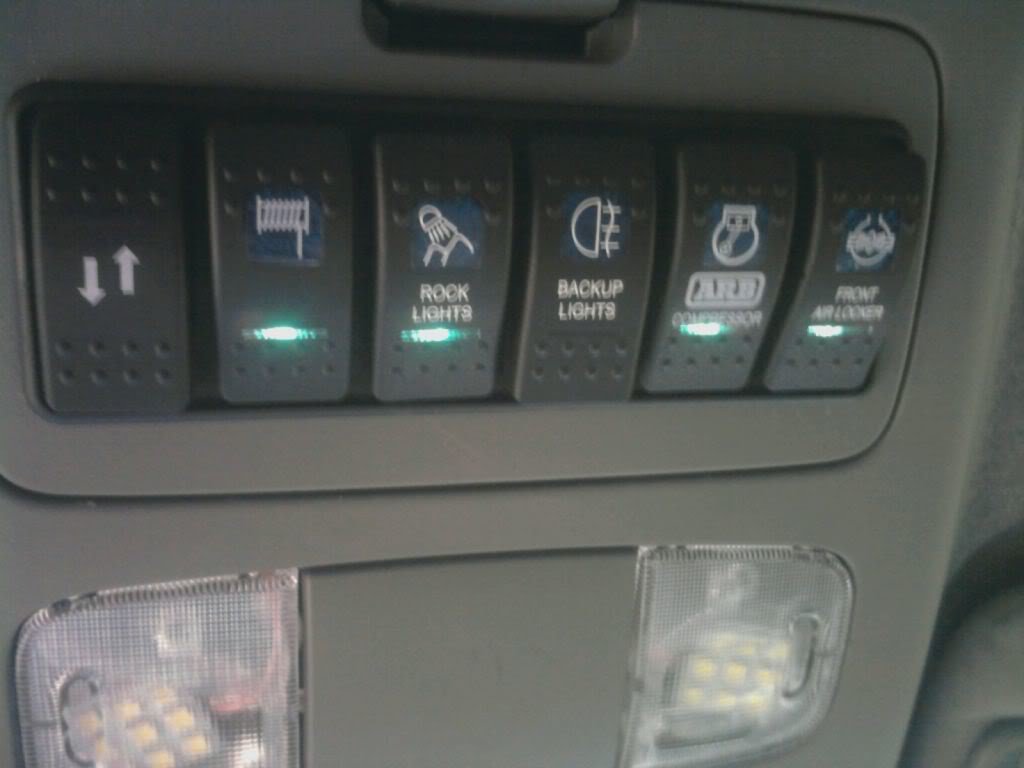

    Wired up a 6 switch bank from OTRATTW to the sunglasses holder, lots of wires jammed up there!

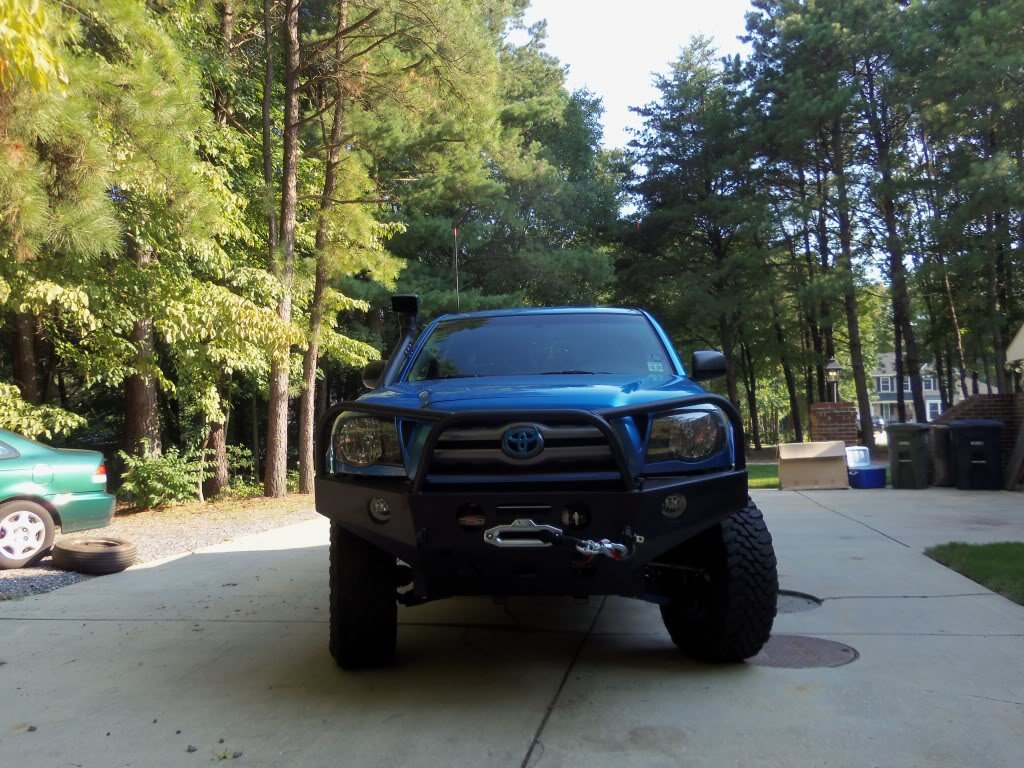

    After a long wait, Relentless front bumper and warn winch installed

    Relocated the solenoid to under the hood

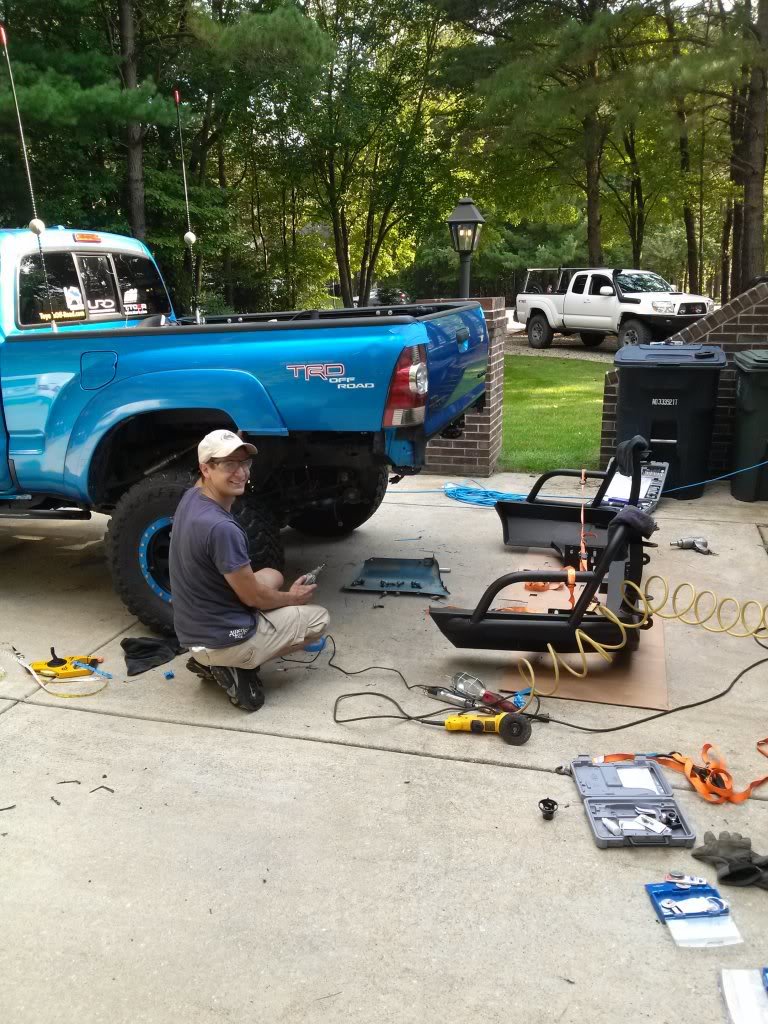

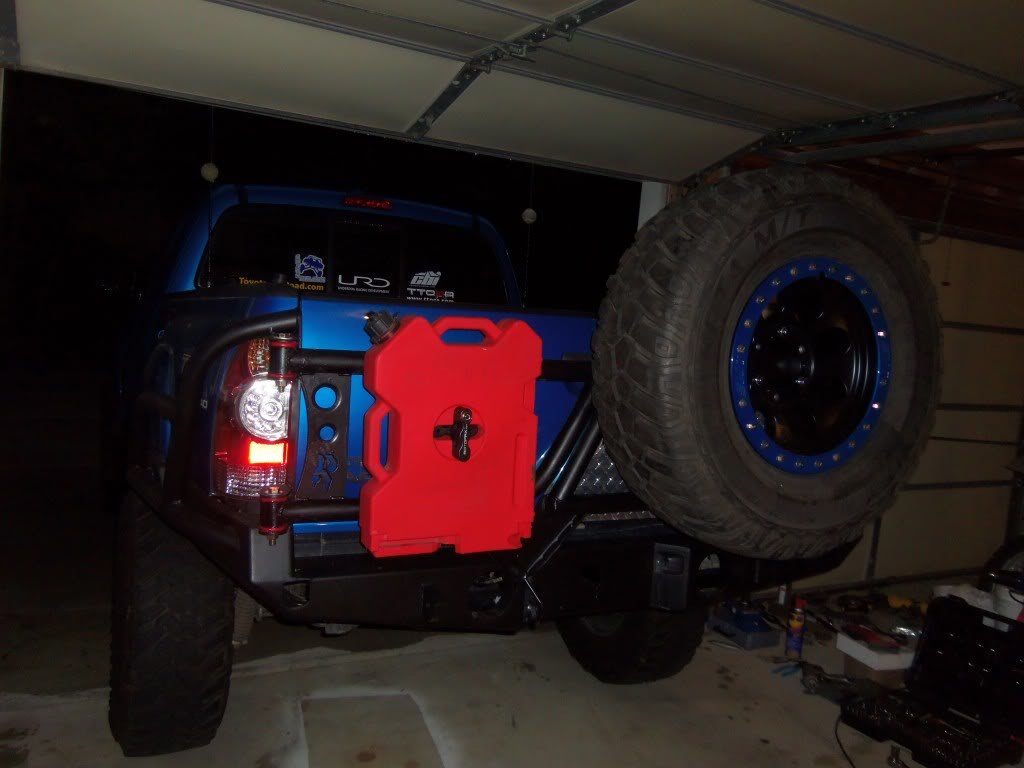

    Relentless HC bumper installed, thanks to HomerTaco and XXXX

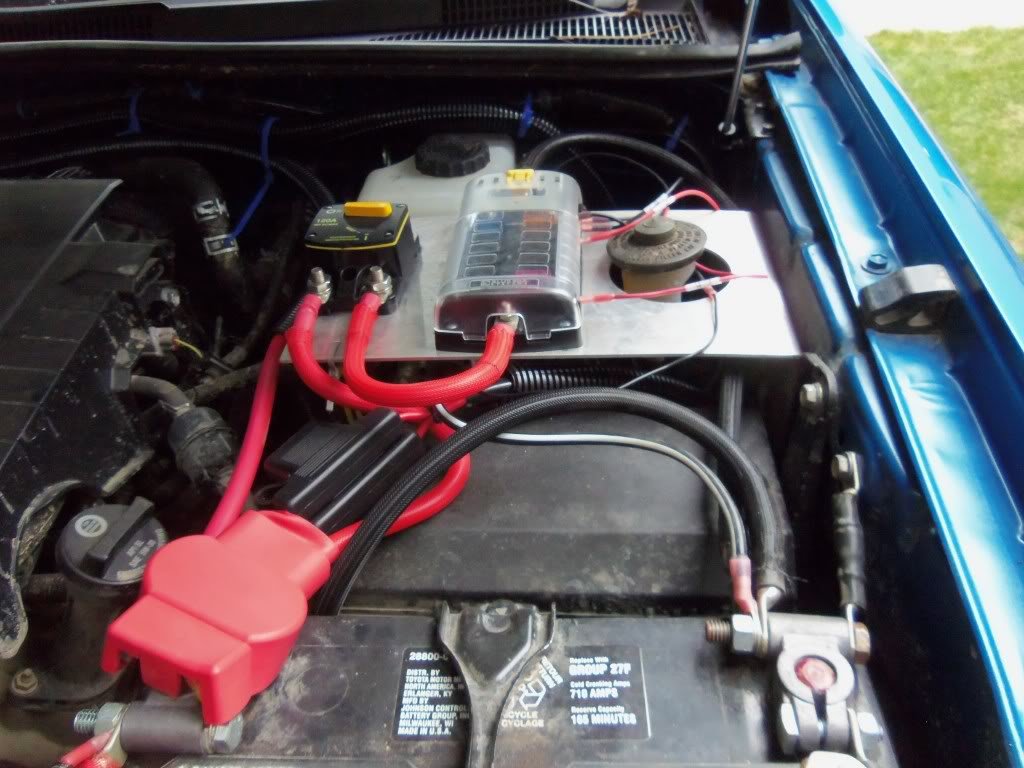

    Electrical upgrades added with a fuse box and breaker from blue sea

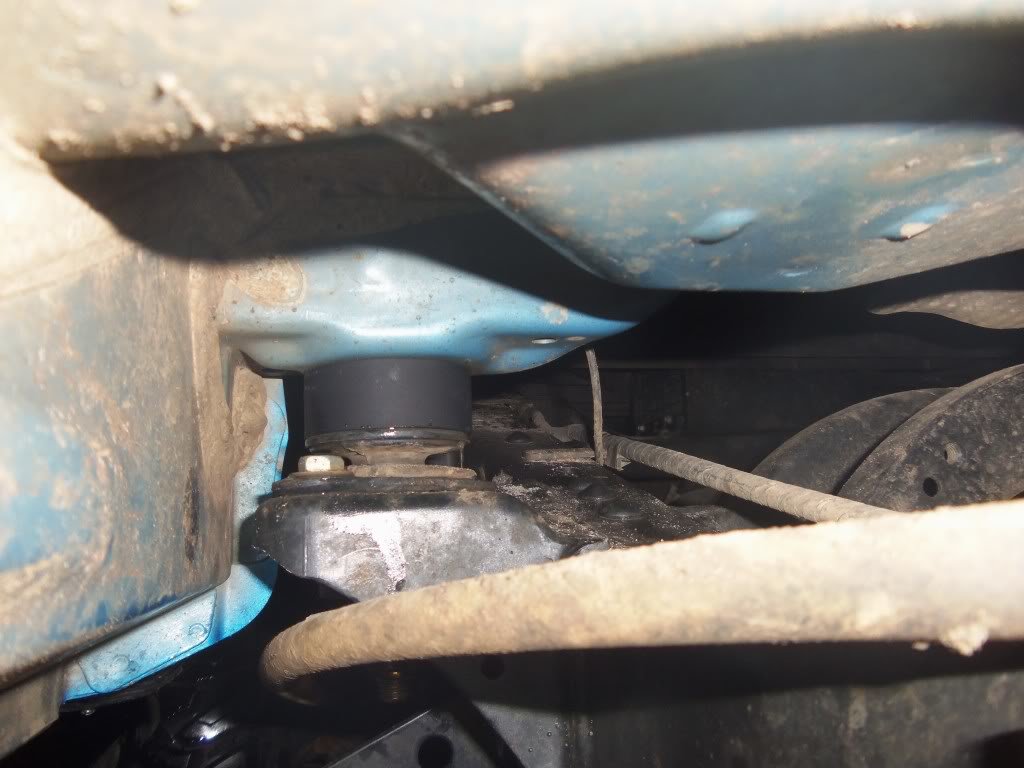

    Added a 1" bodylift in there

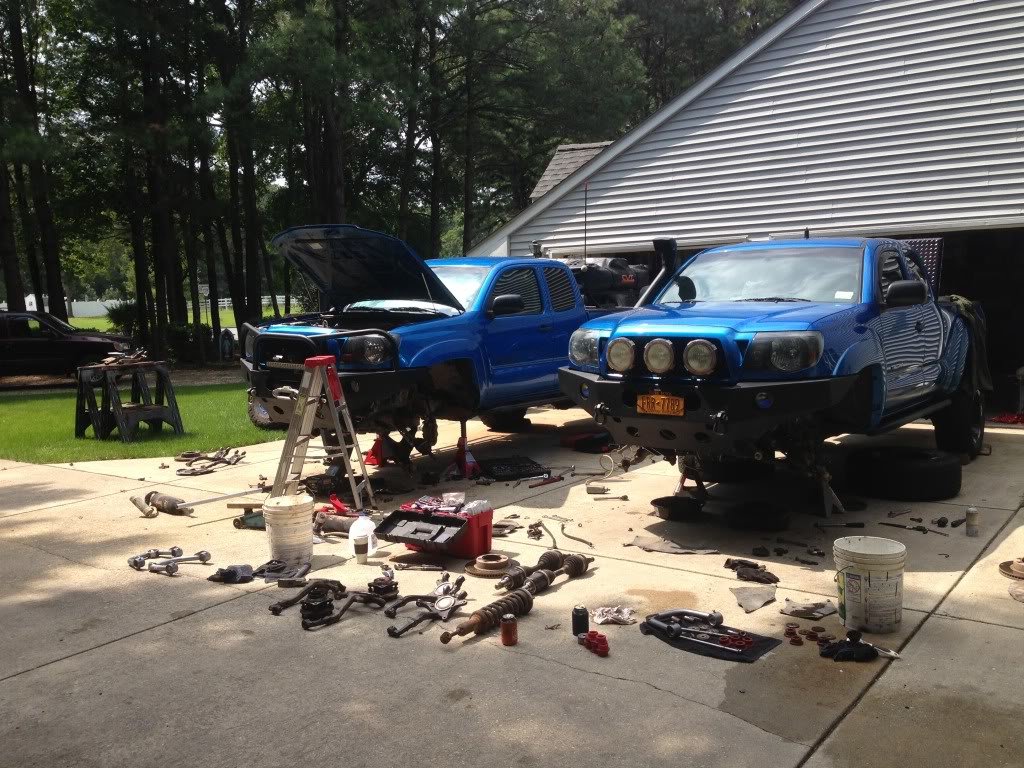

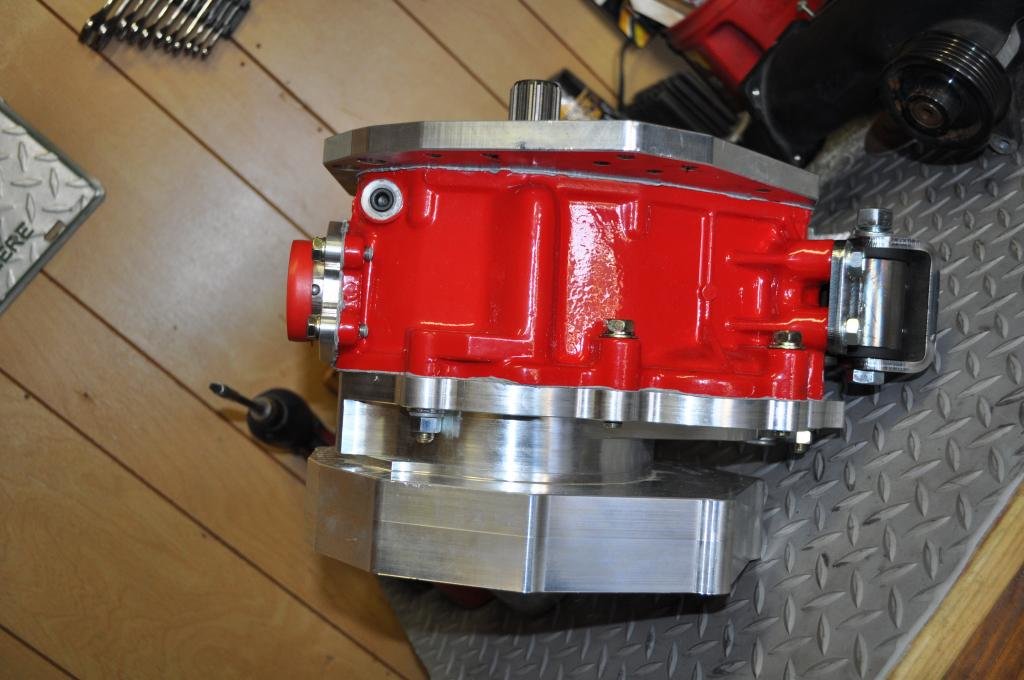

    Then drove down to NC to visit EL TACOROJO and wrmathis to install my crawlbox. Big shout out to Burry and Mrs. Burry for the hospitality and assistance in installing this junk! And thanks to Mathis for being a jerk :p
    C5D77012-BC81-4FE3-9575-E1DBF3D2827A-863_03721f9c87115cefb8338d98dcfc867eadd4b3aa.jpg



    [E007F779-5019-457C-870A-E454586FC4C6-645_57f83403a5153982c8b1c690eadbb4358300dc9e.jpg

    45ED76E7-7183-48E7-AAE2-448EBC624FB4-863_4a2c261403107c6f6c726f2608e4d33e0543e3b4.jpg


    A1814E33-8C87-4ED8-9CA8-AA58FA2C2B43-695_41c49f484ac6b780d30b06dc789be4990abf298e.jpg

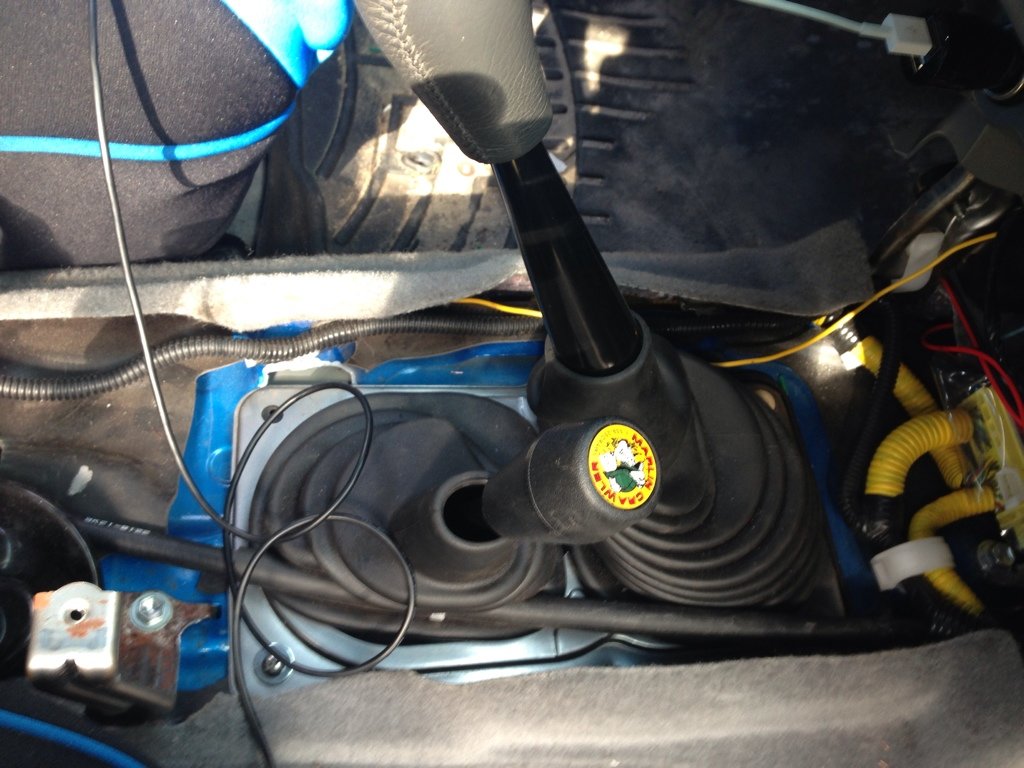

    3FCC2695-B699-434B-B334-2CBCC19351B4-487_59a0eda8850bd05c9ba9de7986e7fb49026d5bc1.jpg

    EB69C01D-61E8-4C04-A89F-15DF66C25FE5-695_b6775d1c740bd4bf51c114e722256997f51b81a1.jpg

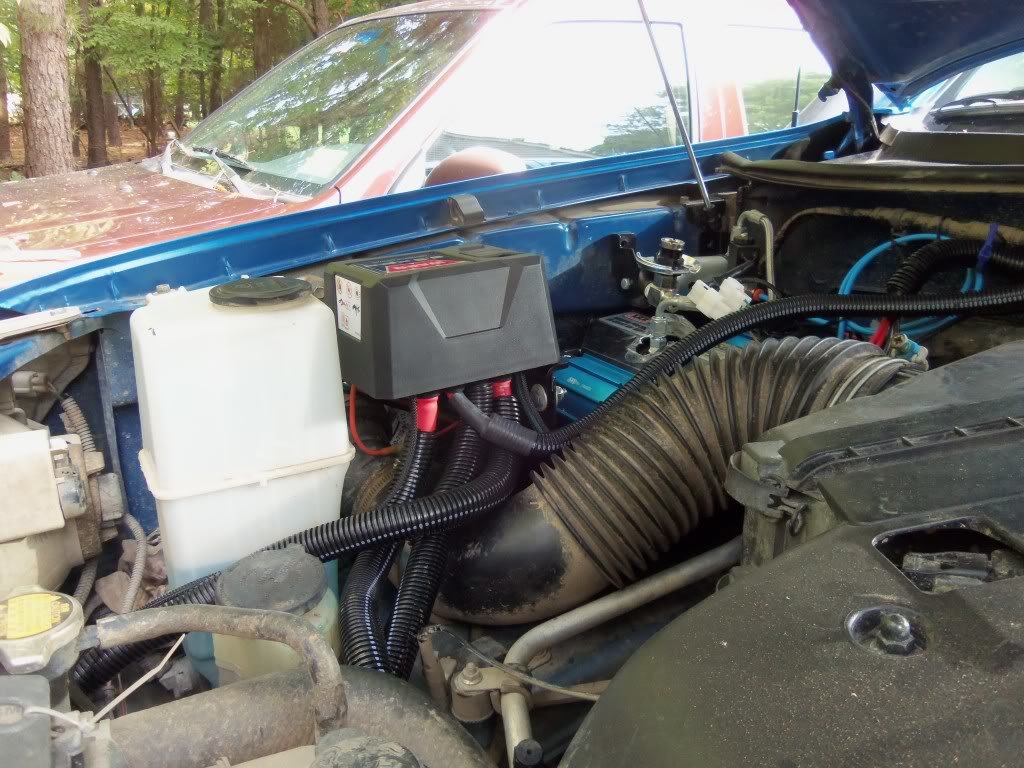

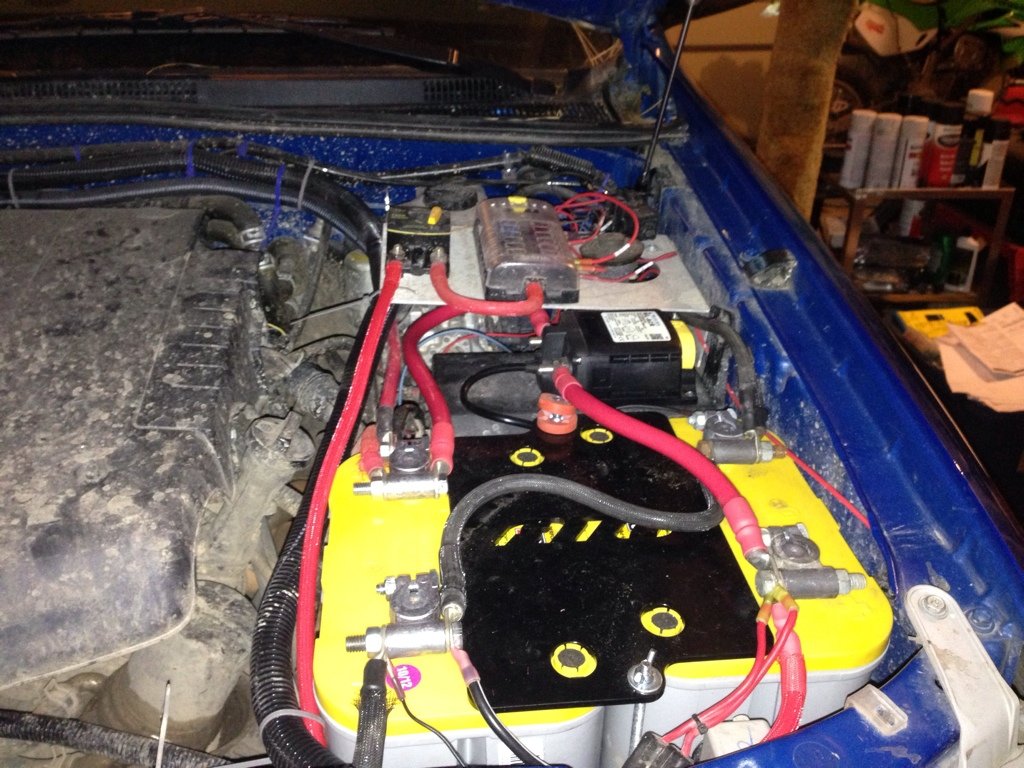

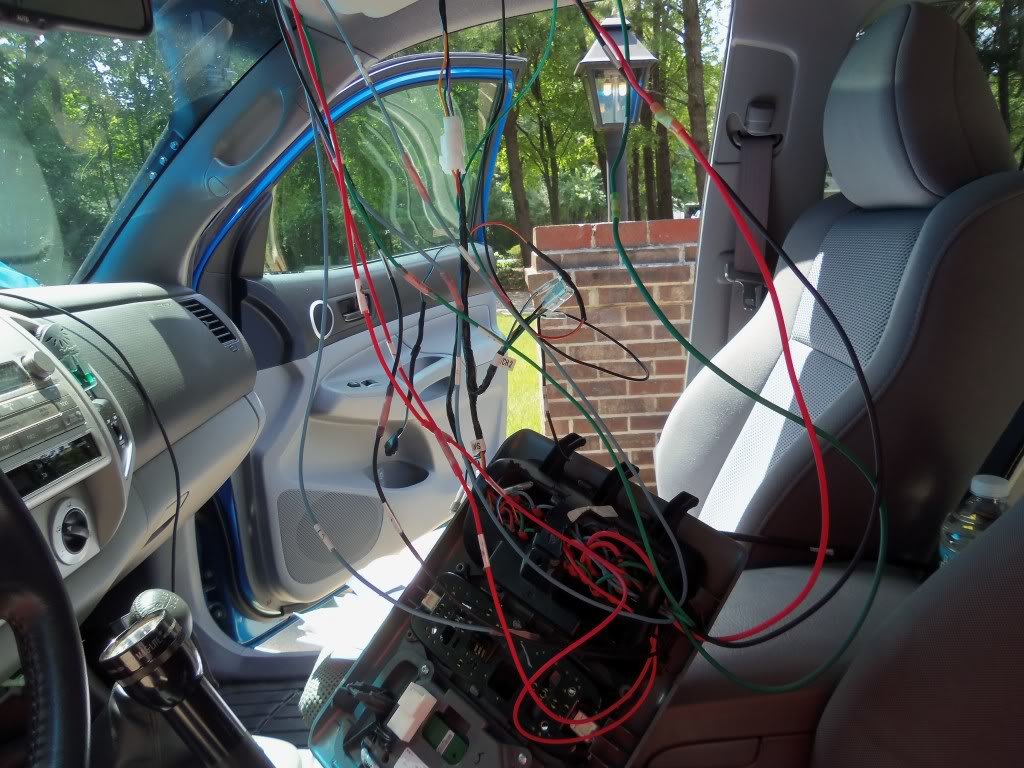

    Added dual batteries and the control switch into the lower part of the center console
    0702FE1E-F012-4C43-BA2E-AD8D8D90A332-953_2140247134575e1ebc38ed0dd4dab9cf2a06ba9c.jpg

    70C2AA73-036D-433E-B162-9C6A2488FC08-953_678084ee7ce8287466d9b678861057a72f5dda70.jpg

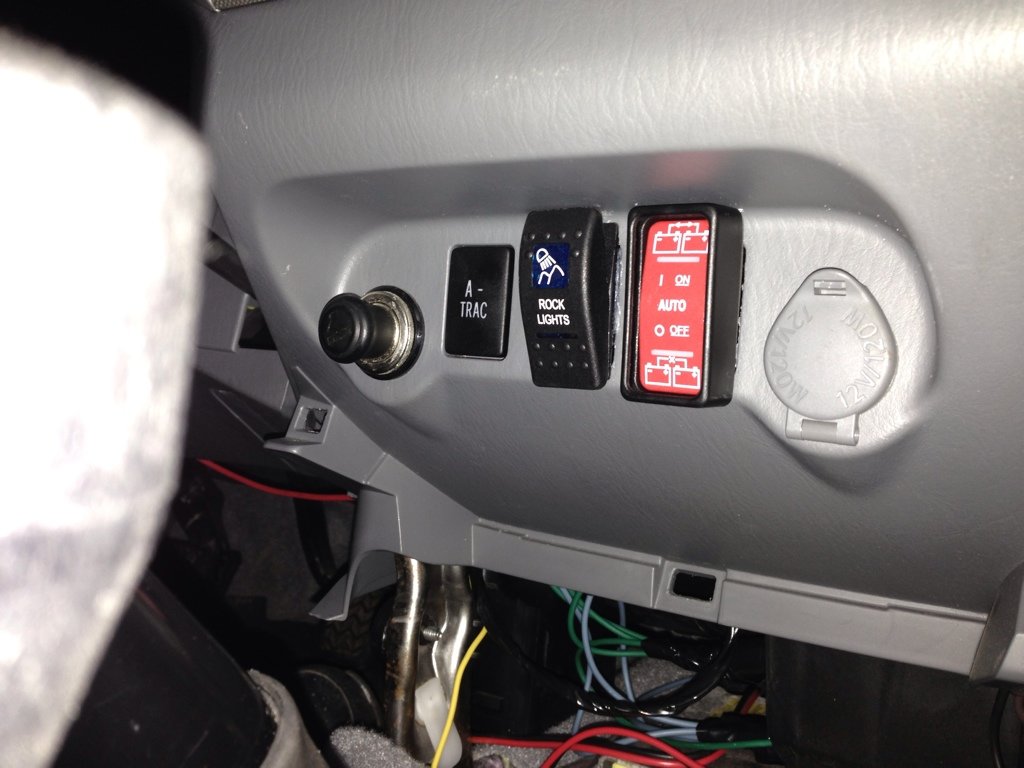

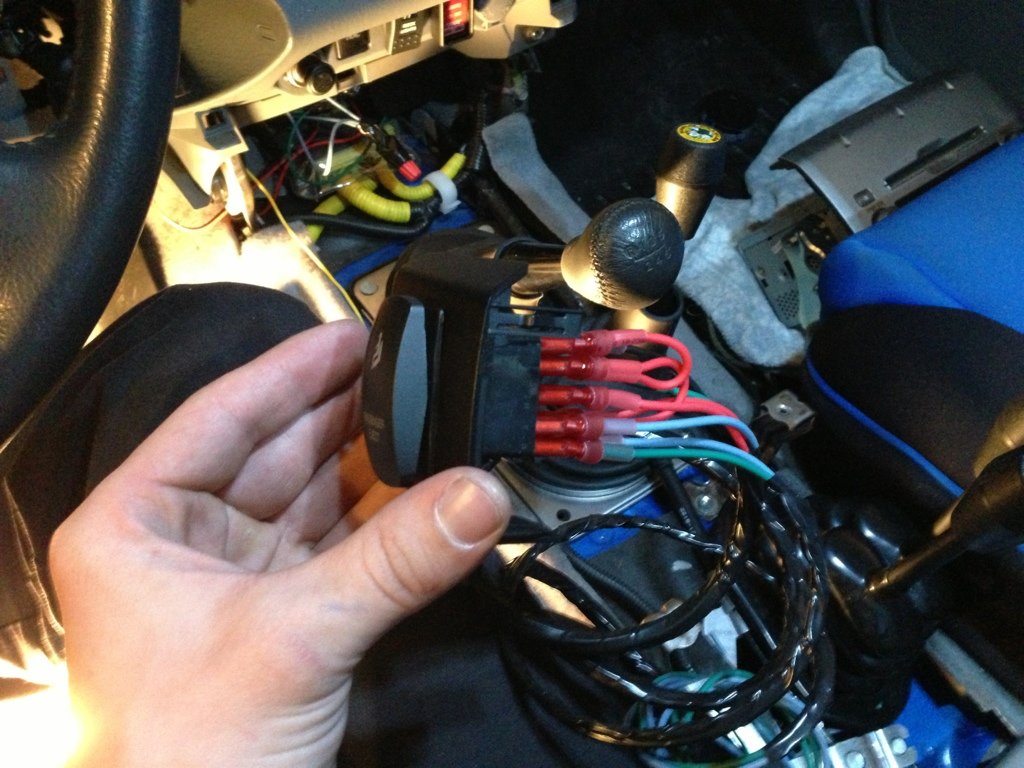

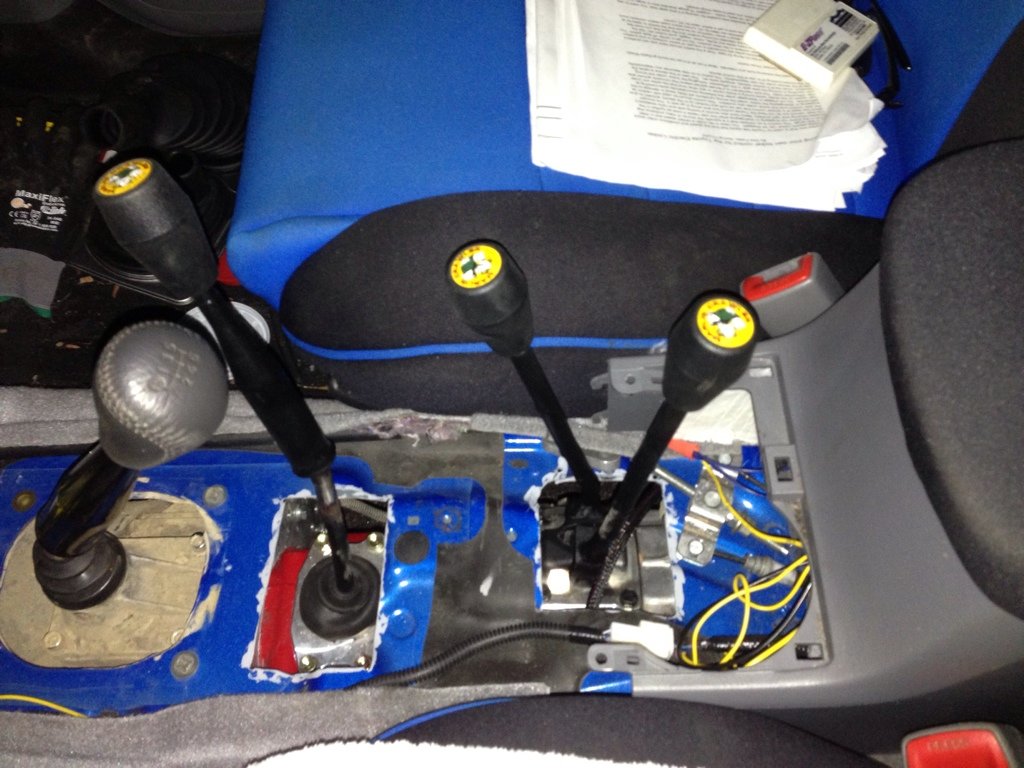

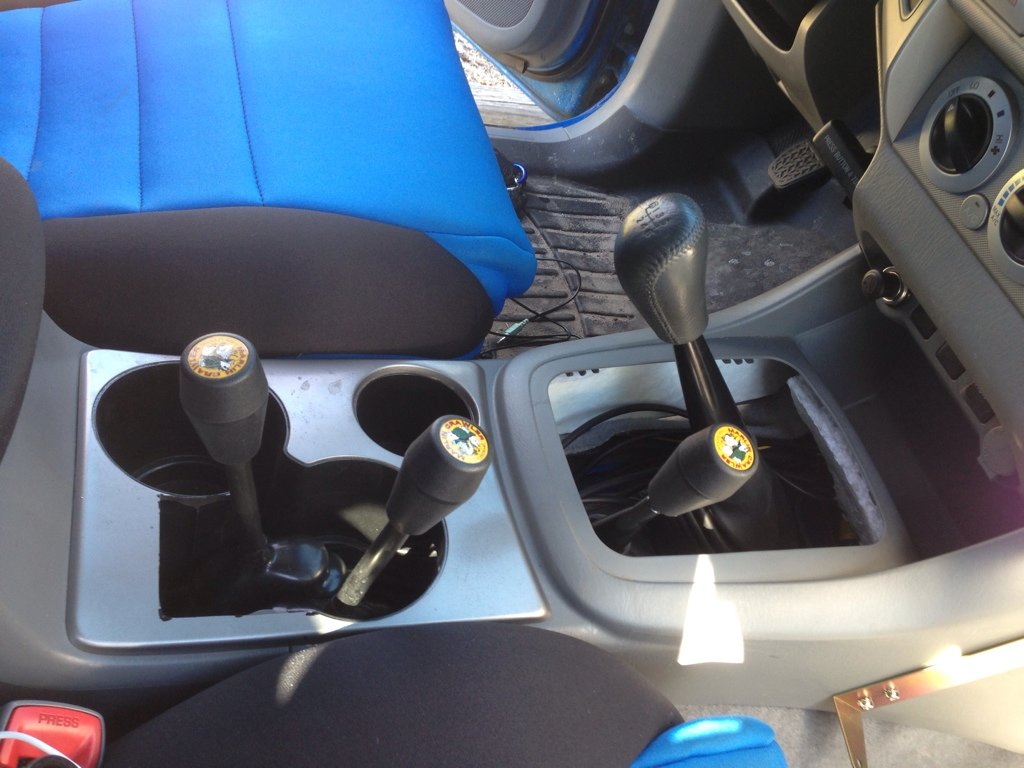

    Made up my ADD switch for the 4wd since swapping to the FJ tcase
    19D9E7F2-08C0-48DE-ABCA-935A7353E046-142_891f965811ab06dd802fa971f8447e81f36b1dc3.jpg

    E94BF28D-908F-4614-95D1-B3B2F30A15A5-234_cd59f818ccd5dc42a72a0f438f2748b925a0849b.jpg

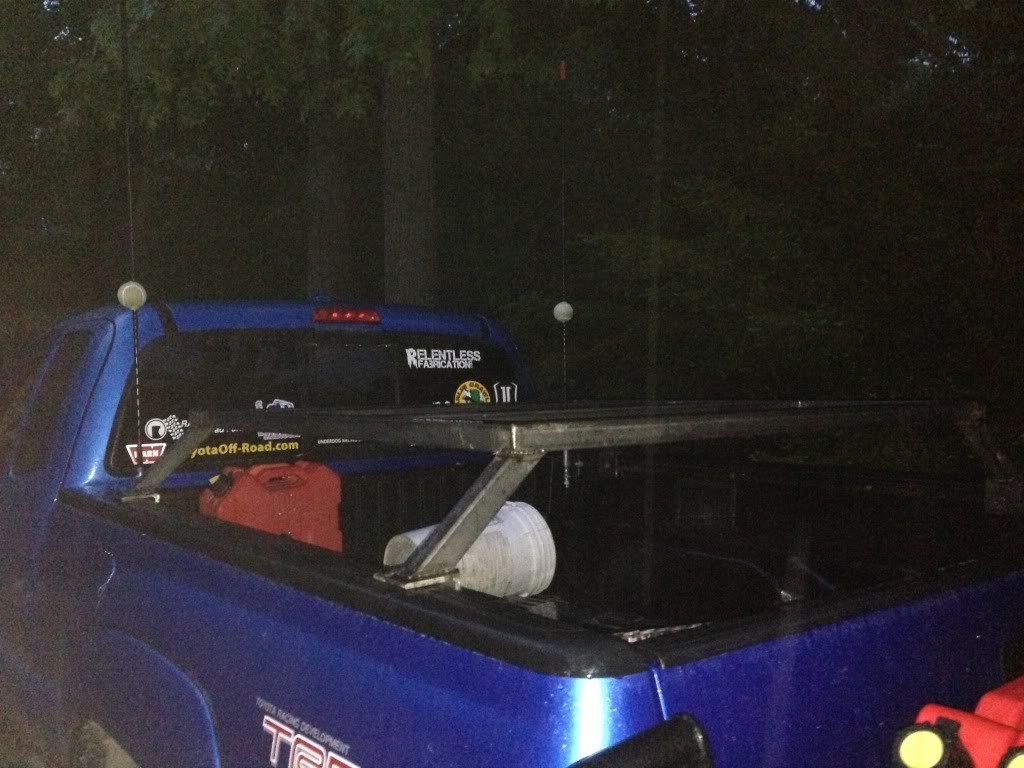

    Made a bed rack

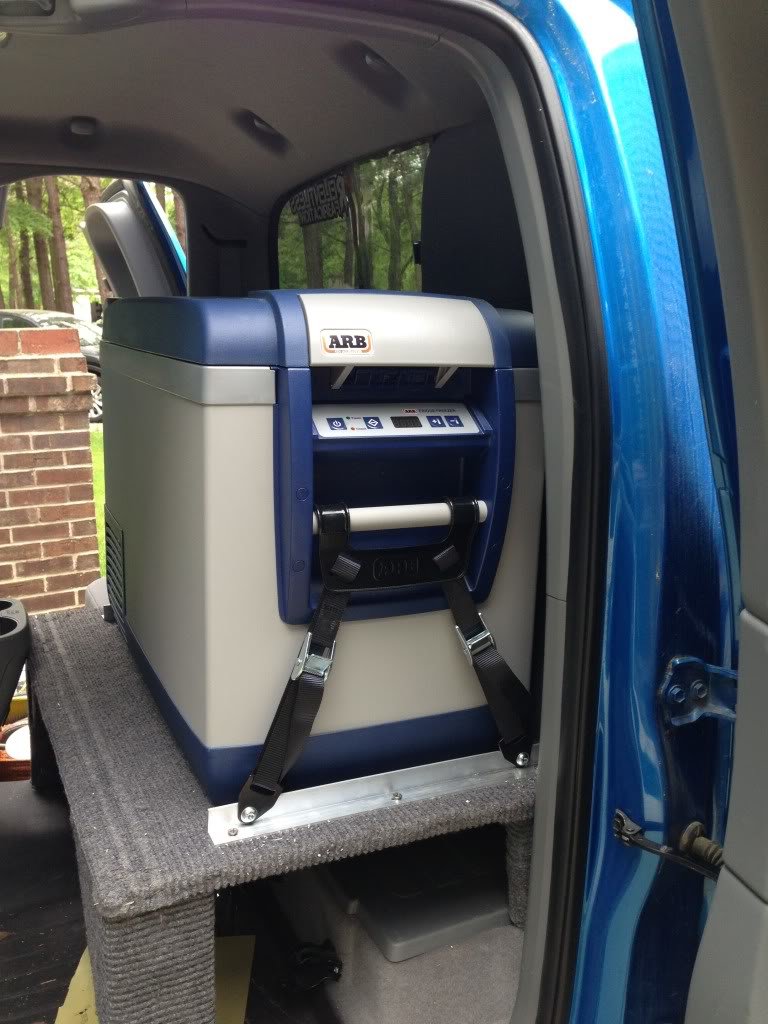

    Made a small stand for my ARB fridge in the back seat

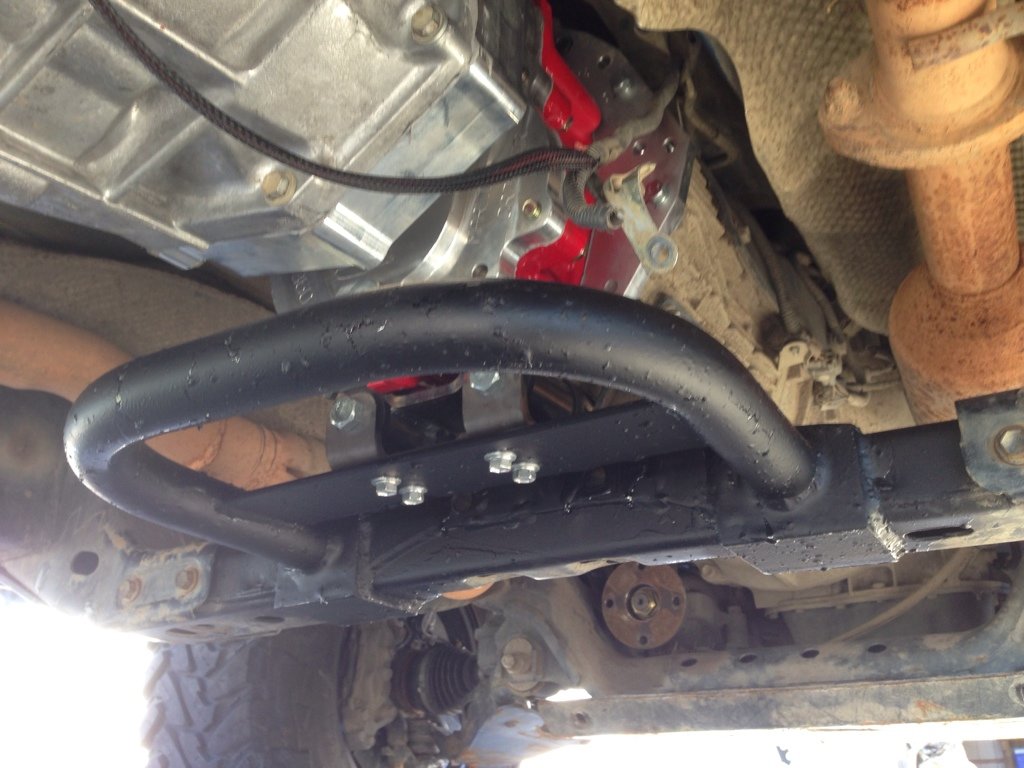

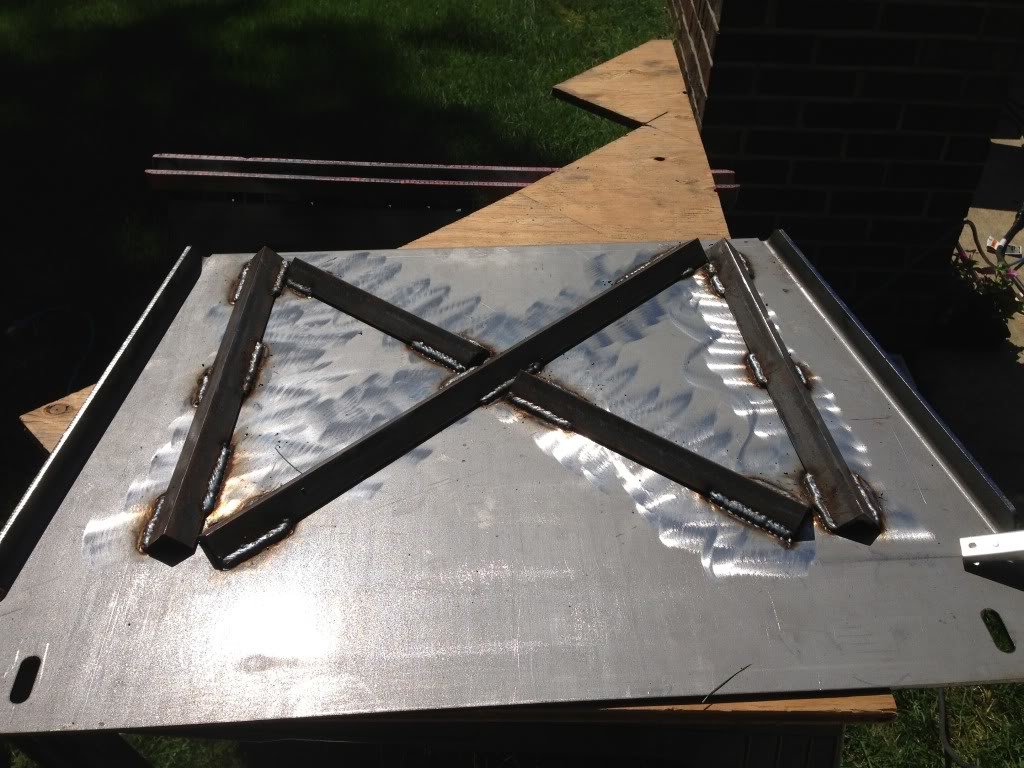

    Reinforced my skid plates to keep from bending

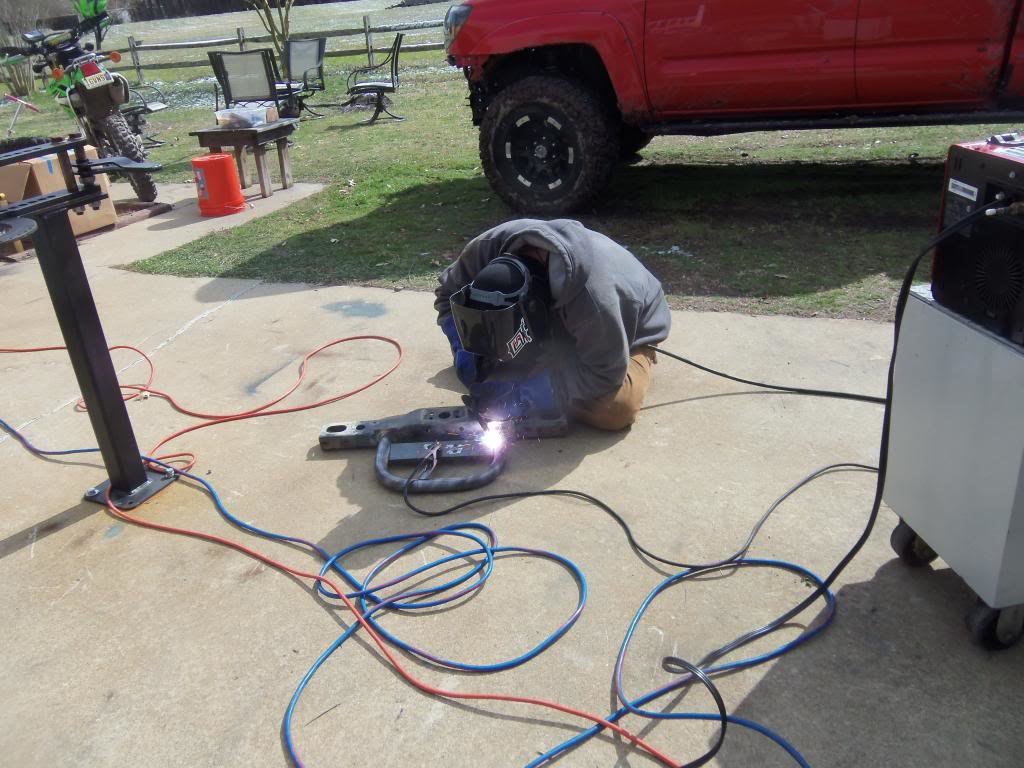

    Installed a shackle flip




    At some point I got the HomerTaco Raptor grill
    C082CD8E-1A29-4E69-9D8A-F094DBE1A93F_zps_1b7c0574c8a1481210704ad2e3d361b7bdc0e27d.jpg

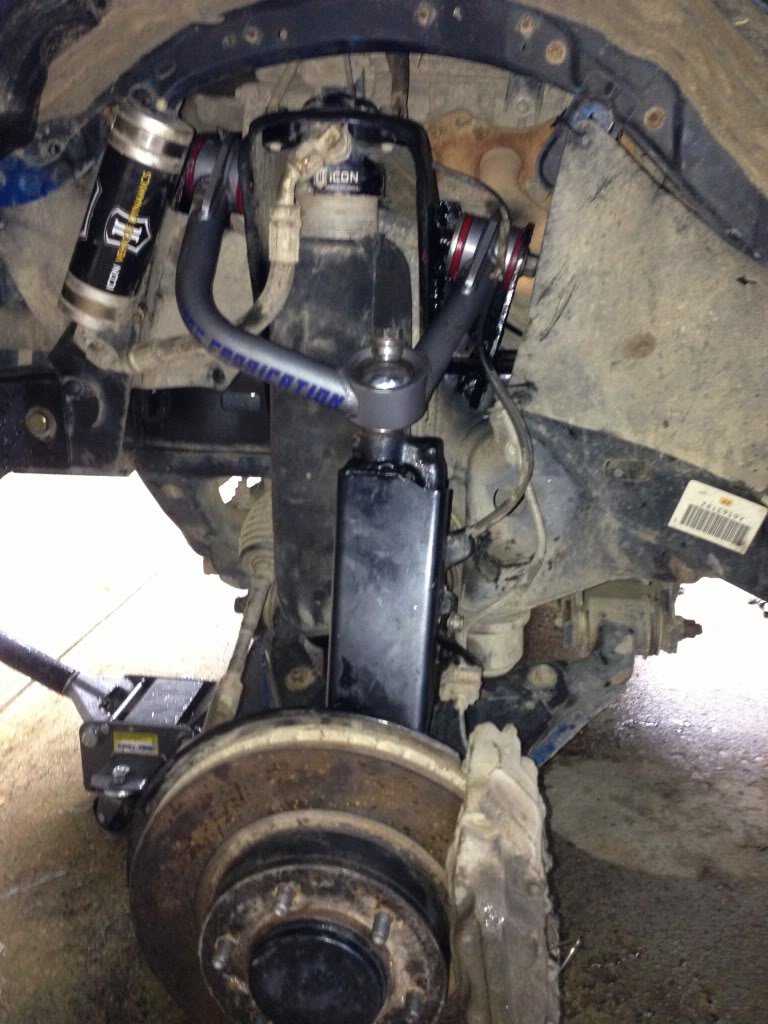

    Rebuilt the entire front end (coil bucket gussets, LCA bushings, UCA uniballs, spindle gussets)

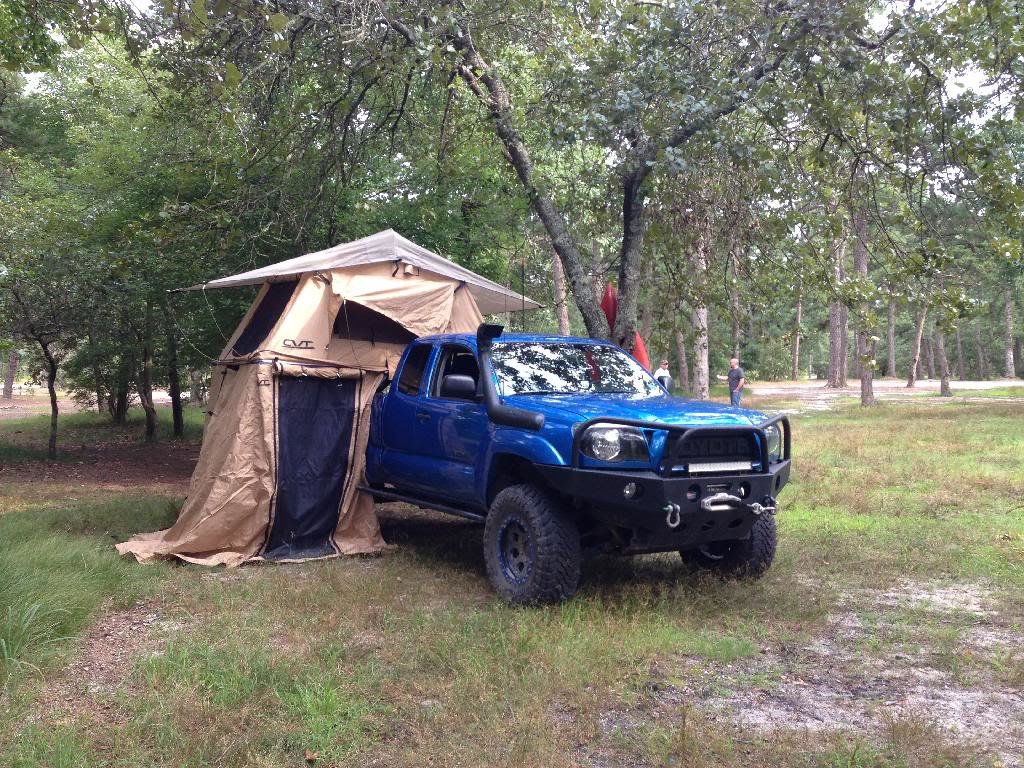

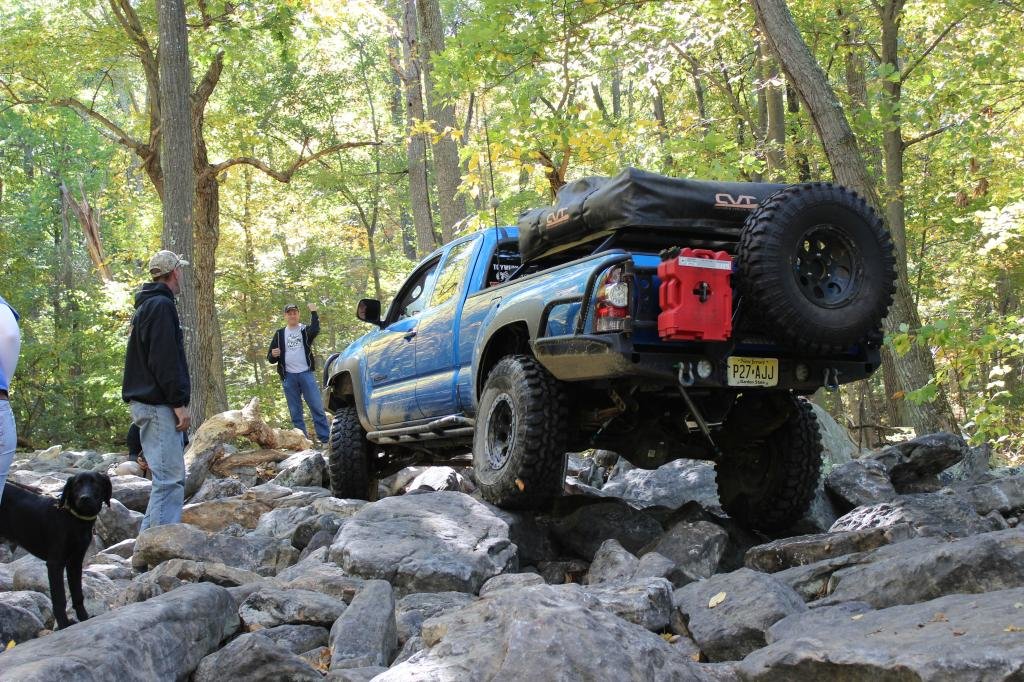

    Got a CVT Mt. Bachelor for the bed rack
    7DF4B220-9A13-41E2-9FB1-2FCA76D450EE_zps_888316c9dbf60328ff18c23a9878fcd35cdee10c.jpg

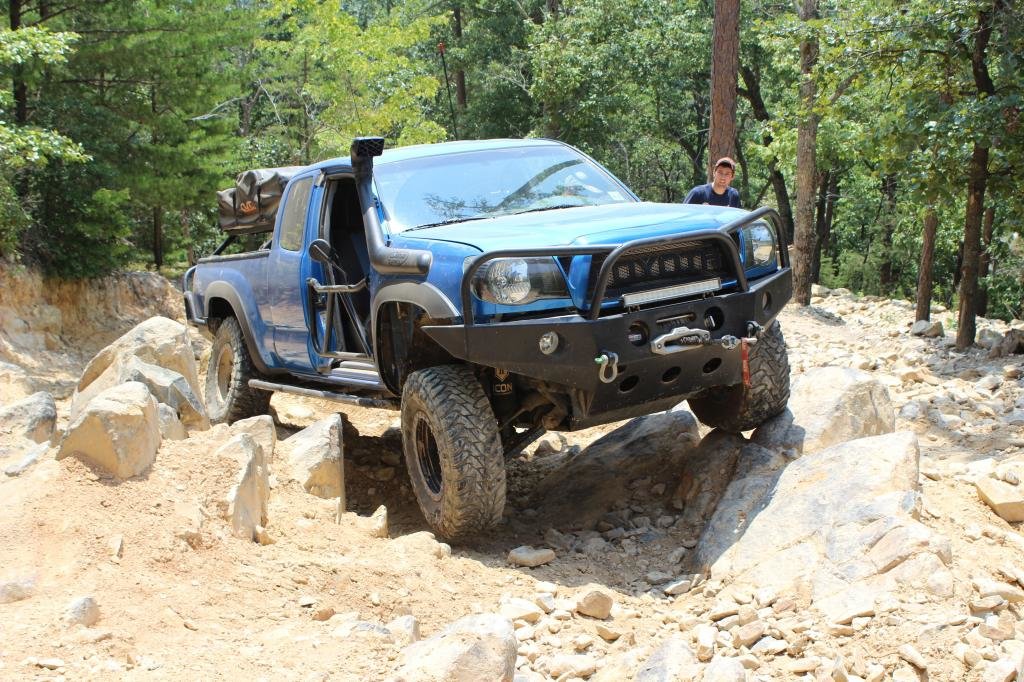

    Swamped it and have had plenty of adventures along the way



    3575CD81-197D-43A2-ABC2-F9135337596F_zps_15fd2c46a117f4212d3201bb262b0fc563e8b3c0.jpg

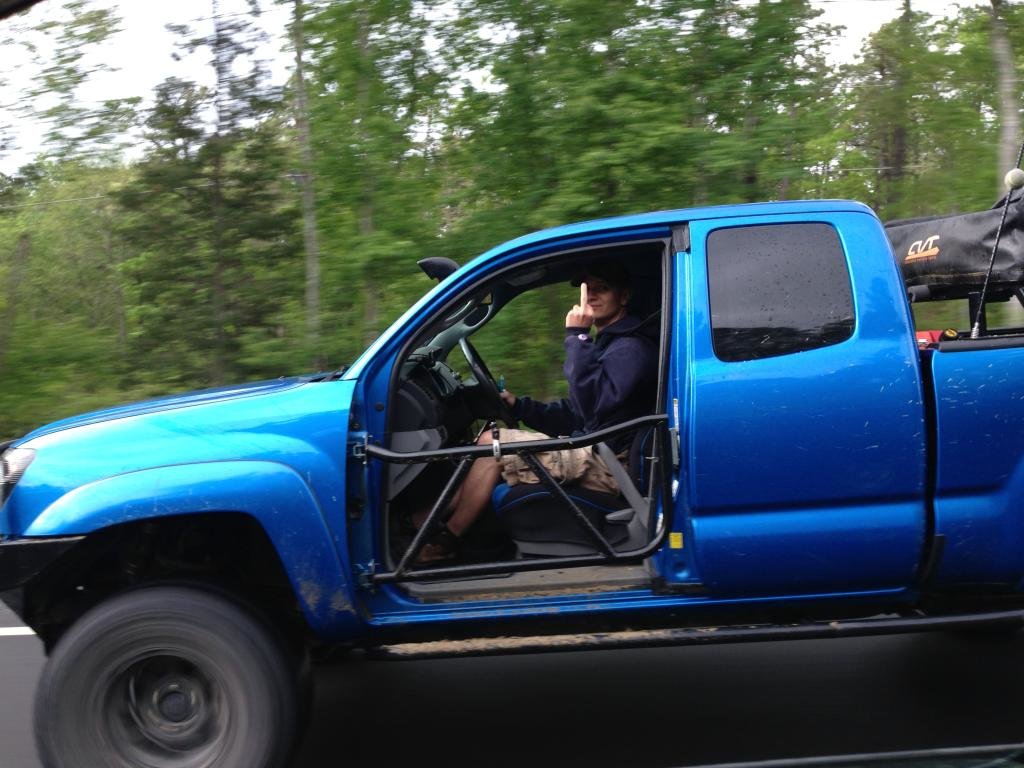

    Installed some ATO tube doors, these things are great!
    C2A87AE9-8D9E-479F-8225-95420D92DA10_zps_d783ba2049422b099245a83eebe101271302892b.jpg

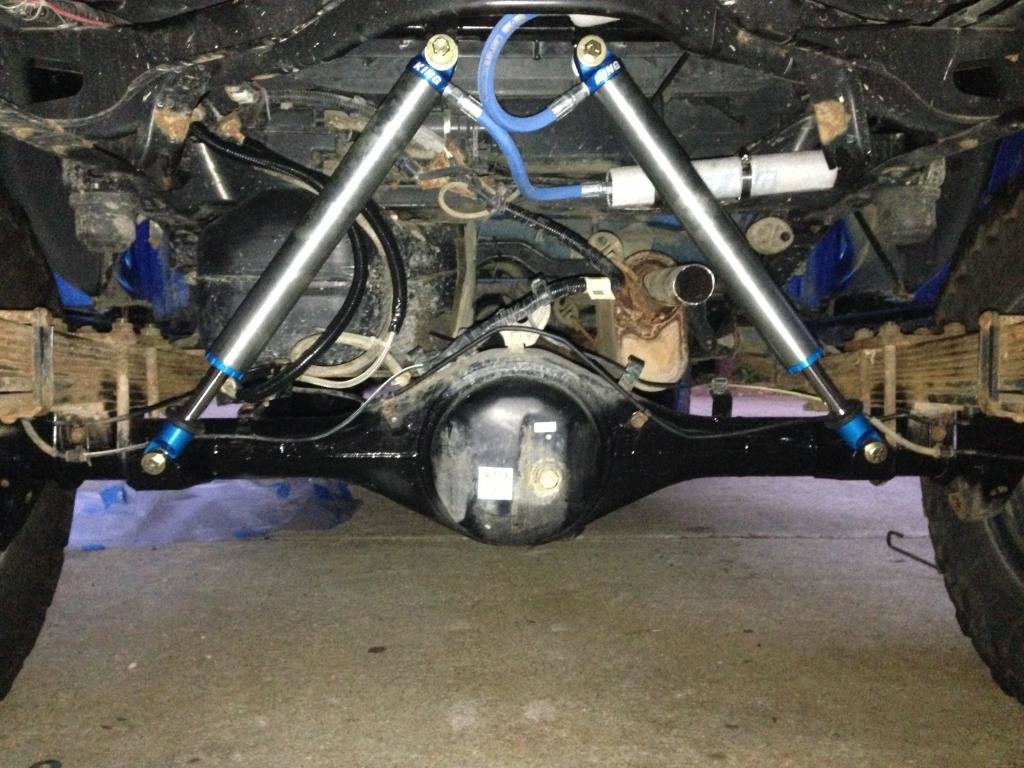

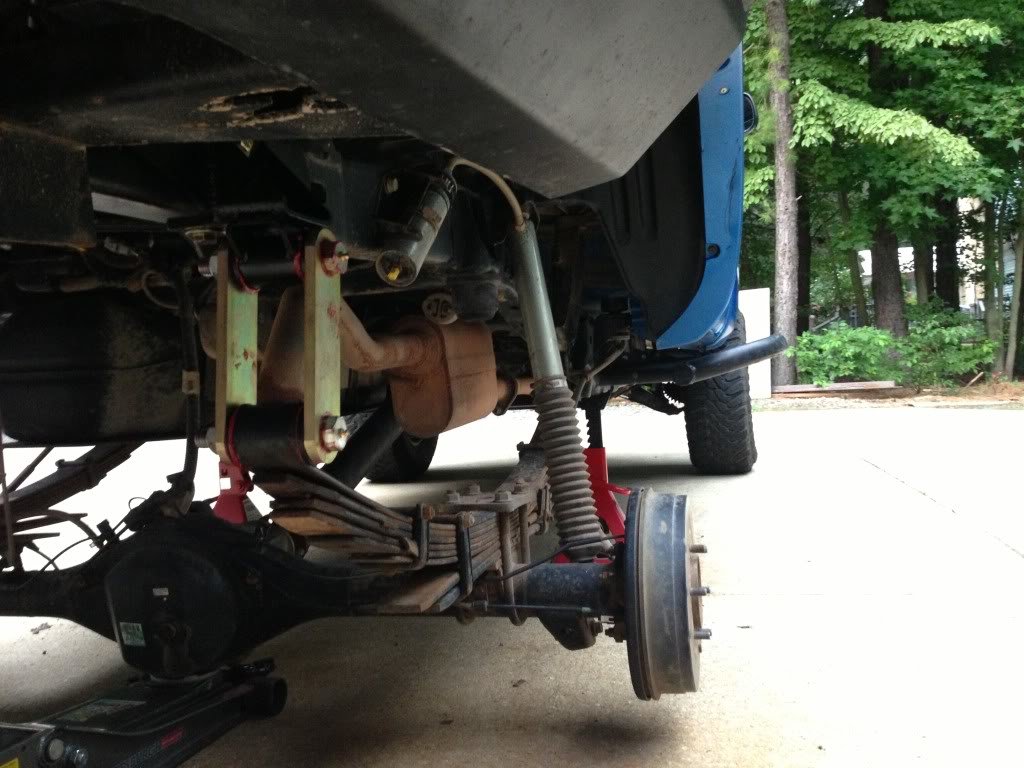

    Relocated my shocks inside the frame rails with some 12" stroke kings
    B6FECBEF-4AB8-4804-AF73-0579D33B210F_zps_9bc1fac3d011b3e4ff06f575df5dbb89c4631e86.jpg

    Got some 36" super swamper TSLs

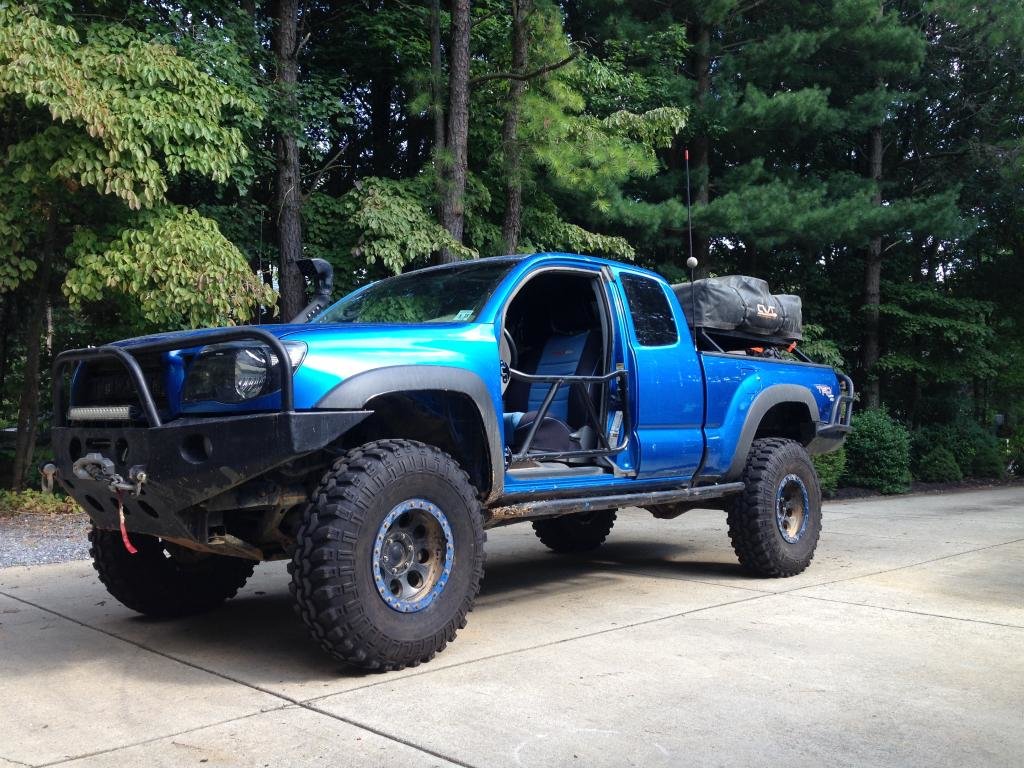

    F67EE615-5184-408F-9921-761455DDD051_zps_b6d9c11382c9ae578e99b07a5d3ca5dc40a3a71a.jpg

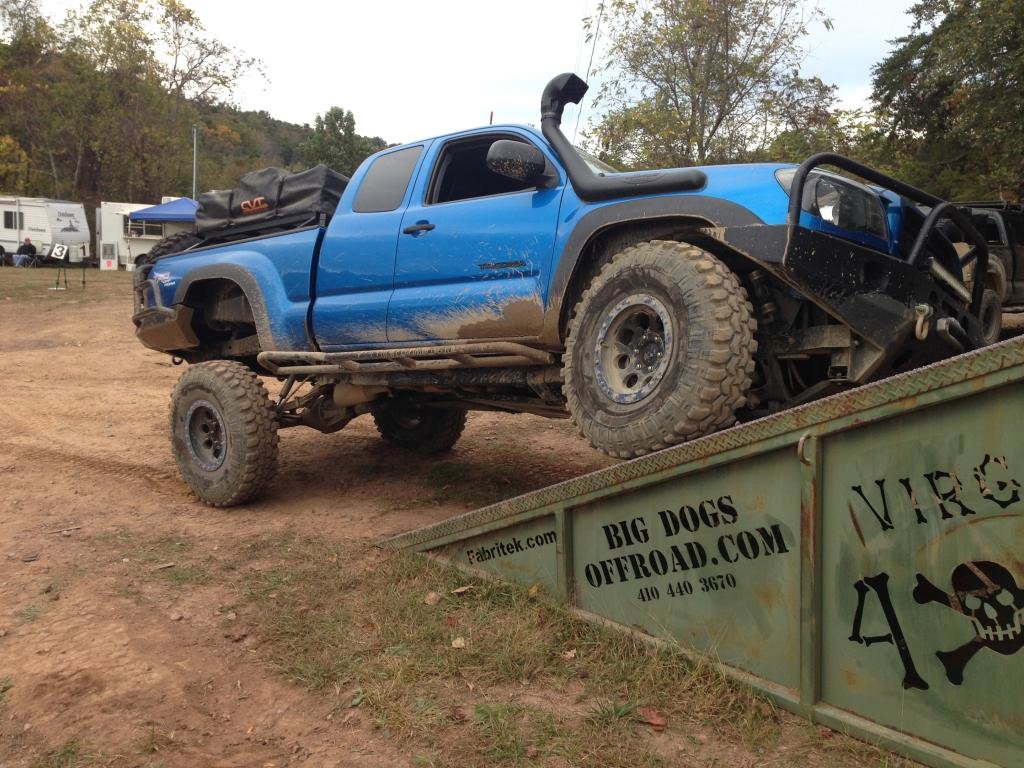

    Added the Flyzeye interior lighting kit I won at Big Dogs offroad raffle
    B228B2D8-F37C-48B7-8D1E-DCA1461BE57E_zps_7218a1155abab297d8bd7a487b49fd8b5ddf27ed.jpg

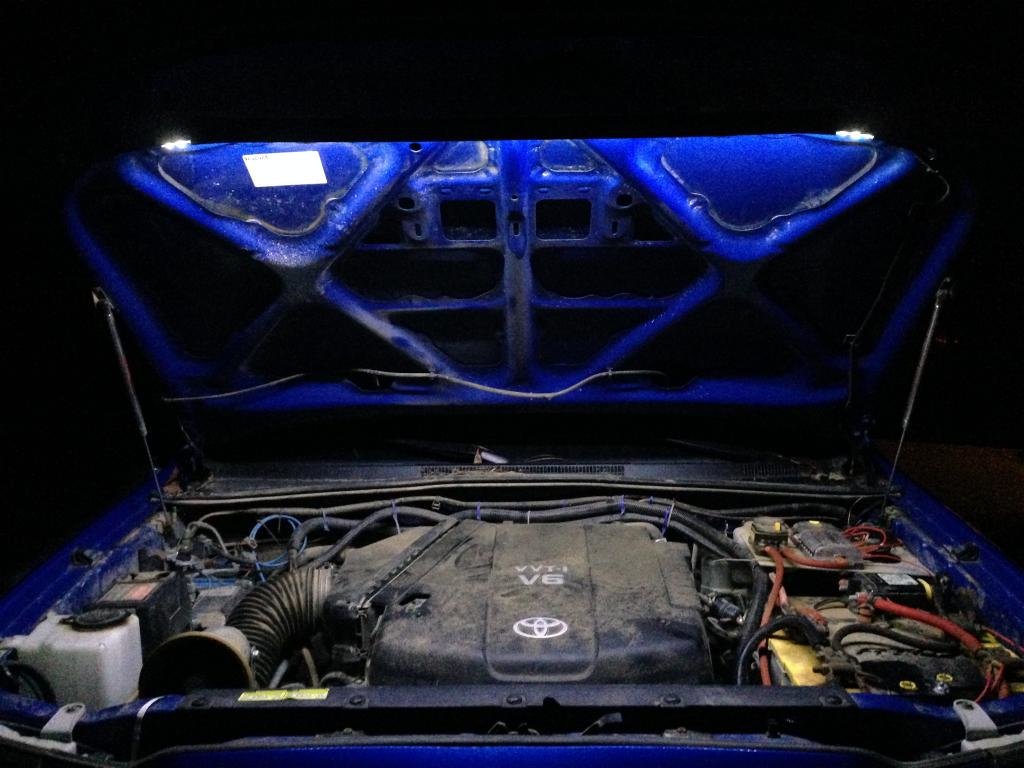

    Installed BeeRad hood lighting kit, thing is damn sweet
    BB08FE78-543C-42E3-A09C-185E07AB2CF2_zps_16ebe80f4c9a79fa4ef93c45eed36bee2c34c7b6.jpg

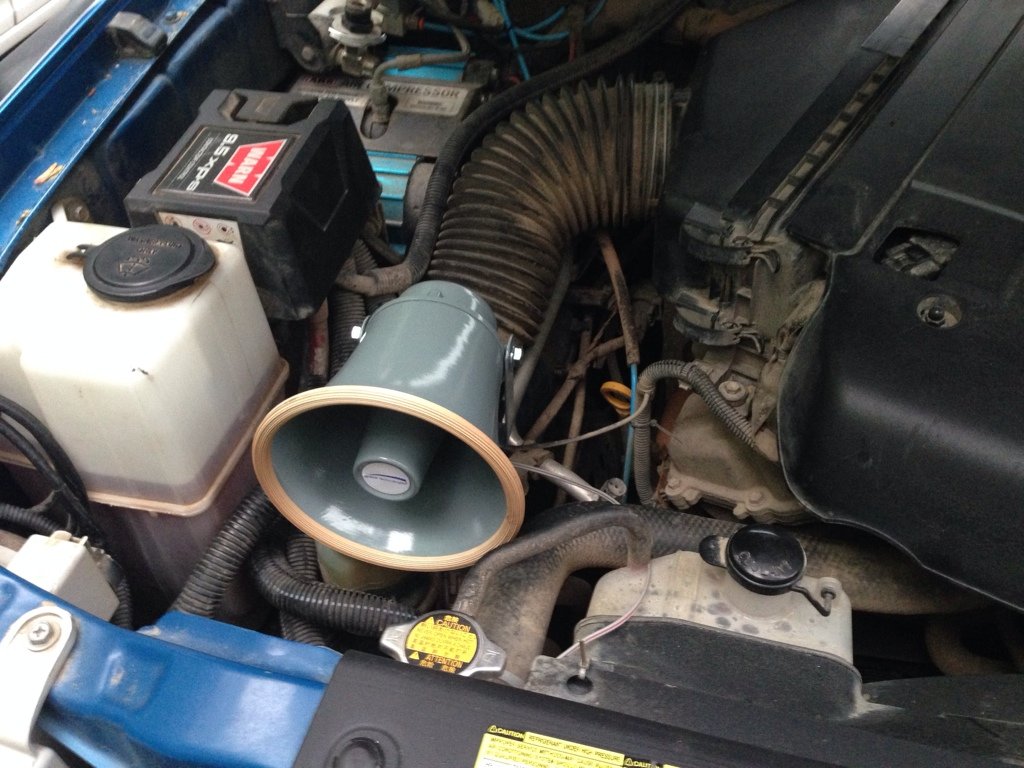

    PA radio stuffed under the hood mounted to the power steering resi
    06AFBE06-D4A0-4048-A3C8-8D2AC0B6E00C_zps_1ca81e77c0fd937cca3caad33ac9b5d634e0c59f.jpg

    That's all I got for now, stay tuned for more adventures :D
