Anyone good at identifying wiring connectors?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Puppypunter, Jun 7, 2020.

  1. Jun 7, 2020 at 9:17 PM
    #1
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,401
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
  2. Jun 7, 2020 at 9:22 PM
    #2
    whatstcp

    whatstcp currently drunk so don't listen to me

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    11,591
    Gender:
    Male
    First Name:
    Ed
    Fontana, CA
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    King + Archive Relocation Wheeler's bumps +hydros
  3. Jun 7, 2020 at 9:29 PM
    #3
    Dan 77

    Dan 77 I leave my bikes outside

    Joined:
    Nov 1, 2014
    Member:
    #141504
    Messages:
    829
    Gender:
    Male
    First Name:
    Dan
    San Antonio
    Vehicle:
    06 DCSB TRD Sport 4X4
    Kings and TC UCAS 01 DCSB 4X4 Totaled All-Pro bumper, mile marker winch
    whatstcp[QUOTED] likes this.
  4. Jun 7, 2020 at 11:21 PM
    #4
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,228
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Is this to have a plug connector for when removing the tailgate… similar to the camera plug included in the glovebox?

    if so I have said connectors, it’s listed somewhere on this forum or I’ll take a look at the ones I have tomorrow. I believe 1 was oem and the other I found another source because it was back ordered with no date

  5. Jun 8, 2020 at 8:04 AM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,322
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    shakerhood likes this.
  6. Jun 8, 2020 at 9:08 AM
    #6
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,401
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I’ll look at it, thanks again. You really are very helpful!


    I have the tailgate lock kit and a topper lock kit that I am hoping to just tie together at this connector if I can. I can always use a metripack connector or something, but figured if I could just get this connector I could make a splice with it.

    RobP62 likes this.
  7. Jun 8, 2020 at 9:59 AM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,322
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You could get a 2nd Gen or Tundra tail light harness, it has 6 spaces. Uses same terminals already in the connector for the camera and the OEM tailgate lock.

    Tacospike likes this.
  8. Jun 8, 2020 at 11:24 AM
    #8
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,401
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    That might work. I think there is another connection point. I’ll look when I get home today. Thanks again, you rock!

  9. Sep 22, 2020 at 7:04 PM
    #9
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,401
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR

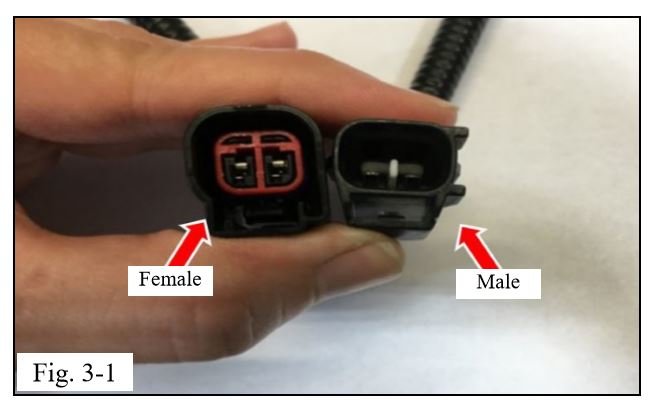

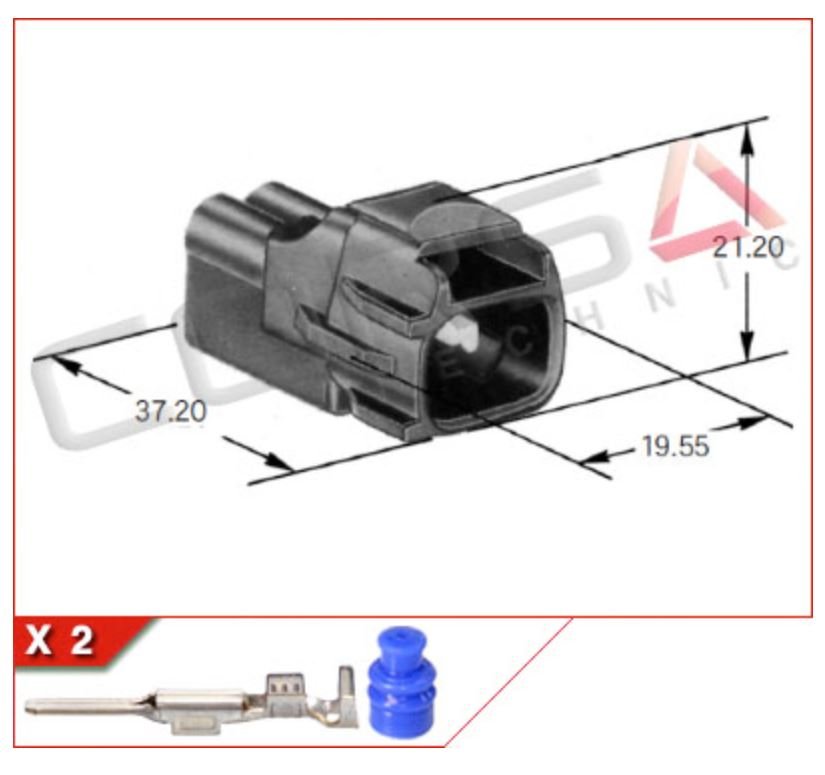

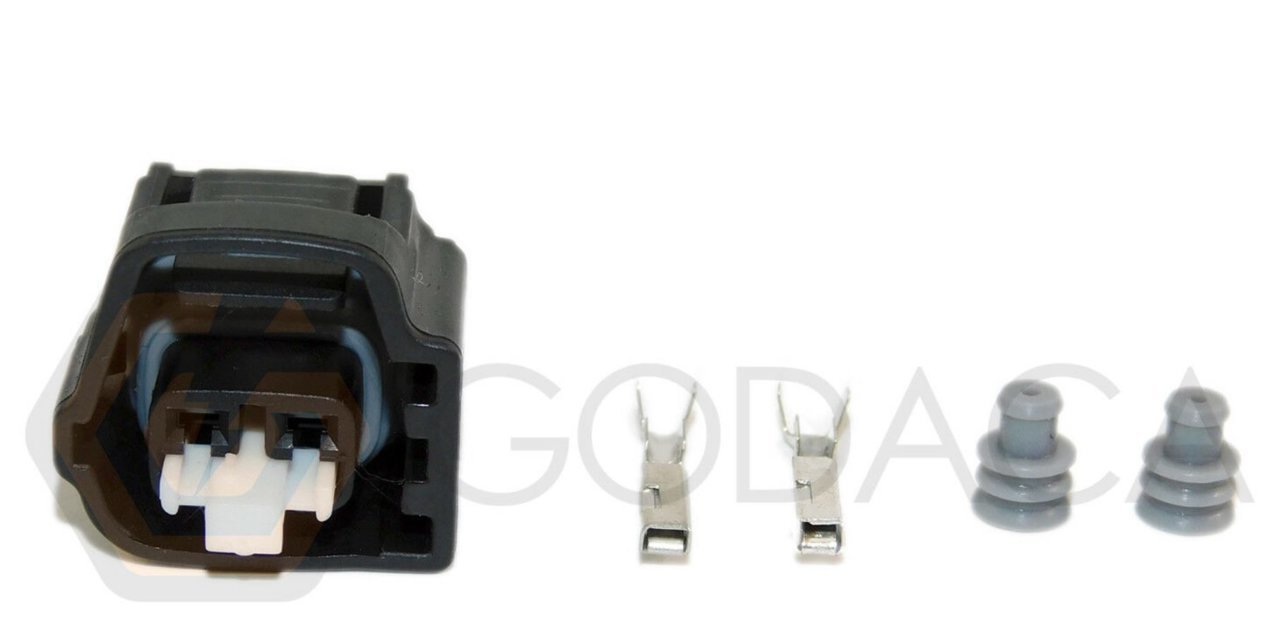

    Just for future reference, if anyone needs it. The part numbers are 90980-11069 and 90980-11070.
    ABF.jpg ABM.jpg

    shakerhood and RobP62 like this.
  10. Sep 22, 2020 at 7:16 PM
    #10
    Yettee

    Yettee Well-Known Member

    Joined:
    Aug 8, 2012
    Member:
    #84364
    Messages:
    220
    Gender:
    Male
    Long Beach, CA
    Vehicle:
    2019 White Tacoma TRD OR 4x4
  11. Sep 22, 2020 at 7:32 PM
    #11
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,401
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I was planning on that. Was going to use Delphi connectors. That kit you posted is a pretty good price for AMP superseals though so I've book marked it for future reference. I just wanted to update this thread with the part number in case 5 years from now someone is googling it, they will at least get an answer. I'm just odd like that.

    RobP62 likes this.
  12. Sep 22, 2020 at 7:55 PM
    #12
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Are you adding your own lock to a topper. I'd like more information about this if so. Please.

  13. Sep 22, 2020 at 8:01 PM
    #13
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,401
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I am. A Pop & Lock PL9555. I am also adding the OEM tailgate lock mentioned above. Since the tailgate lock uses this connector toward the rear, I am going to just tie the topper lock in there. Just going to make a small male/female tap to feed the PL9555 for the OEM tailgate lock harness. If you plan on doing something like this, RED is LOCK, GREEN is UNLOCK just FYI

    RobP62[QUOTED] likes this.
  14. Sep 22, 2020 at 9:00 PM
    #14
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Thanks for the excellent information. I need to figure out how to make a solenoid setup work on my topper. It's an ARE MX. It has a single locking handle and two rods. It seems like it would require too much force to mount a single solenoid to push those. I'm thinking I may need two mounted to the cap frame. Or I could probably make something like this work too

    https://www.amazon.com/dp/B06XK8S223/ref=cm_sw_r_cp_apa_fab_HASAFb37SPNXR

    Or this without any spring. I'm not apposed to drilling holes and using bolts either.

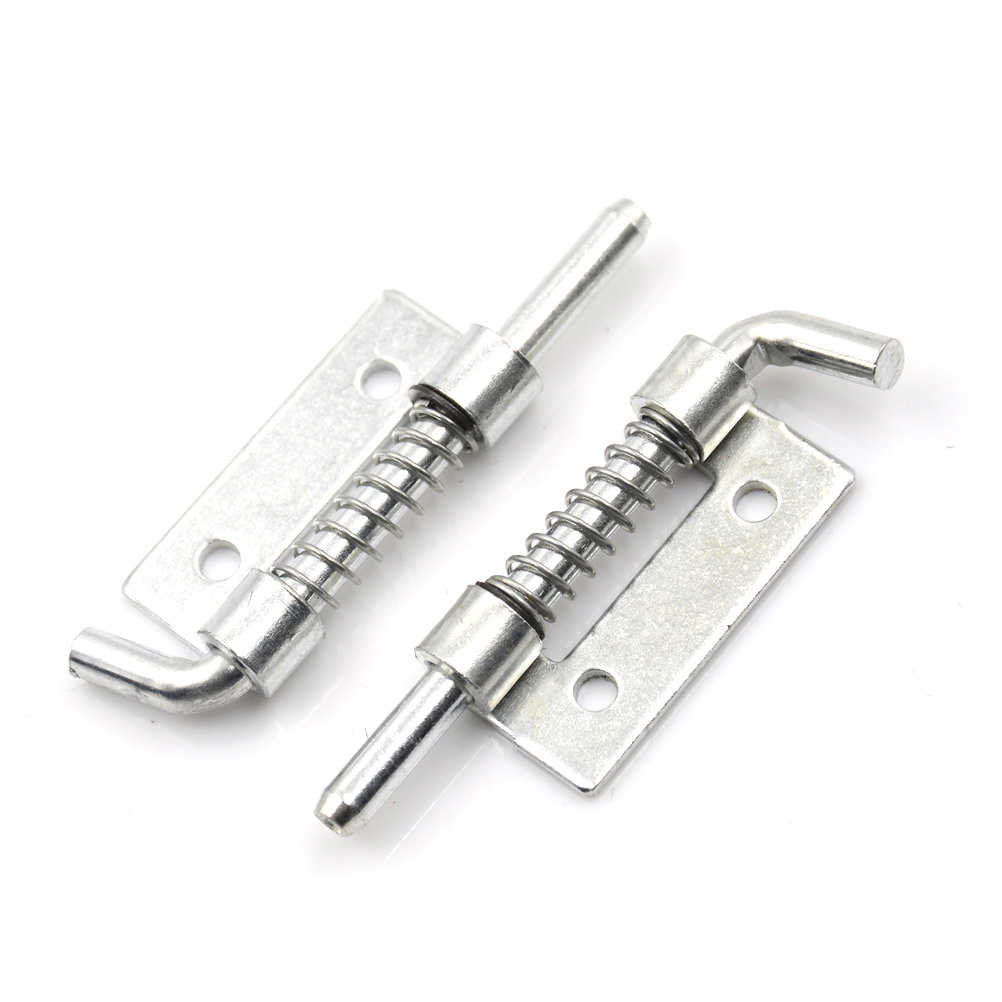

    5x-New-Spring-Loaded-Metal-Security-Barrel-Bolt-Latch-5-3-X-1-7cm-Silver-Tone.jpg_q50.jpg

    The cap was not that much and I've modded the shit out of it.


  15. Sep 22, 2020 at 9:00 PM
    #15
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Any ideas are appreciated!
