Anytime Foglight mod explained electrical (diagrams)

Discussion in 'Lighting' started by Crom, Dec 6, 2009.

  1. Apr 1, 2012 at 6:30 PM
    #141
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    Crooks, see post #133. IMO this is the cleanest way with the most options on how you want to run your lights. You can use the air pump heater socket (lower right slot), but it will turn on your fog lights after a few minutes of engine shutdown. You would have to remember to turn off your fog light switch when getting out of your Taco.

    No way around it. You will have to run a wire to the main fuse/relay box. It can be done very stealthy. You can use the spot mentioned in post #133 or get power from the Trailer Towing relay. You must have your parking lights on to use the fog lights if you connect to the Trailer Towing relay. If you use the spot mentioned in post#133, you can run your fogs and the DTRL. This is not possible if you use Trailer Towing relay.

    Both are excellent mods! It's all about preference.

  2. Apr 1, 2012 at 11:21 PM
    #142
    crooks420

    crooks420 Well-Known Member

    Joined:
    Oct 11, 2009
    Member:
    #24135
    Messages:
    70
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    Vehicle:
    05 AC Prerunner SR5, 12 DC LB 4x4, 70 FJ40
    Do you have any references to the air pump heater, and why does my truck NOT have this?

    Jesse

  3. Apr 2, 2012 at 6:39 AM
    #143
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    I have no references and no idea. My truck has the connections there too, but no relay either.

  4. Apr 3, 2012 at 7:37 PM
    #144
    Grande

    Grande Well-Known Member

    Joined:
    Aug 3, 2010
    Member:
    #41153
    Messages:
    922
    First Name:
    John
    Victorville, CA
    Vehicle:
    Thomas, The little truck that could
    Painted badges. Bedlined grille, wheels and lower valence. Billies 5100 @.85 up front. Dodger Jack Ball Mod. Custom trail damaged rear bumper (for the time being). Lil LED light bar on grill. Hard-wired Radar Det. Custom Projector fog lights, Anytime Fog Mod, HIDS, White LED accent lighting on a Single post double toggle swicht, so they light up wit my door/dome light, or always on, or never on. LED map and dome lights.

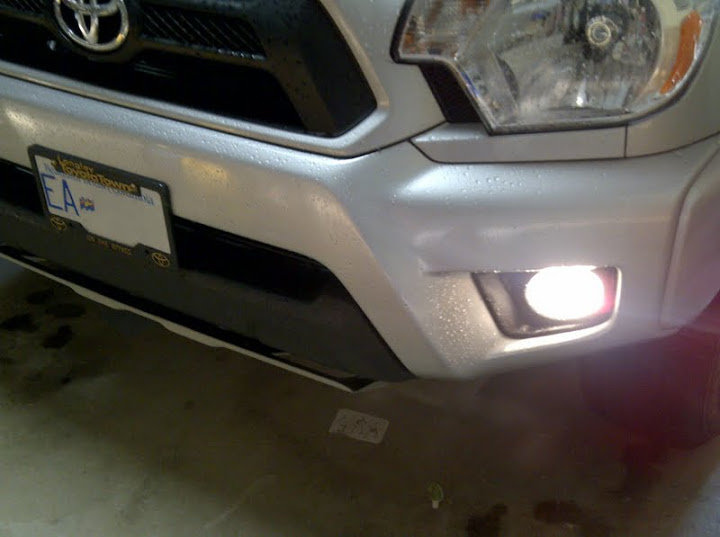

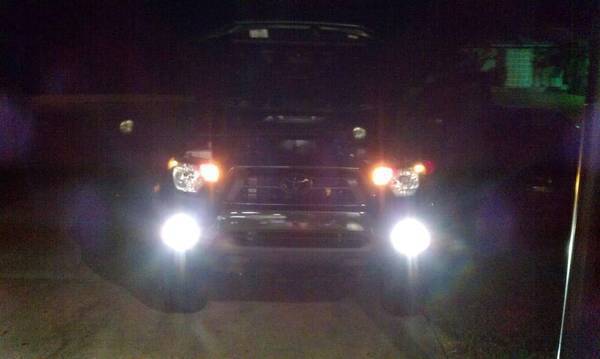

    Score! Finally did this mod, i havent been on here in a long ass time tho.

    It was really easy, seriously did it in like 5 min. Just like post#78 explains it.

    [​IMG]

  5. Apr 4, 2012 at 6:02 PM
    #145
    jivewalker

    jivewalker me gusta pechos firmes

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    796
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS

    :thumbsup:

  6. May 13, 2012 at 11:52 AM
    #146
    TOMRR

    TOMRR Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72615
    Messages:
    71
    Gender:
    Male
    First Name:
    Tom
    Mass
    Vehicle:
    Color Black, Double Cab,TRD OFF ROAD
    Stock TRD OFF ROAD TSB 4 Leaf Pack Firestone Air Bags Bed Mat,Weather Tect Digital Fit Floor Liners Heated and turn signal mirrors Wet Okole Front Seat Covers 13 inch Antennax Antenna Prodigy Brake Controler Front Skid Plate Power Wagon Badge KBAR Shift Knob Tint Driver and Pessenger door windows Inchannel window vents
    I just did the no splice method to my fog lights went smooth on and off when I want them:) Iam hopeing no side effect's
    Thanks for the Great Idea

    Tom C.

  7. May 21, 2012 at 9:41 PM
    #147
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,340
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    I updated the OP to link to Johnny E.'s 2012 update on post 133 to help people who find this thread.

  8. Jul 18, 2012 at 12:18 PM
    #148
    JNSRacing

    JNSRacing Member

    Joined:
    Jul 11, 2012
    Member:
    #82431
    Messages:
    6
    Gender:
    Male
    First Name:
    Steve
    Hawaii
    Vehicle:
    07 SR5 V6
    3" Rev Tek, 15x10 Alcoas, 30x11.5 TSL/SX K&N Intake, Smitty Builts
    This Mod Rocks !! Thanks jivewalker and to all @ Tacoma World !!!

  9. Jul 18, 2012 at 12:29 PM
    #149
    WARR4NT

    WARR4NT Well-Known Member

    Joined:
    Jul 4, 2012
    Member:
    #81936
    Messages:
    97
    Gender:
    Male
    I know what I'm gonna attempt this weekend...thanks

  10. Jul 28, 2012 at 10:20 AM
    #150
    ScreamingTaco

    ScreamingTaco Huge Member

    Joined:
    Mar 30, 2007
    Member:
    #1183
    Messages:
    247
    Gender:
    Male
    Vehicle:
    2012 TRD Off-Road AC
    Goodyear Duratracs, TRD cat-back exhaust, bed tool box, bed extender.

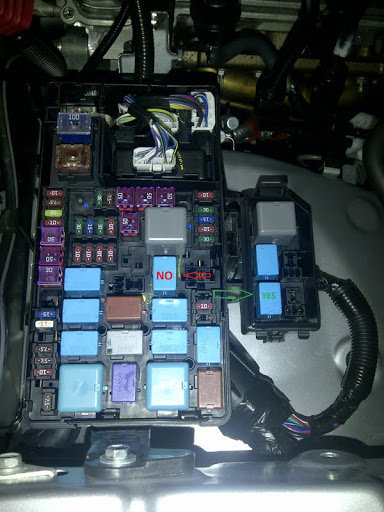

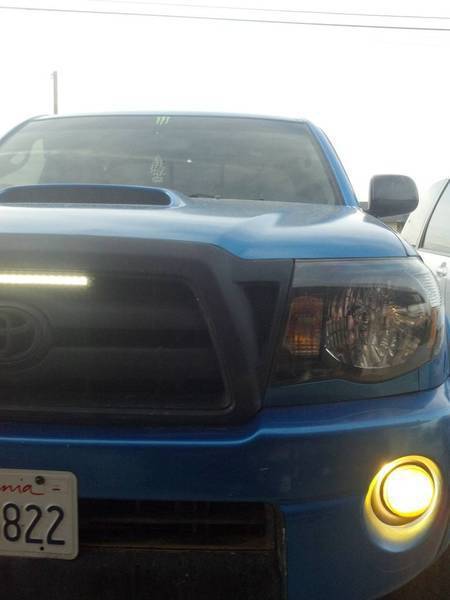

    The heated seats aren't pre-wired on my truck so no extra green wire to tap into. Is there another spot I can jumper from within the smaller side box so that I don't have to fish another wire back to the main box?

    Edit: Reference Pics:

    [​IMG]

    [​IMG]

  11. Aug 7, 2012 at 10:25 PM
    #151
    datacoflip

    datacoflip Member

    Joined:
    Jul 19, 2011
    Member:
    #60192
    Messages:
    7
    Gender:
    Male
    Honolulu
    Vehicle:
    2011 TRD Sport Pyrite Mica
    Thanks jivewalker!!!! Just did the mod in like 10 min, works great.
    Will let you folks know if there are side effects.

  12. Aug 16, 2012 at 10:27 AM
    #152
    cdh7917

    cdh7917 Active Member

    Joined:
    Aug 13, 2012
    Member:
    #84670
    Messages:
    35
    Gender:
    Male
    719
    Vehicle:
    12 TX|pro
    Can someone put up some details as to how this would be tapped into the trailer harness?

    I would like to have my fogs only operate if my parking lights are turned on. I have no need for them to operate 100% independently from all other lights.

    Thank you!

  13. Aug 17, 2012 at 12:21 PM
    #153
    cdh7917

    cdh7917 Active Member

    Joined:
    Aug 13, 2012
    Member:
    #84670
    Messages:
    35
    Gender:
    Male
    719
    Vehicle:
    12 TX|pro
    Hey Gang!

    I decided that when I did this, I didn't want to have my fogs work anytime the ignition was turned on. I only wanted my fogs to operate when my parking lights (at a minimum), and work independently of my low and hi beam headlights.

    While the other solutions worked great for any time, I needed something different. Running wires outside the main fuse/relay panel under the hood was least desirable.

    Please see pictures attached below. This is for 2012 models, with the towing package, and the fog relay in the smaller sub-panel. I also am not pre-wired for heated seats.

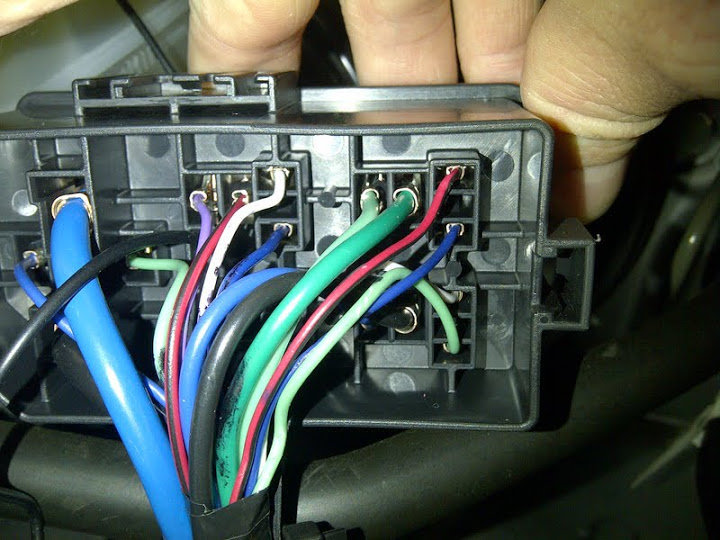

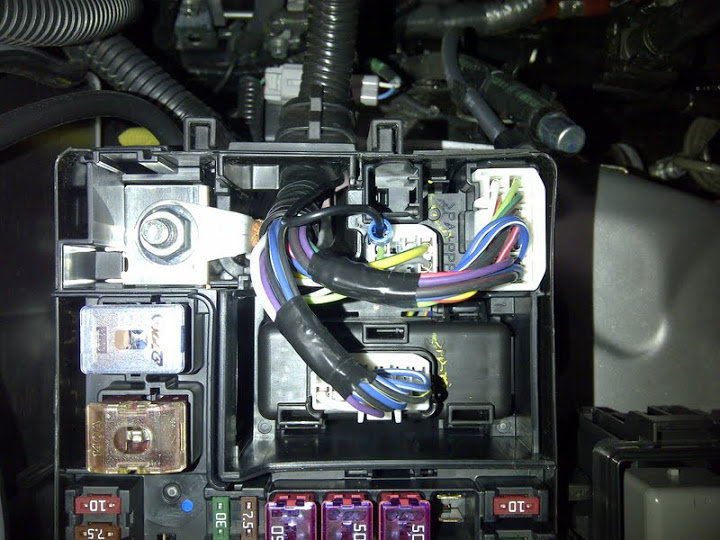

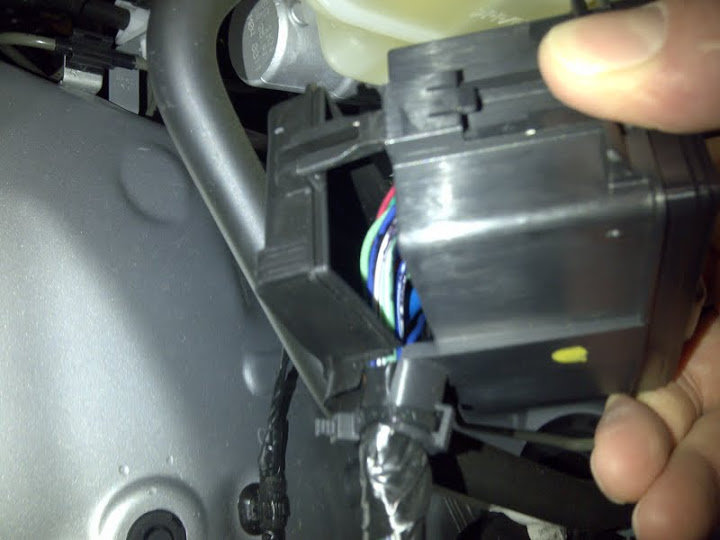

    1. Using a 18-20 AWG stranded wire, feed it through the edge of the main panel, where the bottom clips into the main body of it. This is directly adjacent to the brown relay at the edge of the box.

    2. Untape the main bundle of wires into the smaller sub-panel, and add the new wire to the bundle. Retape as needed, to make it look factory. Super-stealth!

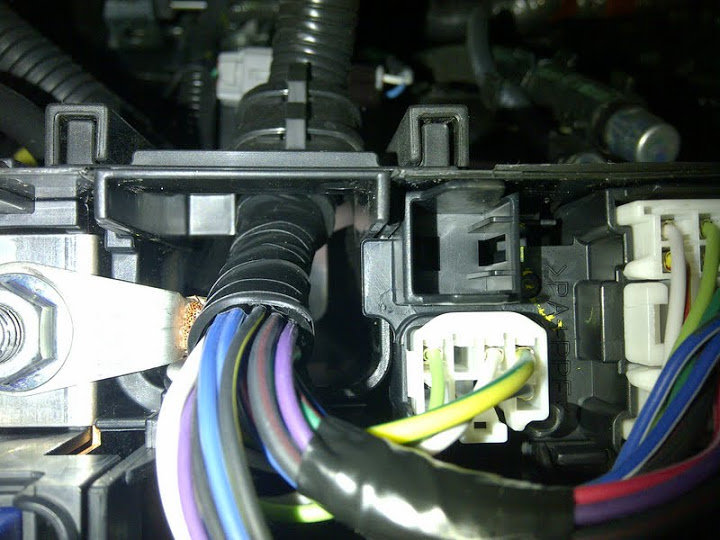

    3. In the center of the sub-panel, you can see a small hole. Fish the wire from the bottom, up to the top.

    **At this point, the wire is simply run, and not connected to anything**

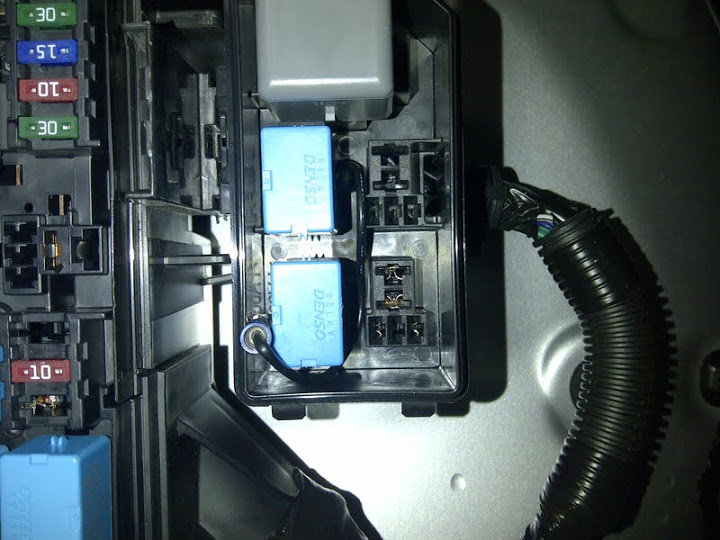

    4. Remove the relay for the Tow circuit. Taking the end of the wire in the main panel, strip off about 3/4" of insulation, and bend the wire in a tight "V" shape. This V is then placed on the spade of the Towing Relay that is closest to the drivers' side fender, and then reinsert the relay into its space. This will be a tight fit.

    5. Strip and crimp on a female spade connect to the other end.

    6. Follow the rest of the procedure already outlined, and attach it to the fog relay.

    [​IMG]

    [​IMG]

    Enjoy!

    Parking lights:
    [​IMG]

    Low Beams:
    [​IMG]

    Hi Beams:
    [​IMG]

  14. Aug 18, 2012 at 9:33 PM
    #154
    SirLance7281

    SirLance7281 New Member

    Joined:
    Aug 18, 2012
    Member:
    #85042
    Messages:
    3
    Gender:
    Male
    First Name:
    Lance
    Edmonton Alberta Canada
    Vehicle:
    2012 Tacoma TRD Sport 4x4
    I've tried different ways of doing this and no matter what position my light setting is on. Example Parking, DRL, Lows my fog lights are always on. Even when I have the setting on park lights my lows come on with my fogs. I want to have my fogs on with my DRL or with my highs. I would like to beable to turn them on and off when I want on any setting I want. Like the rest of you guys out there. What am I doing wrong? I've went from the fog light fuse to the ignition switch. I dont know what to do everytime my lows come on even when the switch is in the off position. Any ideas? Hope that makes a little sence. Thank-you.

  15. Sep 4, 2012 at 5:20 PM
    #155
    hakabo

    hakabo Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70209
    Messages:
    385
    Gender:
    Male
    First Name:
    Jacob
    Concord, NC
    Vehicle:
    08 urban runner 4x4
    i have a 2007, tried the splice method and could never get the fog lights to work with the fuse pin bent out, and the fogs and head lights were ALWAYS on if i just stuffed the wires into the fuse pin hole. splicing into the green wire didnt work at all, i never had independent fogs. any ideas????

  16. Sep 5, 2012 at 8:40 PM
    #156
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Can you explain more of what your process was? What did you have the wire connected to when you bent out the (what I'm assuming you mean is the) relay.

    And may I suggest this method:
    http://www.tacomaworld.com/forum/lighting/132862-fog-lights-w-parking-low-beam-high-beam.html

    It only comes on if your parking lights are on. But I drive with my parking lights on anyways since they also turn on my brake lights

  17. Sep 17, 2012 at 6:29 PM
    #157
    SpruceTaco

    SpruceTaco Well-Known Member

    Joined:
    May 18, 2012
    Member:
    #79082
    Messages:
    4,142
    Gender:
    Male
    First Name:
    Mike
    Clearwater,FL
    Vehicle:
    2012 Spruce Mica TRD Sport
    Tinted windows 5%, sill protectors, TRD stubby antenna, weathertech in channel rain guards, wheathertech floor mats, BHLM, Truxedo low pro qt, DTRL deleted, anytime backup camera, bed storage locks, fog lights on anytime, tailgate theft deterrent, painted engine cover, relocated horns, l.e.d bed lights, l.e.d engine bay lights, l.e.d lights above cup holders, in glove box, rear cup holder, in console storage & cubby next to steering wheel, plasti dipped lower valance, Grillcraft grill, 17x9 Fuel Krank wheels, Borla cat back exhaust, map & dome l.e.d's, TRD badge on grill, Redline tuning hood struts, Maxtrac spindles, Bilstein 5100's front set at 1.75 & ext.rear, All Pro expedition leaf springs & 1.5" blocks, extended brake lines front & rear, 1.5" 4crawler drive shaft spacer, Beefed Taco carrier bearing drop, 1.25" spidertrax wheel spacers on rear, Kenwood DNX570 touchscreen with navigation, 30" led light bar in lower bumper opening, 1/4" top plate spacer both sides, TRD skid plate sprayed with bedliner

  18. Sep 26, 2012 at 8:26 AM
    #158
    belone12

    belone12 Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86222
    Messages:
    319
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    06 Tacoma Double Cab 6spd
    Bilstein 5100s, Thule Roof Rack, Pioneer AVH4300, tow package, anytime foglight, philips xtreme bulbs.

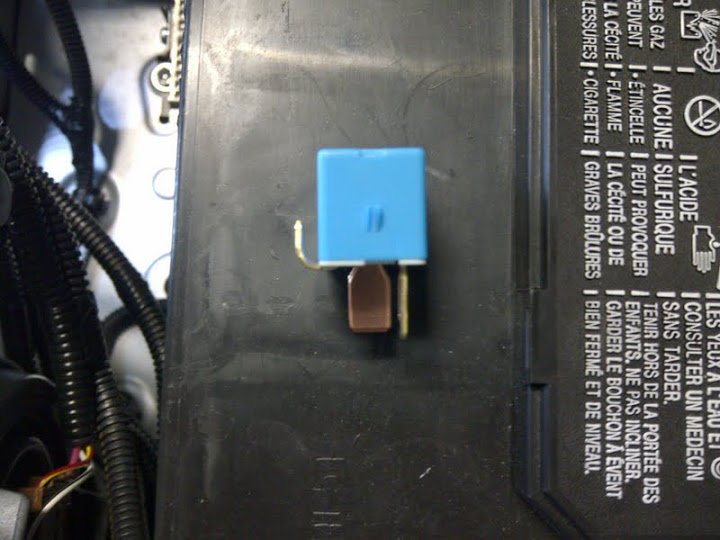

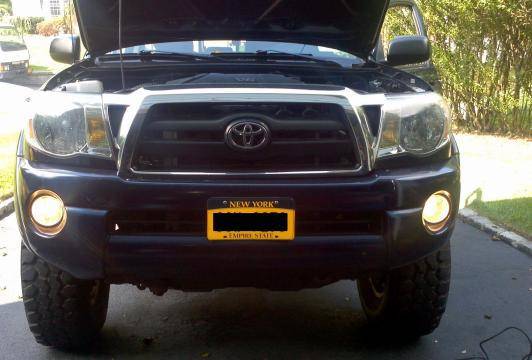

    I did this Saturday in 10 minutes using jivewalker's method in post #78. Worked great, then Sunday, no fog lights. Connections were good, still nothing. I'm new to the truck and there isn't an owners manual. I'm thinking a fuse blew for the fog lamps, I'm just not sure where to look for the fuse. Is it in the same section as the Relay (under the hood) or is it in the dash near the switch? Any help would be appreciated!
    [​IMG]

  19. Sep 26, 2012 at 5:13 PM
    #159
    jivewalker

    jivewalker me gusta pechos firmes

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    796
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS

    Did you disconnect the battery before you did the mod? Are you getting any warning lights or just no fogs? I would have to think maybe you have a bad connection in the wire you installed first, and then maybe a blown fuse. Search around tW and im sure youll find the manual showing fuse locations, but I really tend to think its not a fuse. Also look at the toyota website, think you can get your maual there as well. Let us know what it turns out to be. The mod worked flawlessly for me with no problems. Good luck!

  20. Sep 26, 2012 at 9:03 PM
    #160
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    The two places fuses are, are with the relay and behind the coin holder to the left under your steering wheel. There is a map of the fuses under the fuse box cover and behind the coin holder.

    Also try this method:
    http://www.tacomaworld.com/forum/lighting/132862-fog-lights-w-parking-low-beam-high-beam.html
