    Quick Links: Looking for cigarette lighter 2012+ Tacoma V6 K&N Performance Intake Kit WTB: Wet Okole console cover Tacoma Double Cab Side Steps for sale N-Fab Nerf Steps - DC Short Bed AFe 46-38002 Silver Bullet Throttle Body Spacer $60 Shipped

Anytime Rear Camera Mod for 2nd Gen Tacomas

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by Logistics91, Feb 24, 2018.

Page 24 of 29
  1. Aug 29, 2018 at 4:58 PM
    #461
    mcraecustoms

    #461
    mcraecustoms Member

    Joined:
    Jun 18, 2018
    Member:
    #256794
    Messages:
    23
    Gender:
    Male
    Vehicle:
    2014 MGM Tacoma
    5100s and 265s

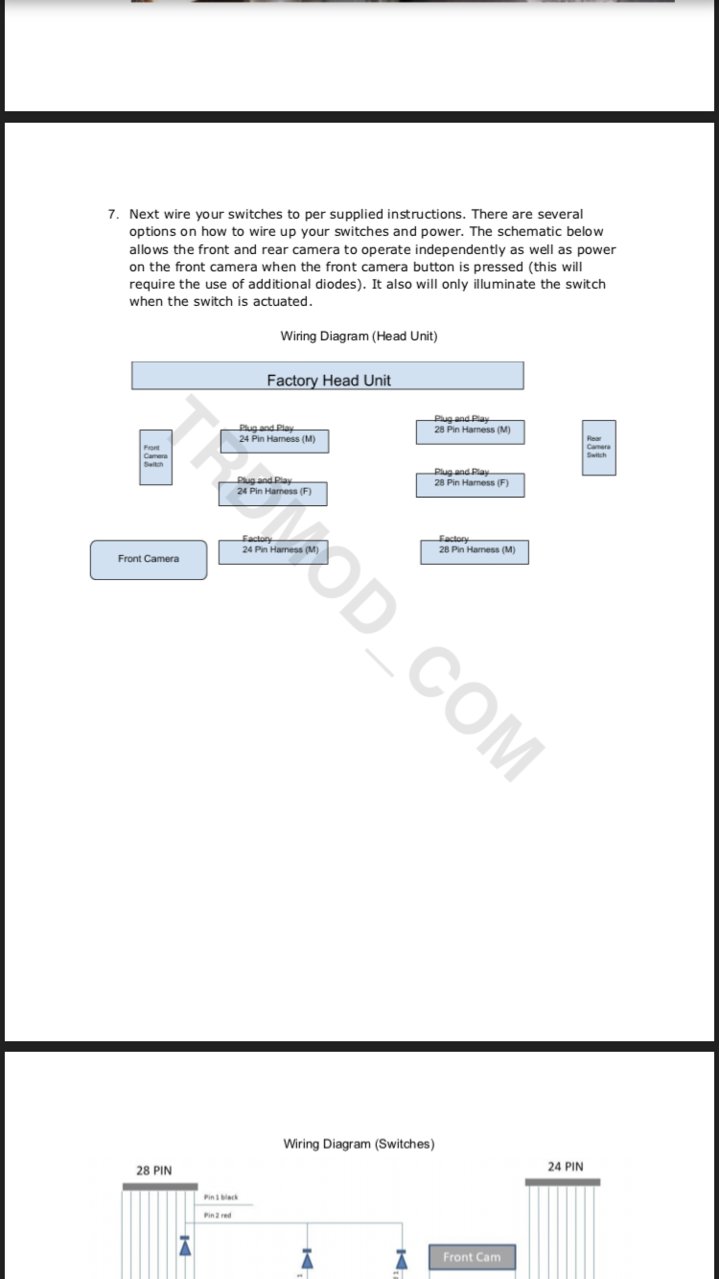

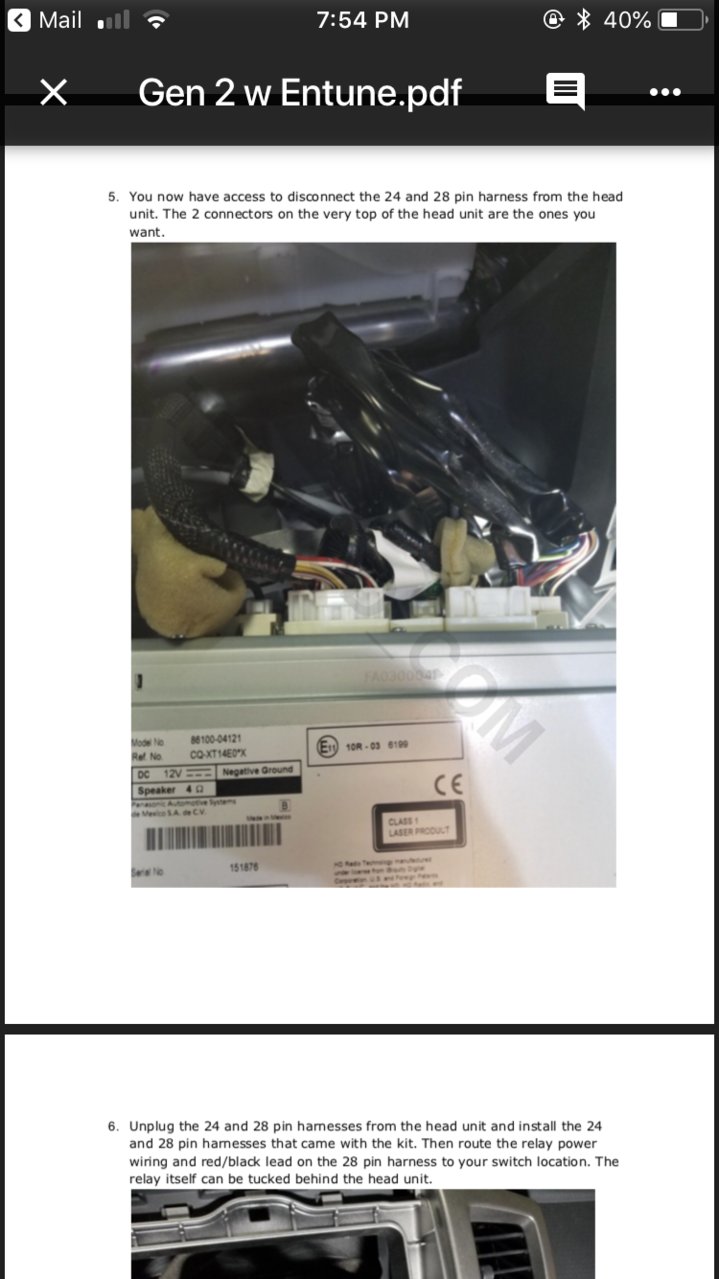

    The other steps I didn’t list are simple pictures of how to remove the head unit. 8FBD99D2-53F7-44D4-A3FD-5C0AD6AF9040.jpg1A3D70BE-2F73-4AFB-B1BB-C3426A9FB45E.jpg41FFC473-DA19-41D4-81BD-54AE4791F4FA.jpgDAEB63BF-88B8-4CFC-98A0-1CD697A7D05C.jpg

    mcraecustoms, Aug 29, 2018
    #461
    Grumpy likes this.
  2. Aug 29, 2018 at 6:09 PM
    #462
    OverlAnderson

    #462
    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    2,126
    Gender:
    Male
    First Name:
    Anderson
    San Antonio, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things

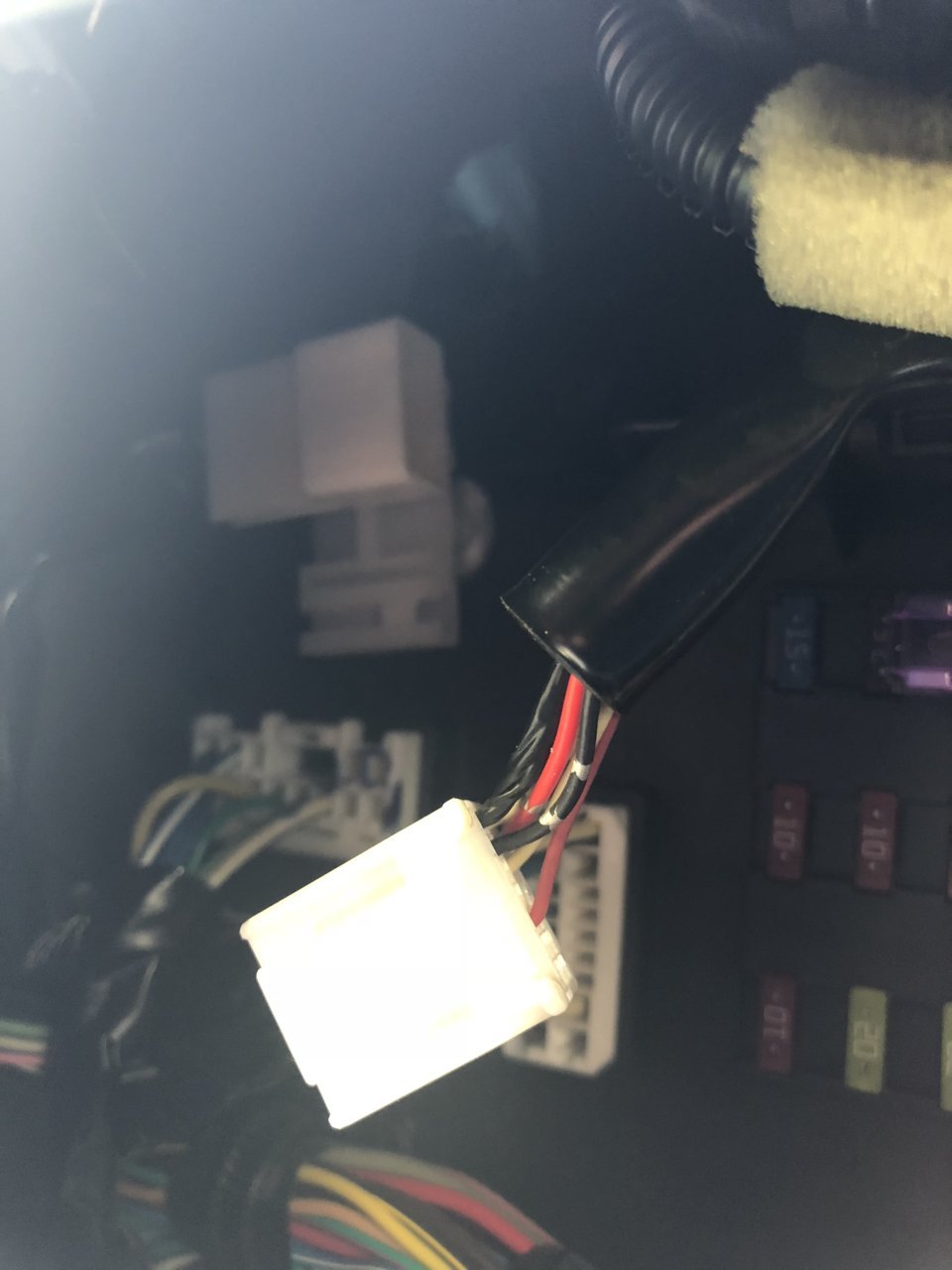

    Did you have to pull the head unit? Is the IN1 connector with the 12v rev wire going to the head unit instead of in the drive coin tray?

    OverlAnderson, Aug 29, 2018
    #462
    Grumpy likes this.
  3. Aug 29, 2018 at 7:55 PM
    #463
    GZeus24

    #463
    GZeus24 bystander

    Joined:
    Apr 5, 2014
    Member:
    #127076
    Messages:
    593
    Gender:
    Male
    First Name:
    Gary
    Texas
    Vehicle:
    2014 DCLB Sport
    lightly modified
    For anyone looking to be done in 20 minutes with no pain;
    Go here and buy this for $38 shipped (get the right one for your year): https://www.anytimebackupcamera.com/product-page/camera-override-dongle-28-position-1
    Buy this for $5 (2 units included) or a similar SPST: https://www.amazon.com/Terminal-Black-Round-Rocker-Switch/dp/B0057M4J4E
    YouTube how to remove the head unit if you don't know already, install the purchased harness, connect/mount the switch. Done.

    Having already invested a couple of hours in reading threads and more poking around I think it was money well spent.

    GZeus24, Aug 29, 2018
    #463
    Norton, Grumpy, OverlAnderson and 1 other person like this.
  4. Aug 29, 2018 at 8:07 PM
    #464
    mcraecustoms

    #464
    mcraecustoms Member

    Joined:
    Jun 18, 2018
    Member:
    #256794
    Messages:
    23
    Gender:
    Male
    Vehicle:
    2014 MGM Tacoma
    5100s and 265s

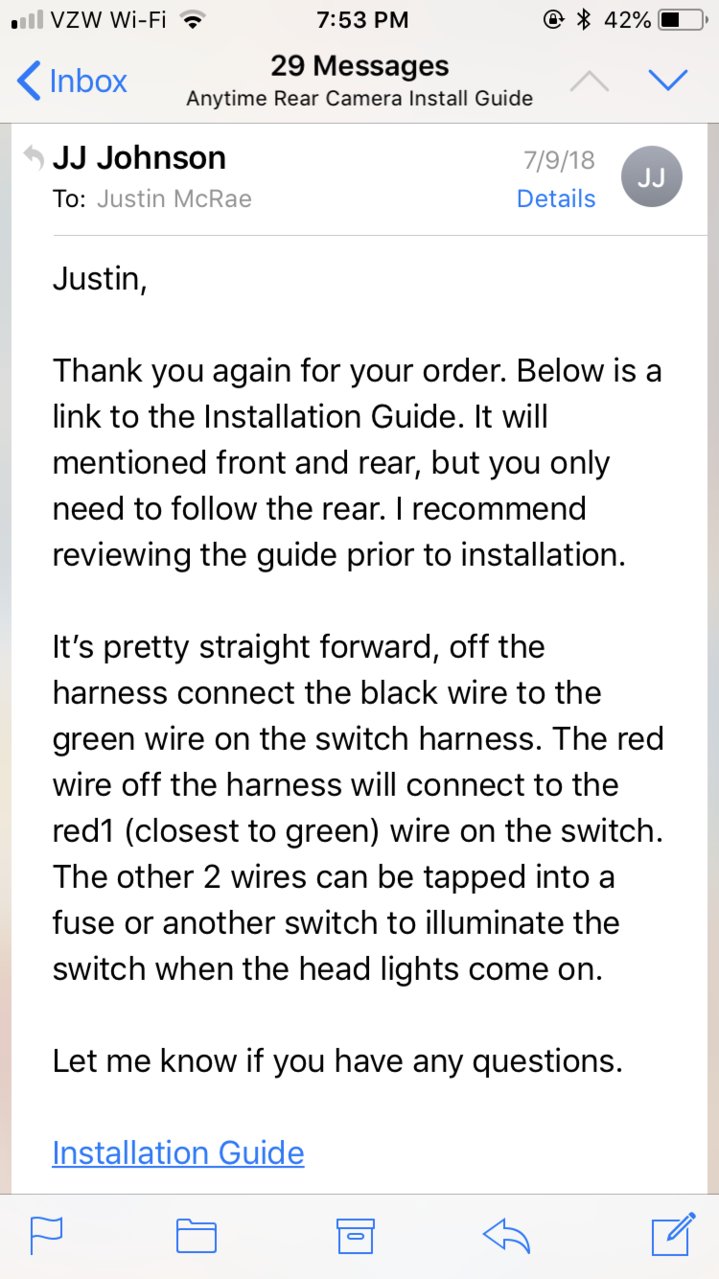

    His instructions which I had to ask for, make no mention of any IN1 connector or rev wire. Other than what I posted pictures of, the rest of the instructions is how to remove head unit.

    mcraecustoms, Aug 29, 2018
    #464
  5. Aug 30, 2018 at 6:12 AM
    #465
    OverlAnderson

    #465
    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    2,126
    Gender:
    Male
    First Name:
    Anderson
    San Antonio, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    thanks bro bought it. do you have the factory head unit screen in your 2014 TRD sport?

    OverlAnderson, Aug 30, 2018
    #465
  6. Aug 30, 2018 at 4:10 PM
    #466
    mcraecustoms

    #466
    mcraecustoms Member

    Joined:
    Jun 18, 2018
    Member:
    #256794
    Messages:
    23
    Gender:
    Male
    Vehicle:
    2014 MGM Tacoma
    5100s and 265s

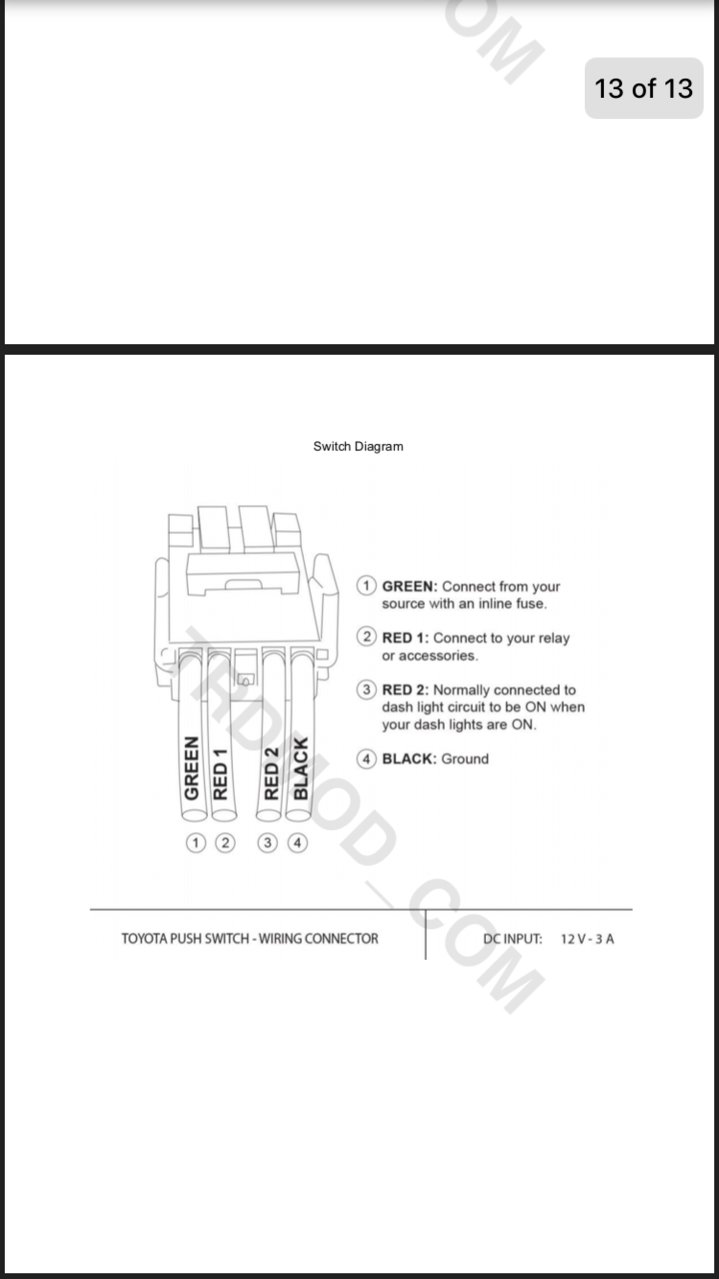

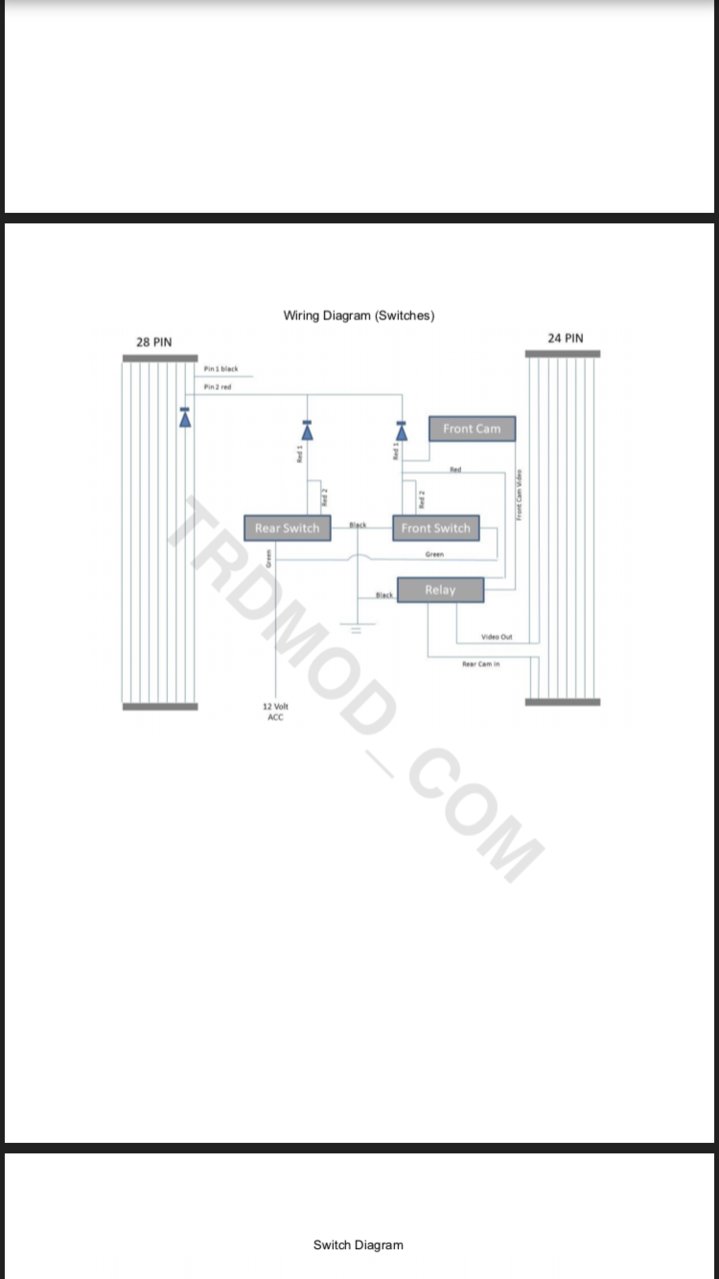

    In regards to the wiring, GZeus24 helped me out. JJ supplied instructions don't necessarily contradict what he said in the email, but it made the install slightly confusing.

    Red wire from 28 pin harness - Red 1 on switch
    Black wire from 28 pin harness - leave disconnected (could be hooked to green on switch as it provides 12v)
    Green wire on switch - 12v ACC
    Black wire on switch - ground
    Red 2 on switch - illumination

    Hope this helps anyone in need.

    mcraecustoms, Aug 30, 2018
    #466
    ChadsPride, Grumpy and OverlAnderson like this.
  7. Aug 30, 2018 at 7:27 PM
    #467
    GZeus24

    #467
    GZeus24 bystander

    Joined:
    Apr 5, 2014
    Member:
    #127076
    Messages:
    593
    Gender:
    Male
    First Name:
    Gary
    Texas
    Vehicle:
    2014 DCLB Sport
    lightly modified
    Yup, factory head unit with rear camera on the screen. Literally 20 minutes work - didn't even finish a beer before I was done. Just do it in 2 steps - install the harness and test prior to closing everything up and then and test again before drilling to mount the button. I put mine on the steering wheel column. Shrink wrapping the connections is a good idea too.

    GZeus24, Aug 30, 2018
    #467
  8. Aug 31, 2018 at 4:42 AM
    #468
    OverlAnderson

    #468
    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    2,126
    Gender:
    Male
    First Name:
    Anderson
    San Antonio, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    right on man I appreciate you sharing this info id been searching high and low for answers!! ill be using one of the OEM looking switches from CH4X4.com but it shouldn't be much different.

    OverlAnderson, Aug 31, 2018
    #468
  9. Aug 31, 2018 at 7:54 PM
    #469
    DesertRatliff

    #469
    DesertRatliff Well-Known Member

    Joined:
    Jan 14, 2012
    Member:
    #70618
    Messages:
    2,379
    Gender:
    Male
    Mt. Hood, OR
    Vehicle:
    Mas Tacos Por Favor
    DesertRatliff, Aug 31, 2018
    #469
    TacoTRD78 likes this.
  10. Sep 2, 2018 at 6:24 PM
    #470
    Grumpy

    #470
    Grumpy My 1st Tacoma

    Joined:
    Apr 18, 2014
    Member:
    #127946
    Messages:
    397
    Gender:
    Male
    First Name:
    Maurice
    Oahu, Hawaii
    Vehicle:
    14/DCLB/V6/4x4/SR5
    17" Method Grid Titanium rims w/ Pro Comp Sport A/T 265/70/17 tires, Mobtown Offroad ribbed Tailgate skin, installed LED lights in painted rear bumper black, faux TRD grill, color match grill surround. LEDs in map, license plate, center console, and dome lights. Anytime driving lite mod, debadged, vent visors, AA Maglite mounted under center console armrest. Antitheft hose clamp on tailgate, LED bed lighting kit. LED spot lights in lower front bumper. Weathertech floor mats. Painted various interior parts black, homemade 7 pin relocation bracket, Valet under door LEDS, CMC, SPC UCA, Bilstein 5100, OME 885, Headstrong AAL. Pop&Lock.
    I installed the kit today, Thank you to everyone who has taken time to post about wiring it absolutely helped. I always scratch the bezel that surrounds the radio whenever I put the radio back in. Every Effin time!

    Grumpy, Sep 2, 2018
    #470
  11. Sep 3, 2018 at 11:19 AM
    #471
    SilverJack

    #471
    SilverJack no one

    Joined:
    Jul 31, 2014
    Member:
    #135135
    Messages:
    1,540
    Blue painters tape is your friend. ;)

    SilverJack, Sep 3, 2018
    #471
    stickyTaco likes this.
  12. Sep 3, 2018 at 11:35 PM
    #472
    Grumpy

    #472
    Grumpy My 1st Tacoma

    Joined:
    Apr 18, 2014
    Member:
    #127946
    Messages:
    397
    Gender:
    Male
    First Name:
    Maurice
    Oahu, Hawaii
    Vehicle:
    14/DCLB/V6/4x4/SR5
    17" Method Grid Titanium rims w/ Pro Comp Sport A/T 265/70/17 tires, Mobtown Offroad ribbed Tailgate skin, installed LED lights in painted rear bumper black, faux TRD grill, color match grill surround. LEDs in map, license plate, center console, and dome lights. Anytime driving lite mod, debadged, vent visors, AA Maglite mounted under center console armrest. Antitheft hose clamp on tailgate, LED bed lighting kit. LED spot lights in lower front bumper. Weathertech floor mats. Painted various interior parts black, homemade 7 pin relocation bracket, Valet under door LEDS, CMC, SPC UCA, Bilstein 5100, OME 885, Headstrong AAL. Pop&Lock.
    @SilverJack, I didn't even think of that. I have done it on the exterior for other things. Thanks.

    Grumpy, Sep 3, 2018
    #472
    SilverJack likes this.
  13. Sep 5, 2018 at 7:21 PM
    #473
    OverlAnderson

    #473
    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    2,126
    Gender:
    Male
    First Name:
    Anderson
    San Antonio, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    You were right @GZeus24 that was an easy mod, back up cam with push switch installed

    OverlAnderson, Sep 5, 2018
    #473
    GZeus24[QUOTED] likes this.
  14. Sep 6, 2018 at 2:36 AM
    #474
    Shearboy2005

    #474
    Shearboy2005 It can't stay tight if it's a liquid.

    Joined:
    Feb 19, 2018
    Member:
    #244967
    Messages:
    427
    Gender:
    Male
    Ky
    Vehicle:
    2015 TRD SPORT, 06 PreRunner
    I'm currently waiting on parts for the same mod. Undecided on switch. Any pics of yours?

    Shearboy2005, Sep 6, 2018
    #474
  15. Sep 6, 2018 at 4:46 AM
    #475
    OverlAnderson

    #475
    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    2,126
    Gender:
    Male
    First Name:
    Anderson
    San Antonio, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    i don't have any on hand but go to CH4X4.com they make laser etched ones that look OEM and fit the empty ports on your dash

    OverlAnderson, Sep 6, 2018
    #475
    Norton and TacoTRD78 like this.
  16. Sep 6, 2018 at 6:50 PM
    #476
    Saechao503

    #476
    Saechao503 Well-Known Member

    Joined:
    Aug 26, 2014
    Member:
    #137009
    Messages:
    290
    Gender:
    Male
    First Name:
    Khae
    troutdale oregon
    Vehicle:
    2015 tacoma dc trd offroad
    Do they still sell them?? Still havent heard back from mine over a month already. And paid for it also

    Saechao503, Sep 6, 2018
    #476
  17. Sep 6, 2018 at 7:00 PM
    #477
    apoteker

    #477
    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    404
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar

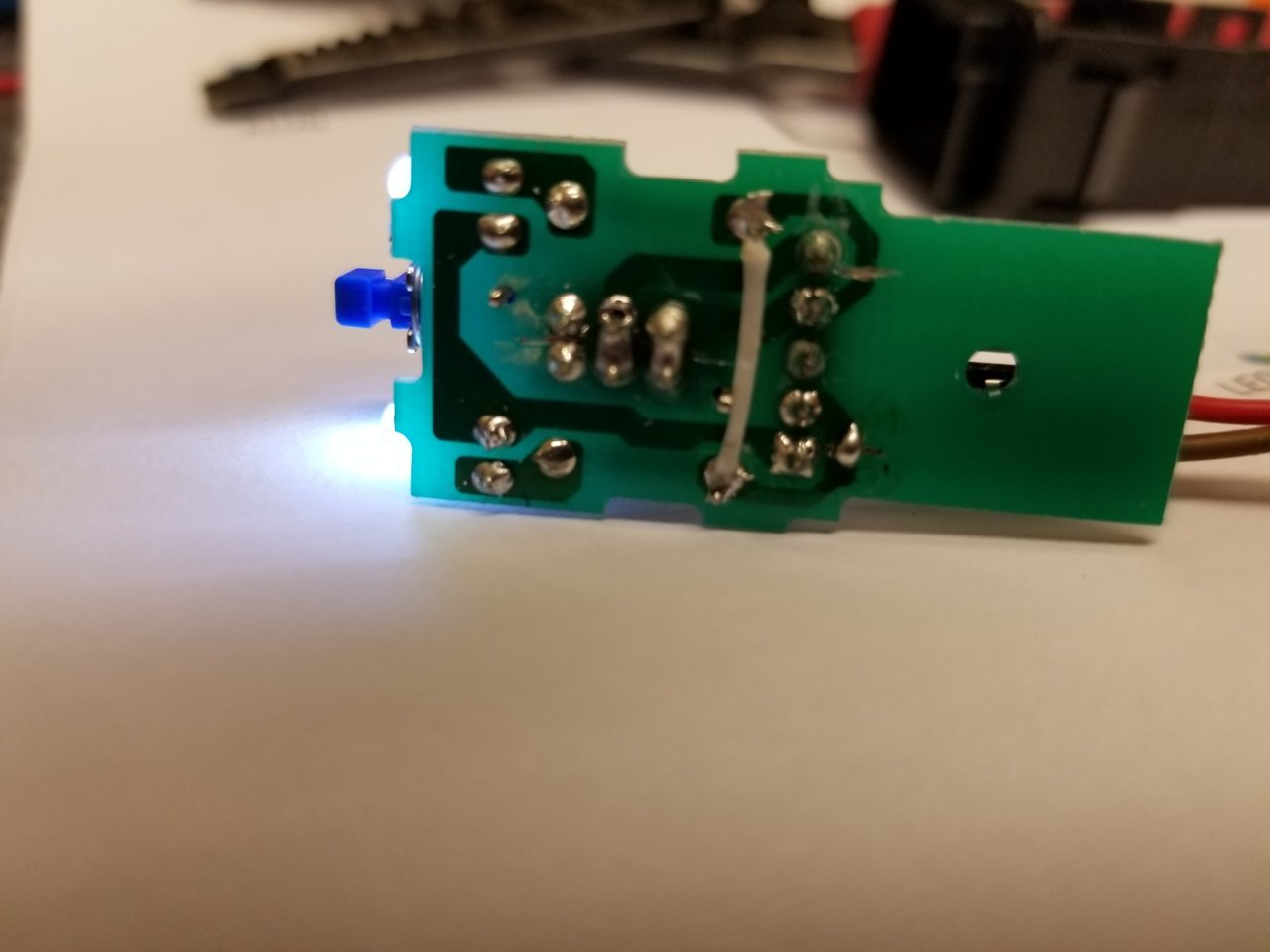

    I just did this mod this weekend... Modified the pushbutton switch to white LEDs and both are lit when dahs lights on. I modded the switch to send a ground signal out to the ground side of the relay. This really simplified the wiring... 1 wire to add a fuse, cut the signal wire and wired each side to the relay then had the wire from the switch. Pleased with how it turned out, although the relay click is audible, which might be due to tucking up near the dimmer switch. 2012 O/R and the connector was as described in the previous posts. For those interested, I am attaching the modded switch. Cut through the 12v (+) trace to the 2nd (on) LED and ran a jumper wire. The switch LEDs are now fully on the illumination circuit and dim properly. The other two pins have a ground in and out.


    Last edited: Sep 6, 2018
    apoteker, Sep 6, 2018
    #477
    NotRed and Grumpy like this.
  18. Sep 7, 2018 at 4:57 AM
    #478
    OverlAnderson

    #478
    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    2,126
    Gender:
    Male
    First Name:
    Anderson
    San Antonio, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    check out anytimerearcamera.com im not sure if they have the stuff for your year but give it a look.

    OverlAnderson, Sep 7, 2018
    #478
  19. Sep 7, 2018 at 5:14 AM
    #479
    Saechao503

    #479
    Saechao503 Well-Known Member

    Joined:
    Aug 26, 2014
    Member:
    #137009
    Messages:
    290
    Gender:
    Male
    First Name:
    Khae
    troutdale oregon
    Vehicle:
    2015 tacoma dc trd offroad
    I got a 2015 tacoma. But i already paid for this one in this thread never got anything yet.

    Saechao503, Sep 7, 2018
    #479
  20. Sep 7, 2018 at 5:17 AM
    #480
    Redmann

    #480
    Redmann DILLIGAF

    Joined:
    Dec 30, 2016
    Member:
    #206119
    Messages:
    6,978
    Gender:
    Male
    First Name:
    Reds
    Philly
    Vehicle:
    2009 AC TRDOR
    @tcBob any input on this? Maybe one of you guys can reach out to JJ? Hopefully everything is ok with the guy.

    Redmann, Sep 7, 2018
    #480
