Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 7, 2018 at 3:53 PM
    #1
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    -EDIT- Hey TW, Brian just let me know he’s now offering TW members a 10% discount, use TW10 at check out
    At the bottom of this post I’ve linked the new camera I started using that gives me a better FOV

    Here’s my experience installing and my review of the www.anytimebackupcamera.com system for my 2018 DCSB with JBL head set. I originally wanted to buy JJ’s system from TRDMOD but he’s no longer selling them and I wanted a clean set up, and this system has been stellar. I am a handy guy but not so inclined for electrical wiring. Here’s my experience:

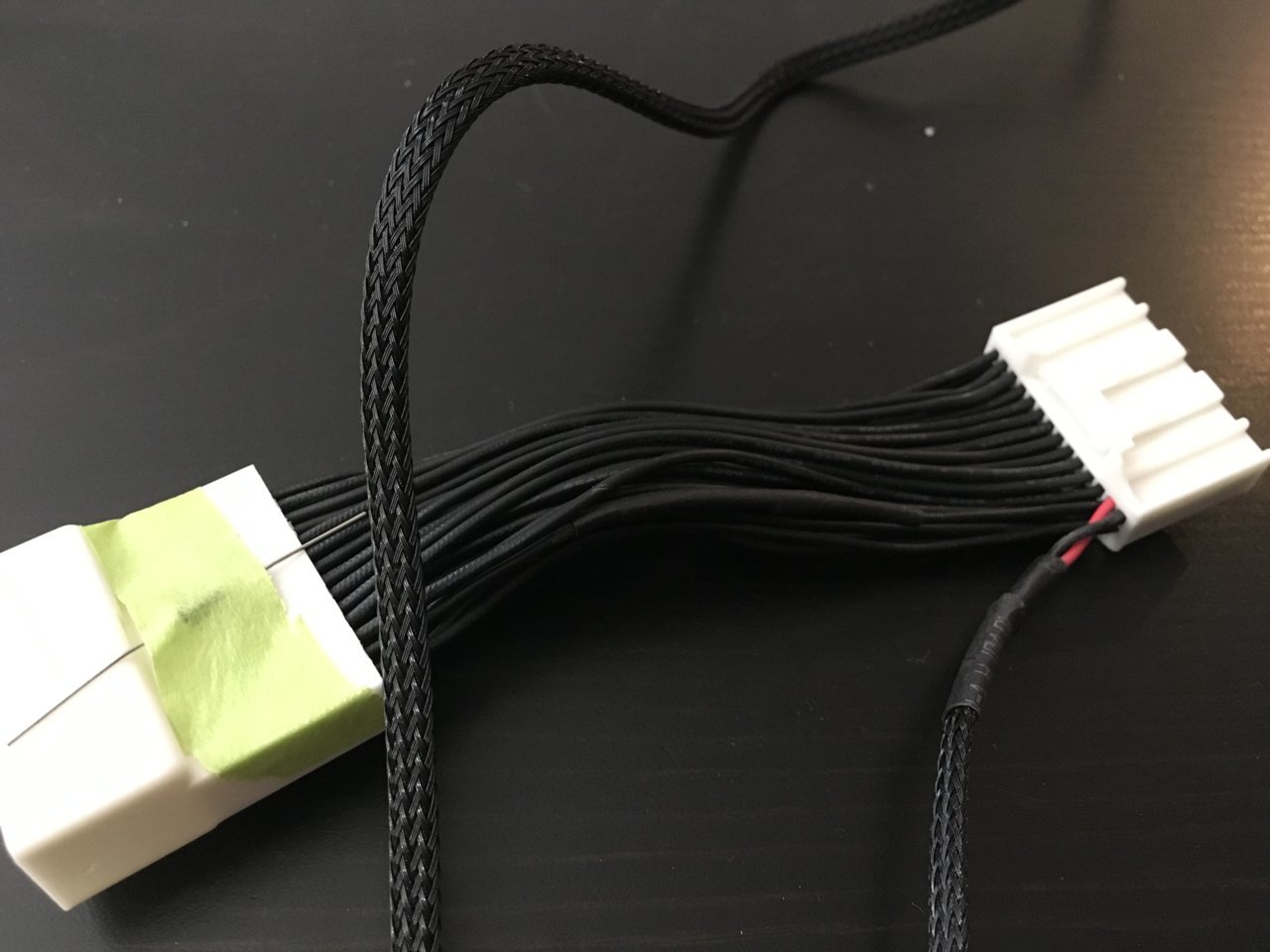

    The harness is a simple plug-and-play system for the rear camera override, front camera lead in, and included relay switch to toggle between video sources. This system does not affect the NAV, radio, or phone functionality while in motion and selecting a camera.
    EEDFE7F1-0CC9-4AC6-9D2F-40FBA7F215A6.jpg 0466DF10-08CC-421F-A87C-E68D82FF0471.jpg

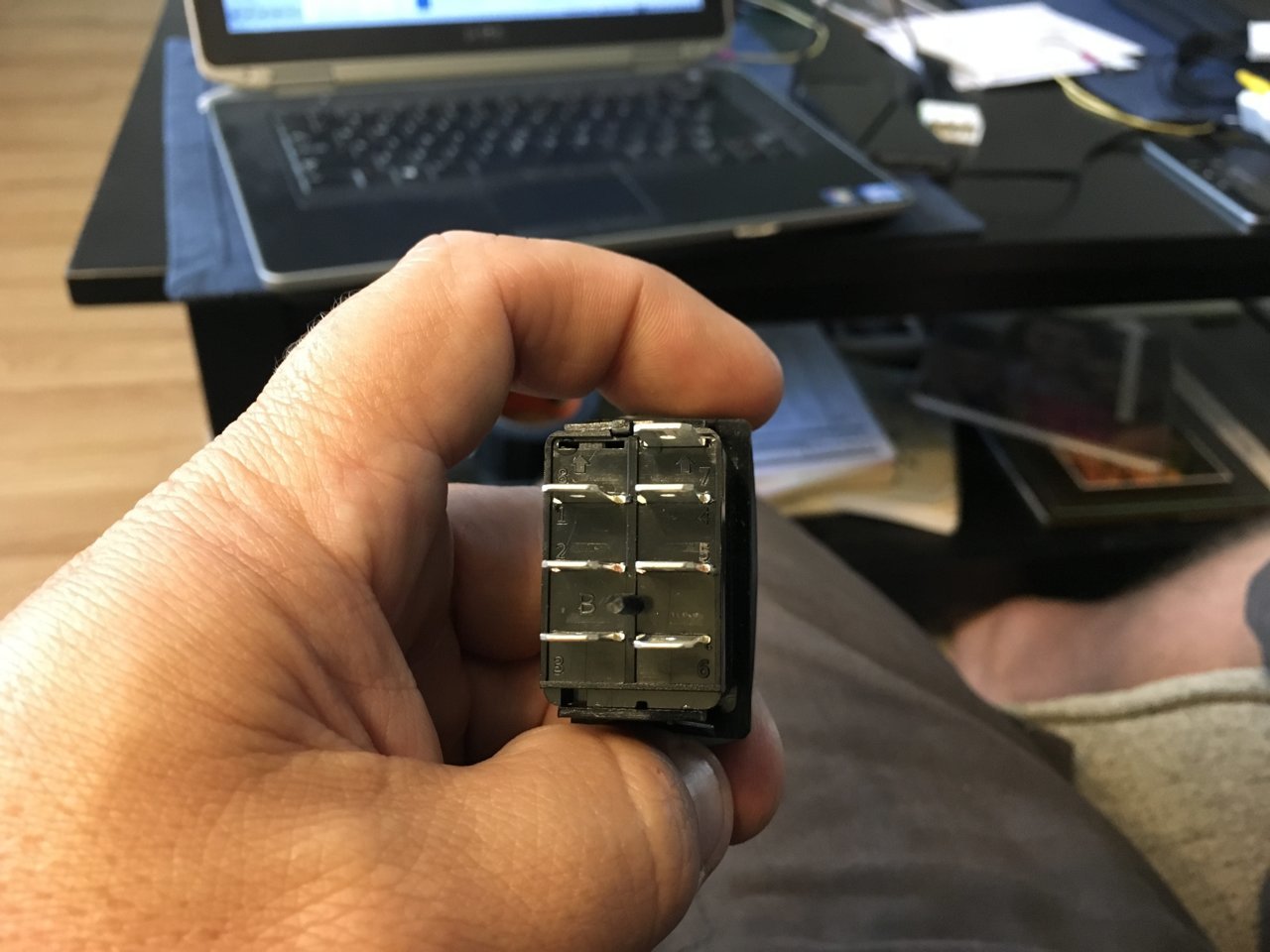

    I decided on the DPDT (dual pole, dual throw=dual rocker) Switch. It’s a standard size switch that I put under my cubby.


    The website clearly lists out which plugs go where and I quickly soldered additional plugs to double up the red and black wires for the switch. Btw I totally thought I had to wire up 12v power for the switch which is not true. The camera needs power but not the switch. So again you don’t need a power source at all for anything behind the radio or the switch, you just need a ground. However if your single switch has dash lights tap the TAN wire on the bed light switch right there on the same panel.

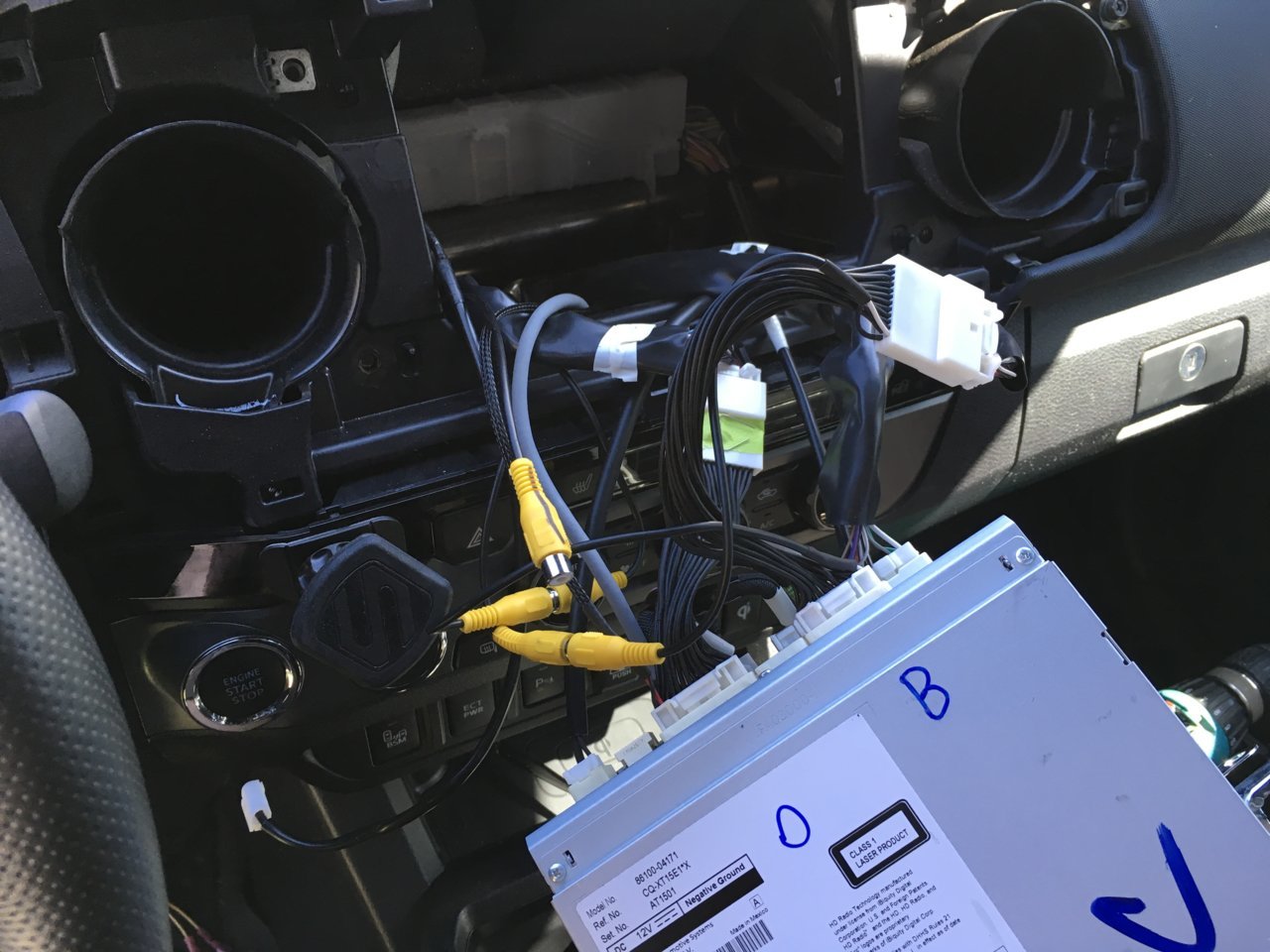

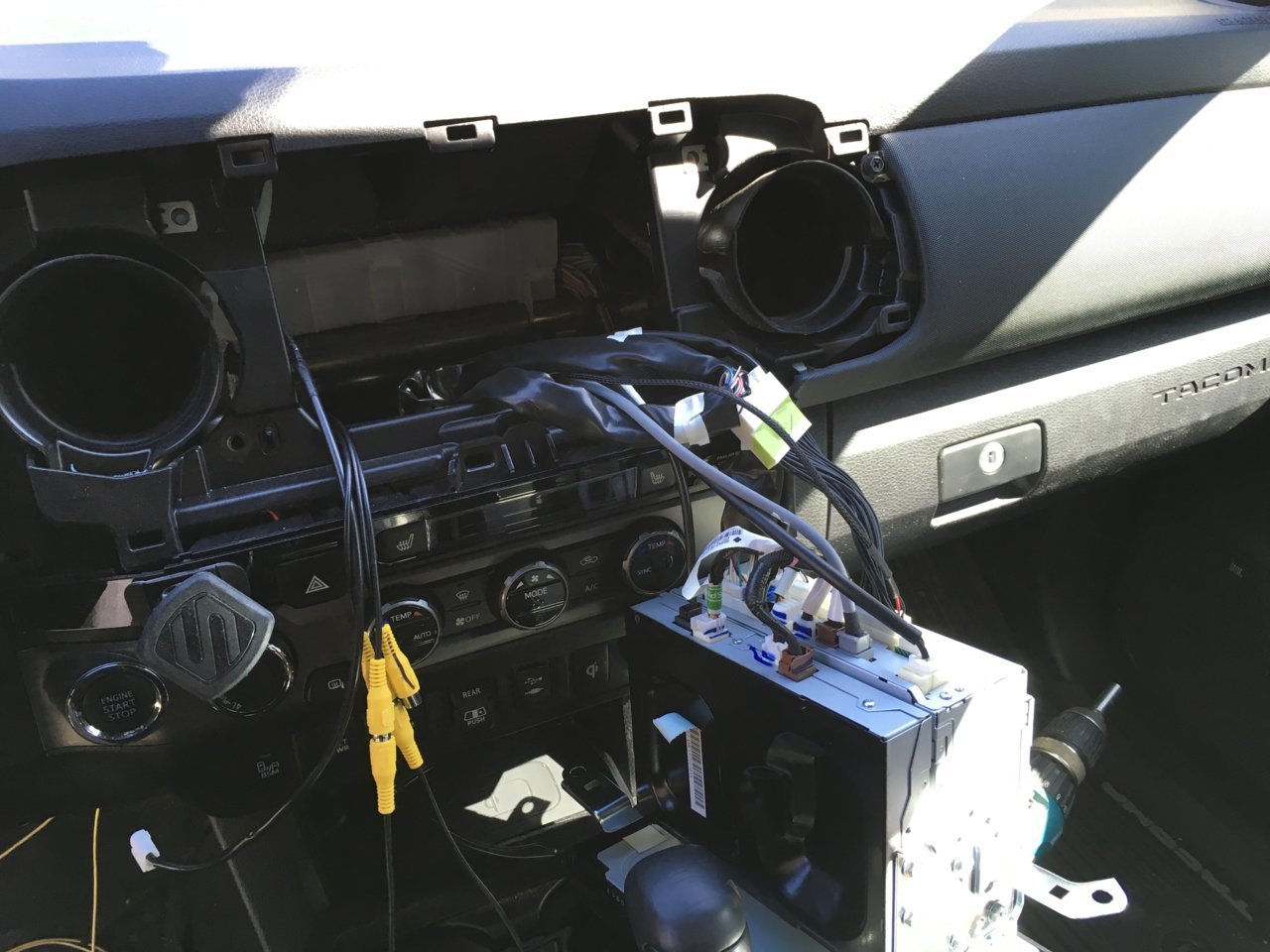

    It sounds scary but pulling off the bezel around the radio is astonishingly easy, I didn’t even use tools, just my hands. The radio bolts are 10mm and in 3 minutes you have this-E6D6ABB4-12AE-4775-8B2C-16FA88F298A3.jpg

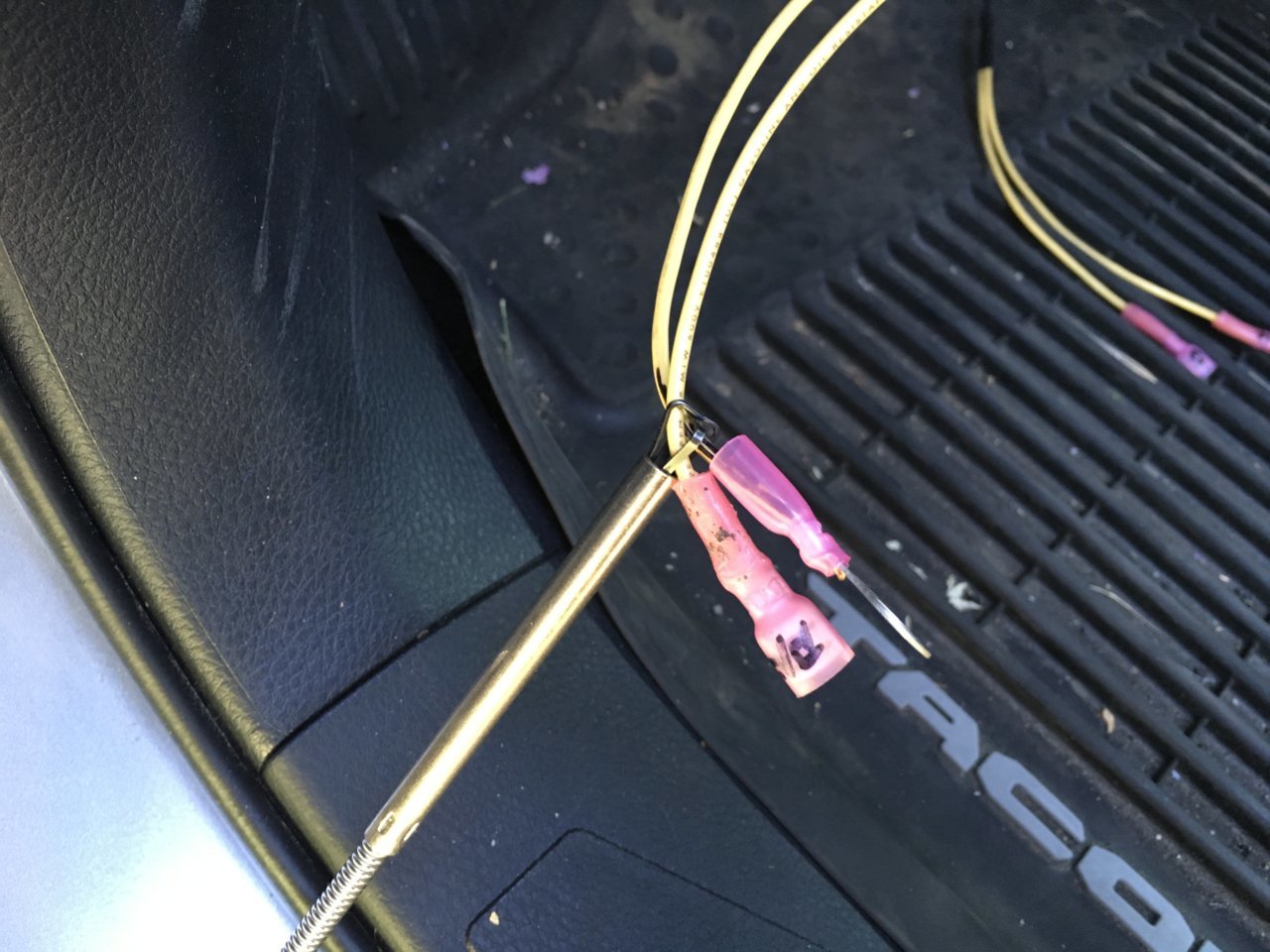

    I snaked all my wires down using one of those cheap grabber things, you could use a coat hanger wire and tape instead613447DE-70AD-4BDB-9867-0E135D70D79D.jpg

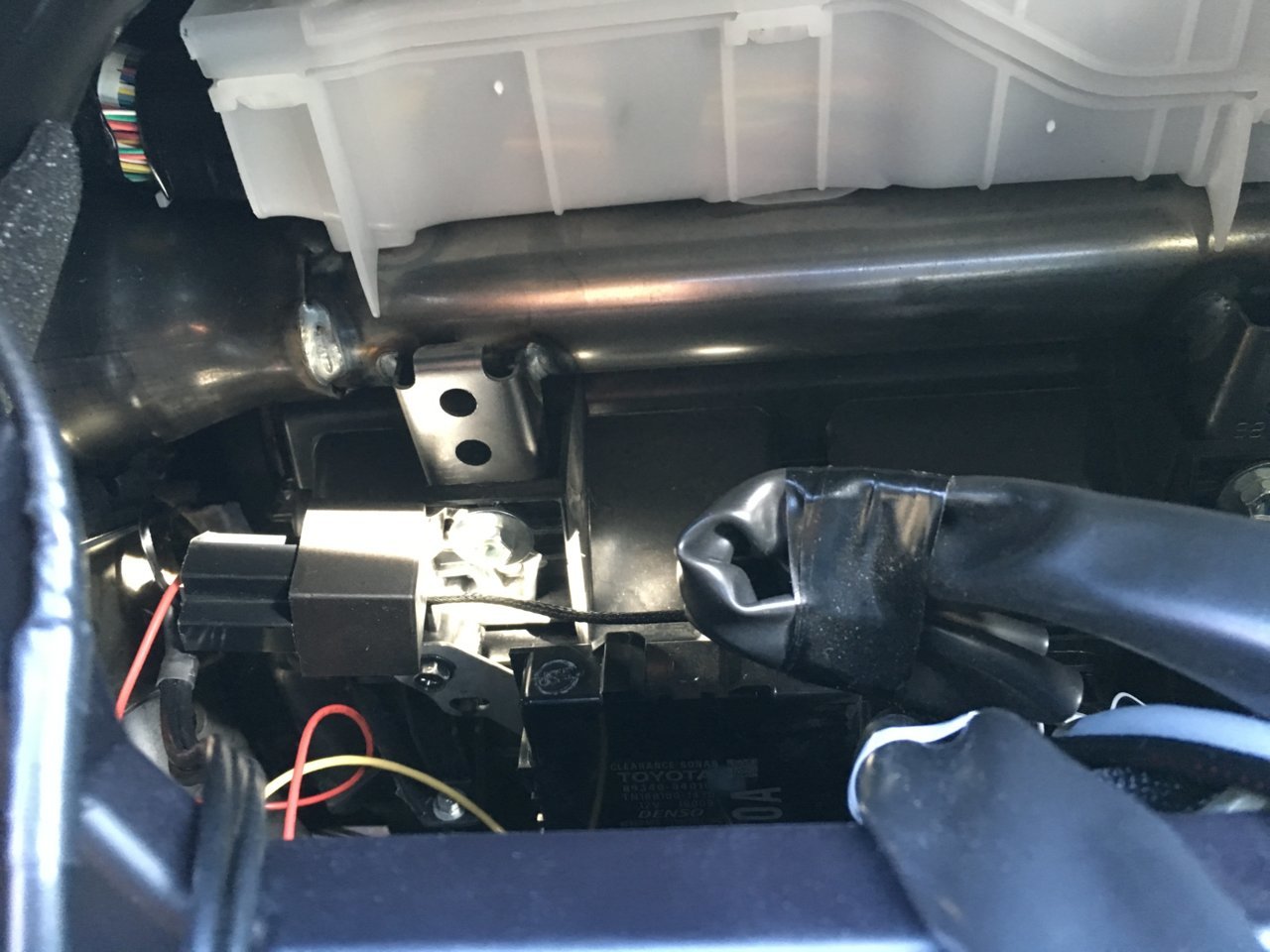

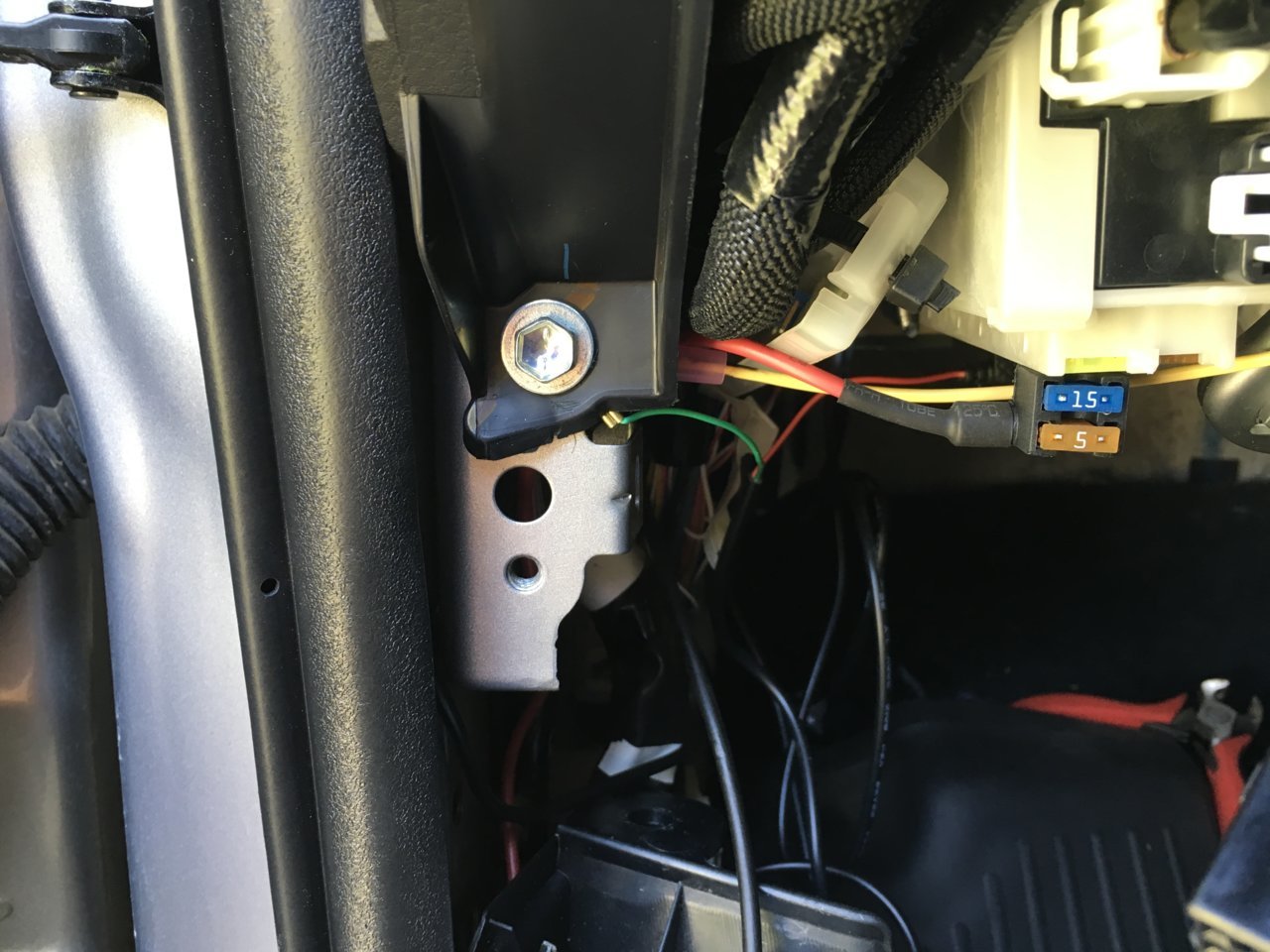

    I attached the relay under the radio on this 10mm boltE7069C21-9D16-48A2-8181-436FA154EC36.jpg
    The relay and plug is on the left

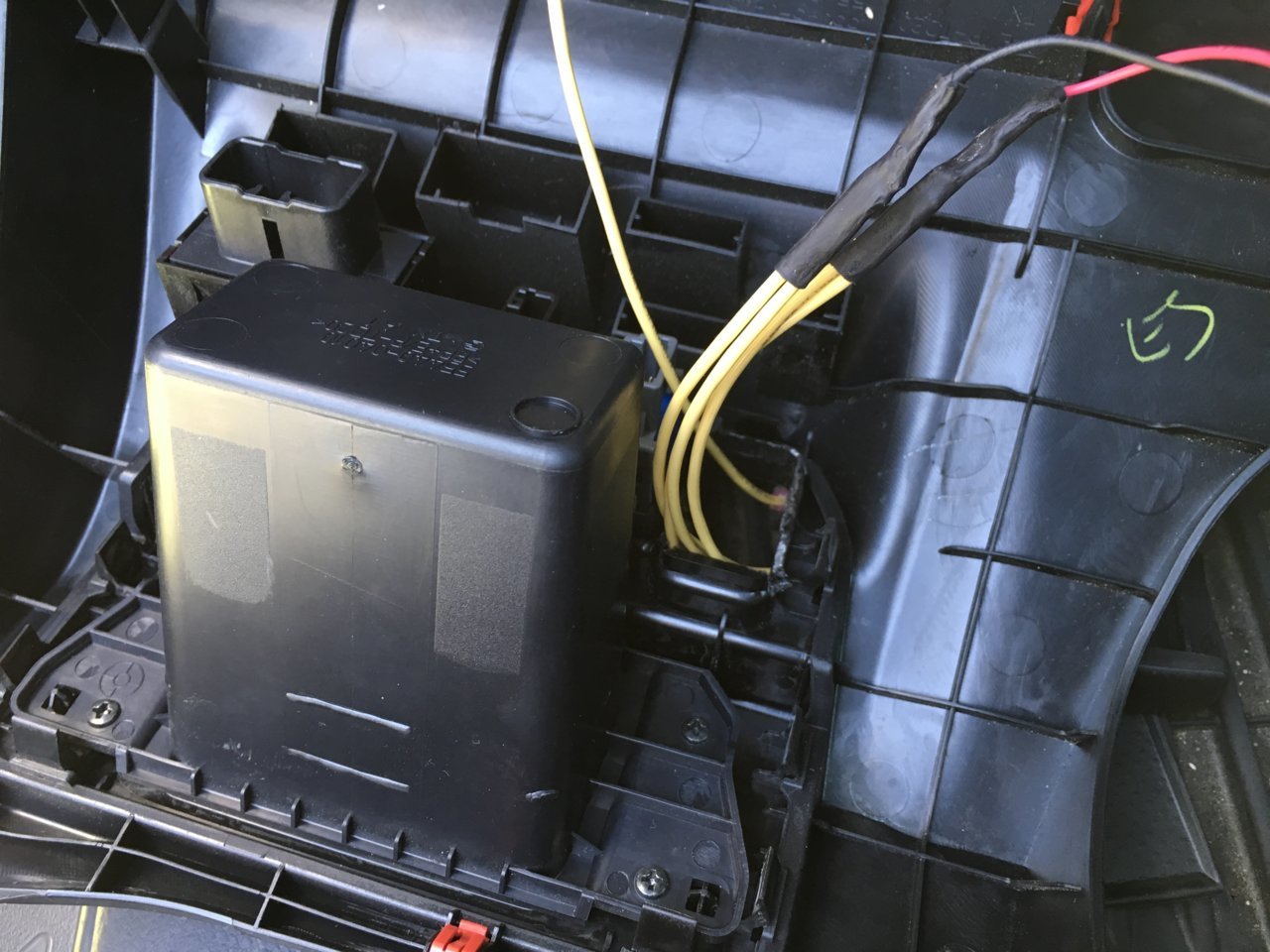

    I ran the wires under and up through the lower switch panel. Again 2 lower bolts come out and just simply pull off the lower panel3830DB6B-E4D1-4630-BD79-9085CCC3989D.jpg
    I had to dremel just the rear of the slot to make it wide enough to accept the switch. Easy and took 5 mins, the front of the panel looks perfect.

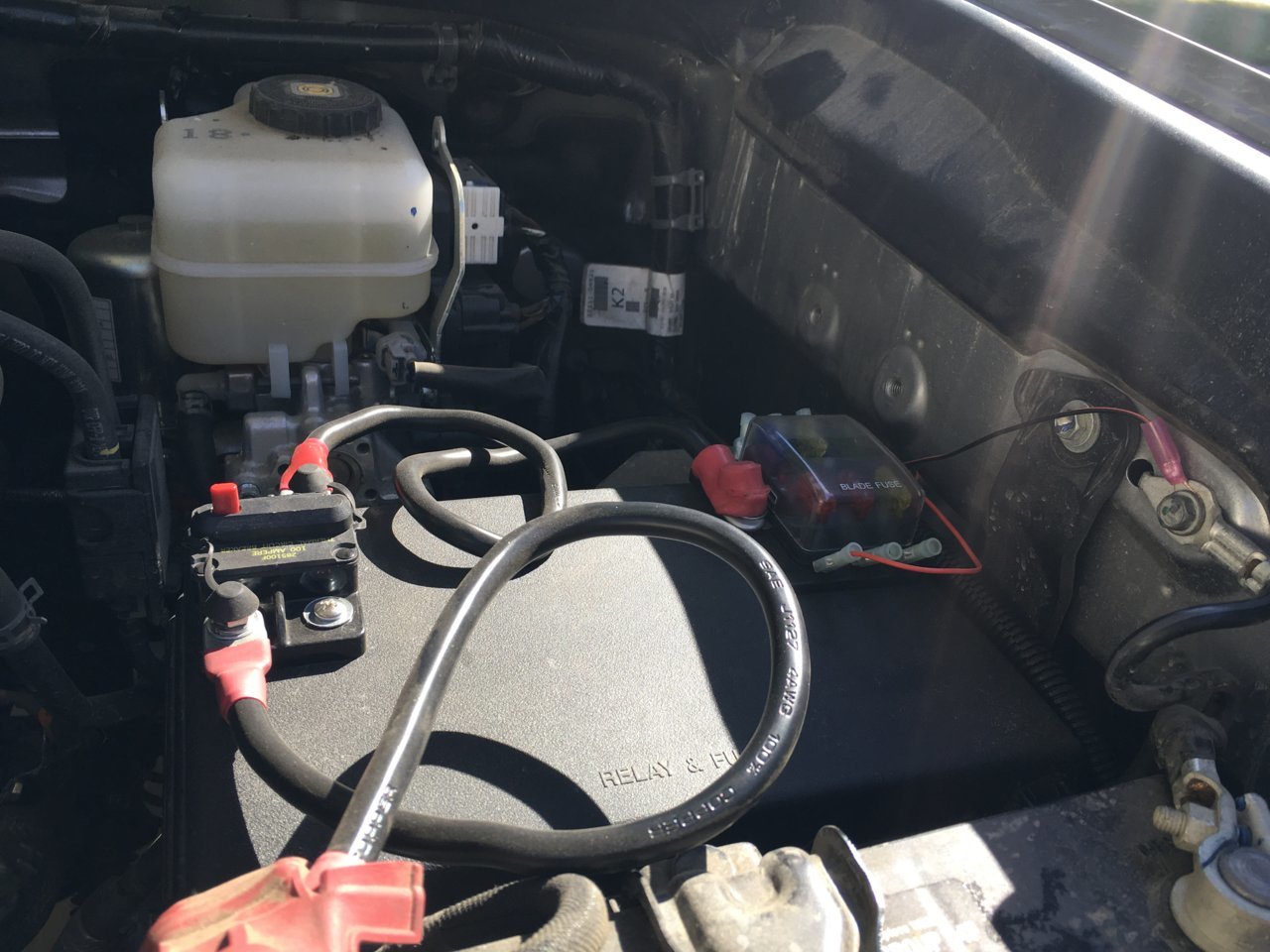

    I routed the ground for the relay switch to this bolt on the frame, easy to get to and secure! It’s just to the left of the fuse panel behind the plastic tab

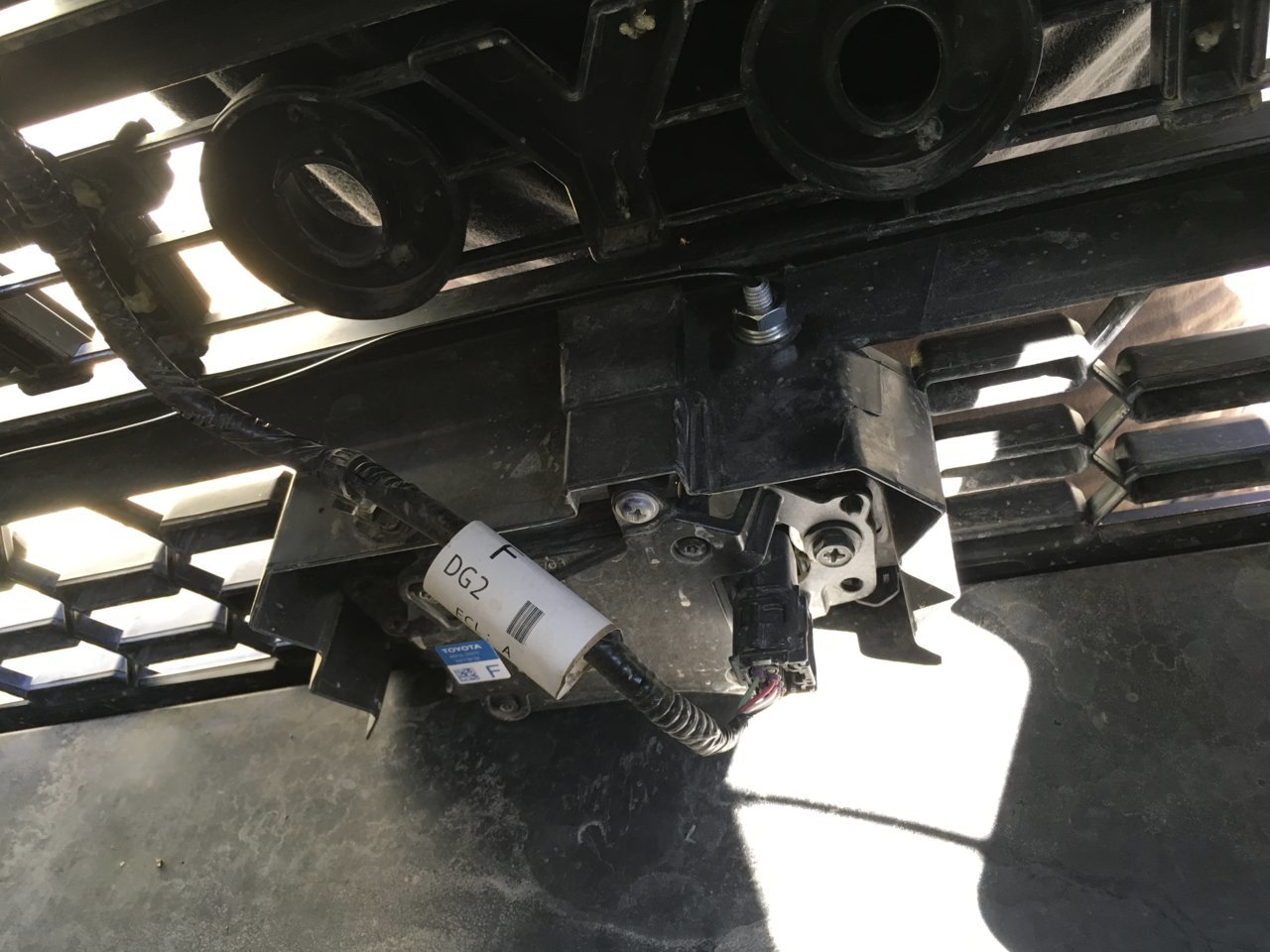

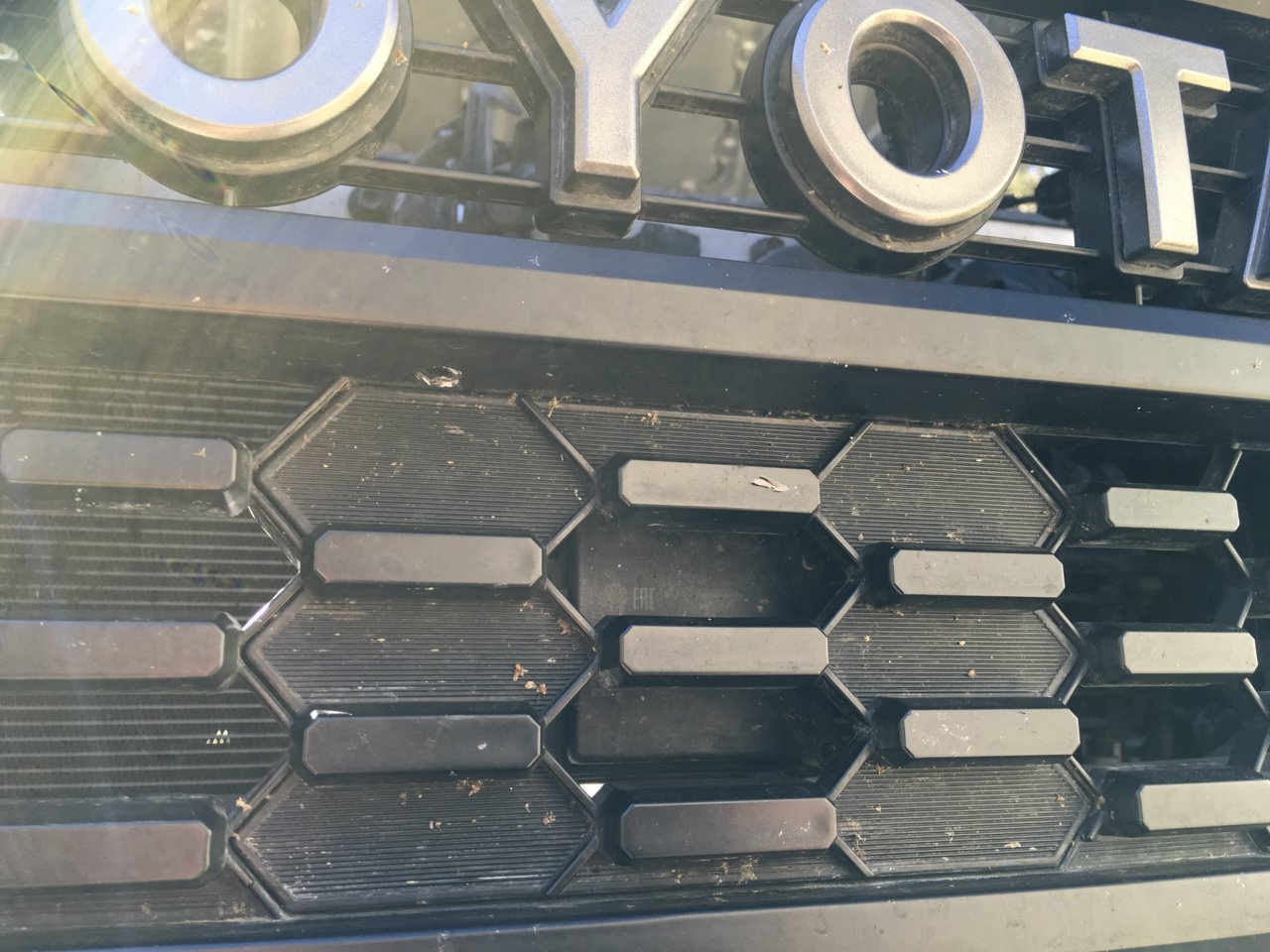

    Next I installed my front camera. I have a knock off pro grille with TSS sensor so I put it just left of center. I drilled a hole and screwed it in while running the cable along with zip ties
    44386067-62DC-4CE4-9FFE-1924671A0F2C.jpg 2A36C497-54FB-4DA0-A425-98F30A6AD493.jpg EF72C5E6-F7C1-4003-A290-0E237569647F.jpg

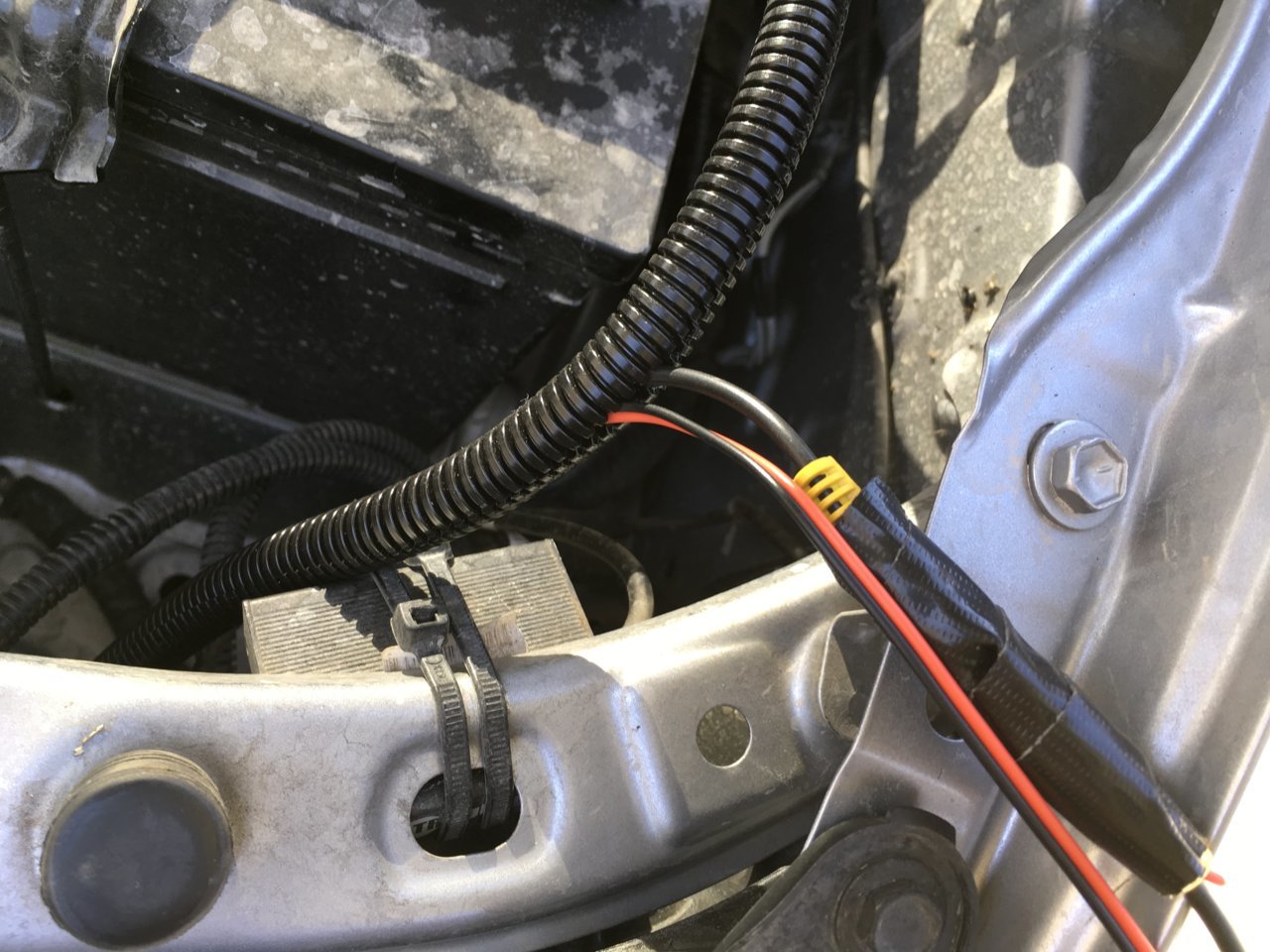

    I used corrugated tubing to protect the wire, the RCA plug is secure but wrapped it just in case and ran it to my fuse block.

    The RCA plug goes through the rubber grommet seal in the fire wall and up to the head unit, to the marked female RCA plug, it’s yellow with the black line (comes that way)

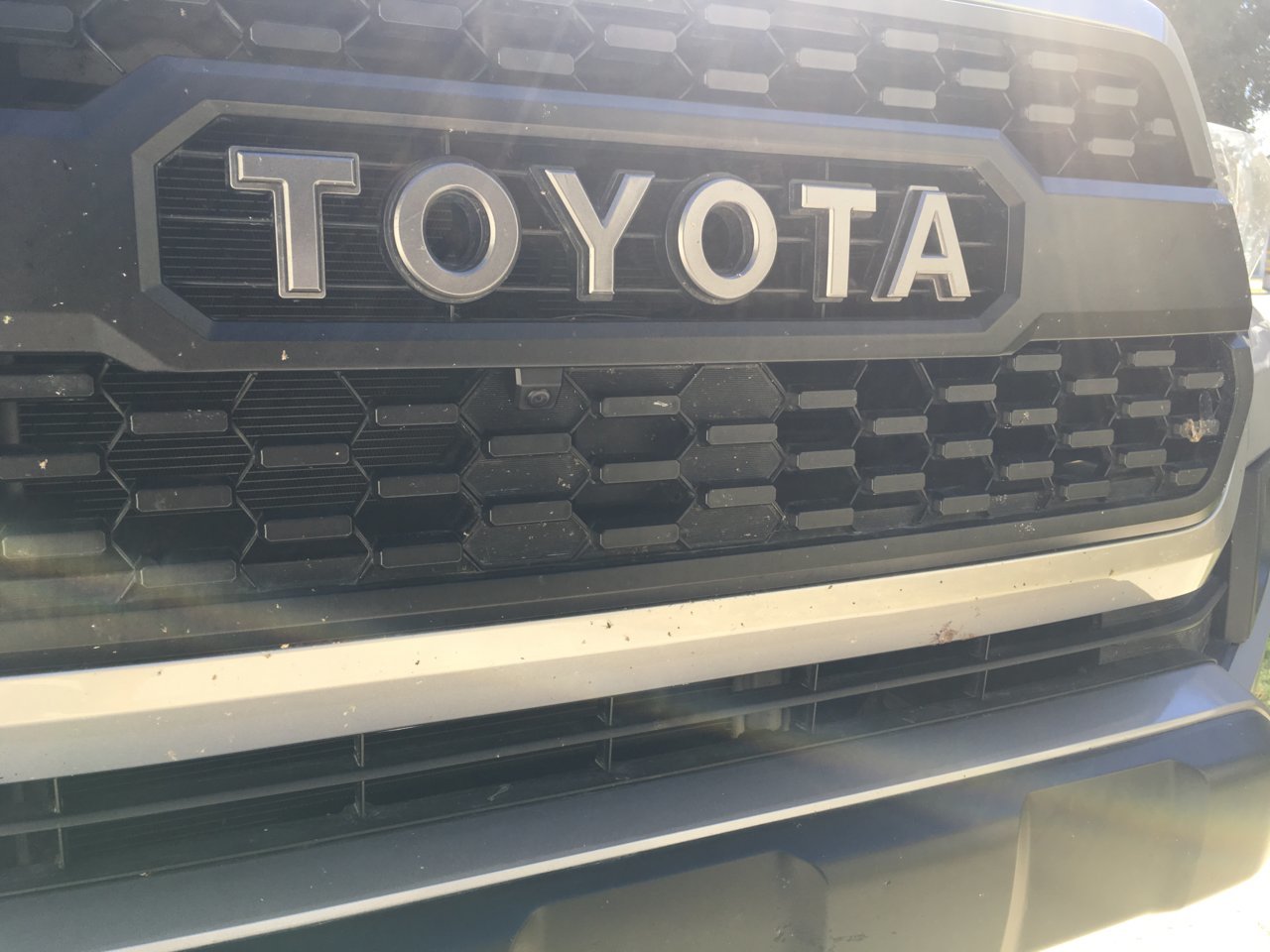

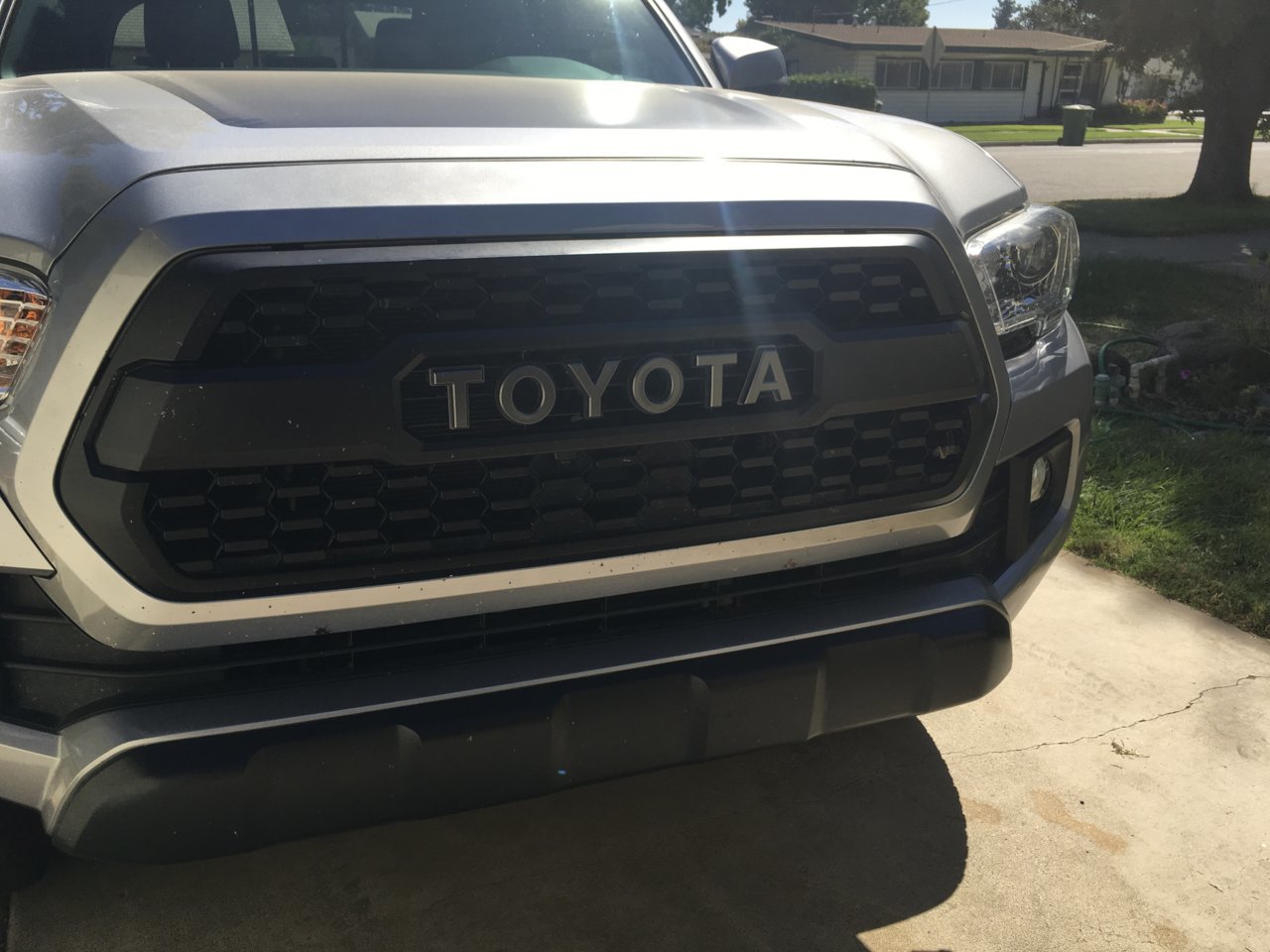

    The front camera is clean!

    Can’t even see it barely

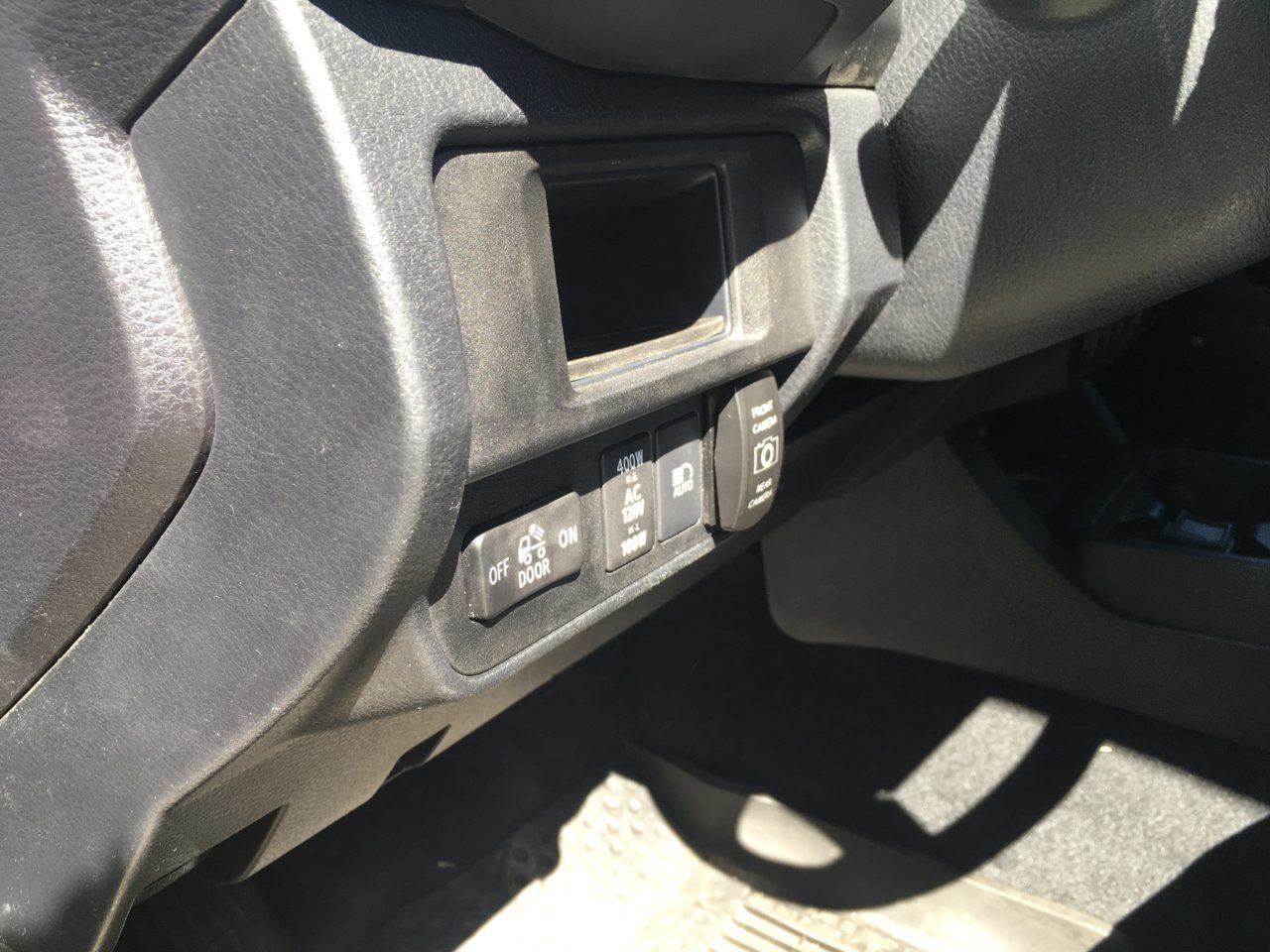

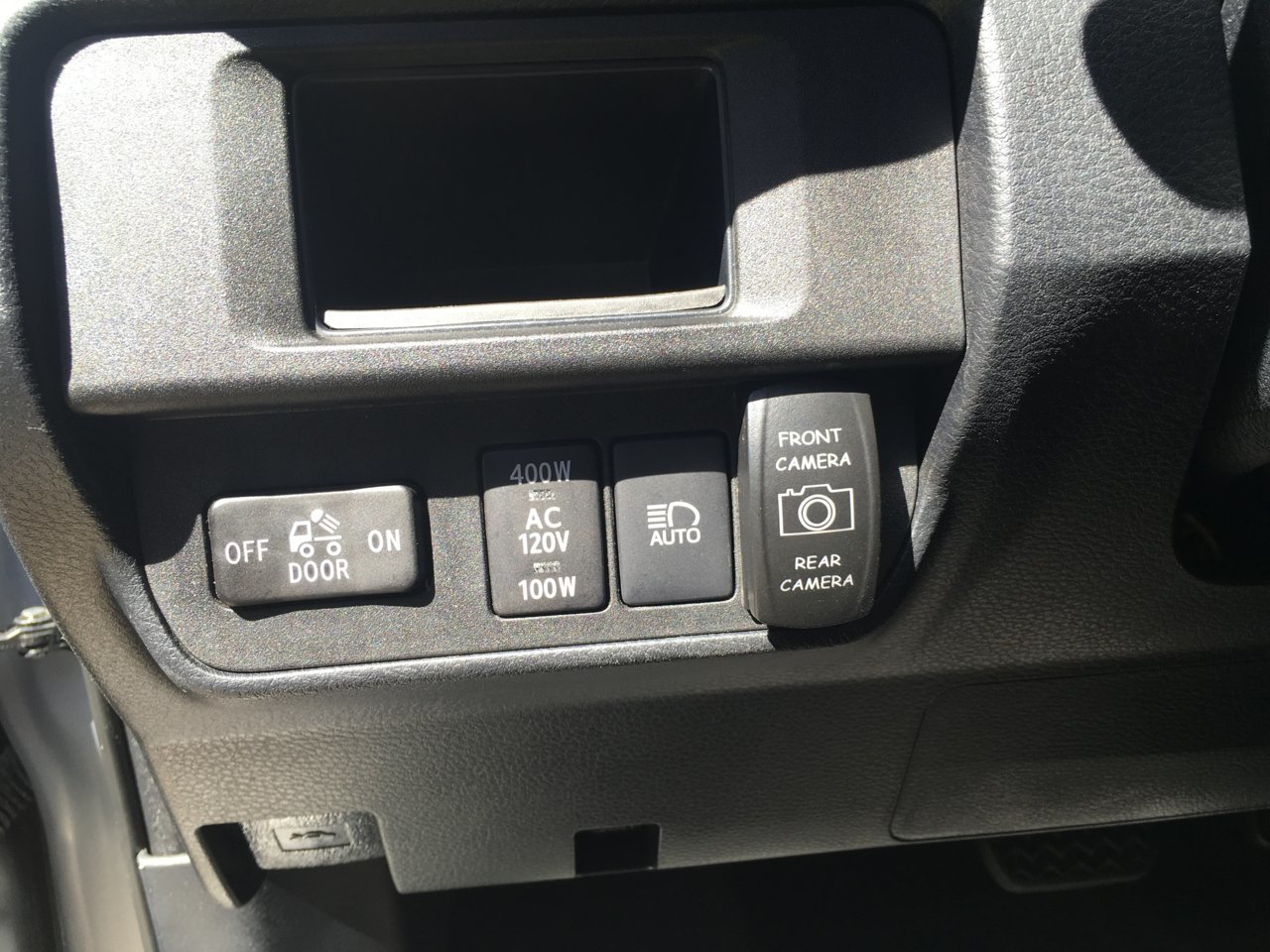

    The switch is clean as well, it sticks out a little but you get 2 switches in one. When driving I don’t notice it and yet it’s still easy to find. You can do one switch for rear and one for front, but I plan to make use of the 3 cubby spots when I get a plate installed for more accessories
    60C85FDC-2D8A-4359-8666-32CBE26B0FA9.jpg 07D6BAFB-EF70-4A3B-9784-AD590587EA60.jpg

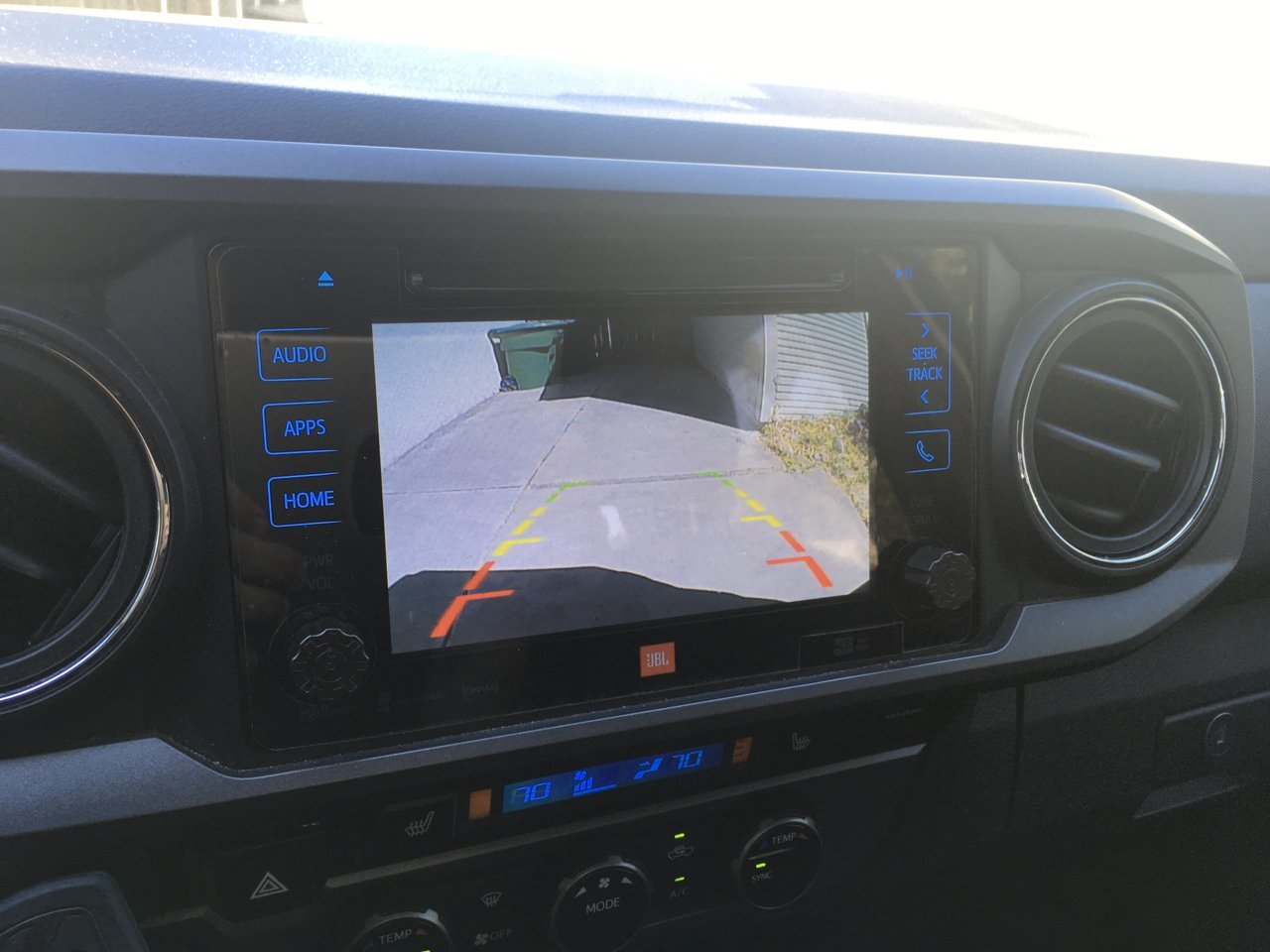

    And BAM there’s the front camera to see the trail when nose up, or use it when parking somewhere tight, and you get the rear anytime camera. It’s a clean install that wasn’t hard at all. The guidelines are 4 feet out for reference.

    All in all Brian at www.anytimebackupcamera.com has been awesome to work with in supporting his product, and the unit is solid. I hope that helps if you are considering this mod. After using it, it just makes so much sense to have a front camera available.

    -EDIT- I know the switch set up can be a little tricky, so here is how I set up my dual rocker switch (DPDT), it was buried in the thread but here you go

    New camera that I put in, it has a little button that allows you to select a larger number of screen orientation options
    HD Car Rear/Side/Front View Camera YM-606, YIMU 170° Viewing Angle Auto Reverse Parking Vehicle Backup Camera Waterproof with 4 Infrared LEDs Night Vision & One Button Control System https://www.amazon.com/dp/B072KQG664/ref=cm_sw_r_cp_tai_hez6Bb07RYKPW


    Attached Files:

    Last edited: Nov 12, 2018
  2. Sep 7, 2018 at 5:48 PM
    #2
    Blazingbluesport

    Blazingbluesport Well-Known Member

    Joined:
    Dec 1, 2015
    Member:
    #171181
    Messages:
    1,442
    Gender:
    Male
    The OC!
    Vehicle:
    2016 TRD Sport 4x4 double cab.
    Thanks for the write up. This is on my list near the top.

    Papadave418 [OP] likes this.
  3. Sep 7, 2018 at 6:19 PM
    #3
    Amanelot

    Amanelot Well-Known Member

    Joined:
    Jul 29, 2018
    Member:
    #260931
    Messages:
    957
    Gender:
    Male
    Texas
    Vehicle:
    2016 MGM TRD Sport DCSB
    Does this effect the navigation system at all?

  4. Sep 7, 2018 at 6:30 PM
    #4
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    No it doesn’t other than you can’t see the NAV screen with a camera on. Brian has a NAV override that requires another switch but I don’t need that functionality.

    Taco Fan and Amanelot like this.
  5. Sep 7, 2018 at 6:59 PM
    #5
    Kbro2

    Kbro2 Active Member

    Joined:
    Aug 10, 2018
    Member:
    #262400
    Messages:
    38
    Gender:
    Male
    Memphis
    Vehicle:
    2018 Limited
    Any links to front camera and switch used? Thanks for a great write up, definitely my next mod.

  6. Sep 7, 2018 at 7:03 PM
    #6
    steele-taco

    steele-taco Well-Known Member

    Joined:
    Dec 31, 2016
    Member:
    #206191
    Messages:
    2,255
    Gender:
    Male
    First Name:
    james
    NE PA
    Vehicle:
    17 TRD OR DCSB white
    I just skimmed through your write up, looks pretty good. Thanks, this is one of the things on my list.

    Papadave418 [OP] likes this.
  7. Sep 7, 2018 at 7:03 PM
    #7
    Amanelot

    Amanelot Well-Known Member

    Joined:
    Jul 29, 2018
    Member:
    #260931
    Messages:
    957
    Gender:
    Male
    Texas
    Vehicle:
    2016 MGM TRD Sport DCSB
    Awesome, thanks for the write up, sir.

    Papadave418 [OP] likes this.
  8. Sep 7, 2018 at 7:07 PM
    #8
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Switch
    https://www.aironboard.com/online/r...-on-off-on-front-camera-rear-camera-blue.html

    Camera, nothing special as there’s a ton of viable ones out there. It’s sturdy though
    https://www.amazon.com/dp/B00RD05MOO/ref=cm_sw_r_cp_tai_g6YKBbYWB1ZAR

  9. Sep 7, 2018 at 7:11 PM
    #9
    Kbro2

    Kbro2 Active Member

    Joined:
    Aug 10, 2018
    Member:
    #262400
    Messages:
    38
    Gender:
    Male
    Memphis
    Vehicle:
    2018 Limited
  10. Sep 7, 2018 at 8:15 PM
    #10
    Pittrider

    Pittrider Pitty, those needing correction.

    Joined:
    Nov 3, 2015
    Member:
    #168558
    Messages:
    3,893
    Gender:
    Male
    First Name:
    Greg
    B.C.
    Vehicle:
    2016 MGM LTD LB
    Do you need to know, or care?
    Great write-up and nice pics. Thanks for posting this.

    Papadave418 [OP] likes this.
  11. Sep 7, 2018 at 9:06 PM
    #11
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    768
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Once again, thanks for posting this. A few questions. Having one double switch requires some additional electrical modding on the buyers part? Will i need to let brian know if i want to use a double switch or two singles before i buy the kit? My only concern is that i have the rear slider next to the location you chose and they may interfere with eachother. I have replaced my cubby with a plate so i do have one opening there. TIA

  12. Sep 7, 2018 at 10:35 PM
    #12
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    No extra modding. The kit can be used for just rear, or the full kit includes the rear and front camera and relay. The only modification I did was add 2 plugs on the ends of the black and red wires on the harness. I did that because the DPDT Switch has extra terminals to switch POS and NEG throws. Brian’s diagram is simple on his page for SPST or DPDT switches. The relay can be tucked away somewhere other than near the switches. I put mine behind and under the radio.

    cruxx likes this.
  13. Sep 7, 2018 at 10:45 PM
    #13
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Oh btw, I don’t know what your switch configuration is but you can easily rearrange your switches that are the same size. Pretty easy to pop them out and move them around

  14. Sep 7, 2018 at 11:39 PM
    #14
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    768
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Sweet. I do know about wiring and switches as i do have a few light mods. seems pretty simple enough.

    Papadave418 [OP] likes this.
  15. Sep 8, 2018 at 1:28 AM
    #15
    Sleevez

    Sleevez Well-Known Member

    Joined:
    Sep 23, 2016
    Member:
    #198054
    Messages:
    149
    Gender:
    Male
    LA / Toronto
    Vehicle:
    2017 SW TRDPro, 2000 PinkTaco
    Is he still giving tw members a discount?

  16. Sep 8, 2018 at 4:44 AM
    #16
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    521
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,
    So with this setup, if you put your car into reverse like normal the rear camera will come on? Then if you want to turn the rear camera on while going forward, you can hit the rear camera switch and it comes on? Then same with forward view, just hit front camera on switch?

  17. Sep 8, 2018 at 5:31 AM
    #17
    Hextall

    Hextall Well-Known Member

    Joined:
    Apr 4, 2017
    Member:
    #215330
    Messages:
    907
    NH
    Vehicle:
    17 Inferno OR DCSB
    I have this same setup including a DPDT switch and it works great.. One suggestion if you are pulling everything apart, it's a good time to also add in a switch for navigation Override so you can access all the etune menu items while in motion (like having a passenger enter an address).

    I put my dpdt switch in the somewhat vertical potion in front of the parking break and the nav override under the cubby.

    Papadave418 [OP] likes this.
  18. Sep 8, 2018 at 6:40 AM
    #18
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    36
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    Great write up! Very helpful. I already have the kit, just waiting for the AoB switch which is out of stock.

    For those with 2018s and Pro grills, I installed the front camera centered above the TSS garnish 298AE581-19DD-4318-92CD-A070AF8EB8AE.jpg with no problems at all.

    r_to_the_k, Jmac2408, Cl4aub and 5 others like this.
  19. Sep 8, 2018 at 7:14 AM
    #19
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    I am not sure. The code I used was AUG18 for 15% off

  20. Sep 8, 2018 at 7:19 AM
    #20
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,191
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Yes the rear camera comes on in reverse, and yes you can select it anytime to turn it on. Let’s say you are towing and you wanna make sure everything is good you can take a look. And again yes if you are going forward you can turn on the front view. If you off road we have all had that hill climb to the top of the trail and at the crest you’re trusting that tetonic forces haven’t opened up a 5 mile crack that will swallow you so deep that you can’t even post on Instagram about it....I digress

    Or the more likely scenario for me is a tight parking garage, I can squeeze all the way in with the front camera on. :)
