Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Mar 28, 2019 at 8:51 AM
    #561
    tacopromatt

    tacopromatt Matt's Pro Taco

    Joined:
    Dec 19, 2009
    Member:
    #27842
    Messages:
    910
    Gender:
    Male
    First Name:
    Matt
    Austin, TX
    Vehicle:
    2017 Cement Tacoma TRD Pro AT
    The camera included with the kit is decent but you can find better quality (viewing angle, connectors, nighttime quality, etc).

    I used this one: https://www.amazon.com/NATIKA-Backu...se/dp/B07H852D49?ref_=bl_dp_s_web_17442842011

    Pyrotech likes this.
  2. Mar 28, 2019 at 10:05 AM
    #562
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,292
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    Thanks. I saw another user on FB use that one too so I think I will go with that one along with the kit.

  3. Mar 28, 2019 at 2:56 PM
    #563
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    1,474
    Gender:
    Male
    First Name:
    chris
    Hutto Texas
    Vehicle:
    2019 Silver Tacoma TRD Offroad 4x4
    I use the same one..


    r_to_the_k and ratcityrain like this.
  4. Mar 30, 2019 at 5:13 PM
    #564
    apm417

    apm417 Member

    Joined:
    Aug 12, 2018
    Member:
    #262577
    Messages:
    22
    Gender:
    Male
    Hey TW,

    So I bought the two different push switch setup (CH4x4 front and rear switches) and I wanna be able to switch each one on separately, so it sounds like I need a diode. Does anyone know specifically what diode? Or will any old diode do? Thanks in advance

  5. Mar 30, 2019 at 5:21 PM
    #565
    mk2tmr2

    mk2tmr2 Member

    Joined:
    Mar 30, 2019
    Member:
    #288524
    Messages:
    8
    Gender:
    Male
    So, I need a little help. I just received my full kit from ABC and wired it up. I’m not a noob at automotive wiring, but this isn’t working for me.

    I am pretty sure I have everything wired up properly. Triple checked it all. (Pretty easy when all of the wire colors match). When I switch to the rear camera it works properly. But when I switch to the front camera, both indicators (front and rear) illuminate on the switch and I get a black screen.

    I don’t know if I’ve done something wrong or if something in the kit is faulty (switch or relay). Help is appreciated!

  6. Mar 30, 2019 at 8:16 PM
    #566
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    430
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Both indicators illuminate when the switch is set to Front. Don't know why, but that's what the site says. Afraid I can't help you with the black screen as I have yet to install my kit.

  7. Mar 30, 2019 at 8:32 PM
    #567
    mk2tmr2

    mk2tmr2 Member

    Joined:
    Mar 30, 2019
    Member:
    #288524
    Messages:
    8
    Gender:
    Male
    I went back and found that on the switch product page. Hadn’t seen that before. That helps rule one variable out. I thought both indicators illuminated was an indication of a problem. Now I am tending to think the issue is the camera itself. Will keep at it tomorrow. Probably going to hook another video source to the RCA just to verify everything downstream of that connection works properly.

  8. Mar 30, 2019 at 8:48 PM
    #568
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    430
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    I can't think of any logical reason why the lower indicator illuminates when in Reverse, but both illuminate in Front. Just doesn't make sense.

  9. Mar 30, 2019 at 9:29 PM
    #569
    Landpirate

    Landpirate Well-Known Member

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    341
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 DCSB
    KB Voodoo MAX Modular rack, Smittybilt Overlander RTT and awning, DECKED system
    Got my kit installed this afternoon/evening. Big thanks to both @n6vmo doing the edit with the original high tech @capequahog schematic, and of course @Papadave418 for starting this. Only thing different on mine is that my wire off the relay I got was green rather than red. Hooked everything up and it works perfectly. I went with one of the $15 Amazon cameras and I think I may go back and put one of the better quality units in. Haven’t seen video quality in the daylight yet but the night video quality is not great and it easily washes out with headlights. The lack of dimmer on the camera switch isn’t a huge deal right now, but I would like to have it dim.
    And the 30 feet of video cable was fun to secure behind the head unit.
    Overall very happy with the camera mod with the listed issue but definitely a good mod.

    n6vmo and Papadave418 [OP] like this.
  10. Mar 31, 2019 at 5:59 AM
    #570
    Landpirate

    Landpirate Well-Known Member

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    341
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 DCSB
    KB Voodoo MAX Modular rack, Smittybilt Overlander RTT and awning, DECKED system

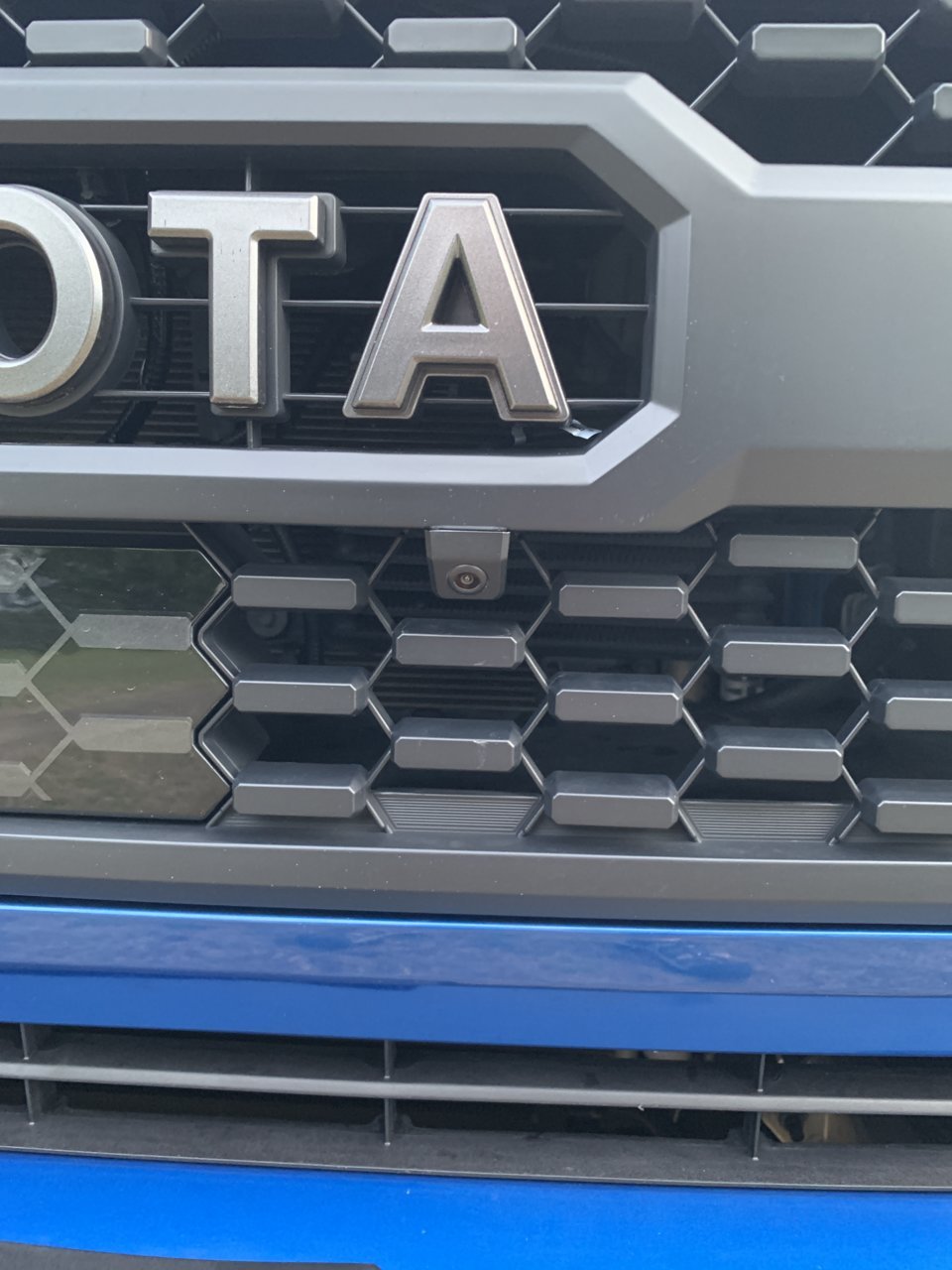

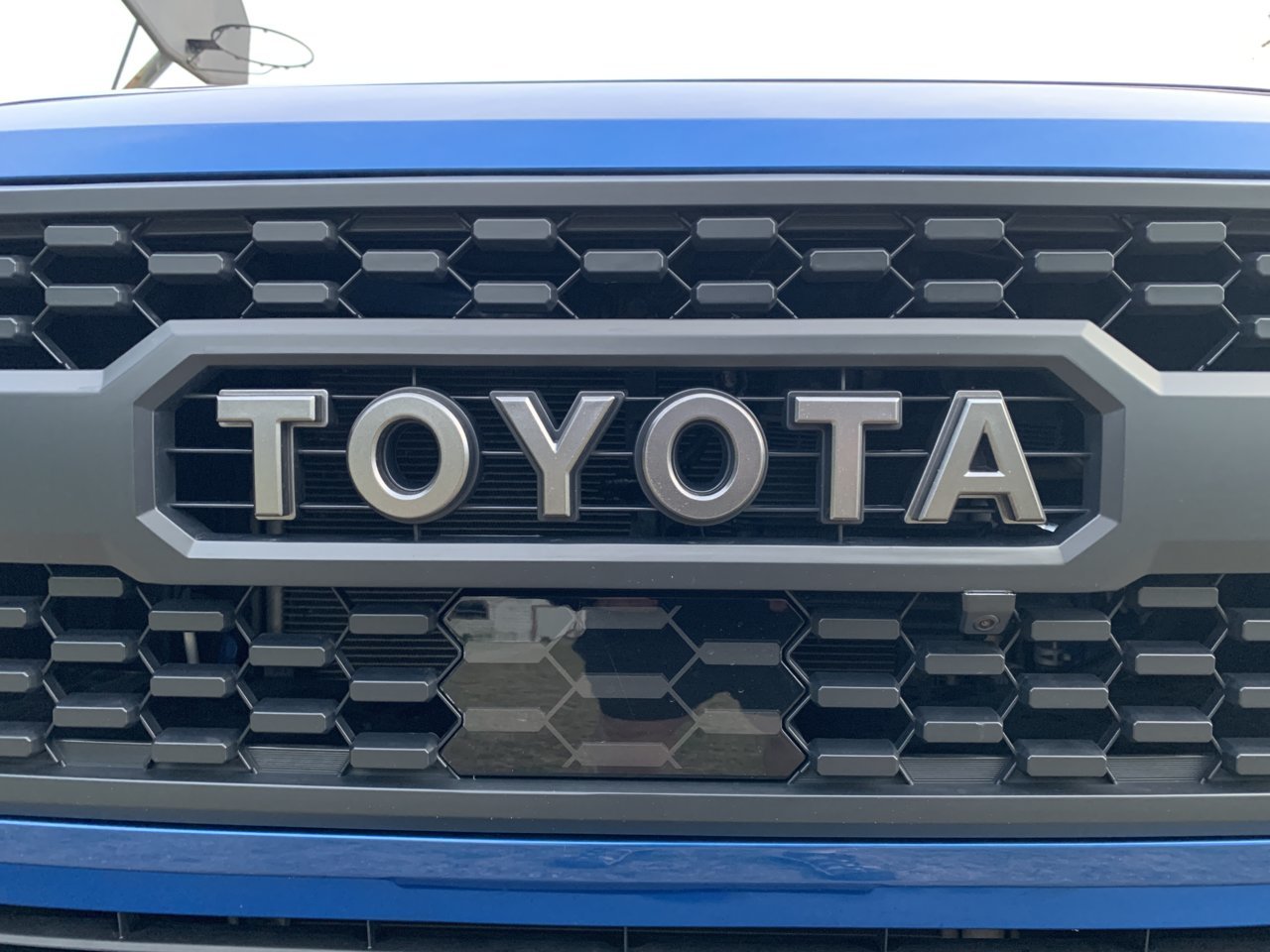

    I installed mine off of the centerline.



    The camera is just about inline with where my forward line of sight normally is. I'm still getting "Clean Sensor" errors on my Pro grille (I have an SR5) and I didn't want to mess with having the camera module right over the sensor.

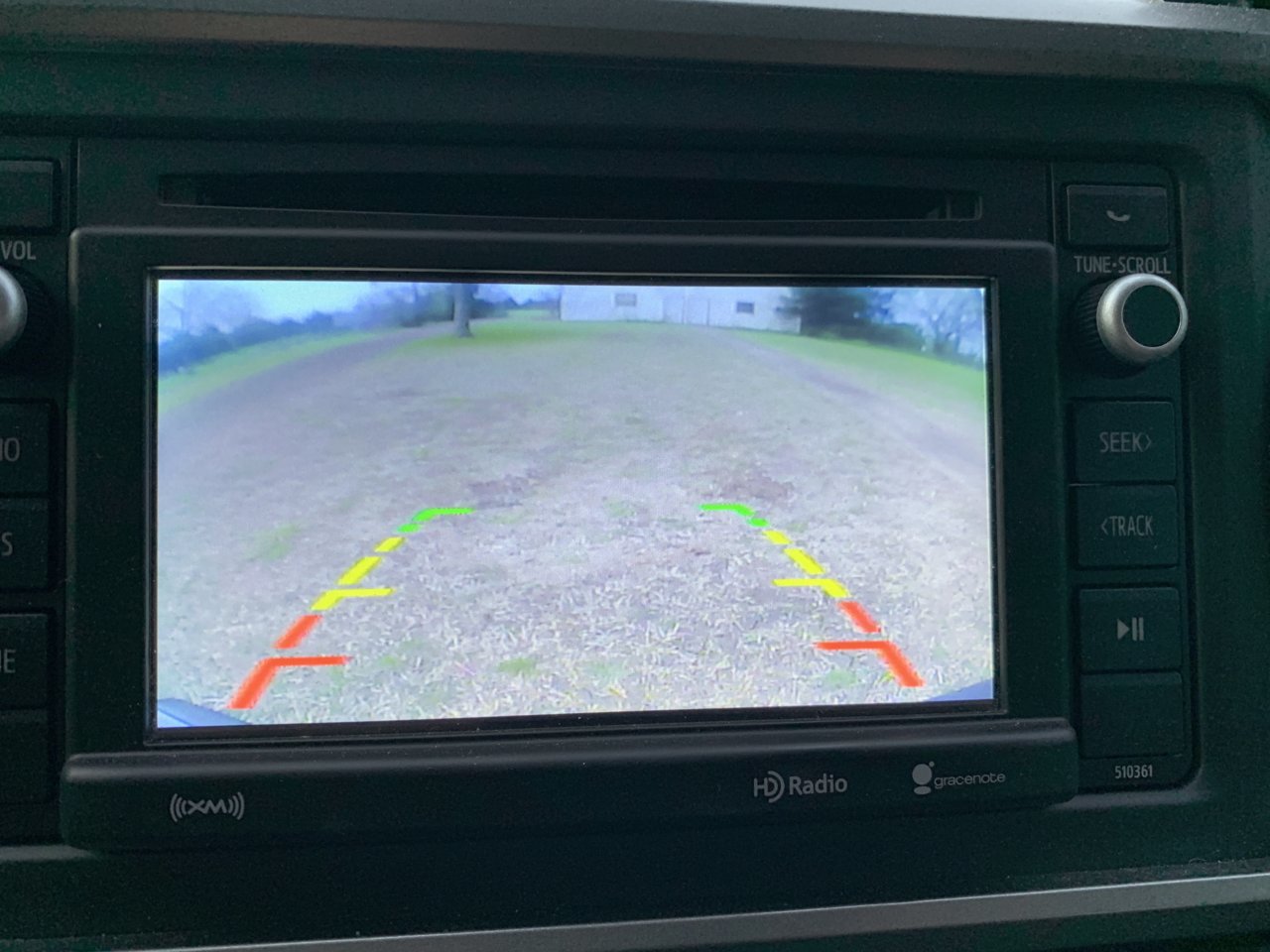

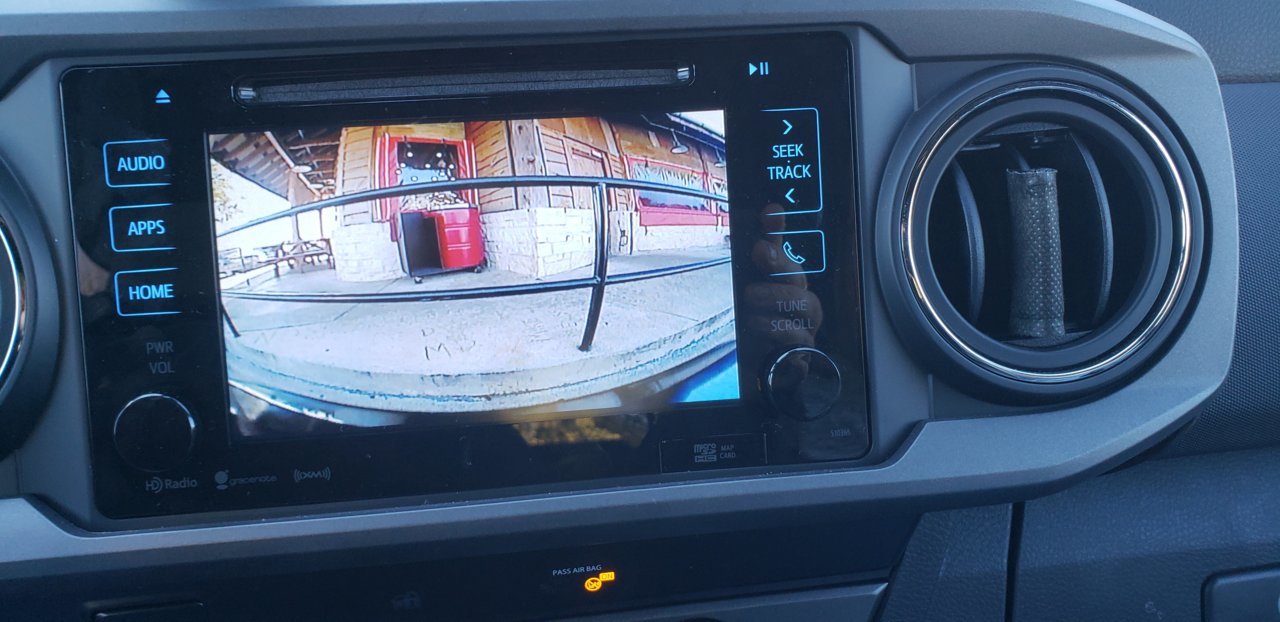

    The crossbar on the red limit line is about 1 foot off of the leading edge of my bumper. The green crossbar is about 4 feet. Daytime video quality is ok, but I think I'm going to upgrade the camera to better quality unit. It's not bad, but I think I'm going to want a little better video quality. I'll see how I like it over time.
    This is the camera I ordered:
    https://www.amazon.com/gp/product/B00RD05MOO/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

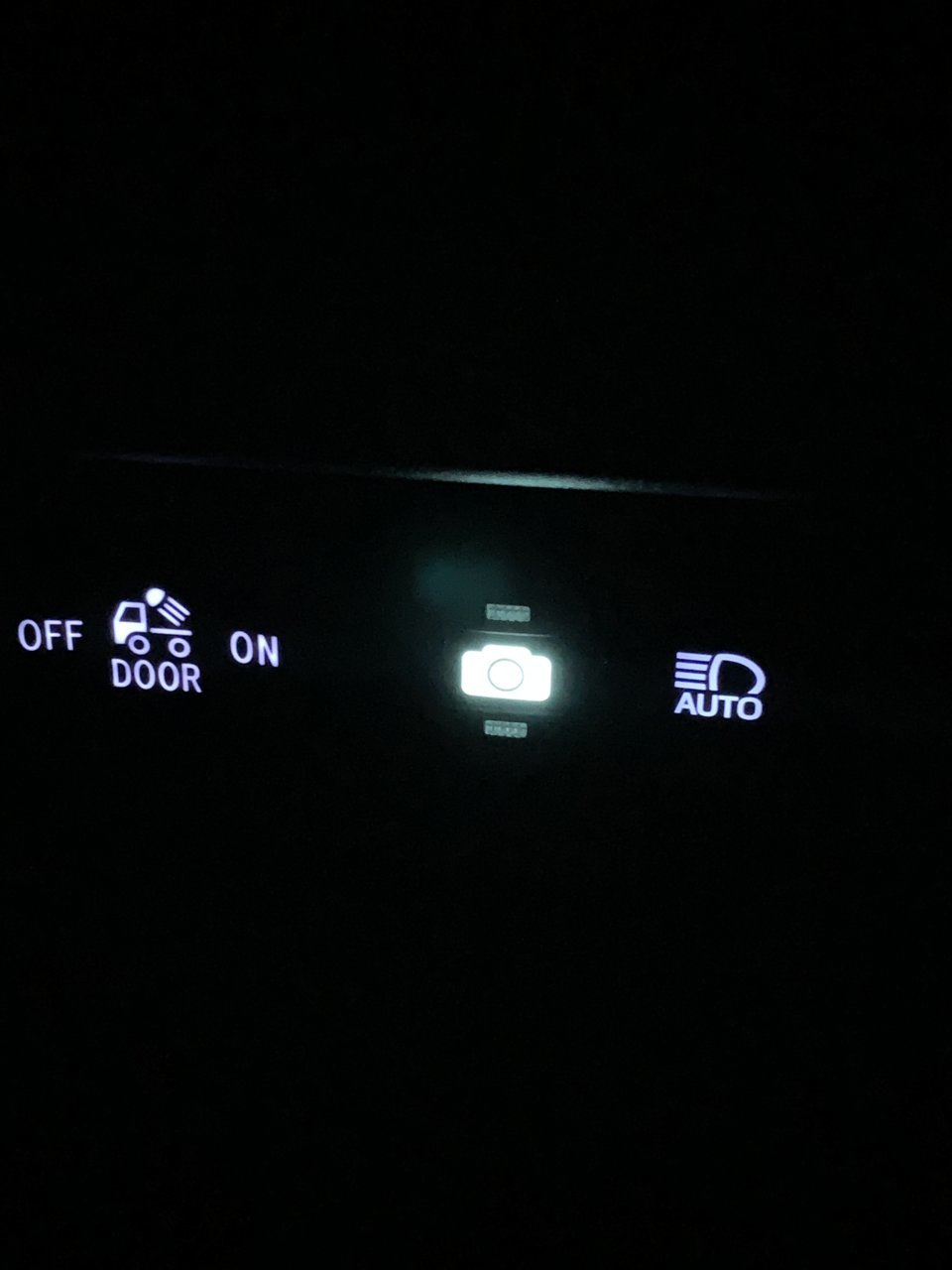

    Nighttime illumination from the camera icon is rather bright.

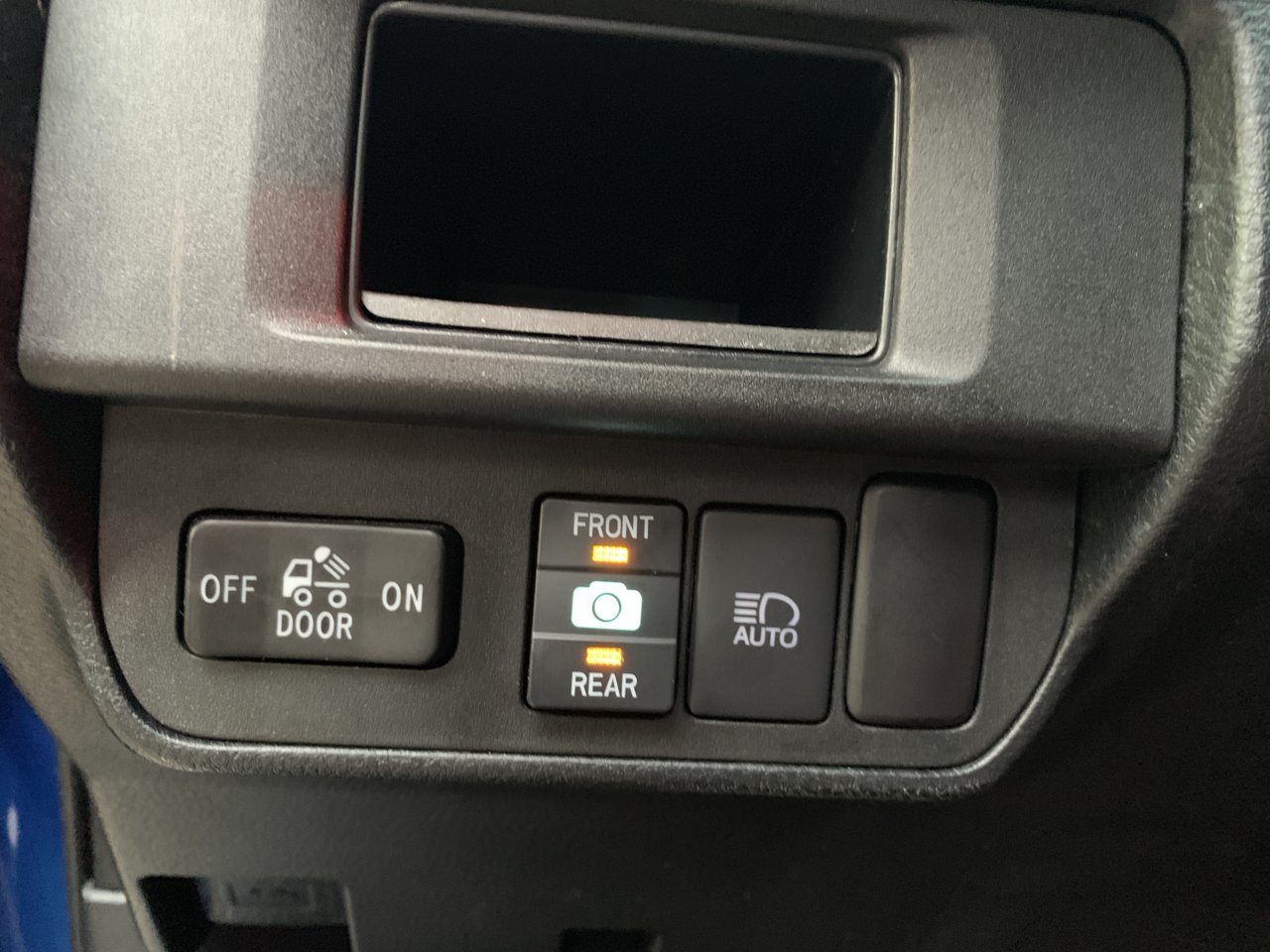

    Excellent job with the switch, looks very close to an OEM unit, wiring was very easy.

    n6vmo and Kabogski like this.
  11. Mar 31, 2019 at 6:56 AM
    #571
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,341
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Nice install!

    Landpirate likes this.
  12. Mar 31, 2019 at 7:11 AM
    #572
    Landpirate

    Landpirate Well-Known Member

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    341
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 DCSB
    KB Voodoo MAX Modular rack, Smittybilt Overlander RTT and awning, DECKED system
    Thank you sir. I was back and forth on the idea but your thread got me through it. If I'm researching something and see a thread from you on it, it's a must-look for me. Thanks for contributing all that you do.

    Papadave418 [OP] likes this.
  13. Mar 31, 2019 at 7:58 AM
    #573
    Landpirate

    Landpirate Well-Known Member

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    341
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 DCSB
    KB Voodoo MAX Modular rack, Smittybilt Overlander RTT and awning, DECKED system
    Quick note:
    On the most recent batch from ABC the wires coming off of the relay are black and green, there is no longer a red wire. At least on the kit that I just received.

    Papadave418 [OP] likes this.
  14. Mar 31, 2019 at 8:32 AM
    #574
    3Six

    3Six Well-Known Member

    Joined:
    Sep 8, 2018
    Member:
    #265653
    Messages:
    231
    First Name:
    Mike
    Icon Stage 4, Method NV 305, 285/75/16 Wildpeaks, Pelfry Armo, CMC
    Think it's about time to order this now that I have my switchpro going in soon. Only took me about 3 months to order.

    Papadave418 [OP] likes this.
  15. Mar 31, 2019 at 8:35 AM
    #575
    capequahog

    capequahog Well-Known Member

    Joined:
    Mar 21, 2016
    Member:
    #181901
    Messages:
    143
    Gender:
    Male
    First Name:
    John
    Cape Cod MA
    Vehicle:
    17TacomaDblCabTRDSport
    in the dreaded black
    the cubby unit pops out with a little help with a knife or plastic trim tool

  16. Mar 31, 2019 at 12:04 PM
    #576
    Ziggyman

    Ziggyman Well-Known Member

    Joined:
    Nov 19, 2018
    Member:
    #273155
    Messages:
    128
    Gender:
    Male
    Vehicle:
    2018 TRD OR DBL 4x4
    So I purchased the integration module and a camera for the front. I'll see how it goes.
    Germes Lab. RFCC TTG2
    https://www.amazon.com/gp/product/B07DKH6J4W/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

    As to camera - I got the one that fits in the toyota emblem - although I have a solid emblem for the TSS. I think with my OR grill it will fit in there...I'll show some pics.
    CAIRUTE 420 TVL HD CMOS
    https://www.amazon.com/gp/product/B07DC139L8/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

    I will use the factory backup cam - I wanted to see if the integration unit would take a third input from a trailer - but I don't think it will.

    enduringsnark likes this.
  17. Mar 31, 2019 at 7:44 PM
    #577
    mk2tmr2

    mk2tmr2 Member

    Joined:
    Mar 30, 2019
    Member:
    #288524
    Messages:
    8
    Gender:
    Male
    An update on my situation:

    It turned out to be a problem with the wiring to the relay in the ABC kit. After many hours of installing/uninstalling and wiring/rewiring different powers and grounds, testing continuity, etc - I finally got a picture from the front camera when I had the relay loose and not secured in place. After wiggling things around a bit I determined it was an issue with the bundle of three white wires going to the relay.

    I finally decided to cut the heat shrink tubing off those wires to see what was going on underneath and as soon as the heat shrink was off I got a solid, clean image from the front camera. I taped those wires back up with electrical tape and the problem has been gone ever since.

    I can't pretend to know why this fixed it, what was wrong or if the problem will stay fixed. Only time will tell.

  18. Apr 1, 2019 at 2:27 AM
    #578
    capequahog

    capequahog Well-Known Member

    Joined:
    Mar 21, 2016
    Member:
    #181901
    Messages:
    143
    Gender:
    Male
    First Name:
    John
    Cape Cod MA
    Vehicle:
    17TacomaDblCabTRDSport
    in the dreaded black
    Interesting, are the white wires just going into the black there and taped together, if so maybe a loosie in the relay itself

    Last edited: Apr 1, 2019
  19. Apr 1, 2019 at 2:16 PM
    #579
    Breakr007

    Breakr007 Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271829
    Messages:
    61
    Gender:
    Male
    Hi all. I just finished the install of the front and back kit. Using the front camera is great, and only makes me wish that this video feed can be recorded. Application would be go pro style, or even as a dashcam of sorts.

  20. Apr 1, 2019 at 2:27 PM
    #580
    mk2tmr2

    mk2tmr2 Member

    Joined:
    Mar 30, 2019
    Member:
    #288524
    Messages:
    8
    Gender:
    Male
    Definitely not loose inside the relay. It was certainly that particular joint where the heat shrink is, about .5" before the relay. Underneath the heat shrink those wires are spliced together and it's a bit of an odd, open splicing situation. I taped it back up and it's been fine ever since.

    There are mobile DVR products out there that you could easily put in-line with the front camera. Some of them even take multiple feeds so, presumably, you could get both the front and rear camera feeds from the ABC harness and record them simultaneously.

    You'd need to wire the front camera to constant power and not to switched power to make it work.
