Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 9, 2018 at 12:03 PM
    #41
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
  2. Sep 9, 2018 at 12:52 PM
    #42
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    858
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Papadave418 [OP] likes this.
  3. Sep 10, 2018 at 8:31 AM
    #43
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
  4. Sep 10, 2018 at 4:24 PM
    #44
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    79
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    For those that opted for the NAV override, what switch are you using?

  5. Sep 10, 2018 at 5:00 PM
    #45
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    858
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
  6. Sep 10, 2018 at 8:27 PM
    #46
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    I'm going to hide this switch. No sense in taking up an oem slot for this functionality. It'll be a simple push button.

    Still trying to think of where to put it though. This will ultimately decide which switch though.

    Short list of ideas:
    --- inside glovebox beside the usb and aux input i moved there
    --- inside the center console armrest
    --- on the passenger side of the center console, about mid calf height
    --- above the charge pad, though this one might be the hardest

    Since i won't be using it, i might intentionally put it as a passenger only accessed button.

    Papadave418 [OP] likes this.
  7. Sep 10, 2018 at 9:14 PM
    #47
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    858
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    I seen someone put a toggle switch, upside down where the steering wheel adjustment lever is located. Hidden and accessible

    orion808 likes this.
  8. Sep 10, 2018 at 9:23 PM
    #48
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    858
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport

  9. Sep 11, 2018 at 12:33 AM
    #49
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    ooooooh, I'll have to look into this.

  10. Sep 11, 2018 at 6:04 AM
    #50
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    79
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    Good idea on hiding the switch. I'll have to see what I come up with.

    Papadave418 [OP] likes this.
  11. Sep 11, 2018 at 7:54 AM
    #51
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Brian just let me know he’s now offering TW members a 10% discount, use
    TW10 at check out

  12. Sep 11, 2018 at 2:30 PM
    #52
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    40
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    OP, how did you wire your switch?

    The website shows a DTDP diagram as:
    1 2
    3 4
    5 6

    Your switch is labeled:
    - 7
    1 4
    2 5
    3 6

    Did you just wire to the same physical locations rather than numbers?

    I assume that 7 is the illumination circuit which taps into the tan wire of the rear window switch?

    Thanks!

  13. Sep 11, 2018 at 2:35 PM
    #53
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Yeah don’t worry about the numbers. For a DPDT the center 2 (left & right) would be the black wires off the harness. The upper and lower left side would be the red wires from the harness. The red relay wire goes to the upper or lower right side depending on which switch is the front camera. You can easily trial & error it. I didn’t wire a light to my switch personally as I can barely even see it while driving anyway. But the tan off the back of the bed light switch is a good source

  14. Sep 11, 2018 at 2:38 PM
    #54
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    40
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
  15. Sep 11, 2018 at 2:39 PM
    #55
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    40
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    Wow! Thanks for the quick reply! Installing tonight...

  16. Sep 11, 2018 at 2:49 PM
    #56
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    79
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    Have you installed this? Looking to see how this looks mounted. I kinda prefer it over the one with the logos.

  17. Sep 11, 2018 at 5:17 PM
    #57
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Any toggle or rocker switch is bulky by nature and will look big in any slot. I plan to put my front/rear camera rocker in the blank slot on the right side of the panel on lower left cubby.

  18. Sep 11, 2018 at 6:21 PM
    #58
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    79
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    Ordered one of these and it'll be going in the same hole. Now I just need to find a camera that I like. Don't want to drill to install so I might have to come up with a bolt on bracket.

  19. Sep 11, 2018 at 6:22 PM
    #59
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    40
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4

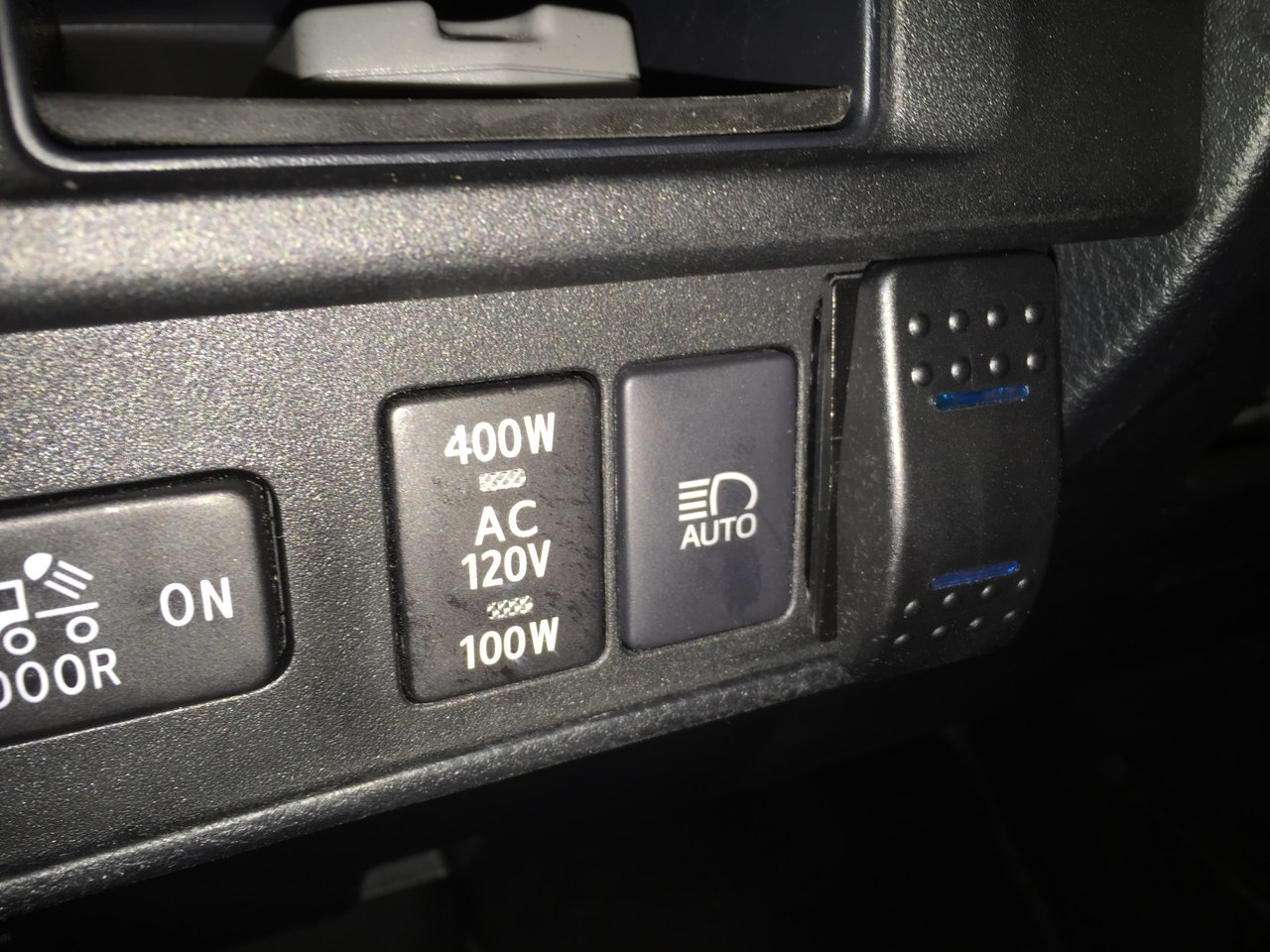

    The switch looks kinda big in this picture. The reality (as OP mentioned) you really can’t see the switch as it is tucked behind the steering wheel. I am not going to bother hooking up the illumination circuit.


    Papadave418 [OP] likes this.
  20. Sep 11, 2018 at 6:33 PM
    #60
    MrBrooks

    MrBrooks Well-Known Member

    Joined:
    Oct 14, 2017
    Member:
    #232988
    Messages:
    1,015
    Cornfield, Iowa
    Vehicle:
    2018 SS Sporty DCSB 2018 Rav4 XLE
    Looks like another $120 gone that my wife hopefully won't know about. Thanks OP for this write up & pics!

    Landpirate, BigDinTexas and orion808 like this.
