Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Jun 5, 2019 at 9:21 PM
    #661
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,373
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Thanks for the info, I’m interested to see if that solves your issue :thumbsup:

    Seems like the relay should be triggering for the rear camera as well

  2. Jun 5, 2019 at 9:32 PM
    #662
    Taco-Obsessed

    Taco-Obsessed Wildlife Peeping Tom

    Joined:
    Dec 23, 2018
    Member:
    #276756
    Messages:
    1,263
    Gender:
    Male
    First Name:
    Shawn
    San Jose
    Vehicle:
    2015 4X4 DBLCB LB FTMFW
    Kings ext travel with resis + TC UCA, Dakar s with B110 ext. Billies + ext brake lines ubolt flip with super bumps, bruteforcefab hybrid front and HC rear, 33s FN wheels cab mount chop/pinch hammering, on and on .. lots more to come
    Subd for future. His webpage says 2014 plus. Any 2014-2015 second gens done this successfully?

  3. Jun 11, 2019 at 8:57 PM
    #663
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    879
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    When i first installed, had a black screen from one of my cameras. Called the owner and he made me do a few tests. I did not crimp my wires, where i split em, good enough. Not sure, but worth a try

    Papadave418 [OP] likes this.
  4. Jun 11, 2019 at 9:00 PM
    #664
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    879
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Havent been on this thread in awhile, but was looking at the yimu -606 camera that had the button to go through the images(backwards, flipping, etc). Now that they are not availablr on Amazon anymore, does anyone have know a comparable cam or a source for the yimu -606. Ive been through a few cams and just cant get it rightside up. I need the “wires back” configuration

  5. Jun 14, 2019 at 12:05 PM
    #665
    Breakr007

    Breakr007 Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271829
    Messages:
    69
    Gender:
    Male
    Yep

    Taco-Obsessed likes this.
  6. Jun 19, 2019 at 10:37 AM
    #666
    BuggSuperstar

    BuggSuperstar New Member

    Joined:
    Jun 24, 2018
    Member:
    #257317
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2009 TRD Off Road soon to be 2018
    Searched this thread for a while and couldn't find an answer- how long did this install take for you guys (front & back, 2018)? I'm getting a buddy to do it for me and he asked..
    Thanks!

  7. Jun 19, 2019 at 1:39 PM
    #667
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    489
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Took me roughly 2 hours. Most of that was spent routing the front camera wiring and making all the other wires nice and tidy. If you already have the camera wired up, this should be done within an hour easy.

  8. Jun 19, 2019 at 5:03 PM
    #668
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    786
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB
    Hey ..maybe someone can chime in here....
    I had everything wired in and my switch only lights up for the rear cam.
    The rear cam and override work great.
    I dont seem to get any signal from the front cam. Again the switch only lights up for the rear.

    This is how i had it wired ...
    Switch
    Green to relay green
    Black to black on relay to ground
    Red to red override.
    Orange to orange override


    Camera black to ground
    Camera red to add a fuse.



    Now i added the red from rca to both the green from relay and green from the switch.
    I removed the add a fuse and put the red from cam to red from rca

    I still have the same results.. ...nothing from the front cam at all and the switch only illuninates for the rear.

    Help?
    Thanks

  9. Jun 19, 2019 at 5:09 PM
    #669
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    489
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Do you hear the relay activate (clicking sound) when you switch to the front cam? Probably not if the switch doesn't illuminate.

  10. Jun 19, 2019 at 5:10 PM
    #670
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    786
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB
    Nope

  11. Jun 19, 2019 at 5:13 PM
    #671
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    489
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Do you understand what each wire does and how the system should ultimately work? Not an insult; just trying to make sure we're on the same page with that regard.

  12. Jun 19, 2019 at 5:15 PM
    #672
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    786
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB
    At first not exactly but at this point ...i have a fairly decent idea i think.

  13. Jun 19, 2019 at 5:16 PM
    #673
    Kabogski

    Kabogski Sport Rally Five

    Joined:
    Jul 22, 2017
    Member:
    #224778
    Messages:
    2,415
    Gender:
    Male
    First Name:
    Bote
    California
    Vehicle:
    17' MGM - De Sais.. Sport Rally Five
    Hi tuck Exhaust FalkenWildPeaks Blackout Badge

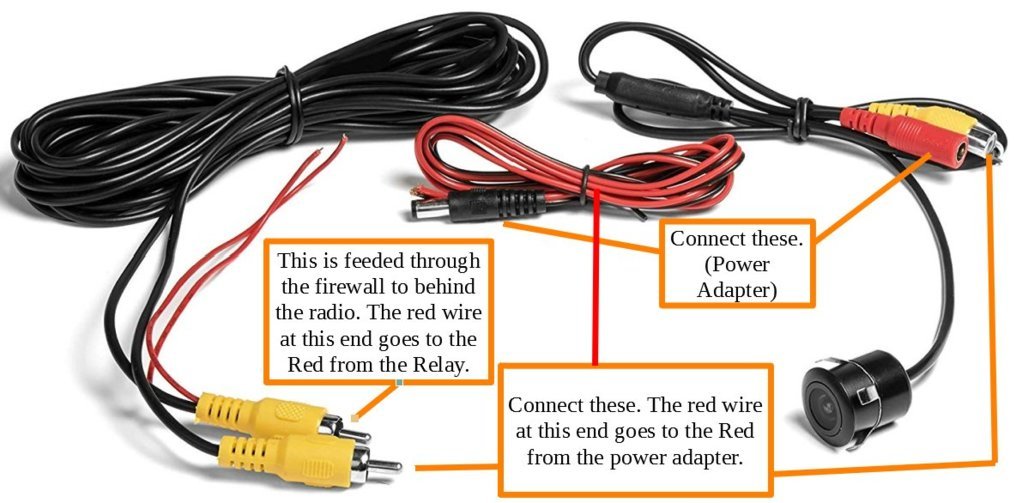

    Override Wiring.jpg

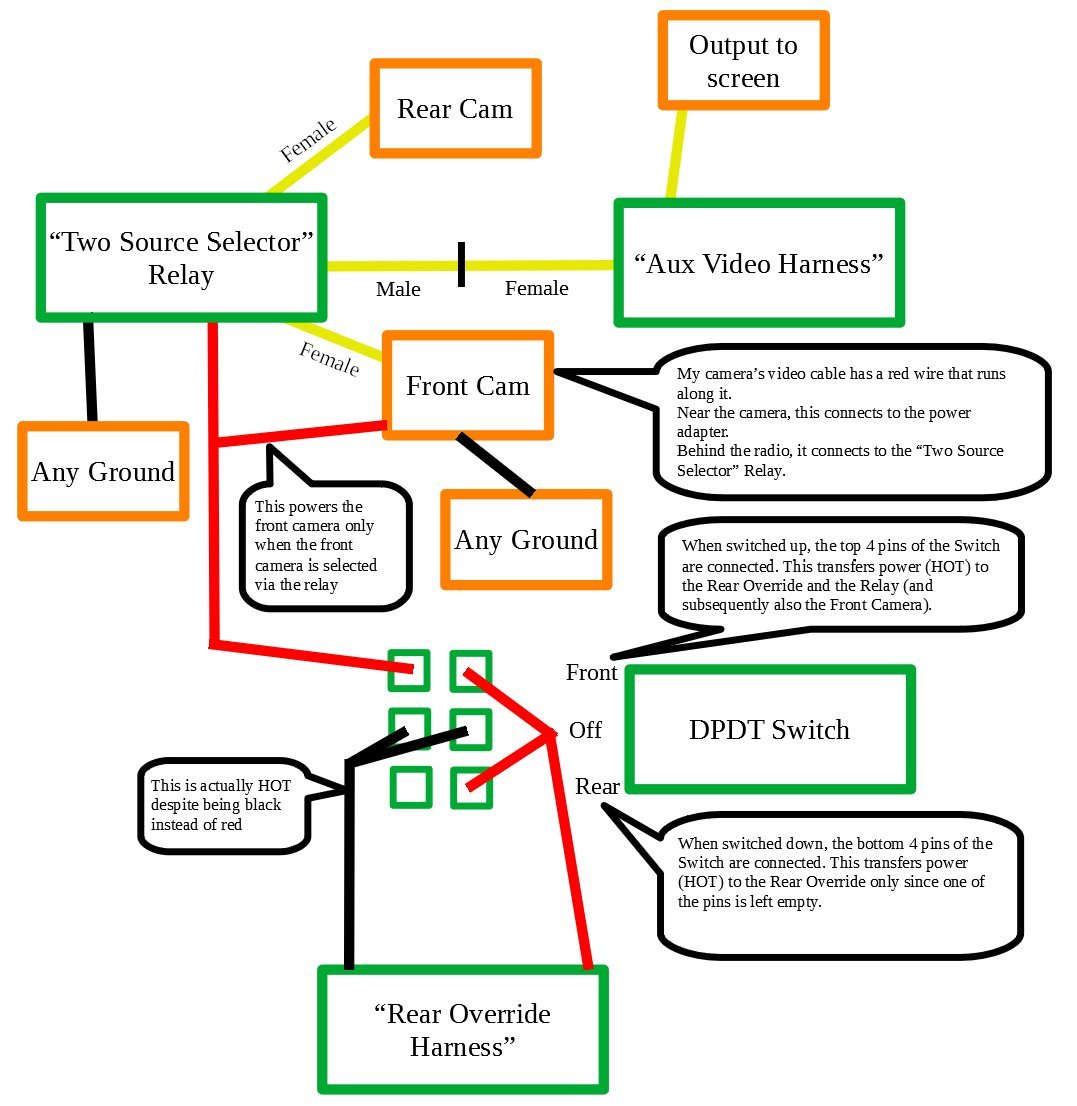

    Front Camera Wiring.jpg

  14. Jun 19, 2019 at 5:33 PM
    #674
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    489
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Someone chime in if I'm wrong about how I understand the system:
    • Red from supplies 12V to the system.
    • Orange triggers the rear camera.
    • Green triggers the front camera.
    • Black is ground.
    For the relay itself, you have 3 RCA cables: two inputs and one output. The rear input should already be connected when your stuff arrives; it takes the rear input from the radio harness and sends it to the relay. The other cord is for your front camera. At the relay, it has a single output which goes back to the headunit. This is what you'll see when you activate a camera. The relay controls which camera you see. Since it's a NO (normally open) relay, it'll use the rear input by default because that's how the kit is wired. Makes sense since that's what you want to see when you shift to R. When you activate the relay, you pipe the front camera input to the headunit. Note that this will override the rear camera if you're already in R.

    You activate the relay with the switch: when toggled to front, it sends 12V from the red wire to the green wire which activates the relay and thus uses the front camera input. When toggled to rear, you send 12V to the orange wire which tricks the headunit into thinking you're in R and switches to the RCA input, which in this case is the rear camera since the relay is open.

    Let me know if this is a good explanation.

    What some people did (myself included), is tie camera power (its red cord) into the system itself instead of an add-a-fuse. You tap into the GREEN wire, not the RED wire. This means the front camera only comes on when you want it on, which supposedly helps with its lifespan. This is an optional setup.

    All that said, is this how you have your setup wired?

  15. Jun 19, 2019 at 5:50 PM
    #675
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    786
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB

    Hi
    Yes pretty sure.
    I have emailed Brian from anytime and he said it should be wired correctly.
    Its my first wiring job but i felt pretty confident i could get it licked fairly easily.
    Feeling a bit defeated atm. Lol
    Maybe i have a faulty harness?
    I assume its not the relay as i have the rear working fine.

  16. Jun 19, 2019 at 5:55 PM
    #676
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    489
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    The relay may not necessarily be fine just because rear is ok; by default, that's the circuit that's completed. If the relay is getting power but not activating as it should, your rear will still work normally.

  17. Jun 19, 2019 at 5:57 PM
    #677
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    786
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB
    The switch illuminates for rear and the rear override also works.

  18. Jun 19, 2019 at 5:59 PM
    #678
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    489
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Right, because the relay, by default, completes that circuit. The relay could still be at fault if it isn't activating and thus completing the front camera circuit.

    EastVanTaco likes this.
  19. Jun 19, 2019 at 6:09 PM
    #679
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    879
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    The split connections are probably not crimped enough

  20. Jun 19, 2019 at 6:10 PM
    #680
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    786
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB
    Could be ...but my palm is sore from fukn crimping lol i gave each wire a tug ...
