    Just finished my install. Couple of issues:

    1. The rear camera comes on with the DPDT switch in the "REAR CAMERA" position only. If the DPDT switch is in the middle position and I put the Taco in reverse, the rear camera does not come on. Is this normal?

    2. The front camera does not come on at all. The screen does change however. Before I push the switch I have FM radio screen, after I push the front camera switch the screen changes to black. So I am assuming the relay is working but the camera is not. I pushed the switch to "FRONT CAMERA" and then checked for 12V at the front camera + and - cables. No power. I wired the RCA red pigtails on the front camera RCA extension to the red wire on the relay switch. Any ideas why I am not getting 12V at the front camera?

    My switch wiring diagram:

    [​IMG]

    My Taco: 2015 DCSB

    Last edited: Aug 5, 2019
  2. Aug 3, 2019 at 3:30 PM
    #722
    sandiegohasthebesttacos

    sandiegohasthebesttacos Well-Known Member

    Joined:
    Nov 8, 2018
    Member:
    #272048
    Messages:
    357
    can't help with #2 but #1 is definitely not normal. my reverse camera works like it's supposed to.

  3. Aug 3, 2019 at 3:57 PM
    #723
    ZKH

    ZKH Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223969
    Messages:
    111
    Gender:
    Male
    northern Kentucky
    Vehicle:
    2018 TRD-OR DCLB A/T 4x4 BBP Prem+Tech
    Regarding number 2, at the end of the video cable behind the grill, did you connect the red pigtail from the video cable to the red pigtail on the camera cable?

  4. Aug 3, 2019 at 5:49 PM
    #724
    DanvilleTrain

    DanvilleTrain Active Member

    Joined:
    Oct 11, 2018
    Member:
    #269005
    Messages:
    26
    Gender:
    Male
    First Name:
    Edward LongMember
    Vehicle:
    2015 Tacoma
    Yes. I know that the 12V power has to come from the Relay in the dash. So, the 12V originates at the relay (and is controlled by the switch) and travels down the RCA cables and jumps from the RCA extension cable to the camera 12V power cable that comes with the front camera. I had an idea after I gave up today to temporarily cut the 12V cable at the front camera and just power it directly from the battery. If the front camera then works, then I know the camera is good and there is an issue with 12VDC coming from the relay or the switch.

  5. Aug 3, 2019 at 7:10 PM
    #725
    BSCowboy

    BSCowboy Well-Known Member

    Joined:
    Apr 12, 2019
    Member:
    #289913
    Messages:
    76
    Gender:
    Male
    RENTON, WA
    Vehicle:
    19 Taco-TRD.OR.DC.LB
    Dirt & dogs LEER 100XR Topper NOICO Sound Deadener & Insulation OEM Audio Plus Decked Marathon Seat Covers Pop & Lock WeBoost Drive Reach {removed} Anytime Camera install Falcon Suspension System Nitro 5.29s {soon} Method 702 (not sure on tires)
    I installed the kit on my truck with OEM Audio + set up. It worked great until it started causing my head unit to restart over and over. While diagnosing the problem I reached out to anytimebackupcamera, he was responsive and helpful...even when my responses were nonsensical. I disconnected the camera and haven't had a problem since. Soon, I'll take the time to pull everything out and get rid of it here, if possible. I am going to miss the anytime camera...it's super helpful when I am towing.

  6. Aug 6, 2019 at 5:41 PM
    #726
    Canadianguy91

    Canadianguy91 Well-Known Member

    Joined:
    Mar 18, 2017
    Member:
    #213622
    Messages:
    1,815
    Gender:
    Male
    First Name:
    Sean
    Halton Hills, Ontario, Canada
    Vehicle:
    2016 Limited
    Krown undercoating, Protect a plate, blindspot mirrors, Reese stainless steel towing ball, Bakflip MX4 tonneau cover, Tufskinz tailgate letter inserts, Console organiser, Tinted windows, LED interiors, Bed lights, Hood lights, Black Canadian flag decal (@bfeth), Oem bed mat, WeatherTech floor liners, Arctic Claw XSI tires, Recovery Shackle, Ultimate LED turn signals V3 @mesojdm, OEM TRD Off-Road tow hook, Bilstein 5100's with ARB's Old Man Emu 2887 coils, ICON progressive add a leaf, General Grabber ATX tires, Fuel ripper rims, Auxbeam F-16 H11 Led headlights, Borla S-type catback exhaust with black tip, custom powertray, vinyl badge inlays (@rrentrop) https://m.youtube.com/watch?v=qqN7m1pc6AA
    You ship to Canada?

  7. Aug 6, 2019 at 5:42 PM
    #727
    Canadianguy91

    Canadianguy91 Well-Known Member

    Joined:
    Mar 18, 2017
    Member:
    #213622
    Messages:
    1,815
    Gender:
    Male
    First Name:
    Sean
    Halton Hills, Ontario, Canada
    Vehicle:
    2016 Limited
    Krown undercoating, Protect a plate, blindspot mirrors, Reese stainless steel towing ball, Bakflip MX4 tonneau cover, Tufskinz tailgate letter inserts, Console organiser, Tinted windows, LED interiors, Bed lights, Hood lights, Black Canadian flag decal (@bfeth), Oem bed mat, WeatherTech floor liners, Arctic Claw XSI tires, Recovery Shackle, Ultimate LED turn signals V3 @mesojdm, OEM TRD Off-Road tow hook, Bilstein 5100's with ARB's Old Man Emu 2887 coils, ICON progressive add a leaf, General Grabber ATX tires, Fuel ripper rims, Auxbeam F-16 H11 Led headlights, Borla S-type catback exhaust with black tip, custom powertray, vinyl badge inlays (@rrentrop) https://m.youtube.com/watch?v=qqN7m1pc6AA
    Why didn’t it work?

  8. Aug 6, 2019 at 6:46 PM
    #728
    irANTHONY

    irANTHONY Well-Known Member

    Joined:
    Jun 23, 2018
    Member:
    #257307
    Messages:
    112
    Gender:
    Male

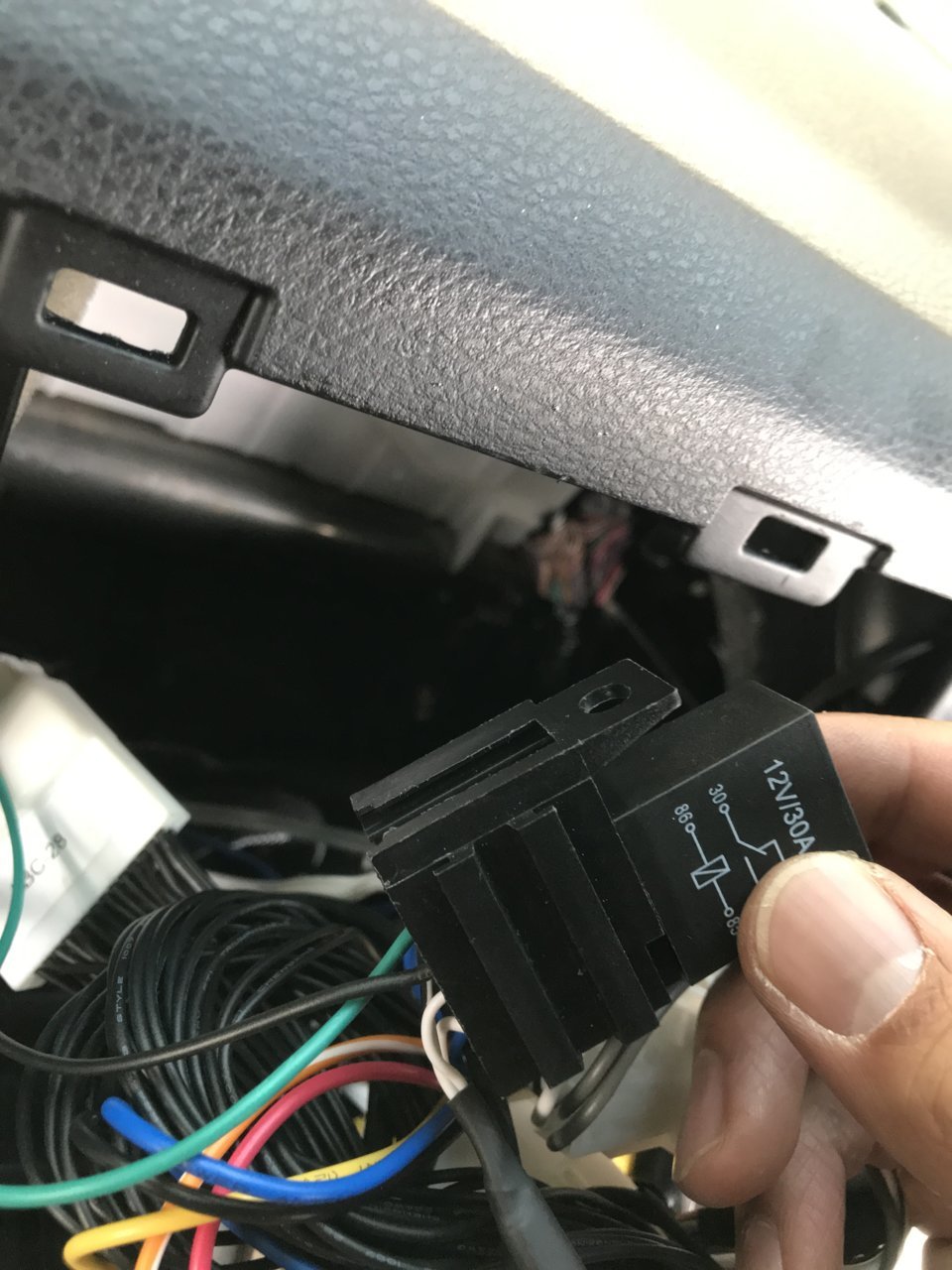

    How did y’all mount your relay harness?on the YouTube videos... there is a metal part that you connect to the right side bolt in the bay... but idk if they are shipping a different relay harness out now

  9. Aug 6, 2019 at 7:32 PM
    #729
    SconnieTaco

    SconnieTaco Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279730
    Messages:
    686
    Gender:
    Male
    First Name:
    Benny
    NW WI
    Vehicle:
    2017 TRD Sport DCSBAT-Inferno
    There are (2) 10mm bolts behind the radio. I mounted the relay on the right side bolt. As simple as it sounds, that relay was a bear to mount. I’d explore a zip tie method to the bolt if possible saving time and frustration.

  10. Aug 6, 2019 at 7:42 PM
    #730
    Canadianguy91

    Canadianguy91 Well-Known Member

    Joined:
    Mar 18, 2017
    Member:
    #213622
    Messages:
    1,815
    Gender:
    Male
    First Name:
    Sean
    Halton Hills, Ontario, Canada
    Vehicle:
    2016 Limited
    Krown undercoating, Protect a plate, blindspot mirrors, Reese stainless steel towing ball, Bakflip MX4 tonneau cover, Tufskinz tailgate letter inserts, Console organiser, Tinted windows, LED interiors, Bed lights, Hood lights, Black Canadian flag decal (@bfeth), Oem bed mat, WeatherTech floor liners, Arctic Claw XSI tires, Recovery Shackle, Ultimate LED turn signals V3 @mesojdm, OEM TRD Off-Road tow hook, Bilstein 5100's with ARB's Old Man Emu 2887 coils, ICON progressive add a leaf, General Grabber ATX tires, Fuel ripper rims, Auxbeam F-16 H11 Led headlights, Borla S-type catback exhaust with black tip, custom powertray, vinyl badge inlays (@rrentrop) https://m.youtube.com/watch?v=qqN7m1pc6AA
    Can I mount mine on a power tray under the hood?

  11. Aug 6, 2019 at 8:06 PM
    #731
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    857
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Crimp crimp and recrimp....thats why i didnt get power to front cam

  12. Aug 6, 2019 at 9:38 PM
    #732
    Taco-Obsessed

    Taco-Obsessed Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276756
    Messages:
    1,128
    Gender:
    Male
    First Name:
    Shawn
    San Jose
    Vehicle:
    2015 4X4 DBLCB LB FTMFW
    Kings ext travel with resis + TC UCA, Dakar s with B110 ext. Billies + ext brake lines ubolt flip with super bumps, bruteforcefab hybrid front and HC rear, 33s FN wheels cab mount chop/pinch hammering, on and on .. lots more to come
    let us know what happens and if you got it to work.

  13. Aug 6, 2019 at 10:07 PM
    #733
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    You’d have to email Brian at anytimebackupcamera.com to find out

    Canadianguy91 likes this.
  14. Aug 7, 2019 at 3:48 PM
    #734
    BSCowboy

    BSCowboy Well-Known Member

    Joined:
    Apr 12, 2019
    Member:
    #289913
    Messages:
    76
    Gender:
    Male
    RENTON, WA
    Vehicle:
    19 Taco-TRD.OR.DC.LB
    Dirt & dogs LEER 100XR Topper NOICO Sound Deadener & Insulation OEM Audio Plus Decked Marathon Seat Covers Pop & Lock WeBoost Drive Reach {removed} Anytime Camera install Falcon Suspension System Nitro 5.29s {soon} Method 702 (not sure on tires)
    I have no idea. All I know is that my head unit started rebooting and stoped when I removed the anytime backup camera harness. I suspect the slight modification between the OEM Audio + harness and the anytimebackupcamera harness didn't get along.

    Papadave418 [OP] likes this.
  15. Aug 9, 2019 at 12:10 PM
    #735
    CemenTRDgen

    CemenTRDgen New Member

    Joined:
    Aug 5, 2019
    Member:
    #301315
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2019 DCLB TRDOR Cement
    Hey everyone,

    I am looking to add an Anytime Front and Rear camera, as well as the Navigation Lockout Bypass, and Wifi Smartphone Mirroring all in one mod.

    https://www.amazon.com/dp/B07DKH6J4W will get get me front and rear camera with the steering wheel controls

    https://www.anytimebackupcamera.com/collections/frontpage/products/anytime-backup-and-front-camera will get also get me front and rear camera via a double switch, but what would be the procedure to add Navigation Lockout Bypass like mentioned in this thread:
    https://www.tacomaworld.com/threads...one-mirroring-mod.473033/page-4#post-14798424

    and and Wifi Smartphone Mirroring like mentioned in this thread:
    https://www.tacomaworld.com/threads...one-mirroring-mod.473033/page-3#post-14761375

    maybe with this:
    https://www.amazon.com/Upgraded-Dis...9Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU=

    I am hoping for a plug and play solution, or a least only modifying a plug and play harness if possible.

    Any help would be appreciated.

    BSCowboy likes this.
  16. Aug 9, 2019 at 12:20 PM
    #736
    Bunk Moreland

    Bunk Moreland Well-Known Member

    Joined:
    Jun 16, 2019
    Member:
    #296509
    Messages:
    377
    Gender:
    Male
    First Name:
    Bunk
    PNW... For now.
    Vehicle:
    2019 TRD OR 4x4 DCLB
    Not without extending the wires. Plus, it's easier to mount it in the area behind the head unit.

    Last edited: Aug 9, 2019
  17. Aug 9, 2019 at 12:21 PM
    #737
    Bunk Moreland

    Bunk Moreland Well-Known Member

    Joined:
    Jun 16, 2019
    Member:
    #296509
    Messages:
    377
    Gender:
    Male
    First Name:
    Bunk
    PNW... For now.
    Vehicle:
    2019 TRD OR 4x4 DCLB
    That's the relay that came with my kit. I zip-tied it to the steel arm to the right of bolt (there's a small pocket that is a perfect fit.)

    Last edited: Aug 9, 2019
    SconnieTaco likes this.
  18. Sep 11, 2019 at 7:59 PM
    #738
    Kevinpd325

    Kevinpd325 Member

    Joined:
    Dec 22, 2017
    Member:
    #239125
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    San Diego
    Vehicle:
    2017 Tacoma TRD Sport 4x4
    SSO Slimline bumper Smittybuilt XRC winch Prinsu cab rack Leisner Designs ACS Leitner Designs bed stiffeners Firstworld Fab bedside and corner mounts Herculiner bed coating Icon extended travel stage 4 w/ tubular UCA Procomp 285-75-17 all-terrains K&N air filter Pedal Commander Anytime backup camera w/ 2nd rear camera LED interior light conversion LED headlights LED fog lights Genesis dual battery system sPOD Bantam Caliraised LED 42" light bar Auxbeam front & rear ditch lights OPT7 Quantum rock lights Expedition Essentials TPAM w/ Blue Sea USB Expedition Essentials bedside compressor mount w/ ARB twin 67 Designs phone mount Meso Customs lower switch panel Rago CB antenna mount Anytone AT-768 UHF/VHF radio Cobra Bearcat CB radio Kicker DS 6×9 Kicker DS 6 1/2 Kicker dash tweeters Kicker 10" powered sub

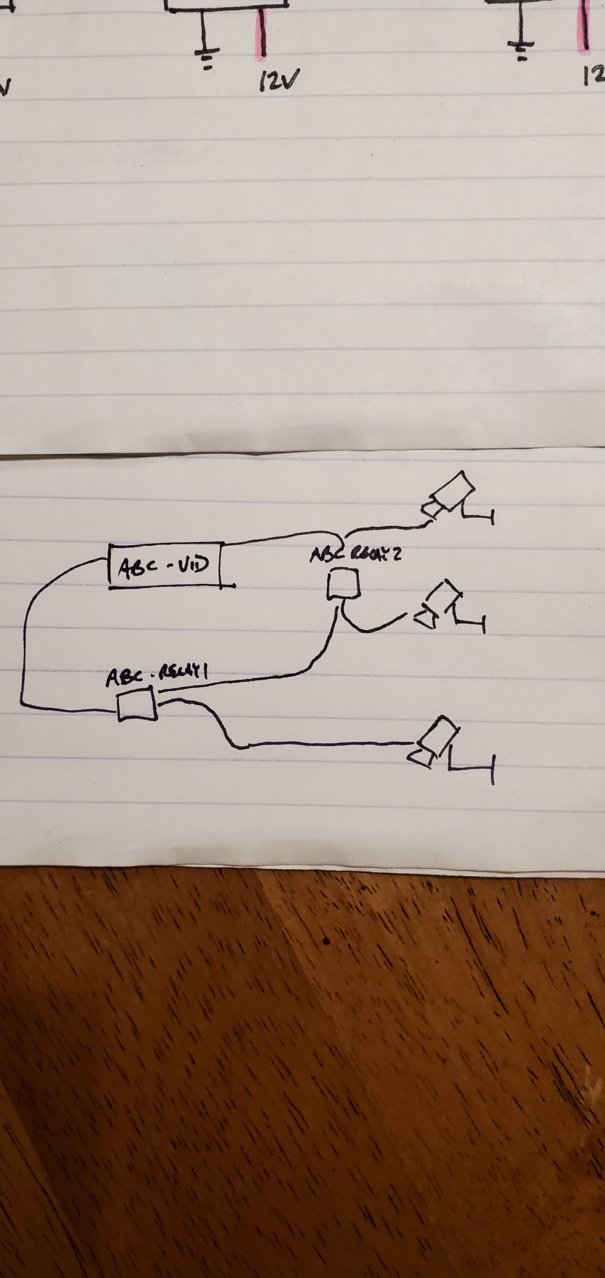

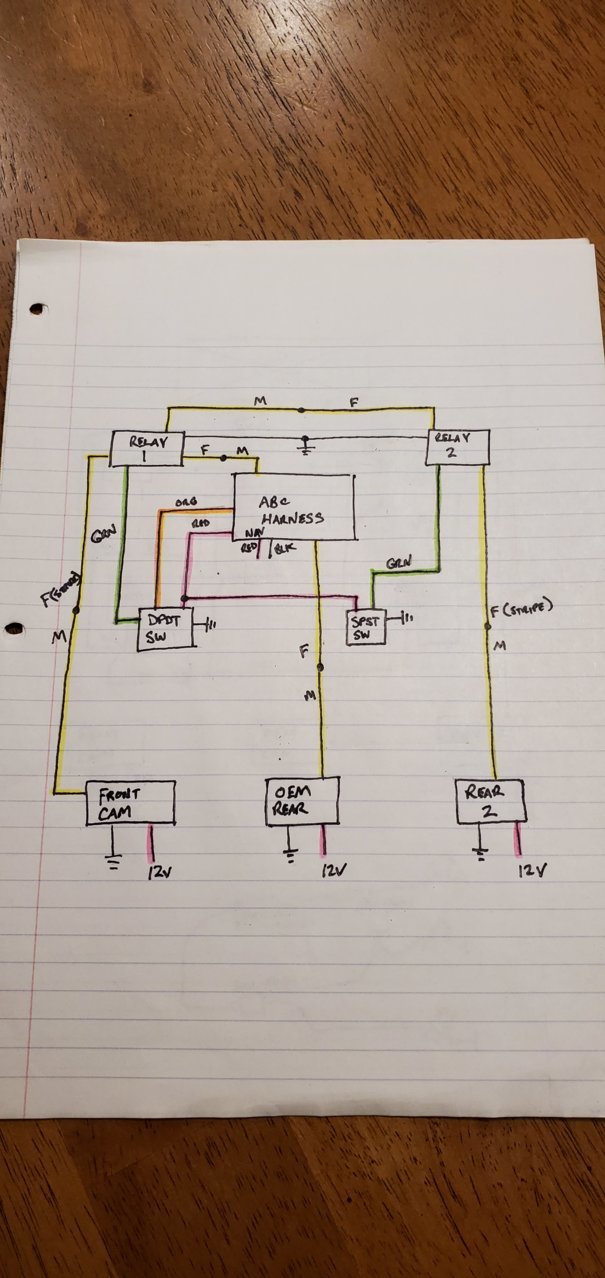

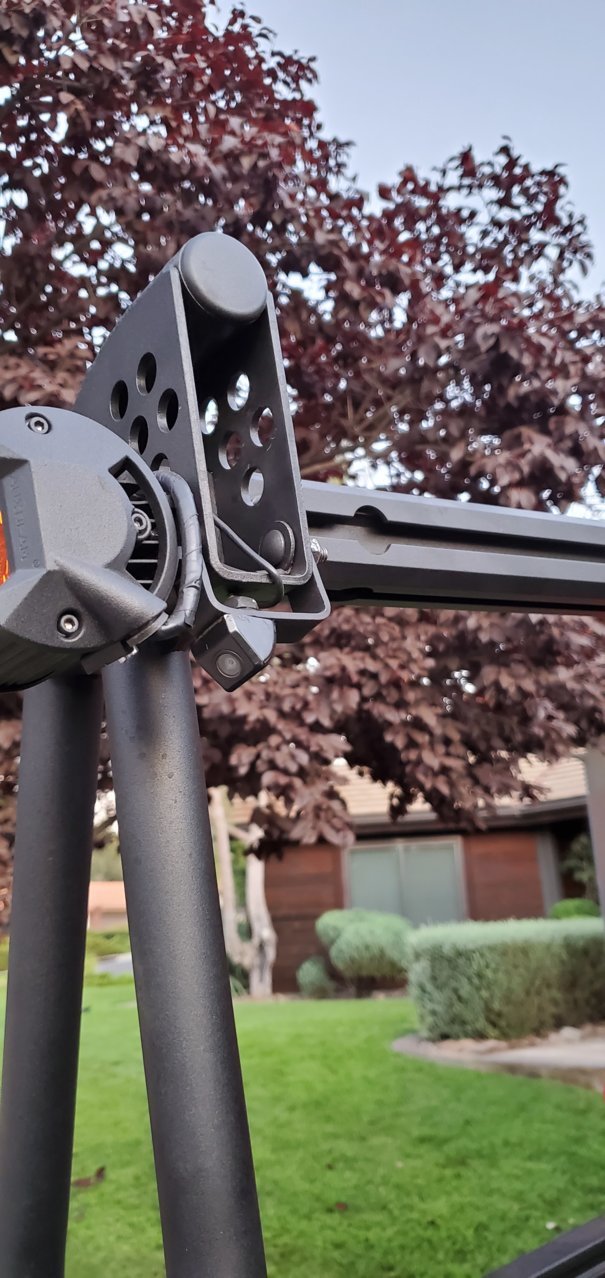

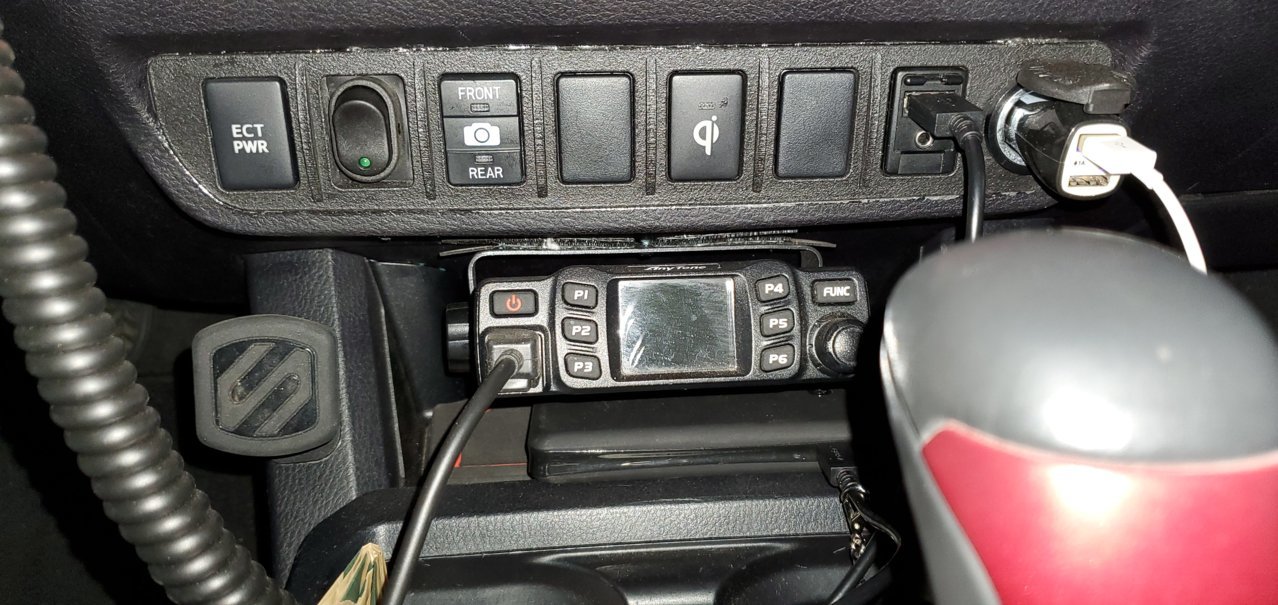

    Completely redid my 3 camera system after I installed my bed rack. Figured I'd drop the color coded schematic I had to draw to straighten my brain out during the installation. Installed switches in Meso Customs panel. All in all I'm pleased with the functionality. I can select either front or rear camera any time, and if the tailgate is down I can flip the SPST switch right next to the DPDT and see the tailgate. Thanks to orion808 for the assist.


    SconnieTaco and k8md like this.
  19. Sep 11, 2019 at 8:03 PM
    #739
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    431
    Gender:
    Male
    Vehicle:
    2018 TRD OR DCLB BarRed
    Very nice. I'll tuck this away for future spending.

  20. Sep 15, 2019 at 11:49 AM
    #740
    cyked

    cyked Member

    Joined:
    Aug 23, 2019
    Member:
    #303042
    Messages:
    11
    Anyone know what diode is in this wire harness? Mine has been on the fritz (won't work sometimes when in reverse), removed the shrink cover over the diode after diagnosing it as the issue. Clean break right through the middle, so need to replace it. They have one on their website that says 540 MIC, but it's not clear if it is a replacement for this or for other things (it mentions usage for using 2 switches as one application though). At least I think it's a diode.
