Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 15, 2019 at 1:20 PM
    #741
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,425
    Vehicle:
    TRD Pro in metallic primer
    Diode is to stop you powering the reverse lights through the harness. In stock wiring form "Camera on", a 12v single is sent to the headhunt from the reverse lights, to tell the HU to "switch camera on". To fake this, so the head unit switches to camera, you simply apply 12v to that wire from a different source. But, doing that will back-power the reverse lights, so a diode is used to stop that happening.

    If the diode is buggered, it'll stop the true reverse signal getting to the HU from the reverse lights and you'll get the symptom you describe, reverse camera doesn't work when putting it into reverse.

    Ultimately, as you've found out a diode is probably not the best way to achieve this with the Tacoma's finicky wiring, a simple double throw on/on switch would be far superior. Simply wire the HU to the common terminal, and reverse light to one of the ON terminals, and the constant 12+ (fake) to the other ON terminal. That way no diode and physical brake in the wiring back to the reverse lamps.

  2. Oct 5, 2019 at 7:38 AM
    #742
    Dillionday

    Dillionday Member

    Joined:
    Oct 5, 2019
    Member:
    #307118
    Messages:
    9
    Eastern NC
    Vehicle:
    2020 TRD OR
    As of right now, the wiring harness you get with the full kit will not fit the connectors on a 2020 Tacoma because the head unit has changed. I have emailed anytimebackupcamera.com and asked about a fix. I will reply if anything changes.

    Last edited: Oct 5, 2019
    Tocamo likes this.
  3. Oct 26, 2019 at 11:53 PM
    #743
    Badderup

    Badderup Well-Known Member

    Joined:
    Nov 24, 2017
    Member:
    #236771
    Messages:
    194
    Gender:
    Male
    First Name:
    Colby
    Utah
    Vehicle:
    2006 SWB TRD sport DCLB
    Sorry if it’s been mentioned before, but it’s late and I couldn’t look through 38 pages. Will this work in an aftermarket hu? It seems like most everybody is using this in newer Tacomas. I’ve got an ‘06 and just installed a Pioneer deck and I’m looking to add backup and front cameras and would love to do this.

  4. Oct 27, 2019 at 3:50 AM
    #744
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,259
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Please see my response to your question in the other thread. :thumbsup:

  5. Oct 27, 2019 at 5:58 AM
    #745
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    1,154
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Cant answer your 06 question, but i just installed the android t9 unit, and it all functions normally with the new head unit. If the mod is compatible for the harness of an 06, it should work

  6. Nov 7, 2019 at 10:55 AM
    #746
    chilow

    chilow Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53010
    Messages:
    105
    Gender:
    Male
    Has anyone swapped out the included front camera for a better quality one? If so, which camera and was it plug and play to the existing kit?

  7. Nov 7, 2019 at 11:21 AM
    #747
    Breakr007

    Breakr007 Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271829
    Messages:
    78
    Gender:
    Male
    Tullie D and yub like this.
  8. Nov 7, 2019 at 3:15 PM
    #748
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    880
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    I second the one above. Very popular model and the camera's profile makes it versatile as far as mounting it on different grilles goes.

    Tullie D and yub like this.
  9. Nov 7, 2019 at 3:48 PM
    #749
    Breakr007

    Breakr007 Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271829
    Messages:
    78
    Gender:
    Male

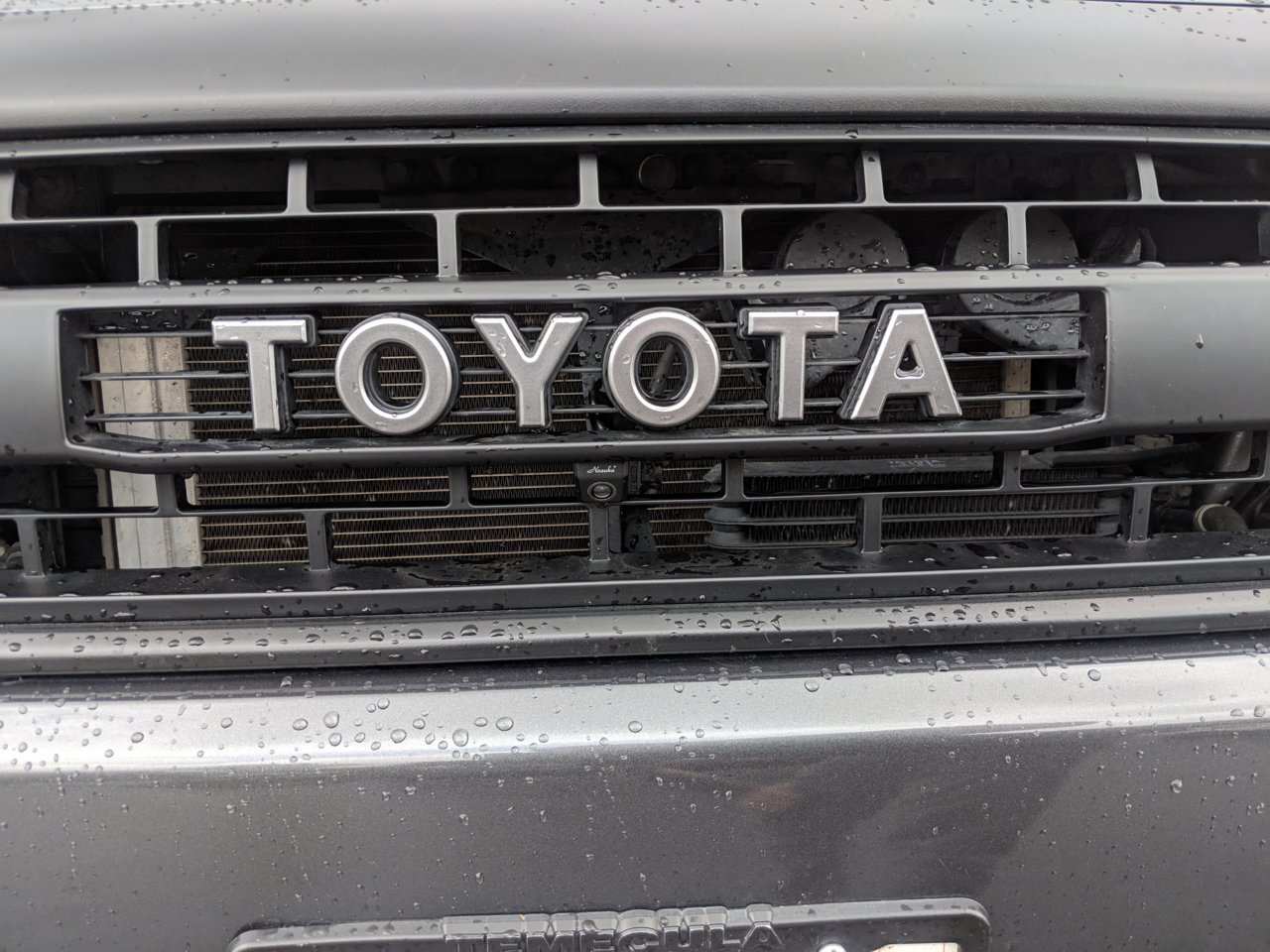

    Installed. Clean as it gets!IMG_20190429_122657.jpg

  10. Nov 7, 2019 at 5:11 PM
    #750
    Xx_Evilvirus_xX

    Xx_Evilvirus_xX Well-Known Member

    Joined:
    Sep 20, 2018
    Member:
    #266897
    Messages:
    563
    Gender:
    Male
    Houston, TX
    Vehicle:
    2018 Tacoma TRD Offroad 4x4
    I really need to get this mod going....

    Papadave418 [OP] likes this.
  11. Nov 7, 2019 at 5:30 PM
    #751
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,259
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
  12. Nov 8, 2019 at 10:03 AM
    #752
    Red18Taco707

    Red18Taco707 Well-Known Member

    Joined:
    May 29, 2018
    Member:
    #254905
    Messages:
    1,033
    Gender:
    Male
    First Name:
    Richi
    Nor Cal
    Vehicle:
    Red 18 TRD POOR
  13. Nov 8, 2019 at 10:25 AM
    #753
    chilow

    chilow Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53010
    Messages:
    105
    Gender:
    Male
    Finding a camera that works seems harder than it should haha. I just want one that I can adjust the aim on (preferably to aim it lower when on trails so I can see things if I'm climbing an incline).

    I found a few options that allow me to bend the mounting bracket or has a built in adjuster, BUT it looks like it doesn't have the 4 pin barrel looking connector that plugs into the Anytime backup harness.

  14. Nov 8, 2019 at 11:28 AM
    #754
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    880
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    What 4 pin connector? My kit uses RCA and a relay to pipe input to the head unit.

  15. Nov 8, 2019 at 11:40 AM
    #755
    chilow

    chilow Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53010
    Messages:
    105
    Gender:
    Male

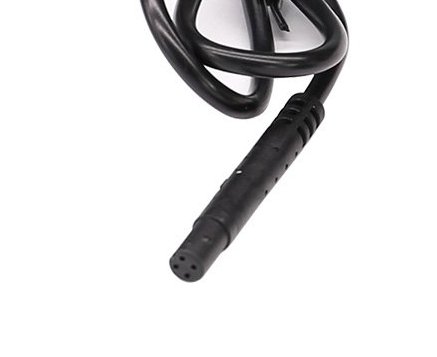

    Looks like this...


  16. Nov 8, 2019 at 12:44 PM
    #756
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    880
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    Oh right. That's part of the Nakita camera I got. Are you looking for something you manually adjust outside of the truck based on needs? As opposed to something you control electronically.

  17. Nov 8, 2019 at 12:49 PM
    #757
    chilow

    chilow Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53010
    Messages:
    105
    Gender:
    Male
    Yes, manual adjustment is fine.

  18. Nov 8, 2019 at 1:28 PM
    #758
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    880
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    I think the Nakita would still be a good choice. I have an OR grille and used a cheap flat metal fence bracket to secure the camera. Sprayed it with black truck bed before mounting. Between the profile of the grille and the bracket, I was able to get good adjustment for a view I wanted with just a portion of the front bumper visible.

    Tullie D likes this.
  19. Nov 18, 2019 at 5:19 PM
    #759
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    I did the same, simple backing plate. Looks good

  20. Nov 18, 2019 at 11:39 PM
    #760
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,259
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    I have the same camera connector on the Nakita camera that I used on my SR5.

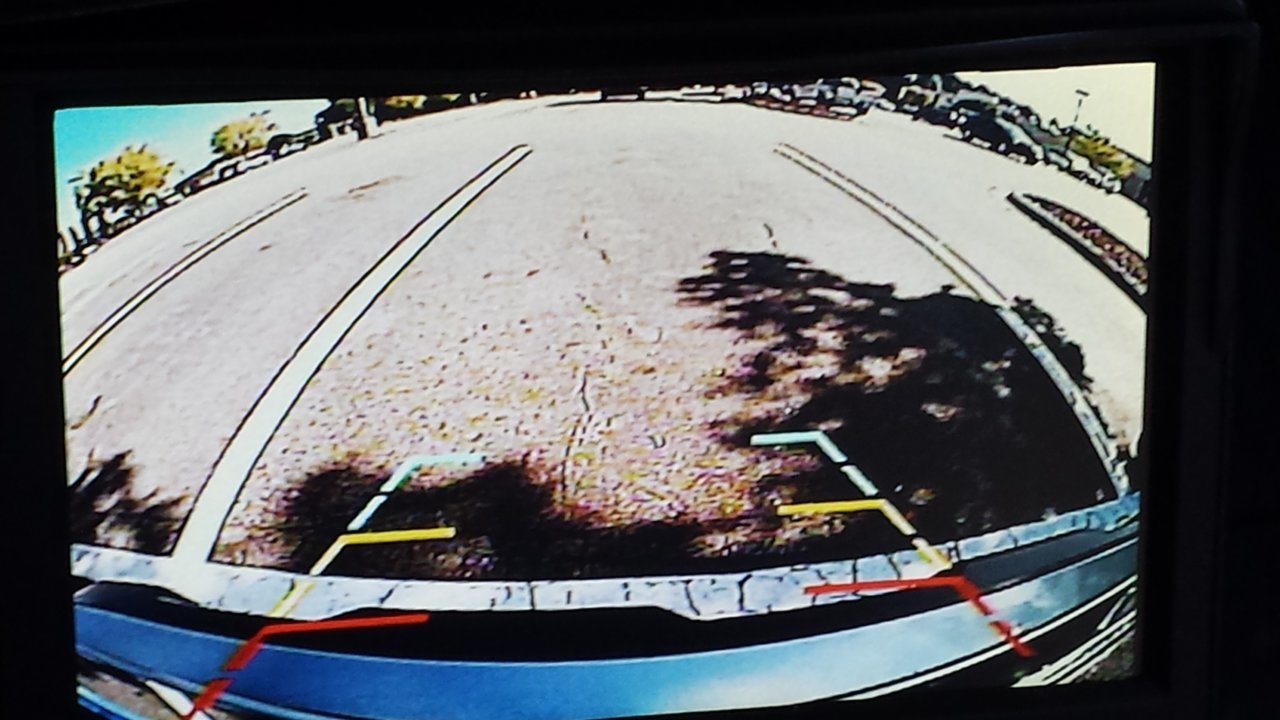

    Have camera adjusted for a similar view.
