Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Feb 26, 2020 at 2:19 PM
    #961
    EdinCincinnati

    EdinCincinnati Old Enough To Know Better

    Joined:
    Mar 11, 2013
    Member:
    #99457
    Messages:
    2,171
    Gender:
    Male
    First Name:
    Ed
    Cincinnati
    Vehicle:
    2014 4x4 TRD OR
    2Lo Mod, OV Tuned ECU, Bed Cap, Prinsu and my kids college money
  2. Feb 26, 2020 at 2:24 PM
    #962
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,209
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup::thumbsup::thumbsup:

  3. Feb 26, 2020 at 10:58 PM
    #963
    Bradg93

    Bradg93 Well-Known Member

    Joined:
    Sep 11, 2019
    Member:
    #305019
    Messages:
    210
    Gender:
    Male
    Port Hope, Ontario, Canada
    Vehicle:
    2020 TRD Sport DCLB Cement Grey
    Can you take some pictures so I can see what you mean about bracket/mount. Also can you take a few so we see what tour view is having it mounted higher thank what everyone else is doing?

  4. Feb 27, 2020 at 10:16 PM
    #964
    Toyotako

    Toyotako Well-Known Member

    Joined:
    Sep 18, 2019
    Member:
    #305693
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2020 Cement TRD Off-Road 4x4 DCSB
    Look on page 46 and dig up some of my old posts to see it. It looks OEM and wide in viewing angle and full HD. https://www.amazon.com/Backup-Water...akita+bac&sr=8-6#immersive-view_1582870128797 I used polyethylene split tubing and wire loom to hide the long RCA cable in there going right under the horn and in front of the radiator and running along side of the frame body by the battery. I zip tied and wrapped with electrical tape every few feet as it goes. The rest of the cable was pulled back up behind the head unit, zip tied in a bundle and tuck it right in the middle of the AC hoses.

    Last edited: Feb 27, 2020
  5. Feb 29, 2020 at 1:04 PM
    #965
    rhaliuk

    rhaliuk Well-Known Member

    Joined:
    Oct 18, 2019
    Member:
    #308293
    Messages:
    222
    Gender:
    Male
    First Name:
    Ross
    CT
    Vehicle:
    2018 TRD SPORT DC SB
    TRD sport door badge, TRD coin bucket, D2S 5.0 HID projectors, XB5500K HID Morimoto Kit with Highbeam Splitter, DD SS3 PRO Yellow fog lights, TRD PRO Grill with TSS, MESO TRD PRO shift knob Stage 2 (ECT/Front Cam), Anytime F/R camera, 2020 TRD pro wheels.
    You are absolutely right. My camera is shit and I had to google to order a new one. They ignored my complaint about the camera. I even asked what other camera with wider angle and better quality would work.
    Just ordered a Natika camera based on tacomaworld reviews.


    NEIPA27 likes this.
  6. Feb 29, 2020 at 1:37 PM
    #966
    NEIPA27

    NEIPA27 Well-Known Member

    Joined:
    Nov 5, 2019
    Member:
    #309890
    Messages:
    190
    Gender:
    Male
    Florida
    Vehicle:
    2020 OR
    Out of my own morbid curiosity, did the the camera that came with your kit have the LED ring, and the nut with the notch cut out that wouldn't tighten? Lots of people got that one, including me, and had their complaints ignored. I emailed them asking for them to make it right, and their response was "Sorry, these things happen." World class customer service there.

    rhaliuk likes this.
  7. Feb 29, 2020 at 1:41 PM
    #967
    rhaliuk

    rhaliuk Well-Known Member

    Joined:
    Oct 18, 2019
    Member:
    #308293
    Messages:
    222
    Gender:
    Male
    First Name:
    Ross
    CT
    Vehicle:
    2018 TRD SPORT DC SB
    TRD sport door badge, TRD coin bucket, D2S 5.0 HID projectors, XB5500K HID Morimoto Kit with Highbeam Splitter, DD SS3 PRO Yellow fog lights, TRD PRO Grill with TSS, MESO TRD PRO shift knob Stage 2 (ECT/Front Cam), Anytime F/R camera, 2020 TRD pro wheels.
    Yes!!! It wouldnt tighten and I had to squeeze the nut together. It still didnt fit right.
    Next time I wont get their camera.

  8. Feb 29, 2020 at 1:45 PM
    #968
    rhaliuk

    rhaliuk Well-Known Member

    Joined:
    Oct 18, 2019
    Member:
    #308293
    Messages:
    222
    Gender:
    Male
    First Name:
    Ross
    CT
    Vehicle:
    2018 TRD SPORT DC SB
    TRD sport door badge, TRD coin bucket, D2S 5.0 HID projectors, XB5500K HID Morimoto Kit with Highbeam Splitter, DD SS3 PRO Yellow fog lights, TRD PRO Grill with TSS, MESO TRD PRO shift knob Stage 2 (ECT/Front Cam), Anytime F/R camera, 2020 TRD pro wheels.
    I think they know exacty what they are selling. Is there anybody else who sells the same harness without a camera?

  9. Feb 29, 2020 at 1:54 PM
    #969
    NEIPA27

    NEIPA27 Well-Known Member

    Joined:
    Nov 5, 2019
    Member:
    #309890
    Messages:
    190
    Gender:
    Male
    Florida
    Vehicle:
    2020 OR
    That, I do not know. I'll be very interested if someone was, because you're looking at about five bucks worth of materials, plus the labor to put it together. Compare that to the price tag of the kit, and the stuff you have to buy yourself just to get it to work, and it's kind of infuriating.

  10. Feb 29, 2020 at 1:59 PM
    #970
    NEIPA27

    NEIPA27 Well-Known Member

    Joined:
    Nov 5, 2019
    Member:
    #309890
    Messages:
    190
    Gender:
    Male
    Florida
    Vehicle:
    2020 OR
    A lot of people on here said they tried to squeeze it tighter with pliers or vice grips and ended up breaking it. I was able to creep mine a little bit tighter with a bench vise without breaking it, but it didn't really fix the problem. The nut just alternated between extremely tight and loose with about every 90 degrees of turn, all the way down the shaft of the camera bolt. Useless.

  11. Feb 29, 2020 at 2:23 PM
    #971
    rhaliuk

    rhaliuk Well-Known Member

    Joined:
    Oct 18, 2019
    Member:
    #308293
    Messages:
    222
    Gender:
    Male
    First Name:
    Ross
    CT
    Vehicle:
    2018 TRD SPORT DC SB
    TRD sport door badge, TRD coin bucket, D2S 5.0 HID projectors, XB5500K HID Morimoto Kit with Highbeam Splitter, DD SS3 PRO Yellow fog lights, TRD PRO Grill with TSS, MESO TRD PRO shift knob Stage 2 (ECT/Front Cam), Anytime F/R camera, 2020 TRD pro wheels.
    FYI

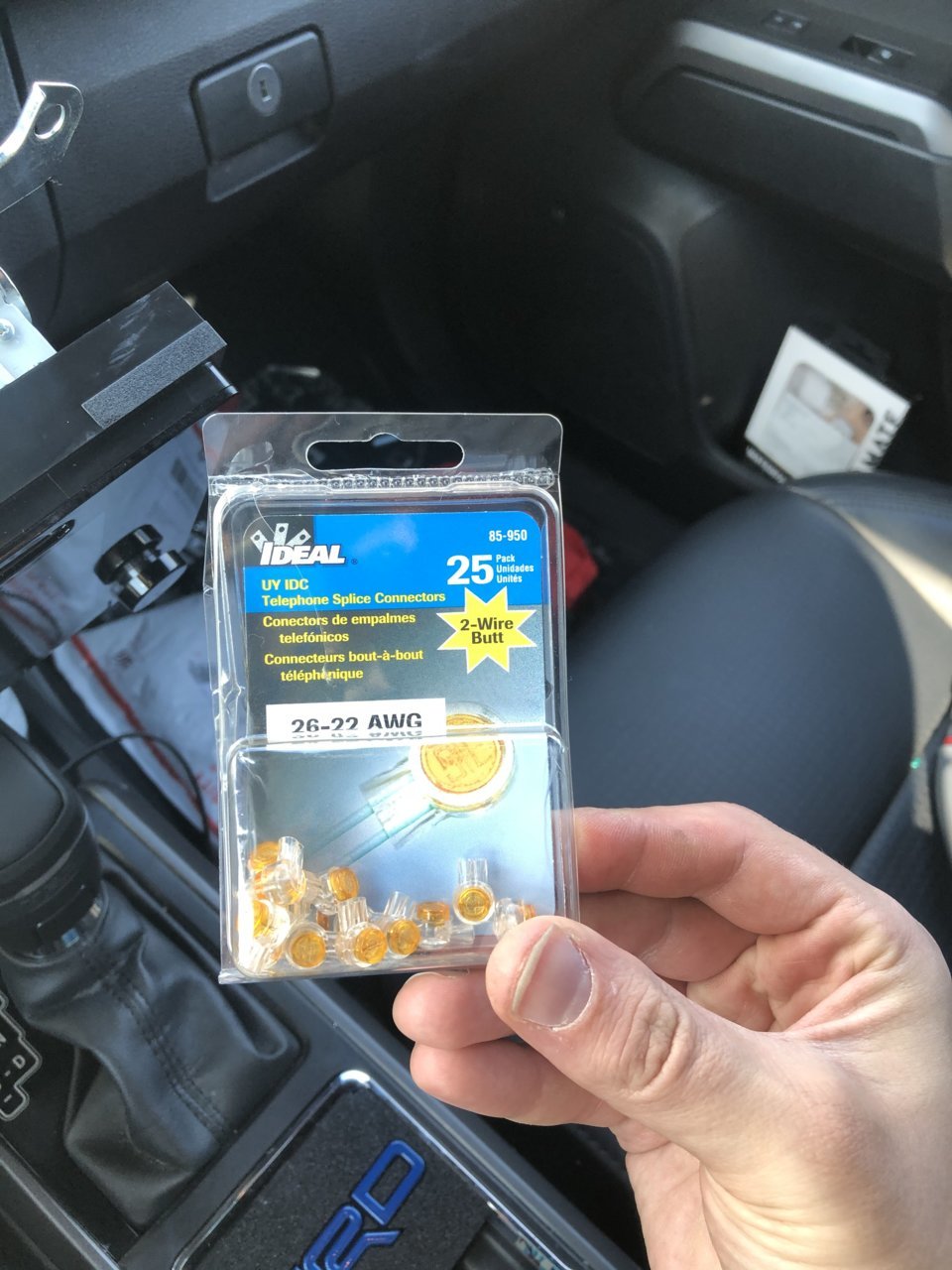

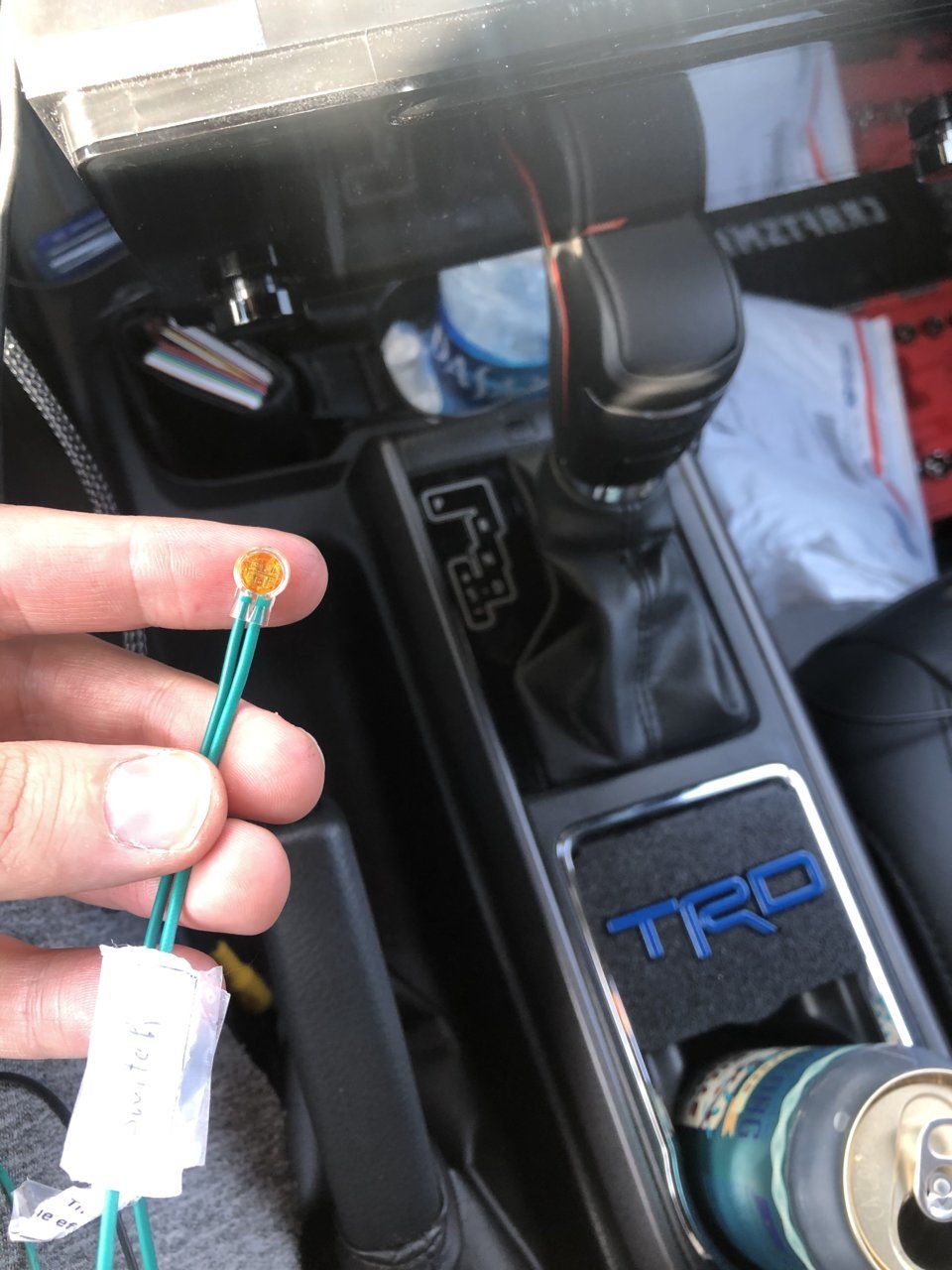

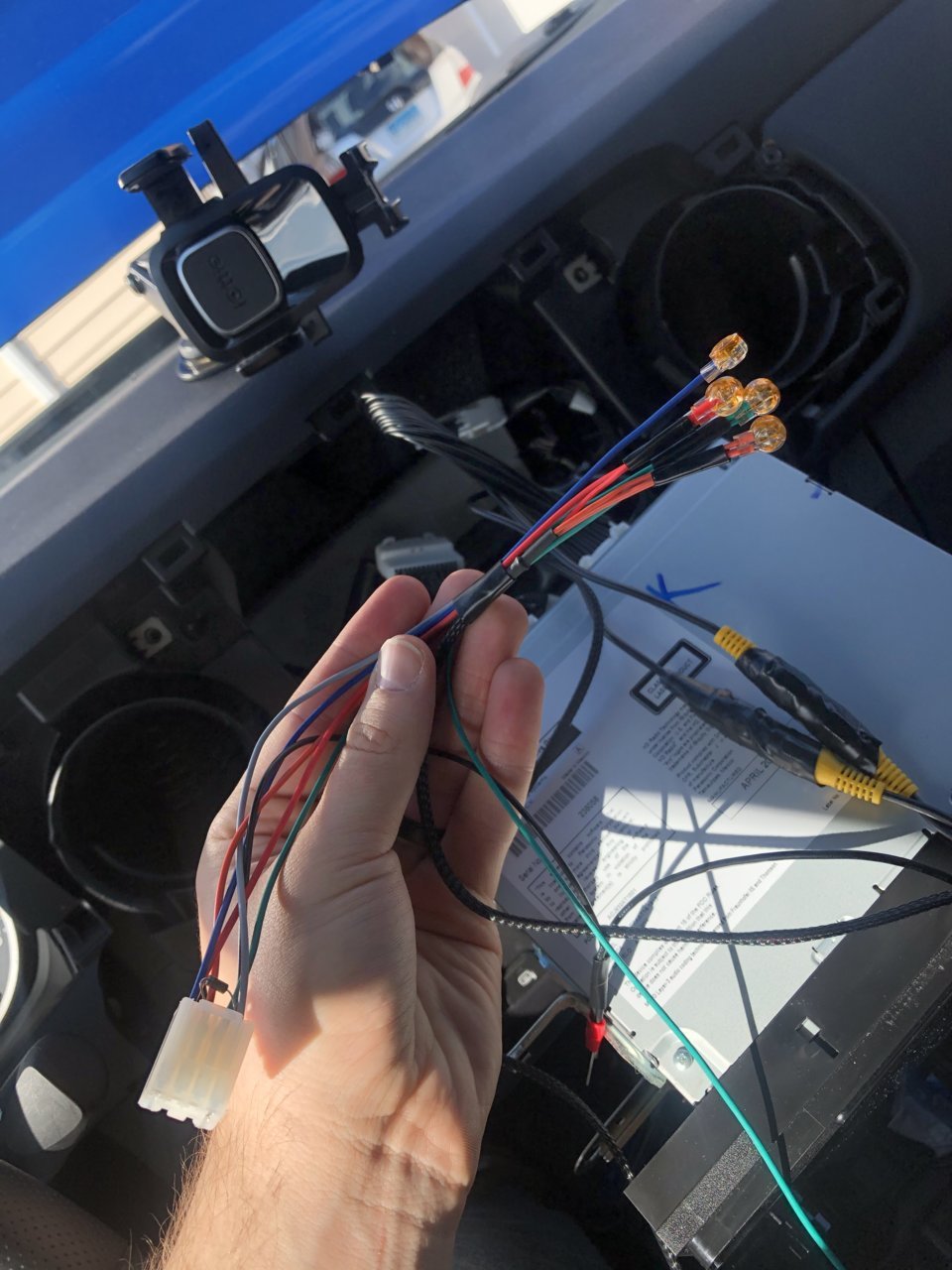

    I used these connectors from Home Depot installing the camera kit. They work great and look clean. Packaging says they are waterproof (to some degree and if used appropriately).
    I used it for 2 wires connections and for 2smaller and 1 regular wire connections.


    Blackwolf likes this.
  12. Feb 29, 2020 at 4:28 PM
    #972
    rhaliuk

    rhaliuk Well-Known Member

    Joined:
    Oct 18, 2019
    Member:
    #308293
    Messages:
    222
    Gender:
    Male
    First Name:
    Ross
    CT
    Vehicle:
    2018 TRD SPORT DC SB
    TRD sport door badge, TRD coin bucket, D2S 5.0 HID projectors, XB5500K HID Morimoto Kit with Highbeam Splitter, DD SS3 PRO Yellow fog lights, TRD PRO Grill with TSS, MESO TRD PRO shift knob Stage 2 (ECT/Front Cam), Anytime F/R camera, 2020 TRD pro wheels.

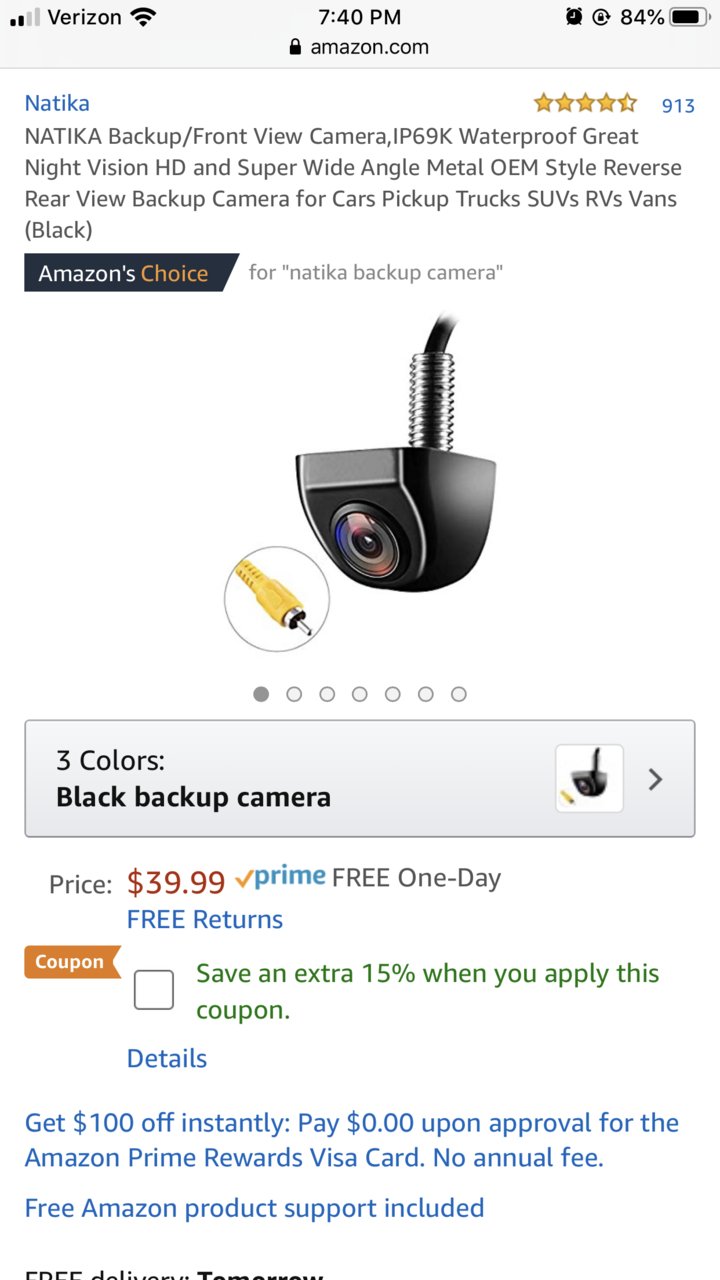

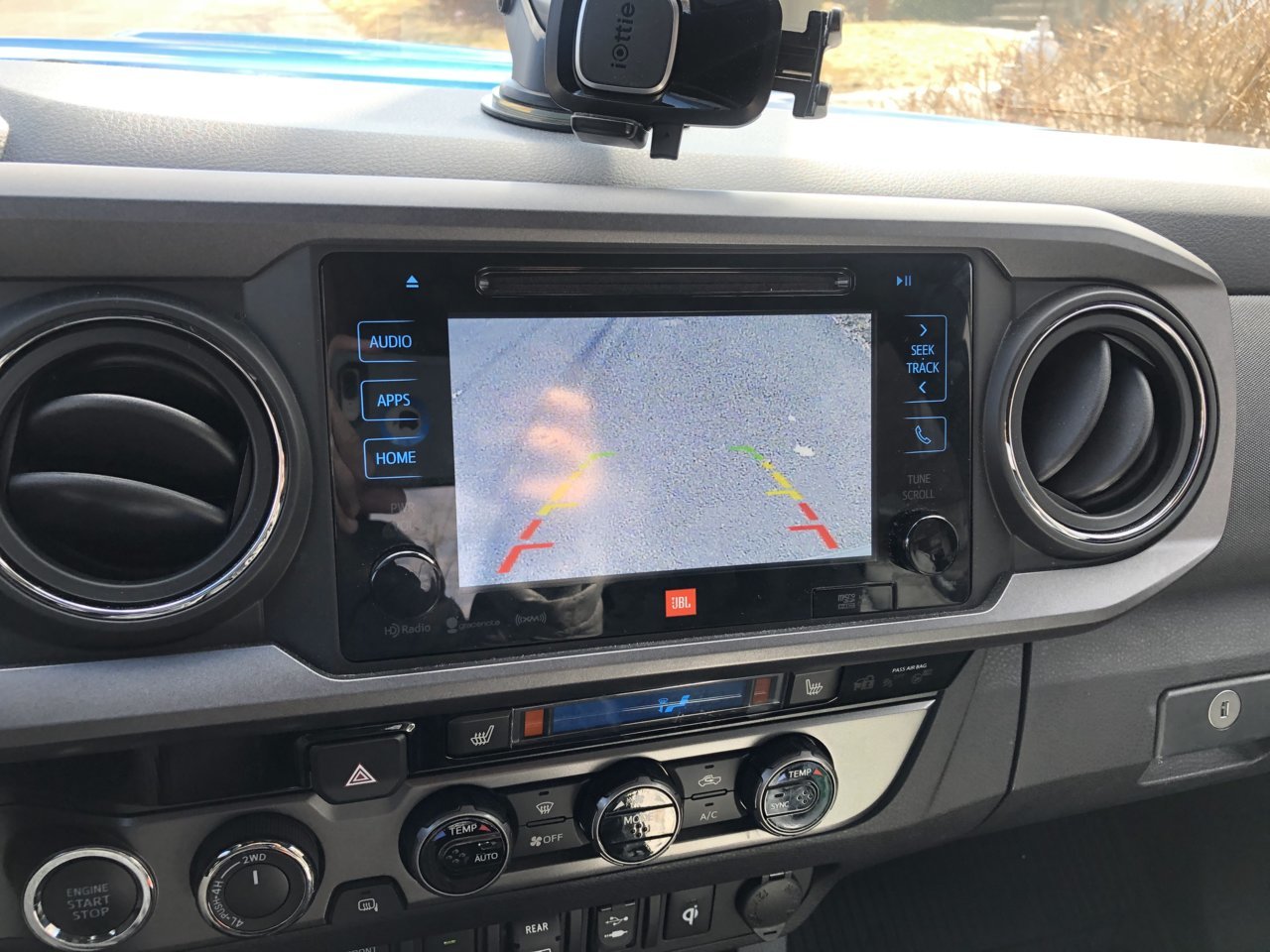

    Just swapped the shitty anytimebc camera with Natika. They sent extra harness and goodies but all you need is the camera which comes with a 4 pin connection. Now thats what a front cam should look like!


  13. Feb 29, 2020 at 4:39 PM
    #973
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,209
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    What model # is the Natika?

  14. Feb 29, 2020 at 4:40 PM
    #974
    rhaliuk

    rhaliuk Well-Known Member

    Joined:
    Oct 18, 2019
    Member:
    #308293
    Messages:
    222
    Gender:
    Male
    First Name:
    Ross
    CT
    Vehicle:
    2018 TRD SPORT DC SB
    TRD sport door badge, TRD coin bucket, D2S 5.0 HID projectors, XB5500K HID Morimoto Kit with Highbeam Splitter, DD SS3 PRO Yellow fog lights, TRD PRO Grill with TSS, MESO TRD PRO shift knob Stage 2 (ECT/Front Cam), Anytime F/R camera, 2020 TRD pro wheels.
  15. Mar 2, 2020 at 1:32 PM
    #975
    E.J.

    E.J. Well-Known Member

    Joined:
    Jul 10, 2019
    Member:
    #298824
    Messages:
    223
    First Name:
    Josh
    NWA
    Vehicle:
    2017 White Tacoma TRD Off Road
    Dumb question, when you hook it up like this is the camera always powered on or does the switch in the kit turn it on/off? I've got an aux fuse box with plenty of empty slots so this would be super convenient, but the kit I got has the camera with the led's around the lense. Wouldn't want those on all the time.

  16. Mar 2, 2020 at 10:06 PM
    #976
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,722
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Yeah this version is always powered on, so you’d want to route the power through the relay so it powers on with the switch

  17. Mar 2, 2020 at 10:12 PM
    #977
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,209
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    What does the relay in this setup do? Switch the feed? I mean since you stated both cameras are always ON.

  18. Mar 2, 2020 at 11:15 PM
    #978
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    940
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    Yes.

  19. Mar 2, 2020 at 11:20 PM
    #979
    empty_space

    empty_space Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314493
    Messages:
    65
    Gender:
    Male

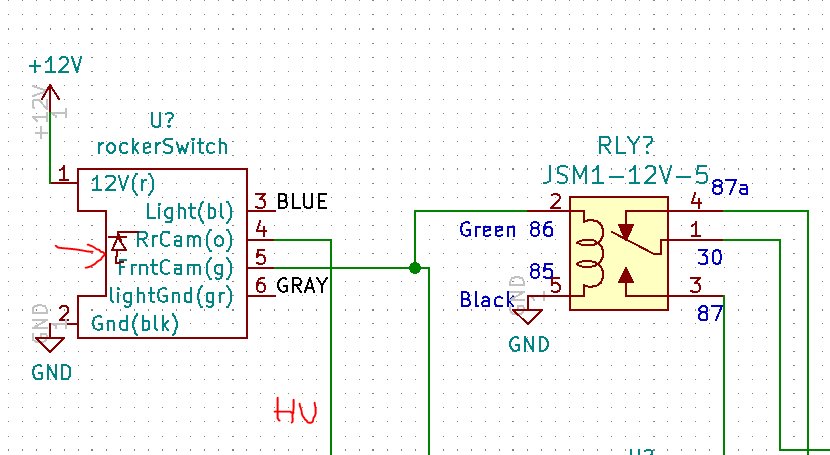

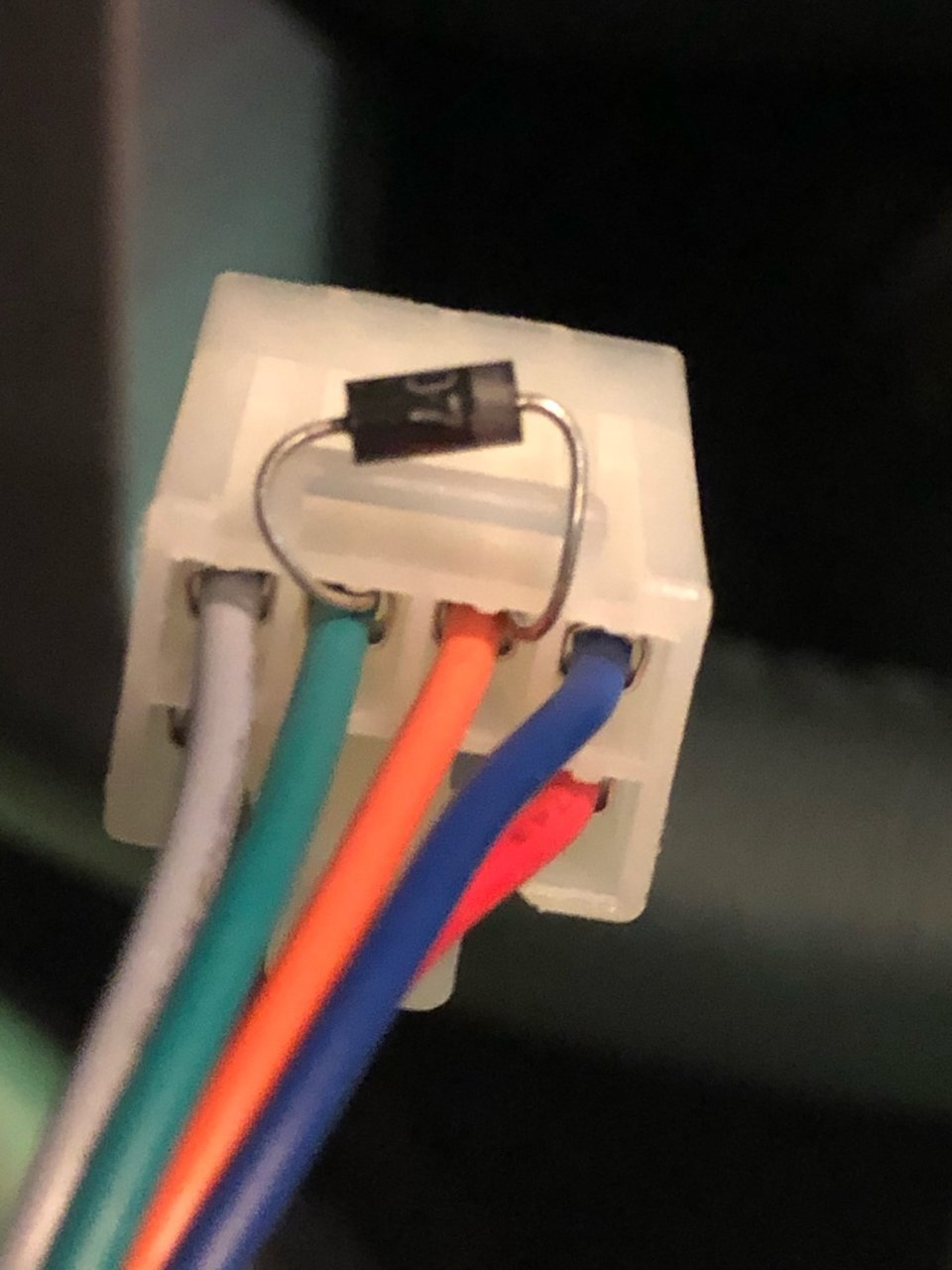

    Here's an ugly schematic I made when I first got my kit to understand what was going on. When you shift into reverse, the orange wire that goes to the HU goes HIGH (marked HU below). Diode blocks the signal from propagating through the switch to trip the relay, which will switch to the front camera.

    When you flip the switch to the FRONT position, you send a HIGH signal to the HU, which makes it show the camera screen. And at the same time, you energize the relay which flips the camera signal from back to front.


  20. Mar 2, 2020 at 11:32 PM
    #980
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,209
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You're missing the part when you want to see the Rear Cam or Front Cam without shifting into Reverse...don't see it in your drawing.
    Also, where or when does the front Cam have juice? I'm thinking only when selected...
