Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 13, 2018 at 6:04 PM
    #81
    Ellman605

    Ellman605 Well-Known Member

    Joined:
    Mar 11, 2015
    Member:
    #150635
    Messages:
    1,133
    Gender:
    Male
    First Name:
    Elliott
    Glen Dirty, MD
    I've got a camera on the front of mine. Reverse image. I don't see a green wire to cut or ground anywhere :(

  2. Sep 13, 2018 at 8:54 PM
    #82
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    If you find a good solution let us know

  3. Sep 14, 2018 at 5:16 PM
    #83
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    588
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    And done. Kind of. Still have toi put the switch for the navigation override, but the front camera and appropriate switches are installed and working perfectly.

    I did not illuminate the switch as the LEDs are yellowish and they aren't really needed as the switch is the only one of it's shape/size. Very easy to tell I'm touching it. Good tolerances. Smooth movement. I have to shave a little off the top, but didn't mar the face at all. It barely touches the top portion of the switch console.

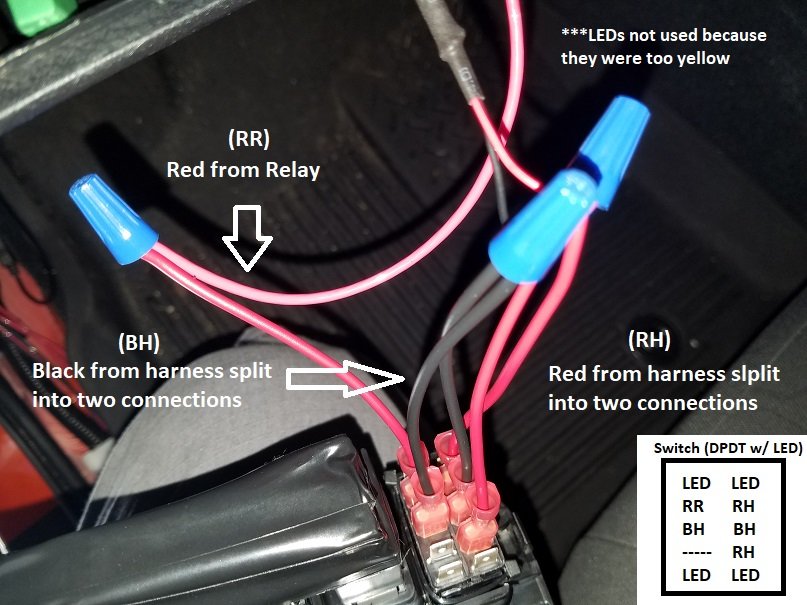

    Wiring schematic: (If the cameras are reversed, then move the Red from Relay to the empty "-----" position. LEDs were not used, so are also empty.)

    Not shown is the power for the front camera. There is a red wire imbedded with the yellow video cable. Behind the radio, I connected that red wire to the red wire on the relay switch. When the relay gets power when I flip the camera switch to the front camera position, then the front camera also gets turned on, not just viewed.


    Mounting position: (If it gets snagged, I'll just get another. Super cheap and love this angle.


    Front Camera View/Adjustment:


    Camera:
    https://www.amazon.com/gp/product/B018800TR2
    Can be flush mounted or surface mounted. Also come with a cute one-time use Chinese hole saw. I laughed when I saw it.
    No need to cut any wires to flip image. Just rotate camera in harness.
    It does have an overlay for distance, but not sure if I'll use it. Going to run without it initially.

    From Manufacturer:
    White Wire – Camera Orientation
    Connected = Front Facing (default)
    Disconnected = Rear Facing ​
    Green/Blue Wire - Distance Overlay Lines
    Connected =No Lines (default)
    Disconnected = Lines​

    Switch:
    https://rockerswitchpros.com/product/vjd2-u66b/
    Needs a Switch Actuator as well (switch face).
    I didn't use the LEDs, but the switches without LEDs aren't ON-OFF-ON DPDT switches. They are momentary at most.

  4. Sep 14, 2018 at 9:30 PM
    #84
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Great write up and clean install!

  5. Sep 15, 2018 at 11:18 AM
    #85
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    80
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    I bought some switches without the wire connector. Anyone know where I could buy it? I've been searching online for a couple days and can't find it anywhere. It's the same style as from ch4x4.com

    This is what I'm looking for:
    [​IMG]

  6. Sep 15, 2018 at 11:38 AM
    #86
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    588
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Contact ch4x4 and ask them for just the connector. They'd probably sell it to you.

  7. Sep 15, 2018 at 11:43 AM
    #87
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    588
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    I was able to get the nav switch into place. That was a little bit of a pain. I made two mistakes when doing it, but both are minor and/or fixable easily.

    I tried removing the collar around the steering wheel so I'd have good access, but I broke two tabs on the upper collar section. That should be fixable as it has plenty.

    I also drilled the hole wrong initially even though I was feeling around, the switch was making contact so I had to move it a little. See the picture and you'll understand. It needs to be close to the edge as there isn't much depth everywhere. I'll probably get some Sugru to plug the hole, but I'm the only one that will know it's even there. It also needs to go more towards the driver side rather than the passenger side.

    I still need to test the switch while driving.


  8. Sep 15, 2018 at 12:13 PM
    #88
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Yeah I’m interested how the Nav switch goes. I think you lose tracking while switched as you enter your address into the Nav, then when I switched again you find your location again. Let us know

  9. Sep 15, 2018 at 12:14 PM
    #89
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    What does the back of your switch look like? If it receives a plug like this I’m surprised it didn’t come with it

  10. Sep 15, 2018 at 3:07 PM
    #90
    Tocamo

    Tocamo Not to be confused with Camel Toe

    Joined:
    Jan 16, 2018
    Member:
    #241451
    Messages:
    2,550
    Gender:
    Male
    First Name:
    Rick
    Ottawa, Ontario. Capital of Canada
    Vehicle:
    2017 OFF-ROAD DCSB Quicksand
    C load 265/75/16 Duratracs.
    Hi Dave. In this pic, is this the front camera with those guidelines, or is this the OEM back camera??


  11. Sep 15, 2018 at 3:38 PM
    #91
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    That is a photo of the front camera, and the one I used can either have guidelines or not. I like them as I know the far line is about 3 ft or so for reference.

    Tocamo likes this.
  12. Sep 15, 2018 at 3:43 PM
    #92
    Tocamo

    Tocamo Not to be confused with Camel Toe

    Joined:
    Jan 16, 2018
    Member:
    #241451
    Messages:
    2,550
    Gender:
    Male
    First Name:
    Rick
    Ottawa, Ontario. Capital of Canada
    Vehicle:
    2017 OFF-ROAD DCSB Quicksand
    C load 265/75/16 Duratracs.
    Perfect, I too like that option Dave. Looks OEM!

    Papadave418 [OP] likes this.
  13. Sep 15, 2018 at 4:14 PM
    #93
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    80
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    Sent them an email, waiting for a reply.

  14. Sep 15, 2018 at 4:15 PM
    #94
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    80
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    Bought the switches second hand. The push button face is blank with no icons or words. I'm going for a "stealth" look.

  15. Sep 16, 2018 at 8:29 AM
    #95
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    And the back? Do you have metal tabs sticking out or do you need a wire plug that snaps in?

  16. Sep 16, 2018 at 10:44 AM
    #96
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    80
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    I need a wire plug for the back. I had bought a rocker switch with the tabs sticking out but that didn't fit in the Caliraisedled cubby 3 switch plate so I returned the switch.

    Papadave418 [OP] likes this.
  17. Sep 17, 2018 at 11:21 AM
    #97
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    I went off roading up in Stanislaus National Forest in CA yesterday and love this front camera off road. I forded a river to a center island, determined that the uphill was blocked and had to do like a 12 point turn to turn around, and the front camera kept me from hitting a stump hidden in the grass. Really nice to see obstacles too when hill climbingF12D90BF-4CCD-4444-8A88-9169539F38DF.jpg

    Last edited: Sep 18, 2018
    Landpirate, xxTacocaTxx and Tocamo like this.
  18. Sep 17, 2018 at 12:01 PM
    #98
    runmc

    runmc Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226288
    Messages:
    356
    Gender:
    Male
    First Name:
    Ron
    DFW Texas
    Vehicle:
    2018 Inferno Tacoma TRD OR DCSB
    One Mod after another
    I just grabbed one of your post so I could ask what happened to JJ’s systems from TRDMOD ? I bought a front and back setup from him a couple of months ago and haven't installed it yet. (been busy) Did he have any problems with them?

  19. Sep 17, 2018 at 2:09 PM
    #99
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Not that I know of. He sent me a DM that he was going a different direction?

  20. Sep 17, 2018 at 2:20 PM
    #100
    TEXAS BS

    TEXAS BS Formerly known as MMXVII

    Joined:
    Jun 26, 2018
    Member:
    #257594
    Messages:
    798
    Gender:
    Male
    First Name:
    JB
    Texas
    Vehicle:
    2017 ACLB TRD OR 4X4
    Technical question. I had my head unit out yesterday installing a Kicker Key amp. I did not see an RCA video connector on the back of the head unit. Where dose the camera (front/rear) connect on the head unit?

    Papadave418 [OP] likes this.
