Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 17, 2018 at 2:32 PM
    #101
    chriscamilo

    chriscamilo Well-Known Member

    Joined:
    Aug 15, 2018
    Member:
    #262966
    Messages:
    80
    Gender:
    Male
    Vehicle:
    2018 Tacoma DCSB Sport
    There's a wire harness that taps into the headunit which has an RCA video connector attached to it for the front camera only.

    Papadave418 [OP] likes this.
  2. Sep 17, 2018 at 2:38 PM
    #102
    bladsville

    bladsville Well-Known Member

    Joined:
    Mar 15, 2017
    Member:
    #213372
    Messages:
    418
    Gender:
    Male
    DFW
    Vehicle:
    2017 TRD Off-Road 4X4 MT
    Great install and great write up!!!

    Is there anyway to get that switch in anything other than comic sans though???

    Tunngavik and Papadave418 [OP] like this.
  3. Sep 17, 2018 at 2:40 PM
    #103
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Good question! You just need a DPDT for an all in one switch, so from there you can find one with a different font. I can’t remember if mictuning has a different one or CH4x4

    bladsville likes this.
  4. Sep 17, 2018 at 6:24 PM
    #104
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    588
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Worked like a charm today. Easily hit the switch while driving and my wife was able to enter the destination. GPS functionality is paused. So, if you are sitting on the default navigation screen, it will look like you aren't moving. I'll test this more, but it was true for about 2 blocks before I told her to try to input a destination.

    So, for normal use when you are driving and need to change the destination or add one to the current route:
    • Hit the switch
    • Search/Enter destination
    • Hit Go
    • Flip the switch back to off position to start the route/resume navigation.

    Papadave418 [OP] likes this.
  5. Sep 17, 2018 at 7:18 PM
    #105
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    That’s awesome. Thanks for sharing

  6. Sep 18, 2018 at 3:42 PM
    #106
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    44
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    Well after trying 4 cameras, I found one that I like and works as it should: HD Car Rear/Side/Front View Camera YM-606, YIMU 170° Viewing Angle Auto Reverse Parking Vehicle Backup Camera Waterproof with 4 Infrared LEDs Night Vision & One Button Control System https://www.amazon.com/dp/B072KQG664/ref=cm_sw_r_cp_tai_e7xOBbK14HCPX

    This camera is just a little bit larger than the Chuangunzhu camera, but has the same form factor (Yimu on the right.


    Last edited: Sep 18, 2018
    Papadave418 [OP] likes this.
  7. Sep 18, 2018 at 3:43 PM
    #107
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    44
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    Install looks pretty clean


  8. Sep 18, 2018 at 3:45 PM
    #108
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    44
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4

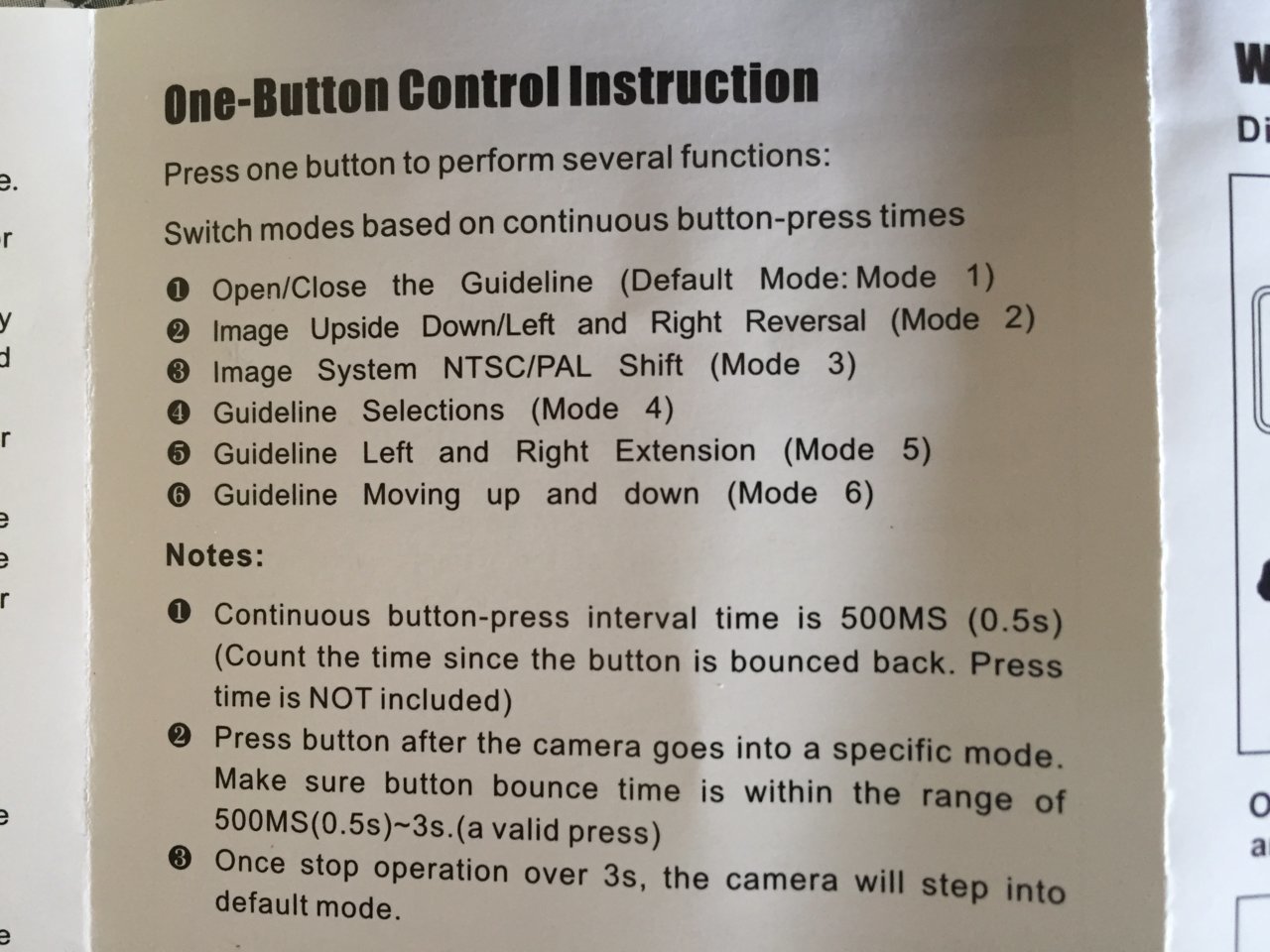

    The Yumi camera requires programming the settings via a single button which can be a little tricky to figure out as the instructions are not very clear.


    Last edited: Sep 18, 2018
  9. Sep 18, 2018 at 3:52 PM
    #109
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    44
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    You program the different modes by rapid button presses.

    To change the image requires 2 rapid button presses, repeated twice. That sequence will change from mirror image, to upside down, to normal (which is what you want for a front camera).

    You will also need to change the image system (3 rapid buttons presses)

    I also changed the guidelines from the default.

    Pretty cool camera for $18!

    Crasyrapy likes this.
  10. Sep 18, 2018 at 3:55 PM
    #110
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    44
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    The Yimu camera does not interfere with the TSS either.

    Shepherd12 and Papadave418 [OP] like this.
  11. Sep 19, 2018 at 4:44 PM
    #111
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Yeah I couldn’t fit mine there because I never got the garnishment for the TSS, sensor works just fine but not enough room for the camera dead center

  12. Sep 19, 2018 at 5:11 PM
    #112
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    588
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Found an added benefit to the navigation override switch... you can look through contacts instead of relying on the recent call list. Nice bonus. I'm sure there are more.

    Papadave418 [OP] and Tocamo like this.
  13. Sep 19, 2018 at 7:51 PM
    #113
    Justwandering

    Justwandering Well-Known Member

    Joined:
    Jun 20, 2018
    Member:
    #256975
    Messages:
    135
    Gender:
    Male
    Vehicle:
    '16 AC MGM OR
    Any pictures of the view from camera?

  14. Sep 19, 2018 at 10:39 PM
    #114
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    1,155
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Aob switches are in stock

  15. Sep 21, 2018 at 8:22 PM
    #115
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    3,684
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
  16. Sep 21, 2018 at 8:26 PM
    #116
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    You’ll be fine. Did you see my install post? I have the switch and it clears

  17. Sep 21, 2018 at 8:32 PM
    #117
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    3,684
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    I read enough to say “damn it! <spends money> Now I have to tag this thread to come back and read more fully.”

    It would be nice to get a push button with a rotator. One that cycles through three connections. Maybe I’ll order a clean one button too, heck it’s only $15, and see which I prefer.

  18. Sep 21, 2018 at 8:39 PM
    #118
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,729
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Haha money comes and money goes

  19. Sep 21, 2018 at 8:47 PM
    #119
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    3,684
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Yeah, too damn fast too.

    Papadave418 [OP] likes this.
  20. Sep 21, 2018 at 11:40 PM
    #120
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    588
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Just an update. Loving this setup.

    I use the front camera mainly to give me confidence while parking. I pretty much laugh when i park and see how close i am... and that i did it on purpose because i can.

    I wish the switch's LEDs were actually white, not an off white. It was a little difficult to find once, but I'm learning to find it by feel.

    I'll keep an eye out on another switch and watch as you guys show off the AoB switch. For now, my switch is good, but maybe it can light up and be better.
