Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 22, 2018 at 9:14 AM
    #121
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,744
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Glad it’s working well!

  2. Sep 22, 2018 at 10:06 AM
    #122
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    3,715
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    If you can solder, the leds are easy to swap colors.

    orion808 likes this.
  3. Sep 22, 2018 at 8:55 PM
    #123
    17toyota17

    17toyota17 Well-Known Member

    Joined:
    Dec 24, 2017
    Member:
    #239283
    Messages:
    99
    Vehicle:
    17 Tacoma SR5 DCSB
    I want a front camera so bad but install looks hard

  4. Sep 22, 2018 at 9:43 PM
    #124
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,744
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Really isn’t hard. Just follow the steps and it’s easier than you think

  5. Sep 23, 2018 at 5:05 AM
    #125
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    1,157
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    So i just got the full kit and am waiting on aob rocker switch to do the install, but my question is, can the front camera be replaced with any rca source, such that i could use it to watch tv, movies, etc? That would take care of video, but how bout sound?

  6. Sep 23, 2018 at 5:39 AM
    #126
    danwray

    danwray Well-Known Member

    Joined:
    Aug 21, 2018
    Member:
    #263556
    Messages:
    256
    Gender:
    Male
    First Name:
    Dan
    Kentucky
    Vehicle:
    2018 TRD OR 4x4 DCSB BBP TLDR
    Radio aux input

  7. Sep 23, 2018 at 6:11 AM
    #127
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,744
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    Yes you can but the signal is analog, so you’d need a converter between your iPhone to the RCA plug. Also I’m not sure what the ratio is if it’s 16:9 or not. But yes you could and like danwray said aux input for sound

  8. Sep 23, 2018 at 6:43 AM
    #128
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    1,157
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    So in that case, would it be a good idea to put a rca selector switch before the front camera to have options? Giving me a bunch of ideas

  9. Sep 23, 2018 at 8:14 AM
    #129
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,744
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    You definitely could. That’s what the relay does, it hijacks the rear camera feed to insert the front camera feed. So effectively you could switch out the front camera feed to insert whatever video you want. Where’s RadioShack when you need one! #ripradioshack

    orion808 and cruxx like this.
  10. Sep 23, 2018 at 1:54 PM
    #130
    Pympede

    Pympede Active Member

    Joined:
    Mar 21, 2017
    Member:
    #213941
    Messages:
    37
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 DCSB Sport 6MT
    I've started installing this and to be honest I've gotten lost. Can someone help me clarify the wiring?

    I'm installing the front camera only.

    Camera is installed, and will get power from an add a fuse directly into the fuse box.

    I'm just totally lost about the red and black wire coming from the relay. I think black gets grounded to the vehicle, and red goes to the switch?

    Does the switch get wired to anything else?

    I'd really appreciate any insight.

  11. Sep 23, 2018 at 2:02 PM
    #131
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    599
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    The red goes to the switch... as does the harness, but you didn't get the harness? The power comes from the black on the harness.

    As i understand, you have to have the harness as it overrides the system and makes the rear view camera available anytime. Then the relay you have switches that to access the front.

    What's the point of having a front camera while in reverse? You need the override harness.

    payrow likes this.
  12. Sep 23, 2018 at 2:10 PM
    #132
    Pympede

    Pympede Active Member

    Joined:
    Mar 21, 2017
    Member:
    #213941
    Messages:
    37
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 DCSB Sport 6MT
    Sorry, I don't think I was clear enough.

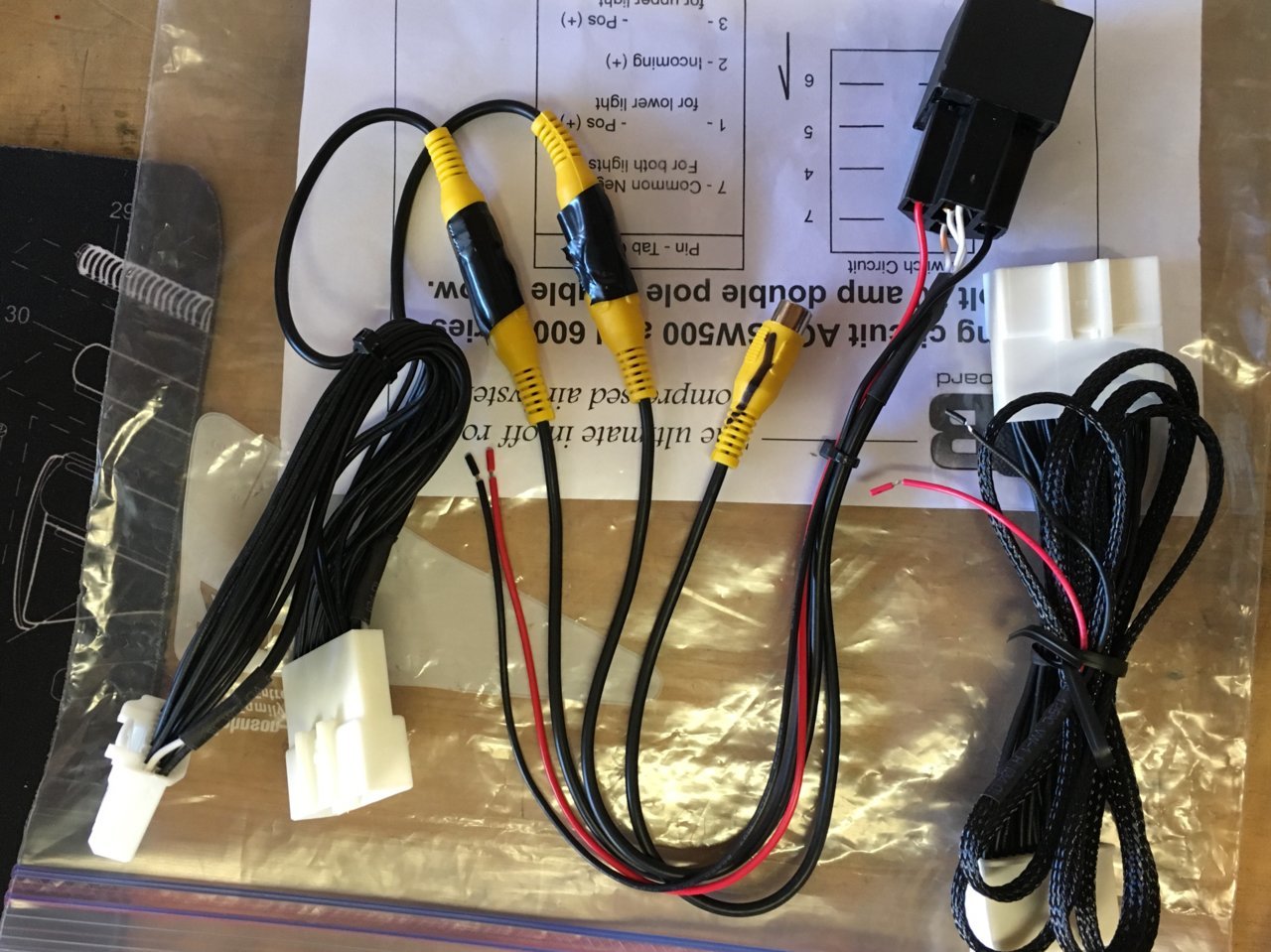

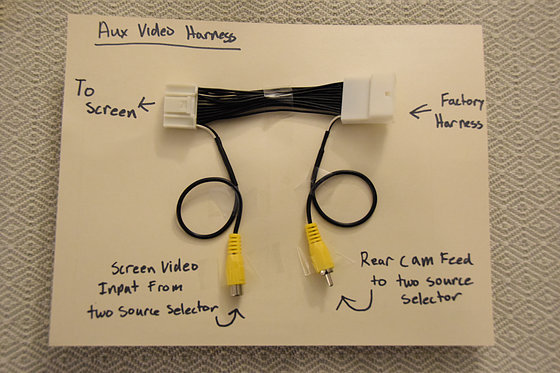

    I have the 28 pin harness that adds two RCA jacks, the relay with 3 rca plus a black and red wire, plus a push switch from Ch4x4.

    Just struggling to figure out what hooks up to the red wire from the relay and if anything hooks up with the 4 wires from the switch.

  13. Sep 23, 2018 at 2:30 PM
    #133
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,744
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!

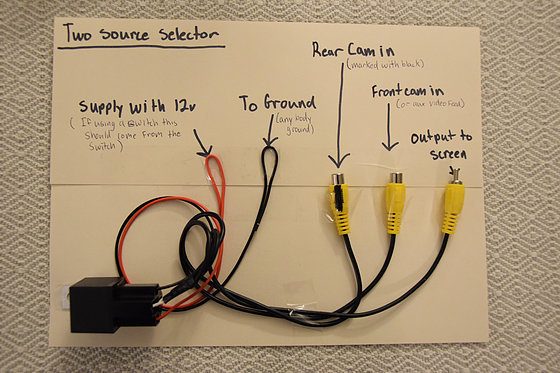

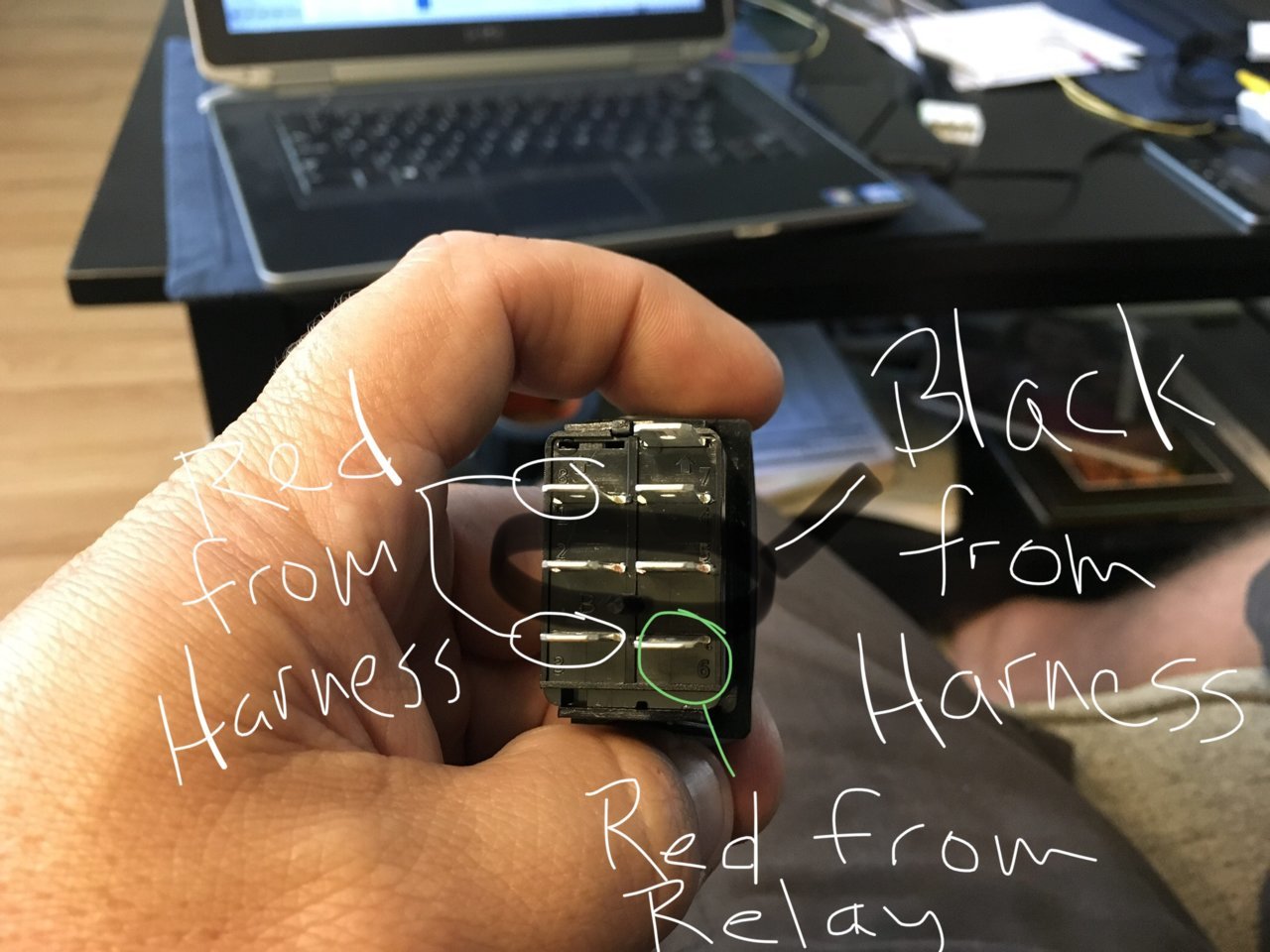

    I posted this in the thread somewhere, see if this helps. I have a dual rocker switch. I also added this photo to the first install post 1F82F584-22D6-45C8-A499-4CBFB8FA292D.jpg

    payrow likes this.
  14. Sep 23, 2018 at 2:51 PM
    #134
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    451
    Gender:
    Male
    Los Santos
    Vehicle:
    '18 DCSB Sport

    To piggy back on this...

    Black wire from relay gets grounded.

    AND

    So that the front camera is not ON ALL THE TIME, you can tie the red power of the camera to the red wire from the relay so that it only comes on when you activate the front camera. The black wire from the camera goes to ground.

    To clear up some confusion... the BLACK wire form the harness is a 12Volt source wire - even thought it is black!!! What the switch is basically doing is putting that 12Volt source onto the RED wire form the harness to activate/simulate the truck being in Reverse. It does this weather the switch is on front or rear camera. The other side of the switch is turning on the relay to switch from the rear camera to the front - and if you tie the power wire of the front camera to this wire it will turn the front camera on.

    DO NOT INTRODUCE A NEW 12Volt source to any of the wiring - it is NOT NEEDED! (and you may foul something up by doing so)

    I was confused a little a t first too...hope this helps.

    nokio2252 likes this.
  15. Sep 23, 2018 at 3:03 PM
    #135
    Pympede

    Pympede Active Member

    Joined:
    Mar 21, 2017
    Member:
    #213941
    Messages:
    37
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 DCSB Sport 6MT
    The 28 pin harness I have doesn't have any wires other than two rca jacks.

    Ill attach pics of everything I'm working with and hopefully that will help. I'm installing just a front camera, no over ride for the rear.

    I honestly appreciate all the help given so far!

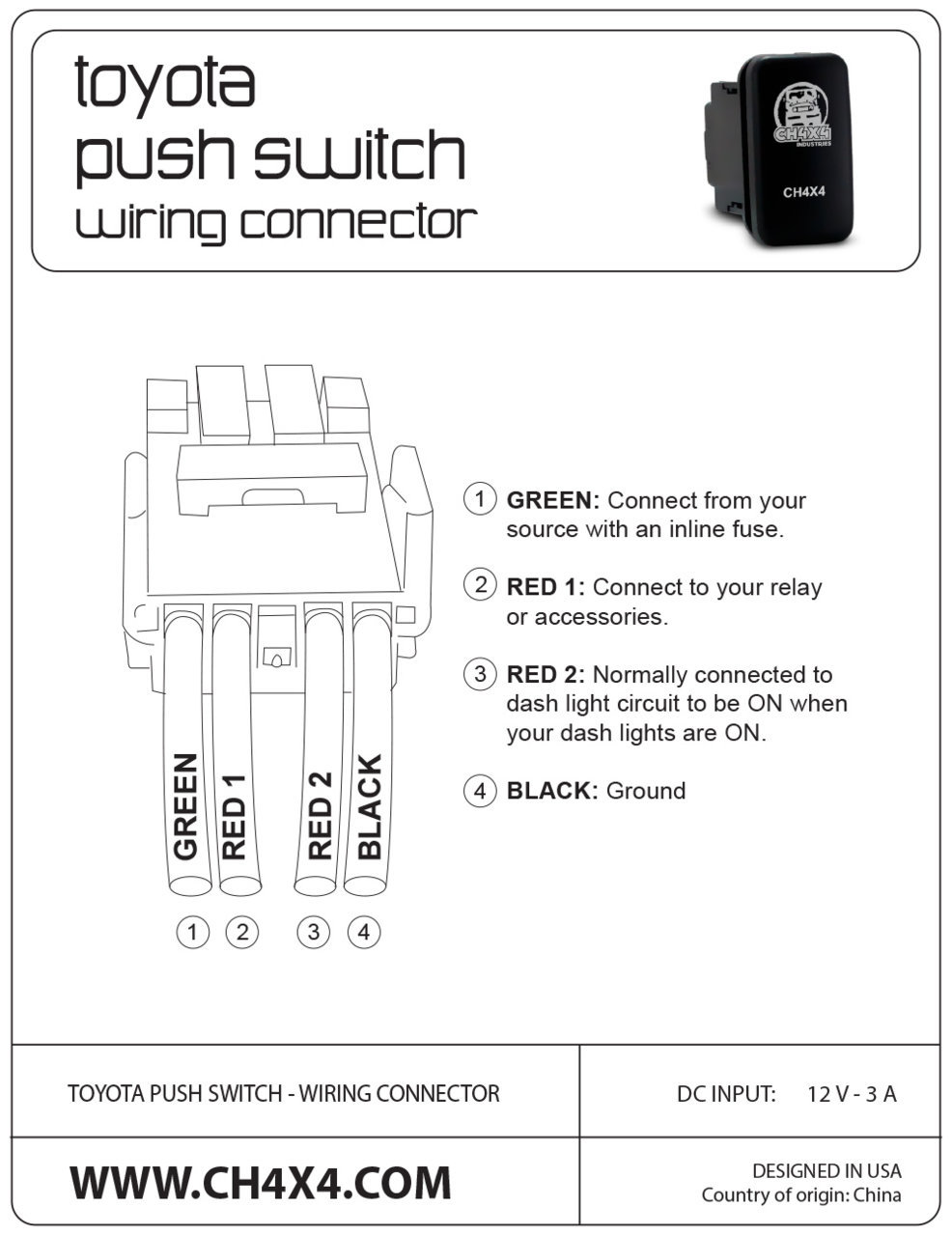

    CH4X4 Switch Wiring Connector.jpg

  16. Sep 23, 2018 at 3:08 PM
    #136
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    451
    Gender:
    Male
    Los Santos
    Vehicle:
    '18 DCSB Sport
    Looks to me like your missing the override harness... o_O (cable to the right)

    What you have will work to switch camera views but ONLY in reverse...


  17. Sep 23, 2018 at 3:22 PM
    #137
    Pympede

    Pympede Active Member

    Joined:
    Mar 21, 2017
    Member:
    #213941
    Messages:
    37
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 DCSB Sport 6MT
    That... Makes a lot of sense. I'm glad I'm not crazy!

    I'll order that additional harness and hopefully things will make sense once that arrives!

    Papadave418 [OP] and payrow like this.
  18. Sep 23, 2018 at 5:47 PM
    #138
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    599
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Ah, so I was right. Good luck, man. It'll all make sense once you get it.

    Papadave418 [OP] likes this.
  19. Sep 23, 2018 at 9:47 PM
    #139
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    3,715
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    If you doing both front and rear don't forget the diodes.

  20. Sep 23, 2018 at 10:08 PM
    #140
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    599
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    I have mine wired without the diodes on a dpdt switch. He doesn't mention for the dpdt, only the dual spst switches.

    I actually have an email that i just sent him. (Thought i did already, but left as a draft) and he responds quickly. Will know definitively soon.

    Mine is working perfectly without diodes.
