Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Sep 23, 2018 at 10:14 PM
    #141
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    2,943
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC M5
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, backup camera, intermittent wiper switch
    Different kit then.

  2. Sep 23, 2018 at 11:10 PM
    #142
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    I have the entire kit from anytimebackupcamera.com

    Full Kit -View Rear Camera Anytime and Add Front Camera
    Anytime Rear Harness
    Video Source Relay
    Video Harness

    And I also got the
    Vehicle In Motion Navigation Override

  3. Sep 23, 2018 at 11:31 PM
    #143
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    2,943
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC M5
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, backup camera, intermittent wiper switch
    Don't have NAV, just have JJ's front/rear kit for 2nd gen w/ Entune. Works just fine. I'm using 2 switches in the center console and there isn't an OEM dpdt option for that location.

  4. Sep 24, 2018 at 12:34 AM
    #144
    BB2017

    BB2017 Well-Known Member

    Joined:
    Dec 18, 2017
    Member:
    #238820
    Messages:
    128
    Gender:
    Male
    First Name:
    Matt
    So Cal
    Vehicle:
    2017 Tacoma TRD sport
    Maxtrac 4" spindles, old man emu medium leaf packs, Bilstein 5100 struts and extended length shocks, Mamba M13 17x9 -12mm offset wheels, 3/4" wheel spacers on rear wheels, BF Goodrich LT 265/70R17 KO2 tires, OV tune 1.04, Rough Country steps, Morimoto LED amber Fog Lights, Meso Customs Limited edition Ultimate LED turn signals.
    Last edited: Sep 24, 2018
  5. Sep 24, 2018 at 3:33 AM
    #145
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Per Brian at anytimebackupcamera.com:

    No need for a diode with DPDT. The diode is only needed with the two SPST switches if you want to be able press one switch to show each camera. Otherwise you need to press the rear camera switch first to see the front camera. The diode 100% is NOT required, it is a preference.

    --------------
    Damn that dude is quick on the reply emails.

    Papadave418 [OP] likes this.
  6. Sep 24, 2018 at 7:33 AM
    #146
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    2,943
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC M5
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, backup camera, intermittent wiper switch
    Makes sense. I wanted an oem look and one touch control so that meant diodes. I certainly would have preferred an on-off-on rocker with an oem style and asked CH4X4 about making them but no joy.

  7. Sep 24, 2018 at 11:58 AM
    #147
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    404
    Gender:
    Male
    Los Santos
    Vehicle:
    '18 DCSB Sport

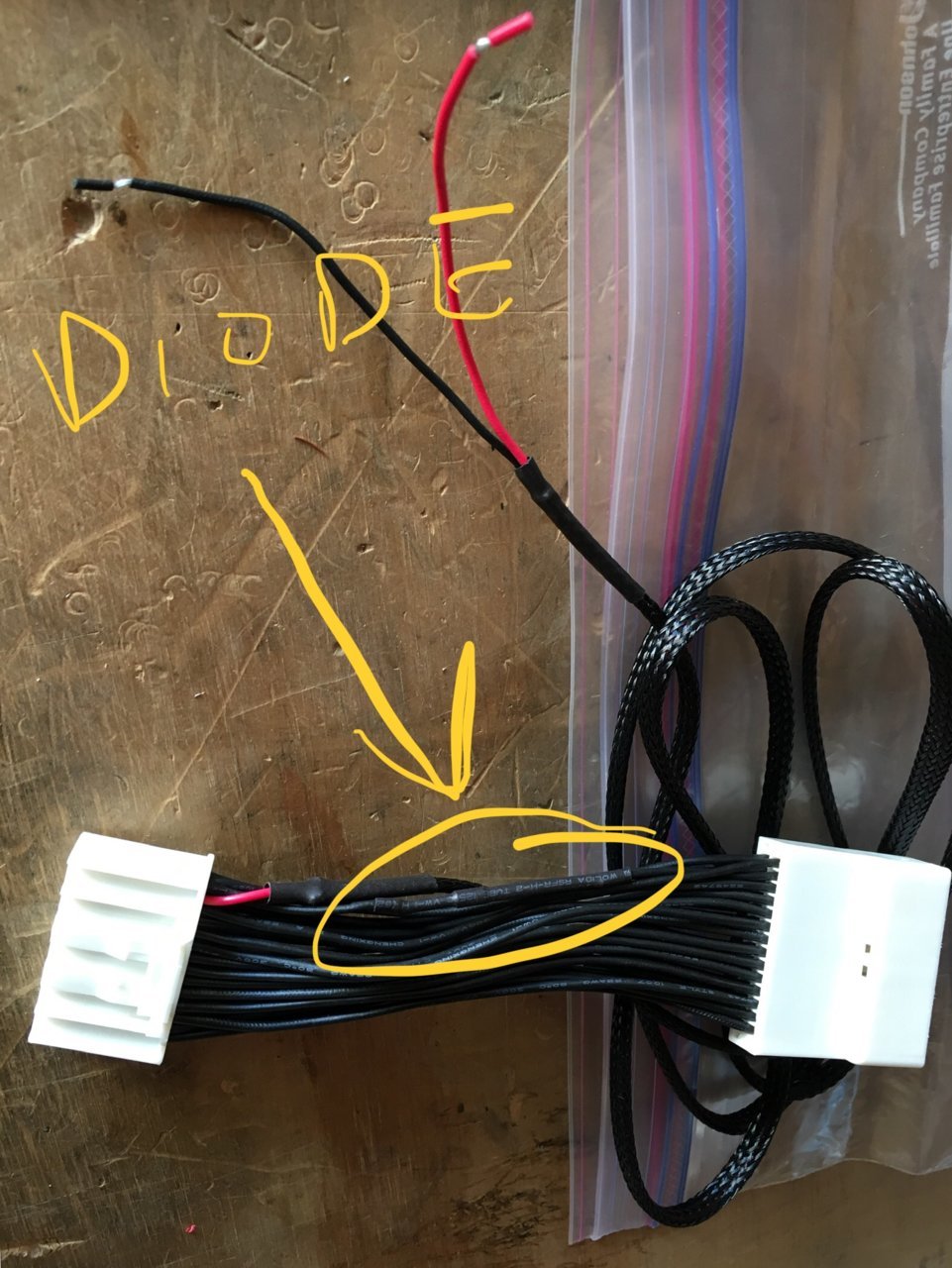

    I think mine came with the diode already integrated into the wiring harness. He may have started to do this - it doesn't hurt anything and I'm figuring that he started to put it into the harness to avoid confusion. I did see it taped to the harness in one of the pictures earlier in this thread, but again, I did not get a loose one with my order. (BTW the diode is on the RED wire side)


    orion808 likes this.
  8. Sep 27, 2018 at 12:28 PM
    #148
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    858
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport

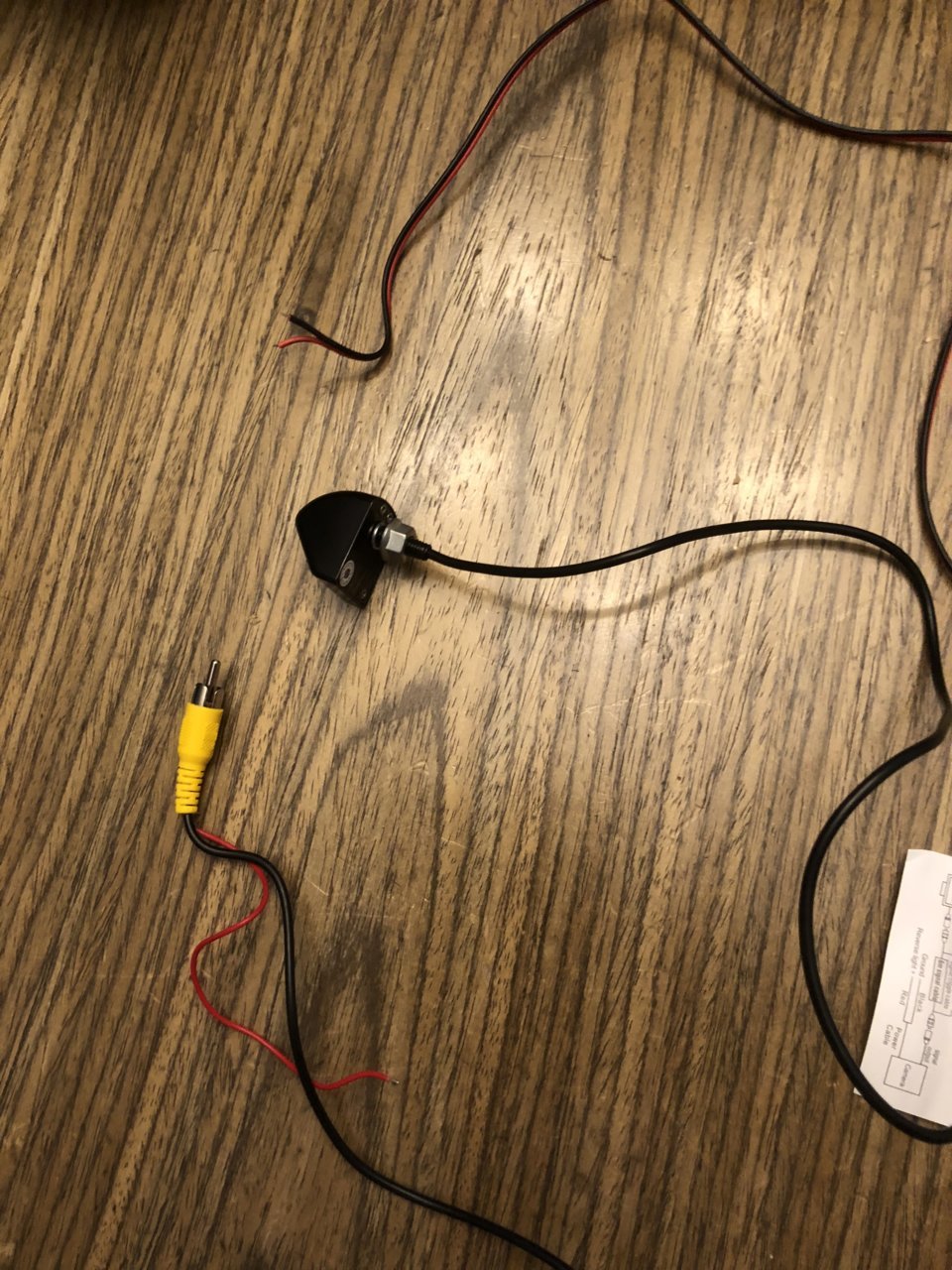

    Just a question for those who have accomplished this. I was going over my camera i got iff Amazon and wondered what the red wire with rca gets attached to, if anything8B6AE972-53DE-479A-A0B0-1156FB690EED.jpg

  9. Sep 27, 2018 at 1:24 PM
    #149
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Power wire for a different set up I think, I just cut mine off

    SCUBADIVINGJOE likes this.
  10. Sep 27, 2018 at 2:48 PM
    #150
    BB2017

    BB2017 Well-Known Member

    Joined:
    Dec 18, 2017
    Member:
    #238820
    Messages:
    128
    Gender:
    Male
    First Name:
    Matt
    So Cal
    Vehicle:
    2017 Tacoma TRD sport
    Maxtrac 4" spindles, old man emu medium leaf packs, Bilstein 5100 struts and extended length shocks, Mamba M13 17x9 -12mm offset wheels, 3/4" wheel spacers on rear wheels, BF Goodrich LT 265/70R17 KO2 tires, OV tune 1.04, Rough Country steps, Morimoto LED amber Fog Lights, Meso Customs Limited edition Ultimate LED turn signals.
    Hello @Papadave418 ,
    For the NAV switch do we just need to use any 2 position on/off switch? Thanks

  11. Sep 27, 2018 at 4:30 PM
    #151
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Try without it, but if your camera doesn't work, it's likely the power for the camera.

    Mine was the same. I connected the red that ran along side the Video cable to the Red from the relay switch. That way, when I hit the "Front Camera" switch, the black from the harness (which is hot) flips the relay, which selects the front camera, and also powers the front camera only when selected.

    My camera had a power cable also, but like I said, I used power from the harness, not another fuse/source.

    Easy to see in the picture:
    https://www.amazon.com/dp/B018800TR2

    payrow likes this.
  12. Sep 27, 2018 at 5:34 PM
    #152
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Yup! Easy

    BB2017 likes this.
  13. Sep 28, 2018 at 1:51 AM
    #153
    BB2017

    BB2017 Well-Known Member

    Joined:
    Dec 18, 2017
    Member:
    #238820
    Messages:
    128
    Gender:
    Male
    First Name:
    Matt
    So Cal
    Vehicle:
    2017 Tacoma TRD sport
    Maxtrac 4" spindles, old man emu medium leaf packs, Bilstein 5100 struts and extended length shocks, Mamba M13 17x9 -12mm offset wheels, 3/4" wheel spacers on rear wheels, BF Goodrich LT 265/70R17 KO2 tires, OV tune 1.04, Rough Country steps, Morimoto LED amber Fog Lights, Meso Customs Limited edition Ultimate LED turn signals.
    Thanks!

  14. Sep 28, 2018 at 6:48 PM
    #154
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift

    Wrong answer....It needs to be dpdt. It'll have at least 6 connectors on the back
    .... argh.

    Ignore me. I'm blind atm and reading this straight all wrong.

    I used a medium duty from home depot that i hid under my steering column.

    Last edited: Sep 28, 2018
  15. Sep 28, 2018 at 6:53 PM
    #155
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    40
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    The red wire is a power wire. I connected that to the video relay. Very easy way to power the camera.

    payrow likes this.
  16. Sep 28, 2018 at 6:55 PM
    #156
    eabrooke

    eabrooke Active Member

    Joined:
    Jun 4, 2018
    Member:
    #255455
    Messages:
    40
    Gender:
    Male
    The Lone Star State
    Vehicle:
    2018 TRD Sport DCSB 4x4; 1986 Toyota Pick Up 4x4
    For the Nav override, you just need a simple switch to break the circuit.

    eddy out likes this.
  17. Sep 28, 2018 at 7:04 PM
    #157
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Oops. Nav.

    Papadave418 [OP] likes this.
  18. Sep 29, 2018 at 7:55 AM
    #158
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Haha, thanks guys for all the contributions to the thread. Great work and input from everyone

  19. Sep 29, 2018 at 8:28 AM
    #159
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Can you take a photo of the screen to show what the front view looks like with this camera?

  20. Sep 29, 2018 at 8:49 PM
    #160
    BETX983

    BETX983 Member

    Joined:
    Nov 28, 2016
    Member:
    #203492
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2017 TRD Off-road
    Thanks TW! Ordered the setup minus a camera -because of some potential confusion.

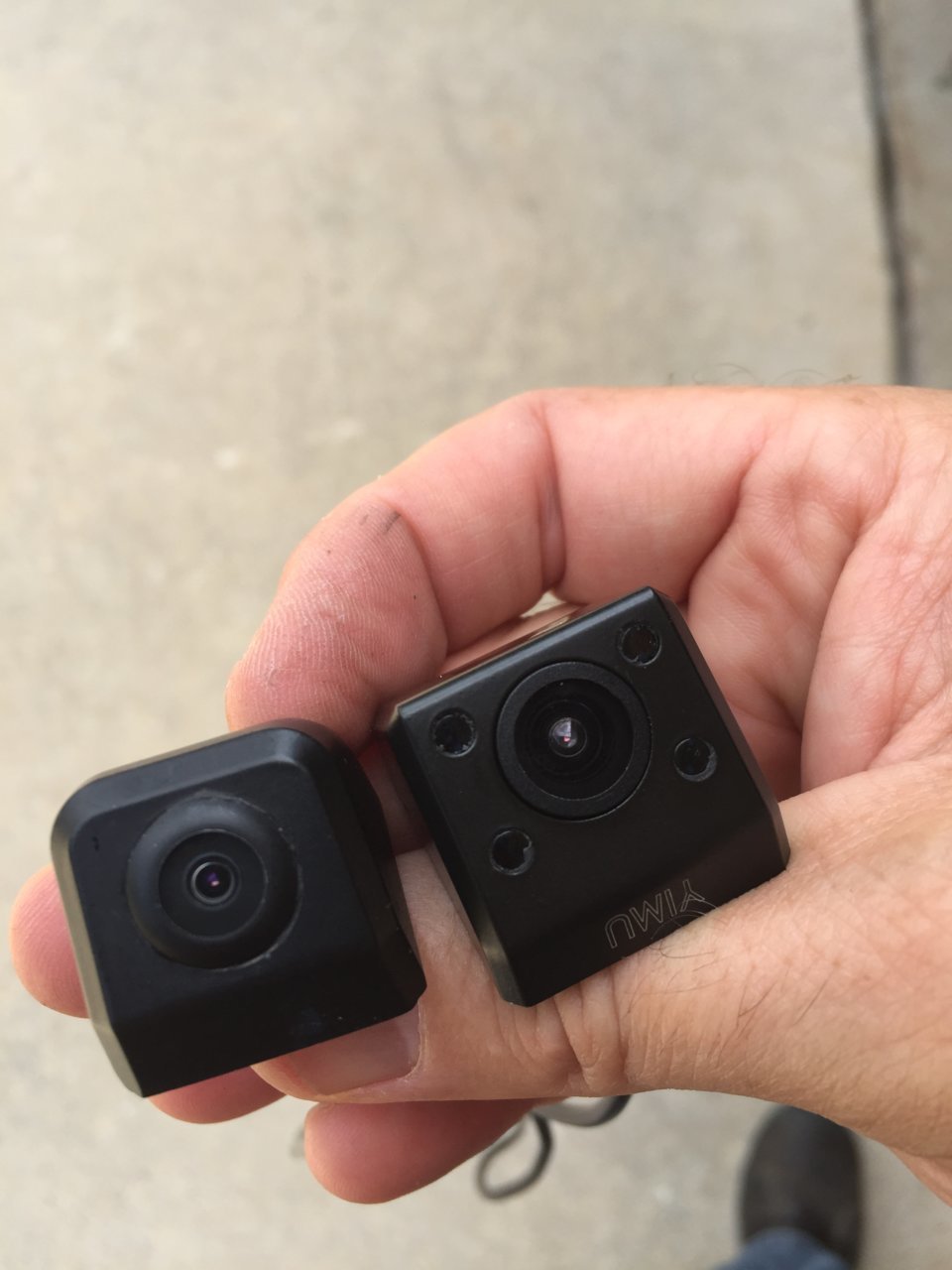

    If I understand early posts correctly, The Chuangunzhu camera works with the selector switch but the Yimu does not...but the Chuangunzhu may have the image reversed and not correctable....Is my understanding correct or is TSS referring to something else in the post about the Yimu camera?

    Thanks...in the end I just want a camera that works, ability to toggle between front/back, and have left/right correct!
