ARB Bedside compressor mount

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Jaysonn, Jun 3, 2018.

Page 4 of 10
  1. Jul 3, 2018 at 9:08 AM
    #61
    Jeff@ExE

    #61
    Jeff@ExE Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247358
    Messages:
    204
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Toyota Tacoma
    A Lot
    There is a trick to do it solo as I’ve done a few times. Remove the bottom plate, install the box first then the compressor and bottom plate after it is already mounted.

    Jeff@ExE, Jul 3, 2018
    #61
    Pyrotech and HoboDave[QUOTED] like this.
  2. Jul 3, 2018 at 2:48 PM
    #62
    Alesimo

    #62
    Alesimo Jeeper

    Joined:
    Sep 29, 2014
    Member:
    #139352
    Messages:
    1,084
    Gender:
    Male
    First Name:
    Alec
    Houston, Texas
    Vehicle:
    2020 Jeep Wrangler JLUD
    Metri-packs!
    Ya if I could go back I would but y'all's but I've crossed the Rubicon!

    Alesimo, Jul 3, 2018
    #62
    Jeff@ExE[QUOTED] likes this.
  3. Jul 3, 2018 at 3:01 PM
    #63
    Track

    #63
    Track Well-Known Member

    Joined:
    Oct 4, 2017
    Member:
    #232013
    Messages:
    138
    Gender:
    Male
    First Name:
    Tuck
    Florida
    Vehicle:
    2017 TRD offroad
    MobTown bed racks MobTown sliders and skid ARB onboard air
    Were you able to use the ARB switch that came with the kit? Their switch is to big for the blank on my lower left dash panel. Not happy about taking a Drexel to that panel. But yours looks finished.

    Track, Jul 3, 2018
    #63
  4. Jul 3, 2018 at 9:52 PM
    #64
    x2GENx

    #64
    x2GENx Well-Known Member

    Joined:
    Nov 28, 2017
    Member:
    #237194
    Messages:
    132
    Gender:
    Male
    Vehicle:
    18' DCSB OR 4x4

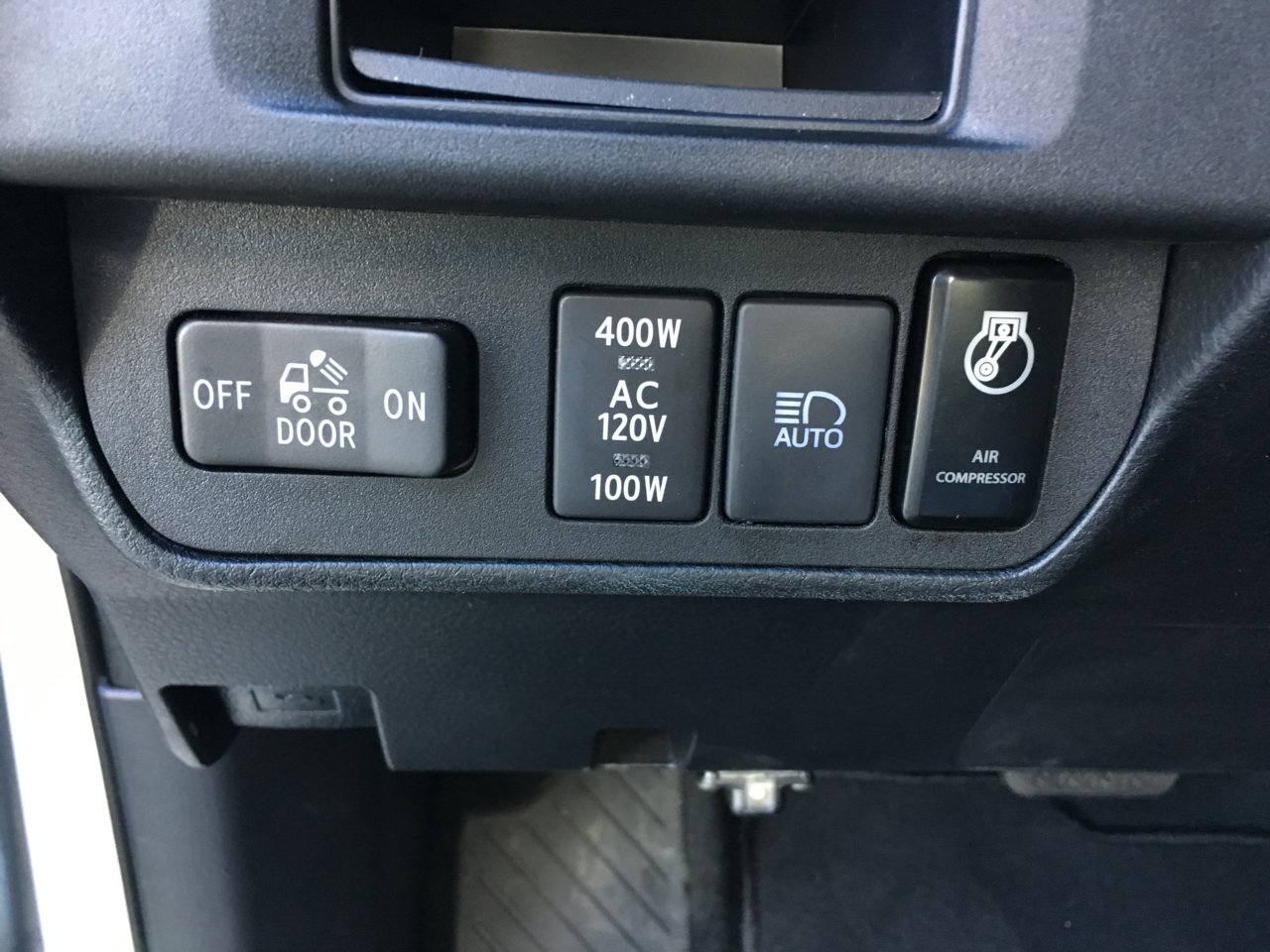

    I got a switch from CH4X4, theirs fit in the left side panel.

    x2GENx, Jul 3, 2018
    #64
  5. Jul 4, 2018 at 10:08 AM
    #65
    Track

    #65
    Track Well-Known Member

    Joined:
    Oct 4, 2017
    Member:
    #232013
    Messages:
    138
    Gender:
    Male
    First Name:
    Tuck
    Florida
    Vehicle:
    2017 TRD offroad
    MobTown bed racks MobTown sliders and skid ARB onboard air
    Thanks

    Track, Jul 4, 2018
    #65
  6. Jul 4, 2018 at 5:53 PM
    #66
    Alesimo

    #66
    Alesimo Jeeper

    Joined:
    Sep 29, 2014
    Member:
    #139352
    Messages:
    1,084
    Gender:
    Male
    First Name:
    Alec
    Houston, Texas
    Vehicle:
    2020 Jeep Wrangler JLUD
    @Jeff@ExE do I really need 6 gauge wire for the extension? I bought 10 g just because on y'all's website the pic y'all have is of 10 gauge wire. I just don't want to burn my truck to the ground!!

    Alesimo, Jul 4, 2018
    #66
  7. Jul 6, 2018 at 8:19 AM
    #67
    Jeff@ExE

    #67
    Jeff@ExE Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247358
    Messages:
    204
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Toyota Tacoma
    A Lot
    No you do not. The 10 gauge is just fine as long as you aren’t running both power wires into a single 10 guage. Same number of wires at the same guage is perfect.

    Jeff@ExE, Jul 6, 2018
    #67
    Alesimo[QUOTED] likes this.
  8. Jul 6, 2018 at 9:54 AM
    #68
    catastrofe

    #68
    catastrofe Well-Known Member

    Joined:
    Jan 22, 2018
    Member:
    #242034
    Messages:
    1,267
    Gender:
    Male
    First Name:
    Bob
    Montrose, CO
    Vehicle:
    2022 F350 Tremor
    Was that a bottle jack, or a bottle of Jack? :D

    catastrofe, Jul 6, 2018
    #68
    Jeff@ExE, Powder taco[QUOTED] and Alesimo like this.
  9. Jul 9, 2018 at 9:18 AM
    #69
    Jeff@ExE

    #69
    Jeff@ExE Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247358
    Messages:
    204
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Toyota Tacoma
    A Lot
    Both

    Jeff@ExE, Jul 9, 2018
    #69
  10. Jul 9, 2018 at 9:28 AM
    #70
    musher

    #70
    musher Well-Known Member

    Joined:
    Nov 9, 2016
    Member:
    #201999
    Messages:
    568
    Gender:
    Male
    First Name:
    Chris
    Alabama(born) >(the world)>Alaska(now)
    Vehicle:
    2017 Tacoma
    I'd rather not think of all the $ spent :(
    I really like my compressor mount and Viair 450 set up from EE. It stays as clean as my engine bay and always works great. I ran 10 gauge to mine. The customer service was amazing too. Thank you Jeff@ExE

    musher, Jul 9, 2018
    #70
    Jeff@ExE and Alesimo like this.
  11. Jul 10, 2018 at 6:41 AM
    #71
    MESO

    #71
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP

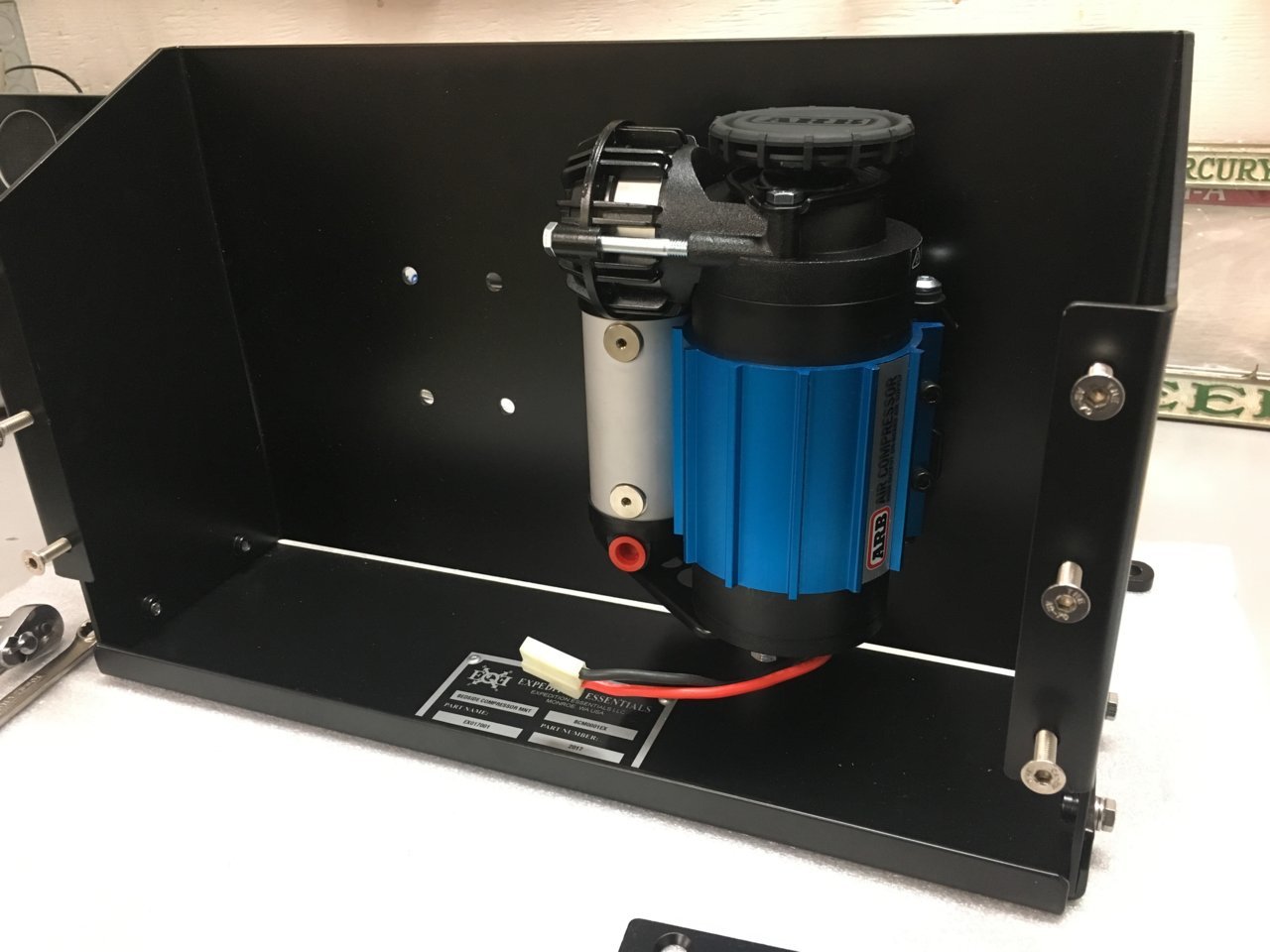

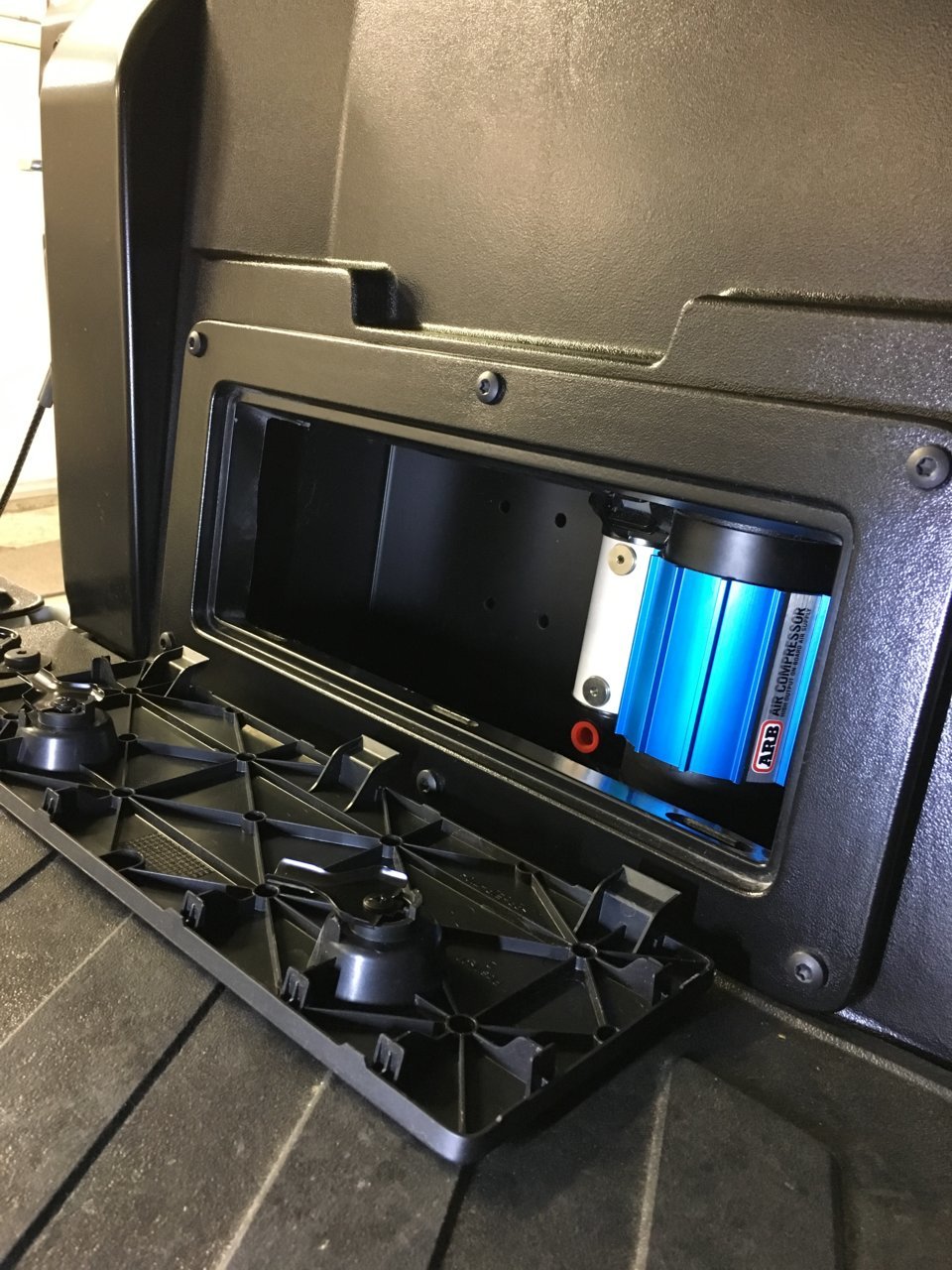

    Got my ARB twin installed in a EE mount. Overall the bedside enclosure fit well.(my suggestion for EE would be to revise the template incorporating the 6 factory bolts on it too for better alignment). It was tricky getting it up into place with my CBI high clearance bumper... had to finagle it into place. I did not like the “extension spacers” that we’re provided in the kit. It made the entire cubby door stick out, and visible gaps around the edges for water to get in. I ended up grinding the inside edges on the door, and put weather stripping around the perimeter. Installed looks just like factory :D
    [​IMG]
    [​IMG]

    MESO, Jul 10, 2018
    #71
    AZROTTI, Jeff@ExE and HoboDave like this.
  12. Jul 10, 2018 at 7:06 AM
    #72
    cfayne

    #72
    cfayne Well-Known Member

    Joined:
    Feb 7, 2015
    Member:
    #148121
    Messages:
    1,111
    Gender:
    Male
    Santa Clarita
    Vehicle:
    2012 Tacoma V6 six speed FUN
    Pro Comp wheels General Grabber AT tires
    cfayne, Jul 10, 2018
    #72
  13. Jul 10, 2018 at 7:14 AM
    #73
    HoboDave

    #73
    HoboDave Homeless Prius Dweller

    Joined:
    Mar 16, 2017
    Member:
    #213491
    Messages:
    5,902
    Gender:
    Male
    First Name:
    David
    Carlsbad, New Mexico
    Vehicle:
    2023 Toyota Prius
    Automotive electrical is not my forte. Can someone please elaborate how to wire the switch into the ARB Twin? I'll be using the one that came with it. I don't have a front locker and never will and don't need it to be lit up. I'll just be mounting it someplace close to the compressor. Thanks

    HoboDave, Jul 10, 2018
    #73
    babyruth likes this.
  14. Jul 10, 2018 at 4:14 PM
    #74
    babyruth

    #74
    babyruth Well-Known Member

    Joined:
    May 30, 2017
    Member:
    #220267
    Messages:
    65
    Gender:
    Male
    Vehicle:
    '17 Super White TRD Offroad Taco
    just got the compressor today, waiting on mount. I'm gonna have the ch4x4 switch up front but if you don't want to do that, not much changes. the compressor came with a map of the wiring so lay out your wires on the kitchen table (where there's air conditioning) and pretend to plug in the battery, ignition, dash, wires and you can even have your compressor on the table too if it helps. once you have a good idea of what the paper diagram looks like in real life, it's easier to see where you'll make changes. If you want the switch next to the compressor in the bed instead of in the cab, unwrap the bundle and take the wires attached to the provided switch you just hooked up and put some tape on 'em to identify them as the switch wires. Go outside, start under the hood, hook it all up with your extensions in place, and put your generic toggle switch wherever you want. I'm hoping this goes as easy for me as I'm making it sound haha biggest enemy is this heat!

    babyruth, Jul 10, 2018
    #74
    HoboDave[QUOTED] likes this.
  15. Jul 10, 2018 at 4:21 PM
    #75
    HoboDave

    #75
    HoboDave Homeless Prius Dweller

    Joined:
    Mar 16, 2017
    Member:
    #213491
    Messages:
    5,902
    Gender:
    Male
    First Name:
    David
    Carlsbad, New Mexico
    Vehicle:
    2023 Toyota Prius
    I was going to order a ch4x4 switch but ARB recommends a 16 amp so I'm gonna use the one they provided. I don't want to cut a hole anywhere to make it fit so I just zip tied it to the compressor. It'll stay until it falls off. I got it all working now. Now I just need to drive around looking for pretty ladies with flat tires to rescue :D

    HoboDave, Jul 10, 2018
    #75
    PilotMM and babyruth like this.
  16. Jul 13, 2018 at 4:23 PM
    #76
    Jeff@ExE

    #76
    Jeff@ExE Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247358
    Messages:
    204
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Toyota Tacoma
    A Lot
    Really the spacers are there to allow air couplers to clear the door when closed. In the original installation we found the coupler (not arb) wouldn’t allow the door to close fully. Hence the spacers came about. Our current plans are to design a locking door that bolts in to the factory location that will have the holes pre located and all but eliminate having to use a template.

    Jeff@ExE, Jul 13, 2018
    #76
  17. Jul 13, 2018 at 4:43 PM
    #77
    babyruth

    #77
    babyruth Well-Known Member

    Joined:
    May 30, 2017
    Member:
    #220267
    Messages:
    65
    Gender:
    Male
    Vehicle:
    '17 Super White TRD Offroad Taco
    making marks for cutting up my cubby right meow.....

    babyruth, Jul 13, 2018
    #77
    Jeff@ExE likes this.
  18. Jul 13, 2018 at 4:46 PM
    #78
    Jeff@ExE

    #78
    Jeff@ExE Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247358
    Messages:
    204
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Toyota Tacoma
    A Lot
    Nice!!!

    Jeff@ExE, Jul 13, 2018
    #78
    babyruth[QUOTED] likes this.
  19. Jul 13, 2018 at 5:24 PM
    #79
    runmc

    #79
    runmc Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226288
    Messages:
    517
    Gender:
    Male
    First Name:
    Ron
    DFW Texas
    Vehicle:
    2021 Army Green Tacoma TRD OR DCSB
    One Mod after another
    And while your at making changes you could add mounting bolts for the outside that take a special wrench to get off like in bathroom stall. Or something along that line. Anything to make it harder to break in.
    Im going to find some of those screws with the fancy heads and put them on mine. I did get metal doors.

    runmc, Jul 13, 2018
    #79
  20. Jul 13, 2018 at 5:28 PM
    #80
    Jeff@ExE

    #80
    Jeff@ExE Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247358
    Messages:
    204
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Toyota Tacoma
    A Lot
    Actually the design covers this. The locking door will cover the mounting bolts when closed and locked.

    Jeff@ExE, Jul 13, 2018
    #80
