ARB CKMA 12 compressor in bed box of 2012 Tacoma

Discussion in '2nd Gen. Tacomas (2005-2015)' started by cfayne, Feb 7, 2018.

  1. Feb 7, 2018 at 12:33 PM
    #1
    cfayne

    cfayne [OP] Well-Known Member

    Joined:
    Feb 7, 2015
    Member:
    #148121
    Messages:
    1,016
    Gender:
    Male
    Santa Clarita
    Vehicle:
    2012 Tacoma V6 six speed FUN
    Pro Comp wheels General Grabber AT tires
    Hello all. I have been wanting to write this up for some time now. @Mobtown Offroad finally encouraged me to do it after seeing a photo I posted on another thread. Please forgive some of the photos, it was pretty tight under the truck.

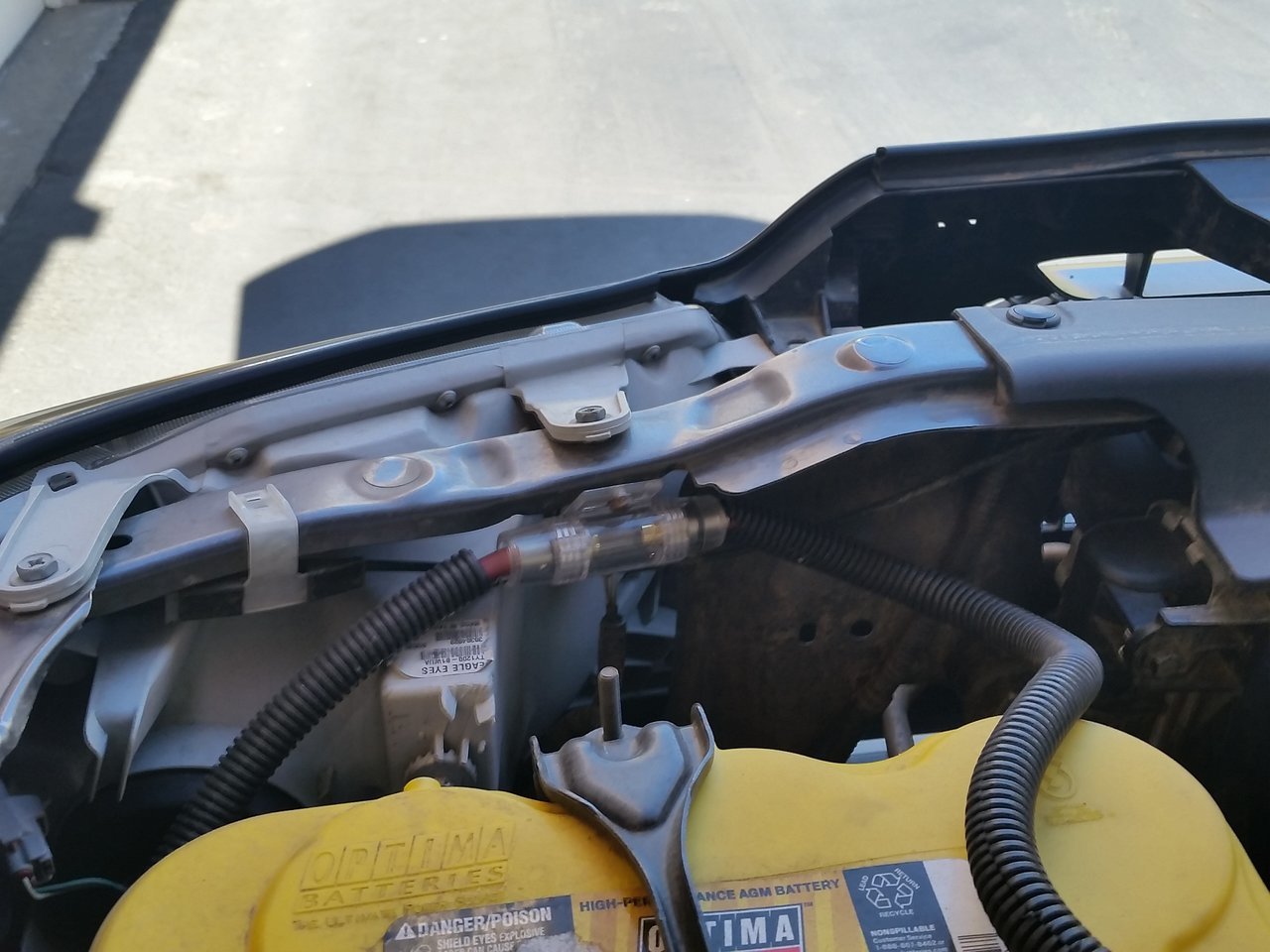

    I started with four gauge wire from the batter to an inline fuse.

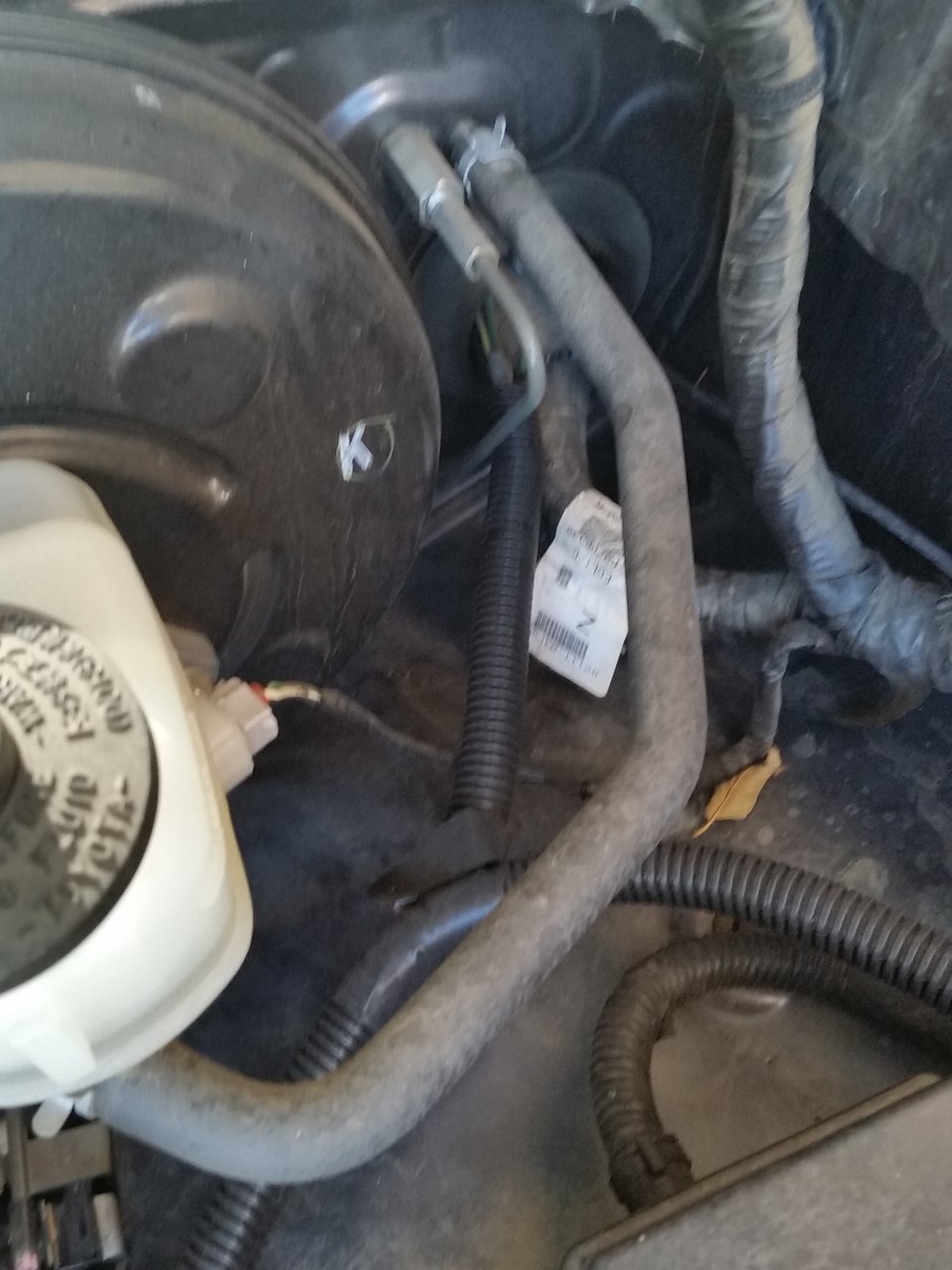

    I then ran that wire down the inner fender to the frame. I needed a fish tape in many places. Right before it started the journey downwards, I had to put in a Y so I could run some 16x4 wires into the cab for the relay on the compressor. The rest of the 16x4 was stuffed into the wire loom to make the trip to the back of the truck.

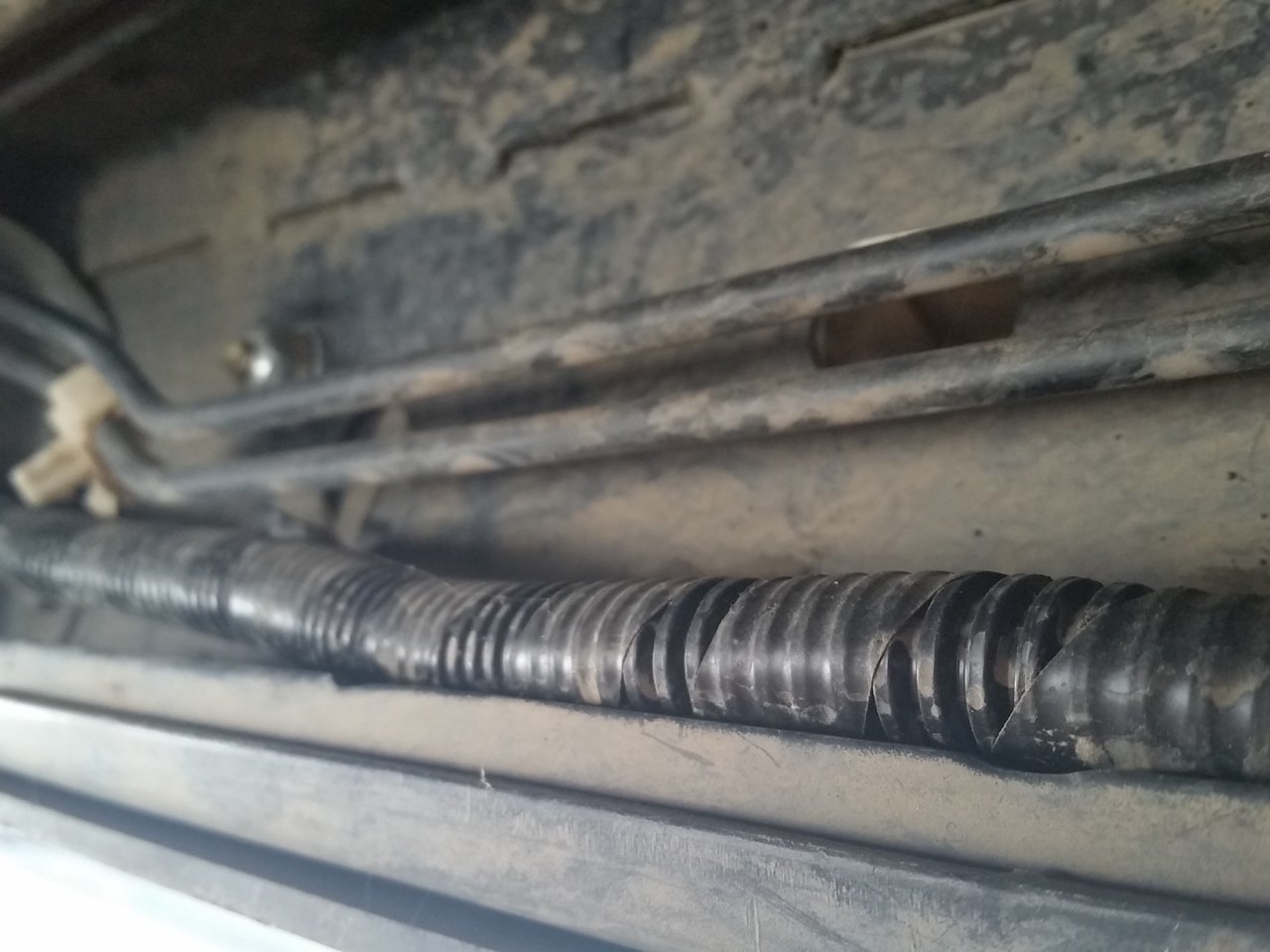

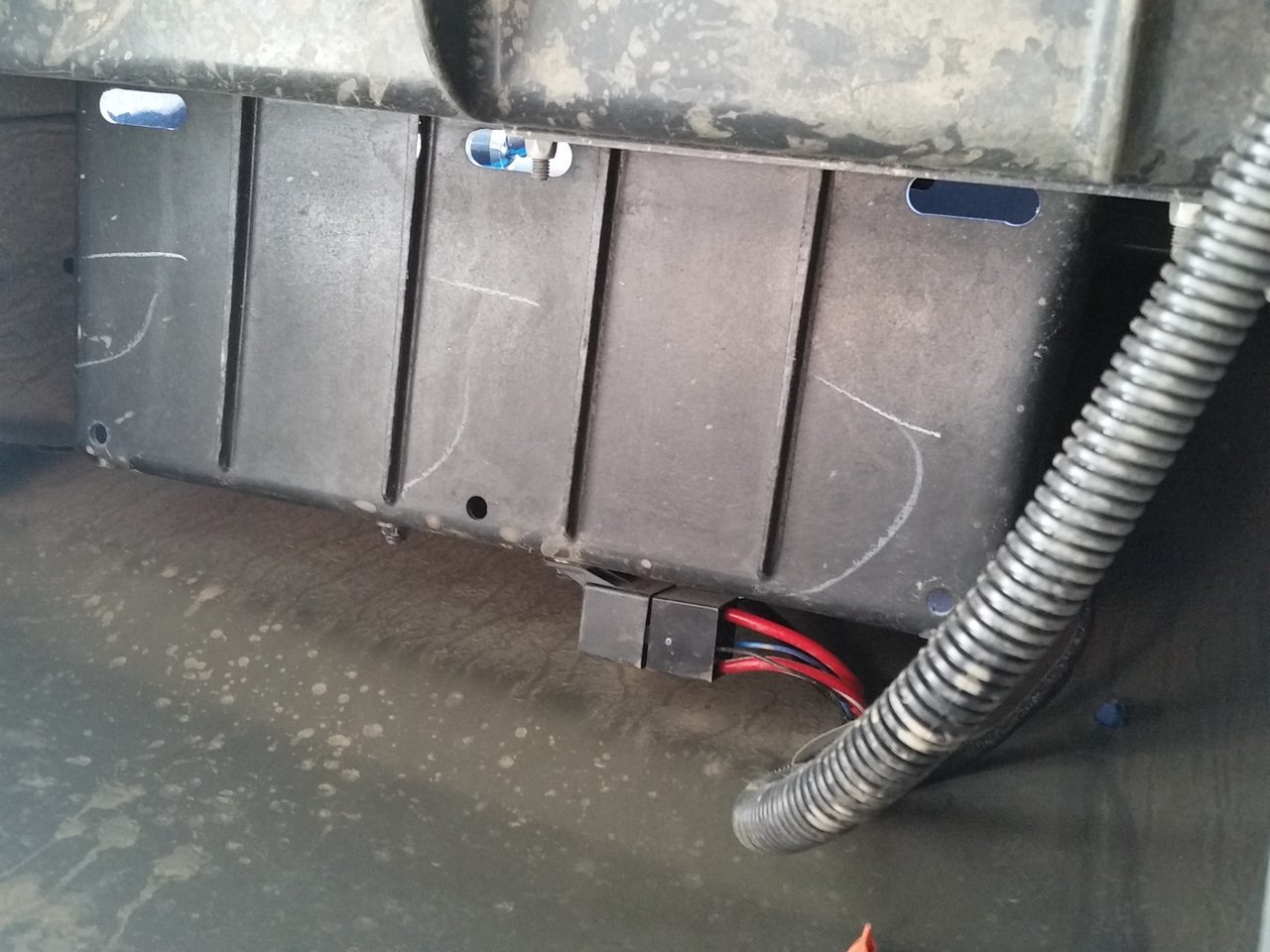

    Not very thrilling, but here is a photo of it running down the frame rail. Again, I needed the fish tape to run it behind the fuel tank.
    I then ran the wire into a splitter I got from Amazon. I got a three into one as I wanted to be able to expand on the power at the rear of my truck down the road. As the photo of this thing is pretty bad, here is the link:
    https://www.amazon.com/gp/product/B0051UH8S6/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

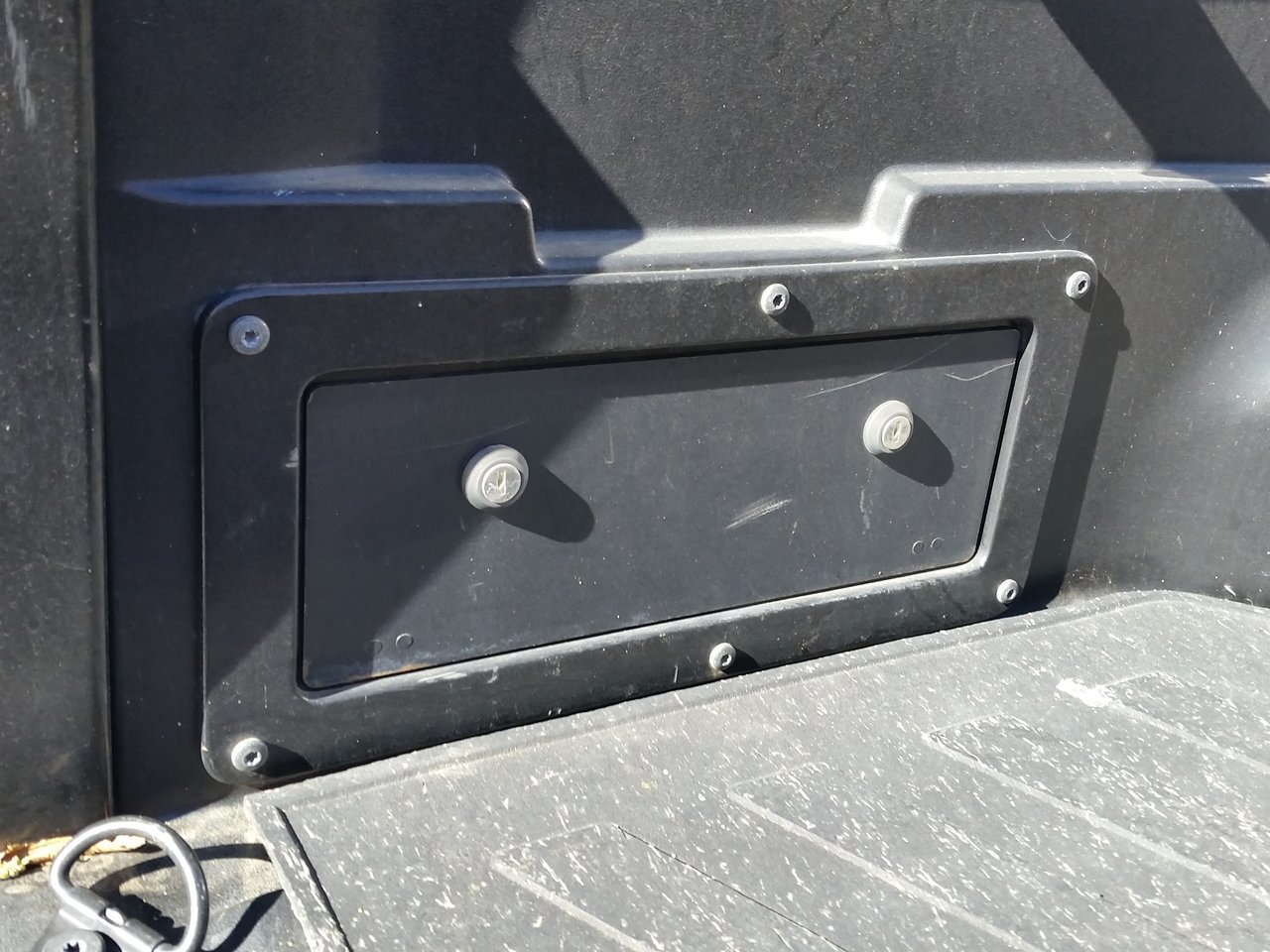

    Now the harder part, getting the compressor in the box so it would clear the locking tabs on the @Mobtown Offroad locking steel doors. I used the backing plate that came in the kit and put some weak tape on the back. I placed the compressor in there and tried to lock the doors. It did take some wiggling around, but I finally got it.

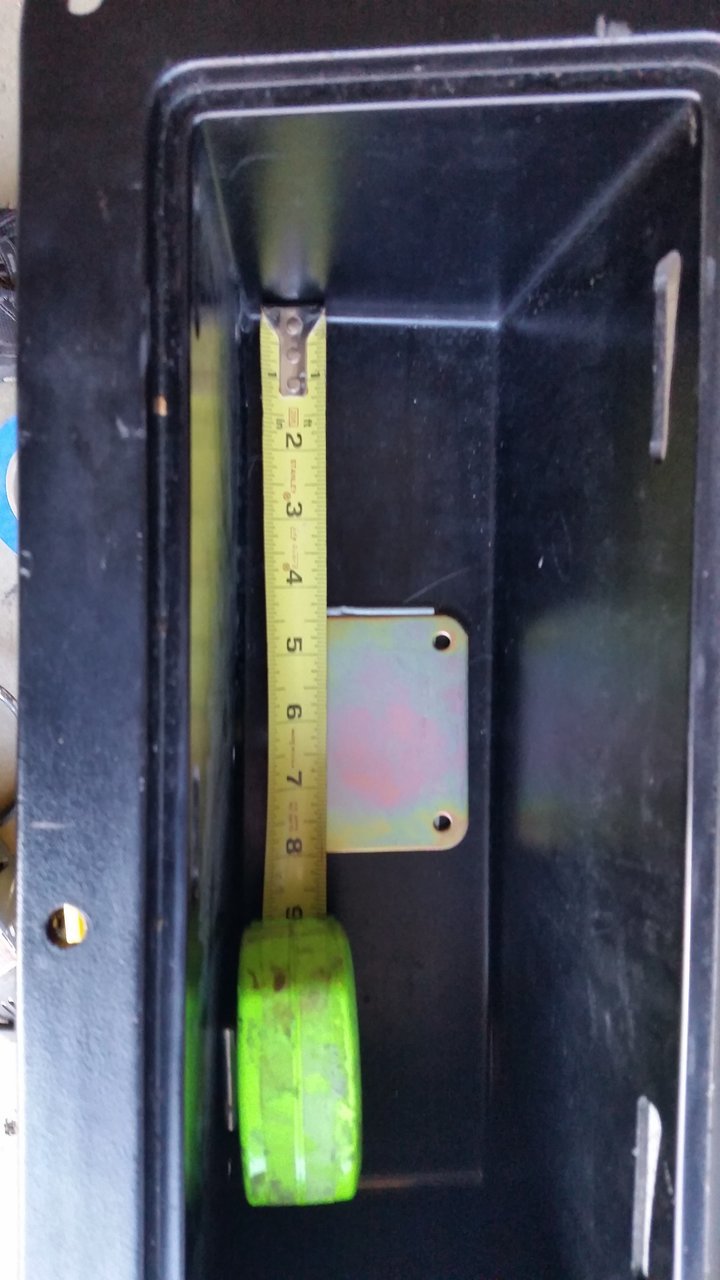

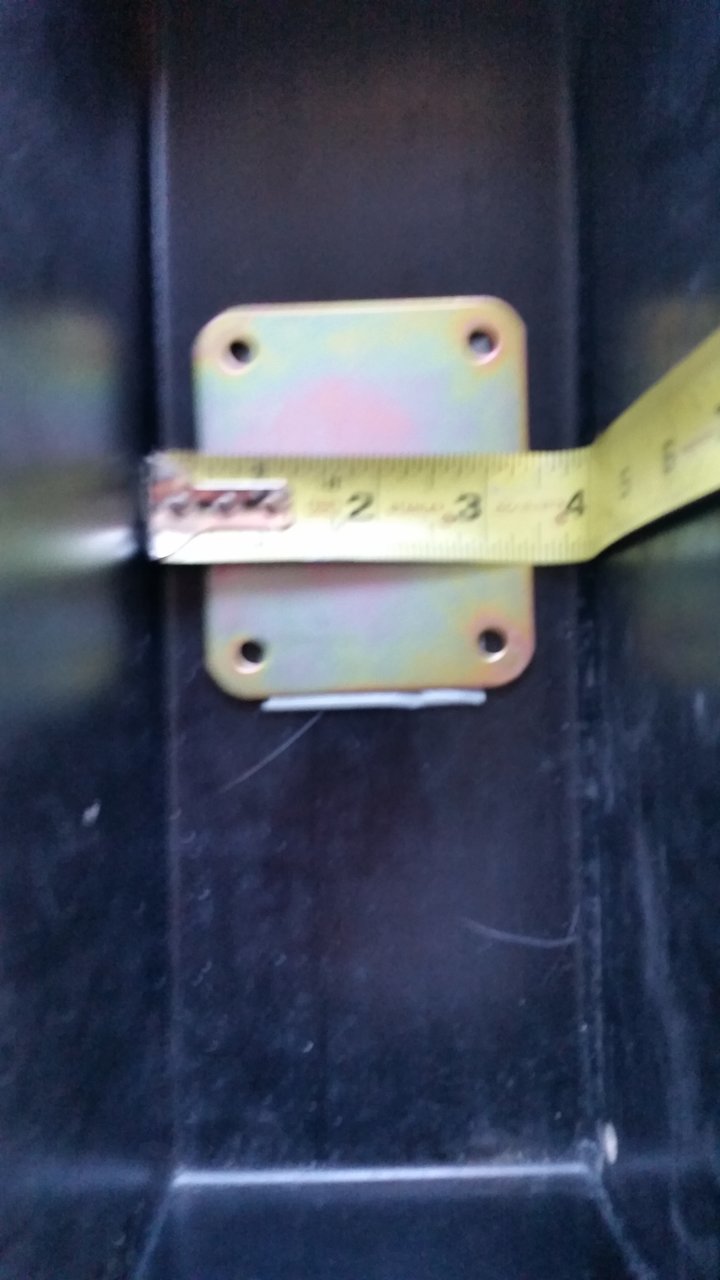

    20161227_080759.jpg 20161227_080823.jpg
    When happy with the placement, out came the drill. I left the backing plate on the inside of the bed box to distribute weight and put some honking washers on the back side...sorry no photos of that.

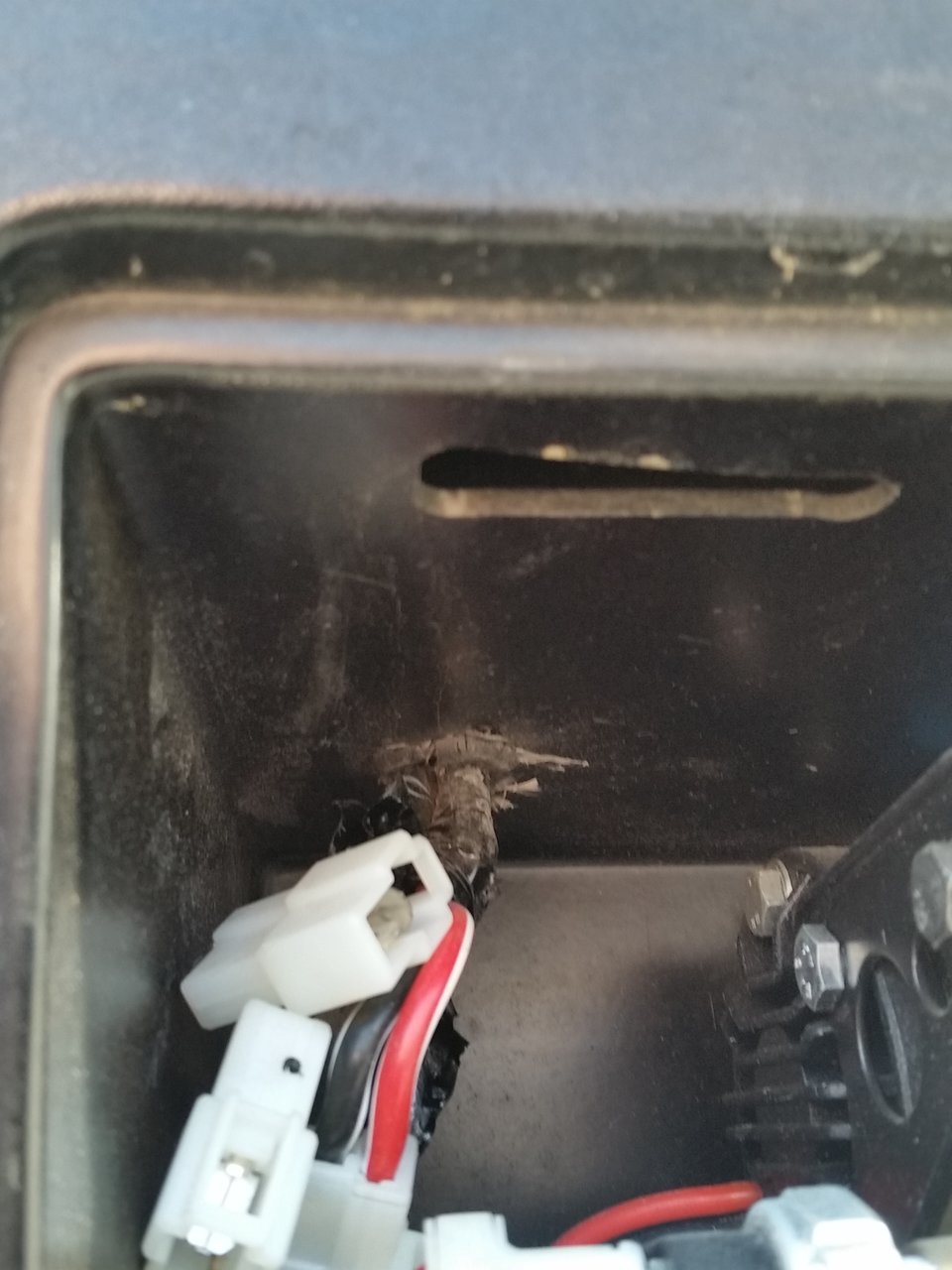

    The next step was to run the power lines through the box to the compressor. Of course, you need to install a gromit! I also mounted the relay on the back of the box and out of the way.

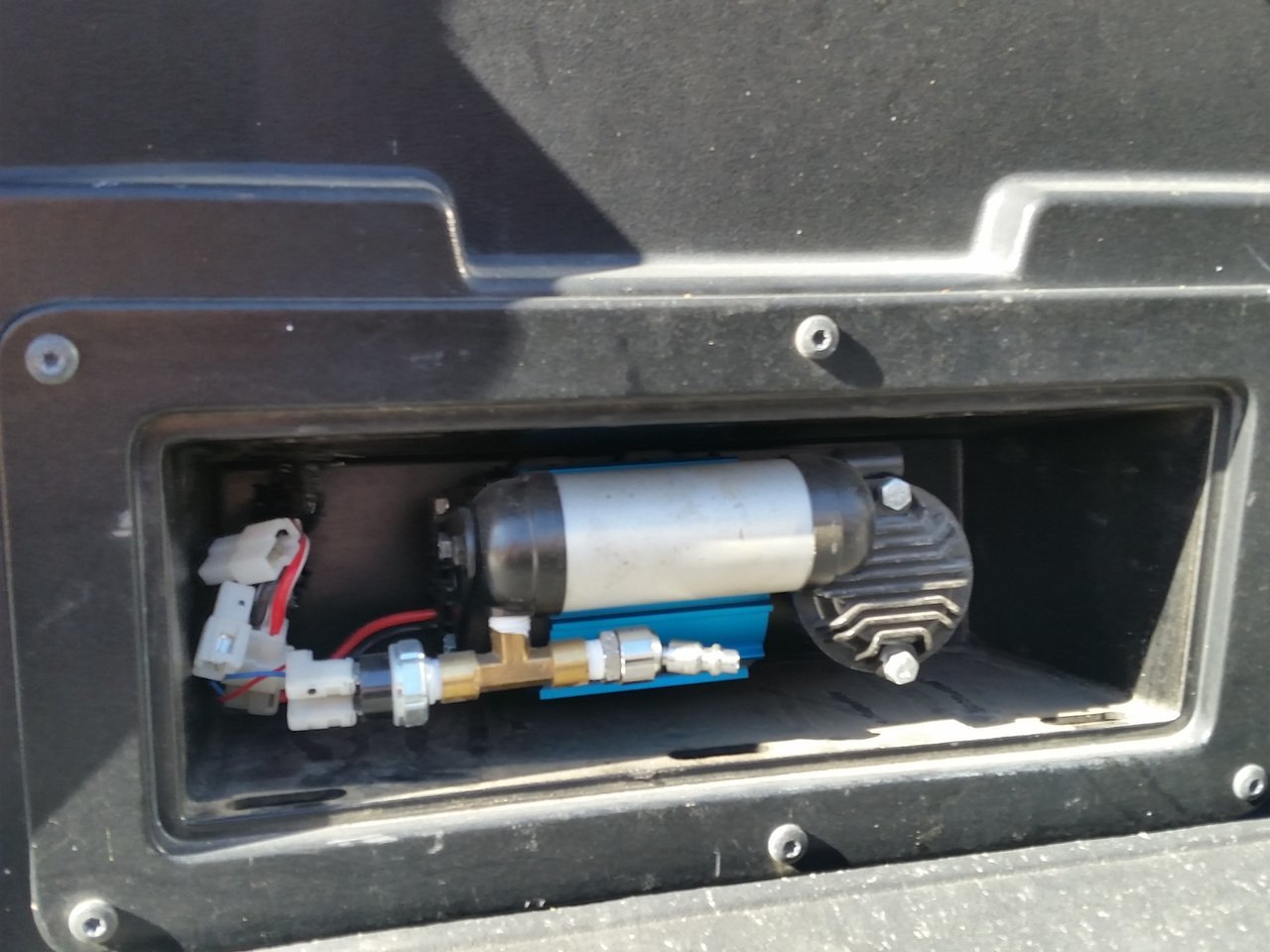

    With all of that being done, I slammed everything home. One thing I needed to do for the final fitment was to get an articulating MALE hose barb for the compressor. I know this if opposite if the standard air line, but needed to be done....also keeps people from taking my air line! The barb needed to be able to flex a bit and the female end was too large to allow the door to close all the way.

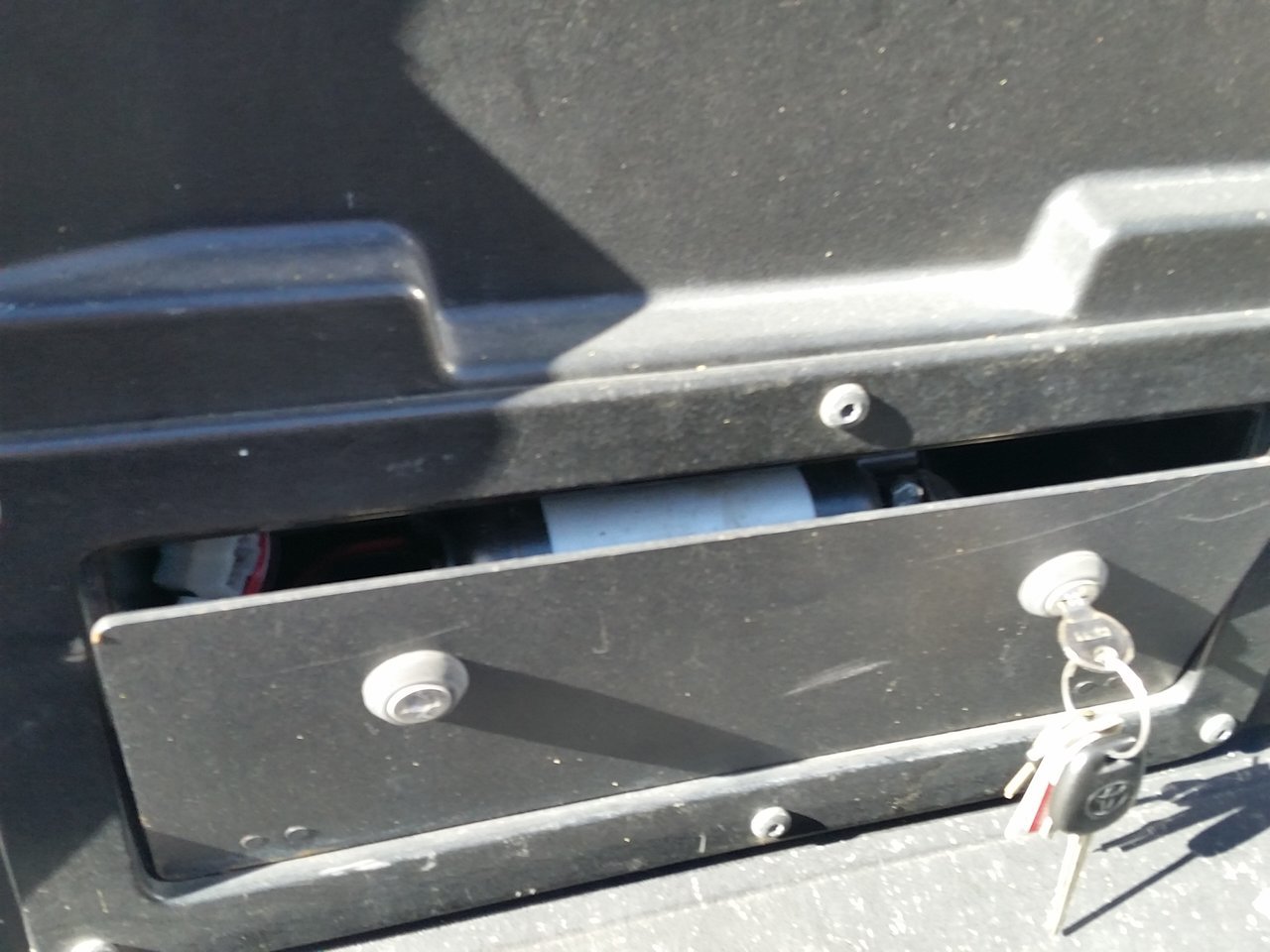

    Final thoughts, I LOVE IT. The right lock needs to be unlocked halfway, then remove the door as the cam will hit the compressor, but no bid deal. If you measure better then I did, you might not have this problem. I like the fact it is not taking the abuse of the engine compartment.


    Last edited: Feb 7, 2018
  2. Feb 7, 2018 at 1:11 PM
    #2
    Mobtown Offroad

    Mobtown Offroad Boss Vendor

    Joined:
    Jul 23, 2014
    Member:
    #134511
    Messages:
    10,760
    Gender:
    Male
    First Name:
    Joe
    Harrington, DE
    Vehicle:
    2002 SR5 4Runner
  3. Feb 7, 2018 at 1:18 PM
    #3
    blu92in99

    blu92in99 I hate everyone, equally

    Joined:
    Aug 8, 2017
    Member:
    #226282
    Messages:
    719
    Gender:
    Male
    First Name:
    Justin
    Elk Grove, CA
    Vehicle:
    2005 Tacoma AC 4WD, TRD-OR
    Ask me...
    Very nice!

  4. Feb 7, 2018 at 6:06 PM
    #4
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,871
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter
    Looks good! Did you install a quick disconnect somewhere else or are you using it only for lockers or to a tank?

    I did the same thing in the driver cubby:


    Only difference I did was that I placed the relay and the bulk of the wiring connectors in a project box that I screwed to the side of the cubby and I used a circuit breaker instead of an inline fuze so I could easily cut off the power and reset it in the event i tripped the breaker. I also mounted the compressor to the bottom of the cubby.

    Project Box: https://www.amazon.com/dp/B0002BBQNM/ref=cm_sw_r_cp_ep_dp_-96EAbPX0MXAD
    Circuit Breaker: https://www.amazon.com/gp/product/B005168AOG/ref=oh_aui_search_detailpage?ie=UTF8&psc=1

    Overall, its a good spot for the compressor. nice job!

    CrashN'Burn and cfayne [OP] like this.
  5. Feb 11, 2018 at 6:29 AM
    #5
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    42,184
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
  6. Feb 11, 2018 at 6:48 AM
    #6
    abqnurse80

    abqnurse80 Well-Known Member

    Joined:
    Mar 27, 2017
    Member:
    #214544
    Messages:
    983
    Gender:
    Male
    First Name:
    Nic
    ABQ, NM
    Vehicle:
    2012 FJ Cruiser
    Bilstein 5100 all around, first clip front. AVS window visors, BFG AT KO2s. JBL.
    Have mine in the passenger side cubby and love it!!

  7. Jul 11, 2018 at 5:28 AM
    #7
    micwillia

    micwillia Nonstop Tinkerer

    Joined:
    Mar 27, 2017
    Member:
    #214526
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Mike
    Cental Masshole
    Vehicle:
    Turd gen Inferno Taco TuRD OR DCSB 6MT, '96 Mustang V6 Vert 5MT
    Cubby Covers, TRD Pro Exhaust, BAK RevolverX2, Pro Skid, Speaker Upgrade, OBA/W, CB, 255/85R16
    You should take a look at my Cubby Caps to help keep out some of that dirt :spy:

    jpereira2 likes this.
  8. Jul 11, 2018 at 8:41 AM
    #8
    cfayne

    cfayne [OP] Well-Known Member

    Joined:
    Feb 7, 2015
    Member:
    #148121
    Messages:
    1,016
    Gender:
    Male
    Santa Clarita
    Vehicle:
    2012 Tacoma V6 six speed FUN
    Pro Comp wheels General Grabber AT tires
    And a Cubby Cap is....? Is there a link?

  9. Jul 11, 2018 at 8:57 AM
    #9
    micwillia

    micwillia Nonstop Tinkerer

    Joined:
    Mar 27, 2017
    Member:
    #214526
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Mike
    Cental Masshole
    Vehicle:
    Turd gen Inferno Taco TuRD OR DCSB 6MT, '96 Mustang V6 Vert 5MT
    Cubby Covers, TRD Pro Exhaust, BAK RevolverX2, Pro Skid, Speaker Upgrade, OBA/W, CB, 255/85R16
    Look in my Signature link is in there
