ARB Breather kit install

Discussion in '3rd Gen. Tacomas (2016+)' started by Steventura86, Apr 13, 2017.

  1. Apr 13, 2017 at 9:21 PM
    #1
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

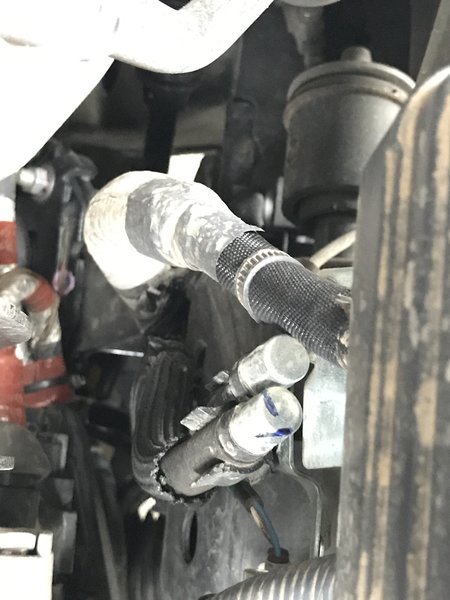

    just finished my ARB Breather kit install 16 Tacoma off road. Still don't know where the transfer case Breather is. I was told it splits and connects the the transmission line. I have the front, rear and transmission connected. Let me know if you find info on the location of the transfer case breather. No one knows for sure or just links to 2nd Gen diagrams and DIY's.


    Last edited: Apr 14, 2017
  2. Apr 13, 2017 at 9:53 PM
    #2
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper

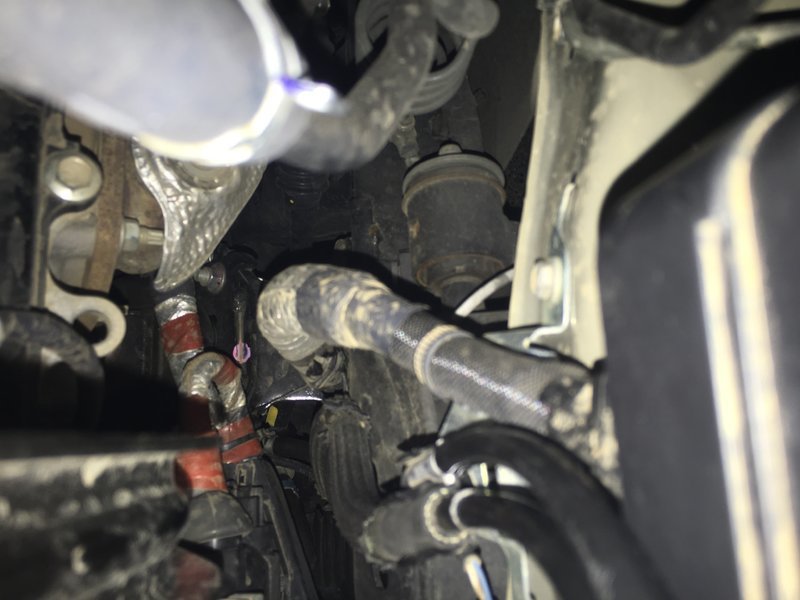

    Nice. Looks like u just added and extension to the breather lines in the engine compartment. Did the arb kdit have those barbed fittings? Apologies as I'm still waiting on mine to arrive.

    Steventura86 [OP] likes this.
  3. Apr 13, 2017 at 10:00 PM
    #3
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

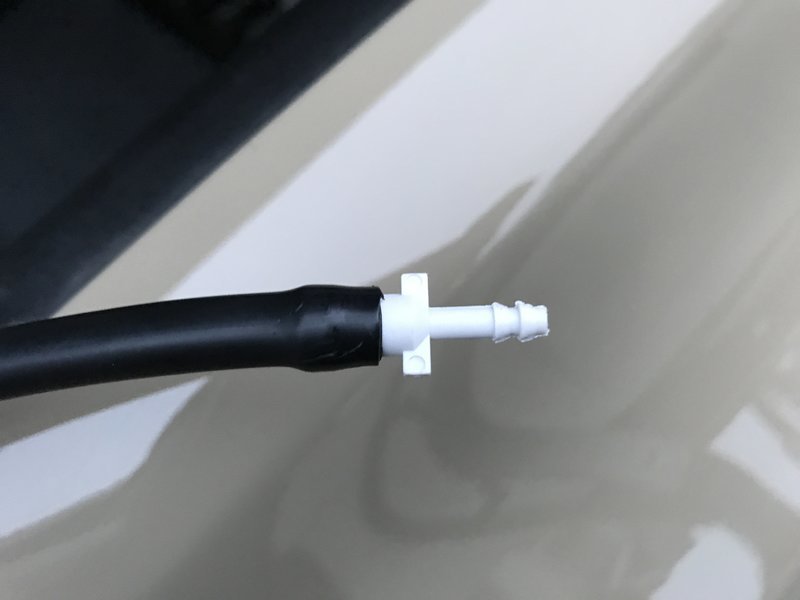

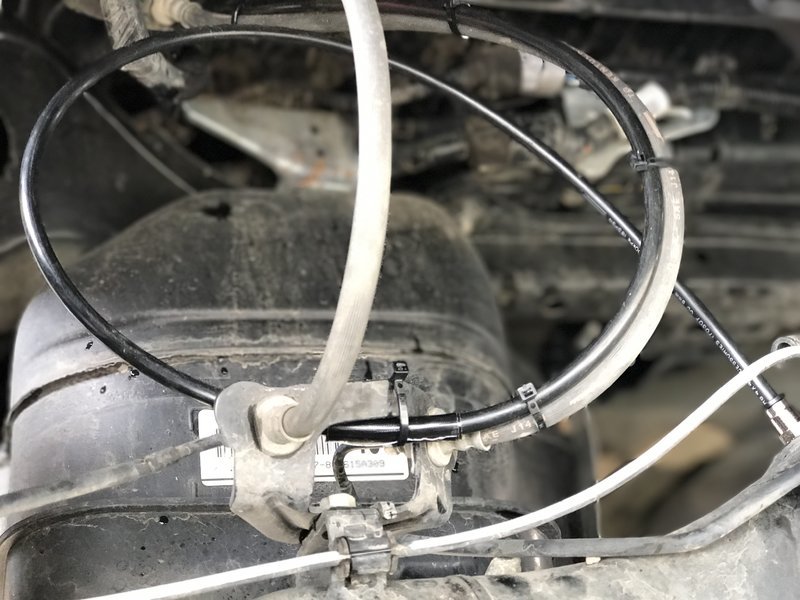

    that was the only fitting I had to get. $3 for a pack. The kit comes with enough line to route the rear to the front and those other 2. The ARB line fits inside the Breather line on one of them. I just used duck tape for reference for about 1.5" and pushed it in. The clip that holds them from moving is enough pressure to hold the line in place. I pulled to see if it would come out and it doesn't move at all. The original breathers don't have clamps...so I figured it didn't need them.

  4. Apr 13, 2017 at 10:25 PM
    #4
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper
    Ah you just stuffed the hose in. Good
    To know. Once I get my kit I'll do the same, I may rescue tape it though to make sure it doesn't pull out.

    I've yet to find anyone who has gotten the transfer case breather or found it on the third gen. approximately how much hose did you end up left over with?

  5. Apr 13, 2017 at 10:26 PM
    #5
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

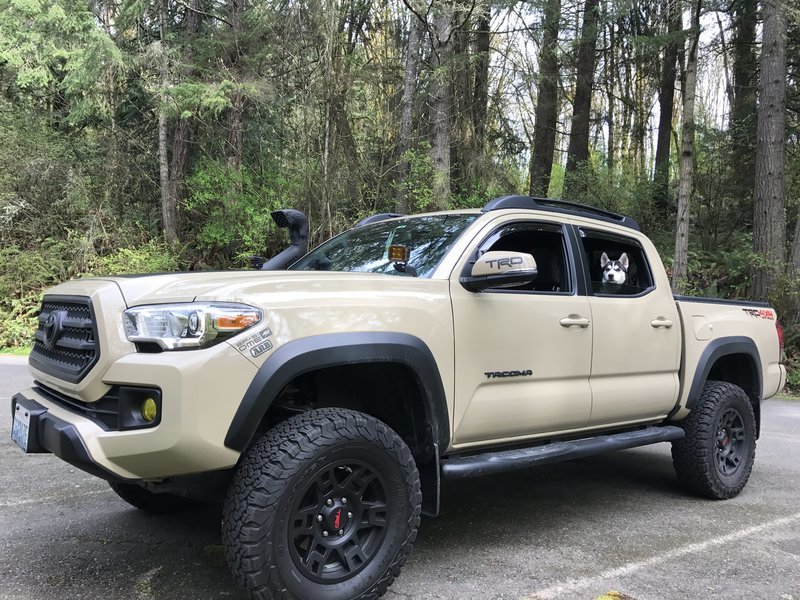

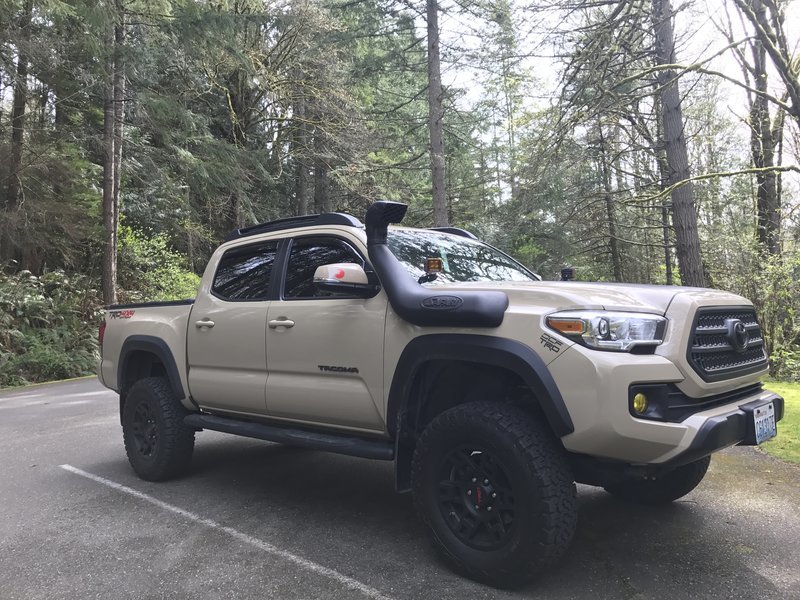

    Current setup as of now.



    ancient11, Toki, Volksparts and 14 others like this.
  6. Apr 13, 2017 at 10:28 PM
    #6
    PintSize

    PintSize Crossthreaded & torqued down

    Joined:
    Jun 16, 2016
    Member:
    #189793
    Messages:
    2,445
    Gender:
    Male
    Texas
    Vehicle:
    2011 2.7L 5 spd RC 4x4
    :drool:

  7. Apr 13, 2017 at 10:29 PM
    #7
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

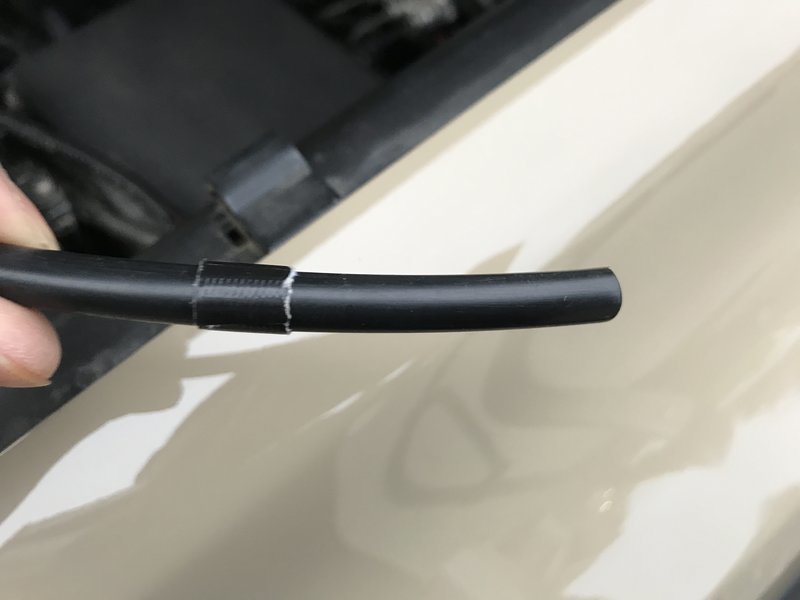

    It's a snug fit on the line. You have to force it in. That's why I just put it back in the clamp that holds it in place and pulled. It won't come out. If you remove it from the clamp...you can force it out. I had about 3-4 feet left over. Use your best judgment on routing the lines. I routed them in back of the battery. The rear diff routed with a wiring harness that follows the frame, over the fuel tank and to the rear brake lines. I used duck tape where the line contacts the metal bracket also to protect it from movement.

    Last edited: Apr 13, 2017
  8. Apr 13, 2017 at 10:38 PM
    #8
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper
    I love that snorkel

    Steventura86 [OP] likes this.
  9. Apr 14, 2017 at 12:03 PM
    #9
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

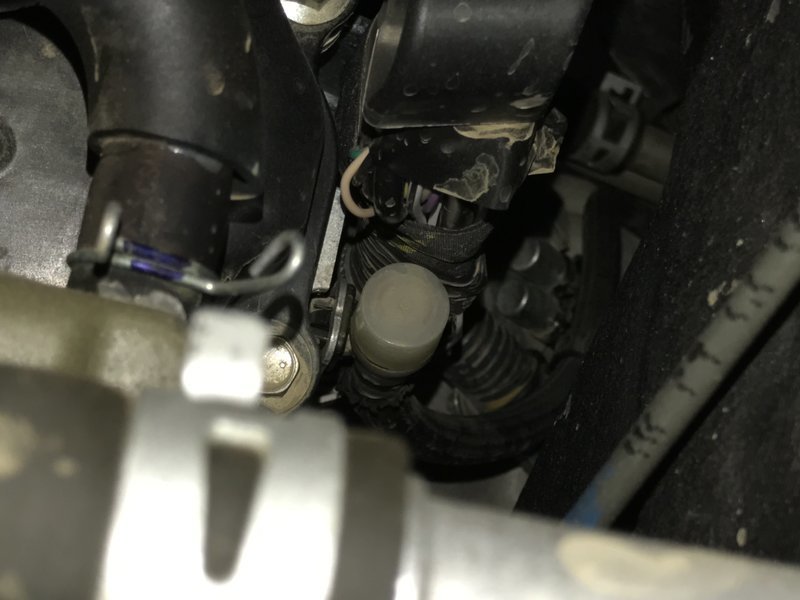

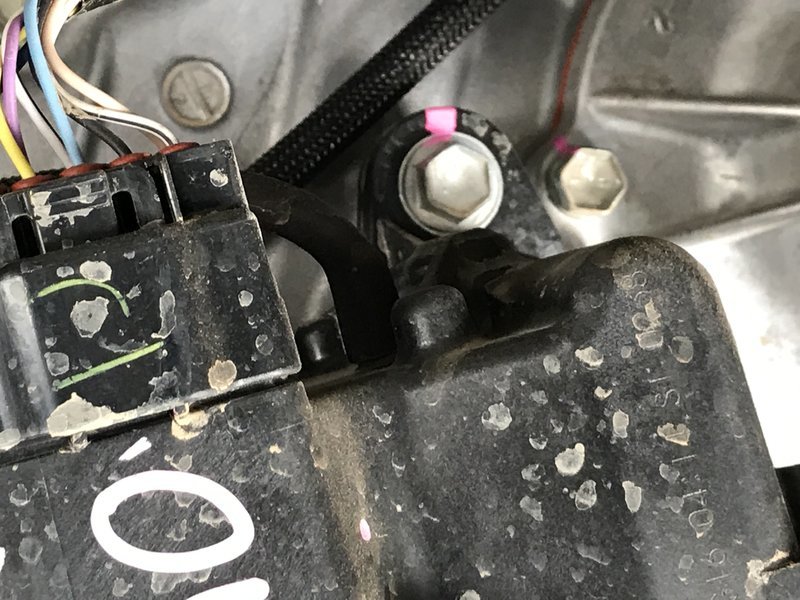

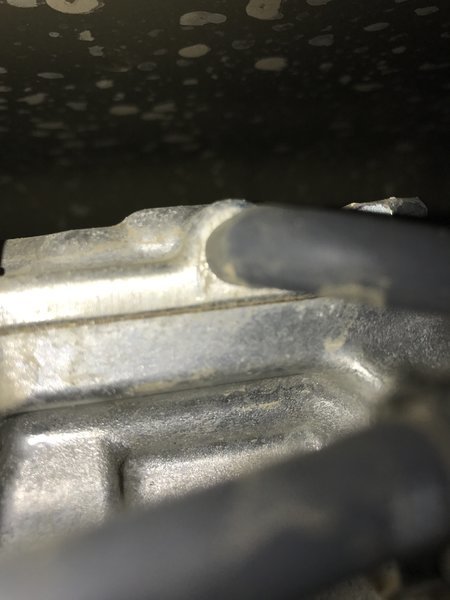

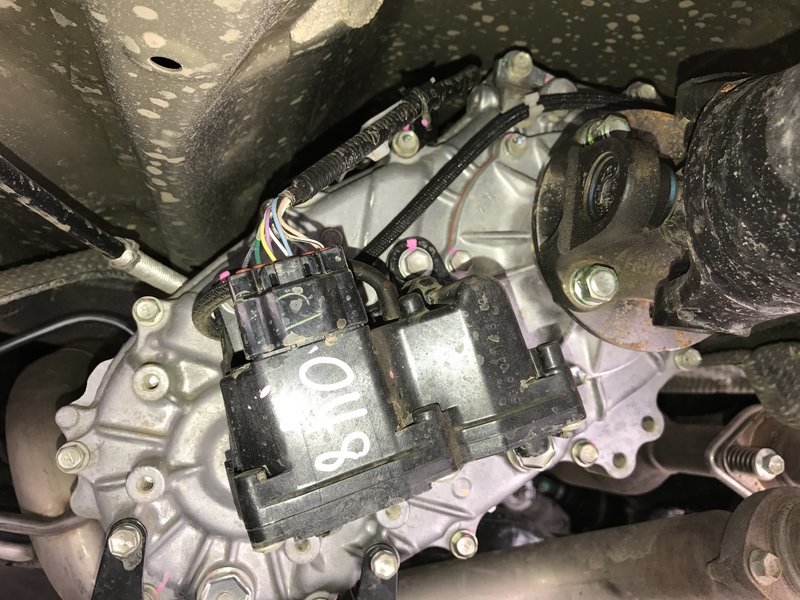

    I found the locations of the breathers for the transmission and transfer case. the two in the engine bay are for the front axle only. The transmission breather has a white cap and the transfer case has 2 breathers...one on the top of it and another connected to a black box. Not sure if that's the actuator that controls it, but they both route just on top of the transmission. You can see all 3 breathers in one of the pictures. Correct me if I'm wrong.

    https://youtu.be/bKQakcRIzHY


    Last edited: Apr 14, 2017
    ancient11 likes this.
  10. Apr 15, 2017 at 9:24 AM
    #10
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper
    Well those should be fun to get to. Looks like the grills coming off? Also, thanks for posting this up! Valuable resource for the rest of us following suit. Much appreciated.

    Steventura86 [OP] likes this.
  11. Apr 15, 2017 at 10:25 AM
    #11
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,480
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    Subbed for future...

  12. Jun 10, 2018 at 5:31 AM
    #12
    MM13

    MM13 Active Member

    Joined:
    Jul 24, 2017
    Member:
    #224909
    Messages:
    25
    Gender:
    Male
    Vehicle:
    Cement Gray 2017 Tacoma TRD Pro
    Black Softtopper, Engine Mounted ARB Single Compressor, Dissent Off Road Bed Rack
    If the transfer case has two breathers like your picture shows, and the front/rear axle/transmission are already connected, are you short a connection for the transfer case? Did you ever run the lines for the transfer case?

    Thanks!

  13. Jun 10, 2018 at 7:47 AM
    #13
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper
    Probably just ended up hoping the two lines together to get them to use the same fitting. I have done most of mine, the transfer case ones in the back of the engine are another story though. Still trying to figure out how to get to them to install the line.

  14. Jun 10, 2018 at 8:03 AM
    #14
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,111
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread
    In total there's 5 points that hook up to the breather
    front diff ADD (in engine bay by battery)
    front diff housing (by battery as well)
    transmission and tcase housing (towards the firewall between the brake reservoir and engine)
    T case actuator, in the actuator vented under the truck
    rear diff (on the pumpkin)

    I'll check if I can get pictures.

    I think a lot of stuff is hidden now under fuse panel etc

    Edit
    Ok just looked under can't remember what we did but I have 6 points going

    T case and front diff actuator is one
    Diff housings are another
    Then I think there might be two from the t case and trans.

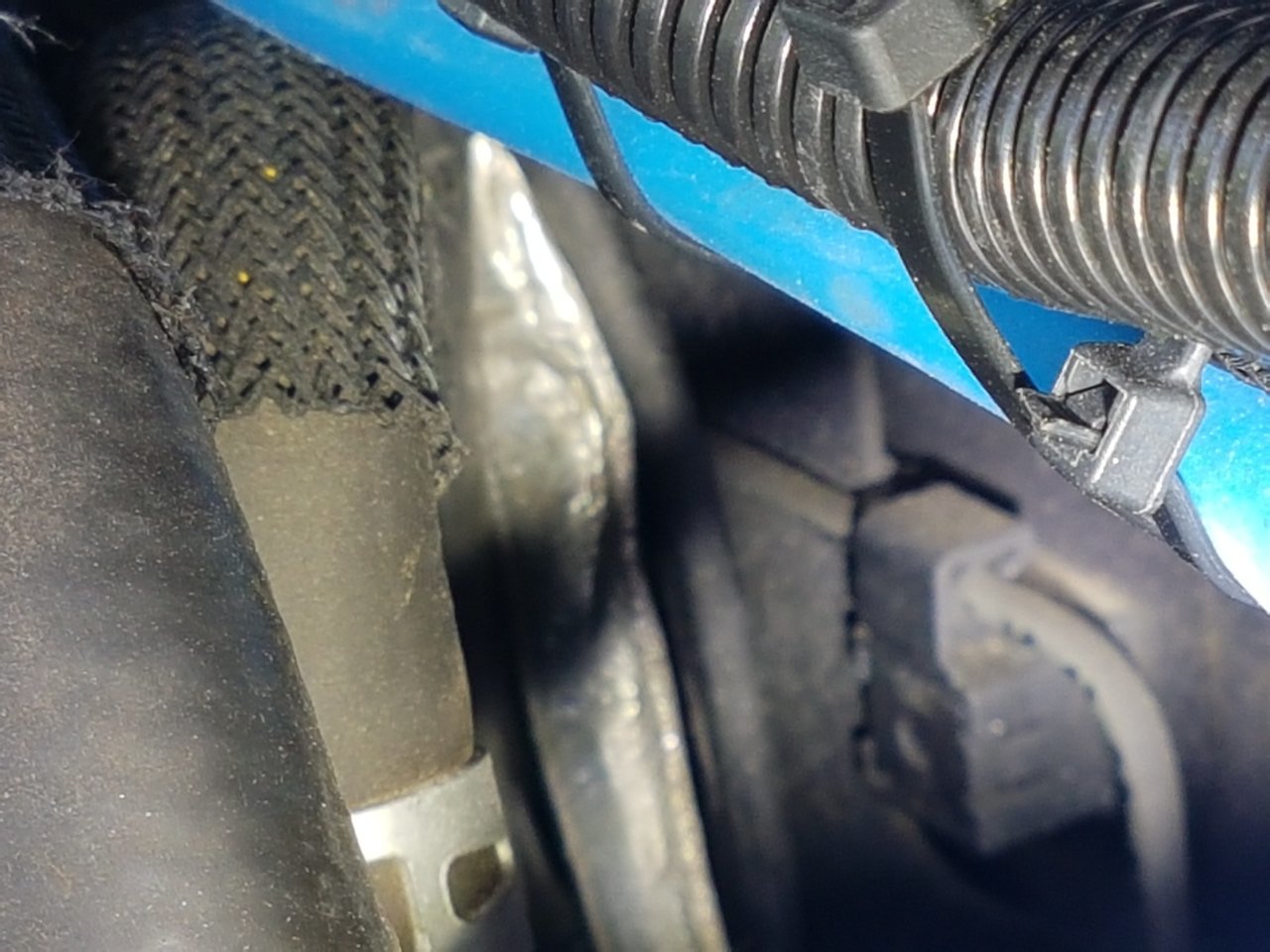

    Here's the front diff. The Red you see is coming from the t case actuator which y connects to the front diff actuator this is right by the oil fill

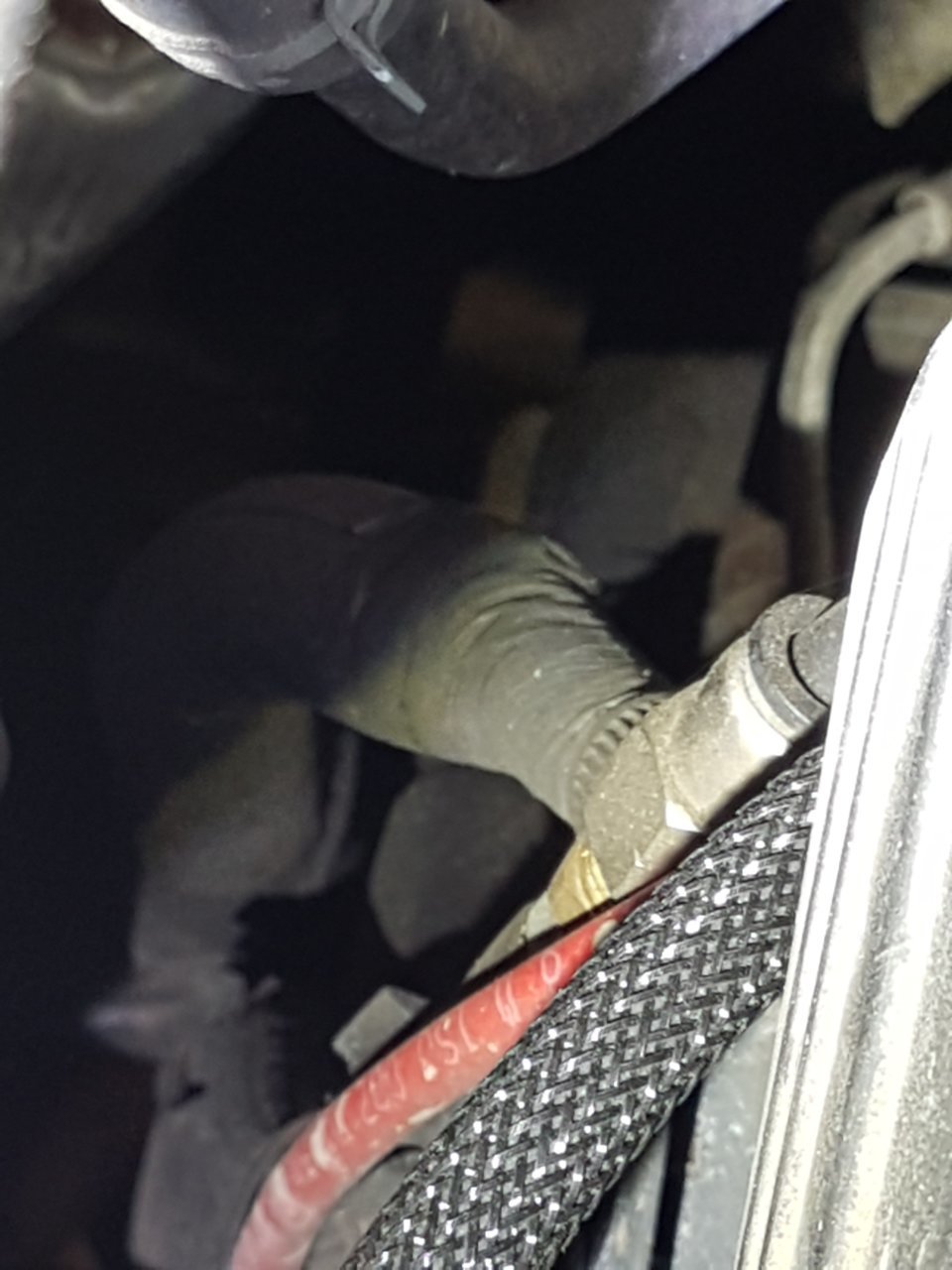

    Hard to see but the silver is an existing one that was spliced into I believe the trans and t case. And then the black line beside it is another breather I'm thinking rear diff


    I'd need to look at it at home with the skids off. Really don't remember when we did it at the shop. Would need to open it up and look

    Last edited: Jun 10, 2018
    Pyrotech likes this.
  15. Jun 10, 2018 at 8:05 AM
    #15
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper
    Thanks, I am referring to the Tranny and Case housing lines at the back of the engine compartment. I do not have small hands and they are way down, hard to get to from both ends. Granted when I attempted to d it it was -20 and I didn't put that much time into it.

  16. Jun 10, 2018 at 8:16 AM
    #16
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,111
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread
    See edit

    I do recall when doing these we did it all from under with the truck on a lift and cool because you need to reach up by the down pipes.

  17. Jun 11, 2018 at 3:47 PM
    #17
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors
    I didn't combine the lines for the front diff. So, I am short one breather and had to just extend the line and put the original breather back on.

    MM13 likes this.
  18. Jun 11, 2018 at 4:17 PM
    #18
    Steventura86

    Steventura86 [OP] Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors
    the only one I combined was the tcase, but I still need to combine the front diff breathers to fit all 4 spots on the ARB Kit. 6 breathers total.

    ancient11, MM13 and Joe23 like this.
  19. Jun 11, 2018 at 4:19 PM
    #19
    e6400ultra

    e6400ultra Trigger Warning

    Joined:
    Feb 4, 2018
    Member:
    #243450
    Messages:
    1,280
    Gender:
    Male
    Vehicle:
    2017 SR AC 4x4 MT 2.7L
    :eek:

    Steventura86 [OP] likes this.
  20. Jun 11, 2018 at 6:53 PM
    #20
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,111
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread
    have you done anything for sealing electronics in the engine compartment?
