ARB compressor in bed storage??? - anyone running one???

Discussion in '3rd Gen. Tacomas (2016+)' started by ctfriel, Jan 18, 2017.

  1. Jan 18, 2017 at 5:19 AM
    #1
    ctfriel

    ctfriel [OP] @Overland_NC

    Joined:
    Jan 31, 2016
    Member:
    #176641
    Messages:
    403
    Gender:
    Male
    First Name:
    Chris
    Winston-Salem, North Carolina
    Vehicle:
    2017 TRD OR AT (@overland_nc)
    Basic overland stuff...
    I'm picking up an ARB CKMTA12 twin compressor from @dorton later this week and trying to decide on mounting options.

    1. Preference is the drivers side bed storage pocket.

    2. Secondary location is under the hood on a Slee bracket.

    I'd rather keep it out of the engine bay to prevent excessive heat sink, etc.

    Looking for options and lessons learned.

    moe2o4 likes this.
  2. Jan 18, 2017 at 5:23 AM
    #2
    T4RFTMFW

    T4RFTMFW #DBBeer

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    67,078
    That's a pretty large compressor. Does it even fit in the storage bins?

    Most people use a single in that area and it barely fits height wise. In a second gen, anyway.

  3. Jan 18, 2017 at 5:25 AM
    #3
    ctfriel

    ctfriel [OP] @Overland_NC

    Joined:
    Jan 31, 2016
    Member:
    #176641
    Messages:
    403
    Gender:
    Male
    First Name:
    Chris
    Winston-Salem, North Carolina
    Vehicle:
    2017 TRD OR AT (@overland_nc)
    Basic overland stuff...
    Yea, no idea I've never held one. They seem to be shorter than the single though.

  4. Jan 18, 2017 at 5:40 AM
    #4
    ctfriel

    ctfriel [OP] @Overland_NC

    Joined:
    Jan 31, 2016
    Member:
    #176641
    Messages:
    403
    Gender:
    Male
    First Name:
    Chris
    Winston-Salem, North Carolina
    Vehicle:
    2017 TRD OR AT (@overland_nc)
    Basic overland stuff...
    Well I don't think it'll work. I found some dimensions on ARB AU's data. Seems it's

    H - 4.1"
    L - 10.9"
    W - 7.5"

    Everything works except the Width.. just not deep enough.

  5. Jan 18, 2017 at 7:28 AM
    #5
    T4RFTMFW

    T4RFTMFW #DBBeer

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    67,078
    Shorter for sure, but they're pretty damn wide.

  6. Jan 18, 2017 at 7:31 AM
    #6
    moe2o4

    moe2o4 Well-Known Member

    Joined:
    Feb 9, 2015
    Member:
    #148236
    Messages:
    7,584
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh PA
    Vehicle:
    2016 SR Silver 2.7L 5 Speed
    OME 3" Lift, 32" Tires, Lots of Mods!
    I'm running one under my Hood!

    Here is a little Video of it working:
    https://www.youtube.com/watch?v=_fwUFy9MOvc

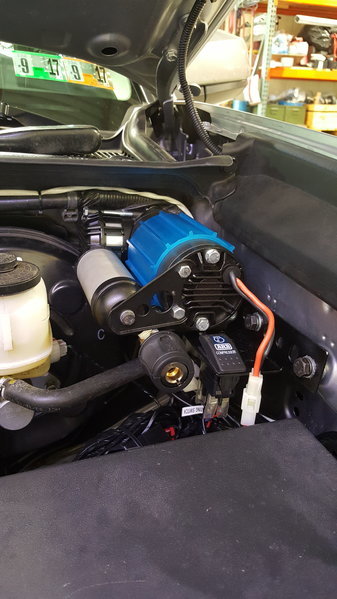

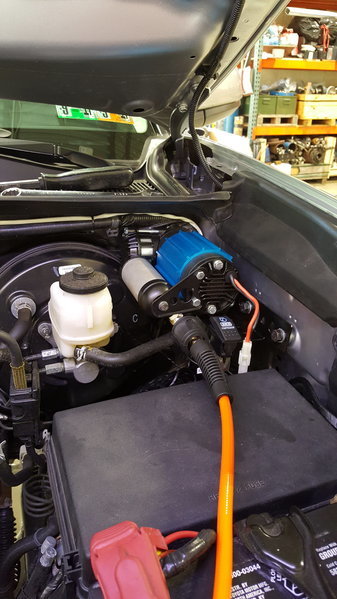

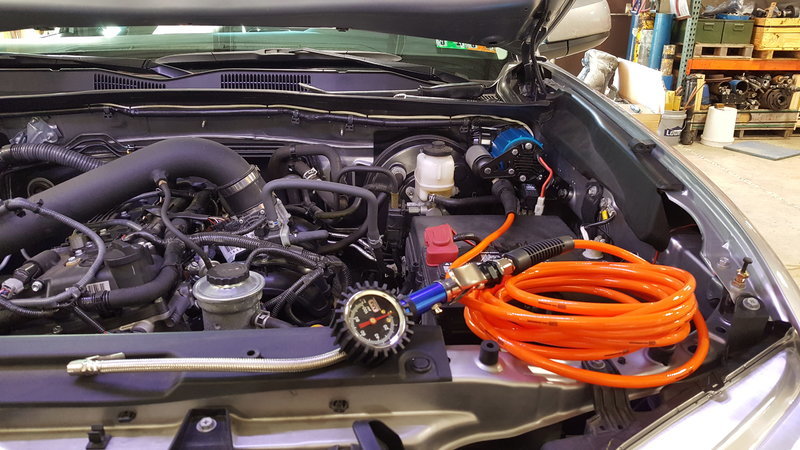

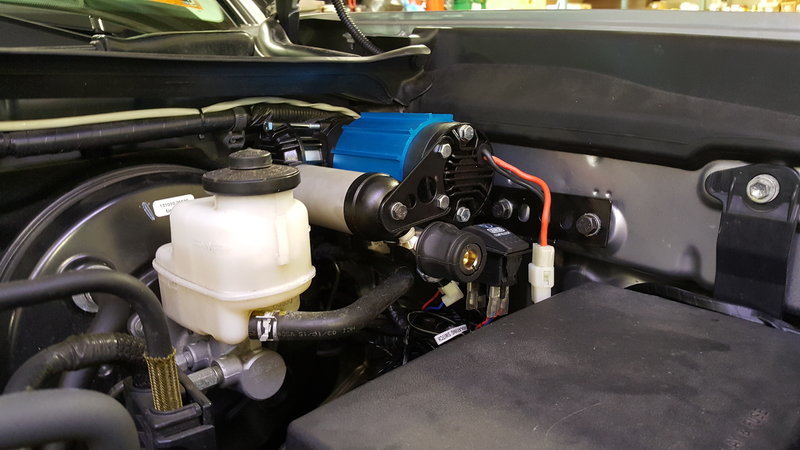

    Final Mounted Pics:
    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

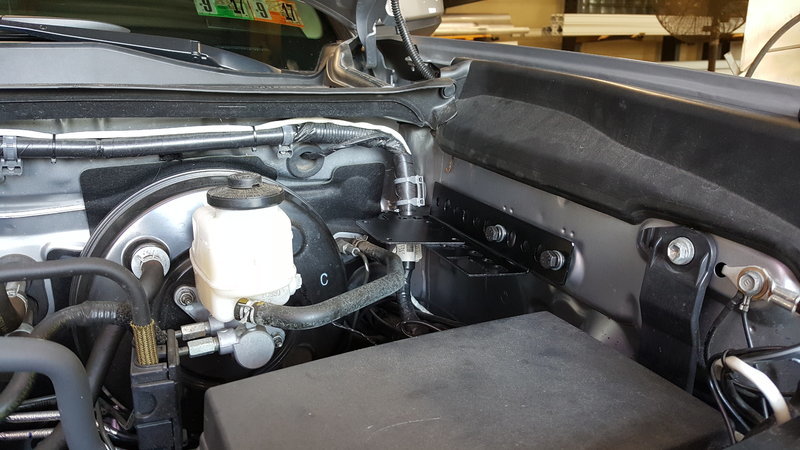

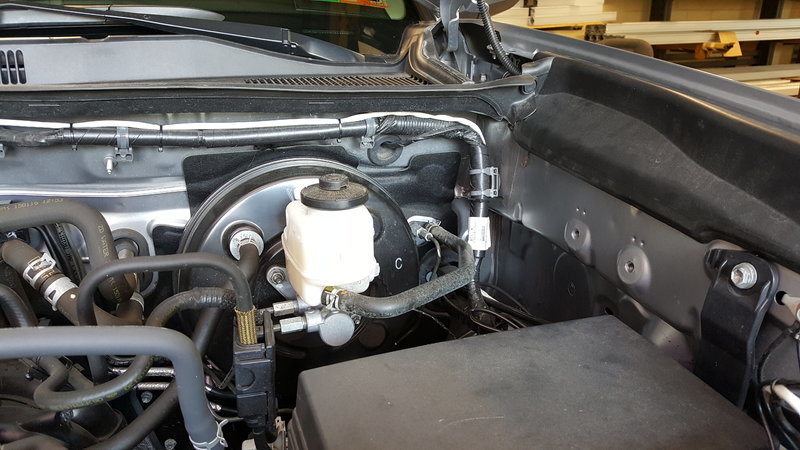

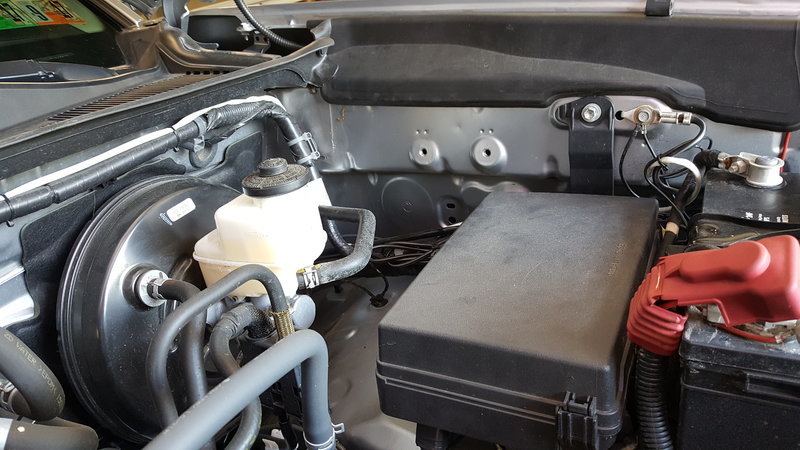

    Before the Install:
    [​IMG][​IMG]

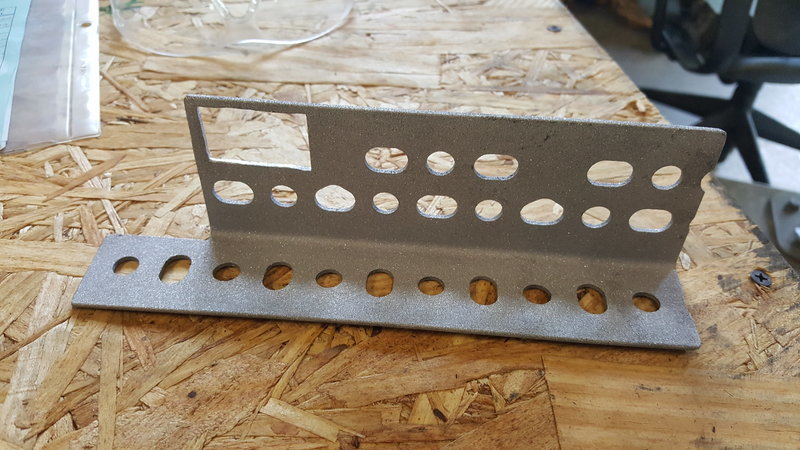

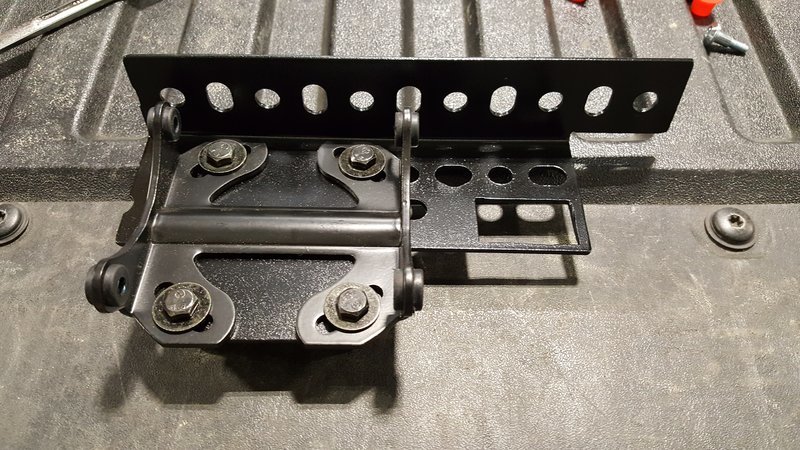

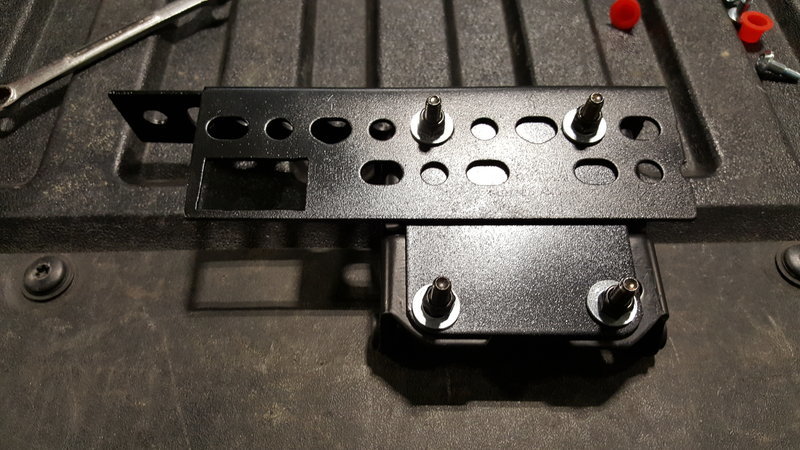

    The bracket I made to mount the compressor and switch:

    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

  7. Jan 18, 2017 at 7:33 AM
    #7
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,389
    Gender:
    Male
    it will work but you have to finagle it in there, I have a viair 440p compressor in mine, chopped the top off and it fits snug .. mounted the tank in the bed on the side

    greeneggsnspam likes this.
  8. Jan 18, 2017 at 9:08 AM
    #8
    ScottyR

    ScottyR Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    609
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    Sub'd

  9. Jan 20, 2017 at 7:40 AM
    #9
    2016MGMTACO

    2016MGMTACO Well-Known Member

    Joined:
    Oct 18, 2016
    Member:
    #200091
    Messages:
    122
    Gender:
    Male

    How did you wire up the dashboard illumination and the ignition wires?

  10. Jan 20, 2017 at 7:41 AM
    #10
    moe2o4

    moe2o4 Well-Known Member

    Joined:
    Feb 9, 2015
    Member:
    #148236
    Messages:
    7,584
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh PA
    Vehicle:
    2016 SR Silver 2.7L 5 Speed
    OME 3" Lift, 32" Tires, Lots of Mods!
    The switch is mounted under the hood right on the same bracket that 5he compressor is on! See it right in front!

  11. Jun 26, 2017 at 7:31 AM
    #11
    AFHart

    AFHart I'm just telling ya what I told ya!

    Joined:
    Dec 23, 2014
    Member:
    #144814
    Messages:
    240
    Gender:
    Male
    First Name:
    Chris
    Denver Area
    Vehicle:
    2017 DCSB TRD OR 4x4 - MGM
    Can you shoot me some pics of your install? I have the Viair 440P and was going to mount it in the bed storage compartment. But realized after purchase, that it is a bit big. I am not doing a tank. Just want the compressor in the bed. Any assistance is appreciated.

  12. Jun 26, 2017 at 7:41 AM
    #12
    Ellswj86

    Ellswj86 Active Member

    Joined:
    Apr 6, 2017
    Member:
    #215579
    Messages:
    40
    Gender:
    Male
    First Name:
    Jarrad
    Vehicle:
    2017 TRD DCSB
  13. Jun 26, 2017 at 7:42 AM
    #13
    OdiN1701

    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,546
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I don't think the dual will fit in the storage things.

  14. Dec 15, 2018 at 2:20 PM
    #14
    MacFly

    MacFly Well-Known Member

    Joined:
    Sep 11, 2018
    Member:
    #265926
    Messages:
    305
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD Off Road AT
    OVTune, AT Habitat, Firestone RRs, ARB CKMA12 compressor
    House Forsaken likes this.
