ARB Twin Compressor (CKMTA12) Wiring

Discussion in '3rd Gen. Tacomas (2016+)' started by shacol, Jan 27, 2020.

  1. Jan 27, 2020 at 6:04 AM
    #1
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Hello Everyone,

    I am hoping for some advice/confirmation that I am on the right track.
    I am trying to sort out wiring a CKMTA12 as simply as possible.

    I'd like to have a simple switch (no illumation) right next to the compressor under the hood. I also don't plan to have it switched by the ignition, meaning it'll come on with just my simple switch. I plan to have the QD and switch side by side, so I'll need to open the hood to use the QD and will just operate the switch at that time. I also know that it isn't recommended to use the compressor with the battery off, and I don't plan to, but I'll just manage that myself.

    I have attached a pic of the wiring diagram, with the modifications that I *think* will work.
    ckmta12 5.jpg

    Any thoughts?
    Thank you!

    PS - I don't have air lockers...

    Last edited: Jan 27, 2020
  2. Jan 27, 2020 at 6:59 AM
    #2
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Well, shoot, that is even simpler than what I thought!

    Did you do this yourself? Or, is it just evident from the wiring diagram?

    Last edited: Jan 27, 2020
  3. Jan 27, 2020 at 3:51 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,105
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Evident...

  4. Jan 27, 2020 at 4:00 PM
    #4
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    gotcha, thank you very much!

  5. Jan 27, 2020 at 6:10 PM
    #5
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    That makes sense.

    But since that's the case, your first diagram of just wiring the purple and black to a switch is the simplest ... I think I'll go that route.

    I very much appreciate you taking time time to help me out!

  6. Jan 27, 2020 at 6:12 PM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,105
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    No problem...:hattip:

  7. Jan 28, 2020 at 4:47 AM
    #7
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Sorry to bug you with this again, but I do have one other question.

    I noticed on the diagram that I first posted, one of the switches - the isolation switch - is tied to 12v(ignition).

    I am in no way saying that your diagram is incorrect, I just wanted to point that out in case you missed it. Is that a valuable clue or no? Just do it as you described originally?

    I don't care about it being switched by the ignition, but it made me wonder if I needed to pick up 12v somewhere for the other side of the switch...

    Last edited: Jan 28, 2020
  8. Jan 28, 2020 at 5:38 AM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,105
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yeah I missed that.:(
    You'll need power to the PURPLE. 8 amps is mentioned in the install instructions but I think that is for when all 3 switches are used. So 8/3= 2.333. I say get a 3A fuse, if it fails then up to 5. The switch you use must handle the 8+ amps just to be within specs...The ARB ones are Carling types, they are 20 amps.

  9. Jan 28, 2020 at 6:15 AM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,105
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You can also do this:

  10. Jan 28, 2020 at 6:19 AM
    #10
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Ahh, ok then!

    So, it'll be like my first diagram, but you recommend a fuse 3A (or up to 5A) on the purple line next to the battery.

    Here is a new diagram just to be sure that I have it correct.

    Again, THANK YOU!

    ckmta12 5.jpg

  11. Jan 28, 2020 at 6:21 AM
    #11
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Ahh, gotcha, I was making a reply when you posted this... this is also workable for me! Thanks for the option!

  12. Jan 28, 2020 at 6:22 AM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,105
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  13. Feb 9, 2020 at 9:52 AM
    #13
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
  14. Feb 9, 2020 at 9:54 AM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,105
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :hattip:

  15. May 27, 2020 at 1:20 PM
    #15
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    7,436
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    Katzkins, sport hood, 17"×8.5" SCS Ray10 matte gunmetal wheels with BFG KO2 265/70/17 tires, heavily modified Mobtown bed bars, tinted windows, Mesojdm OR taillights, TRD Pro skid plate, ADS Ext Suspension, TRD Pro shift knob, TRD Pro Rigid fog lights, TRD Pro grille, passenger smart handle, SSO Slimline bumper with Warn M8000 synthetic winch, TC bed stiffeners, RCI hidden hitch rear bumper
    Can you post pictures of the completed install? I'm in the same boat as you. I want onboard air (tire fill ups), but don't see the point of running a switch into the cab.

    Thanks in advanced.

  16. May 27, 2020 at 1:48 PM
    #16
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    @Bertw192 Yes, happy to do so, give me a couple of hours and I'll get you some pics.

  17. May 27, 2020 at 1:55 PM
    #17
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB

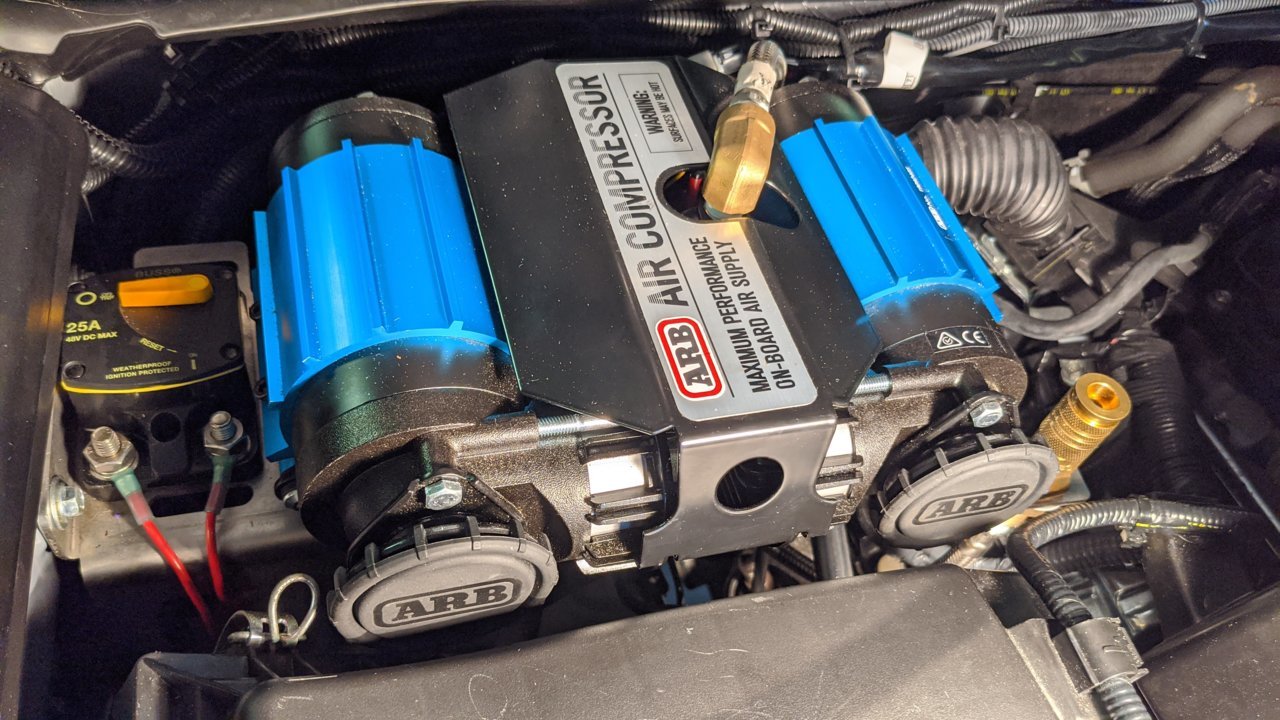

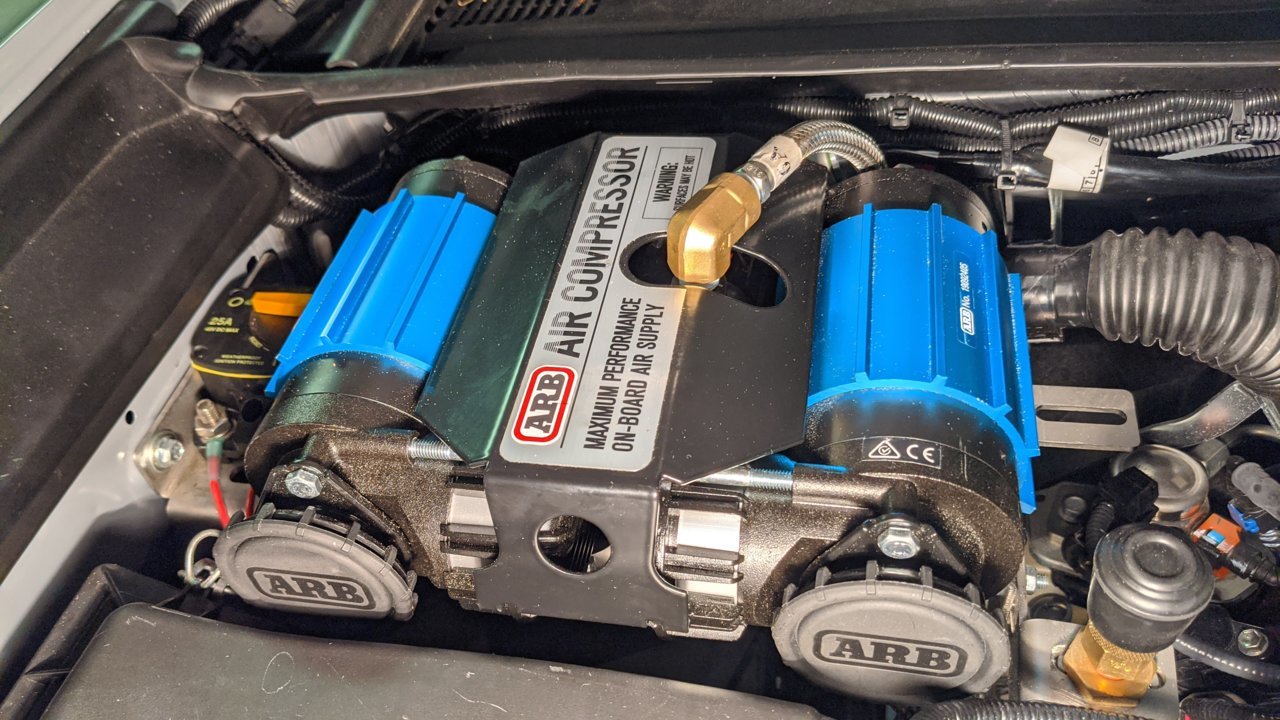

    IMG_20200527_165230.jpg IMG_20200527_165324.jpg

    ohcjam and Bertw192 like this.
  18. May 27, 2020 at 2:00 PM
    #18
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    7,436
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    Katzkins, sport hood, 17"×8.5" SCS Ray10 matte gunmetal wheels with BFG KO2 265/70/17 tires, heavily modified Mobtown bed bars, tinted windows, Mesojdm OR taillights, TRD Pro skid plate, ADS Ext Suspension, TRD Pro shift knob, TRD Pro Rigid fog lights, TRD Pro grille, passenger smart handle, SSO Slimline bumper with Warn M8000 synthetic winch, TC bed stiffeners, RCI hidden hitch rear bumper
    That's super clean! Ok... time for all of the questions...

    What mount is that?

    In your wiring diagram (post #10), you're proposing an engine bay mounted switch. Is that the switch in your photo (black with yellow font)?

    I'm sure more questions to follow.

    Thanks again!

    galito likes this.
  19. May 27, 2020 at 2:10 PM
    #19
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    171
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Bertw192 likes this.
  20. May 27, 2020 at 4:10 PM
    #20
    ShimStack

    ShimStack Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74701
    Messages:
    712
    Gender:
    Male
    First Name:
    Ben
    NC
    Vehicle:
    '98 Ext Cab V6 5speed, '16 DC OR M/T V6 Locked F/R
    KM2's, shocks
    I'm not running the dual setup, just the single but I don't think switching black in connector 2 will work. Black in connector 2 is coming from ground connection in connector 1 to complete circuits on air solenoids (high side switched) and the switch backlights. So switching ground on 2 won't do anything here and as soon as purple gets 12V the compressor will run due to the relay coil being connected to ground via connector 1.
