Are my 5100’s upside down?

Discussion in '1st Gen. Tacomas (1995-2004)' started by 02blancotaco, Aug 13, 2019.

  1. Aug 13, 2019 at 3:32 PM
    #1
    02blancotaco

    02blancotaco [OP] Well-Known Member

    Joined:
    Mar 12, 2019
    Member:
    #286428
    Messages:
    53
    Gender:
    Male
    First Name:
    Colby
    Vehicle:
    02 Toyota Tacoma 4x4 Trd

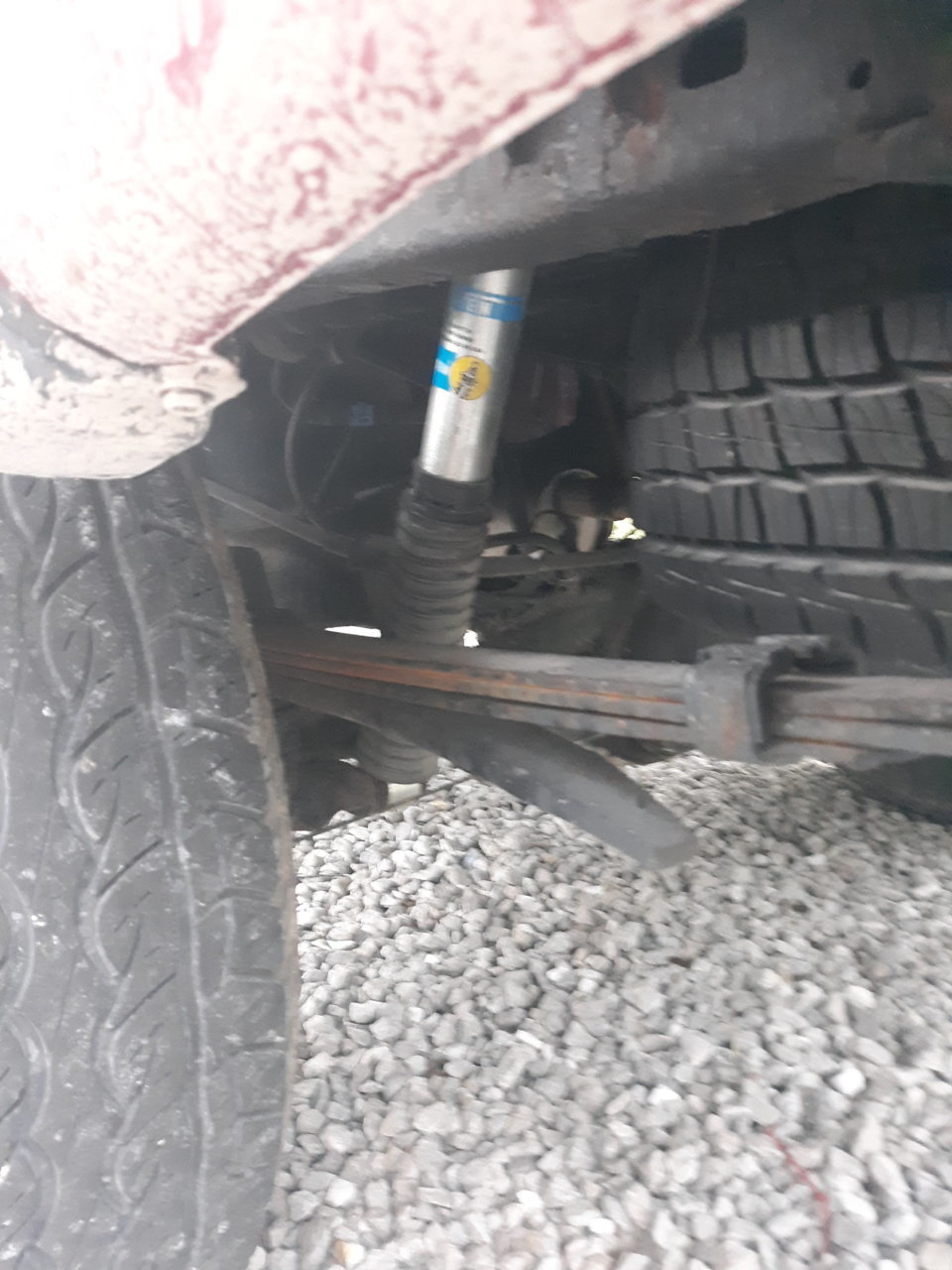

    I just got done installing a set of 5100’s all the way around on my 02 taco. I installed the rear shocks at like 9:30 last night and was curious if I installed them upside down. I figured I have them the right way as you can actually read the labels but I wasn’t sure.


  2. Aug 13, 2019 at 3:32 PM
    #2
    Beer:30

    Beer:30 Well-Known Member

    Joined:
    Mar 15, 2016
    Member:
    #181299
    Messages:
    828
    Gender:
    Male
    First Name:
    Kevin
    Somewhere North of Denver
    Vehicle:
    2016 DCSB OR V6 4X4
    Yes! Upside down.

    J_Anthony_ likes this.
  3. Aug 13, 2019 at 3:33 PM
    #3
    02blancotaco

    02blancotaco [OP] Well-Known Member

    Joined:
    Mar 12, 2019
    Member:
    #286428
    Messages:
    53
    Gender:
    Male
    First Name:
    Colby
    Vehicle:
    02 Toyota Tacoma 4x4 Trd
    yes as they are upside down or the correct way? Thanks for the help

  4. Aug 13, 2019 at 3:34 PM
    #4
    Beer:30

    Beer:30 Well-Known Member

    Joined:
    Mar 15, 2016
    Member:
    #181299
    Messages:
    828
    Gender:
    Male
    First Name:
    Kevin
    Somewhere North of Denver
    Vehicle:
    2016 DCSB OR V6 4X4
    Upside down. Body goes to the bottom, rod to the top.

  5. Aug 13, 2019 at 3:35 PM
    #5
    02blancotaco

    02blancotaco [OP] Well-Known Member

    Joined:
    Mar 12, 2019
    Member:
    #286428
    Messages:
    53
    Gender:
    Male
    First Name:
    Colby
    Vehicle:
    02 Toyota Tacoma 4x4 Trd
    well shit. Thanks for the help

    jammer likes this.
  6. Aug 13, 2019 at 3:36 PM
    #6
    DarthPow

    DarthPow Well-Known Member

    Joined:
    Feb 27, 2018
    Member:
    #245786
    Messages:
    1,220
    Vehicle:
    2012 DCLB TRD Sport 4x4
    luckily its the rear, which isn't difficult to fix. At least you didn't do this on the front... lol

  7. Aug 13, 2019 at 3:36 PM
    #7
    Steves104x4

    Steves104x4 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35468
    Messages:
    10,677
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2010 RC 2.7 4x4
    BUCKLE UP! It makes it harder for Aliens to pull you out of your Truck.

    Anton338, 0uTkAsT and LTacoman like this.
  8. Aug 13, 2019 at 3:38 PM
    #8
    Wixo

    Wixo Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    This is actually beneficial. You can also install a u-bolt flip kit and have front wheel drive during reverse. Enjoy!

    Rachelsdaddy and Anton338 like this.
  9. Aug 13, 2019 at 3:40 PM
    #9
    Taco man17

    Taco man17 Virginia Good Ol' Boy

    Joined:
    Jun 30, 2017
    Member:
    #222781
    Messages:
    266
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    Tacoma TRD off-road 2017
    Truck cap , husky liners, deflector shield, ARE truck cap.
    Upside down in the US . Right side up for Australia. LOL

  10. Aug 13, 2019 at 3:40 PM
    #10
    Kwikvette

    Kwikvette #ropehooksmatter

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    1,168
    Gender:
    Male
    Monterey County, CA
    Vehicle:
    2001 Tacoma Prerunner TRD
    ROPE HOOKS, the only mod that matters
    Interesting responses.

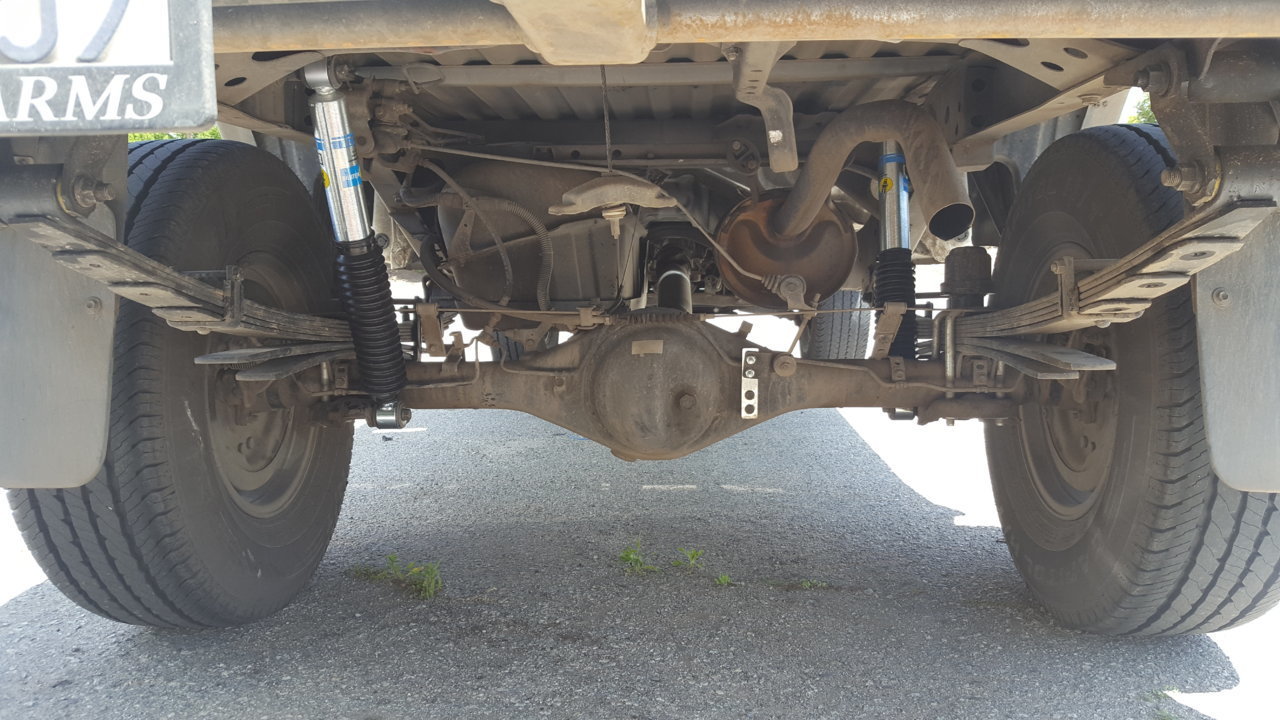

    I installed my Bilstein 5100's the same way you did in your picture - something about the seals being lubed, etc. as the shaft moves during compression and extension.

    You can swap yours over as suggested by others, but I'm leaving mine the way they are.


    cruiserguy and CS_AR like this.
  11. Aug 13, 2019 at 3:42 PM
    #11
    rpowell25

    rpowell25 Well-Known Member

    Joined:
    Mar 7, 2019
    Member:
    #285727
    Messages:
    78
    Gender:
    Male
    First Name:
    Robert
    Walnut Creek, Ca
    Vehicle:
    2019 Tacoma DCSB TRD Off Road 4wd
    I'd actually like see someone try to install the fronts incorrectly. That would be entertaining.

    Gunshot-6A, DarthPow and Gibo like this.
  12. Aug 13, 2019 at 3:50 PM
    #12
    02blancotaco

    02blancotaco [OP] Well-Known Member

    Joined:
    Mar 12, 2019
    Member:
    #286428
    Messages:
    53
    Gender:
    Male
    First Name:
    Colby
    Vehicle:
    02 Toyota Tacoma 4x4 Trd
    Easy one down. Now onto the other


  13. Aug 13, 2019 at 4:30 PM
    #13
    brs127s

    brs127s Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43575
    Messages:
    420
    Gender:
    Male
    O'Fallon, MO
    Vehicle:
    04 D-Cab 4x4 Limited TRD
    TRD Headers, Aero Turbine AT2525XL Deckplate Mod, TRD tranny cooler, King Coilovers, LR UCAs, Alcan 5 Leaf springs and Bilstein 5100s, Shrockworks front bumper, CBI rear bumper.
    On first gens the 5100s should go shaft down. Take a look at your dust boot. Notice the drain holes at the end of the boot that connects to the end of the shaft? If you put them shaft up and have the boot zipped tightly to the shock body, dust and debris. won't be able to exit the dust boot.

  14. Aug 13, 2019 at 4:34 PM
    #14
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    1,836
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    I just read something interesting:
    "Bilstein tech advises that you should always mount your shocks so that the Bilstein logo is right-side up. If you are not sure which way is up on your shocks or wonder if you can mount them either way, always look at the Bilstein logo. If it is upside down, so are your shocks!"

  15. Aug 13, 2019 at 4:42 PM
    #15
    Kwikvette

    Kwikvette #ropehooksmatter

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    1,168
    Gender:
    Male
    Monterey County, CA
    Vehicle:
    2001 Tacoma Prerunner TRD
    ROPE HOOKS, the only mod that matters
    Exactly!

    OP had his shocks installed correctly, and now reinstalled them incorrectly lol

    Luckily, the entire job is roughly 5 minutes.

    cruiserguy likes this.
  16. Aug 13, 2019 at 5:02 PM
    #16
    CS_AR

    CS_AR Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    1,734
    Gender:
    Male
    First Name:
    Craig
    Central AR
    Vehicle:
    1999 Tacoma PreRunner SR5 TRD
    None yet.
    This is how the installation instructions suggested my installation.

    I can tell you that I've had struts ruined because the boots filled up with water and then froze.

    Gunshot-6A and cruiserguy like this.
  17. Aug 13, 2019 at 5:06 PM
    #17
    Kwikvette

    Kwikvette #ropehooksmatter

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    1,168
    Gender:
    Male
    Monterey County, CA
    Vehicle:
    2001 Tacoma Prerunner TRD
    ROPE HOOKS, the only mod that matters
    I didn't mention this earlier but, your shocks look as if they're going to be compressed the entire time you're driving.

    There are 2 variants of the Bilstein 5100's for our truck; one for 0-1.5 and 1 to 2.5 (these numbers are based off of memory and not meant to be exact values).

    With that being said, if your leaf springs are frowning without any extra weight in the bed, replace them.

    If it were me, I wouldn't drive on those Bilstein's until my leaf springs were replaced.

  18. Aug 13, 2019 at 5:16 PM
    #18
    03_taco_IN

    03_taco_IN Well-Known Member

    Joined:
    Sep 29, 2018
    Member:
    #267850
    Messages:
    69
    Gender:
    Male
    Indiana
    Vehicle:
    2003 xtracab sr5 v6 trd manual
    Blue wire/ grey wire and rear diff breather mod
    I think he needs to slide the boot up. In reference to the sticker on the shock. Mine needed at least a 1 inch lift to work.


    tony2018 likes this.
  19. Aug 13, 2019 at 5:24 PM
    #19
    Kwikvette

    Kwikvette #ropehooksmatter

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    1,168
    Gender:
    Male
    Monterey County, CA
    Vehicle:
    2001 Tacoma Prerunner TRD
    ROPE HOOKS, the only mod that matters

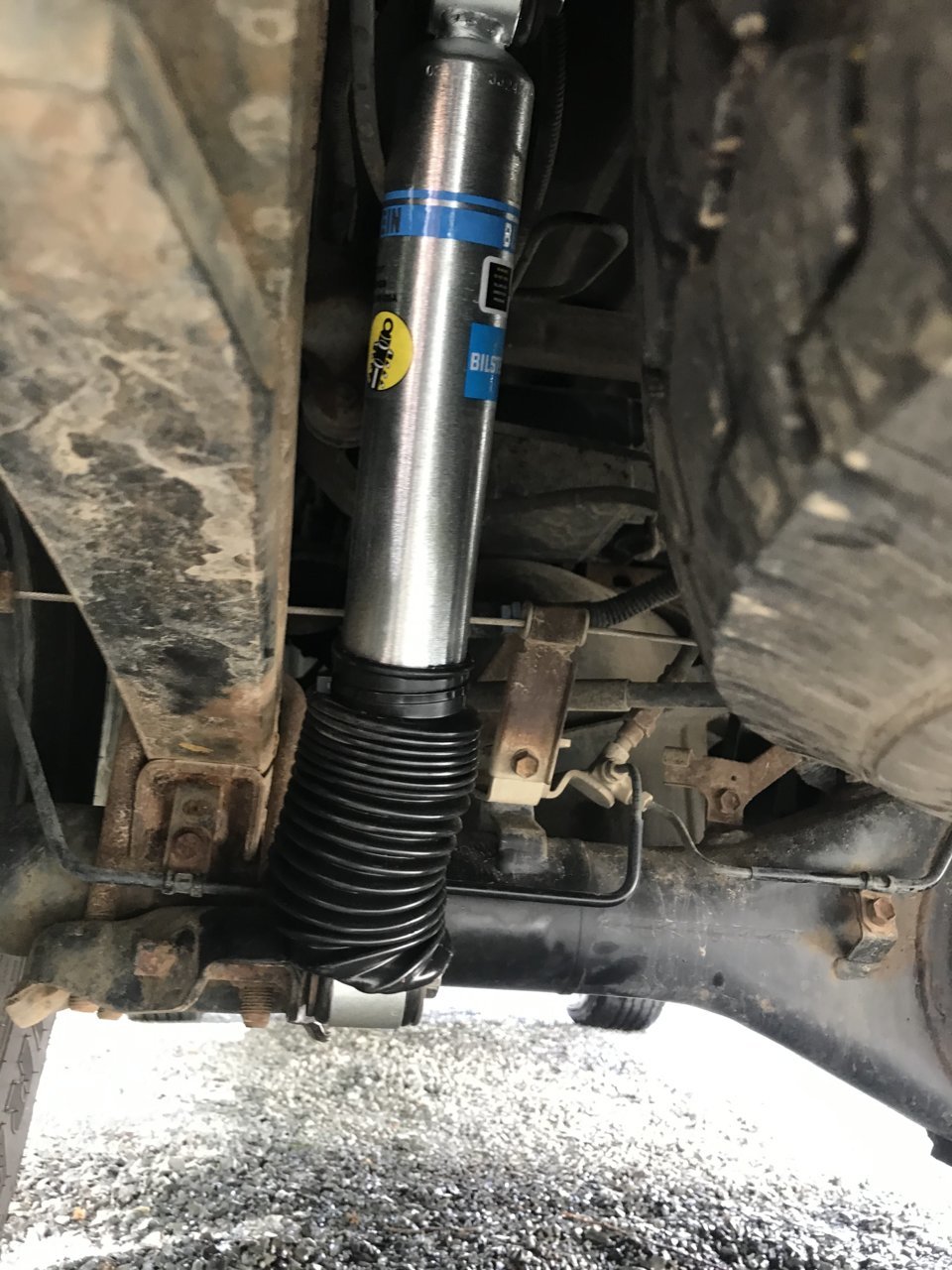

    Your boot looks a good bit higher than the OP's as well as mine;

    If you look at my picture and the OP's picture, you'll see there's about an equal distance from the bottom of the decal to the top of the boot.

    With that being said, my shocks aren't sitting in a compressed state since I'm on OME Dakar's.

    I'm assuming the OP is on factory leaf springs; if that's the case, and his leaf springs are shot, those shocks could get bottomed out.

  20. Aug 13, 2019 at 5:26 PM
    #20
    yeahkkyle

    yeahkkyle Well-Known Member

    Joined:
    Jan 5, 2019
    Member:
    #278183
    Messages:
    69
    Gender:
    Male
    First Name:
    Kyle
    PA
    Vehicle:
    2002 Tacoma TRD Offroad 3.4L 5spd

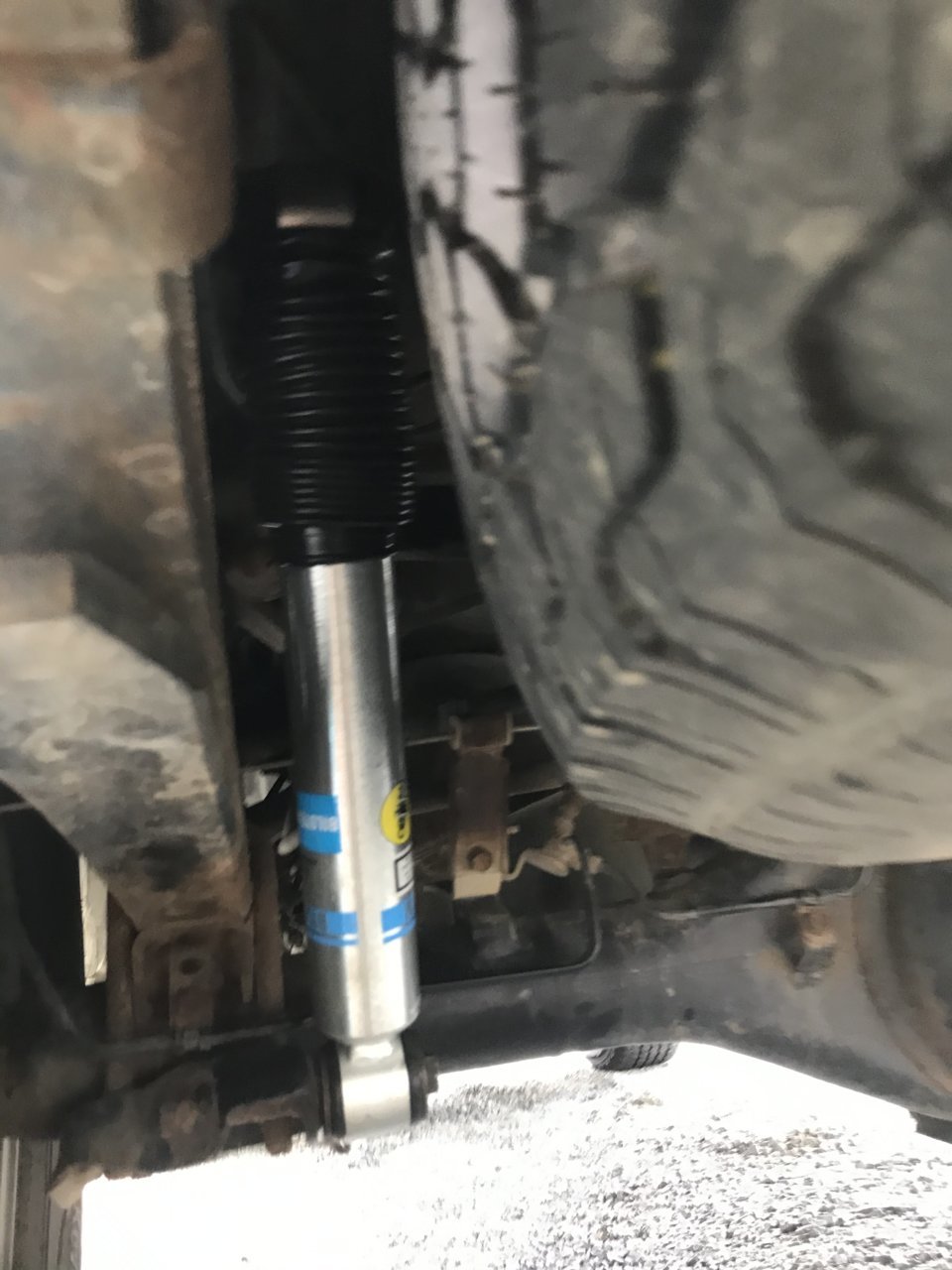

    I installed 5125's in the rear of mine with no lift. The 8'' and 8.5" which I got from Wheelers iirc. I have them mounted with the boots down and the label can be read normal(upright).

    cruiserguy likes this.
