ATH FAB 2005-2011 Tacoma Front Bumpers

Discussion in 'At The Helm Fabrication' started by At The Helm, Jan 22, 2019.

  1. Jan 22, 2019 at 9:17 PM
    #1
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,697
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    • Built from CNC cut and brake formed 3/16″ HRPO steel plate.
    • 3/4″ thick shackle tabs pass through the bumper and welded front and back.
    • 10 bolt locations makes mounting rock solid. Uses only factory holes and studs…no drilling or welding required for install. Includes frame tie-in brackets and grade 8 bolts. If running remote reservoir shocks, modification of shock brackets may be necessary.
    • Internal winch plate fits 8-10k winches with non integrated solenoid control boxes (control box must be relocated) with standard 4.5″ x 10″ bolt pattern.
    • Includes 20” x 1.50” slot for 20″-21” single row LED light bar. Features adjustable width mounts to fit any brand bar.
    • Includes square holes for LED pods with adjustable mounting brackets.
    • Hi-Lift jack slots for safer lifting

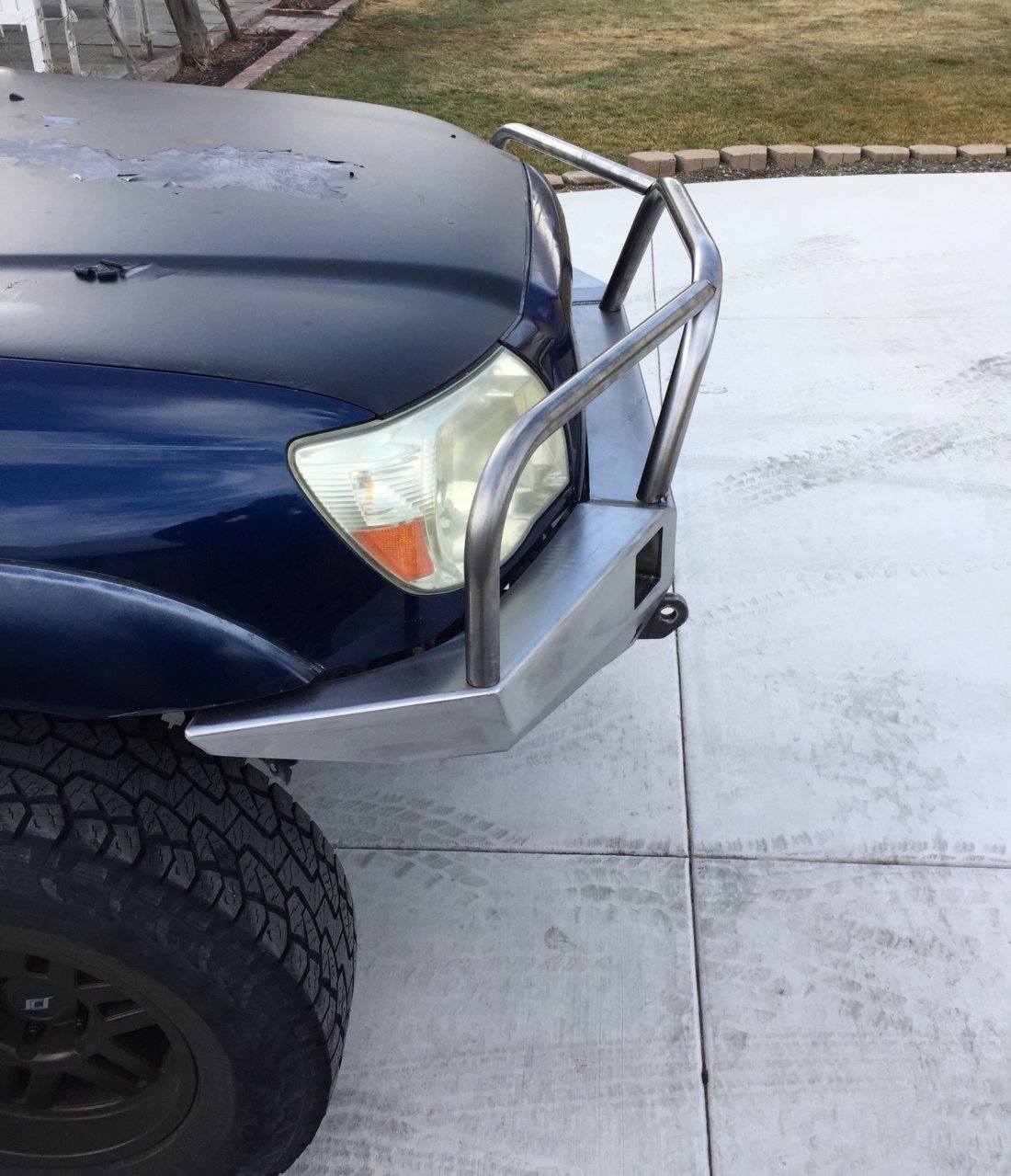

    • Multiple hoop options available (see pics)
    • Available in bare steel only
    • Not compatible with TRD off road aluminum skid plate.
    • 120-135 lbs with hardware depending on hoop options.
    • Designed, built, and tested in the USA :oldglory:

    Pricing:

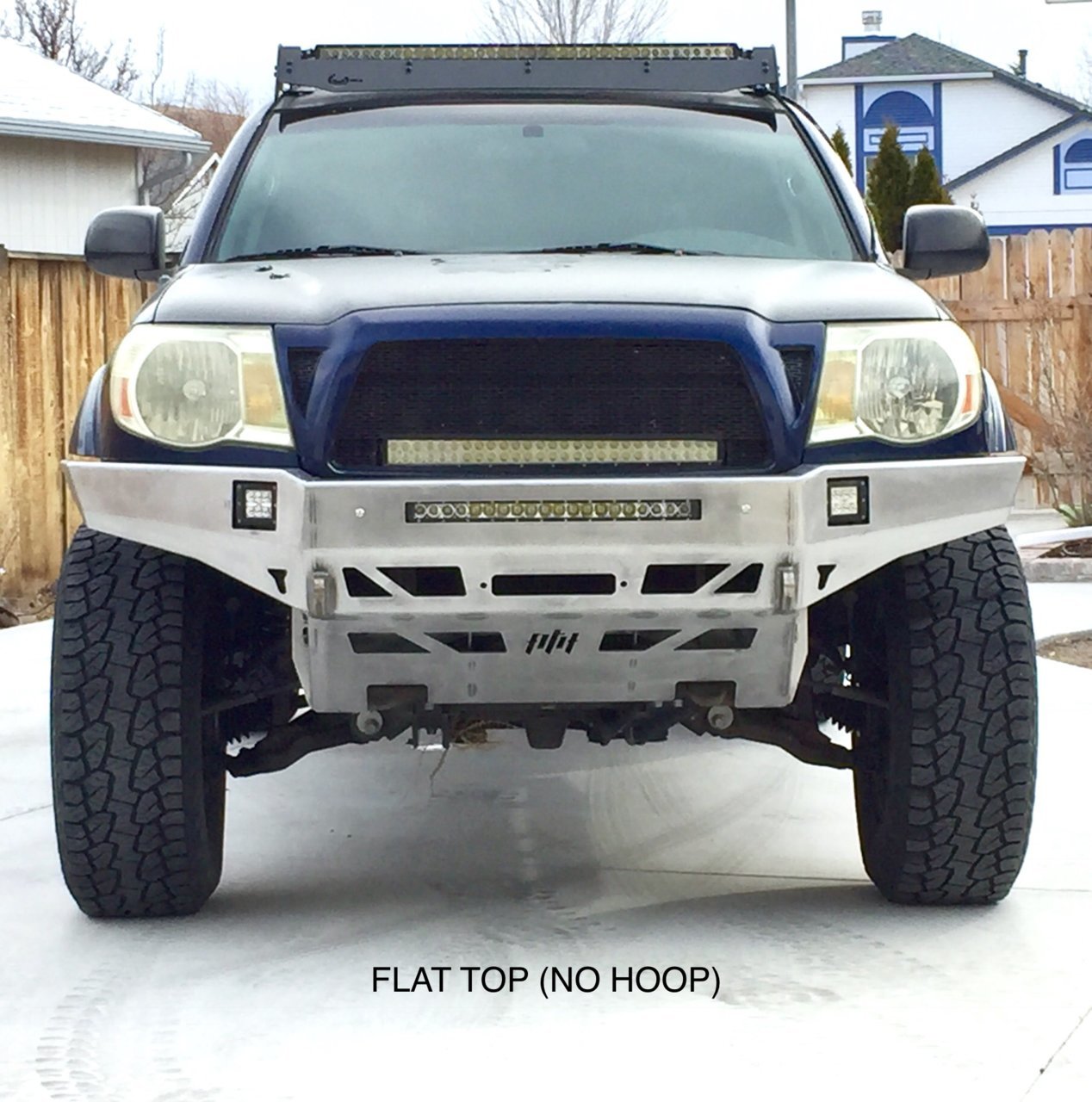

    Flat top no hoop: $935

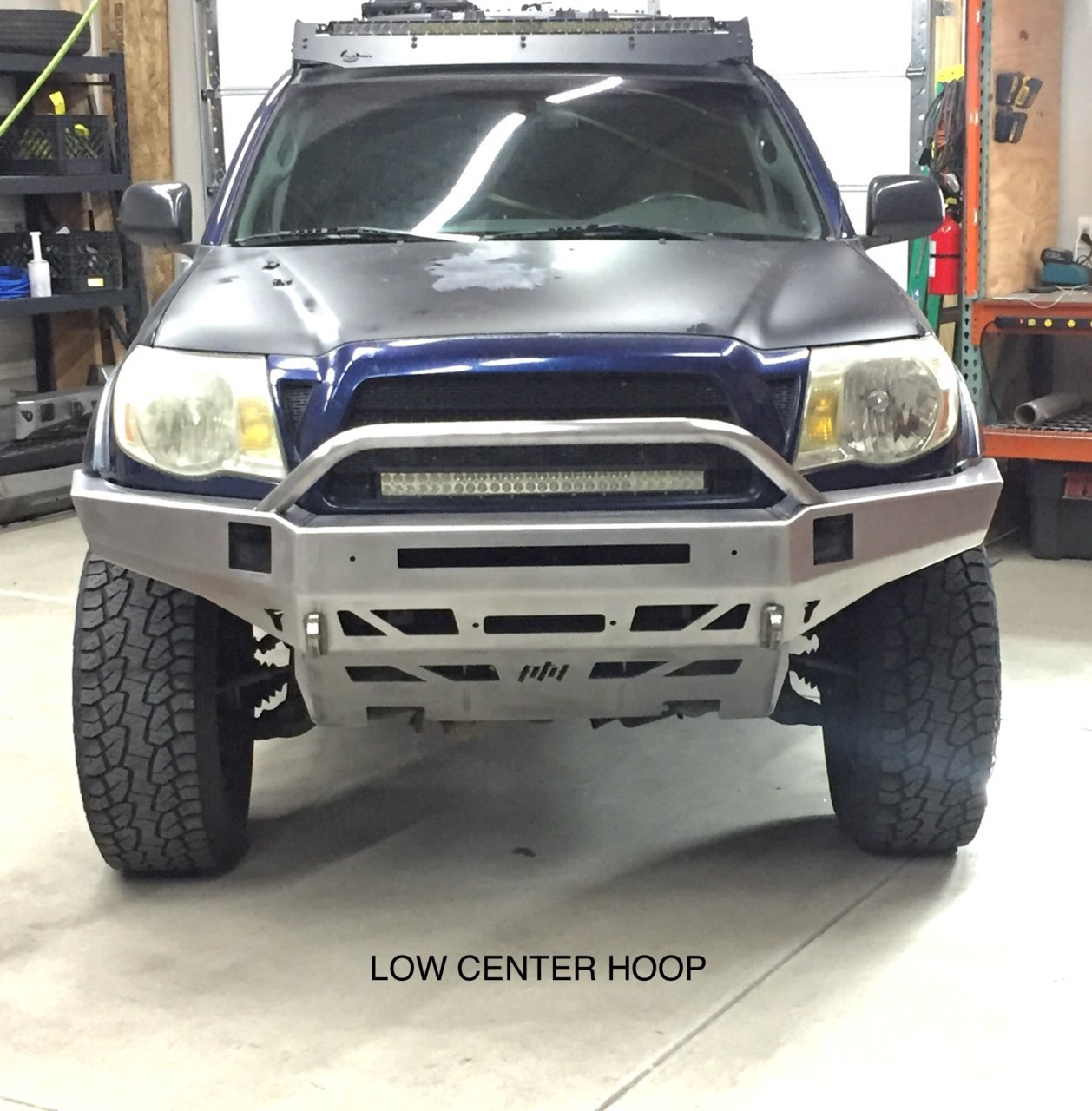

    Low center hoop: $1010

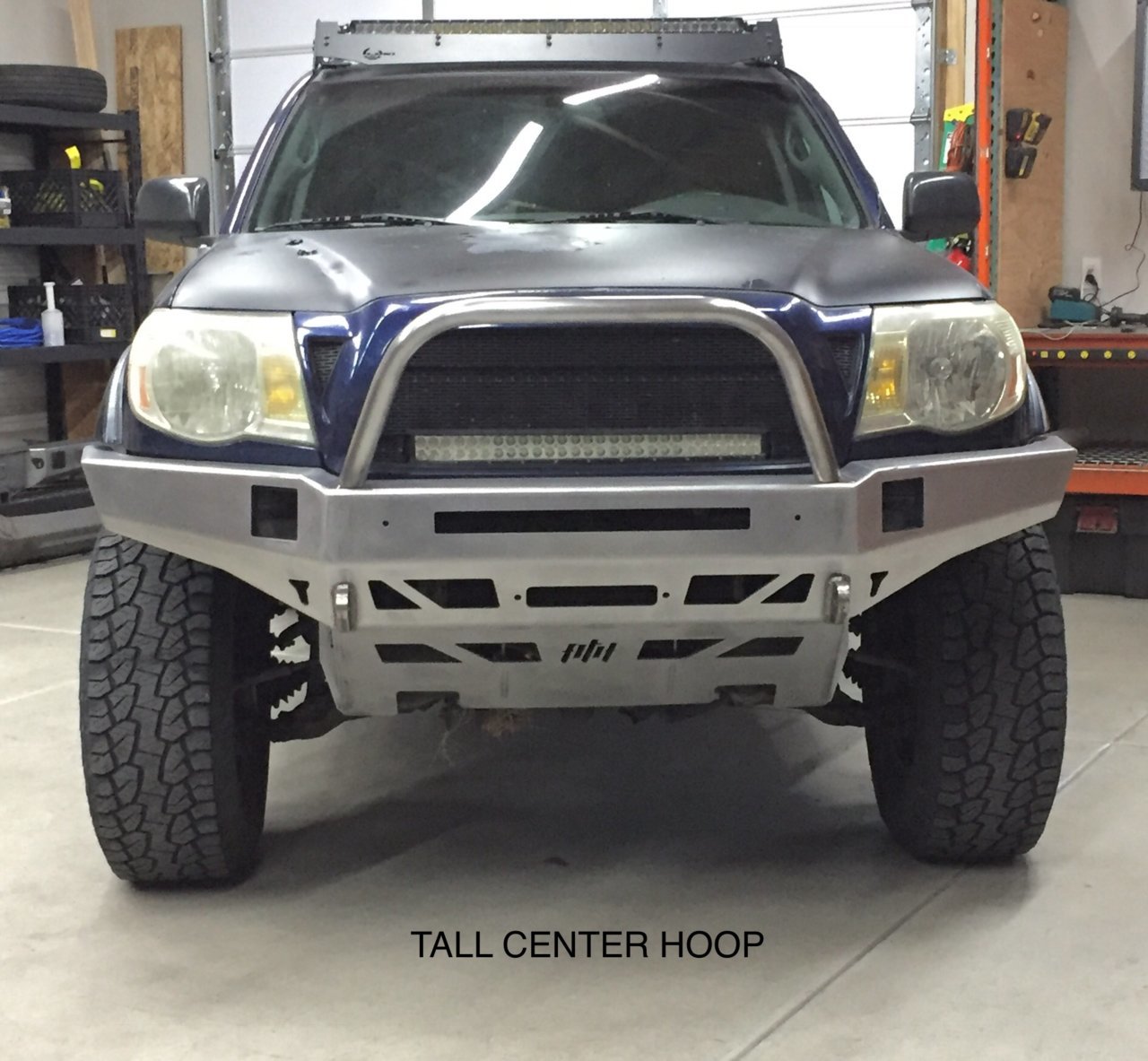

    High center hoop: $1020
    Full hoops around headlights: $1095

    Tacoma front bumpers ship truck freight due to their size and weight. Domestic freight ranges from $250-$400 to your nearest terminal or a business address with loading dock or forklift. PM for a shipping quote.
    Local pickup in Gardnerville NV or South Lake Tahoe/Stateline is more than welcome!

    More info/pics here: https://athfab.com/product/2005-2011-toyota-tacoma-front-bumper-copy/


    A595E09D-5082-4CDB-99F7-056D3784932F.jpg 50A3D64F-2634-47D8-8FB4-A8F200E9DBA6.jpg 8F75ECBF-5D8A-431D-A576-E86C82110721.jpg 95521B7F-41CD-42E7-B8FE-A455356ECEE7.jpg F4B4FBA8-51F3-4E8C-AAC0-E11BF39F5AF1.jpg CCCBD8D3-F859-4AF3-AEA4-499AA78B1D38.jpg 4D7C35C6-C9CE-44CD-BA2E-CA9749B083C4.jpg

    Last edited: Apr 6, 2019
    gabbo2112, emmett, Buffdeez and 19 others like this.
  2. Jan 22, 2019 at 9:19 PM
    #2
    GHOST SHIP

    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    13,930
    Gender:
    Male
    First Name:
    GHOST
    Huge fan of your work. If I didn’t have armor already, you’d be at the top of my list.

    Keep it up.

    :thumbsup:

  3. Jan 22, 2019 at 9:24 PM
    #3
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,697
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    :cheers: Thank you!

    GHOST SHIP likes this.
  4. Jan 22, 2019 at 9:36 PM
    #4
    tacoma08brandon87

    tacoma08brandon87 Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88123
    Messages:
    1,153
    Gender:
    Male
    First Name:
    brandon
    el paso tx
    Vehicle:
    TRD
  5. Jan 22, 2019 at 9:41 PM
    #5
    Twizted

    Twizted 1GR FE

    Joined:
    Jun 20, 2014
    Member:
    #132313
    Messages:
    6,738
    Gender:
    Male
    First Name:
    Rob
    Placer County, Jefferson USA
    Vehicle:
    '15 DCLB TRD Locked 4WD & '13 DCSB Sport 4WD
    18"x9" XD Monster 285/65/18 KO2 Kenwood DNX773S iDatalink - Maestro RR AntennaX Off-Road (13-inch) Antenna Morimoto 3157 CK Switchbacks - REMOVED Noname Switchback LEDs KB VooDoo mid-height shortbed rack Smittybilt Overlander RTT X-BULL Recovery Tracks OEM Bed Mat Extang Solid Fold 2.0 Amp Research HD Max Bed X-Tender Total Chaos Bed Stiffeners WeatherTech Floor Liners (F&R) WeatherTech Window Deflectors Hella Sharptone horns (no relay) OEM Roof Rack (stowed for mounting Thule) Thule 78" squarebars ARKSEN 43" Roof Rack basket (Amazon) BAMF Sliders (DOM, 10 degree w/kick out, rattle-canned) BAMF IFS Skid (BAMF powder-coated) BAMF Mid Skid (BAMF powder-coated) BAMF TC Skid (BAMF powder-coated) BAMF LCA Skids (BAMF powder-coated) BAMF Rear Diff Skid (early model, powder-coated) BAMF CMC Plates US Offroad Winch Bumper Smittybilt X20 10k synthetic rope winch Chinese LED pods, mounted in winch bumper "LIGHT THIS BITCH UP" push-button switch for pods One-of-a-kind 1GRFE plate OME HD leaf springs (660#) Wheeler's 3 degree axle shims Wheeler's U-bolt flip Wheeler's Super Bumpstops CaliRaised bed molle panels (both sides) CaliRaised Low-profile Ditch Light Brackets CaliRaised Side-projecting LED pods CaliRaised Faux TRD Pro Grille Morimoto amber LED fog lights OME 90000 Nitrocharger Front Shocks OME 2886x coils EBC Stage 3 pads/rotors BruteForceFab Rear HC w/swingout Relocated backup camera w/DIY bracket ARB compressor w/air-up kit DIY cowl snorkel ARB rear air-locker Upcoming installs: Whatcha got? Items for sale: Rear bumper (OEM or OEM-style, not sure. Painted black) OEM tow hitch receiver OEM rear mud flaps (scuffed up, but say 4x4) Want to trade: Nothing right now...
    @essjay
    When you're ready, this is where it's at!

    At The Helm [OP] likes this.
  6. Jan 22, 2019 at 9:44 PM
    #6
    little squirt

    little squirt 808 ALLDAY!!

    Joined:
    Aug 7, 2012
    Member:
    #84293
    Messages:
    2,107
    Gender:
    Male
    808 ALLDAY!!
    if i wasnt moving in 2 weeks, i would be buying this bumper, I'm only 2hrs away......love your products and have your products! :thumbsup:

    Twizted and At The Helm [OP] like this.
  7. Jan 23, 2019 at 5:05 AM
    #7
    Nimble9

    Nimble9 Keystone State Adventures

    Joined:
    Oct 20, 2015
    Member:
    #167184
    Messages:
    5,829
    Gender:
    Male
    Lebanon, PA
    Vehicle:
    2006 4x4 DCSB
    enough to have fun
    love the designs Nice work!

    At The Helm [OP] likes this.
  8. Jan 23, 2019 at 7:02 AM
    #8
    loyaltothetaco

    loyaltothetaco It's part ATV, part SUV, and certified by the DMV

    Joined:
    Sep 22, 2016
    Member:
    #197953
    Messages:
    1,382
    Gender:
    Male
    First Name:
    Adam
    Bay Area
    Vehicle:
    Radiant Red 2006 DCSB SR5
    2.5" OME lift, 1.25" wheel spacers, 16" trd anthracite wheels wrapped in 265/75/r16 duratracs, tyger tonneau cover, plus a flew other odds and ends. More to come.
    I will definitely keep this in mind, great work!

    At The Helm [OP] likes this.
  9. Jan 23, 2019 at 7:21 AM
    #9
    74cam

    74cam Automotive Engineer

    Joined:
    May 15, 2017
    Member:
    #219075
    Messages:
    227
    Gender:
    Male
    Michigan
    Vehicle:
    2010 Tacoma TRD Sport 6spd
    TRD Supercharged, 3 inch lift, TRD beadlock wheels
    Wow, that looks awesome! One of the cleanest bumpers I've seen around. Love the flat top and low hoops!! :thumbsup:

    At The Helm [OP] likes this.
  10. Jan 23, 2019 at 7:24 AM
    #10
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,031
    Vehicle:
    All stock Superwhite 10' AC
  11. Jan 23, 2019 at 8:05 AM
    #11
    foxrcing07

    foxrcing07 Well-Known Member

    Joined:
    Aug 12, 2016
    Member:
    #194389
    Messages:
    3,219
    Gender:
    Male
    First Name:
    Morgan
    Modesto, CA
    Vehicle:
    2005 Black DCLB 2001 Reg cab 4x4
    Dirt
    looks awesome, but....... I bet it would look even better with a HC rear bumper :boink:

    old55guy and At The Helm [OP] like this.
  12. Jan 23, 2019 at 8:55 PM
    #12
    tkrahl

    tkrahl Member

    Joined:
    Sep 24, 2017
    Member:
    #230931
    Messages:
    15
    First Name:
    Tom
    Do you offer additional pricing for LED lights and light bar?

    At The Helm [OP] likes this.
  13. Jan 24, 2019 at 6:19 AM
    #13
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,697
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    I don’t sell LED lights, but I can point you in the right direction :thumbsup:

    foxrcing07 likes this.
  14. Jan 25, 2019 at 2:57 PM
    #14
    Saechao503

    Saechao503 Well-Known Member

    Joined:
    Aug 26, 2014
    Member:
    #137009
    Messages:
    217
    Gender:
    Male
    First Name:
    Khae
    troutdale oregon
    Vehicle:
    2015 tacoma dc trd offroad
    Nice bumper!! If i didnt already have one I'd pick it up

    inesshell and At The Helm [OP] like this.
  15. Jan 26, 2019 at 6:22 AM
    #15
    Awsomeo67

    Awsomeo67 Well-Known Member

    Joined:
    Jun 1, 2016
    Member:
    #188437
    Messages:
    71
    Vehicle:
    08 reg cab long bed
    Would you be able to add a 2 inch receiver to a tall center hoop one??

    At The Helm [OP] likes this.
  16. Jan 26, 2019 at 7:11 AM
    #16
    Barrett5991

    Barrett5991 Well-Known Member

    Joined:
    Dec 24, 2018
    Member:
    #276828
    Messages:
    79
    Gender:
    Male
    First Name:
    Joe
    These things are pretty sweet, how much does the full hoop bumper weigh?

    At The Helm [OP] likes this.
  17. Jan 26, 2019 at 7:16 AM
    #17
    Toy Coma

    Toy Coma Well-Known Member

    Joined:
    Jan 19, 2015
    Member:
    #146710
    Messages:
    215
    Gender:
    Male
    Dallas TX
    Vehicle:
    2006 TRD Sport 4x4
    Icon Coil over lift, SPC UCA, Wheelers AAL & Bump stops Relentless fab rear bumper, AVID Sliders, Statoshi Grille Mod, Morimoto LED fogs, Ebay Headlights W/Halos Core Short Throw Shifter, mesojdm Ultimate LED pods. Cali raised ditch light brackets Soon to have SCS Ray 10 brushed Copper
    That's Sexy... This is my next mod after paying off SCS lol

    At The Helm [OP] likes this.
  18. Jan 26, 2019 at 7:47 AM
    #18
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,697
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    I can add one under the winch plate and fairlead opening. Depending on what you’re sticking in there, you might need to extend the tubing as the receiver would be tucked in a little bit.

    About 135 lbs

  19. Jan 26, 2019 at 10:22 PM
    #19
    Kidwidataco

    Kidwidataco Yes, my avatar is a real car.

    Joined:
    Nov 11, 2017
    Member:
    #235681
    Messages:
    3,431
    Gender:
    Male
    First Name:
    Will
    Washington State
    Vehicle:
    2008 AC TRD SPORT M/T
    ACLB 6 SPEED, Suspension: Bilstein 5100's (F/R) OME 884'S (Front) Wheelers Offroad 3 leaf progressive AAL Wheels and Tires: Method NVs (17") (white powdercoated beadlook bolts, Meso TRD center caps) 285/70r/17 Goodyear Wrangler Duratrax (Load D) "Performance": K&N Hot Air Intake MBRP Exhaust Brakes: Stoptech Slotted Rotors TRD ceramic pads Wheelers offroad SS brakelines (Front) Interior: Kenwood DD headunit JBL Club 6x9 (Front) & 6.5 (rear) (With Taco tunes speaker mounts) Alpine 500 watt amp Sound Deadening (Doors, Rear "wall") ODI Rouge Shift Knob Weather Tech Mats Carbon wrapped trim pieces Console Safe Console Vault Gridx Organizer Aliengear Holster Mount Ram Mount Phone Mount Full LED interior Lighting Coverking Neoprene seat covers (Black) Wet Okale center console cover (Black) 1" Seat Raisers (Driver & Passenger) Chinese special climate control and 4x4 knobs Back Up Camera Lighting: Retrofits (Mini H1's, RGB Halos, 5500k Bulbs)(Lenses wrapped in self healing PPF) Rigid Industries D series SAE selective yellow fogs with anytime fog mod Rigid Industries E series 32" Combo bar (spot/flood) Rigid D-SS (side shooter) Pro (flood) LED Reverse, brake, turn signal, parking lights and license plate lights Armor: Apex All Pro sliders OEM Trd skid plate (soon to be bpf/rci) Bigass Trailer Hitch Camping/Storage: Leer canopy LED interior lighting Sleeping platform (Storage underneath) Removable snowboard Yakima mounts Extra D rings in bed (6 total) Other: TRD sport graphics (Turd Gen spec) Anti Sun glare hood scoop wrap (Satin Black) Custom Grille with Homertaco letters (TOYOTA) 4 Hella supertones ECGS needle bearing 2 patches (for now) BPF shackle mount (With smittybuilt shackle (red)) Tinted windows (Front/Rear + Full canopy)(18%) Tinted Taillights Meso Gasshole Locking Gas Cap AVS inchannel window visors Diff Breather Kit
    Can you take more pictures of the truck? I haven't seen too many access cabs with prisnu racks. I really want to add some armor, and that rack system to mine. It looks smexy af

    fatfurious2 and At The Helm [OP] like this.
  20. Jan 26, 2019 at 10:44 PM
    #20
    TACOVRD

    TACOVRD I Identify As A Prius

    Joined:
    Jul 11, 2015
    Member:
    #159264
    Messages:
    6,414
    Gender:
    Male
    First Name:
    TW Addict
    AZ/WA
    Vehicle:
    2013 DCSB OR Spruce Mica
    Workin' on it....
    Looks fantastic Morgan!

    At The Helm [OP] likes this.
