Aux Fuse Block V-2.0

Discussion in '2nd Gen. Tacomas (2005-2015)' started by barlowrs, Jan 14, 2011.

  1. Jan 14, 2011 at 1:39 PM
    #1
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Well, as some of you may know I have recently installed my OBA system (OBA Install). This has required me to add a 80A breaker to my arsenal. While doing this, I decided to upgrade my 100 Fuse that was wired to my Aux fuse block to a resettable breaker as well. The last thing I want is to be out somewhere and blow the fuse and not have a spare. The resettable breaker allows me to not have to carry spares (those fuses are pretty pricy too). So this led to a re-design of my under hood mount…let’s call this V 2.0.

    While my original mount worked well (Aux Fuse Block V-1.0), I did have one complaint after having it for a while. Because my winch solenoid was mounted to the bottom, it made it very difficult to remove to gain access to the firewall grommet, or to remove for other reasons. In my original design, I never thought I would be removing it, but over the past year or so, I have had to do this multiple times, and it proved to be a pain, so my redesign had to have the following requirements:

    - Easy to remove the fuse block
    - Room for Fuse block and 2 breakers (100A and 80A)
    - Still maintain my winch solenoids
    - Room for at least 2 light relays

    After messing around with a few ideas, this is what I came up with…now out with the old and in with the new!

    After messing around with a few ideas, this is what I came up with…now out with the old and in with the new!

    The new design is two parts, the lower shelf is smaller, so it can stay permanently mounted and still five me good access to the firewall, etc. This lower shelf is where my solenoid mounts too. This is hard mounted to the truck.

    The upper shelf which holds the relays, fuse block and breakers is no longer bolted to the truck itself, but rather the lower shelf through the use of 2 bolts that get bolted into stanchions that stay on the lower shelf. This allows me to EASILY (2 bolts) remove the upper shelf, and the stanchions stay in place such that I don’t even have to mess with nuts on the back side.

    Like my original, this is built with 18 gage stainless steel.

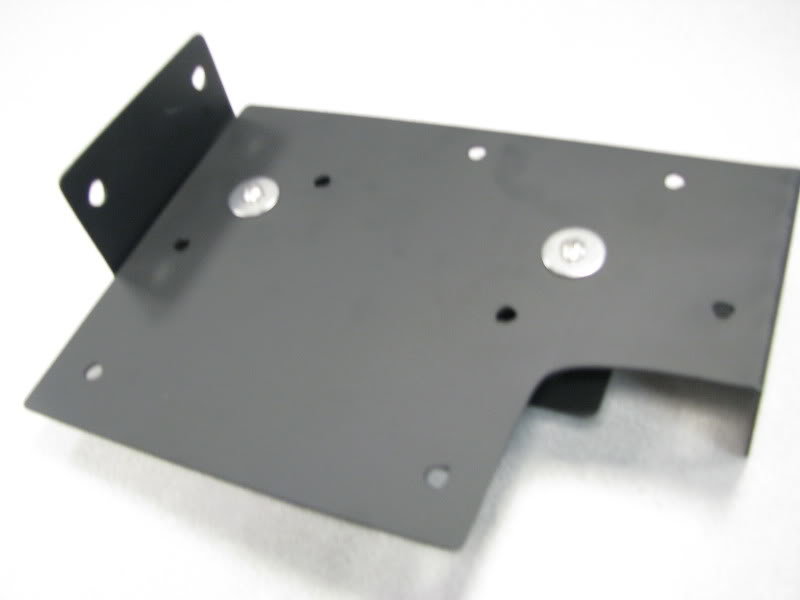

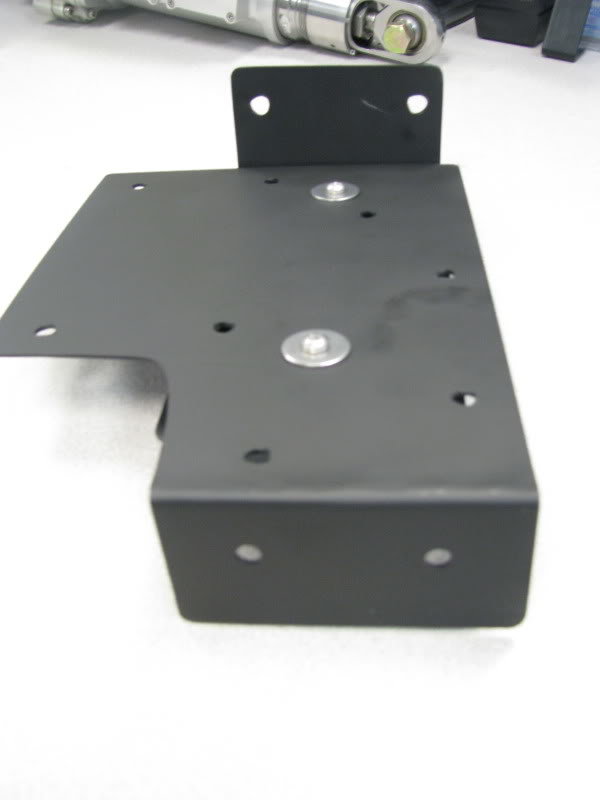

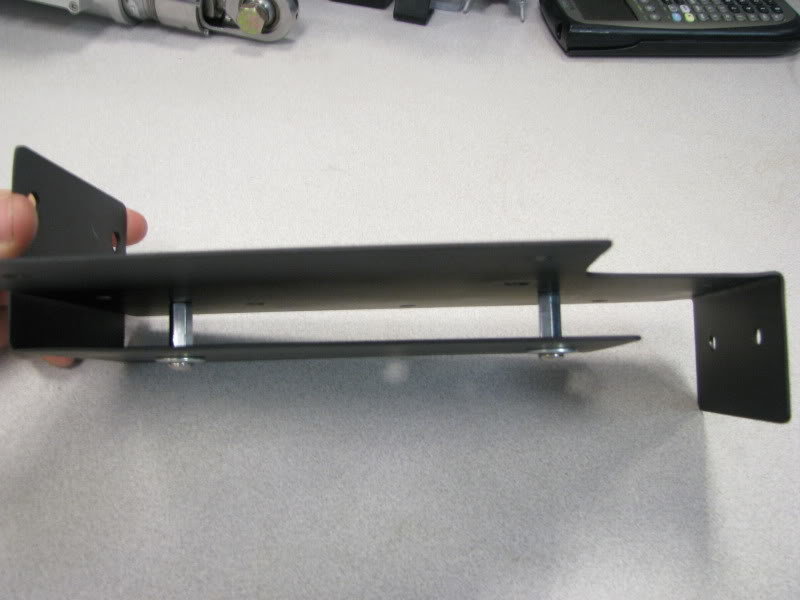

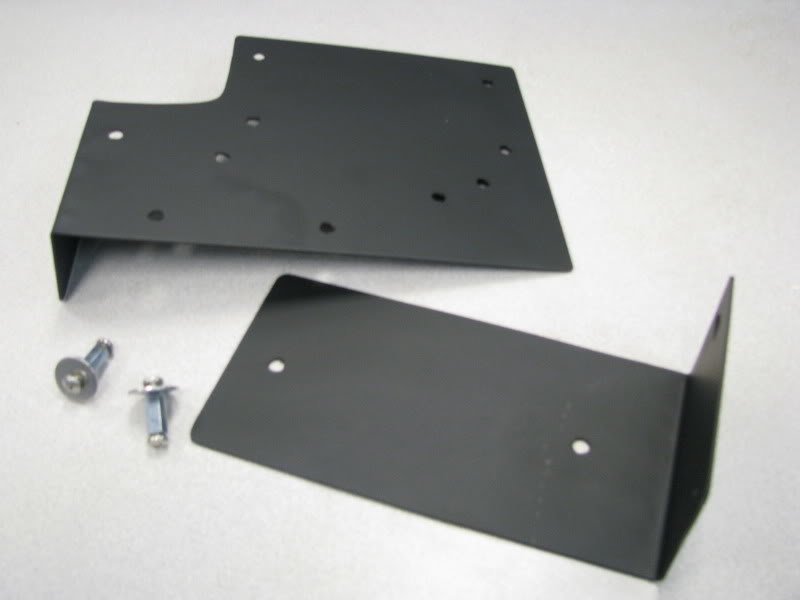

    Here you can see the two parts and how they fit together:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

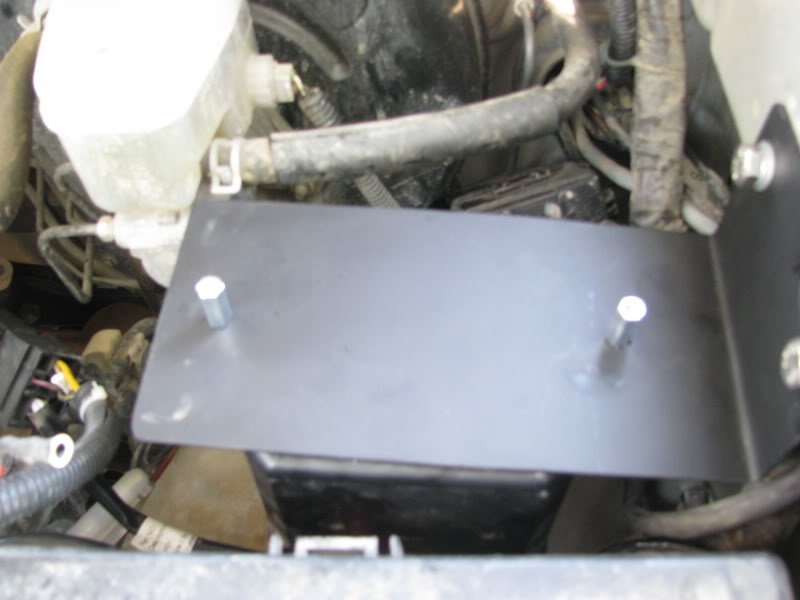

    Now, time to mount under the hood. The small shelf gets hard mounted to the fender (same as original design) with the winch solenoid mounted below it. Here you can also see the box that contains my winch solenoid mounted.
    [​IMG]

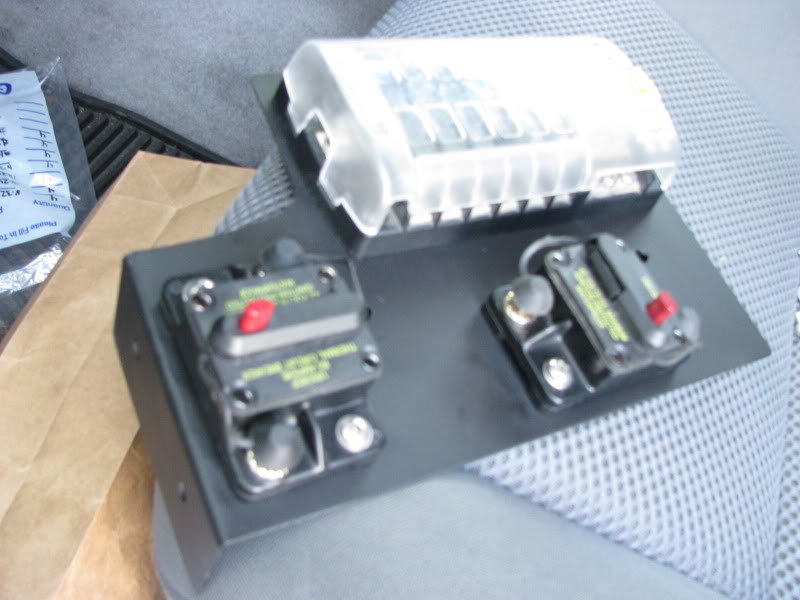

    The upper shelf gets equipped with the fuse block and breakers. (The relays get mounted to the two holes on the vertical side once it is mounted in the engine bay).

    [​IMG]

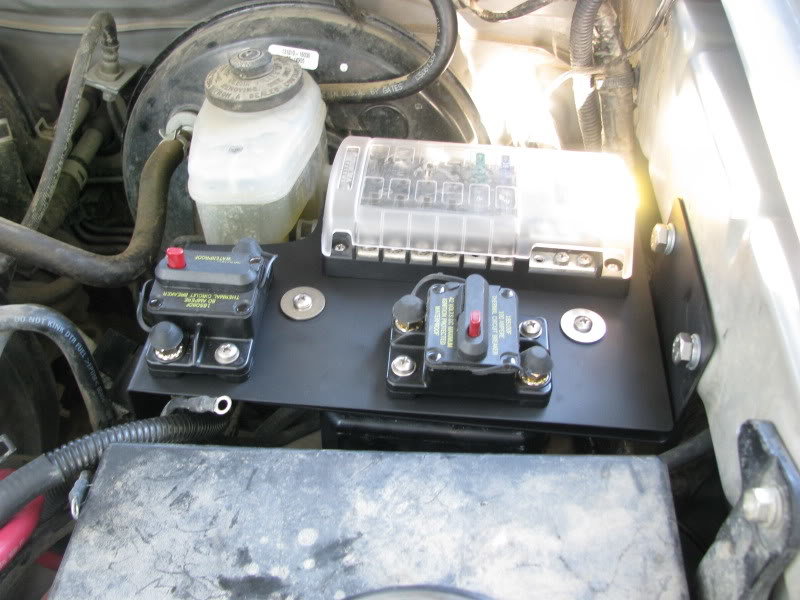

    Lastly, it is simply bolting the two bolts in place to mount the upper shelf to the lower shelf and there you have it.
    [​IMG]

    I think this should serve my purposes well.

  2. Jan 14, 2011 at 6:35 PM
    #2
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    No replies yet? Barlowrs always does the cleanest installs and the best writeups. Rep to you.

  3. Jan 14, 2011 at 7:30 PM
    #3
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,572
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    looks clean. How much? :D

  4. Jun 16, 2014 at 10:06 PM
    #4
    azgunrunner

    azgunrunner Well-Known Member

    Joined:
    Oct 19, 2010
    Member:
    #44958
    Messages:
    939
    Gender:
    Male
    Vehicle:
    06 DCLB Sport
    OME Coils, TMJ struts and shocks, Dakar leaf springs KMF sliders CBI Ditch light mounts Bumpers pending OBA pending TJM rear air locker pending
    This looks cool, cost?
