Aux. Reverse lights on with toggle?

Discussion in 'Lighting' started by ComaTosin, Mar 28, 2009.

  1. Mar 28, 2009 at 8:54 PM
    #1
    ComaTosin

    ComaTosin [OP] The Not So New guy

    Joined:
    Jan 8, 2009
    Member:
    #12383
    Messages:
    232
    Gender:
    Male
    First Name:
    Drew
    Atlanta, GA
    Vehicle:
    06 SR5 PreRunner
    see my sig
    I have ordered some aux back up lights that I would like to wire to switch on when the truck is in reverse. I would also like to use these lights for utility lights when loading/unloading motorcycles ect. (obviiously truck is on park when this happens....
    here are the ones i ordered - to be mounted under the bumper somewhere.

    can anyone send me detailed instructions on how i would go about this? and any additional relays etc that it will require? how about a site for cool switches to be mounted in stock locations? the lights come with some wiring and relay. BTW -
    thanks

    http://www.roundeyes.com/Products-Reverse_Lighting.html






    [​IMG][​IMG]

  2. Mar 29, 2009 at 11:56 AM
    #2
    ComaTosin

    ComaTosin [OP] The Not So New guy

    Joined:
    Jan 8, 2009
    Member:
    #12383
    Messages:
    232
    Gender:
    Male
    First Name:
    Drew
    Atlanta, GA
    Vehicle:
    06 SR5 PreRunner
    see my sig
    bump...
    no one?

  3. Mar 29, 2009 at 12:02 PM
    #3
    HerNameIsLucy

    HerNameIsLucy I miss Lucy. :-(

    Joined:
    Jul 31, 2008
    Member:
    #8256
    Messages:
    3,047
    Gender:
    Male
    First Name:
    John
    Equador. Don't know why.
    Vehicle:
    RIP Lucy.
    She's gone but not forgotten.
    I put reverse lamps on my 02, used a cheap pair of off road lights I got from Harbor Freight for 20 bucks (if I bust them on a rock who cares).

    Ran a 14GA wire off the battery positive, through an in-line fuse, then under the truck to the rear. Hooked that to one side of the switched circuit on a 30 amp relay. Other side of the switched circuit I ran to the new reverse (off road lamps).

    For the relay circuit one side was run to ground, the other I used one of those squeeze on taps and hooked it to the hot wire going to the existing reverse lights.

    Very basic if you've ever done any wiring...if not and need more help just let us know.

  4. Mar 29, 2009 at 2:15 PM
    #4
    ComaTosin

    ComaTosin [OP] The Not So New guy

    Joined:
    Jan 8, 2009
    Member:
    #12383
    Messages:
    232
    Gender:
    Male
    First Name:
    Drew
    Atlanta, GA
    Vehicle:
    06 SR5 PreRunner
    see my sig
    that must be why no replies... I might have some questions later. I will pm if so as this seems a bit elementary for folks here. thanks man

  5. Mar 29, 2009 at 2:21 PM
    #5
    HerNameIsLucy

    HerNameIsLucy I miss Lucy. :-(

    Joined:
    Jul 31, 2008
    Member:
    #8256
    Messages:
    3,047
    Gender:
    Male
    First Name:
    John
    Equador. Don't know why.
    Vehicle:
    RIP Lucy.
    She's gone but not forgotten.
    It's just been an unusually slow day here at TW. There's a bunch of people here that can help with this! They're just off wheeling or drinkin beers and watching the race or something.

  6. Mar 29, 2009 at 2:53 PM
    #6
    jward2331

    jward2331 Well-Known Member

    Joined:
    Dec 5, 2008
    Member:
    #11313
    Messages:
    540
    Gender:
    Male
    First Name:
    John
    Fleming Island, Fl
    Vehicle:
    '08 PreRunner SR5 TRD Sport
    Debadged, tinted windows, upper/lower Grillcraft (horns relocated), Hella 500's with HID Mod (55W 5000) behind grill, shorty antenna, WeatherTech side window deflectors, suspension TSB, Westin Signature Nerf bars, JVC KD A-615 Head Unit with Sirius Direct tuner, Blacked out headlights, DTDL Mod (Switch for on/off), Hard Wired GPS, NOKYA Arctic Hyper Yellow Fog lights, Fog lights on anytime Mod, Michelin LTX M/S2 (P265/65R17), Powder coated OEM wheels. LED ANZO tail lights, Weather Tech FloorLiners.
    Go to the dealership and order one of these switches. They are an OEM (Toyota, not sure what kind of vehicle but everyone is using it to fit in one the blanks in dash. I used one so far for some driving lights I installed but don't have a pic right now. Just do a search up in the "task bar" on TW and you will see a buch of threads with pics of the switch)

    PN 00550-35976

  7. Mar 29, 2009 at 2:58 PM
    #7
    HerNameIsLucy

    HerNameIsLucy I miss Lucy. :-(

    Joined:
    Jul 31, 2008
    Member:
    #8256
    Messages:
    3,047
    Gender:
    Male
    First Name:
    John
    Equador. Don't know why.
    Vehicle:
    RIP Lucy.
    She's gone but not forgotten.
    That won't turn the added on lights on when he puts it in reverse. Gotta use a relay for that.

  8. Mar 29, 2009 at 3:01 PM
    #8
    06BLUEDBLSPORT

    06BLUEDBLSPORT Well-Known Member

    Joined:
    Apr 22, 2008
    Member:
    #6140
    Messages:
    4,121
    Gender:
    Male
    First Name:
    Colin
    Lubbock Texas
    Vehicle:
    12 Tundra DC SR5 4x4 5.7L
    True Dual Flowmaster 40 Series exhaust, Volant CAI, HIDs, Raptor series Side Steps, Weathertech Floorliners, OME 613 Shocks and Coils with Diff Drop, Rear Bilstein 5100 Shocks, ToyTec AAL, Fearless Fabrication Front Bumper
    I have this, i think it was either 15 or 25 dollars at autozone, its pretty bright and you can switch it on or switch to the mode where it goes on when the truck is in reverse

  9. Mar 30, 2009 at 10:26 AM
    #9
    [eric]

    [eric] Well-Known Member

    Joined:
    Feb 11, 2009
    Member:
    #13502
    Messages:
    132
    Gender:
    Male
    First Name:
    Eric
    Bend, OR
    Vehicle:
    2005 Tacoma TRD OFF Road
    i have been thinking about this a lot for my own truck. I was thinking along the lines of getting smaller round lights and drilling two hole into the rear bump where the lights would sit flush. I am just not sure how to securely attach these where they will not slip out or rattle.

    i am a noob at wiring. i was thinking about just splitting into the existing wiring that the oem reverse lights run off. I was hoping this way they would only come on during reverse. Has anyone done it this way?

  10. Mar 30, 2009 at 12:32 PM
    #10
    ComaTosin

    ComaTosin [OP] The Not So New guy

    Joined:
    Jan 8, 2009
    Member:
    #12383
    Messages:
    232
    Gender:
    Male
    First Name:
    Drew
    Atlanta, GA
    Vehicle:
    06 SR5 PreRunner
    see my sig
    Yeah, but then I can not use the trick lights I just bought.

  11. Mar 30, 2009 at 12:55 PM
    #11
    [eric]

    [eric] Well-Known Member

    Joined:
    Feb 11, 2009
    Member:
    #13502
    Messages:
    132
    Gender:
    Male
    First Name:
    Eric
    Bend, OR
    Vehicle:
    2005 Tacoma TRD OFF Road

    ha. what you got is a lot easier to install too. whats it called so i can try to look it up on autozones website? do worry at all about someone stealing it?

  12. Mar 31, 2009 at 6:43 AM
    #12
    lasllc

    lasllc Well-Known Member

    Joined:
    Feb 11, 2009
    Member:
    #13507
    Messages:
    236
    Gender:
    Male
    SW Denver Burb
    Vehicle:
    13 SuperWhite DCSB Sport 4X4 Tow Pack
    SnugTop Super Sport, BedRug mat, Redline Tuning hood lifts, LED interior lights, 3D carpet protectors.
    You might try this link to picture what folkes are talking about here.

    http://www.yotatech.com/~corey/tech/corey_wiring_lights/corey.htm

    Just modify the diagram to go to reverse lights and run two power leads (also need two relays) to the lamps: one that supplies the lamps from the a relay that is activated by the reverse light power and one that is activated by the swtch in the cab.

  13. Mar 31, 2009 at 7:02 AM
    #13
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,112
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    this is what i did on mine. I used the holes that were already in the bumper and wired them into my normal reverse lights

    [​IMG]

  14. Mar 31, 2009 at 7:23 AM
    #14
    climber-420

    climber-420 I love tight cracks

    Joined:
    Sep 29, 2008
    Member:
    #9583
    Messages:
    125
    Gender:
    Male
    Above the Mile High City
    Vehicle:
    2004 TRD Tacoma with derp
    Grey Wire Mod, brushguard, cb, DigiDiodes 14" LED light bar (5,800 lmns), DigiDiodes (2) 3x3 Pods (2,100 lmns/piece), Leer Topper, custom bed platform, rear diff breather mod, BlitzPro (2) 6" LED aux reverse lights, full time power to aux 12V outlets.
    [​IMG] TTORA Forum > General Tech > Interior/Electrical/Electronics [​IMG] aux backup/reverse lights wiring -- a mini howto
    all of this done by Wrooster.

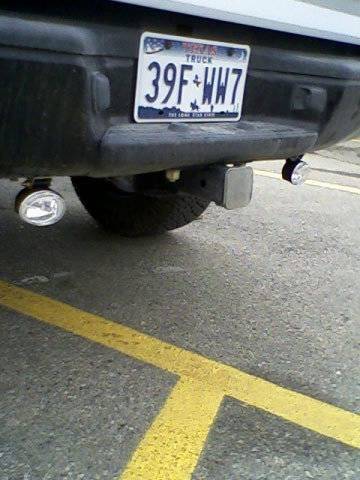

    I used this and it was dead on. I have a double pole single throw switch wird into my stock reverse lights. I have the switch turned where I can have them on all the time, off, and on when the stock reverse lights come on only. I got these two lights from Northern Tool for $11. Total cost for all of this...... about $20, depending on the switch you get from radioshack, or store of preference. Hoped this helped.In the picture, you can see that I put the lights on my trailer hitch as far out as they could go. Used self tapping screws from Lowe's, and just grounded them where the screw is on the outside of the light where the mount is. Have had no problems, and these suckers are really bright. 55w halogens.

  15. Sep 26, 2009 at 1:05 PM
    #15
    krans

    krans Well-Known Member

    Joined:
    Feb 28, 2009
    Member:
    #14173
    Messages:
    417
    Gender:
    Male
    First Name:
    Kenny
    Huntington beach/ West min duh
    Vehicle:
    09 Sport mall crawler
    Icon extended travel with resi front and rear,Camburg UCA, All pro standard leaf pack, Fogs anytime, General grabbers AT2,Custom stainless steel brake lines,bed box, Bestop soft top,50' light bar, amber rigid pods,CBI ditch mounts with LED pods,TRD intake,Anti dark hoodlights/rock light/LED whip,FX-R retros and Gibson catback..more mods to come
    Nice. Do you happen to have any pictures of the switch?
