Aux. Transmission Cooler Diagram *PIC*

Discussion in '1st Gen. Tacomas (1995-2004)' started by Johnnie, Apr 9, 2014.

  1. Apr 9, 2014 at 3:58 PM
    #1
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    2001 Prerunner double cab; 2.7 cyl; automatic; 146k miles. Current radiator is fairly new with just less than 10k miles.

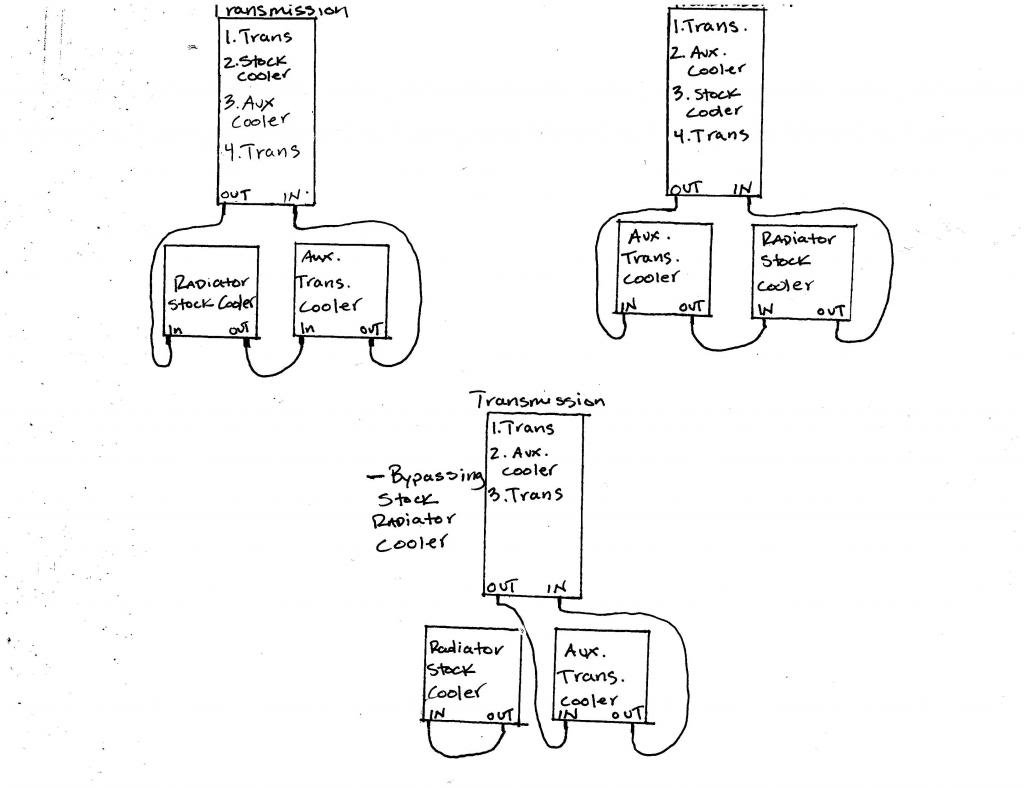

    I'm going to be installing a Tru-Cool 4454 transmission cooler soon. Since I haven't received it yet I'm trying to get a good understanding of how I'm going to install it. I'm still deciding if I should bypass the stock cooler or install it after the stock cooler. Below is a diagram (non-scale) that I made to give me an idea of how the hoses are ran.

    Please take a look and make sure my drawings are accurate.

    Thanks.


    Last edited: Apr 9, 2014
    SLeeper512 likes this.
  2. Apr 9, 2014 at 3:59 PM
    #2
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    53,791
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    :notsure: what the picture says??

  3. Apr 9, 2014 at 4:03 PM
    #3
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    As in it's not legible or you don't understand what it means?

  4. Apr 9, 2014 at 4:21 PM
    #4
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    53,791
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    cant read what it says.

  5. Apr 9, 2014 at 4:41 PM
    #5
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,261
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    Looks like three options:

    1 and 2 keep the stock trans cooler located in the radiator.

    Option 1 is route coolant to stock radiator heat exchanger first followed by the aux cooler.

    Option 2 is route opposite of Option 1

    Option 3 looks like he wants to eliminate the stock cooler and just use the aux cooler.


    My advice: Option 1 or 2 depending on which is easier. Im pretty sure there will be a very small difference between the two.

    Option 3 if you are worried about the pink milk shake. If your shit is rusted bad then probably a good idea. If you change your coolant regularly, you should be ok from internal corrosion.

    Ive been on the wall with the option 3 decision and at one point was seriously considering. However, after watching how fast your fluid temp can rise, even with an aux cooler, I think Ill keep the stock exchanger (see link below). Also, keep in mind the engine coolant warms up faster than the trans fluid and on a cold day will help warm the trans fluid to operating temps quicker.

    http://www.tacomaworld.com/forum/1s...r-how-fast-your-auto-tranny-can-overheat.html

  6. Apr 9, 2014 at 4:49 PM
    #6
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    St. Andrew- glad you understood my crappy diagram. I just want to make sure I understand the plumbing and how the hoses will be connected.

    I'll probably go with option 2. Trans-stock cooler-aux cooler-trans. My radiator has less than 10k miles. I'll just need to make sure I keep the coolant fresh and flush it annually.

  7. Apr 9, 2014 at 4:55 PM
    #7
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,261
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    :thumbsup:

  8. Apr 9, 2014 at 5:00 PM
    #8
    AlphaEcho2k5

    AlphaEcho2k5 Well-Known Member

    Joined:
    Mar 2, 2011
    Member:
    #52220
    Messages:
    1,829
    Gender:
    Male
    First Name:
    Adam
    Hurlburt Field, FL
    Vehicle:
    '02 4Runner
    [​IMG]

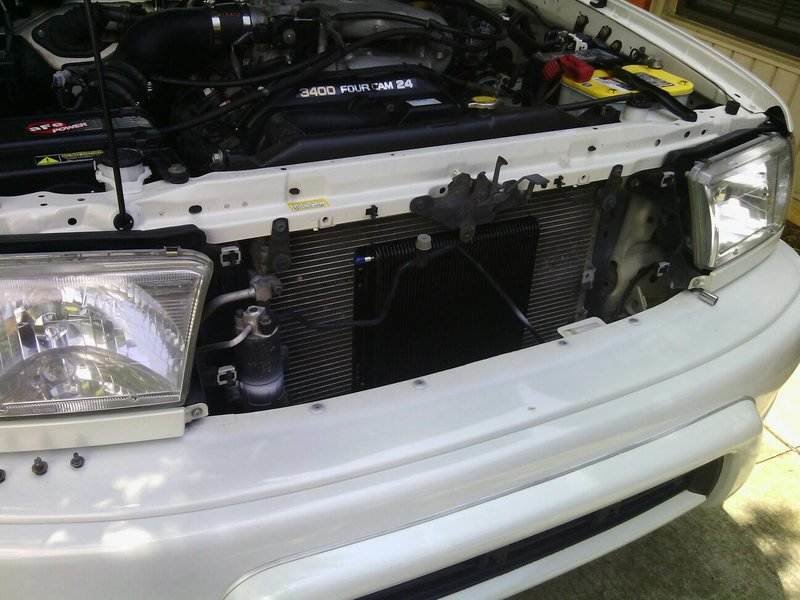

    I installed a Tr-Cool 4590 with the radiator by-passed. I wanted to avoid the dreaded "milkshake" at all cost.

  9. Apr 9, 2014 at 5:12 PM
    #9
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    How does my diagram compare to how you bypassed the radiator.

  10. Apr 9, 2014 at 5:13 PM
    #10
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,261
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    Damn, the 4590 is a big cooler! :thumbsup:

    The pink milkshake tends to be a 4runner problem and even then, very rare. I think the culprit is internal galvanic corrosion caused by dissimilar metals between the radiator (Alu?) and trans coolant heat exchanger (would have to be Cu :notsure:). Makes me wonder if the Tacoma radiator and trans cooler are both Alu....

  11. Apr 9, 2014 at 5:18 PM
    #11
    AlphaEcho2k5

    AlphaEcho2k5 Well-Known Member

    Joined:
    Mar 2, 2011
    Member:
    #52220
    Messages:
    1,829
    Gender:
    Male
    First Name:
    Adam
    Hurlburt Field, FL
    Vehicle:
    '02 4Runner

    I can't really tell by your diagram but I basically purchased some 3/8" transmission hose and ran the hose so that warm trans fluid entered thru the bottom and returned thru the top. If you search around most recommend to mount the cooler side ways. I'd look at getting this while your doing the cooler install.

  12. Apr 9, 2014 at 5:24 PM
    #12
    AlphaEcho2k5

    AlphaEcho2k5 Well-Known Member

    Joined:
    Mar 2, 2011
    Member:
    #52220
    Messages:
    1,829
    Gender:
    Male
    First Name:
    Adam
    Hurlburt Field, FL
    Vehicle:
    '02 4Runner
    Chris, you're exactly right. T4R's seem to be more likely for this to happen. I drained my fluid (to ensure it was good) when I first purchased it and installed a new radiator. I used some extra 3/8" to connect each side of the lower stock radiator cooler together and left it empty. As far as temps go... according to my Scangauge my temps have never gone above 160 and that's slow off-roading for hours on end.

  13. Apr 9, 2014 at 6:54 PM
    #13
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Diagram is fixed on first post and here.


  14. Apr 12, 2014 at 9:48 PM
    #14
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Reference for anyone that may need it.

    Here are my installation pictures. BTW, my return line is on the passenger side. To confirm, I removed the passenger side hose from the radiator and ATF came flying out of the radiator. After cleaning up my mess I removed the driver side hose and ATF came out of the hose. I know most Tacomas are on the driver side but my 2001, 2.7, 4 cyl. always tends to always be different.

    Also, I went and bought 8' of ATF 3/8" hose, NOT fuel line that they'll try to sell you. Most mechanics use fuel line and I'm sure it will work but my paranoia took over so I bought ATF hose. I ended up using about 7 feet. The return hose connected to the aux cooler was leaking so I had to tighten the clamp even tighter than I already did, so make sure you get all your clamps nice and tight. The oem squeeze clamps don't work very well because the 3/8" hose is bigger than the oem hose. They don't get very tight.

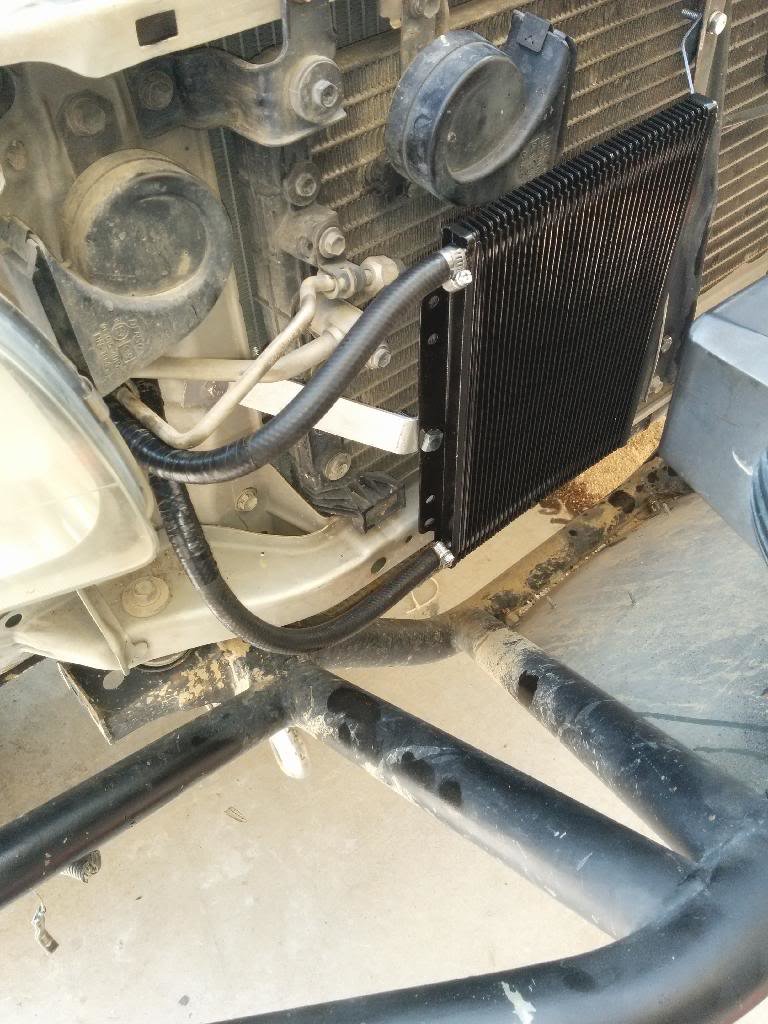

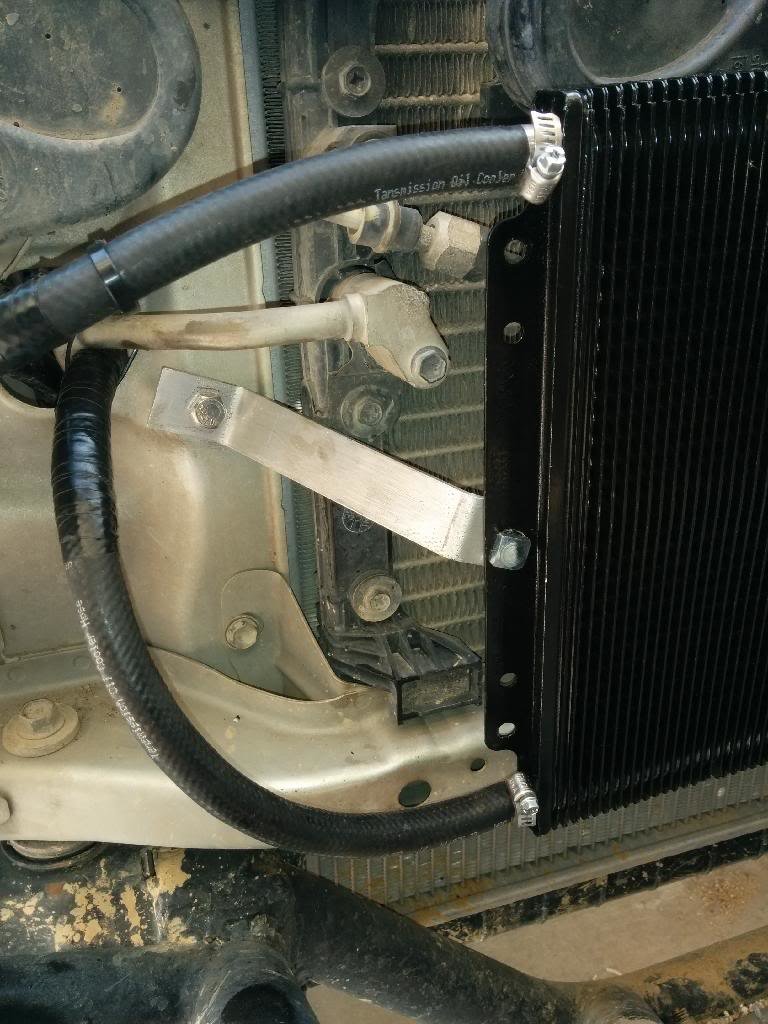

    Sender hose on top, return on bottom.

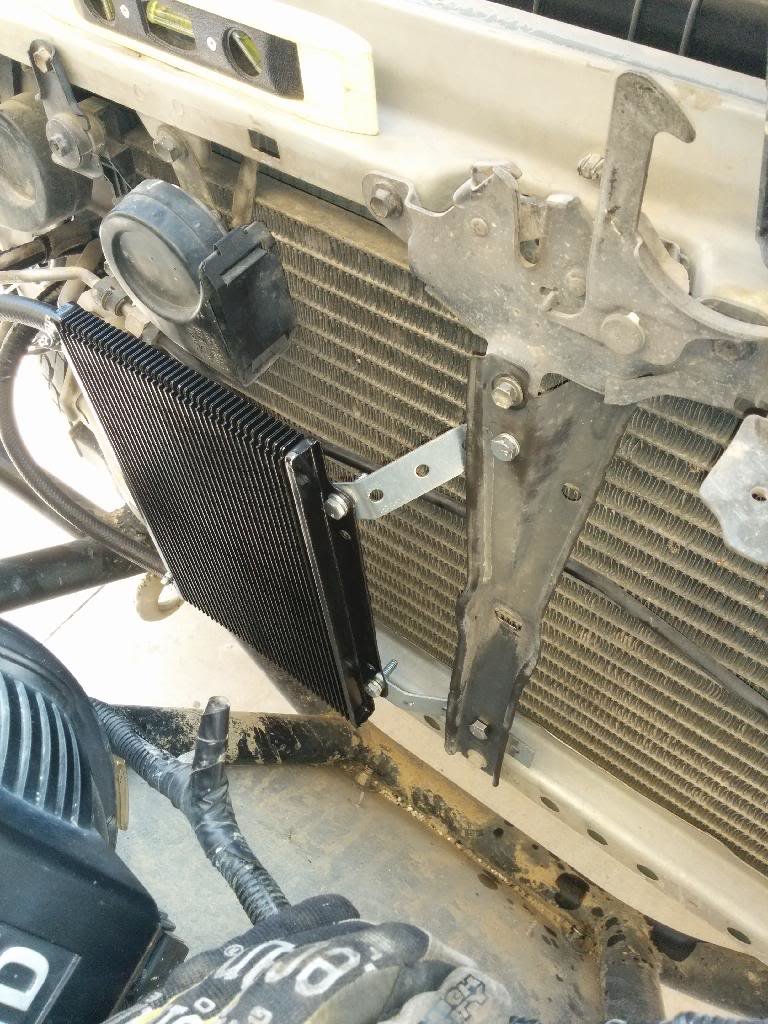

    Mounting brackets.

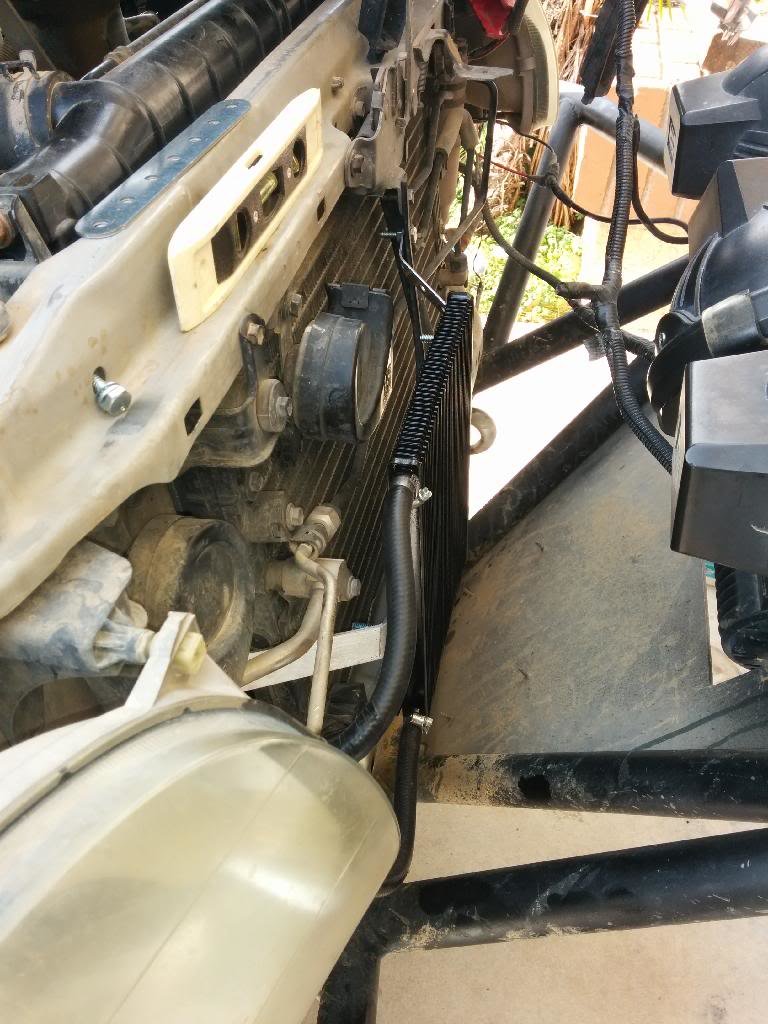

    Only one mount on the passenger side but it's still solid since it's mounted near the middle of the cooler. I had to use a long piece of aluminum strip since the brackets that came with the cooler wouldn't reach.

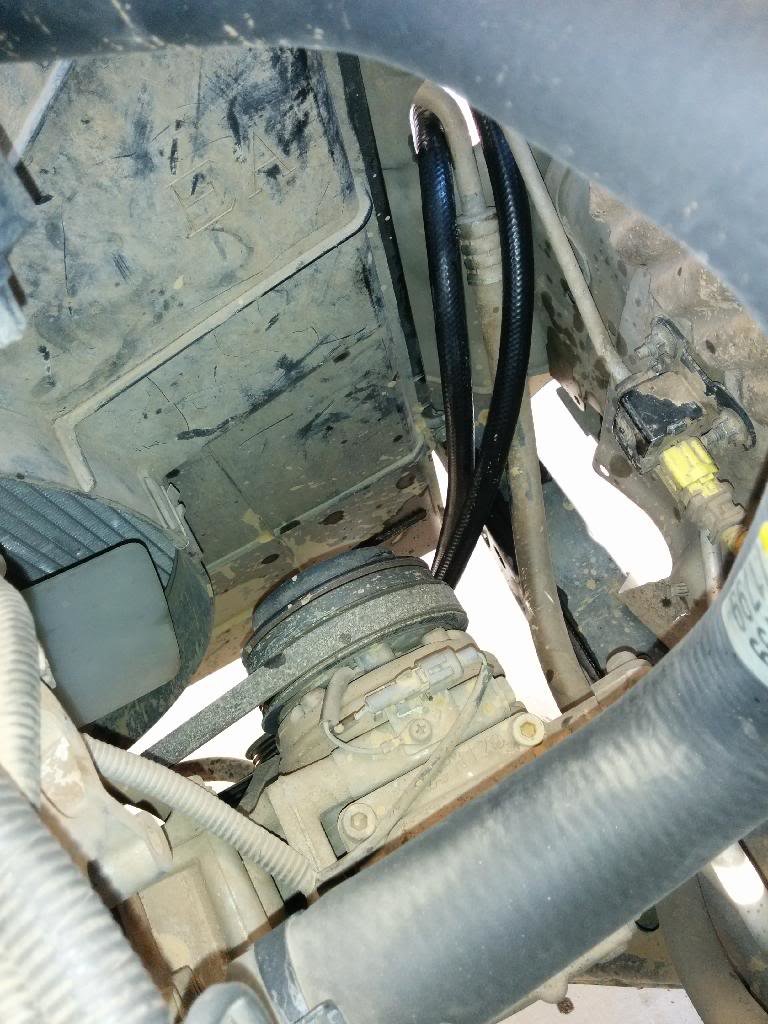

    From the inside coming through the hole.

    Plenty of room for air to get around in there.

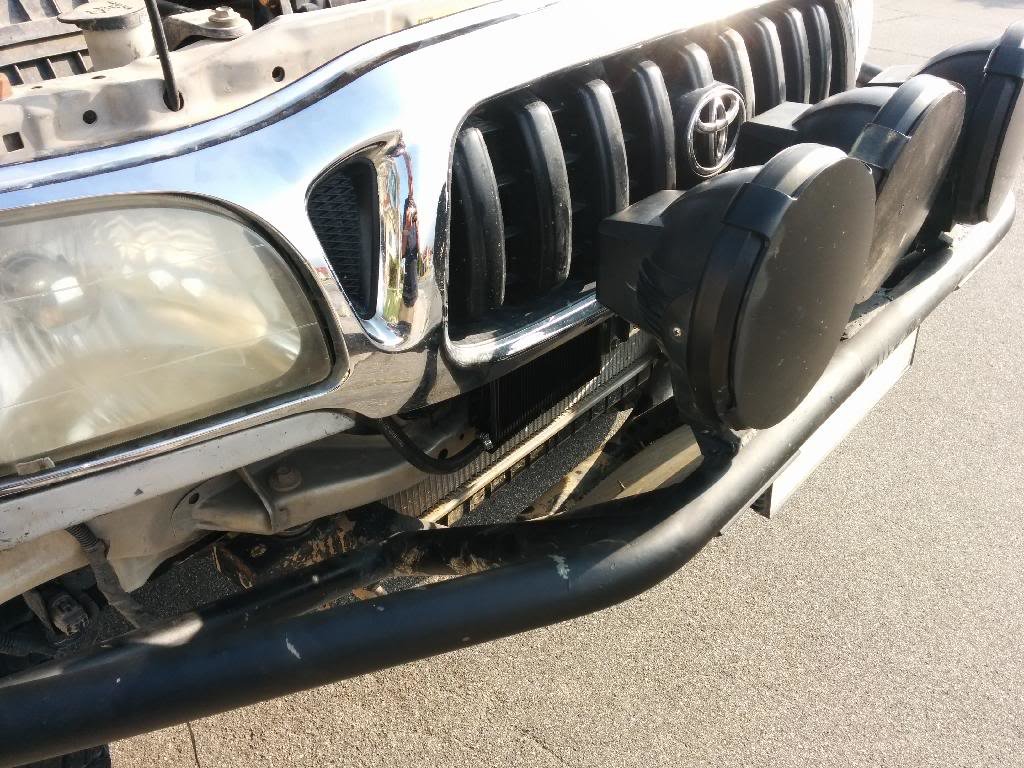

    From the outside.

  15. Apr 13, 2014 at 11:28 AM
    #15
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,261
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    Looks good! :thumbsup:

    Probably a better way of finding the feed and return lines without spraying trans fluid everywhere :p. Did you check your fluid level to make sure you dont have to add more? The extra tubes and the exchanger will need a bit more fluid but Im not sure if its enough to notice the diff.

  16. Apr 13, 2014 at 11:30 AM
    #16
    Johnnie

    Johnnie [OP] Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,887
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    I spilled about half quart which I added back in. The cooler is so small I doubt it would take a half quart on its own.

  17. Apr 19, 2014 at 4:03 PM
    #17
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,520
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    2018 Ford F-150 S-Crew 4wd 3.5 Ecoboost
    Wouldn't a better way to run the lines be to do what the 4runmer guy did, feed through the bottom and return through the top? That way it stayed in the cooler longer? Or would that actually add to resistance and make temps rise a little?

  18. Apr 19, 2014 at 4:27 PM
    #18
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    5,242
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Thats a true cool designed by the Long company . They use low pressure drop technology and are the best coolers you can purchase .
    They come with valving . The cooler allows the transmission a warm up cycle . Transmission fluid circulates through the outer fins until the fluid reaches a certain temp , then valving in the cooler opens to allow full circulation through all the fins .
    This feature alone makes these coolers a wise decision over the tube design with no pre warmer .
    OP did a great job using the solid mounts ,considering the kit comes with those stupid plastic ties and he could have simply zip tied the cooler to the rad . I really wish they would remove those ties altogether from their kits because guys end up using them as it makes for a fast install but they end up punching holes through the radiator fins or over time ,the weight of the cooler filled with oil pulls on the rad fins and creates holes in your rad . Radiator shops hate it when they have to service your radiator and you have a trans cooler zipped to it . Now the rad shop has to make sure they check your transmission fluid ....chances are , they are not going to check it .
    Take the time to mount the cooler solid and away from the rad just like the OP did in the pictures

    Last edited: May 1, 2014
    SLeeper512 and MTopp like this.
  19. Apr 19, 2014 at 4:44 PM
    #19
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,520
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    2018 Ford F-150 S-Crew 4wd 3.5 Ecoboost
    What would be the best way to install it gear cruncher? From the first cooler to the aux cooler, then back, or just bypass the stock cooler and use the aux cooler?

  20. Apr 19, 2014 at 4:52 PM
    #20
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    5,242
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    from the transmission , into the factory rad , out to the aux cooler and then back to the transmission .

    I use to run the hosing this way but I live way up north where its 50 below every day and we needed the additional warm up time using the rad . I have installed thousands of coolers this way and never had an issue .

    When a transmission was completely toast , we would bypass the rad cooler completely
