Axle crooked because of lift!

Discussion in '2nd Gen. Tacomas' started by Boogyman, Feb 10, 2013.

  1. Feb 10, 2013 at 9:50 AM
    #1
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    I've had multiple people say my beds crooked driving down the road. Not like taco lean crooked but the whole bed turned slightly in one direction. Yes I've got leaf blocks I know there a big no no but I found that out after putting them on. Yesterday my dad pointed out that both rear wheels are pointed toward the passenger side. I dropped the spare and took measurements of the blocks in relationship to the end of the lower leaf. The drivers side has a worn spot from where the axle sat on the leaves before so I'm pretty sure the position of the passenger side is correct.

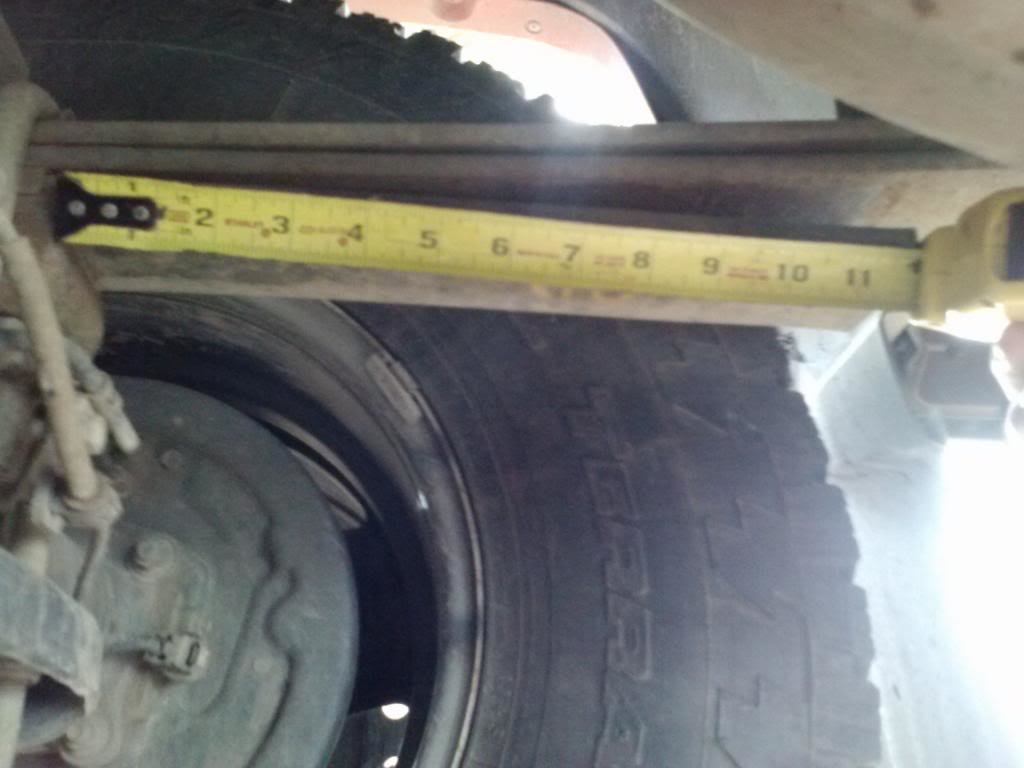

    Passenger side which I think is correct: the rear of the block is 12 inches from the end of the leaf
    [​IMG]

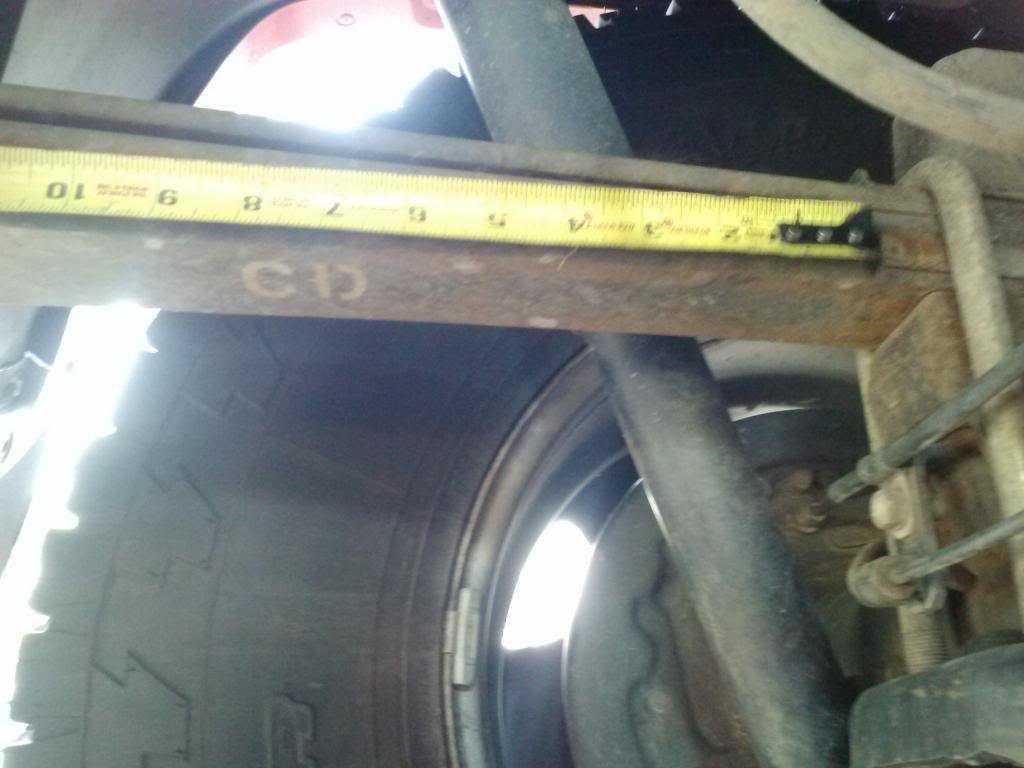

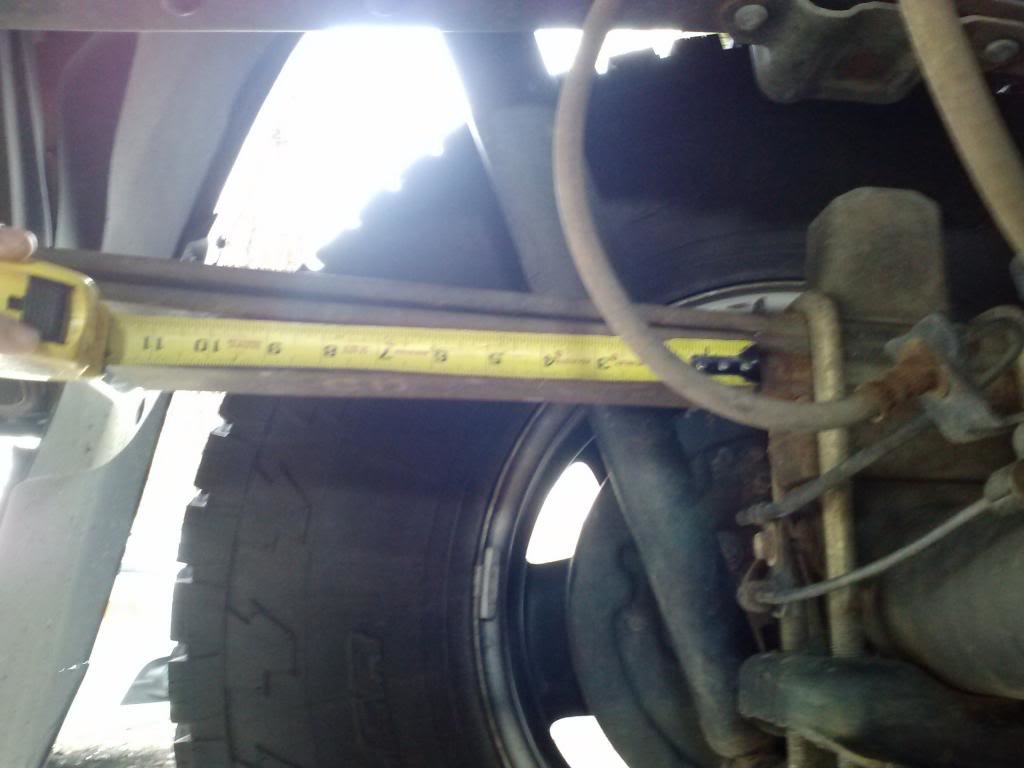

    Drivers side: the rear of the block is 13 inches from the end of the leaf
    [​IMG]

    [​IMG]

    I'm thinking about putting the rear on jack stands and loosening the drivers side and move it to where it should go. Any other options I should try? I also don't have a way to check the torque on the u bolts so I need ideas with that too.

  2. Feb 10, 2013 at 9:56 AM
    #2
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    22,146
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I'm unfamiliar with blocks , is there a hole that registers the leaf pack centre pin like there is in the axle ?

  3. Feb 10, 2013 at 10:02 AM
    #3
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    I dont think so but I'll go out and check now

  4. Feb 10, 2013 at 10:09 AM
    #4
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    It doesn't look like there's a pin there from looking at it. I don't have the tires or blocks off though so I could be wrong

  5. Feb 10, 2013 at 10:11 AM
    #5
    trdNick

    trdNick Odie

    Joined:
    Dec 27, 2011
    Member:
    #69480
    Messages:
    749
    Gender:
    Male
    Mobile, AL
    Vehicle:
    07 Trd Off Road
    [​IMG]

    should look like this. The pin goes into the axle and the pin from the leaf spring indexes into the hole

  6. Feb 10, 2013 at 10:18 AM
    #6
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    is there a possibility that the pin has come out of the hole and is resting on the edge?

  7. Feb 10, 2013 at 10:21 AM
    #7
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    22,146
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    It might not be seated correctly in the axle

  8. Feb 10, 2013 at 10:22 AM
    #8
    trdNick

    trdNick Odie

    Joined:
    Dec 27, 2011
    Member:
    #69480
    Messages:
    749
    Gender:
    Male
    Mobile, AL
    Vehicle:
    07 Trd Off Road
    From the looks of the pictures, the blocks seem to be seated properly on the spring perch so I don't think they have come out of the hole

  9. Feb 10, 2013 at 10:23 AM
    #9
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    how should i try fixing this?

  10. Feb 10, 2013 at 10:26 AM
    #10
    Taco me elmo

    Taco me elmo Who needs roads?

    Joined:
    Sep 17, 2010
    Member:
    #43412
    Messages:
    3,921
    Gender:
    Male
    First Name:
    Micah
    San Diego, CA
    Vehicle:
    2002 5VZ Daily Beater.
    Doug Thorley Headers, Magnoflow 24' muffler, URD short shifter kit, Fox coilovers re-tuned with Total Chaos Upper control arms in front set at 2.5 inch lift, 10 inch Fox rear shocks with resi in back with custom bedcage , Full front and rear Fiberglass, Slotted Tundra rotors with green stuff brake pads, Steel braided brake lines all around, Ultragauge OBDII, Sliders, Front and rear tube bumpers.
    Honestly you should ditch the blocks and invest in a lift spring or add a leaf kit or even a taller shackle.

    Blocks should only be a temporary lift option, They are bad on the entire rear spring assembly and can cause them to flatten out or can break, crack or just shear the bolt and slid out.

  11. Feb 10, 2013 at 10:28 AM
    #11
    Barbaro

    Barbaro Active Member

    Joined:
    Dec 20, 2011
    Member:
    #69114
    Messages:
    36
    Gender:
    Male
    Vehicle:
    06 PreRunner DCSB Indigo
    measure from the front wheels to the back wheels on both sides. To see if you get the same amount of deviation (+/- 2 inches). Or take a level to the axle.

    How did you notice this, Driving?

  12. Feb 10, 2013 at 10:28 AM
    #12
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    the plan was for them to only be temporary to hold the larger tires but temporary became alot longer than anticipated.

  13. Feb 10, 2013 at 10:32 AM
    #13
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    i couldnt tell while driving but my dad pointed out that the front of my rear tire was pointing inward and the other tire was pointing outward. ive started to become concerned after looking at it.

  14. Feb 10, 2013 at 10:33 AM
    #14
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    22,146
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    That what I was wondering , if the centre pin had sheared off

  15. Feb 10, 2013 at 10:34 AM
    #15
    Taco me elmo

    Taco me elmo Who needs roads?

    Joined:
    Sep 17, 2010
    Member:
    #43412
    Messages:
    3,921
    Gender:
    Male
    First Name:
    Micah
    San Diego, CA
    Vehicle:
    2002 5VZ Daily Beater.
    Doug Thorley Headers, Magnoflow 24' muffler, URD short shifter kit, Fox coilovers re-tuned with Total Chaos Upper control arms in front set at 2.5 inch lift, 10 inch Fox rear shocks with resi in back with custom bedcage , Full front and rear Fiberglass, Slotted Tundra rotors with green stuff brake pads, Steel braided brake lines all around, Ultragauge OBDII, Sliders, Front and rear tube bumpers.
    Loosen everything on a lift jack, straighten it and re tighten?

    Check your ubolts for loose bolts, that could be a culprit

  16. Feb 10, 2013 at 10:37 AM
    #16
    VirginiaBound

    VirginiaBound Whyareyoureadingthis?

    Joined:
    Jun 22, 2009
    Member:
    #18755
    Messages:
    7,209
    Gender:
    Male
    First Name:
    Sam I am, green eggs and ham
    North of Maine, South of Spain
    The term is generally called "dog tracking."

    One of your pins has either broken, or has went in one of the hollows of the block and not the actual pin slot.

    Regardless, you need to pull all four U bolts off and inspect the pins. While you're at it, spend 150 on a Add-A-Leaf and throw those blocks in the trash!

  17. Feb 10, 2013 at 10:38 AM
    #17
    Boogyman

    Boogyman [OP] SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    im about to head up to the shop and see if they can fix it. i dont have jack stands tall enough for my truck or a way to get the correct torque on the u bolts.

  18. Feb 10, 2013 at 10:38 AM
    #18
    Haslefre

    Haslefre Offline

    Joined:
    Jan 27, 2012
    Member:
    #71523
    Messages:
    14,767
    Gender:
    Male
    First Name:
    Brady
    Puget Sound
    Vehicle:
    09 Offroad 4x4.
    IronMan4x4 Foam Cell Pro Fronts, IronMan 2" rear leaf pack. Relentless 1/4" steel skid plate. Weathertech Digital fit front floor liners. BAMF Sliders with kickout. HomerTaco Satoshi grill.
    Check to make sure both u bolt plates are the same. I notice one looks a bit more angled to the rear than the other. That could move your axle forward or back as well

  19. Feb 10, 2013 at 10:39 AM
    #19
    VirginiaBound

    VirginiaBound Whyareyoureadingthis?

    Joined:
    Jun 22, 2009
    Member:
    #18755
    Messages:
    7,209
    Gender:
    Male
    First Name:
    Sam I am, green eggs and ham
    North of Maine, South of Spain
    Look at the bottom of the axle, then look at the top cap where the pin goes in. It's about an inch off, your pin is in the hollow part of the block behind the pin hole.

  20. Feb 10, 2013 at 10:40 AM
    #20
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    211
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4
    I would expect the steering wheel to be off center as well if it is dog tracking.
