Back Up Light Installation Link and BS Thread

Discussion in '3rd Gen. Tacomas (2016+)' started by tonered, Sep 21, 2018.

  1. Jun 27, 2019 at 6:06 PM
    #41
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,284
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
  2. Jul 1, 2019 at 5:25 AM
    #42
    Xer0 SiN

    Xer0 SiN Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33334
    Messages:
    1,703
    Gender:
    Male
    Hilo, HI
    Vehicle:
    19 TRD SPORT TACOMA / 21 LIMITED RAV4
    this and that...
    after going through this thread and other connecting threads, i gotta admit im gonna follow suit; little bit unorthodox but i can appreciate it. im thinking of going with either rigid dseries or radiance strictly cause it fills up the open area a little better. if i go with radiance im gonna go with the red backlit iteration. with either option i was thinking of running it to a switch so i could turn it on whenever. thing that got me hinged right now is thats a lot of harness running to the front lol.

    tonered [OP] likes this.
  3. Jul 1, 2019 at 5:51 AM
    #43
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,443
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    One wire inside a loom...:rolleyes::D

  4. Jul 1, 2019 at 7:20 AM
    #44
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,284
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I have the same plans with mine, eventually. Someone mentioned using a diode in the circuit to prevent back feeding the stock wiring.

    The Rigid perfectly fits without cutting into metal or painted plastic. That was a big goal for me.

    @vicali 's light on the last page is really nice though.

  5. Jul 1, 2019 at 8:00 AM
    #45
    STrooper

    STrooper For HIS glory!

    Joined:
    Jan 27, 2019
    Member:
    #280870
    Messages:
    1,819
    Gender:
    Male
    First Name:
    Jack
    NC
    Vehicle:
    2018 TRD Sport QuickSand / 2020 TRD Sport Cement!
    Good info on this thread, thank u all!!!:thumbsup:

    tonered [OP] likes this.
  6. Jul 1, 2019 at 8:03 AM
    #46
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,284
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    :hattip:

    You're welcome.

    Enjoy!

  7. Jul 1, 2019 at 11:20 AM
    #47
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,443
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

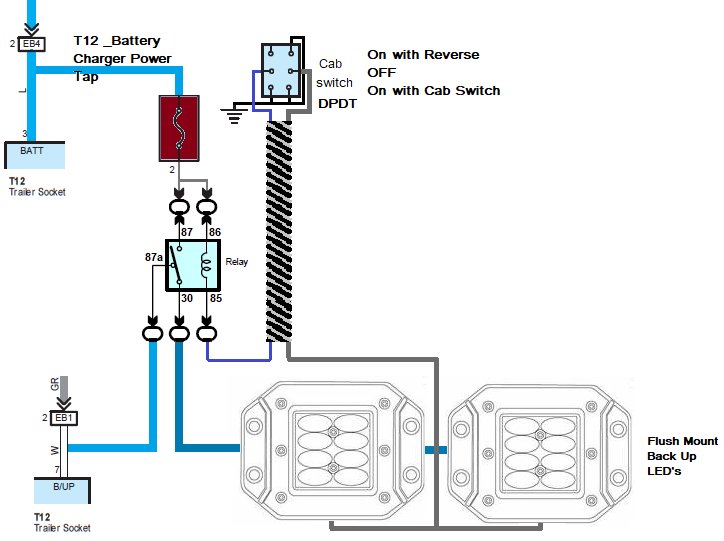

    Hella fused relay - auto ON with reverse selected. Tapped power from the Battery "Charger" circuit. (IGN ON)

    Or - Cab SPDT switch (ON-OFF-ON) with Reverse tap ON - OFF - Fused IGN source ON.

  8. Jul 1, 2019 at 11:26 AM
    #48
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,284
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I have the Full C mod and turns in the reverse location. So, completely different.

  9. Jul 1, 2019 at 11:41 AM
    #49
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,443
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Those are you rear lights...this is the tow connector.

  10. Jul 1, 2019 at 11:55 AM
    #50
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,443
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

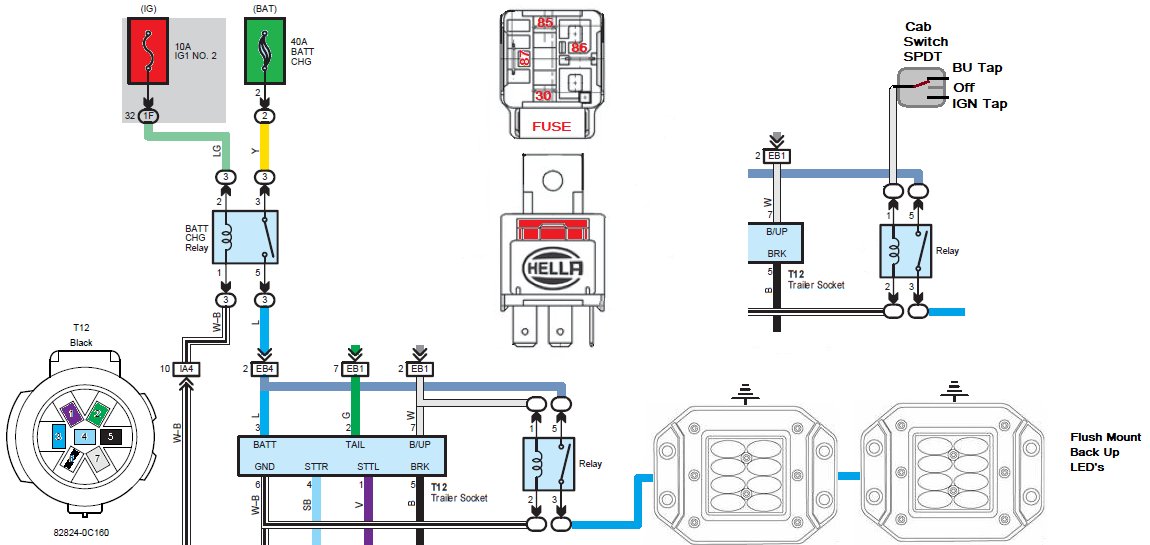

    Another way for those wanting ON with reverse/OFF/ON with IGN ON.


    Last edited: Jul 2, 2019
  11. Jul 1, 2019 at 12:55 PM
    #51
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,284
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Okay, but we're just talking about aux wiring.

  12. Jul 2, 2019 at 3:34 AM
    #52
    Xer0 SiN

    Xer0 SiN Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33334
    Messages:
    1,703
    Gender:
    Male
    Hilo, HI
    Vehicle:
    19 TRD SPORT TACOMA / 21 LIMITED RAV4
    this and that...
    thanks for the wiring info. still debating on what route i want for the light. i checked the back of the area i was gonna use to make sure it was clear and clear of wires and noticed that theres metal bracing in that area. did this change in my19? i only ask cause when i see others progress during their install it looks like its only plastic based on the tools that are being used. if anything i could just use my multitool to cut into the metal and carry on as i think its just a support for the license plate (not too sure gotta check again) but i was just wondering for those who underwent this project, was it just plastic or was there a metal backing theres well. thanks in advance.

  13. Aug 21, 2019 at 8:54 AM
    #53
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,284
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Sorry! I just saw this. TW thread update notifications don't work well.

    I got the Rigid flush mount because it perfectly fits the open area in the metal backing on the right side. I didn't want to cut into metal either.

    Also, the unpainted vertical spots on either side of the step have a lot of clearence behind them if you position the light(s) just so.

    In the end, the spot to the right of the license plate has worked great for me, even through the winter.

    :cheers:
