Backlit Toyota Grill Logo Mod

Discussion in 'Lighting' started by ToyotaKTMracing, Sep 15, 2012.

  1. Oct 16, 2012 at 11:15 PM
    #41
    battlezone

    battlezone Member

    Joined:
    Oct 11, 2012
    Member:
    #88775
    Messages:
    23
    Gender:
    Male
    i was wondering if you could also show how you wired it up to a switch in switch panel and i was also wondering if there was a way to have it come on with you turn the lights on? or at least turn off when you turn the lights off (like the factory foglights) or at least direct me to some links to show me how to do that.

  2. Oct 17, 2012 at 12:59 PM
    #42
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,414
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    I just have a switch in my cab. There is a few threads on here that show you how. Search to see if you can find them. And to make them go on and off with your lights, hook the positive wire to the headlight fuse in the cab.

  3. Oct 18, 2012 at 10:42 PM
    #43
    battlezone

    battlezone Member

    Joined:
    Oct 11, 2012
    Member:
    #88775
    Messages:
    23
    Gender:
    Male
    i am having trouble finding links showing me steps on how to wire in custom lights into the factory system and then how to wire the lights switch into the switch panel in the dashboard. could someone please direct me to some links if they know where they are? or to some good tutorials.

  4. Oct 29, 2012 at 7:07 PM
    #44
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,414
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    :tumbleweed: Hello? Someone needs to do this!

  5. May 29, 2013 at 10:48 AM
    #45
    cflks411

    cflks411 I like turtlessss

    Joined:
    May 22, 2013
    Member:
    #104697
    Messages:
    60
    Gender:
    Male
    First Name:
    Kris
    Ft Hood
    Vehicle:
    05 Prerunner
    AFE Cold Air. AFE Cat Back Spyder 1.5" Wheel Spacers
    Id like to see how you did the switch and what not...not very electronic savy even though im sure its simple.

  6. Jun 6, 2013 at 7:35 PM
    #46
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,414
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Can't really get a picture of it. I just wired a switch in the cab and ran the wire through the firewall into the engine bay to the battery. It's a 3 prong switch which has a light in it so I took 1 wire and grounded it to the frame, the power wire to the battery, and the accessory wire to the light. Then I grounded the negative wire on the light as well. Sorry if that's hard to understand because it's hard to explain. Haha

  7. Jan 29, 2014 at 9:39 PM
    #47
    PDX Champ

    PDX Champ Member

    Joined:
    Jan 14, 2014
    Member:
    #120674
    Messages:
    20
    Gender:
    Male
    Portland, OR
    Vehicle:
    11 Access Cab 4x4 TRD Off Road pkg
    Stereo system
    I got a very similar mod done, but my led light was enclosed and the box was blacked out so that the light doesn't go back and light up the radiator.


    [​IMG]

  8. Jan 30, 2014 at 7:35 PM
    #48
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,414
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Well thread revival! Lol. That's sweet. Even though I kind of liked how the radiator was kind of lit up, but that way is more clean.

  9. Jan 31, 2014 at 8:49 PM
    #49
    PDX Champ

    PDX Champ Member

    Joined:
    Jan 14, 2014
    Member:
    #120674
    Messages:
    20
    Gender:
    Male
    Portland, OR
    Vehicle:
    11 Access Cab 4x4 TRD Off Road pkg
    Stereo system
    I just got my Taco, so I'm checking out all the posts for ideas. I wasn't trying to down the lit up radiator, just throwing out another idea.

  10. Feb 1, 2014 at 7:50 PM
    #50
    Treaddirt

    Treaddirt Active Member

    Joined:
    Nov 20, 2011
    Member:
    #67407
    Messages:
    33
    Gender:
    Male
    PDX Champ; what lights did you use and where did you get them. Also did you make your enclosure or buy it? Thank..

  11. Feb 3, 2014 at 7:30 AM
    #51
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,159
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Nice, subd

  12. Feb 13, 2014 at 5:10 PM
    #52
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,159
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    When I do this mod I'll post pics. I'm just going to use it when I feel like it because no doubt its gonna look awesome. Going to use flexible amber LED from oznium.com

  13. Feb 28, 2014 at 8:20 AM
    #53
    Rob the Russian

    Rob the Russian Well-Known Member

    Joined:
    May 31, 2013
    Member:
    #105285
    Messages:
    58
    Gender:
    Male
    First Name:
    Rob
    Fort Bragg NC
    Vehicle:
    08 PreRunner SR5
    i really want to do this but i cant seem to wrap my head around how to hook the leds up.

  14. Feb 28, 2014 at 8:29 AM
    #54
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,159
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    I will try and take some pictures to explain how to do this when I can and post them here, as long as OP is ok with it. This is very easy for me now, but at first I'd have been confused also. I'll do this when I have time to work on my truck and its not freezing cold outside

  15. Mar 19, 2014 at 7:38 PM
    #55
    Alaska45

    Alaska45 Active Member

    Joined:
    Oct 25, 2013
    Member:
    #115270
    Messages:
    33
    Gender:
    Male
    First Name:
    Colt
    Nashville
    Vehicle:
    07 Tacoma TRD Sport

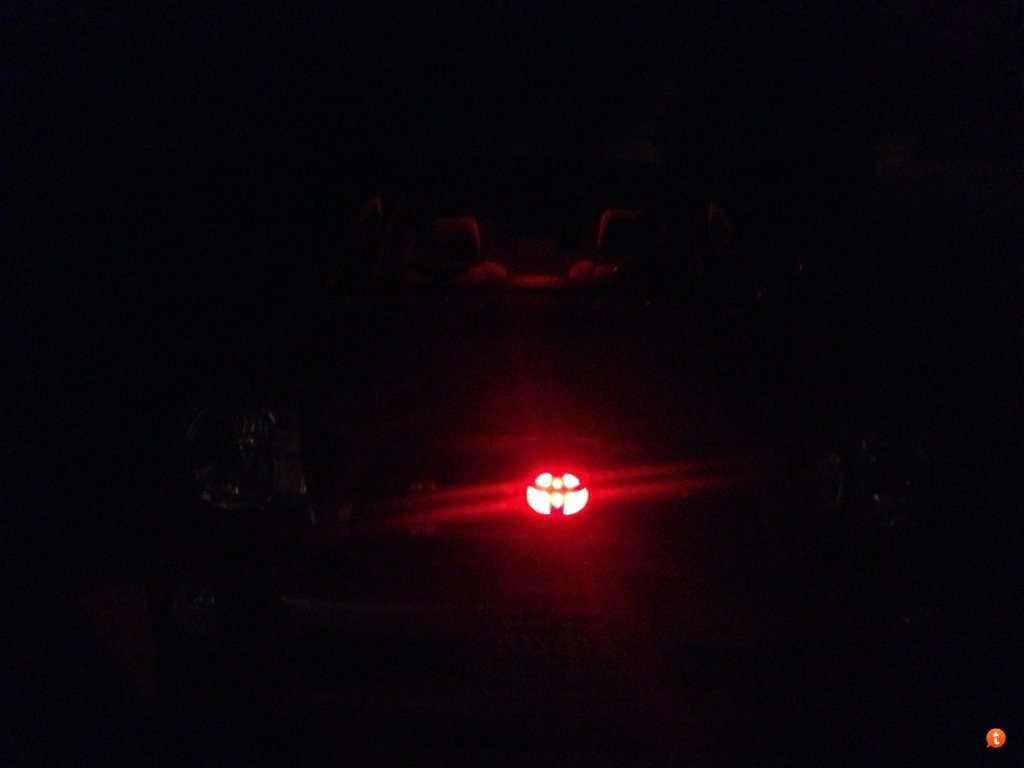

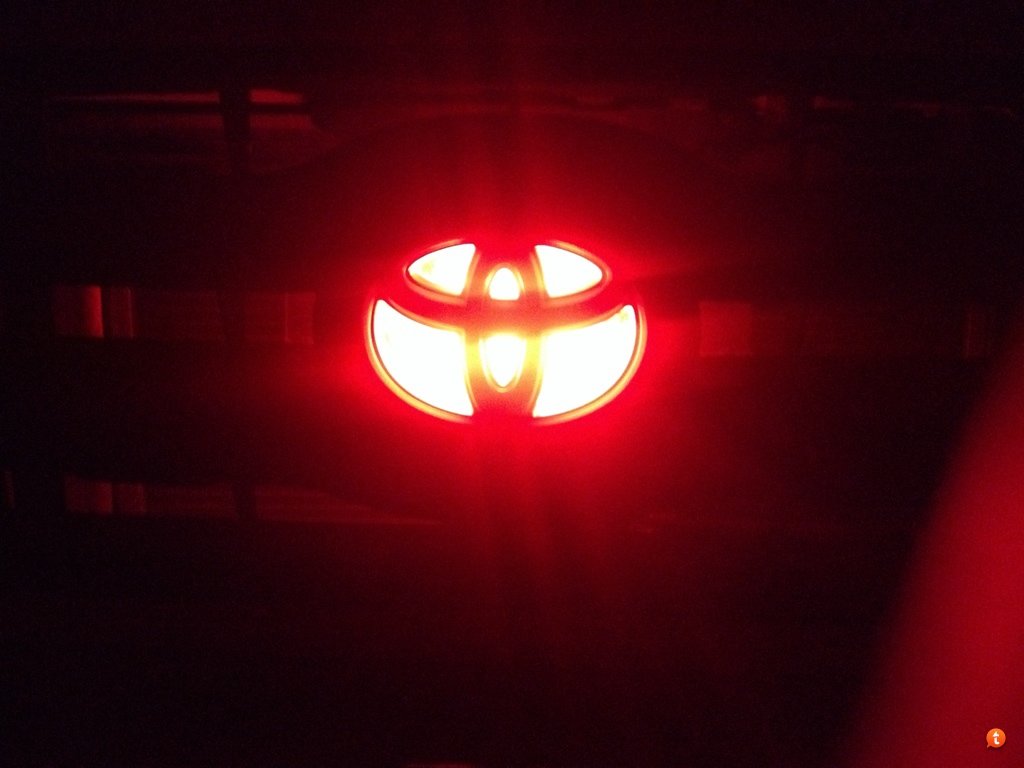

    I did it! After like 3-4 days of wiring and a bad switch i got it. [​IMG]
    [​IMG]
    You can just call me Red Iron Man. I did everything you did but with a red led pannel. Thanks for the awesome idea man!

  16. Mar 20, 2014 at 8:39 AM
    #56
    Rob the Russian

    Rob the Russian Well-Known Member

    Joined:
    May 31, 2013
    Member:
    #105285
    Messages:
    58
    Gender:
    Male
    First Name:
    Rob
    Fort Bragg NC
    Vehicle:
    08 PreRunner SR5
    can you post a picture of how you did the wiring?

  17. Mar 20, 2014 at 8:46 AM
    #57
    Alaska45

    Alaska45 Active Member

    Joined:
    Oct 25, 2013
    Member:
    #115270
    Messages:
    33
    Gender:
    Male
    First Name:
    Colt
    Nashville
    Vehicle:
    07 Tacoma TRD Sport
    Yeah when I get home ill upload a few

  18. Mar 20, 2014 at 9:48 AM
    #58
    Alaska45

    Alaska45 Active Member

    Joined:
    Oct 25, 2013
    Member:
    #115270
    Messages:
    33
    Gender:
    Male
    First Name:
    Colt
    Nashville
    Vehicle:
    07 Tacoma TRD Sport

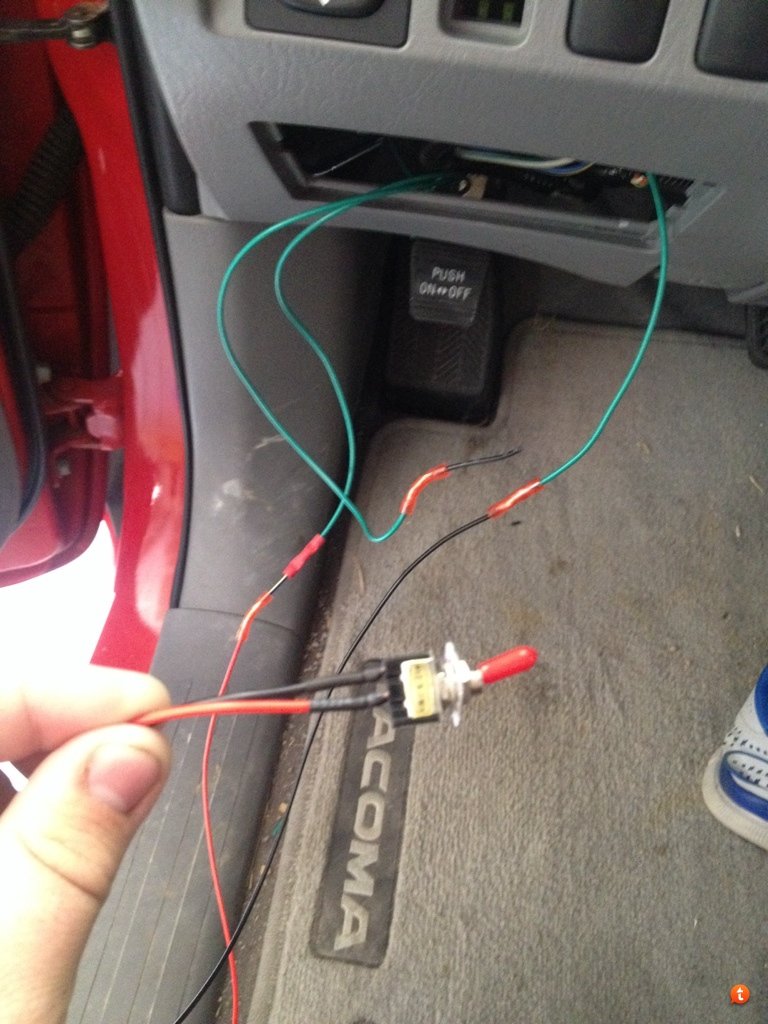

    Im waiting for a new switch right now but i couldnt wait that long to try it out so I went out and bought this little guy [​IMG]

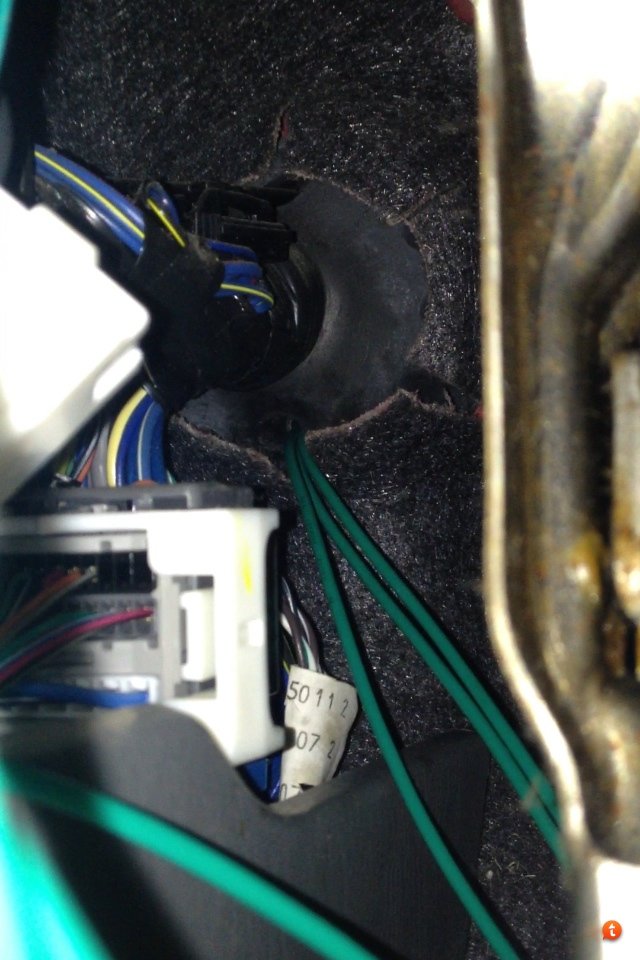

    That is just positive/negative wired down through this [​IMG]

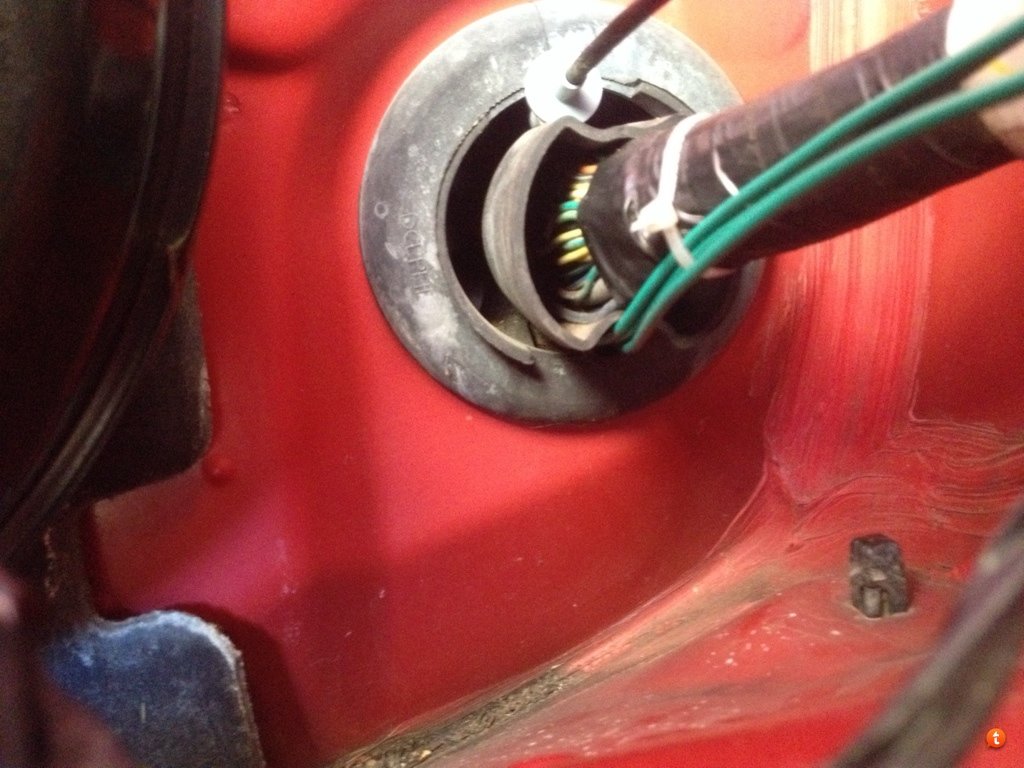

    And pops out right here
    [​IMG]

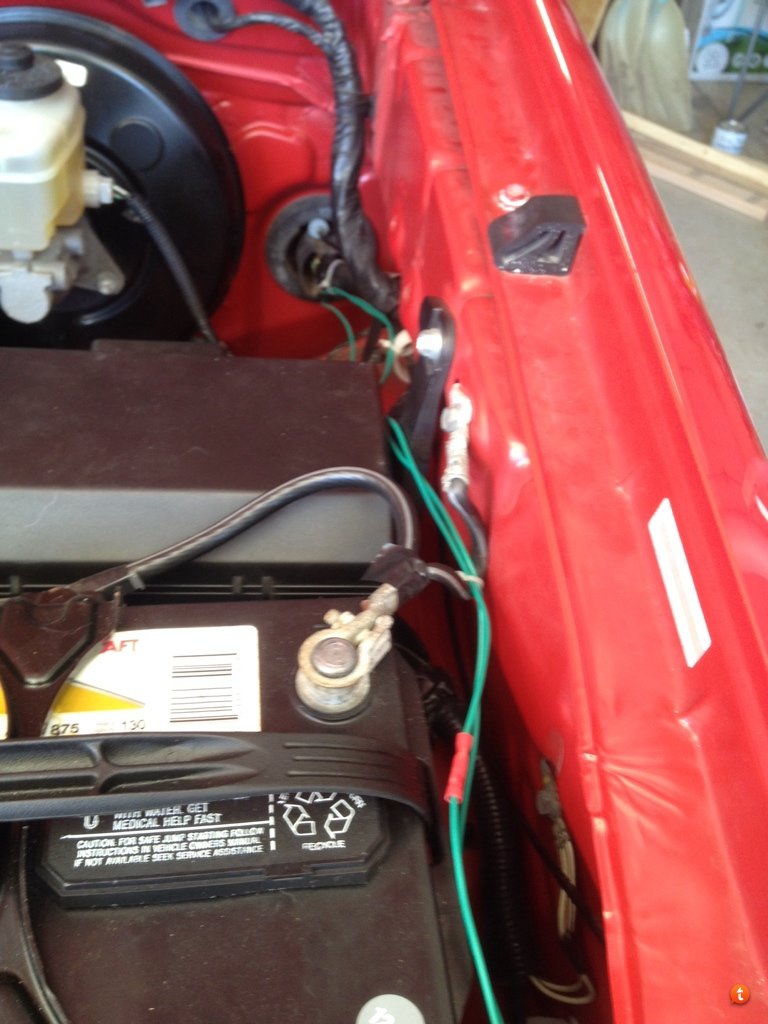

    Then from there I just ran along the side and to a relay [​IMG]
    [​IMG]

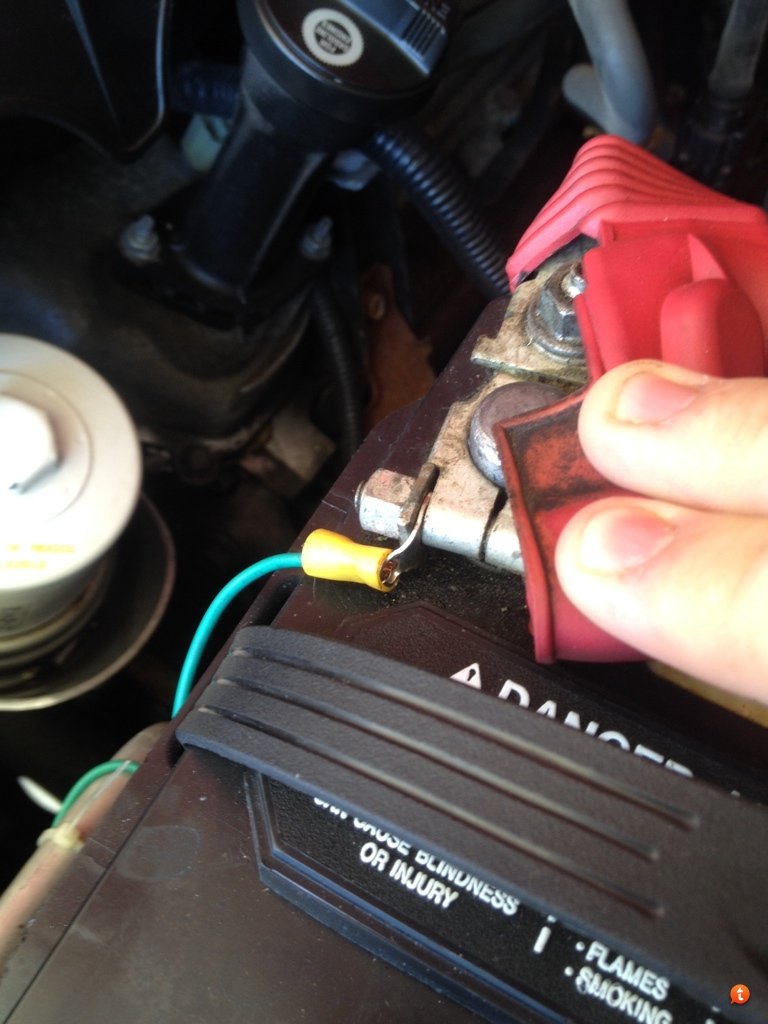

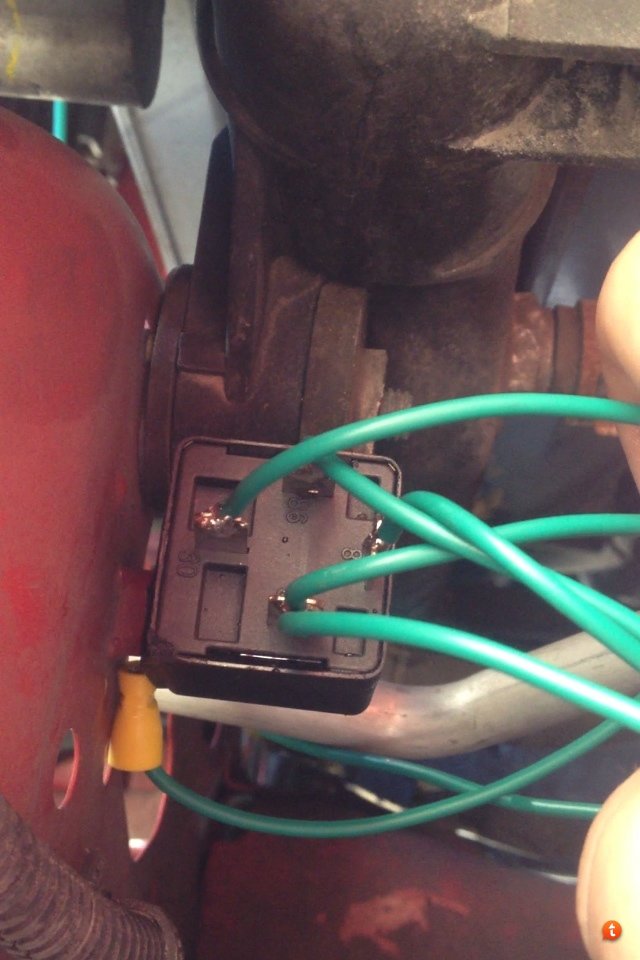

    The relay is the positive from the switch goes to pin 87, the negative or ground goes to 85(then from 85 to solid earth ground i just put it where j screwed my relay on), then a wire from 30 to the battery [​IMG]

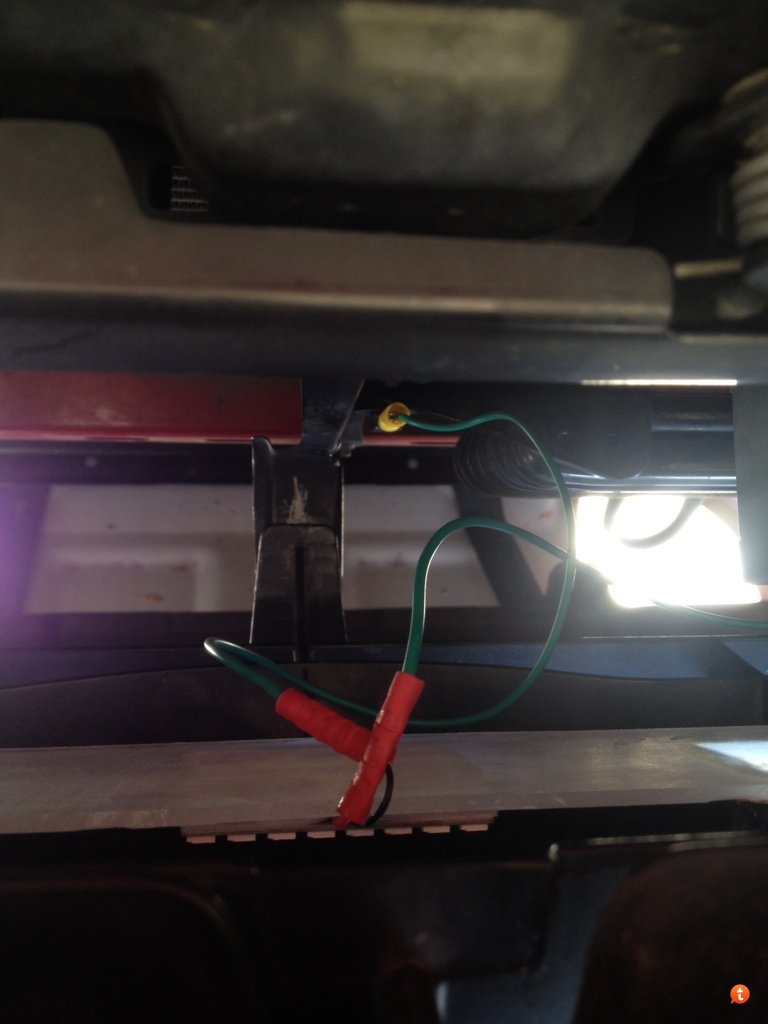

    And once thats all done all i did was take the positive from the led and hook it to pin 86 on the relay and grounded the negative[​IMG]
    If you have any questions please ask I knew i needed some help when I did it.

  19. Mar 21, 2014 at 8:23 AM
    #59
    Rob the Russian

    Rob the Russian Well-Known Member

    Joined:
    May 31, 2013
    Member:
    #105285
    Messages:
    58
    Gender:
    Male
    First Name:
    Rob
    Fort Bragg NC
    Vehicle:
    08 PreRunner SR5
    Thank you so much. i cant wait to try it!

  20. Mar 21, 2014 at 8:28 AM
    #60
    Alaska45

    Alaska45 Active Member

    Joined:
    Oct 25, 2013
    Member:
    #115270
    Messages:
    33
    Gender:
    Male
    First Name:
    Colt
    Nashville
    Vehicle:
    07 Tacoma TRD Sport

    Yeah no problem, let me know how it goes!
