Backup Camera Adapter for A/M Head Unit

I have a Pumpkin Android head unit to go into a 2014 TRD Sport. The head unit has a RCA plug and a reverse-in wire. The factory head unit has a plug in it with 4 wires, 6V for camera power and another for camera display, as shown in this post.

https://www.tacomaworld.com/threads/oem-camera-install-issues.319562/page-2#post-10729893

How can I connect the factory camera to the Android head unit? Is there an adapter etc?

Thanks!



Good luck with that. Lol. Just depin the 4 wires at the connector and run them independent of a plug. Just send 12 volts power, and any ground to the back up cam and splice in a standard AV cable to the other remaining 2 wires.

It will work. I promise you it will.



Is it 12V or 6V? Another post suggested 6V.

This video is a good guide.
https://www.tacomaworld.com/threads/oem-camera-connection-below-dash.30889/page-10#post-12824147



I picked up this Beatsonic adaptor for my Tundra. They may also sell something that will fit yours.

http://www.beatsonicusa.com/beat-sonic-bc1-bc28ep-back-up-camera-oem-interface-adapter.html



Wow, $134!!



If you can find something cheaper let me know. I didnt want to run a new camera and cable. Plus what does a new back up camera cost?

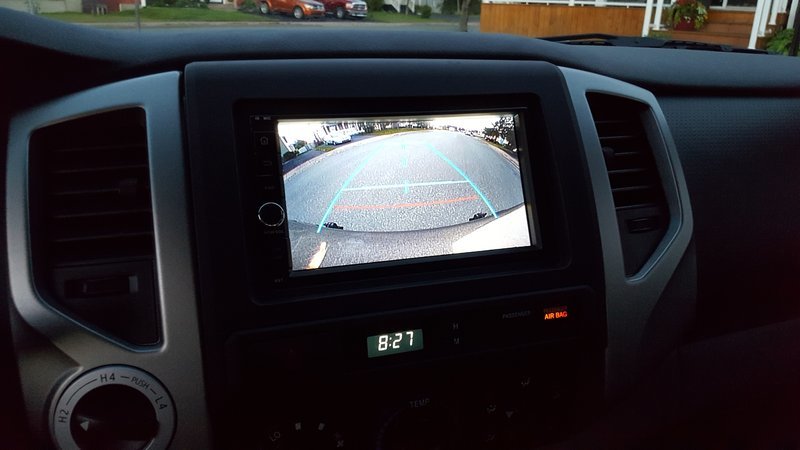

I followed the instructions in this video and it works.

https://www.tacomaworld.com/threads/oem-camera-connection-below-dash.30889/page-10#post-12824147



How much was the hu



http://www.***************/pumpkin-...s-navigation-system-support-3g-wifi-obd2.html

It's been replaced with a newer model.



How flawless is stuff?



I like mine. Only issues I have is the volume knob stops working to control the volume on occasion. There's a shortcut on the screen for volume or I just use my SW control. Also the physical BACK button may take 2 presses to go back for some reason. Internal storage is <1GB so not much room for apps unless you move to a SD card. But when you update, it moves back to internal storage. I don't have many apps anyway. I use MX player, Spotify, YouTube, GasBuddy, Fuelio, WeatherUnderground widgets, a speedo widget, Google Maps, Chrome, EX File Explorer, PowerAmp. That's about it.



Hi, new guy here.

Are there any online instructions or experienced hands here for the beat sonic adaptor install? I have a 2015 Base Tacoma that was prewired but I purchased an aftermarket Pioneer head unit. I'd like to do a walk through before installing.
