Backup camera ideas

Discussion in '1st Gen. Tacomas (1995-2004)' started by Kevins60, Jan 2, 2020.

  1. Jan 2, 2020 at 2:48 PM
    #1
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU
    Looking to upgrade the headunit and add a backup camera. I think I could mount this https://www.amazon.com/dp/B07H852D4...olid=3MSBFOZO44289&psc=1&ref_=lv_ov_lig_dp_it
    Next to the tailgate handle like a 2nd or 3rd gen. It looks like it should just fit and hopefully look like part of the black plastic handle itself. Not sure how I’m going to route the wire from the tailgate. I see there are drain holes but I’m wondering about wire getting pinched or chafing. I’ve seen pics of cameras on the tailgate on the forum but no description of how they routed he cable. Any thoughts?

  2. Jan 3, 2020 at 8:31 AM
    #2
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,568
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    If you are worried about chaffing where a wire runs through a hole (and you are right to be worried), you could look for a rubber grommet of the right size, put it into the hole, and then run the wire thru that. If the hole is not round, you might want to use some split flex tubing around the wire.

  3. Jan 3, 2020 at 9:11 AM
    #3
    ekul310

    ekul310 Well-Known Member

    Joined:
    Jun 1, 2016
    Member:
    #188443
    Messages:
    164
    Gender:
    Male
    First Name:
    Luke
    Pennsylvania
    Vehicle:
    2003 Black Double Cab 4x4 TRD OR
    Skinny 33 S/T Maxxs 3" Bastard Lift ARB Bullbar
    If I were to install one of these, I’d probably run thee wire under the bed and then into the cab through a hole in the floor (maybe O2 sensor wire) or up to the engine bay and through the firewall if there were enough wire.

  4. Jan 3, 2020 at 12:18 PM
    #4
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU
    I’ll take a walk up the block to see how the neighbor’s 3rd gen is run to get some ideas.

  5. Jan 3, 2020 at 12:29 PM
    #5
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU
    I figured I would run the cable up one of the frame rails cables tied to the run for the brake lights. I’ll need to find where the backup lights get their power or pull the console apart to see if I can pick up +12v for the backup lights there. If that pans out then it should be fairly simple to sneak the video cable along the floor and up under the dash. The trick for me is going to be getting the cable from the tailgate to somewhere under the truck.

  6. Jan 3, 2020 at 2:18 PM
    #6
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,351
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    If you're talking about mounting it to the black plastic, you will have a hard time finding the space. I thought about using one of those cameras with the stud, but the nut for mounting the handle is right where you want to mount it. Pull off your tailgate handle and you will see what I'm talking about.

    Someone on here actually removed/drilled out the nut on the handle and then used the stud on the camera to mount that side. If you go this route I believe you will need to widen the hole in the tailgate as well. Also, you won't be able to aim the camera unless you get one that can move independently from the mount.

  7. Jan 3, 2020 at 2:37 PM
    #7
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU
    That was exactly what I had in mind. I won’t know if I have to widen the hole or drill a new one until I have the camera in hand. I don’t think the nipple on the back of the camera will interfere with the rods inside the tailgate but I’ll be sure before I start blasting holes in sheet metal.

  8. Mar 11, 2020 at 2:31 PM
    #8
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU

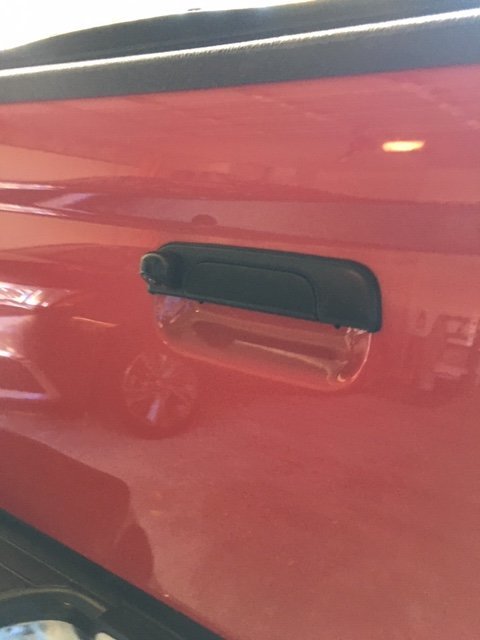

    A couple minutes with a 5/16 drill bit and it worked perfectly.DC2B4048-3190-485F-8E4E-0A6DB80E8623.jpg

    took me a while to get moving on this but Amazon had the HU I wanted for $50 off because the box was dented. That was all the motivation I needed. Used a grommet in a drain hole and flexible sheathing to go between the tailgate and under the bed

    tacoma_ca likes this.
  9. Mar 11, 2020 at 4:36 PM
    #9
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,376
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella

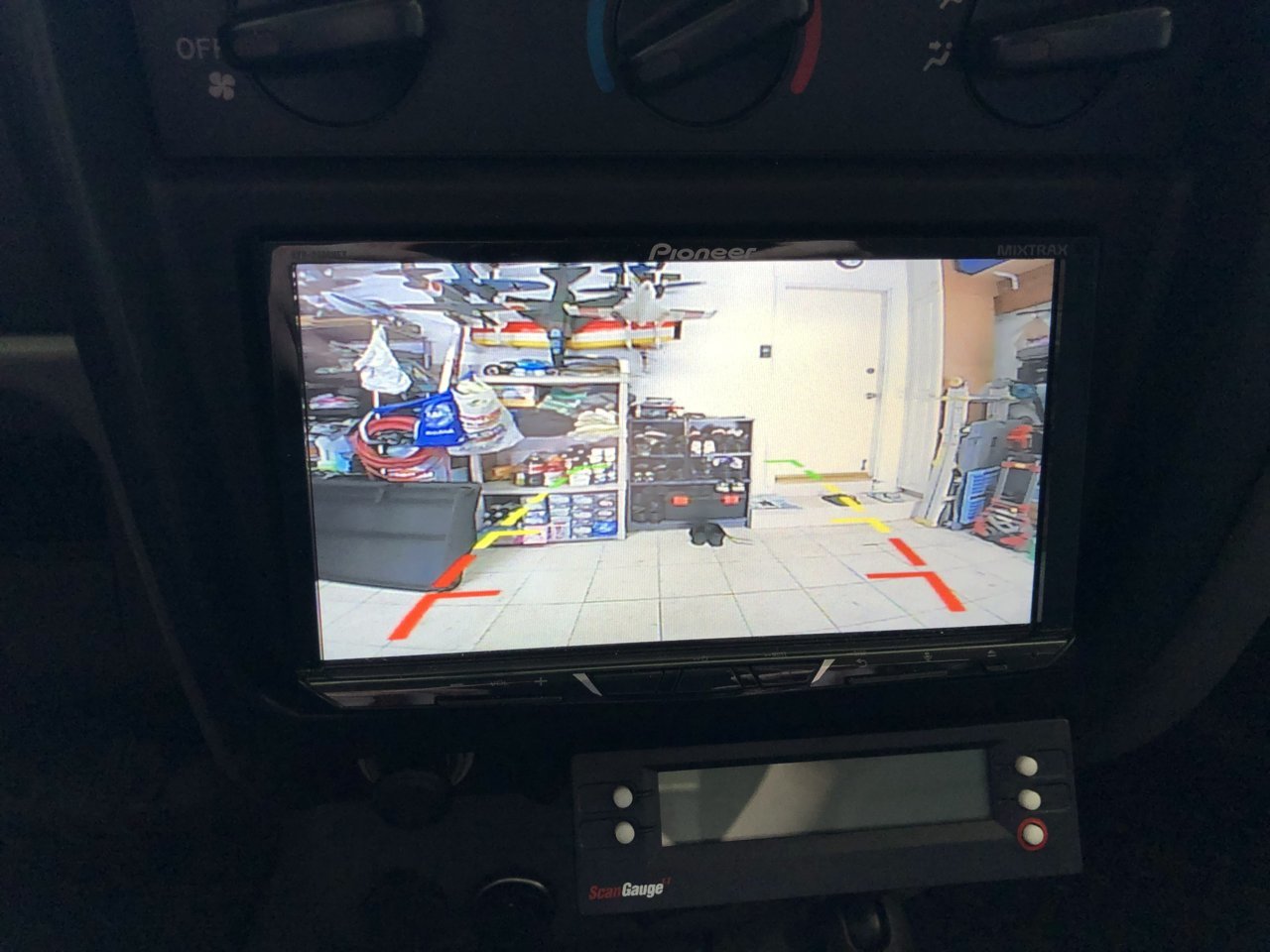

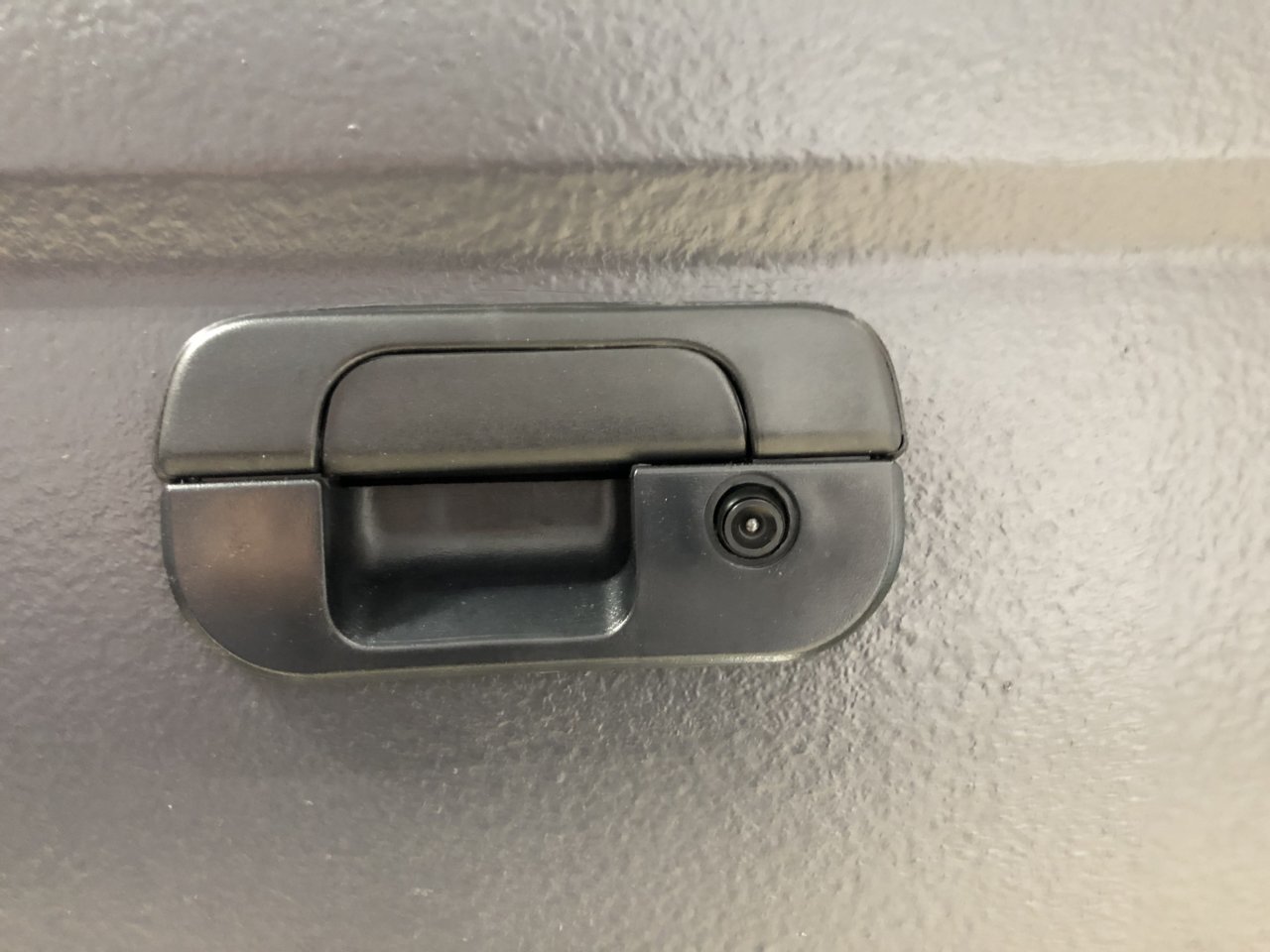

    What camera is it? Can you show a close-up picture of the mounting and the picture of the image shown on head unit? Please.

  10. Mar 11, 2020 at 6:56 PM
    #10
    jdmstuff

    jdmstuff Well-Known Member

    Joined:
    May 23, 2018
    Member:
    #254364
    Messages:
    431
    Gender:
    Male
    First Name:
    Derrick
    Torrance, CA and Las Vegas, NV
    Vehicle:
    '18 TRD OR DCSB AT, '08 TRD Sport DCSB AT, '03 TRD 3.4l 4x4 MT Supercharged
  11. Mar 11, 2020 at 7:02 PM
    #11
    wourkrsd

    wourkrsd Well-Known Member

    Joined:
    May 16, 2016
    Member:
    #187143
    Messages:
    48
    Komifornia
    Vehicle:
    2000 SR5/TRD 3.4 4x4 5 Spd. Ext Cab
  12. Mar 12, 2020 at 4:12 PM
    #12
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU
    @RysiuM its he camera I posted earlier in this thread https://www.amazon.com/dp/B07H852D4...olid=3MSBFOZO44289&psc=1&ref_=lv_ov_lig_dp_it

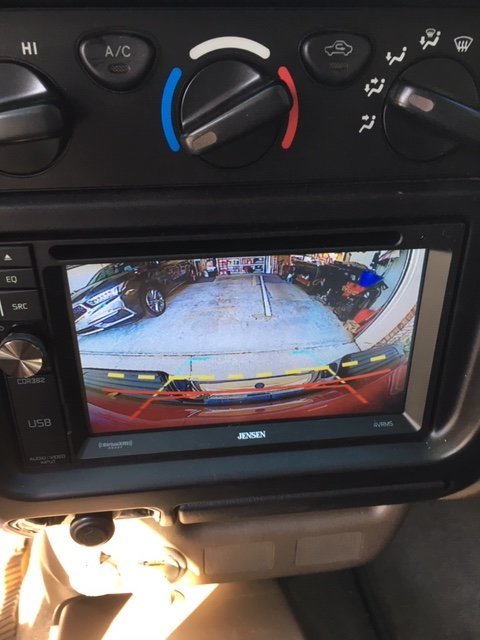

    I still need to adjust this, ideally the red line would be on the back edge of the bumper. The camera came with tapered grommets to do that, I just haven’t gotten around to it


    tacoma_ca and RysiuM like this.
  13. Mar 12, 2020 at 4:19 PM
    #13
    Kevins60

    Kevins60 [OP] Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276677
    Messages:
    368
    Gender:
    Male
    First Name:
    Kevin
    Odessa FL
    Vehicle:
    ‘04 4cyl SR5 AT Pre-runner Garage Queen
    Aftermarket Cruise Westin step bars Lund tonneau Jensen HU
    My goal was to stop backing into things. I can’t see the bumper in your camera

  14. Mar 12, 2020 at 4:26 PM
    #14
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,376
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    Bummer, Amazon does not ship it to Poland. Crap. I really like the image on your DD especially that you can see both corners of the rear bumper. This is what I was looking for. I guess I need to utilize my friends in USA to ship me this camera. Thanks a lot for the info.

  15. Mar 12, 2020 at 4:53 PM
    #15
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,351
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    I did a lot of research on cameras with super wide angle lenses. It is very difficult to find the actual angle of view because so many of them exaggerate it.

    I got this camera https://smile.amazon.com/gp/product/B07R7ZG243/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
    and it does have a SUPER wide view. I currently have it mounted on my topper rack, and I can see a whole street behind me including my bumper.
    It's great for backing out of parking spaces in a lot.

    I'm going to experiment with putting it just below the topper window handle to get a better view of the bumper.


    Also, I bought it for $60 a year ago, so that current price is a steal.

    jonesbt and tacoma_ca like this.
  16. Mar 12, 2020 at 5:11 PM
    #16
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    428
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    2003 Tacoma DC 4WD TRD, 2015 Tacoma DC 4x4 TRD
    I'm planning to fit a stud-mounted camera to a small hole drilled on the left side of my Pop'n'Lock. Looks good mounted in the lock hole, though.

    mattlang and jdmstuff like this.
  17. Mar 12, 2020 at 6:22 PM
    #17
    beez

    beez Well-Known Member

    Joined:
    Jan 2, 2017
    Member:
    #206391
    Messages:
    136
    Gender:
    Male
    First Name:
    Nate
    Vehicle:
    04 single cab PreRunner

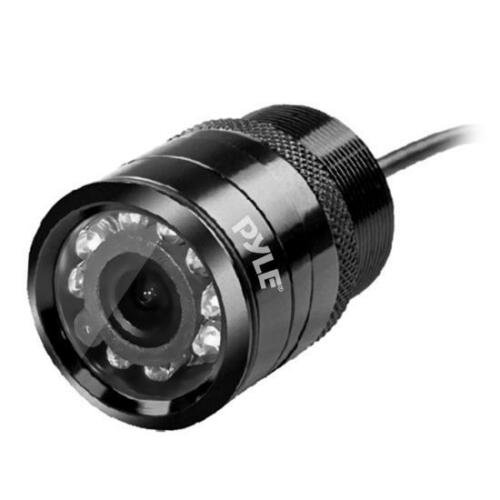

    I have one of these:


    I am going to install it just to the left of the tail gate handle, at the same height.

    This is so it won't be blocked by my hitch mounted bike holder.

    I am going to use a rear view mirror monitor thingy, if I can figure out how to get the metal mounting puck glued to my windshield.

    I think mine has a very light tint on the inside, so the glass glue doesn't work.

  18. Mar 12, 2020 at 7:09 PM
    #18
    jdmstuff

    jdmstuff Well-Known Member

    Joined:
    May 23, 2018
    Member:
    #254364
    Messages:
    431
    Gender:
    Male
    First Name:
    Derrick
    Torrance, CA and Las Vegas, NV
    Vehicle:
    '18 TRD OR DCSB AT, '08 TRD Sport DCSB AT, '03 TRD 3.4l 4x4 MT Supercharged

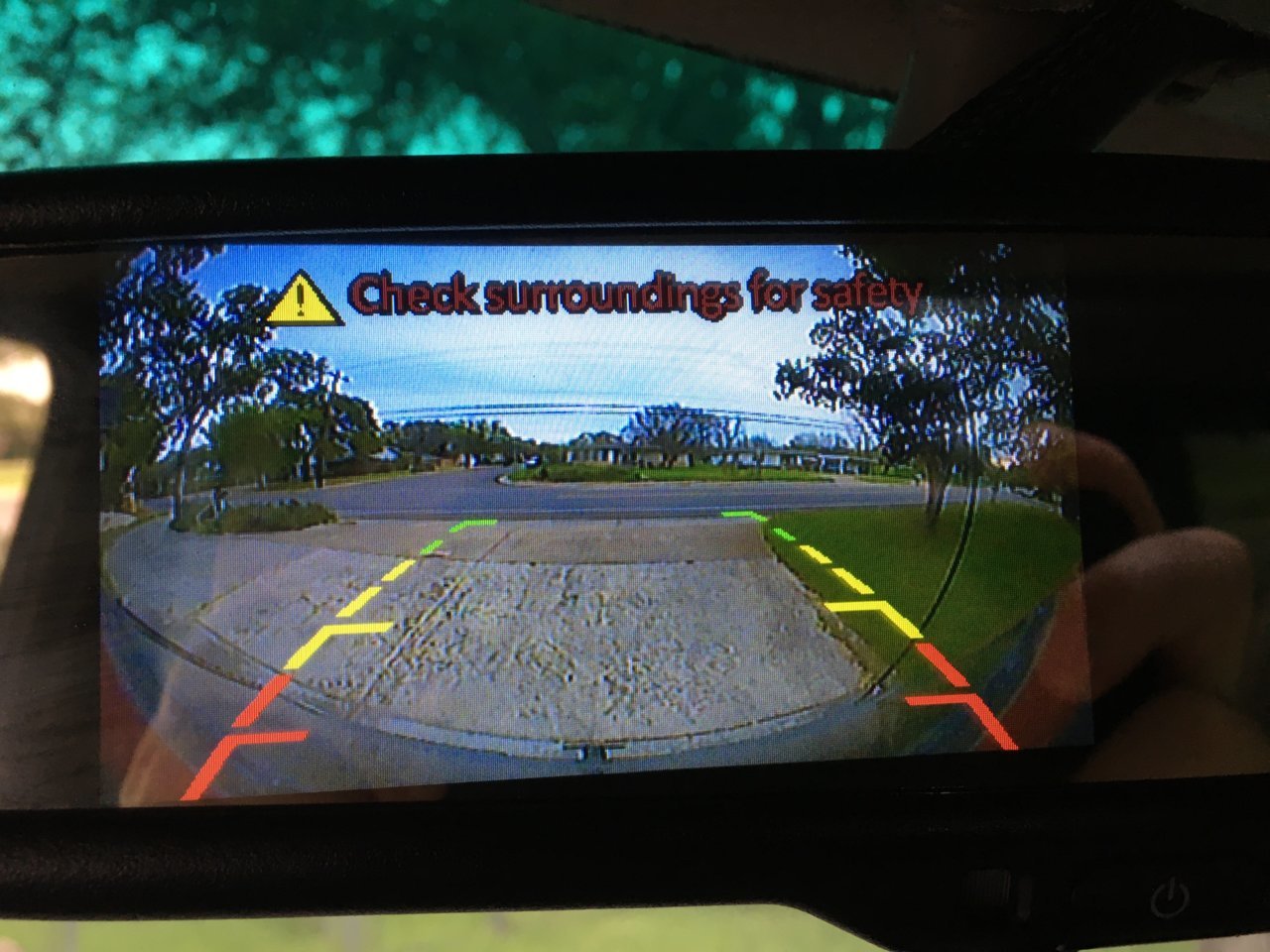

    I could have angled it more, but where the red lines are, I have about 12" before hitting the bumper. I'm good with that. I needed it more to see what's coming around the sides. My cap blocks a lot of my view from behind.

  19. Mar 13, 2020 at 1:36 AM
    #19
    7acoma

    7acoma Active Member

    Joined:
    Jun 4, 2019
    Member:
    #295318
    Messages:
    25
    Gender:
    Male
    Vehicle:
    96 Ext Cab White Tacoma
  20. Mar 13, 2020 at 6:24 AM
    #20
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    428
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    2003 Tacoma DC 4WD TRD, 2015 Tacoma DC 4x4 TRD
    Here's a late model Hilux (at a company up-armoring them for our Uncle). Note the camera mounted on the tailgate panel itself for those with courage enough to drill into it.

    Click on the image for full-size view.
    [​IMG]

    chrslefty likes this.
